激波内部结构的数值求解方法

朱清波 周文元 杨庆春 徐旭

朱清波, 周文元, 杨庆春, 徐旭. 激波内部结构的数值求解方法. 力学学报, 2023, 55(9): 1858-1866 doi: 10.6052/0459-1879-23-093
引用本文: 朱清波, 周文元, 杨庆春, 徐旭. 激波内部结构的数值求解方法. 力学学报, 2023, 55(9): 1858-1866 doi: 10.6052/0459-1879-23-093
Zhu Qingbo, Zhou Wenyuan, Yang Qingchun, Xu Xu. Numerical method for calculating the internal structure of shock waves. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55(9): 1858-1866 doi: 10.6052/0459-1879-23-093
Citation: Zhu Qingbo, Zhou Wenyuan, Yang Qingchun, Xu Xu. Numerical method for calculating the internal structure of shock waves. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55(9): 1858-1866 doi: 10.6052/0459-1879-23-093

激波内部结构的数值求解方法

doi: 10.6052/0459-1879-23-093
基金项目: 国家自然科学基金资助项目 (51706010)
详细信息
    通讯作者:

    朱清波, 博士研究生, 主要研究方向为激波、超燃冲压发动机、高超声速推进系统. E-mail: qingbozhu@foxmail.com

    杨庆春, 副教授, 主要研究方向为燃烧流动、超燃冲压发动机、高超声速推进系统. E-mail: yangqc@buaa.edu.cn

  • 中图分类号: O354.5, V211.3, V411.3

NUMERICAL METHOD FOR CALCULATING THE INTERNAL STRUCTURE OF SHOCK WAVES

  • 摘要: 激波的内部流动由一组具有渐近边界条件的流体力学方程控制, 这类常微分方程的边值问题一般用打靶法将其转化为初值问题迭代求解. 然而经过验证计算, 打靶法不能有效地求解激波结构, 流动参数总是先趋近波后值, 随后迅速偏离, 直至发散. 文章基于相平面中微分方程相轨迹图的拓扑结构对系统的动力学性质进行了定性分析, 指出波后点是鞍点, 其附近的方向分布导致正向推进计算中任何微小误差都会被放大, 使积分曲线偏离解曲线, 引起发散. 针对该问题, 提出一种逆向推进的数值求解策略及相应的初值确定方法, 先用L’Hôpital法则和Euler格式在波后点附近确定一合理初值点, 然后从该点向上游积分. 由于逆向推进的积分曲线总会被方向场导向波前点, 随着积分的进行误差会不断降低, 计算是无条件收敛的. 为进一步验证该方法的有效性, 对单原子气体中波前马赫数1.01 ~ 100的正激波进行了计算, 结果表明, 逆向推进法能正确而高效地求解激波内部结构.

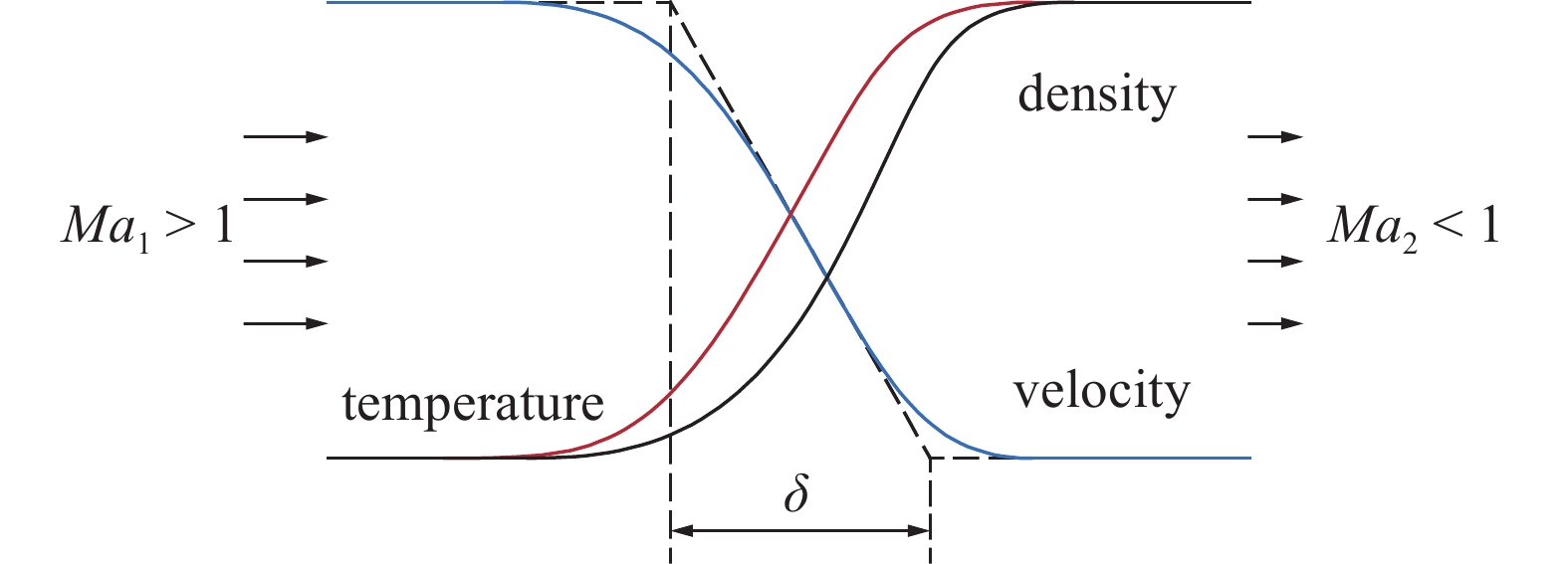

  • 图  1  激波内部结构示意图

    Figure  1.  Schematic diagram of the internal structure of shock waves

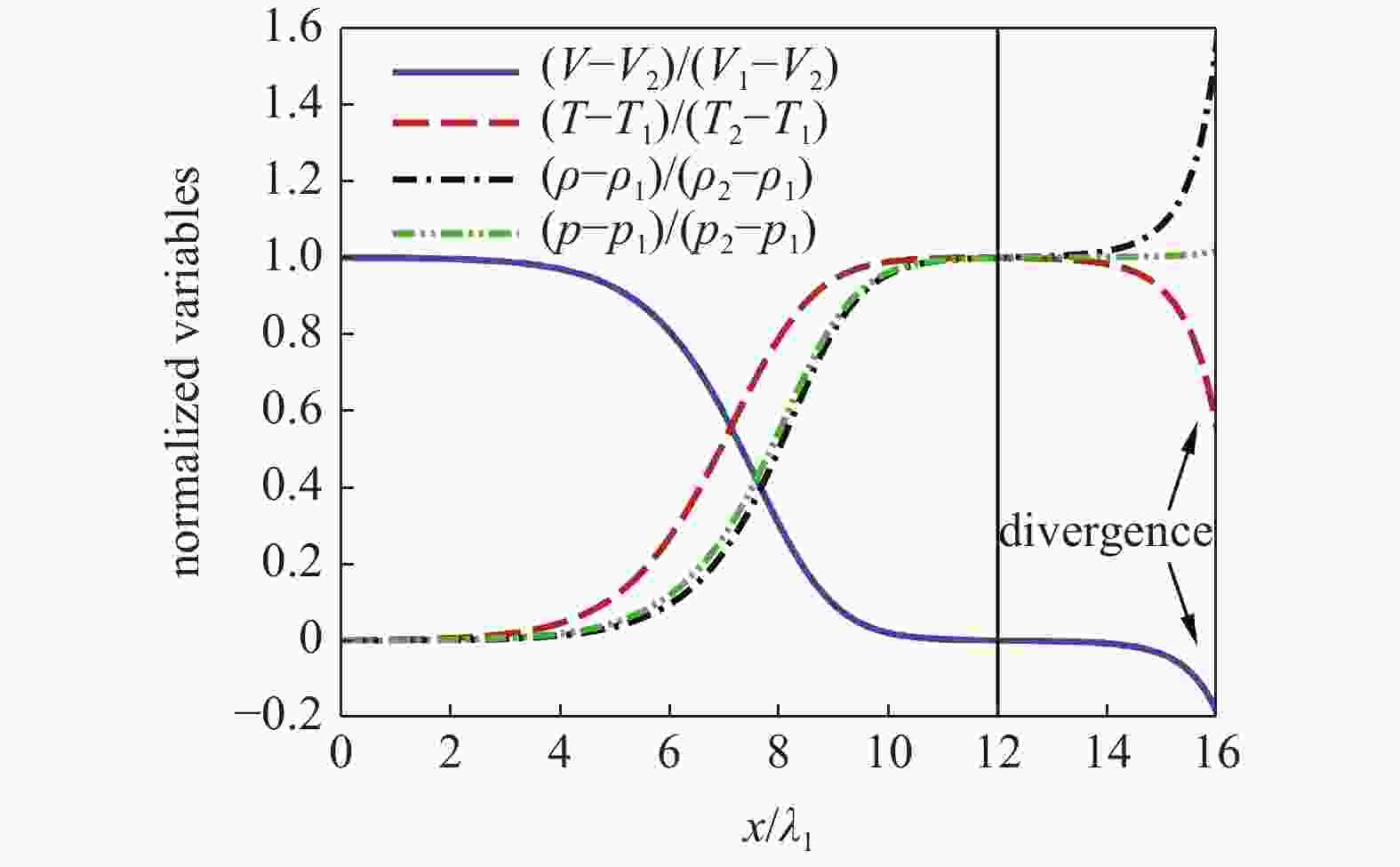

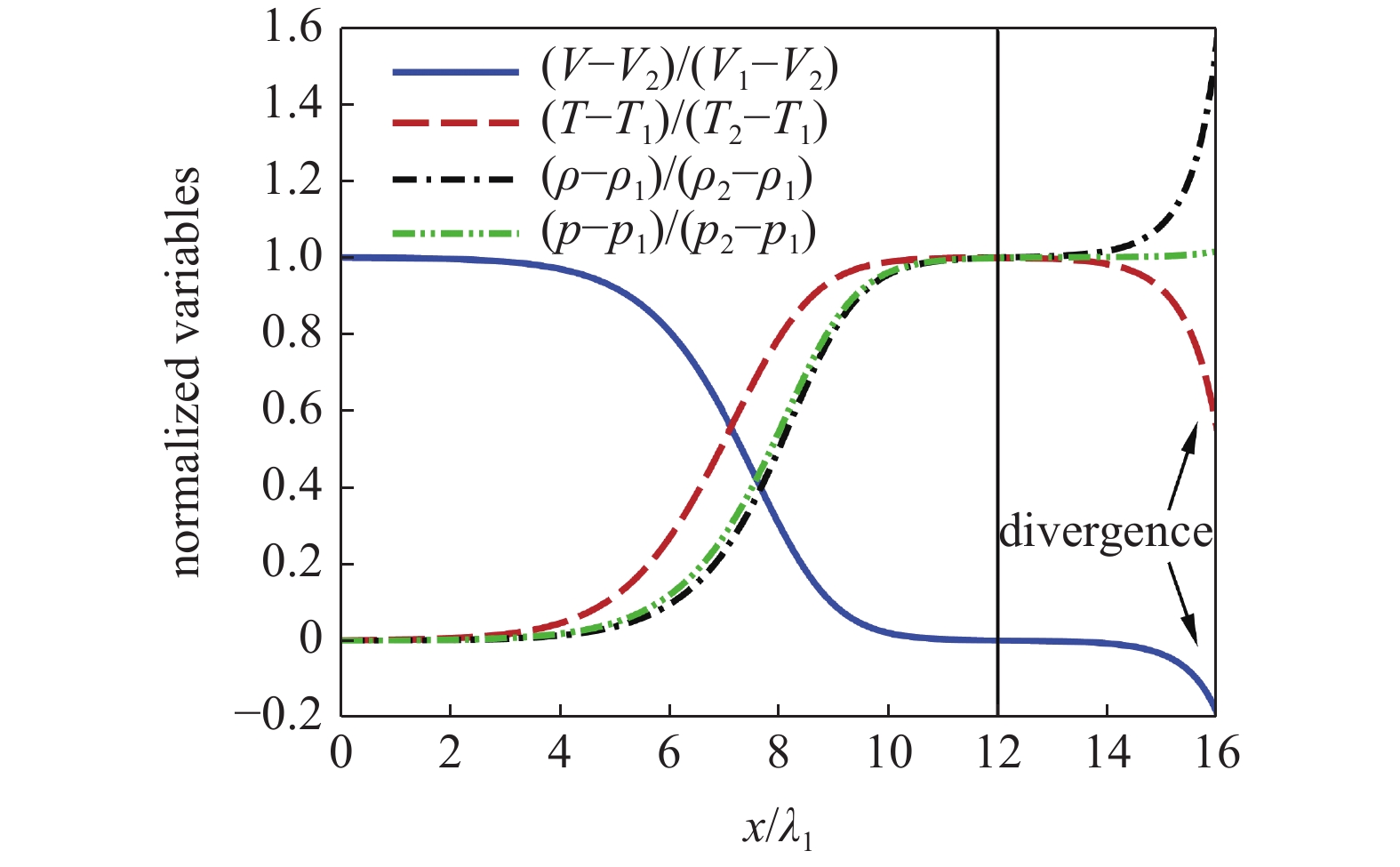

    图  2  打靶法计算的单原子气体激波结构 (Ma1 = 2)

    Figure  2.  Profile of a Ma1 = 2 shock in a monoatomic gas calculated with the shooting method

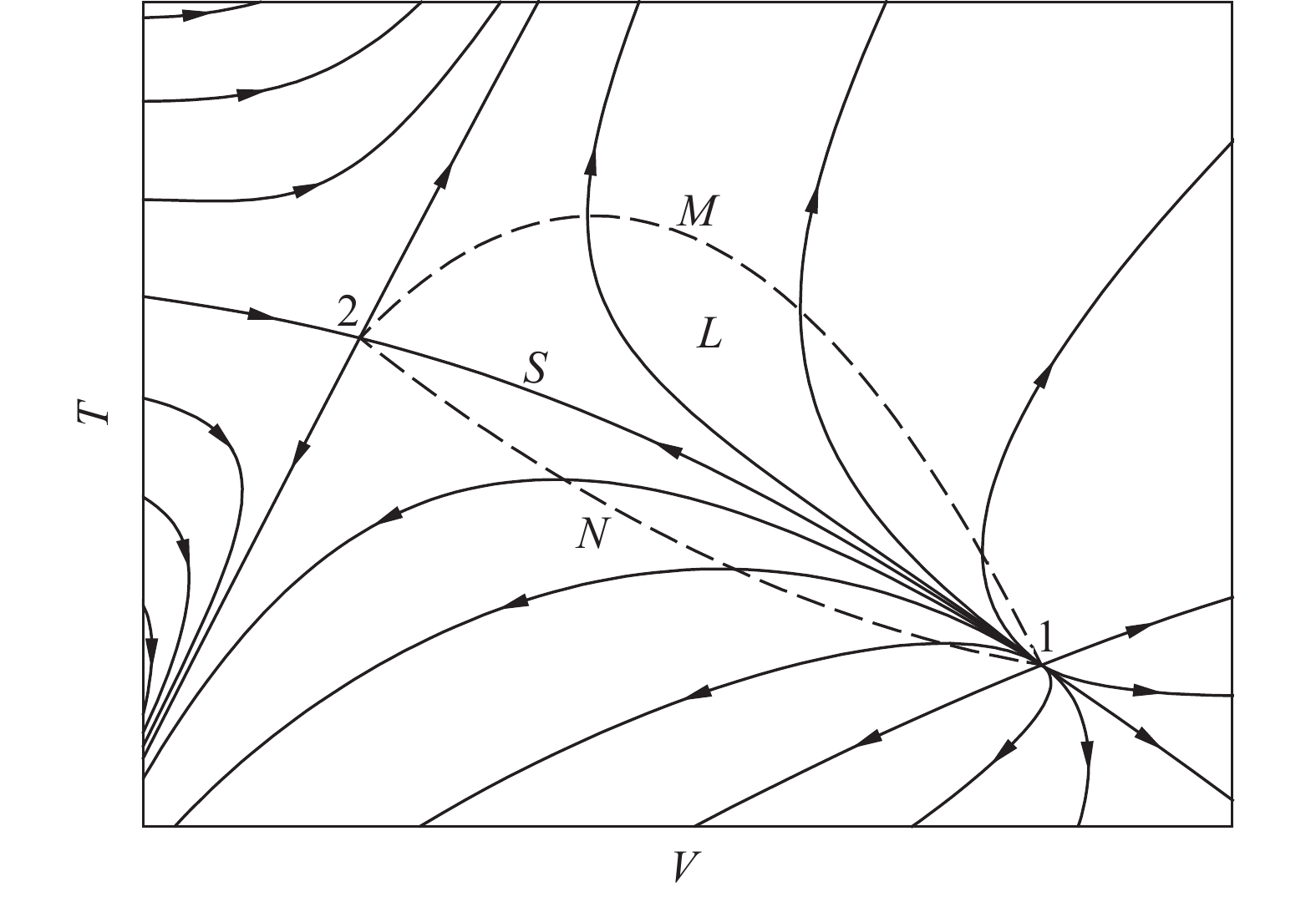

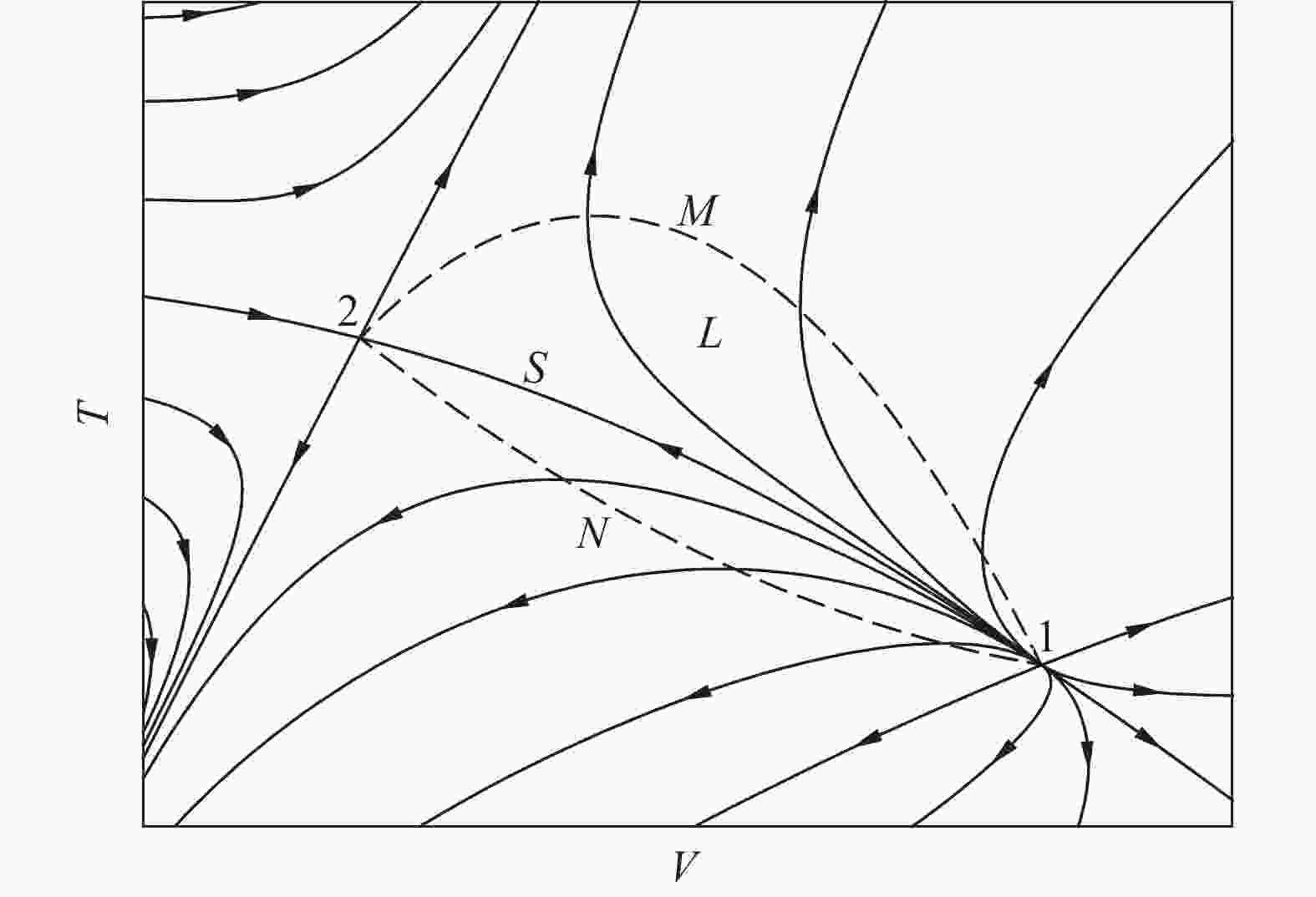

    图  3  V-T平面中的相轨迹

    Figure  3.  Phase portrait in the V-T plane

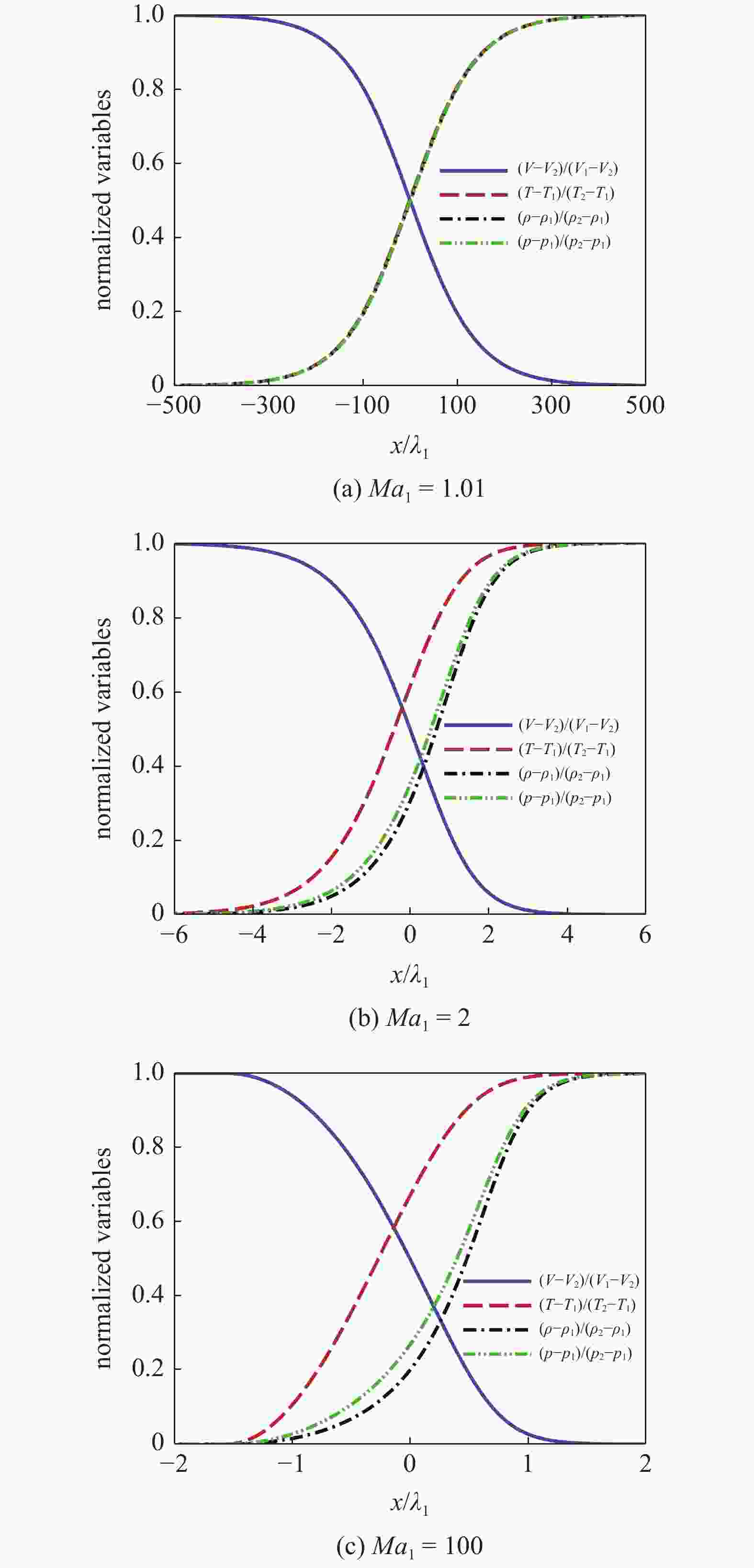

    图  4  逆向推进法计算的单原子气体激波结构

    Figure  4.  Shock structures in a monatomic gas calculated with the backward marching method

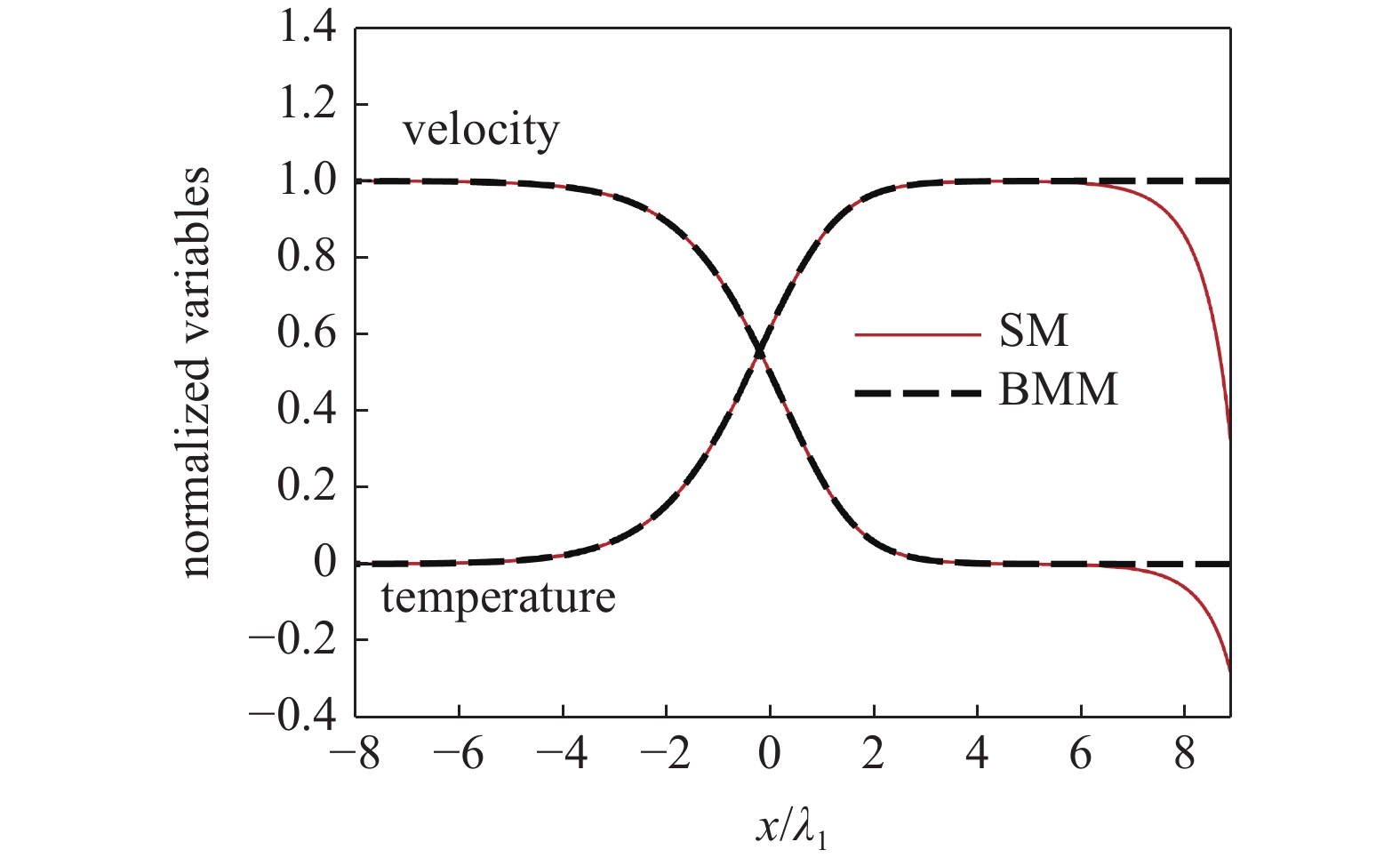

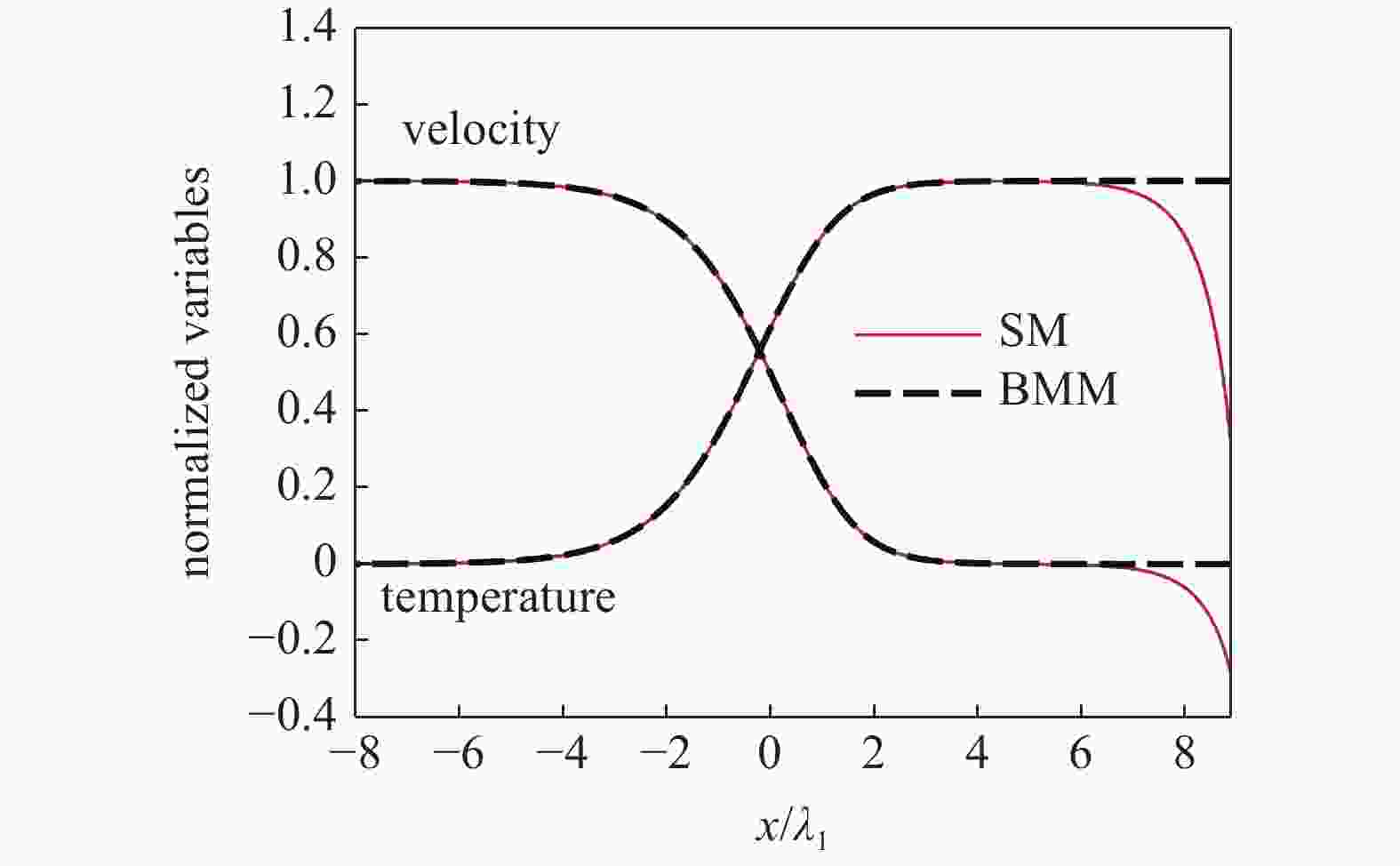

    图  5  打靶法与逆向推进法对激波结构的计算结果的对比

    Figure  5.  Comparison between the shock profiles calculated with the shooting method and the backward marching method

  • [1] 沈青. 稀薄气体动力学. 北京: 国防工业出版社, 2003

    Shen Ching. Rarefied Gas Dynamics. Berlin: Springer-Verlag, 2005 (in Chinese)
    [2] Kosuge S, Kuo H, Aoki K. A kinetic model for a polyatomic gas with temperature-dependent specific heats and its application to shock-wave structure. Journal of Statistical Physics, 2019, 177(2): 209-251 doi: 10.1007/s10955-019-02366-5
    [3] Taniguchi S, Arima T, Ruggeri T, et al. Thermodynamic theory of the shock wave structure in a rarefied polyatomic gas: beyond the Bethe-Teller theory. Physical Review E, 2014, 89(1): 013025 doi: 10.1103/PhysRevE.89.013025
    [4] Mostafavi P, Zank GP. The structure of shocks in the very local interstellar medium. Astrophysical Journal Letters, 2018, 854(1): L15 doi: 10.3847/2041-8213/aaab54
    [5] Shanmugasundaram V, Murty SSR. Structure of shock waves at re-entry speeds. Journal of Plasma Physics, 1980, 23(1): 43-70 doi: 10.1017/S0022377800022157
    [6] Chikitkin AV, Rogov BV, Tirsky GA, et al. Effect of bulk viscosity in supersonic flow past spacecraft. Applied Numerical Mathematics, 2015, 93: 47-60 doi: 10.1016/j.apnum.2014.01.004
    [7] Timokhin MY, Tikhonov M, Mursenkova IV, et al. Shock-wave thickness influence to the light diffraction on a plane shock wave. Physics of Fluids, 2020, 32(11): 116103 doi: 10.1063/5.0029612
    [8] Bondorf J, Ivanov YB, Zimanyi J. Structure of a shock front in nuclear matter. Physica Scripta, 1981, 24(3): 514-518 doi: 10.1088/0031-8949/24/3/005
    [9] Alsmeyer H. Density profiles in argon and nitrogen shock waves measured by the absorption of an electron beam. Journal of Fluid Mechanics, 1976, 74(3): 497-513 doi: 10.1017/S0022112076001912
    [10] Pham-Van-Diep GC, Ervin DA, Muntz EP. Nonequilibrium molecular motion in a hypersonic shock wave. Science, 1989, 245(4918): 624-626 doi: 10.1126/science.245.4918.624
    [11] Greenshields CJ, Reese JM. The structure of shock waves as a test of Brenner’s modifications to the Navier-Stokes equations. Journal of Fluid Mechanics, 2007, 580: 407-429 doi: 10.1017/S0022112007005575
    [12] Xu K, Huang J. A unified gas-kinetic scheme for continuum and rarefied flows. Journal of Computational Physics, 2010, 229(20): 7747-7764 doi: 10.1016/j.jcp.2010.06.032
    [13] Jadhav RS, Agrawal A. Strong shock as a stringent test for Onsager-Burnett equations. Physical Review E, 2020, 102(6): 063111 doi: 10.1103/PhysRevE.102.063111
    [14] Cai Z. Moment method as a numerical solver: challenge from shock structure problems. Journal of Computational Physics, 2021, 444: 110593 doi: 10.1016/j.jcp.2021.110593
    [15] Becker R. Stoßwelle und detonation. Zeitschrift für Physik, 1922, 8(1): 321-362
    [16] Myong RS. Analytical solutions of shock structure thickness and asymmetry in Navier-Stokes/Fourier framework. AIAA Journal, 2014, 52(5): 1075-1080 doi: 10.2514/1.J052583
    [17] Uribe FJ, Velasco RM. Exact solutions for shock waves in dilute gases. Physical Review E, 2019, 100(2): 023118 doi: 10.1103/PhysRevE.100.023118
    [18] Patel A, Singh M. Exact solution of shock wave structure in a non-ideal gas under constant and variable coefficient of viscosity and heat conductivity. Shock Waves, 2019, 29(3): 427-439 doi: 10.1007/s00193-018-0855-8
    [19] Mott-Smith HM. The solution of the Boltzmann equation for a shock wave. Physical Review, 1951, 82(6): 885-892 doi: 10.1103/PhysRev.82.885
    [20] Valentini P, Schwartzentruber TE. Large-scale molecular dynamics simulations of normal shock waves in dilute argon. Physics of Fluids, 2009, 21(6): 066101 doi: 10.1063/1.3149866
    [21] 沈青, 胡振华, 徐晓燕等. 正激波结构与反射的蒙特卡罗模拟. 空气动力学学报, 1991, 9(4): 435-441 (Shen Qing, Hu Zhenhua, Xu Xiaoyan, et al. Monte Carlo simulation of the structure and reflection of normal shock waves. Acta Aerodynamica Sinica, 1991, 9(4): 435-441 (in Chinese)

    Shen Qing, Hu Zhenhua, Xu Xiaoyan, et al. Monte Carlo simulation of the structure and reflection of normal shock waves. Acta Aerodynamica Sinica, 1991, 9(4): 435-441 (in Chinese)
    [22] Bird GA. Molecular Gas Dynamics and the Direct Simulation of Gas Flows. New York: Oxford University Press, 1994
    [23] Hicks BL, Yen S, Reilly BJ. The internal structure of shock waves. Journal of Fluid Mechanics, 1972, 53(1): 85-111 doi: 10.1017/S0022112072000059
    [24] Ohwada T. Structure of normal shock waves: direct numerical analysis of the Boltzmann equation for hard-sphere molecules. Physics of Fluids, 1993, 5(1): 217-234 doi: 10.1063/1.858777
    [25] 李志辉, 张涵信. 激波结构内流动问题的气体运动论描述. 空气动力学学报, 2007, 25(4): 411-418 (Li Zhihui, Zhang Hanxin. Gas-kinetic description of shock wave structures by solving Boltzmann model equation. Acta Aerodynamica Sinica, 2007, 25(4): 411-418 (in Chinese)

    Li Zhihui, Zhang Hanxin. Gas-kinetic description of shock wave structures by solving Boltzmann model equation. Acta Aerodynamica Sinica, 2007, 25(4): 411-418 (in Chinese)
    [26] Xu K, Tang L. Nonequilibrium Bhatnagar-Gross-Krook model for nitrogen shock structure. Physics of Fluids, 2004, 16(10): 3824-3827 doi: 10.1063/1.1783372
    [27] Inamuro T, Sturtevant B. Numerical study of discrete-velocity gases. Physics of Fluids, 1990, 2(12): 2196-2203 doi: 10.1063/1.857825
    [28] Morris AB, Varghese PL, Goldstein DB. Monte Carlo solution of the Boltzmann equation via a discrete velocity model. Journal of Computational Physics, 2011, 230(4): 1265-1280 doi: 10.1016/j.jcp.2010.10.037
    [29] Uribe FJ, Velasco RM. Shock-wave structure based on the Navier-Stokes-Fourier equations. Physical Review E, 2018, 97(4): 043117 doi: 10.1103/PhysRevE.97.043117
    [30] 李馨东, 赵英奎, 胡宗民等. 基于第二黏性的Navier-Stokes方程组求解正激波结构. 计算物理, 2020, 37(5): 505-513 (Li Xindong, Zhao Yingkui, Hu Zongmin, et al. Investigation of normal shock structure by using Navier-Stokes equations with the second viscosity. Chinese Journal of Computational Physics, 2020, 37(5): 505-513 (in Chinese) doi: 10.19596/j.cnki.1001-246x.8121

    Li Xindong, Zhao Yingkui, Hu Zongmin, et al. Investigation of normal shock structure by using Navier-Stokes equations with the second viscosity. Chinese Journal of Computational Physics, 2020, 37(5): 505-513 (in Chinese) doi: 10.19596/j.cnki.1001-246x.8121
    [31] García-Colín LS, Velasco RM, Uribe FJ. Beyond the Navier-Stokes equations: Burnett hydrodynamics. Physics Reports, 2008, 465(4): 149-189 doi: 10.1016/j.physrep.2008.04.010
    [32] 赵文文. 高超声速流动Burnett方程稳定性与数值计算方法研究. [博士论文]. 杭州: 浙江大学, 2014

    Zhao Wenwen. Linearized stability analysis and numerical computation of Burnett equations in hypersonic flow. [PhD Thesis]. Hangzhou: Zhejiang University, 2014 (in Chinese)
    [33] Torrilhon M. Modeling nonequilibrium gas flow based on moment equations. Annual Review of Fluid Mechanics, 2016, 48: 429-458 doi: 10.1146/annurev-fluid-122414-034259
    [34] Al-Ghoul M, Eu BC. Generalized hydrodynamics and shock waves. Physical Review E, 1997, 56(3): 2981-2992 doi: 10.1103/PhysRevE.56.2981
    [35] Jiang Z, Zhao W, Chen W, et al. Computation of shock wave structure using a simpler set of generalized hydrodynamic equations based on nonlinear coupled constitutive relations. Shock Waves, 2019, 29(8): 1227-1239 doi: 10.1007/s00193-018-0876-3
    [36] Chapman S, Cowling TG. The Mathematical Theory of Non-Uniform Gases, 3rd ed. Cambridge: Cambridge University Press, 1970
    [37] Gorban AN. Hilbert’s sixth problem: the endless road to rigour. Philosophical Transactions of the Royal Society A, 2018, 376(2118): 20170238 doi: 10.1098/rsta.2017.0238
    [38] Elizarova TG, Khokhlov AA, Montero S. Numerical simulation of shock wave structure in nitrogen. Physics of Fluids, 2007, 19(6): 068102 doi: 10.1063/1.2738606
    [39] Taylor GI. The conditions necessary for discontinuous motion in gases. Proceedings of the Royal Society of London Series A, 1910, 84(571): 371-377
