近海风电结构台风环境动力灾变与控制

王立忠 洪义 高洋洋 黄铭枫 国振 赖踊卿 朱嵘华 杨秦敏 何奔

王立忠, 洪义, 高洋洋, 黄铭枫, 国振, 赖踊卿, 朱嵘华, 杨秦敏, 何奔. 近海风电结构台风环境动力灾变与控制. 力学学报, 2023, 55(3): 567-587 doi: 10.6052/0459-1879-22-529
引用本文: 王立忠, 洪义, 高洋洋, 黄铭枫, 国振, 赖踊卿, 朱嵘华, 杨秦敏, 何奔. 近海风电结构台风环境动力灾变与控制. 力学学报, 2023, 55(3): 567-587 doi: 10.6052/0459-1879-22-529
Wang Lizhong, Hong Yi, Gao Yangyang, Huang Mingfeng, Guo Zhen, Lai Yongqing, Zhu Ronghua, Yang Qinmin, He Ben. Dynamic catastrophe and control of offshore wind power structures in typhoon environment. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55(3): 567-587 doi: 10.6052/0459-1879-22-529
Citation: Wang Lizhong, Hong Yi, Gao Yangyang, Huang Mingfeng, Guo Zhen, Lai Yongqing, Zhu Ronghua, Yang Qinmin, He Ben. Dynamic catastrophe and control of offshore wind power structures in typhoon environment. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55(3): 567-587 doi: 10.6052/0459-1879-22-529

近海风电结构台风环境动力灾变与控制

doi: 10.6052/0459-1879-22-529
基金项目: 国家自然科学基金(52238008, 52122906, 51939010), 海南省财政科技计划资助ZDKJ202019
详细信息
    通讯作者:

    王立忠, 教授, 主要研究方向为海洋岩土工程、海上风电. E-mail: wanglz@zju.edu.cn

    洪义, 教授, 主要研究方向为软土力学、海洋岩土工程. E-mail: yi_hong@zju.edu.cn

  • 中图分类号: P75, TM614

DYNAMIC CATASTROPHE AND CONTROL OF OFFSHORE WIND POWER STRUCTURES IN TYPHOON ENVIRONMENT

  • 摘要: 开发海上风能是实现我国碳达峰、碳中和“3060”目标的重要举措. 海上风电的大型化是降本增效的主要途径, 已成为近年来的发展趋势. 目前海上风电基础结构设计标准由欧洲领衔; 区别于欧洲的海洋环境与地质条件, 我国海上风电结构面临强台风、软弱土等挑战, 极易发生动力灾变, 大型化可能进一步加剧风电结构灾变风险. 防灾降载的关键在于深入理解海上风电相关的空气动力学、水动力学、结构动力学、土动力学等的一体化耦合与智能控制. 本文围绕台风环境风机动力灾变与控制相关领域的交叉力学问题, 结合笔者团队近年研究成果, 较为详细地评述了国内外最新研究进展情况, 主要包括: 台风风场及其诱发的波浪场工程尺度性状, 台风环境中风机气动、水动载荷及智能控制策略, 风浪流多向载荷联合作用下基础失效模式与结构灾变机制, 以及考虑风浪流-结构-基础-海床-风机控制耦合作用的一体化分析设计方法. 在此基础上, 建议了我国海上风电大型化进程中仍有待突破的研究重点: 需更深入掌握台风风场工程尺度性状、台风和台风浪载荷特性, 需探索台风环境中的风机控制策略, 亟需建立台风环境中大型海上风电整机一体化设计理论并开发国产化工业软件. 上述相关领域的突破, 对于我国实现海上风能产业的全球引领, 具有重要的科学意义和工程应用价值.

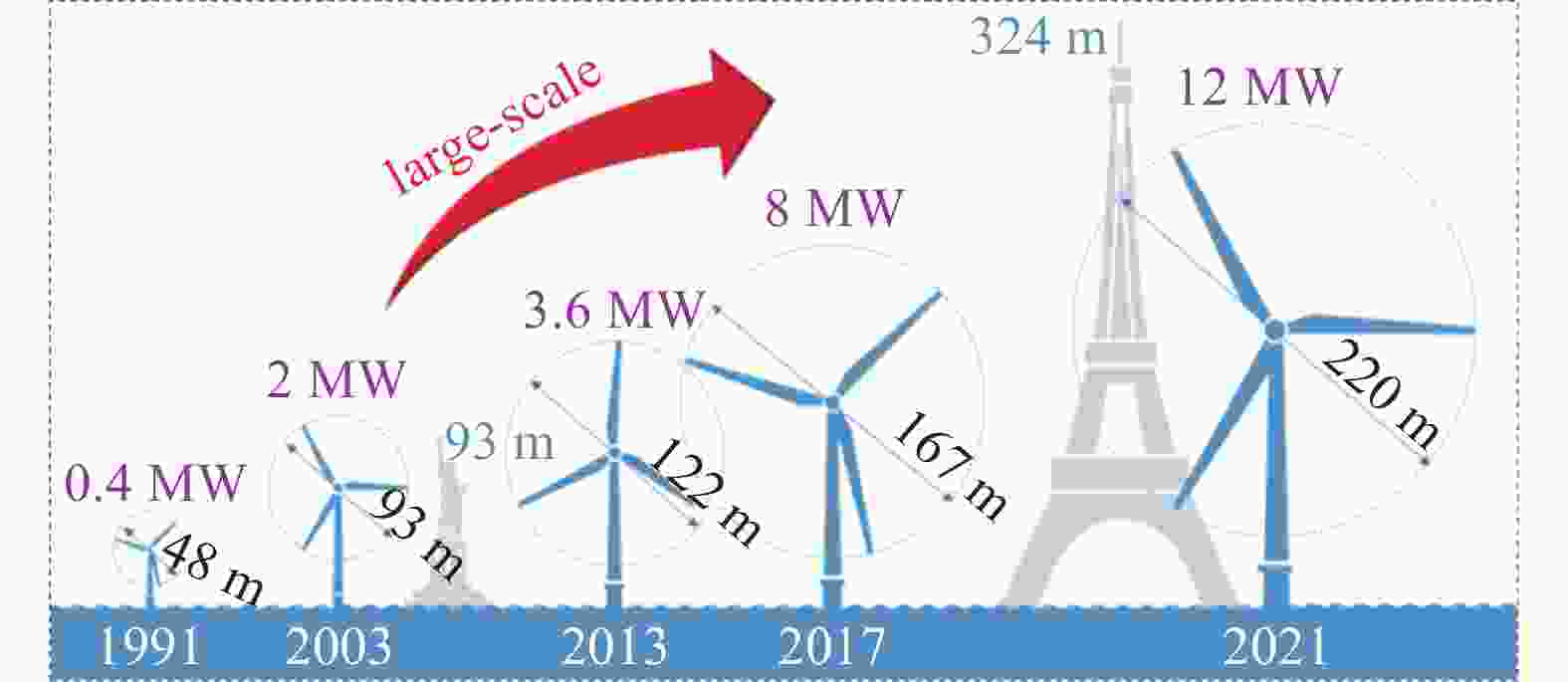

  • 图  1  海上风机大型化发展史

    Figure  1.  Development history of large-scale offshore wind turbines

    图  2  台风风场特征及其移动路径

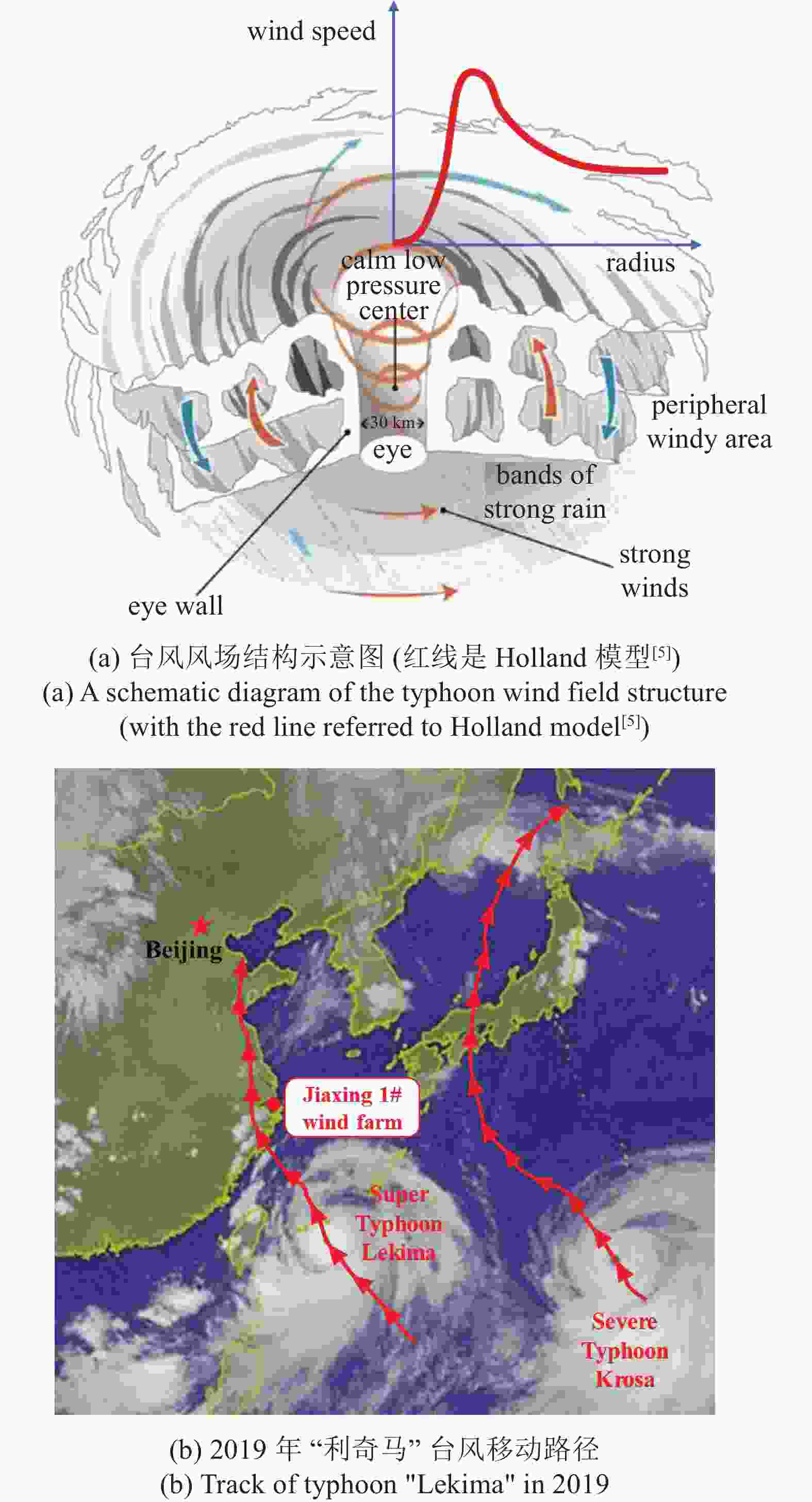

    Figure  2.  Characteristics of typhoon and its track

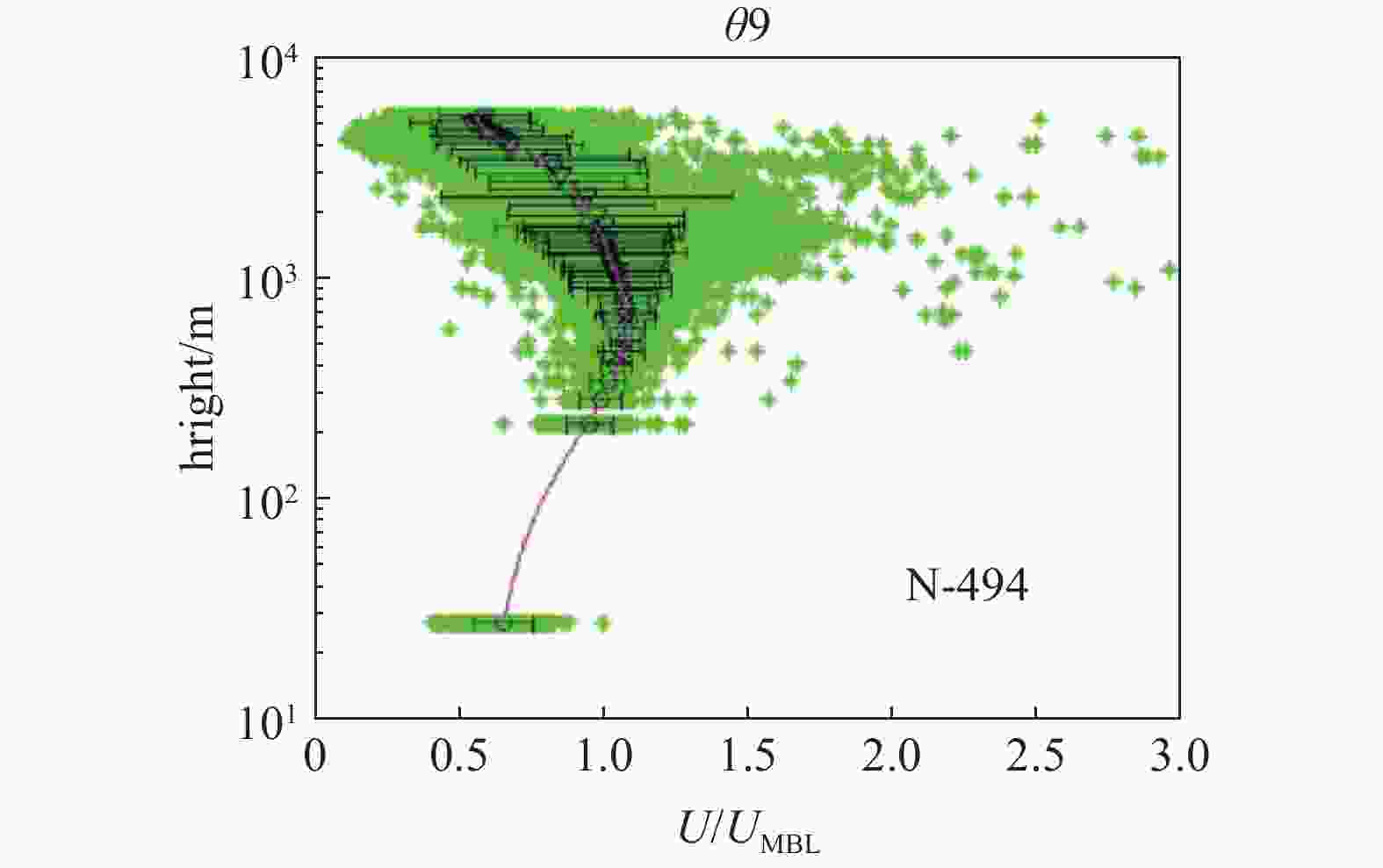

    图  3  台风平均风剖面[8]

    Figure  3.  Mean profile of typhoon[8]

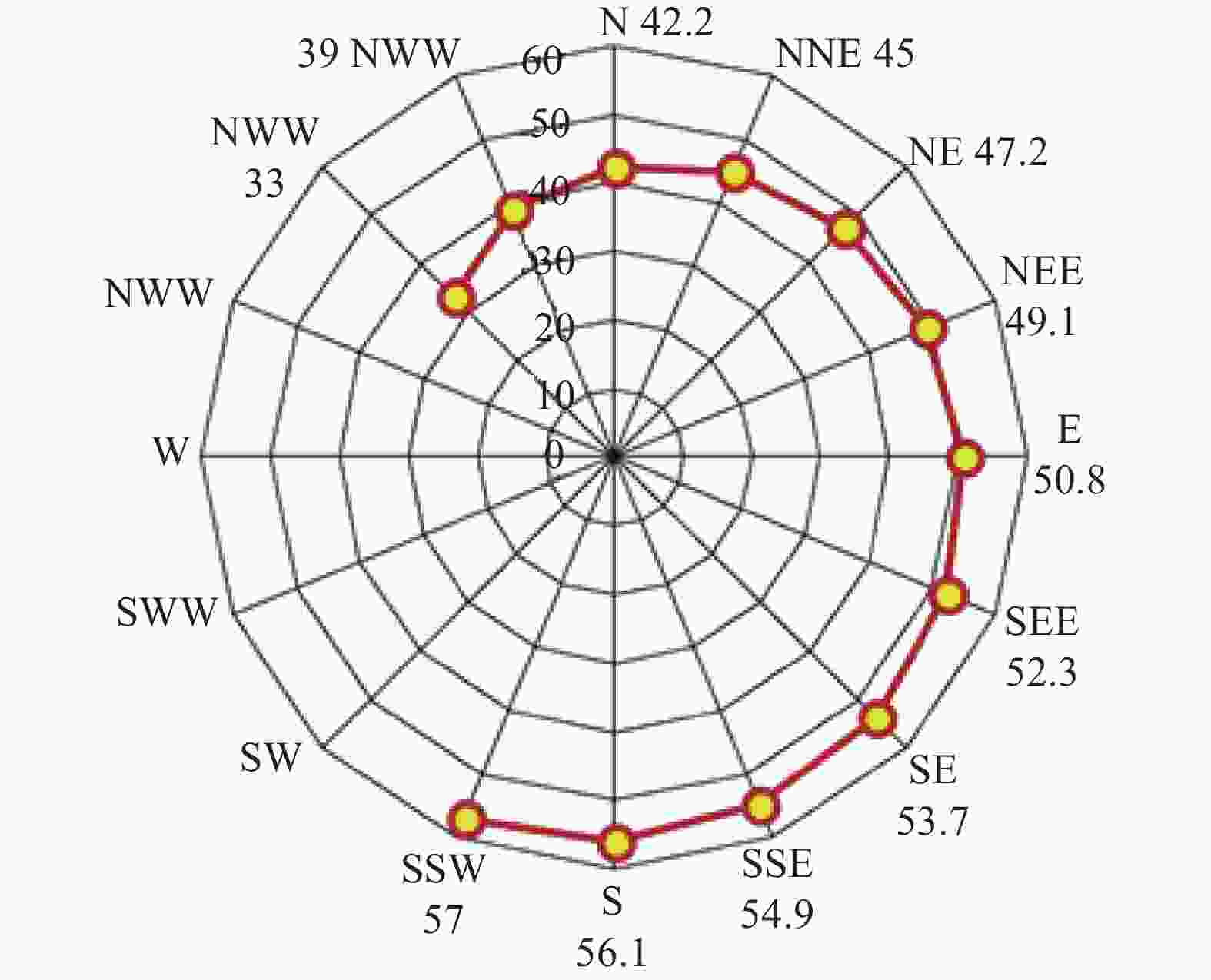

    图  4  “天兔”(2013)台风10 m高度风向和风速变化规律[11]

    Figure  4.  Variation of wind direction and speed for "Usagi" (2013) at 10 m height[11]

    图  5  实测台风风谱与各通用风功率谱比较

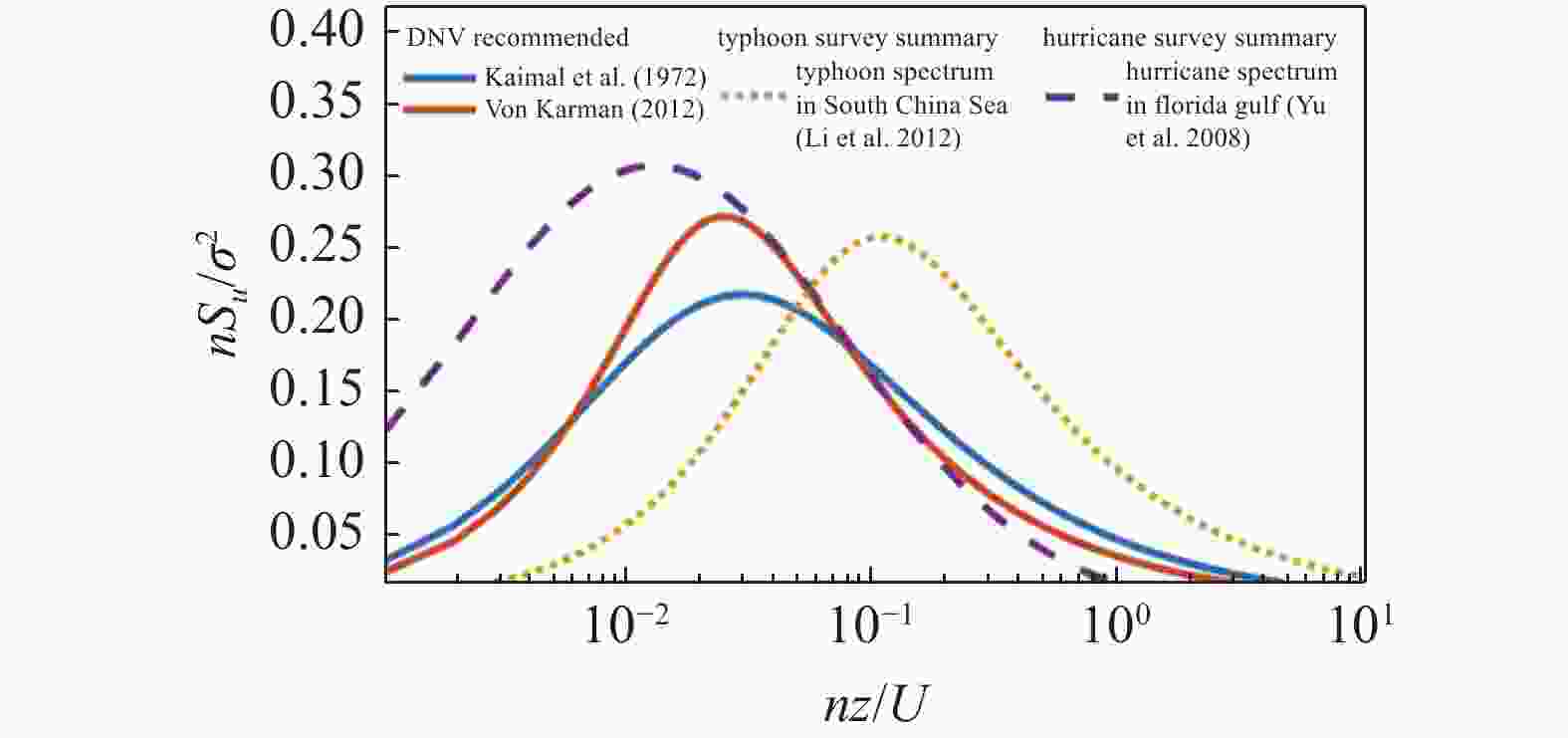

    Figure  5.  Comparison between measured typhoon wind spectrum and general wind power spectrum

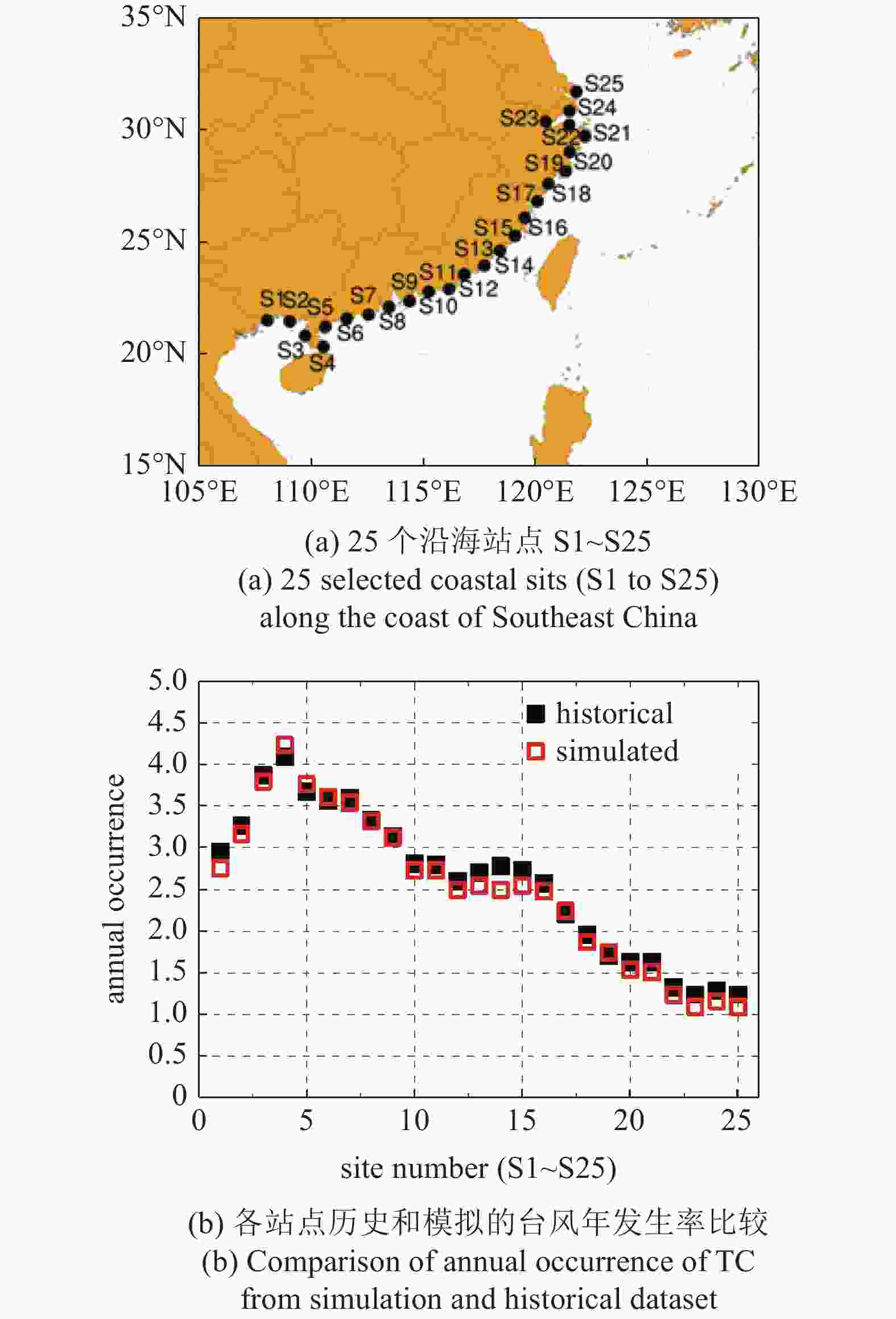

    图  6  中国沿海各站点历史和模拟的台风统计参数

    Figure  6.  Comparison of TC parameters from simulation and historical dataset for coastal sites of China

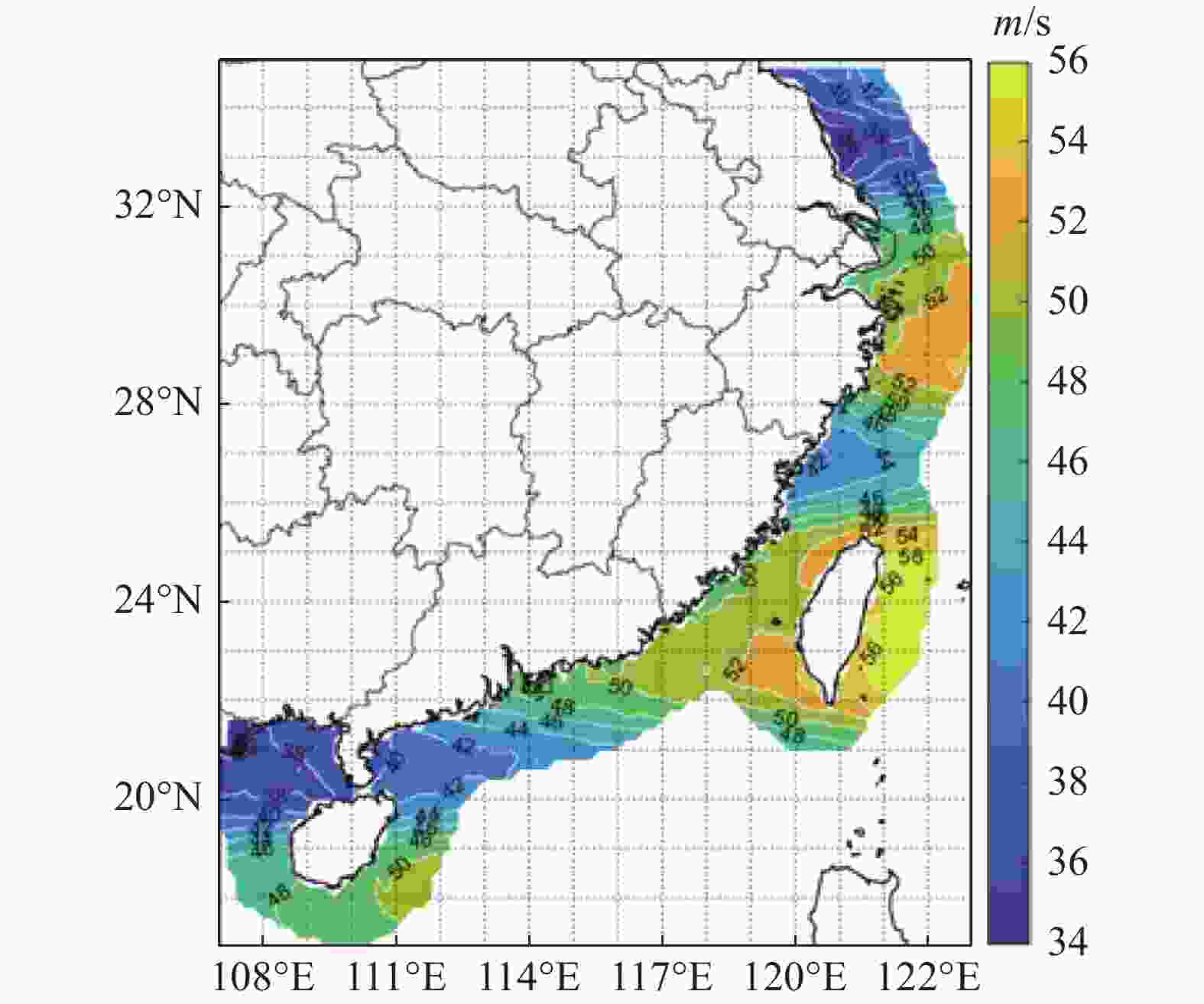

    图  7  到21世纪末期在高排放条件下我国东南近海区域50年重现期台风设计风速分区图

    Figure  7.  Typhoon wind speed distribution of 50-year return periods under high emission condition in the late of 21st century

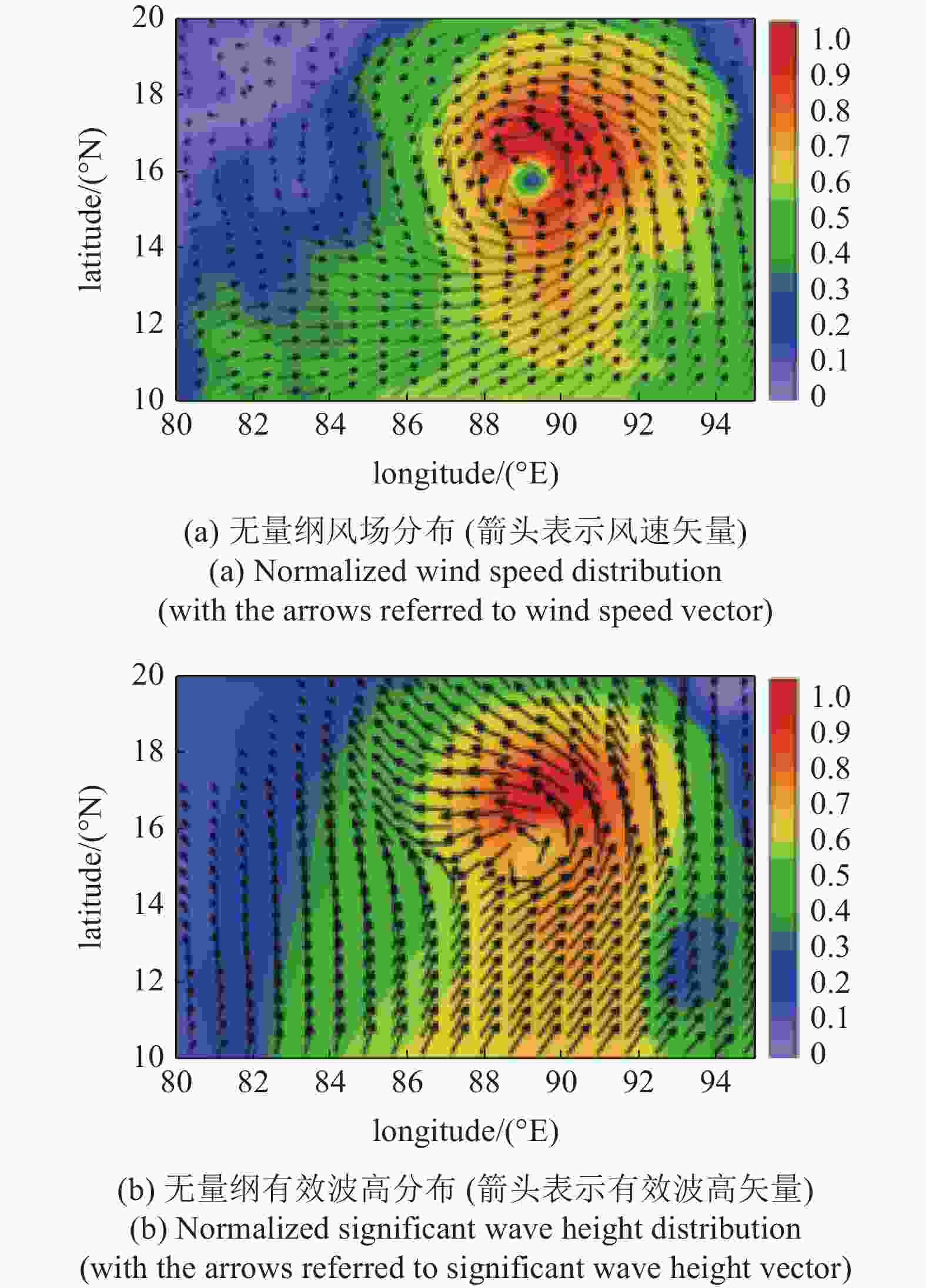

    图  8  风场及波浪场空间分布[25]

    Figure  8.  Spatial distribution of wind and wave fields[25]

    图  9  台风浪波高与波谱分布[35]

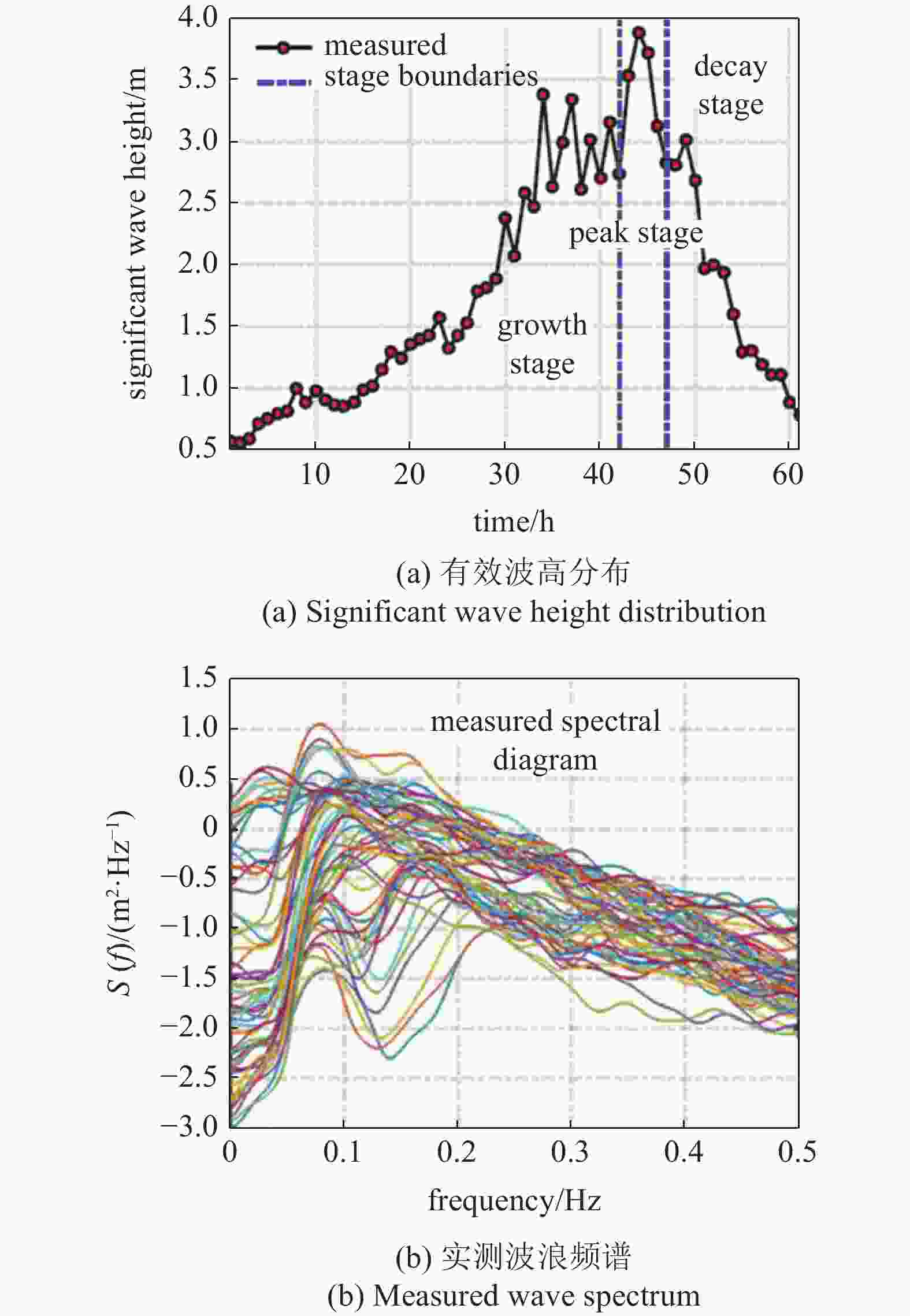

    Figure  9.  Distribution of significant wave height and wave spectrum [35]

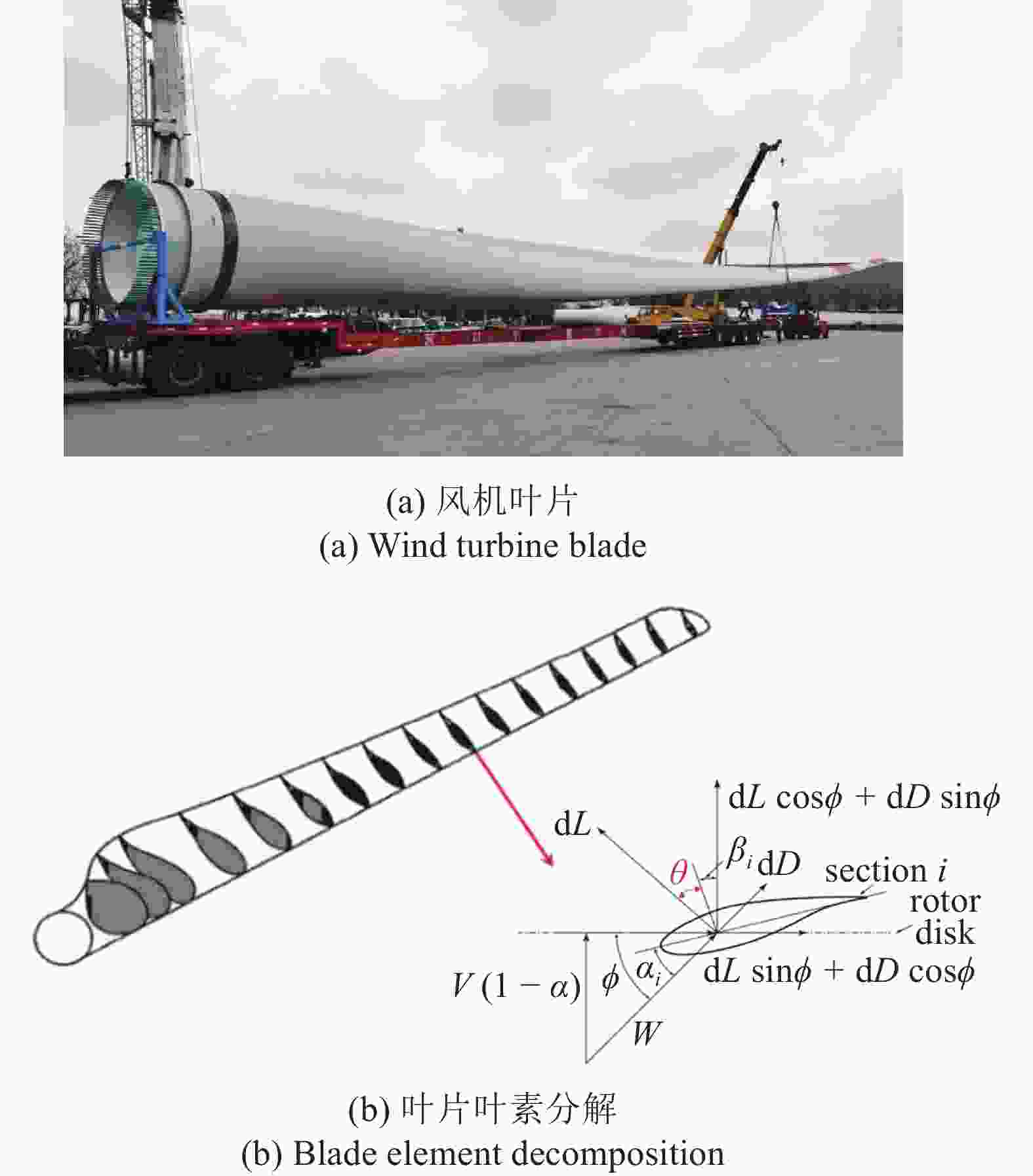

    图  10  台风风场特征及其移动路径叶片气动载荷计算的BEM方法

    Figure  10.  BEM method for calculating the aerodynamic load on the blades of typhoon wind field characteristics and its track

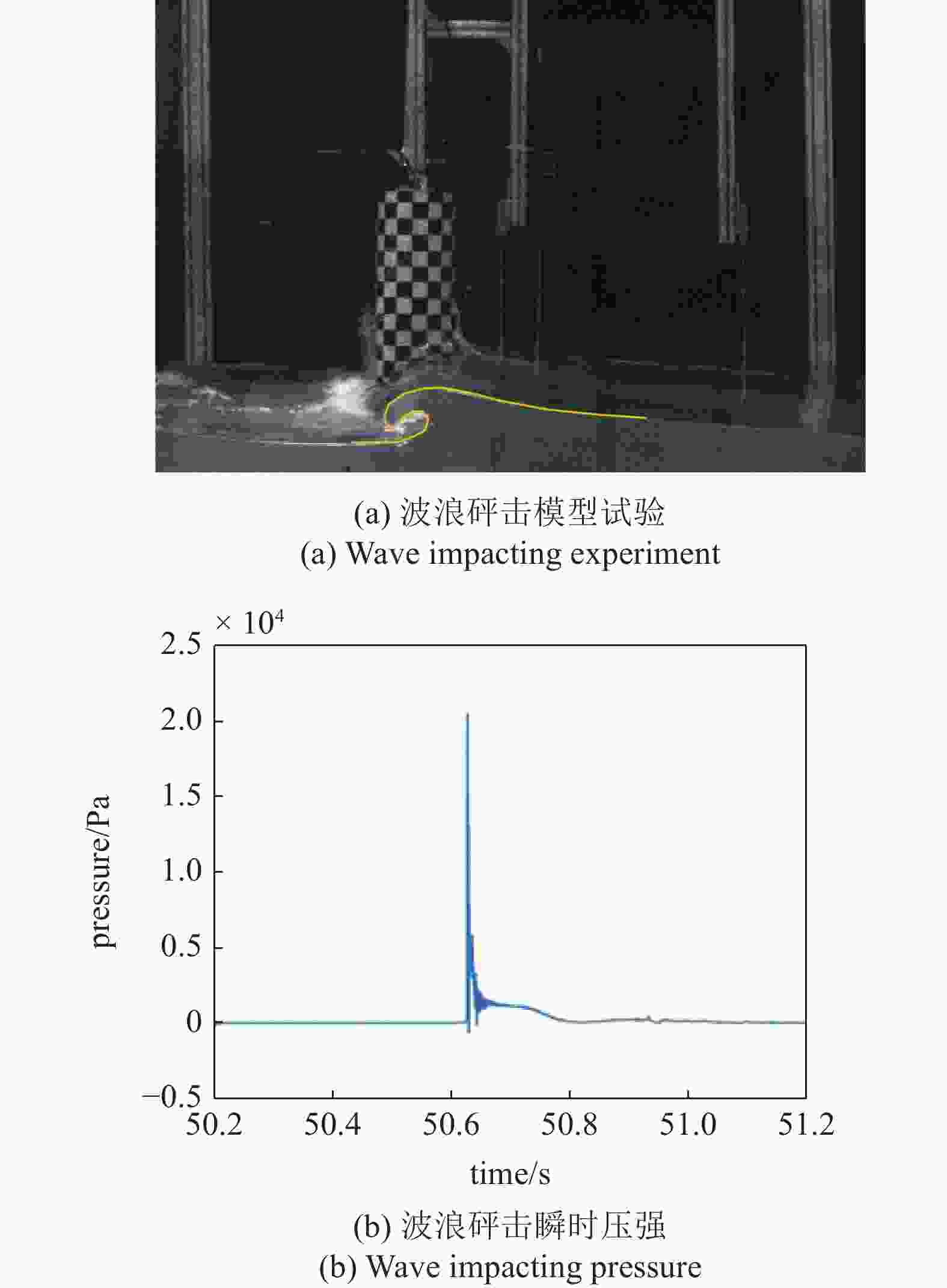

    图  11  台风巨浪砰击风电结构模型试验[49]

    Figure  11.  Typhoon waves impacting wind power structures[49]

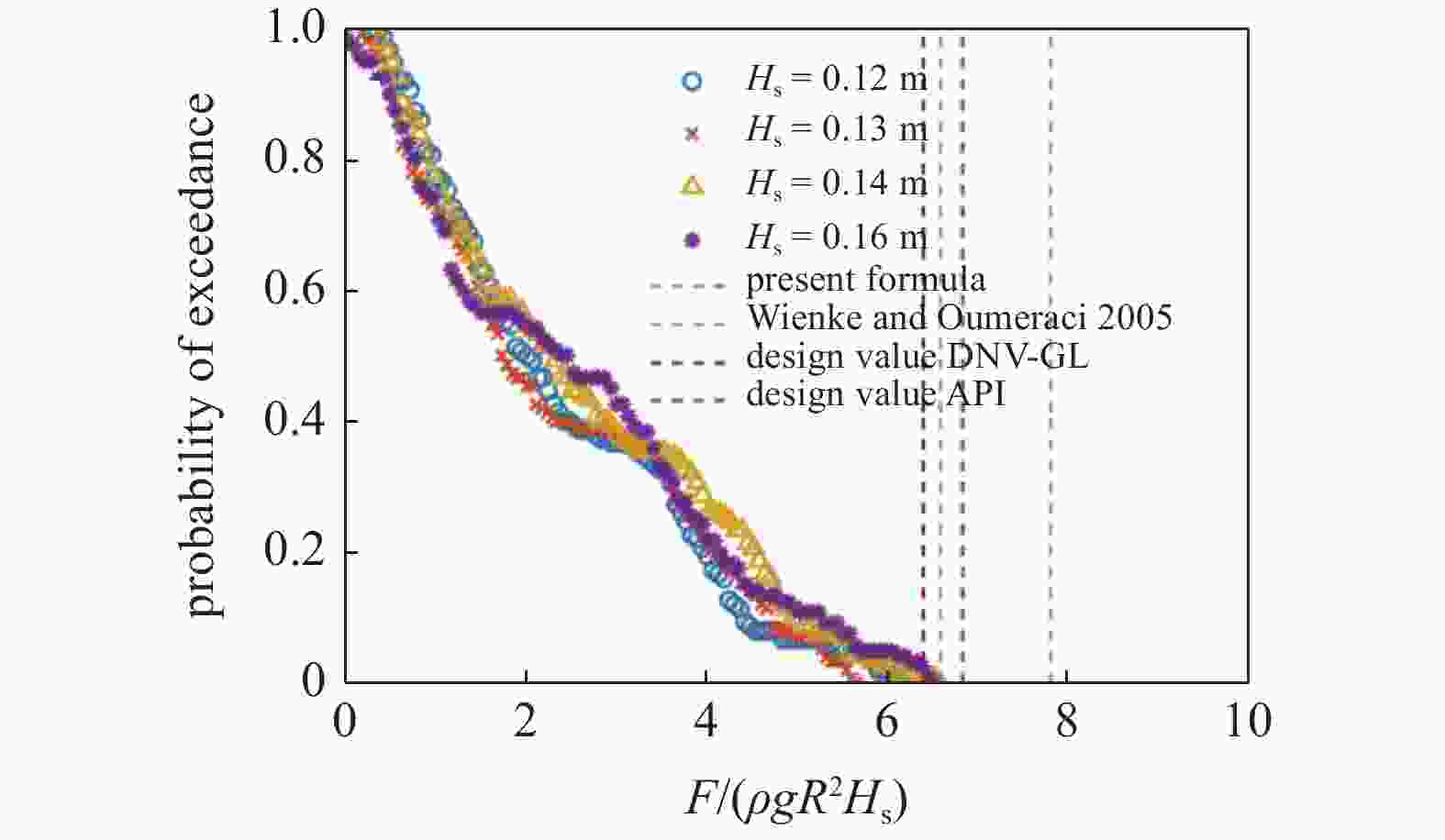

    图  12  单桩基础波浪砰击载荷概率统计分布特征[49]

    Figure  12.  Probability of exceedance for the wave slamming load for the monopile[49]

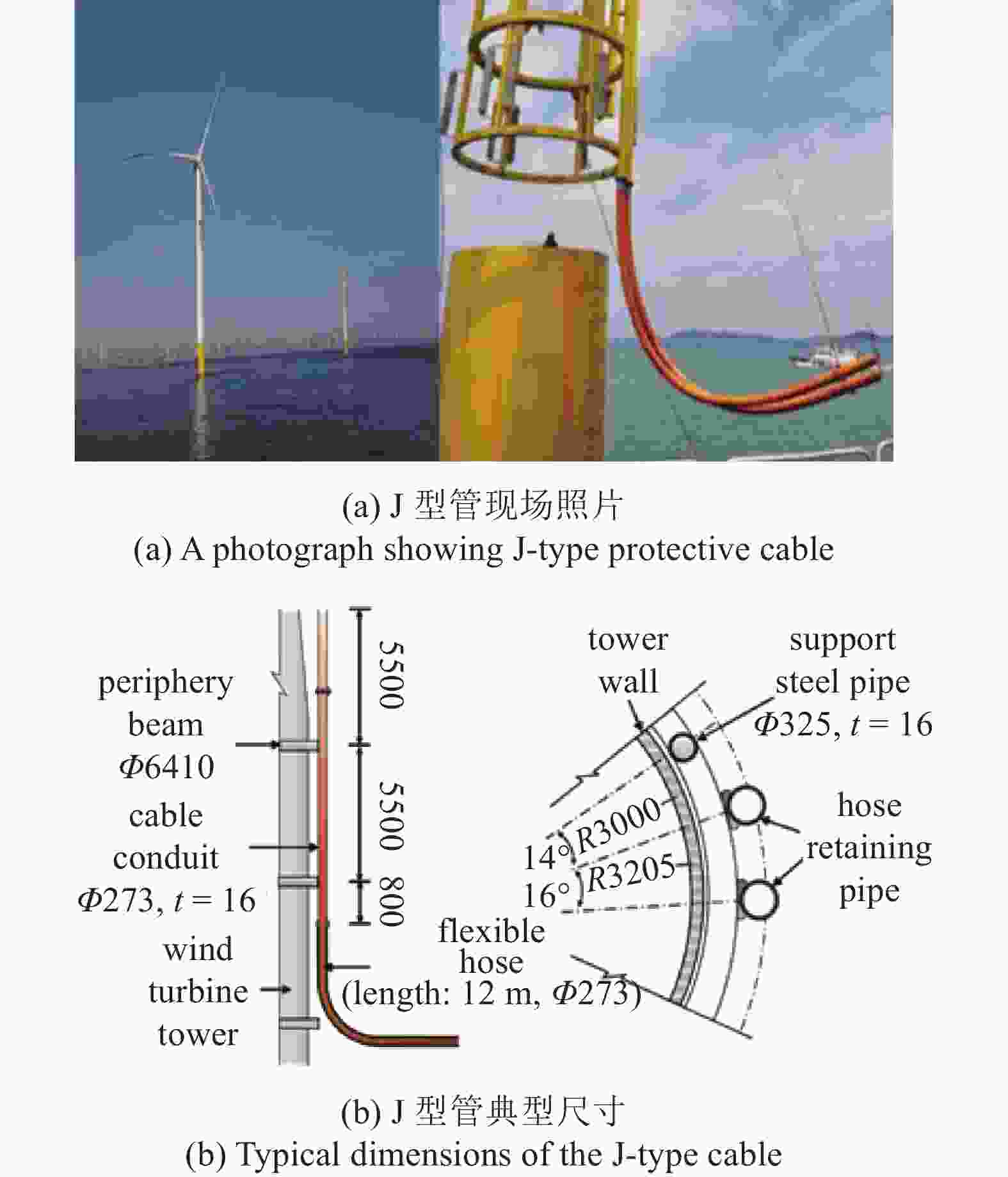

    图  13  新型高强聚氨酯J型管

    Figure  13.  High strength polyurethane J-type cable

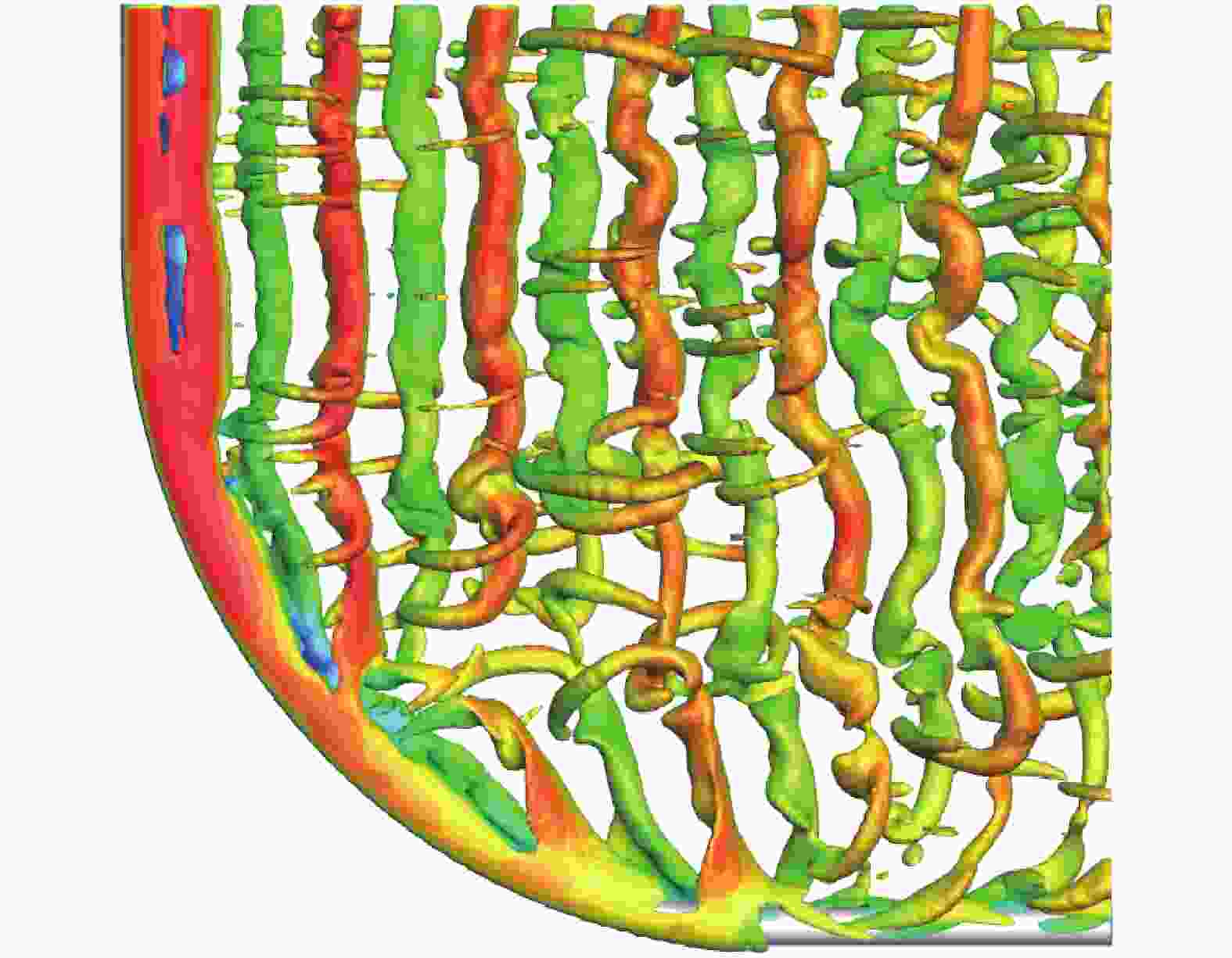

    图  14  J型管缆三维涡量图[56]

    Figure  14.  Three-dimensional vorticity contours of J-typed cable[56]

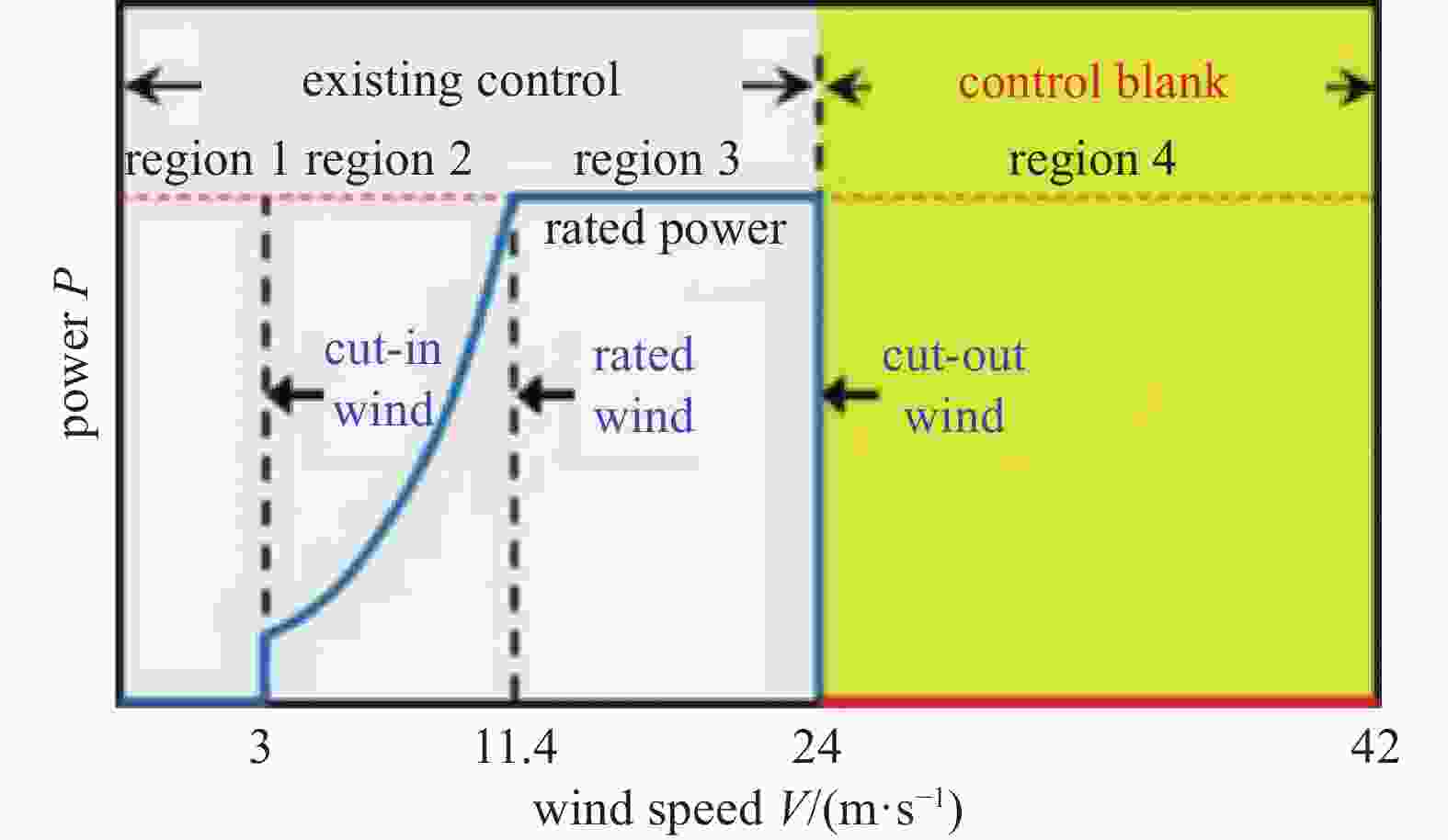

    图  15  风电机组工作区域示意图

    Figure  15.  Schematic diagram of wind turbine working area

    图  16  前馈−反馈智能桨距角控制方案

    Figure  16.  Feedforward feedback intelligent pitch angle control scheme

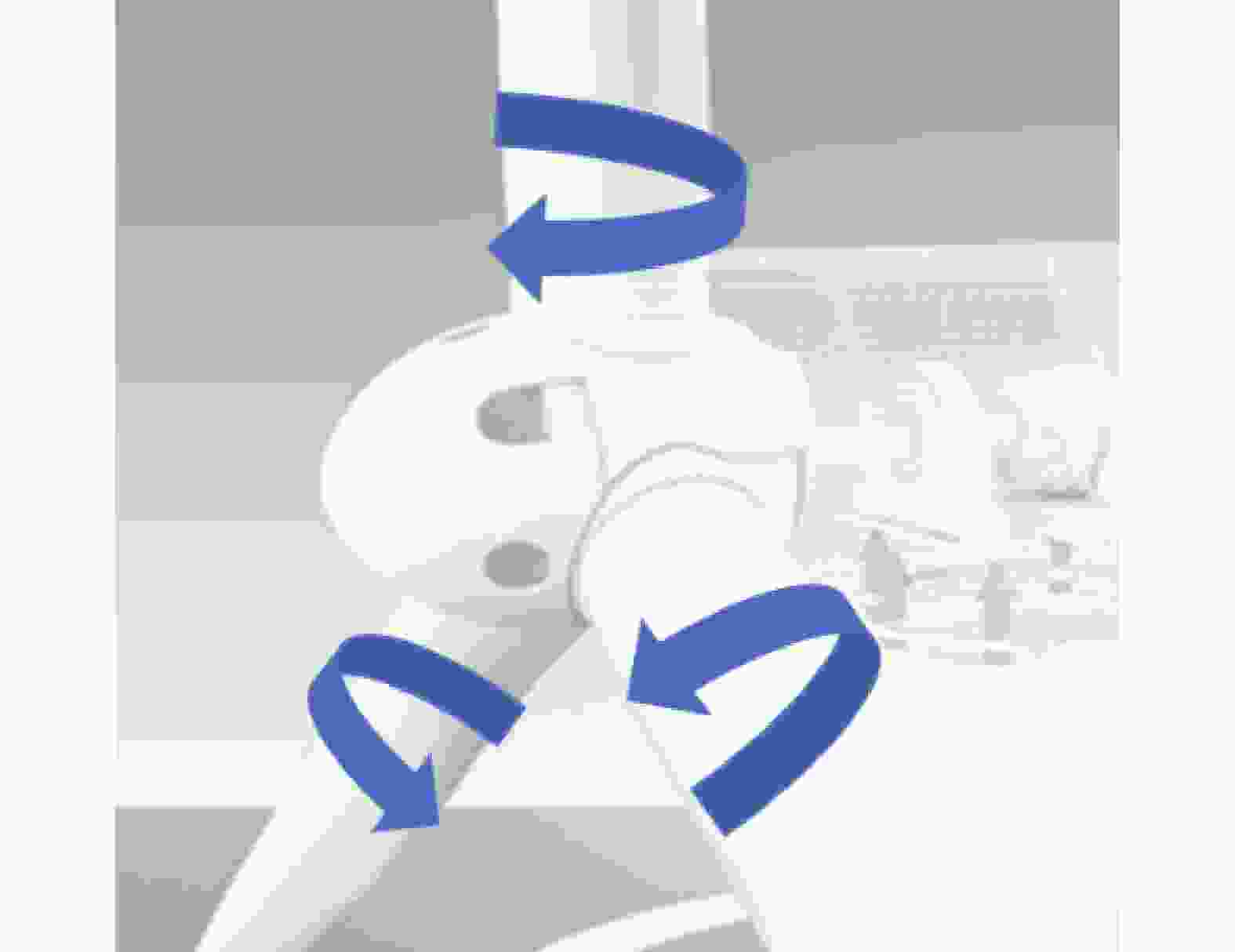

    图  17  智能控制变桨技术

    Figure  17.  Intelligent pitch control technology

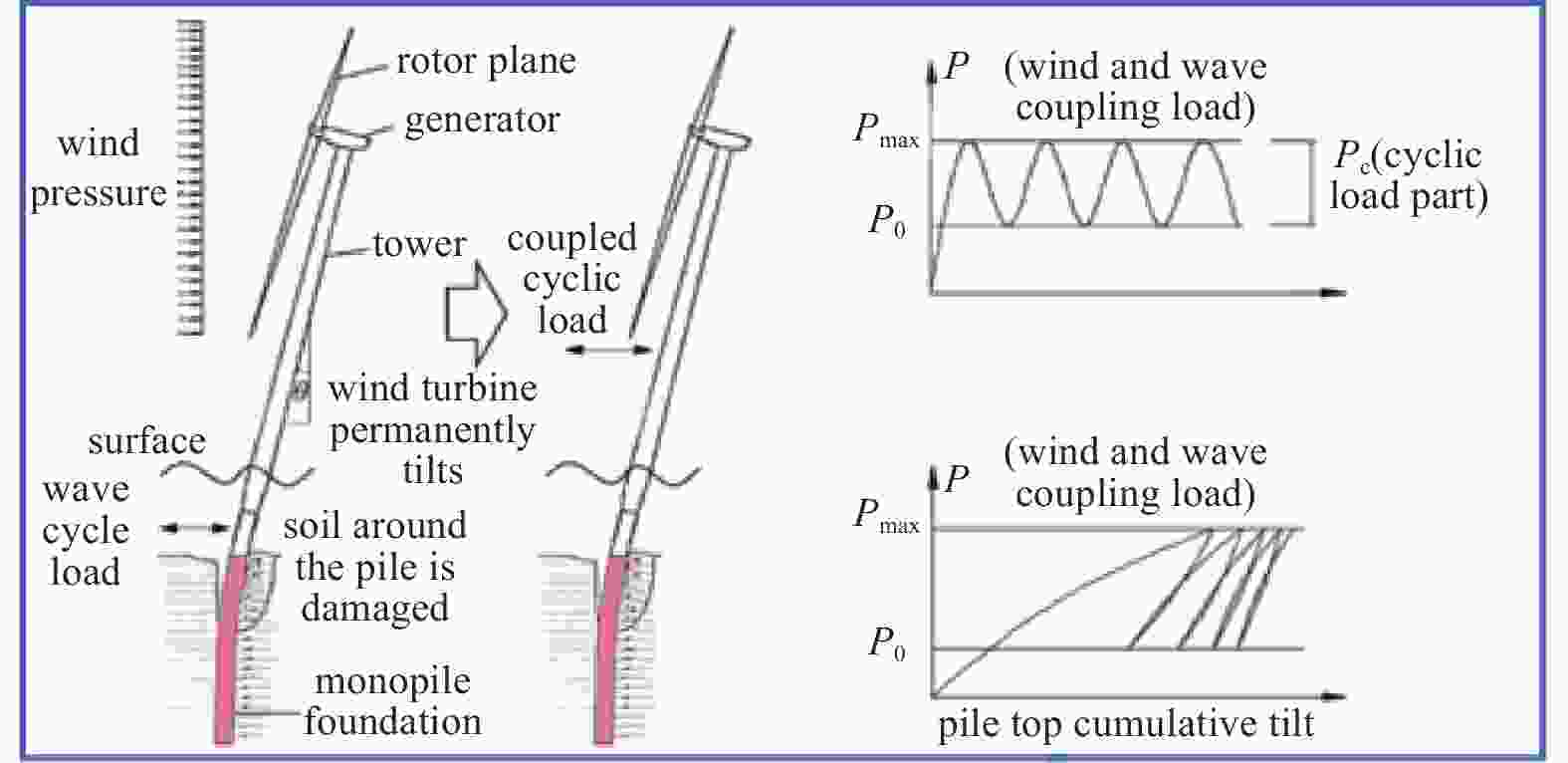

    图  18  风、浪载荷耦合传递给桩基和海床地基

    Figure  18.  Coupled wind and wave loads transmitted to piled foundation

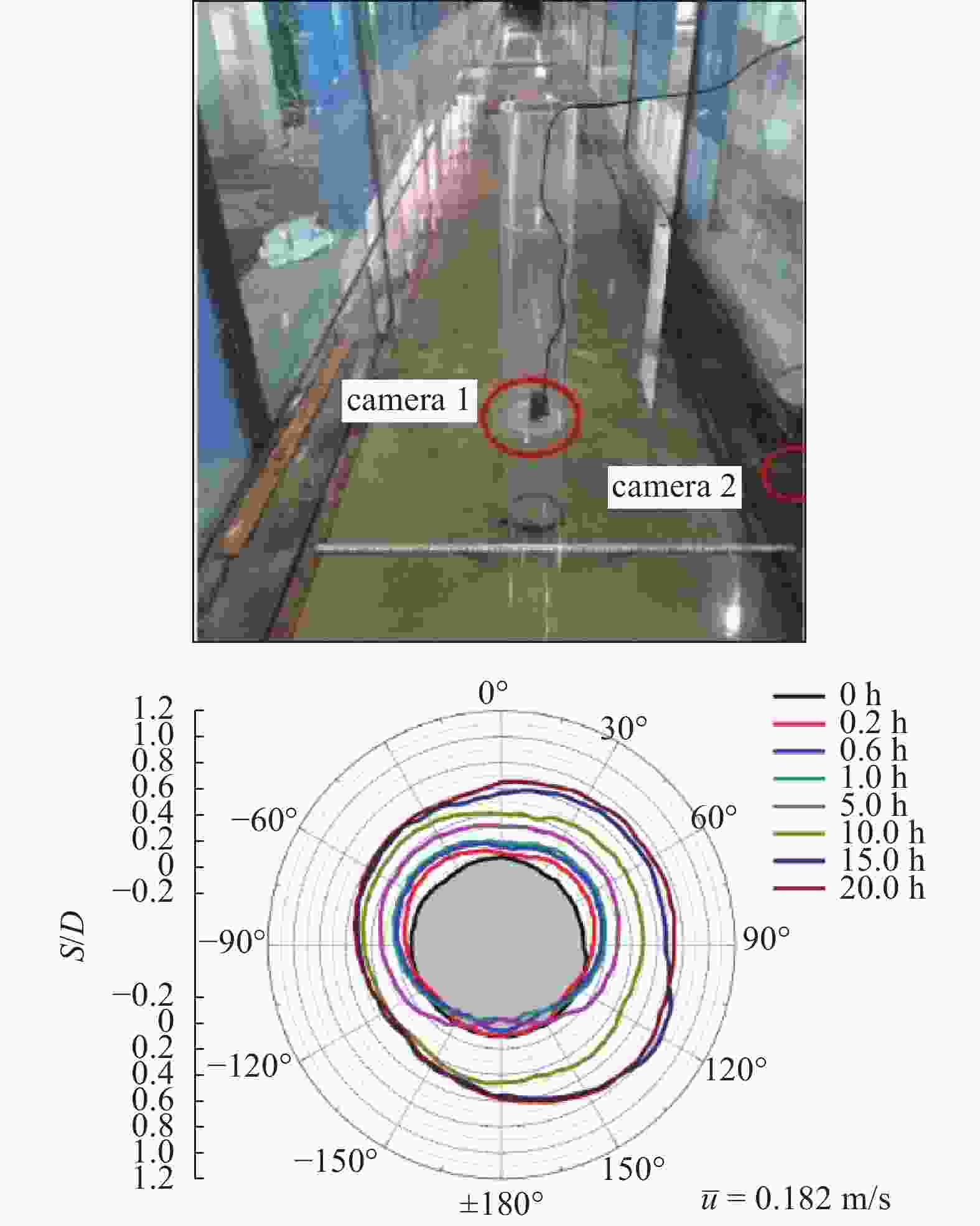

    图  19  单桩基础局部冲刷试验[49]

    Figure  19.  Experiment for the local scour of monopile[49]

    图  20  注浆实施方案及工程效果

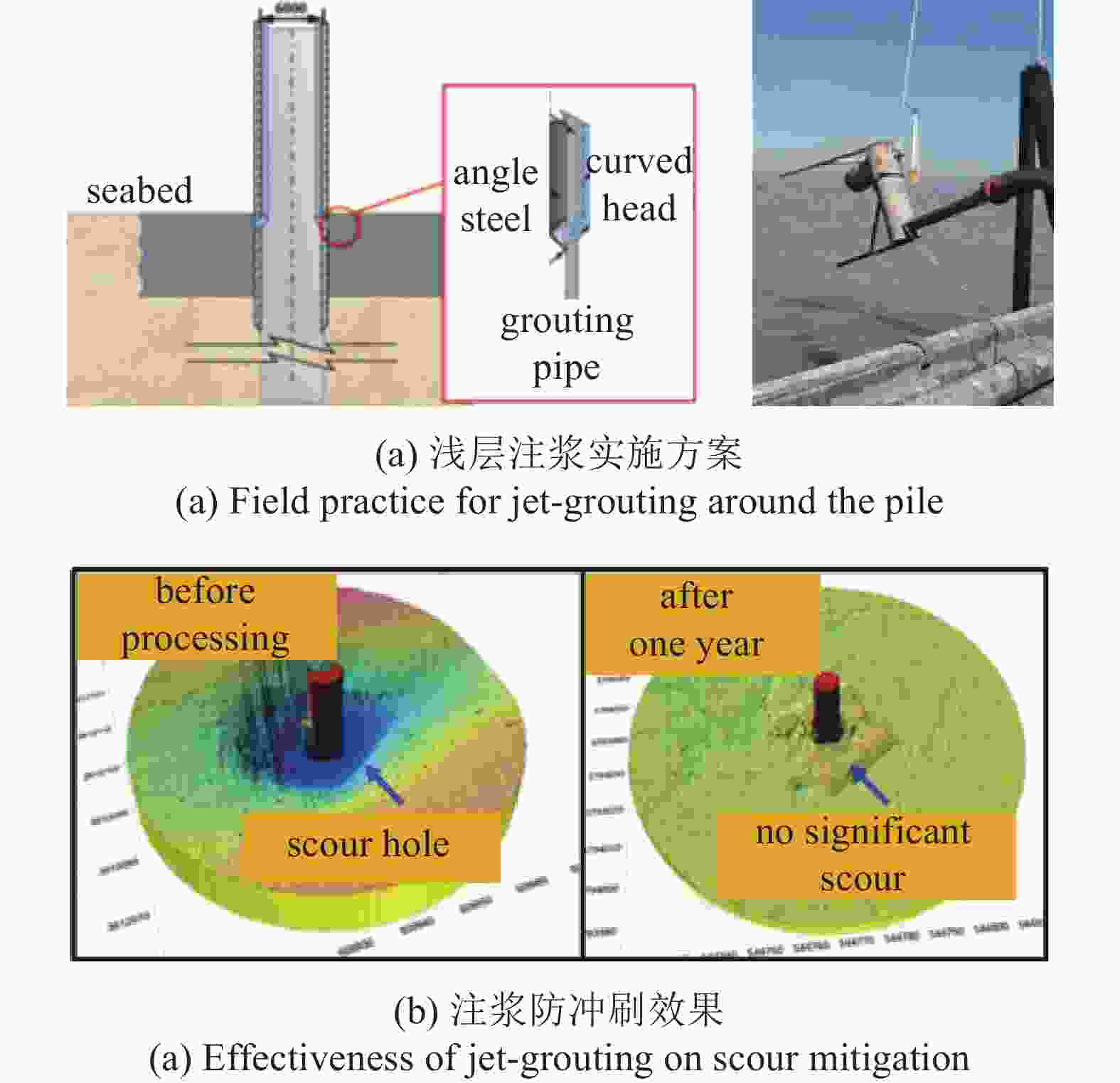

    Figure  20.  Field practice and effectiveness of jet-grouting on souring mitigation

    图  21  不同桩−土相对刚度下桩周土体破坏模式[77]

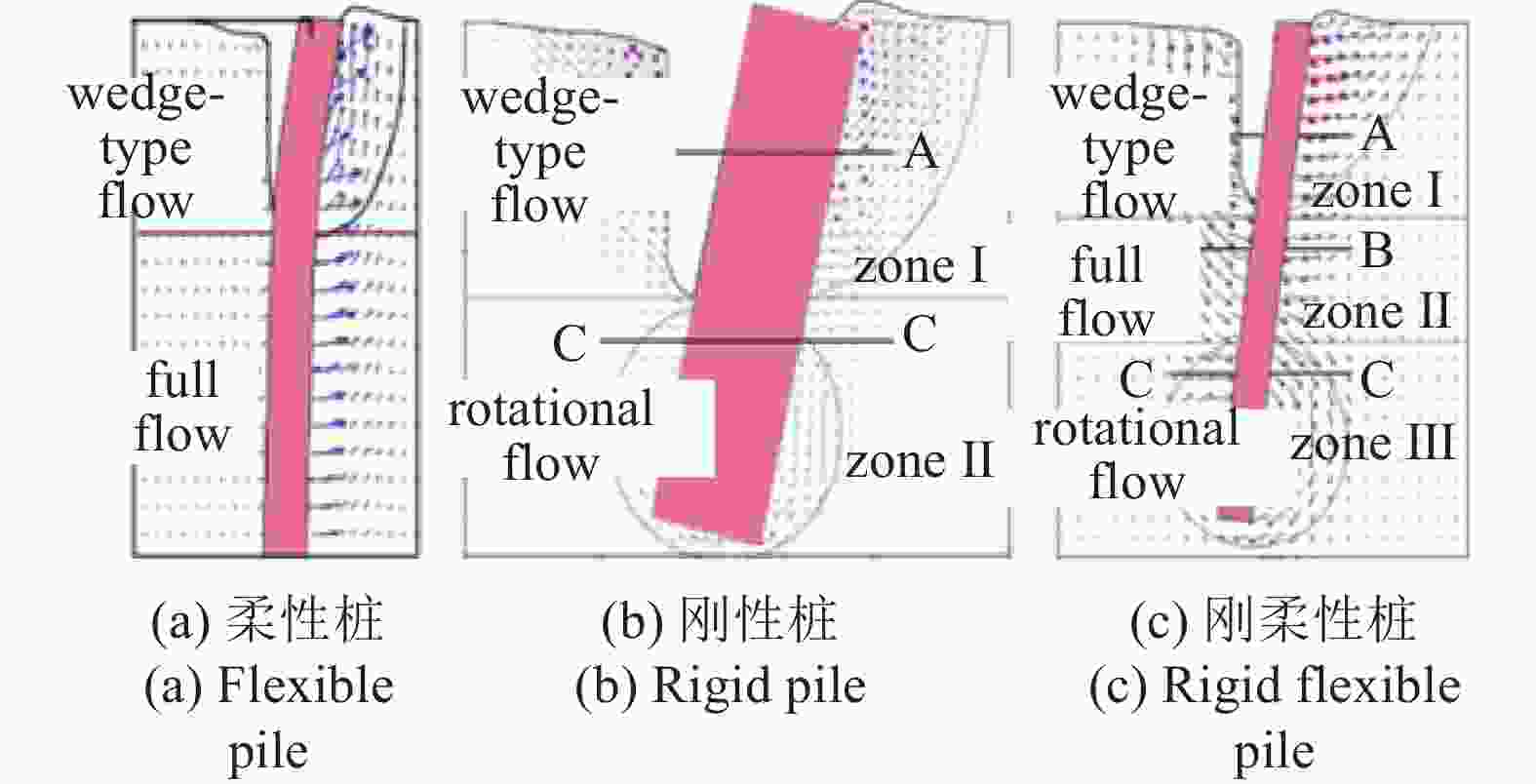

    Figure  21.  Failure modes of soil around piles with different pile-soil relative stiffness[77]

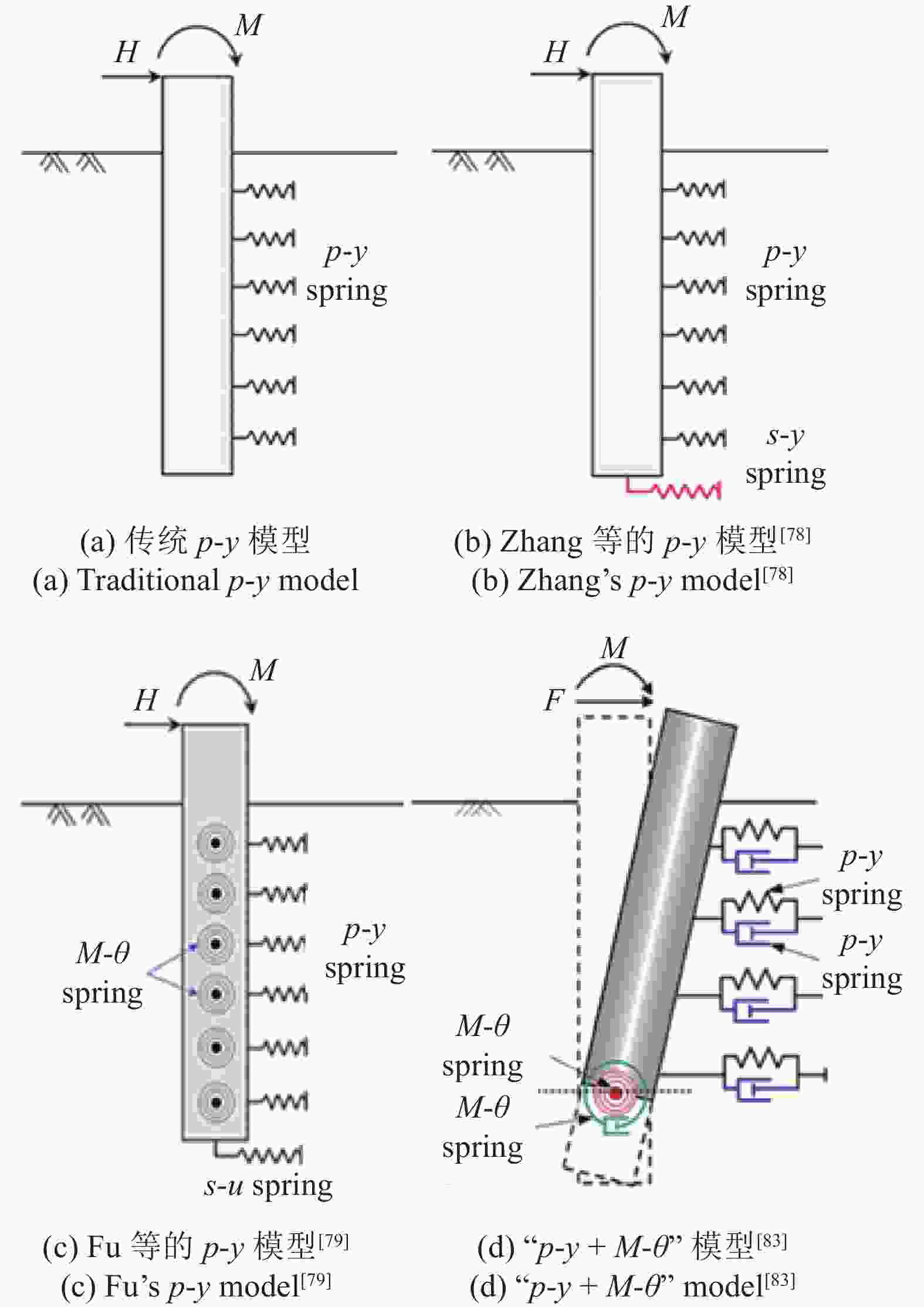

    图  22  单桩静力分析模型

    Figure  22.  Static analysis model of single pile

    图  23  模型预测与实测桩身弯矩与变形对比

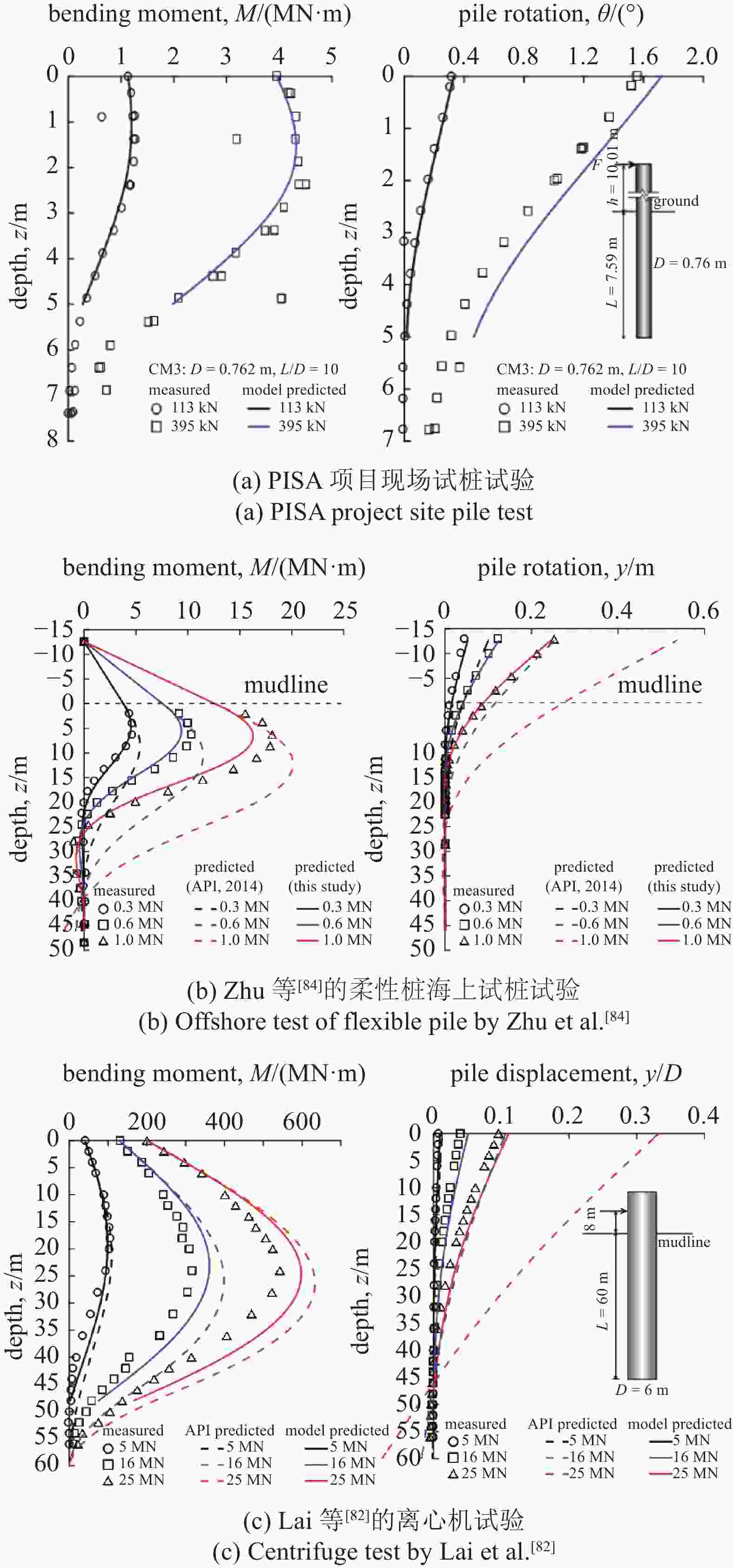

    Figure  23.  Comparison between measured and predicted pile responses

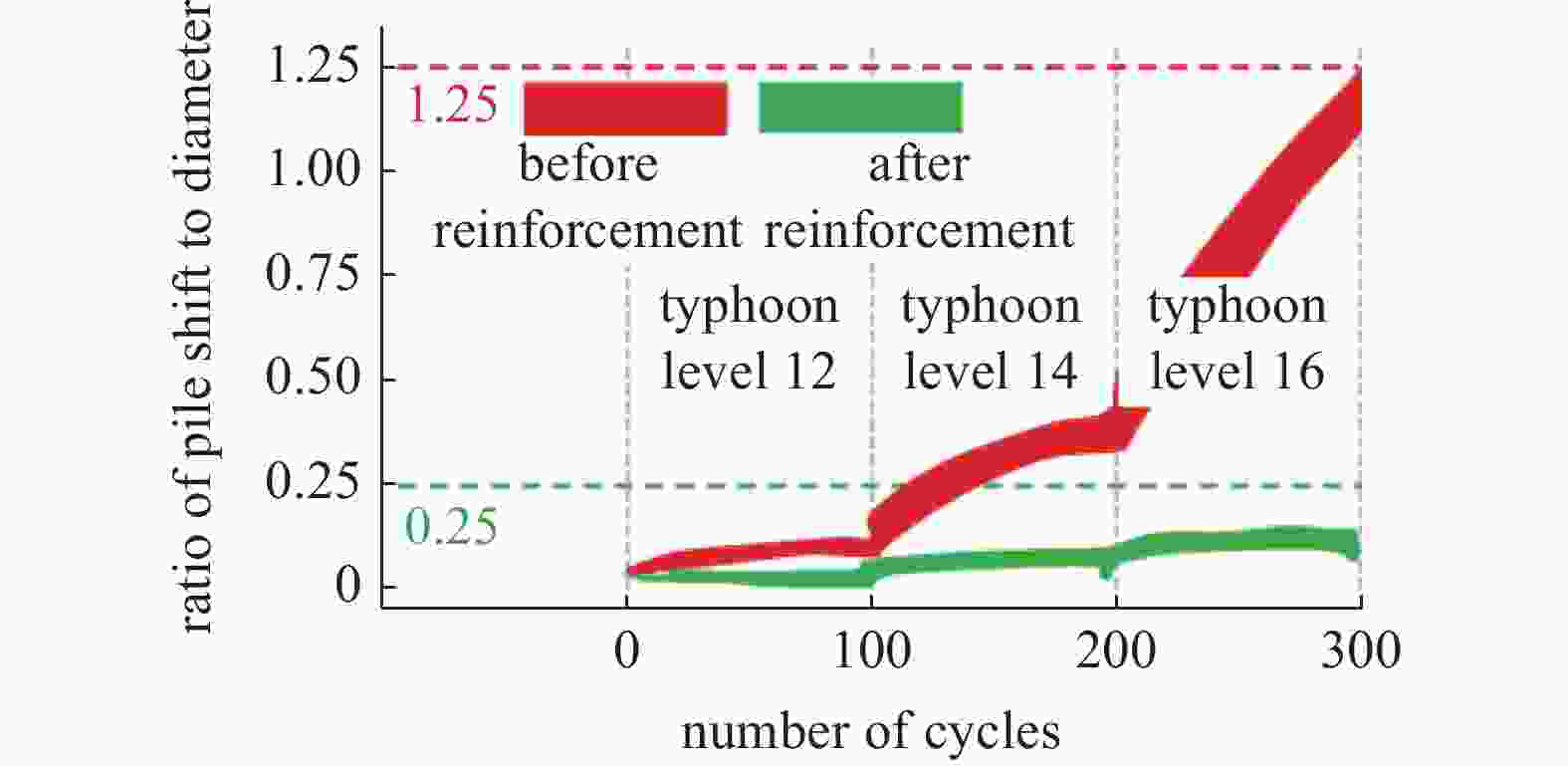

    图  24  浅层加固导致桩基循环累积变形降低

    Figure  24.  Effect of jet-grouting on reduction of cumulative lateral pile displacement

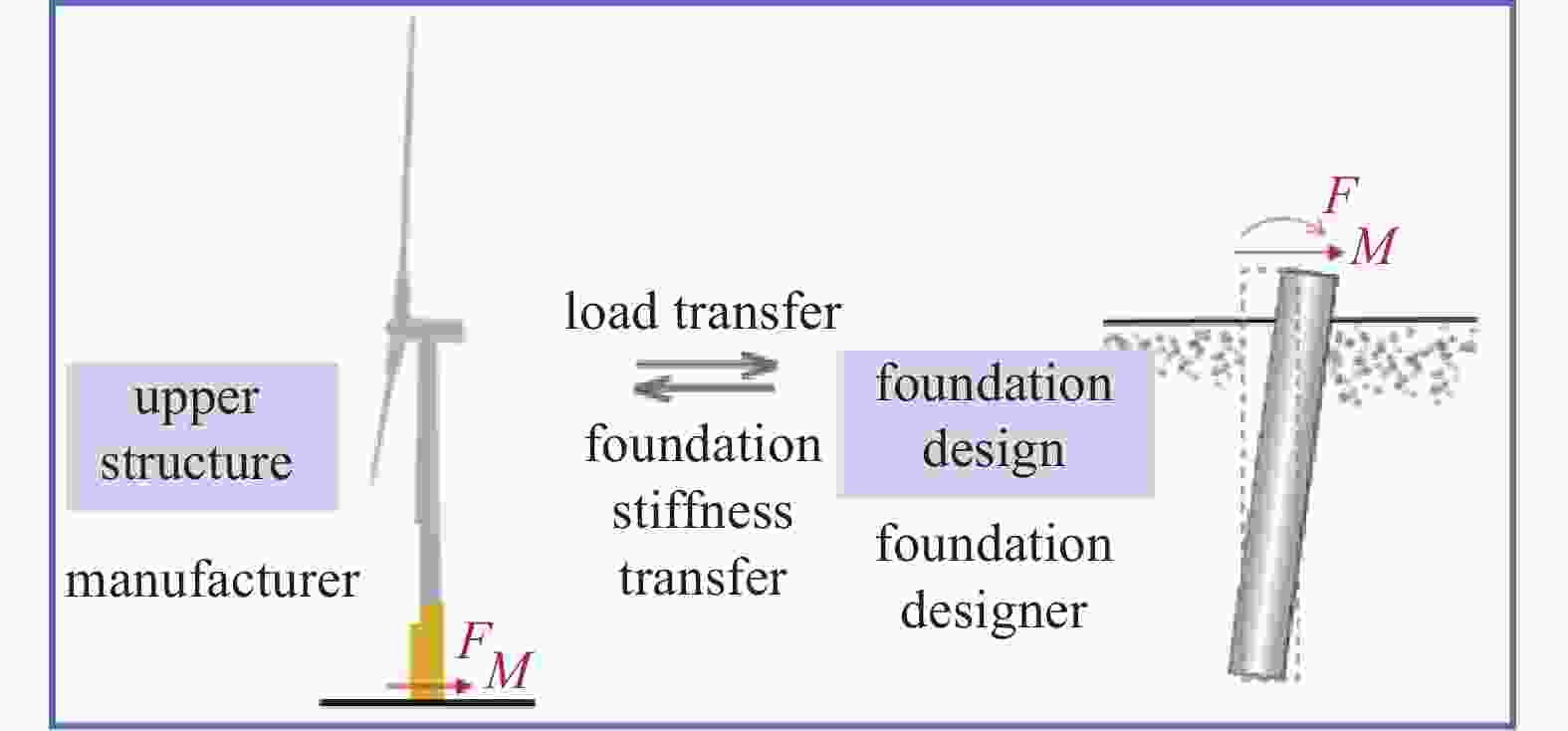

    图  25  现行海上风机设计分析方法

    Figure  25.  Current design methods for offshore wind turbines

    图  26  现行海上风机设计半耦合分析模型[100]

    Figure  26.  Semi-coupled analysis model of current offshore wind turbine design[100]

    图  27  海上风机半耦合分析模型[101]

    Figure  27.  Semi-coupled design methods for offshore wind turbines[101]

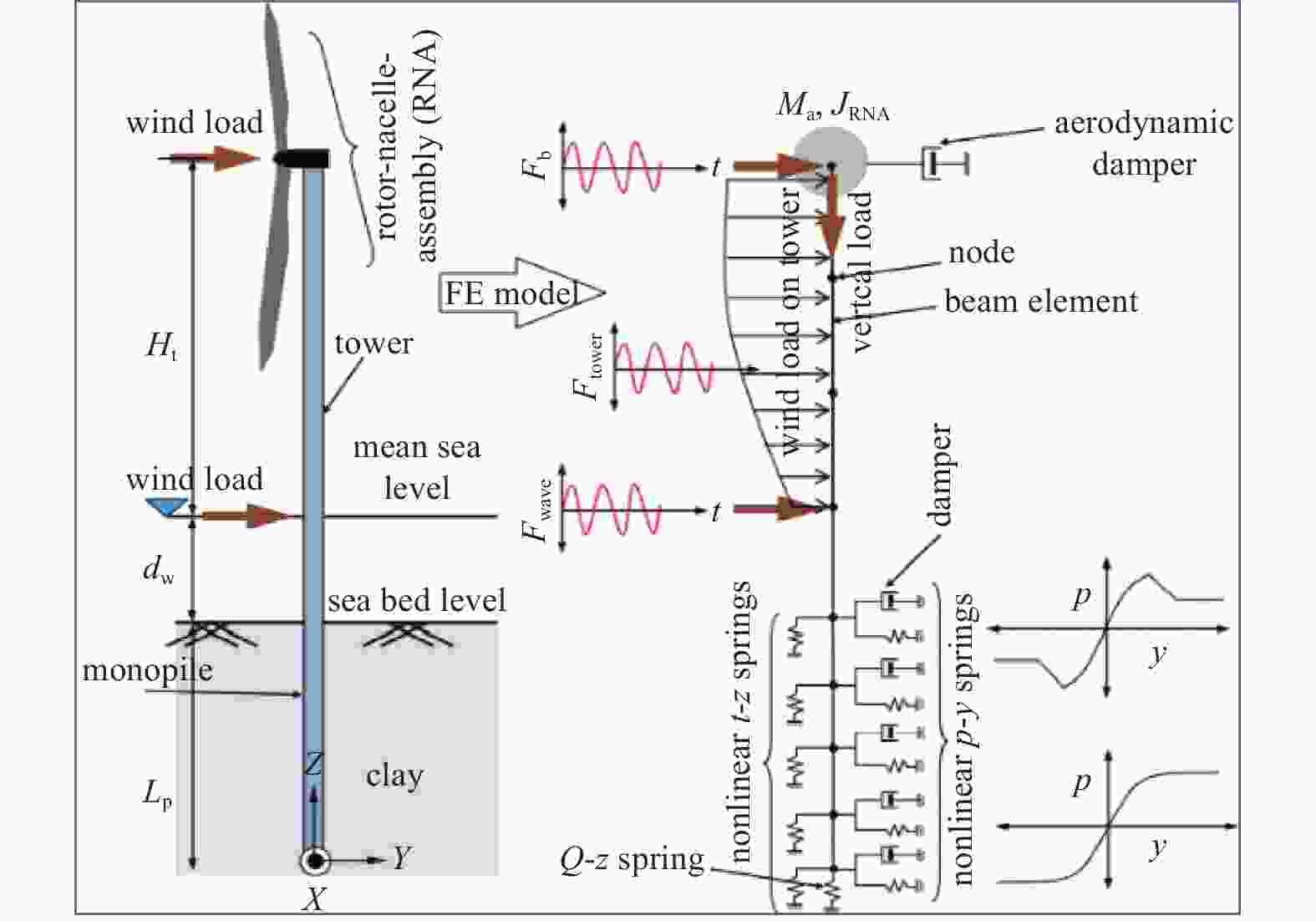

    图  28  基于FAST的海上风机简化分析模型

    Figure  28.  Simplified analysis model of offshore wind turbine based on FAST

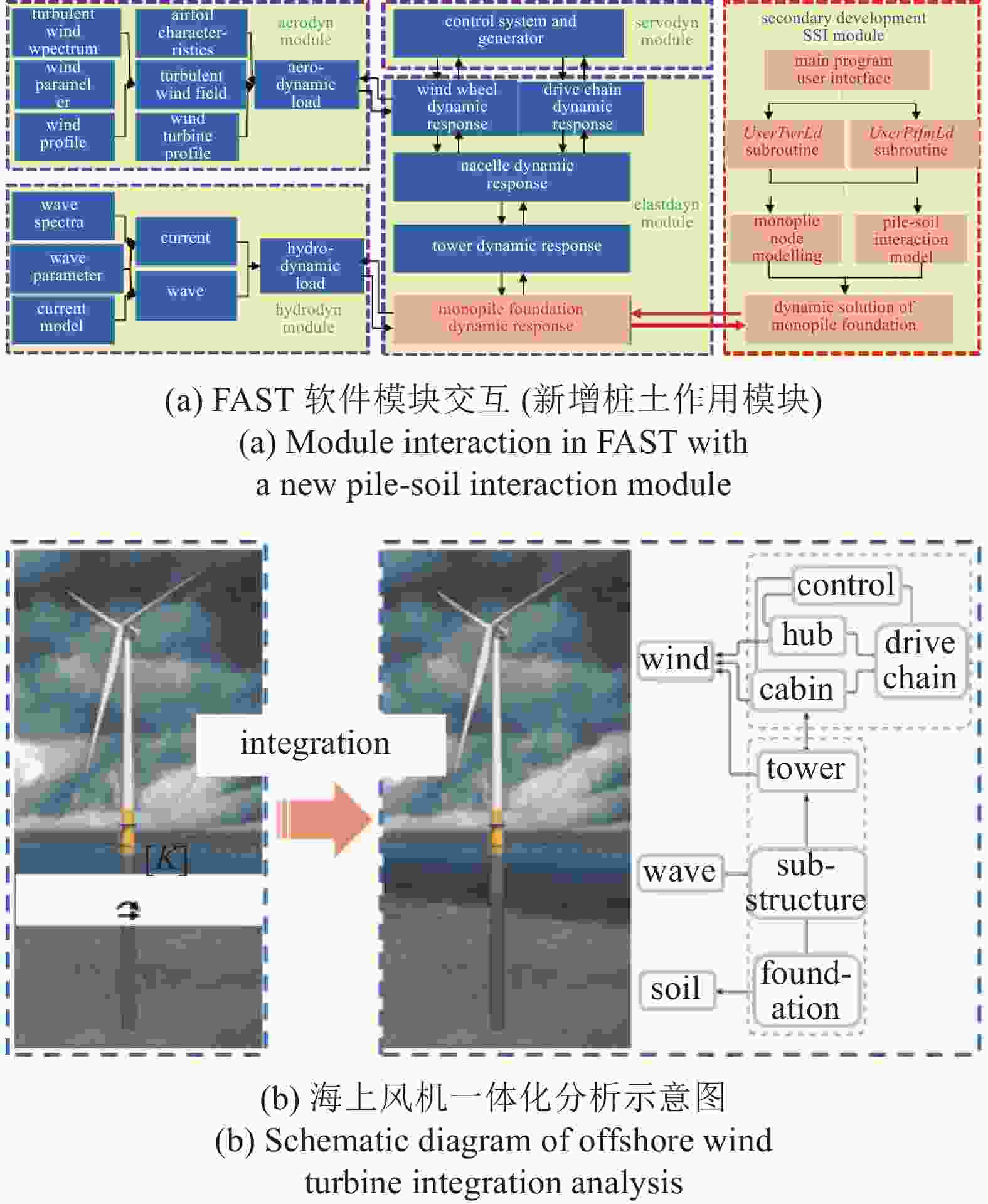

    图  29  基于FAST二次开发的一体化模型

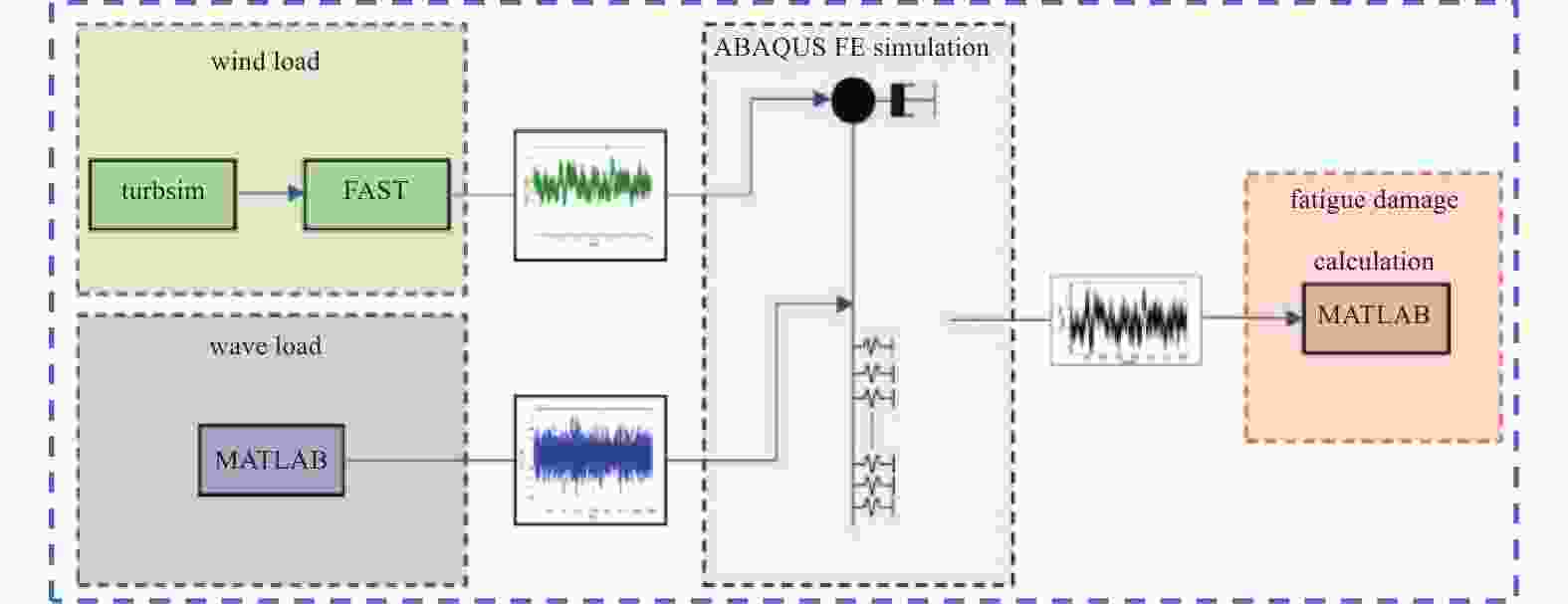

    Figure  29.  Development of integrated model based on FAST

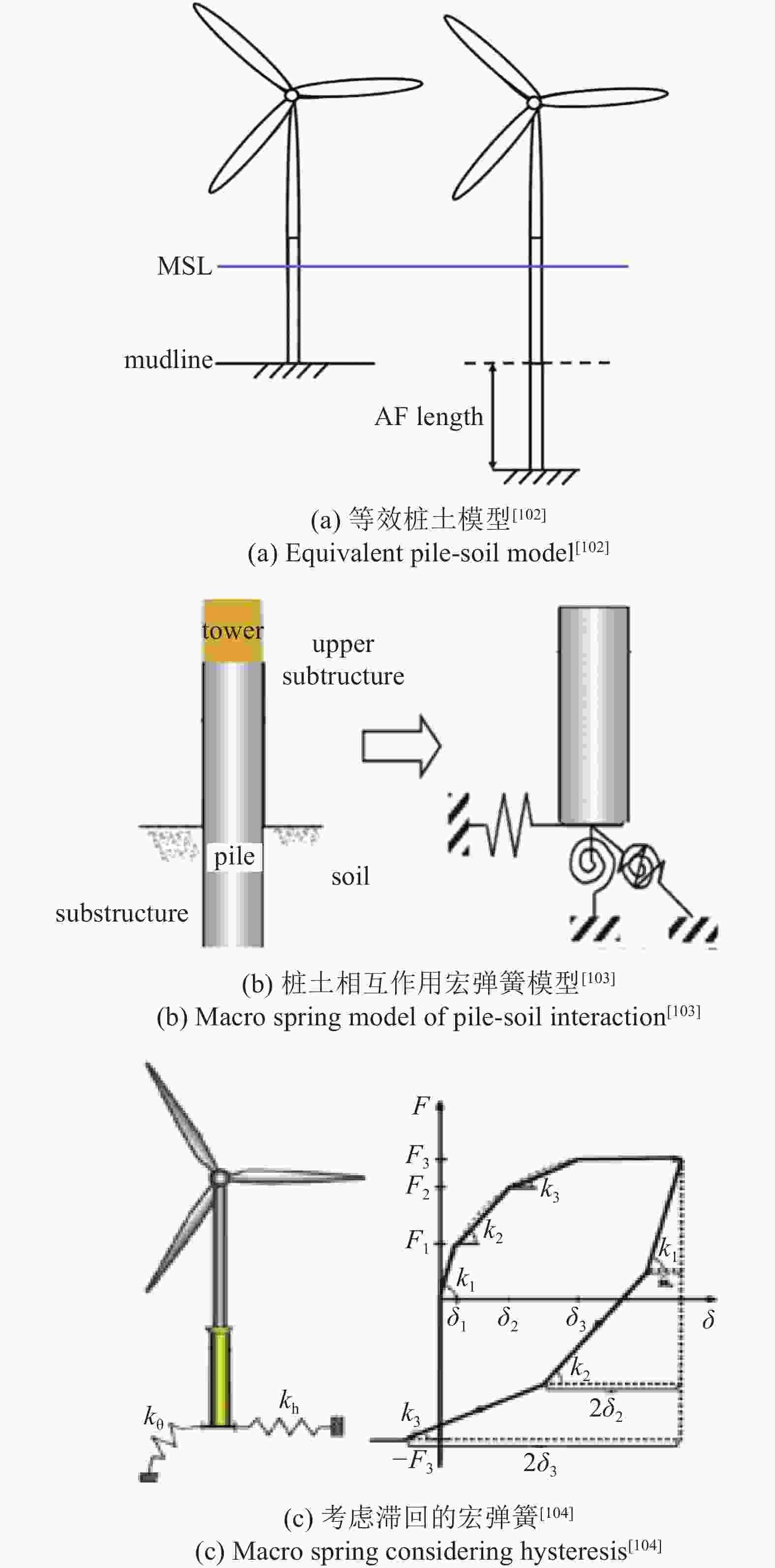

    图  30  不同风机基础模型及动力响应[83]

    Figure  30.  Different soil-pile interaction models and their resulting dynamic response of wind turbine[83]

    图  31  桩土分析模型对风机单桩基础疲劳影响[83]

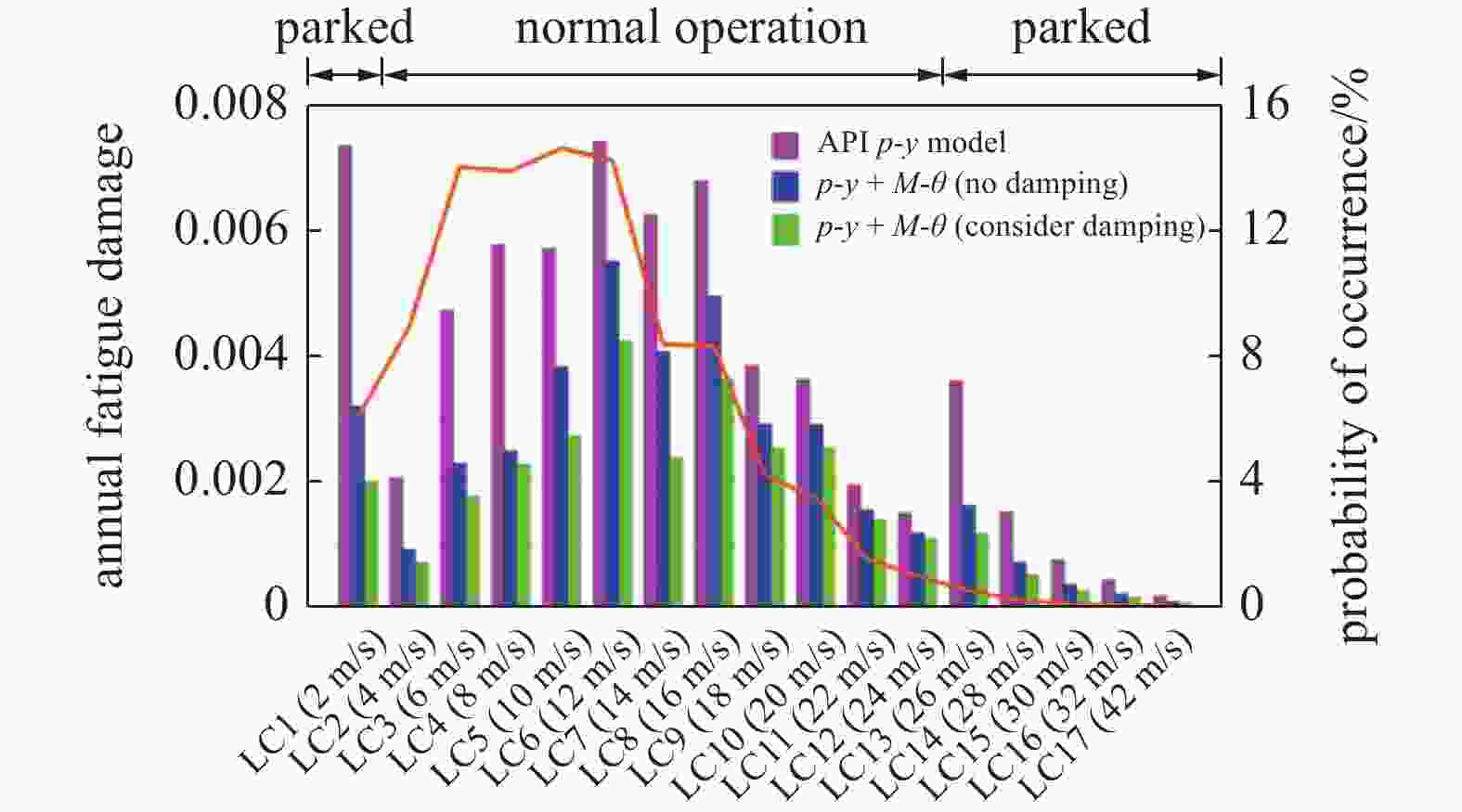

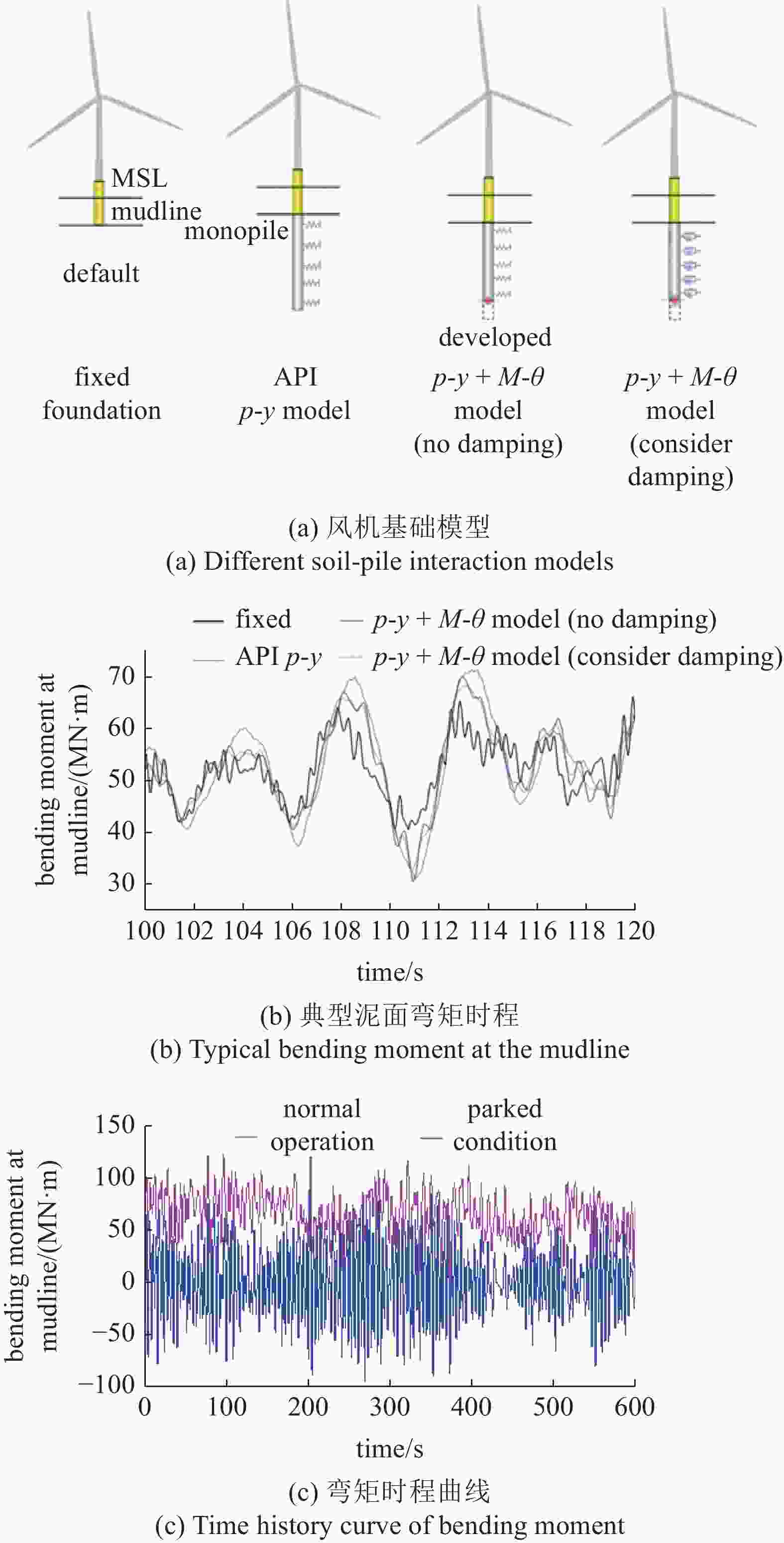

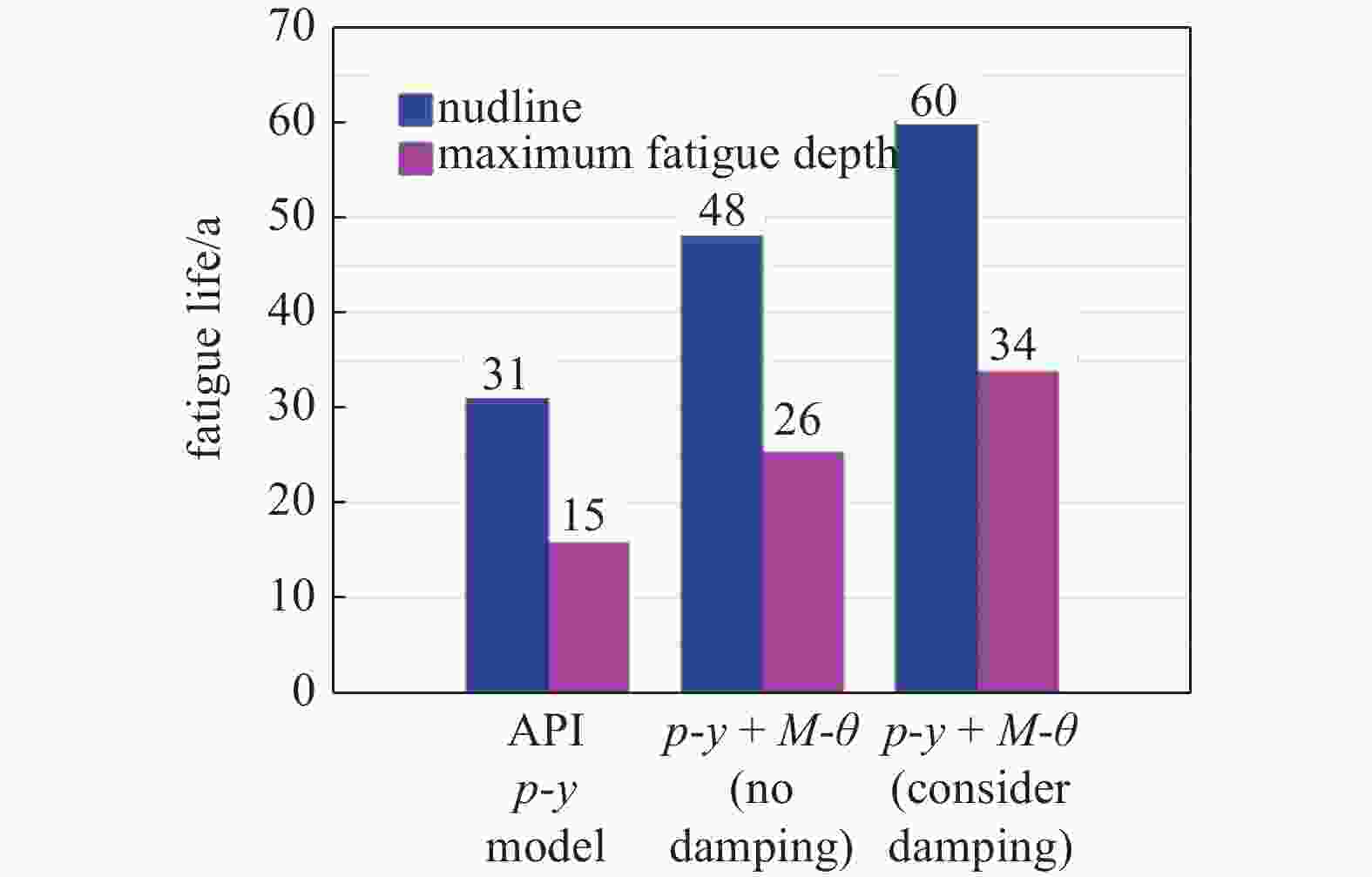

    Figure  31.  Influence of pile-soil models on calculated fatigue of monopile[83]

    图  32  各工况作用下年疲劳损伤(考虑工况频率)[83]

    Figure  32.  Influence of pile-soil models on calculated fatigue damage of monopile[83]

    表  1  我国“十四五”期间海上风电装机及规划容量统计

    Table  1.   Statistics of available and planned offshore wind power in China during the 14th Five Year Plan period

    Province and cityExisting capacity/GWProposed to be added during the 14th Five Year Plan/GW
    Liaoning9.818.59
    Tianjin0.8451.155
    Shandong0.67.4
    Shandong5.739.27
    Shanghai0.61.8
    Zhejiang6.155
    Fujian510.3
    Guangdong4.217
    Guangxi6.537.5
    Hainan12.3
    Taiwan5.5
    Total39.46585.815
    下载: 导出CSV

    表  2  实测台风近地湍流强度统计

    Table  2.   Statistics of measured near-surface turbulence intensity of typhoon

    TyphoonObservation height/mObservation siteObservation environmentTurbulence intensity
    Prapiroon 060610Bohe Town, Dianbai County, Guangdong Provinceopen and flat facing
    the sea
    0.26 (average) before landfall; 0.15 (average) after landfall
    Damrey 051810Fort Point, Xuwen County, Guangdong Provincgentle coast0.32 (average) before landfall; 0.16 (average) after landfall
    Hagupit 081410Dianchen, Dianbai County, Guangdong Provincegentle coast0.63 (average) before landfall; 0.20 (average) after landfall
    Morakot 090810, 30, 50Cangnan County, Zhejiang Provincehilly landform0.193 (average); 0.146 (average); 0.134 (average)
    Soulik 130753Xiapu County, Ningde City, Fujian Provincecoastal open landform0.39 (maximum) before landfall; 0.43 (maximum) after landfall
    Muifa 110926Lingang, Pudong, Shanghaiopen and flat facing
    the sea
    0.63 (maximum); 0.33 (average); 0.20 (minimum)
    Nesat 111790Zhanjiang City, Guangdong Provincegentle coast0.14 (average)
    Utor 131110Maoming City, Guangdong Provincegentle coast0.16 (average)
    Neoguri 140810Pudong, Shanghaiopen and flat facing
    the sea
    0.32 (maximum)
    Kai-tak 121343Inner Bay of Qinzhou Bay, Guangxi Provinceflat and open offshore0.149 (average)
    Kalmaegi 141550Wenchang City, Hainan Provinceflat terrain0.55 (maximum); 0.15 (average)
    Fitow 1323168Wenzhou City, Zhejiang Provincecomplex landform0.21 (average)
    Chan-hom 150980Shanghaiurban0.453 (average)
    Rumbia 1818497Shanghaiurban high altitude0.135 (average)
    Mangkhut 182232Taishan City, Guangdong Provincegentle coast0.29 (average)
    下载: 导出CSV
