DESIGN AND MODELING OF ELECTRET VIBRATION SUPPRESSION AND ENERGY HARVESTING DEVICE ORIENTED TO MICRO-VIBRATION SIGNALS
-
摘要: 随着航天工程的飞速发展以及先进制造业对加工精度要求的持续提高, 对低频微振信号的控制与利用越发受到关注. 本文采用驻极体材料, 参考动力减振器理论, 开发了一种面向低频微振环境的减振俘能一体化装置, 建立了驻极体减振俘能装置的机电耦合模型. 为兼顾减振和俘能的双重要求, 本文分析和等效了静电力对系统动力学特性的影响, 并进行了参数的评估, 提出了适用于驻极体减振俘能的优化方法. 建立了AMEsim和Simulink的联合仿真环境, 对模型和结果进行了仿真验真. 建模和仿真的结果表明, 本文建立的驻极体减振俘能装置的机电耦合模型可以准确描述装置的运动过程, 建模与仿真的误差在5%以内. 驻极体减振俘能装置对参数变化十分敏感, 且副结构刚度、初始间距等对减振俘能性能的影响都明显强于副结构阻尼. 经过优化, 本文设计的驻极体减振俘能装置, 能够兼顾减振和俘能需求, 可以实现接近于理想动力减振器的减振效果, 也可以在牺牲15%减振效果前提下, 获得1700 V输出电压和3.1 mW俘能功率. 本文建立的机电耦合模型和动态静电力解析模型, 有助于理解驻极体减振俘能机构的工作原理, 揭示了非线性静电力的变化过程和作用机理.Abstract: With the rapid development of space technology, and the continuous improvement of the processing precision requirements of advanced manufacturing, the control and utilization of low-frequency micro-vibration signals have attracted more and more attention. Using electret materials, we developed an integrated device to solve these problems, aiming to vibration suppression and energy harvesting, for low-frequency micro-vibration environments, and established the electromechanical coupling model of the electret vibration suppression and energy harvesting device, referring to the theory of dynamic vibration absorber (DVA). In order to meet the dual requirements of vibration suppression and energy harvesting, the influence of electrostatic force on the dynamic characteristics of the system was analyzed and equivalent, the parameters of the electret vibration suppression and energy harvesting device were evaluated and an optimization method for vibration suppression and energy harvesting was presented. We established a co-simulation environment of AMEsim and Simulink, and verified the model and results by simulation. The results of modeling and simulation showed that, the electromechanical coupling model of the electret energy harvesting device established in this paper can accurately describe its motion process, and the error of modeling and simulation is less than 5%. The vibration suppression and energy harvesting device is sensitive to the changes in parameters, and electrode spacing and stiffness of the secondary structure have stronger influence on the performance than the damping. Using our proposed optimization method for different usage scenarios, the device we designed can achieve the ability of ideal dynamic vibration absorber, or obtain 1700 V output voltage and 3.1 mW energy harvesting power sacrificing 15% of vibration suppression. The electromechanical coupling model and dynamic electrostatic force analytical model established in this paper are helpful to understand the working principle of the electret vibration suppression and energy harvesting mechanism, and reveal the change process and action mechanism of the nonlinear electrostatic force.
-
Key words:
- electret /
- vibration suppression /
- energy harvesting /
- micro-vibration /
- electrostatic force
-

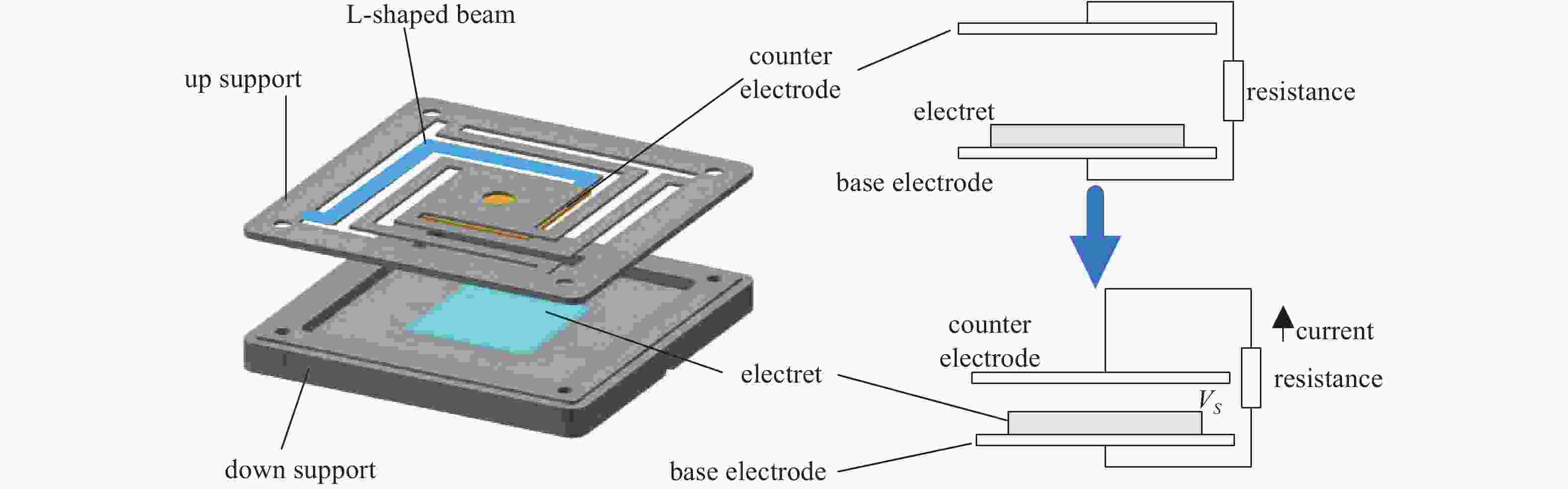

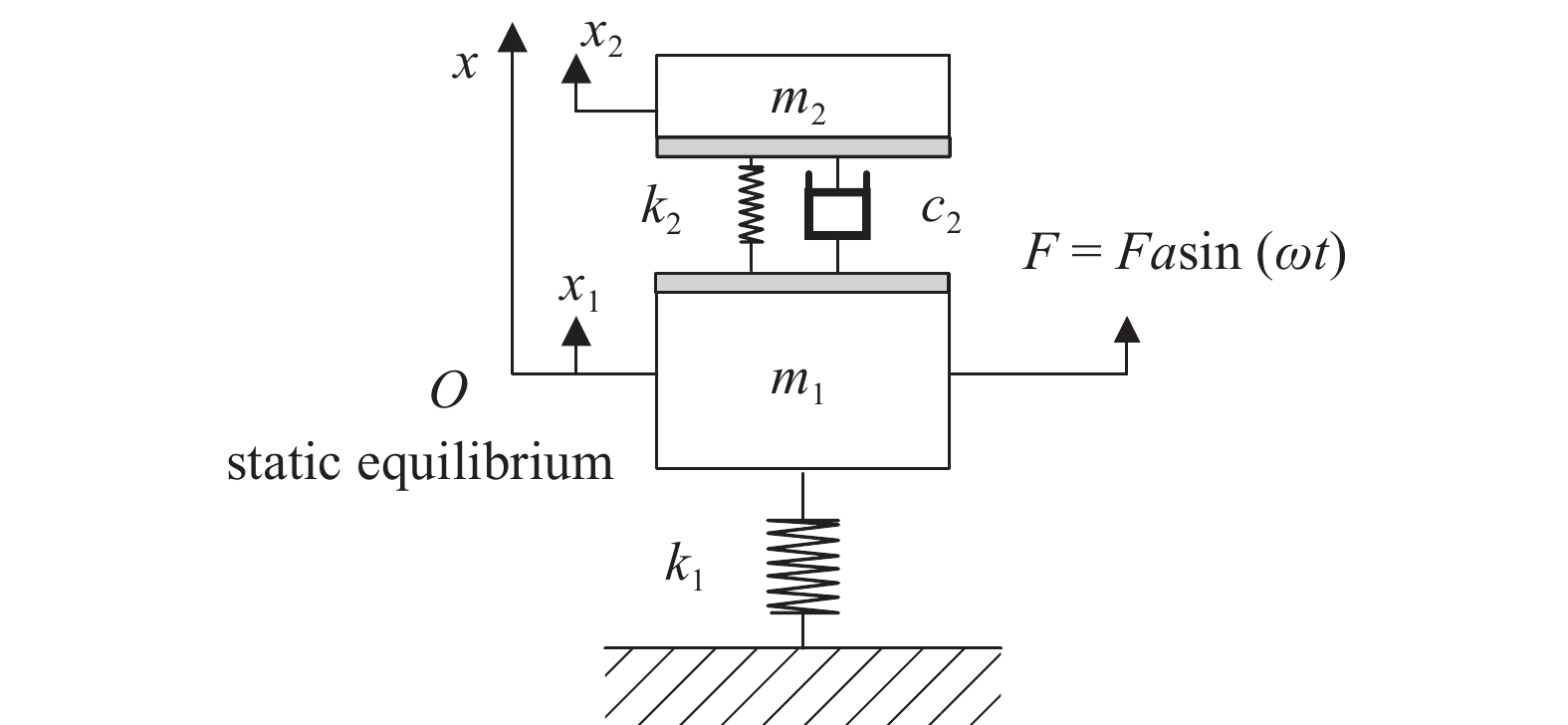

图 2 驻极体减振俘能装置受力图(原点位于m1静平衡位置)
Figure 2. Force analysis of electret vibration suppression and energy harvesting device (orientation was selected as the equilibrium position of the primary structure )

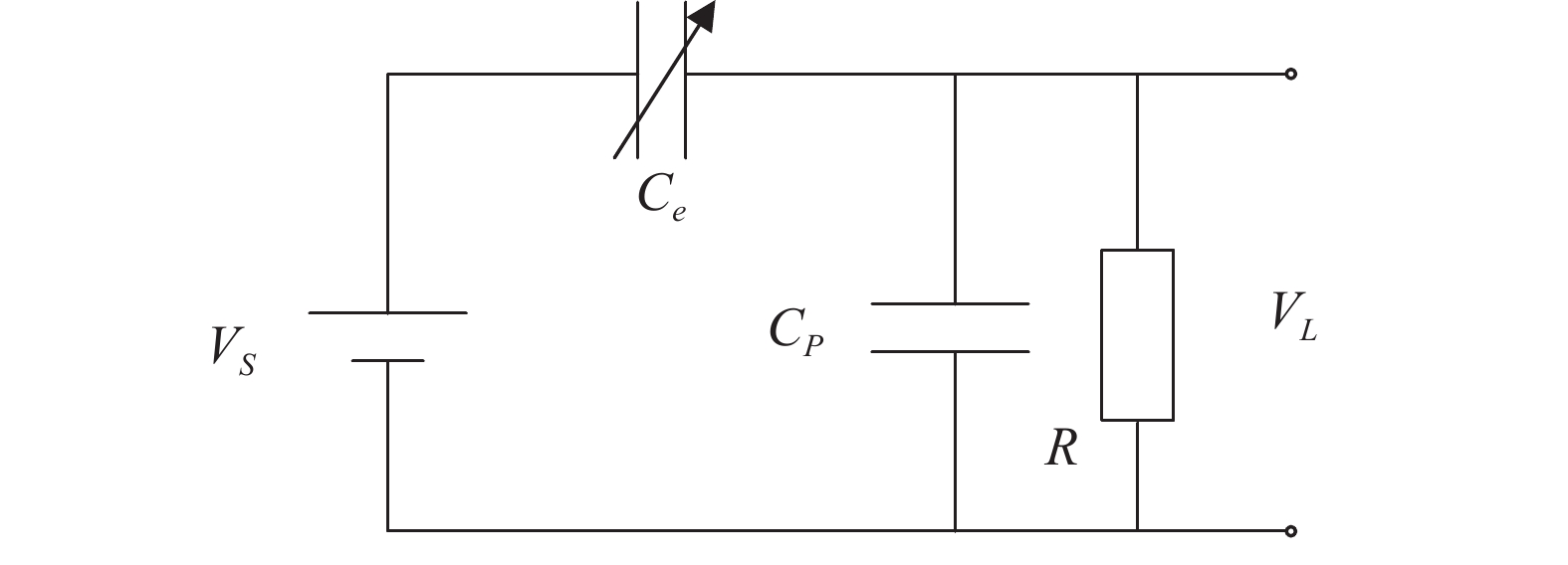

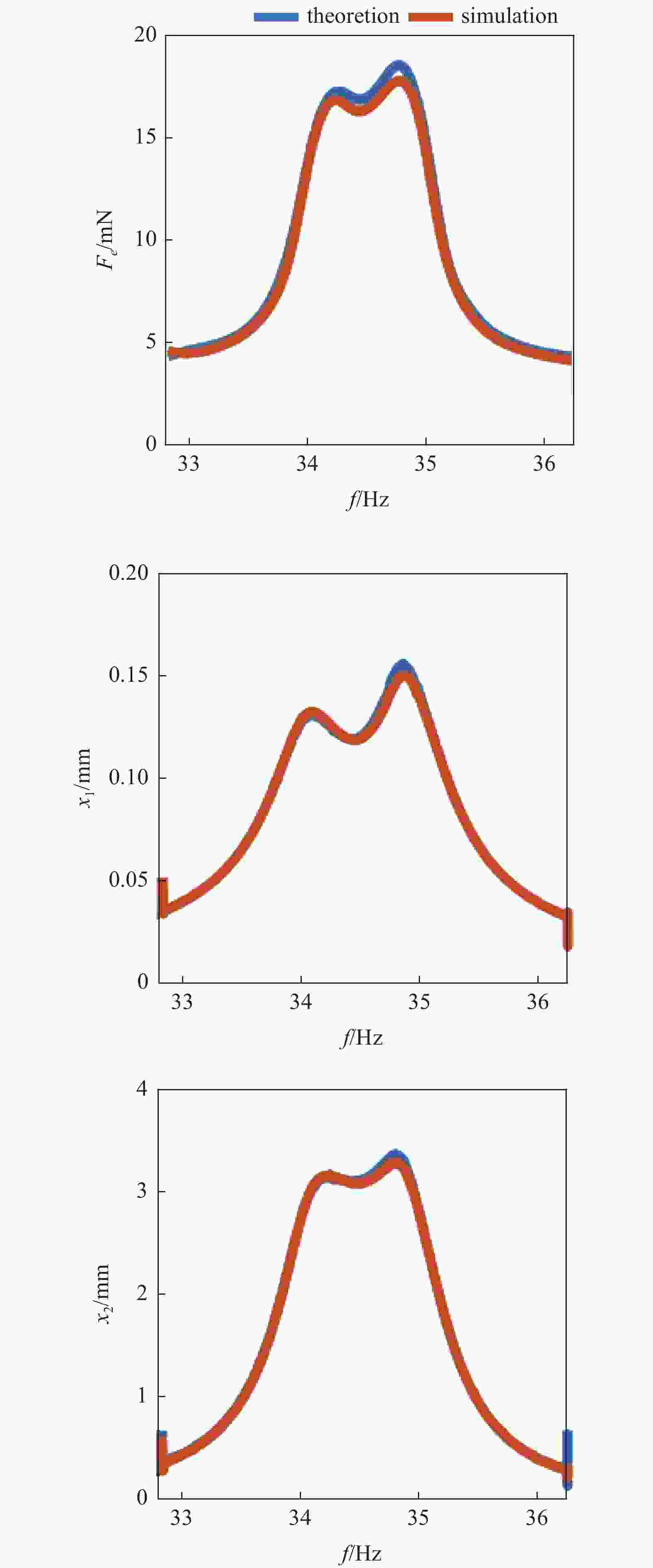

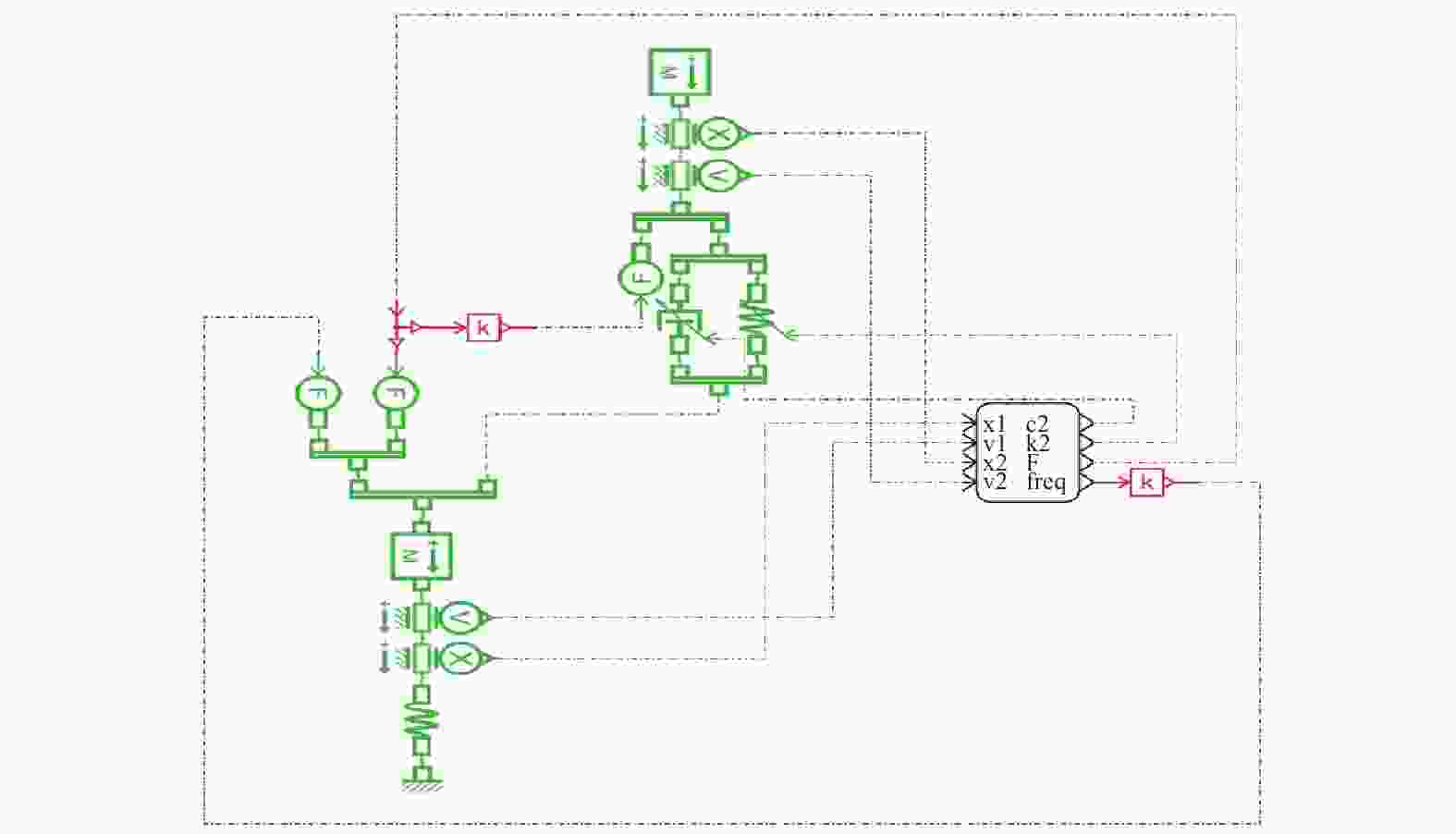

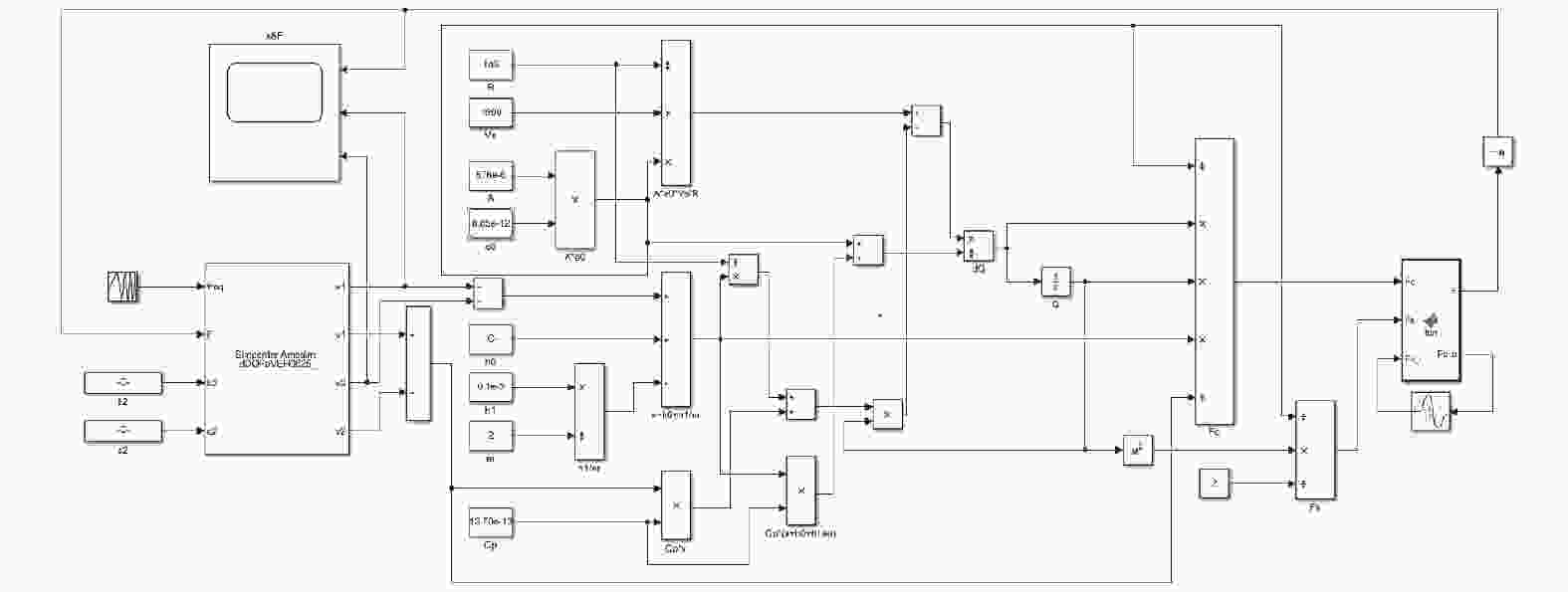

图 6 理论计算和仿真结果对比
Figure 6. Comparison of theoretical calculation and simulation results

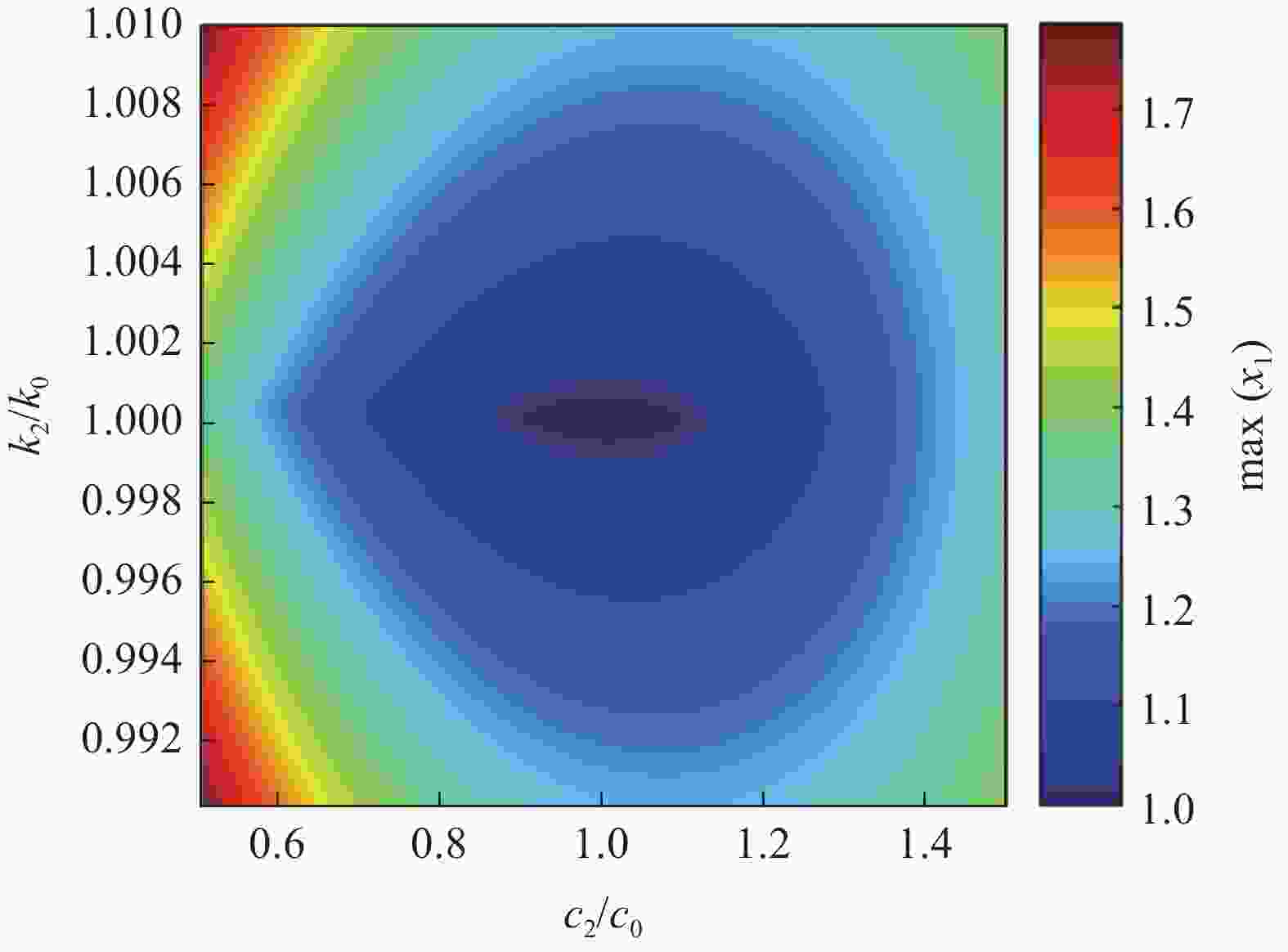

图 7 副结构刚度和阻尼对主结构最大振幅的影响
Figure 7. Influence of the stiffness and damping of the secondary structure on the maximum amplitude of the primary structure

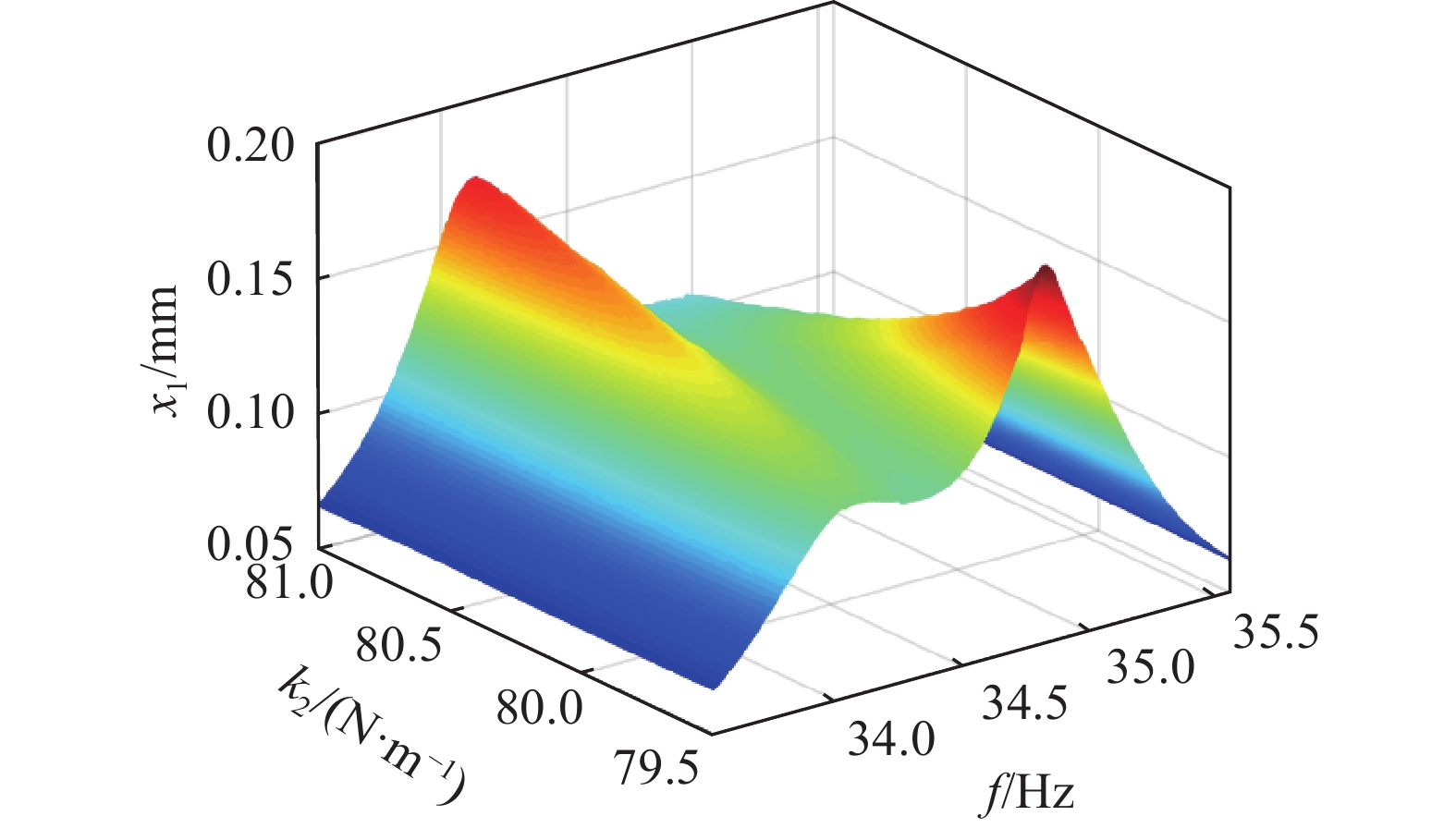

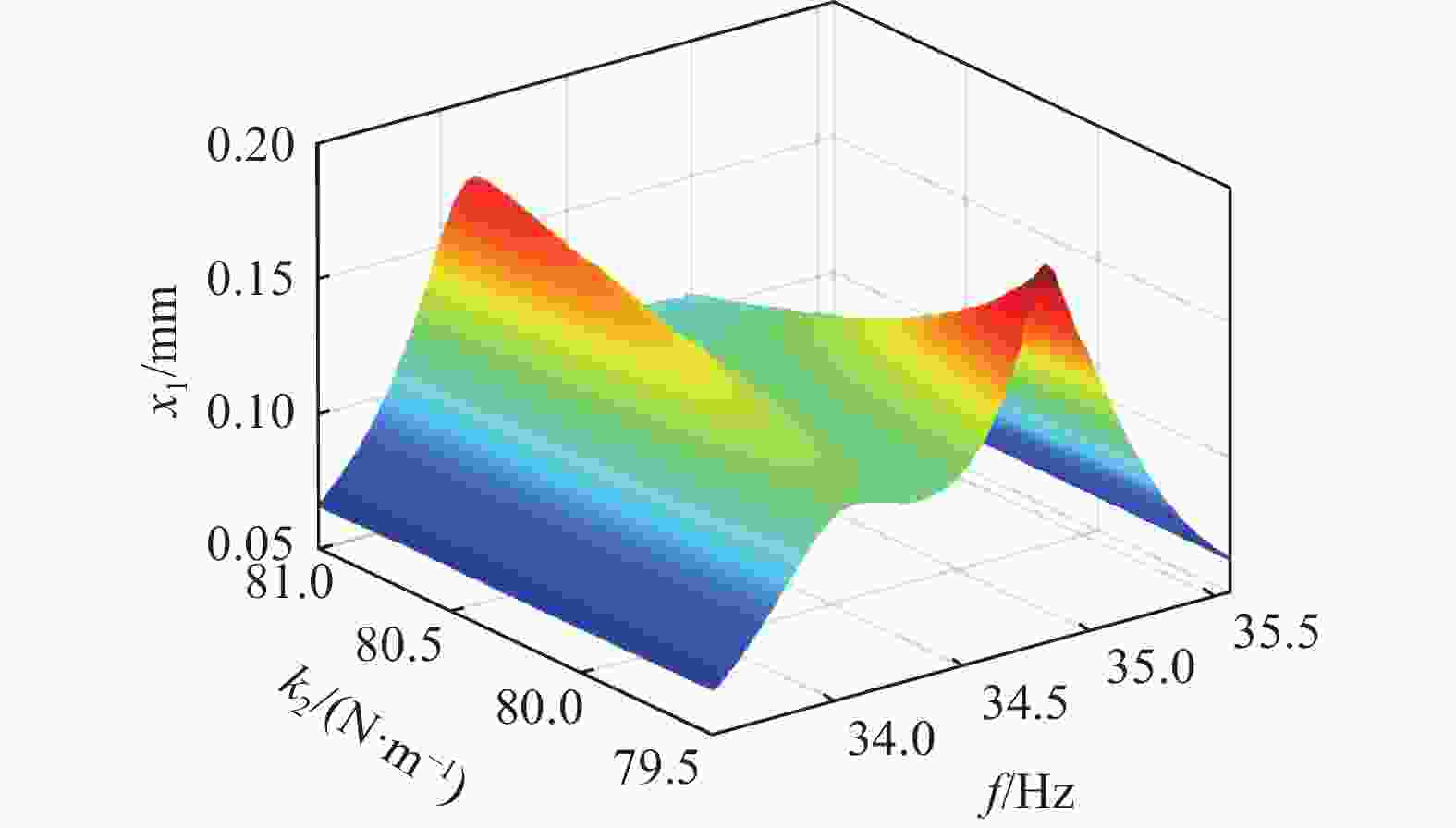

图 8 副结构刚度对主结构幅频响应的影响
Figure 8. Influence of the stiffness of the secondary structure on the amplitude-frequency response of the primary structure

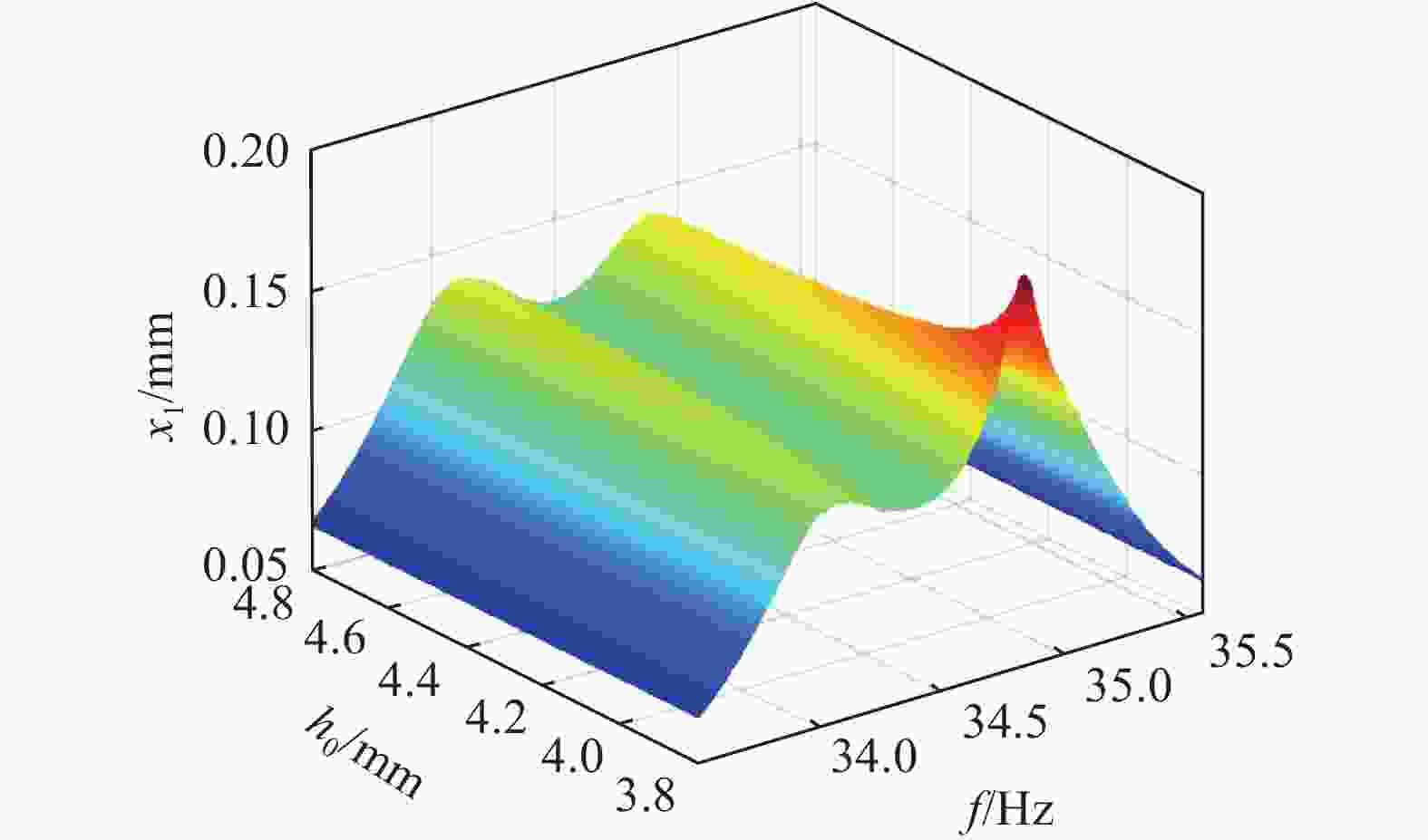

图 9 极板间距对主结构幅频响应的影响
Figure 9. Influence of electrode spacing on the amplitude-frequency response of primary structure

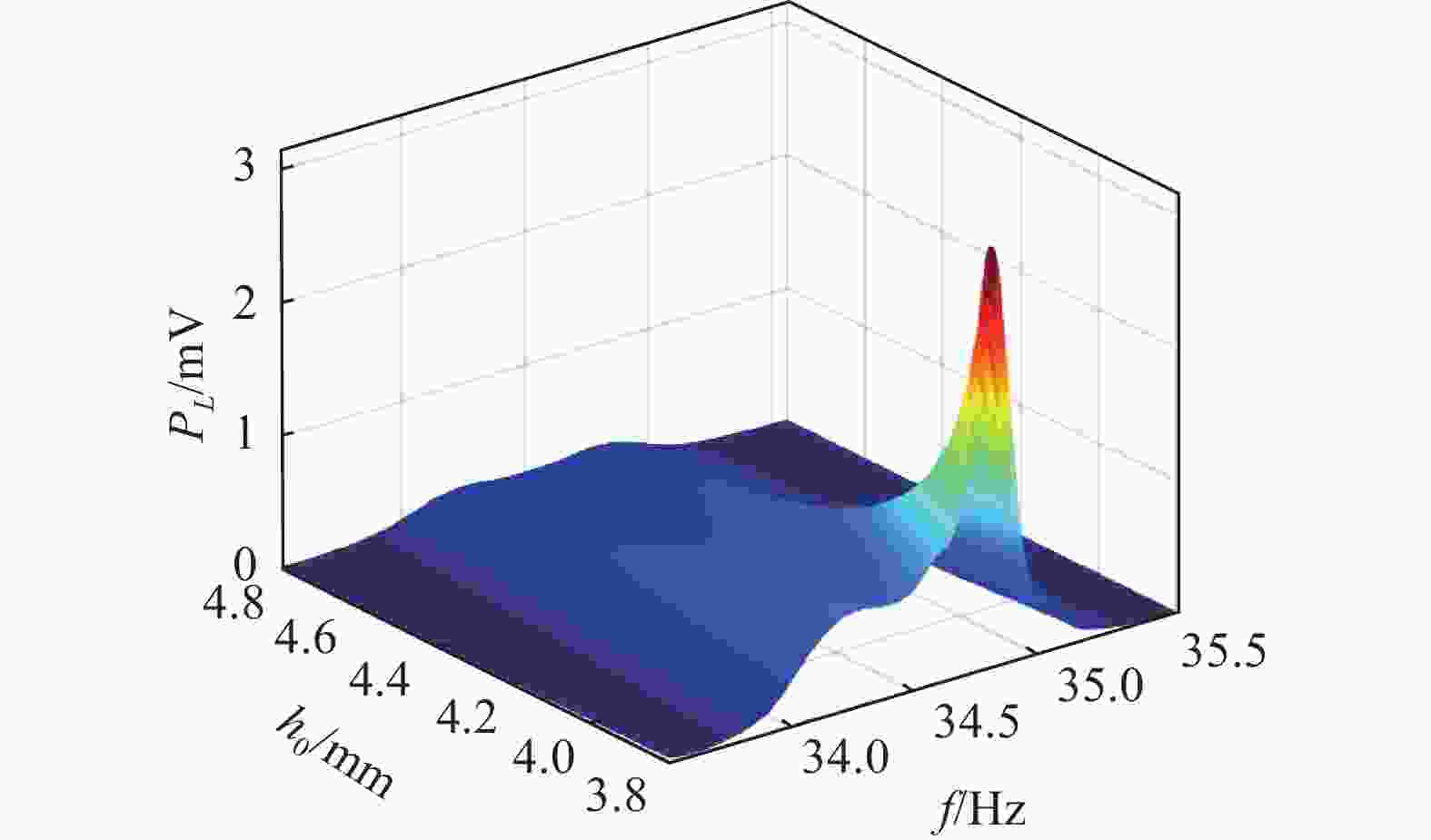

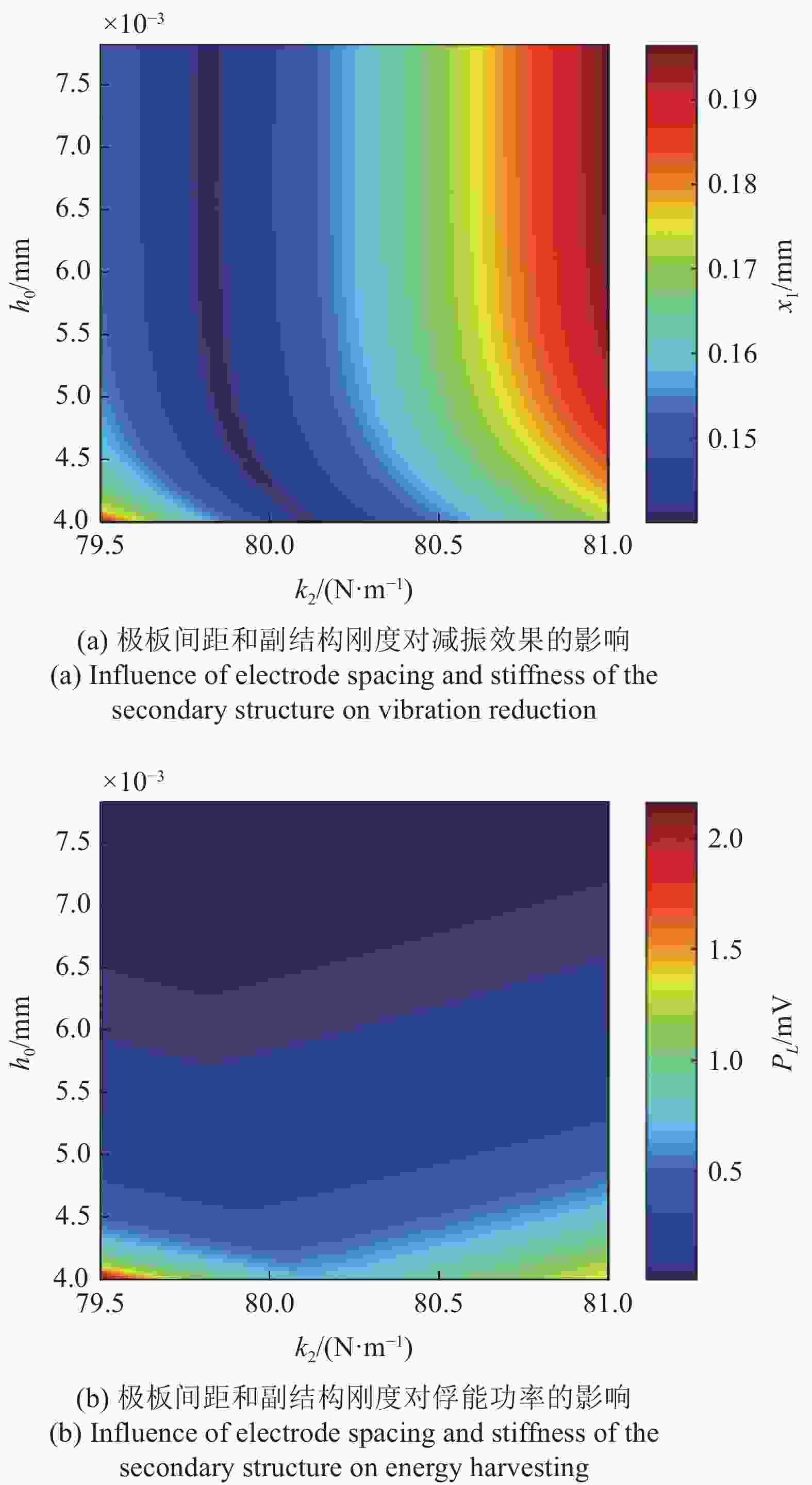

图 11 极板间距和副结构刚度对减振效果和俘能功率的影响
Figure 11. Influence of electrode spacing and stiffness of the secondary structure on vibration suppression and energy harvesting

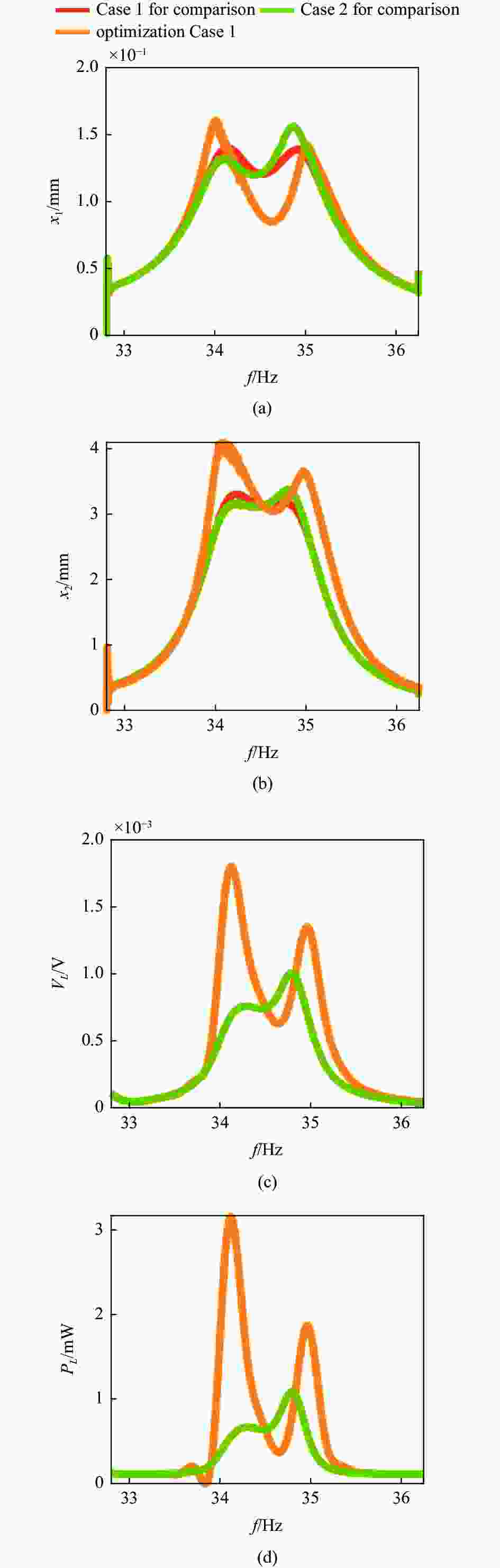

图 12 优化算例1及对照算例1和2的幅频特性及俘能特性对比
Figure 12. Comparison of amplitude-frequency response and energy harvesting of optimization Case 1 and Cases 1, 2 for comparison

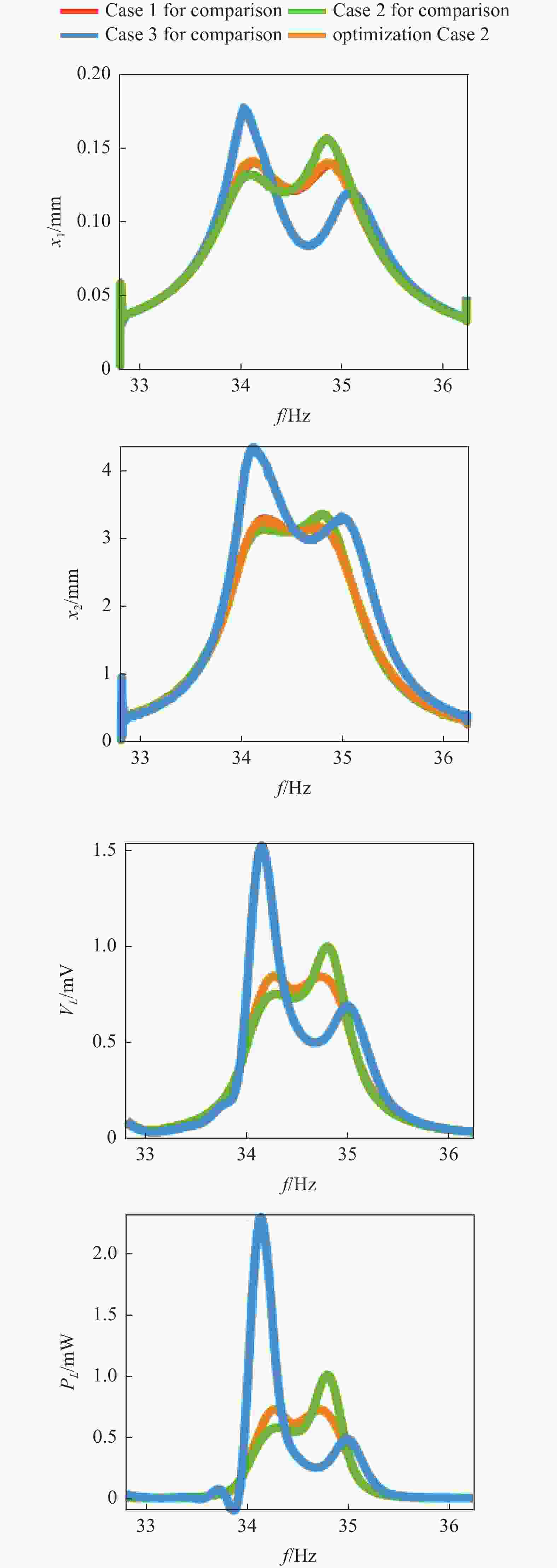

图 13 优化算例2及对照算例1, 2, 3的幅频特性及俘能特性对比
Figure 13. Comparison of amplitude-frequency response and energy harvesting of optimization Case 2 and Cases 1, 2, 3 for comparison
表 1 驻极体减振俘能装置参数设置
Table 1. Parameters of electret vibration suppression and energy harvesting device
Parameters (symbols) Units Values mass of the primary structure (m1) kg 1.7 stiffness of the primary structure (k1) N/m 80000 the mass ratio between the primary and
secondary structures (μ)— 0.001 the area of the electrode spacing of the
electret energy harvester (A)m2 5.76 × 10−4 the thickness of the electret (h1) mm 0.1 the relative dielectric constant of electret (εr) — 2 parasitic capacitance (Cp) pF 13.70 load resistance (R) GΩ 1
下载: 导出CSV
表 2 仅考虑减振目标的参数优化结果(优化算例1)及对照算例1和2的参数选取
Table 2. Parameter optimization results considering only vibration suppression (optimization Case 1) and the parameters of Cases 1 and 2 for comparison
Parameters Units Cases 1 and 2 for comparison Optimization Case 1 k2 N/m 79.84 80.14 c2 N·s/m 0.0142 0.0144 h0 mm 4.000 3.967
下载: 导出CSV
表 3 同时考虑减振与俘能的参数优化结果(优化算例2)及对照算例3的参数选取
Table 3. Parameter optimization results considering both vibration suppression and energy harvesting (optimization Case 2) and the parameters of Case 3 for comparison
Parameters Units Optimization Case 2 Case 3 for comparison k2 N/m 80.69 80.77 c2 N·s/m 0.0103 0.0103 h0 mm 3.992 4.391
下载: 导出CSV
-
[1] Li DL, Zhang Y, Wang K, et al. The experimental adaptability design and verification of the space station manipulator's joint//2021 3rd International Symposium on Robotics & Intelligent Manufacturing Technology (ISRIMT), 2021 [2] Liu W, Wang SQ. Microgravity performance evaluation for zero gravity robot in china's space station. IEEE Aerospace and Electronic Systems Magazine, 2022, 37(1): 32-42 doi: 10.1109/MAES.2021.3114057 [3] 秦超. 空间望远镜微振动抑制关键技术研究. [博士论文]. 北京: 中国科学院大学(中国科学院长春光学精密机械与物理研究所), 2022Qin Chao. Research on the key technologies of micro-vibration suppression for the space telescope. [PhD Thesis]. Beijing: University of Chinese Academy of Sciences (Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences), 2022 (in Chinese) [4] 董瑶海. 航天器微振动——理论与实践. 北京: 中国宇航出版社, 2015Dong Yaohai Microvibration of Spacecraft-Theory and Practice. Beijing: China Astronautic Publishing House, 2015 (in Chinese) [5] 董瑶海, 周徐斌, 申军烽等. FY-4卫星微振动抑制技术研究. 上海航天, 2017, 34(4): 20-27 (Dong Yaohai, Zhou Xubin, Shen Junfeng, et al. Study on micro-vibration suppression technology of FY-4 satellite. Aerospace Shanghai, 2017, 34(4): 20-27 (in Chinese) doi: 10.19328/j.cnki.1006-1630.2017.04.003 [6] Li L, Wang L, Yuan L, et al. Micro-vibration suppression methods and key technologies for high-precision space optical instruments. Acta Astronautica, 2021, 180: 417-428 doi: 10.1016/j.actaastro.2020.12.054 [7] 于济菘. 对日定向太阳翼扰振特性及其抑制技术研究. [博士论文]. 北京: 中国科学院大学(中国科学院长春光学精密机械与物理研究所), 2022Yu Jisong. Characteristic and attenuation method research on the disturbance behavior of sun-tracking solar array. [PhD Thesis]. Beijing: University of Chinese Academy of Sciences (Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences), 2022 (in Chinese) [8] Yang T, Zhou SX, Fang ST, et al. Nonlinear vibration energy harvesting and vibration suppression technologies: Designs, analysis, and applications. Applied Physics Reviews, 2021, 8(3): 031317 [9] Li YJ, Tao K, George B, et al. Harvesting vibration energy: technologies and challenges. IEEE Industrial Electronics Magazine, 2021, 15(1): 30-39 doi: 10.1109/MIE.2020.2978219 [10] Xiao YJ, Guo C, Zeng QD, et al. Electret nanogenerators for self-powered, flexible electronic pianos. Sustainability, 2021, 13(8): 4142 [11] 陈楠, 刘京睿, 魏廷存. 面向压电振动能量俘获的电能管理电路综述. 力学学报, 2021, 53(11): 2928-2940 (Chen Nan, Liu Jingrui, Wei Tingcun. Review of energy management circuits for piezoelectric vibration energy harvesters. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(11): 2928-2940 (in Chinese) doi: 10.6052/0459-1879-21-440 [12] Muscat A, Bhattacharya S, Zhu Y. Electromagnetic vibrational energy harvesters: a review. Sensors (Basel), 2022, 22(15): 5555 [13] Pan JN, Qin WY, Zhao CY, et al. Hybrid vibration energy harvesting based on piezoelectric polyline beams with electret coupling. Journal of Intelligent Material Systems and Structures, 2021, 33(2): 319-329 [14] Tao K, Yi HP, Yang Y, et al. Origami-inspired electret-based triboelectric generator for biomechanical and ocean wave energy harvesting. Nano Energy, 2020, 67: 104197 [15] Yan B, Zhou SX, Zhao CX, et al. Electromagnetic Energy harvester for vibration control of space rack: modeling, optimization, and analysis. Journal of Aerospace Engineering, 2019, 32(1): 04018126 [16] Yang T, Cao QJ, Hao ZF. A novel nonlinear mechanical oscillator and its application in vibration isolation and energy harvesting. Mechanical Systems and Signal Processing, 2021, 155: 107636 [17] Fang ST, Chen KY, Xing JT, et al. Tuned bistable nonlinear energy sink for simultaneously improved vibration suppression and energy harvesting. International Journal of Mechanical Sciences, 2021, 212: 106838 [18] Zhang YQ, Yang T, Du HF, et al. Wideband vibration isolation and energy harvesting based on a coupled piezoelectric-electromagnetic structure. Mechanical Systems and Signal Processing, 2023, 184: 109689 [19] 赵龙, 陆泽琦, 丁虎等. 低频振动隔离和能量采集双功能超材料. 力学学报, 2021, 53(11): 2972 (Zhao Long, Lu Zeqi, Ding Hu, et al. Low-frequency vibration isolation and energy harvesting simultaneously implemented by a metamaterial with local resonance. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(11): 2972 (in Chinese) doi: 10.6052/0459-1879-21-471 [20] Cao DX, Gao YH, Hu WH. Modeling and power performance improvement of a piezoelectric energy harvester for low-frequency vibration environments. Acta Mechanica Sinica, 2019, 35(4): 894-911 doi: 10.1007/s10409-019-00852-3 [21] Cao DX, Guo XY, Hu WH. A novel low-frequency broadband piezoelectric energy harvester combined with a negative stiffness vibration isolator. Journal of Intelligent Material Systems and Structures, 2019, 30(7): 1105-1114 doi: 10.1177/1045389X19829835 [22] Hu GB, Tang LH, Das R. Internally coupled metamaterial beam for simultaneous vibration suppression and low frequency energy harvesting. Journal of Applied Physics, 2018, 123(5): 055107 [23] Mofidian S, Bardaweel H. A dual-purpose vibration isolator energy harvester: experiment and model. Mechanical Systems and Signal Processing, 2019, 118: 360-376 doi: 10.1016/j.ymssp.2018.08.054 [24] 杨涛, 周生喜, 曹庆杰等. 非线性振动能量俘获技术的若干进展. 力学学报, 2021, 53(11): 2894-2909 (Yang Tao, Zhou Shengxi, Cao Qingjie, et al. Some advances in nonlinear vibration energy harvesting technology. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(11): 2894-2909 (in Chinese) doi: 10.6052/0459-1879-21-474 [25] Yang ZS, Tang LH, Tao K, et al. A broadband electret-based vibrational energy harvester using soft magneto-sensitive elastomer with asymmetrical frequency response profile. Smart Materials and Structures, 2019, 28(10): 10LT02 [26] Li G, Liu GL, He WC, et al. Miura folding based charge-excitation triboelectric nanogenerator for portable power supply. Nano Research, 2021, 14(11): 4204-4210 doi: 10.1007/s12274-021-3401-4 [27] Tao K, Chen Z, Yi H, et al. Hierarchical honeycomb-structured electret/triboelectric nanogenerator for biomechanical and morphing wing energy harvesting. Nano-Micro Letters, 2021, 13(1): 123 doi: 10.1007/s40820-021-00644-0 [28] Beeby S, Tudor MJ, Torah RN, et al. Experimental comparison of macro and micro scale electromagnetic vibration powered generators. Microsystem Technologies, 2007, 13(11-12): 1647-1653 doi: 10.1007/s00542-006-0374-x [29] Cai QL, Zhu SY. The nexus between vibration-based energy harvesting and structural vibration control: a comprehensive review. Renewable and Sustainable Energy Reviews, 2022, 155: 111920 [30] Safaei M, Sodano HA, Anton SR. A review of energy harvesting using piezoelectric materials: state-of-the-art a decade later (2008–2018). Smart Materials and Structures, 2019, 28(11): 113001 [31] Nijmeijer H, Mestrom RMC, Fey RHB, et al. Design and numerical analysis of an electrostatic energy harvester with impact for frequency up-conversion. Journal of Computational and Nonlinear Dynamics, 2020, 15(5): 051005 [32] Yang ZS, Tang LH, Tao K, et al. Modelling and validation of electret-based vibration energy harvesters in view of charge migration. International Journal of Precision Engineering and Manufacturing-Green Technology, 2019, 8(1): 113-123 [33] Westby ER, Halvorsen E. Design and modeling of a patterned-electret-based energy harvester for tire pressure monitoring systems. IEEE/ASME Transactions On Mechatronics, 2012, 17(5): 995-1005 doi: 10.1109/TMECH.2011.2151203 [34] Perez M, Boisseau S, Gasnier P, et al. An electret-based aeroelastic flutter energy harvester. Smart Materials and Structures, 2015, 24(3): 035004 doi: 10.1088/0964-1726/24/3/035004 [35] Yang SS, Chu Y, Dong KK, et al. Contact-separation mode electret generator supported by magnets//2021 IEEE 20 th International Conference on Micro and Nanotechnology for Power Generation and Energy Conversion Applications (PowerMEMS), 2021 [36] 张义民. 机械振动. 北京: 清华大学出版社, 2007Zhang Yimin. Mechanical Vibration. Bejing: Tsinghua University Press, 2007 (in Chinese) [37] Yang ZS. Development of low-frequency broadband vibration energy harvester based on soft magneto-sensitive elastomer. [PhD Thesis]. The University of Auckland, 2019 -
