DISCONTINUOUS BIFURCATIONS OF COEXISTING ATTRACTORS FOR A GEAR TRANSMISSION SYSTEM
-

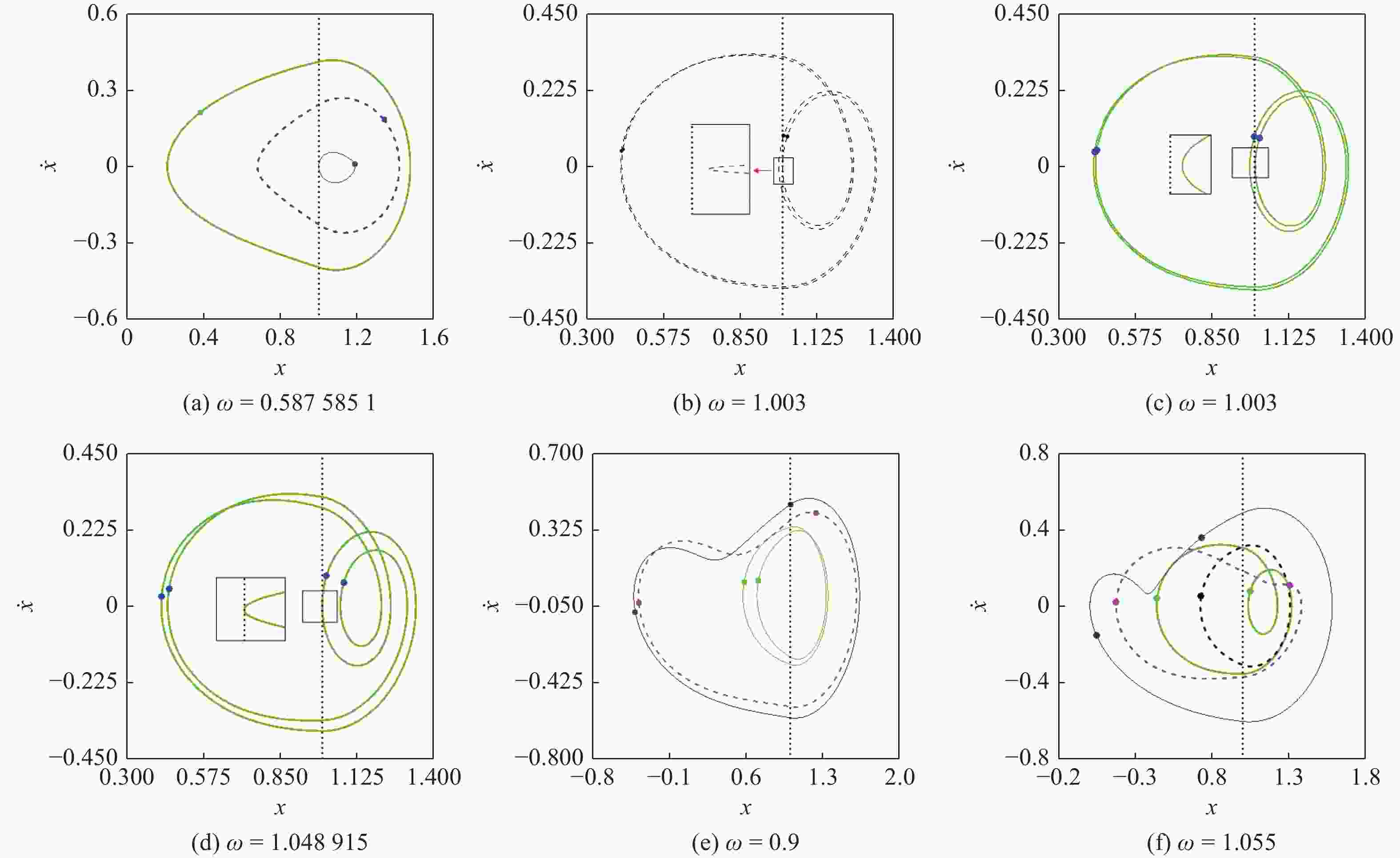

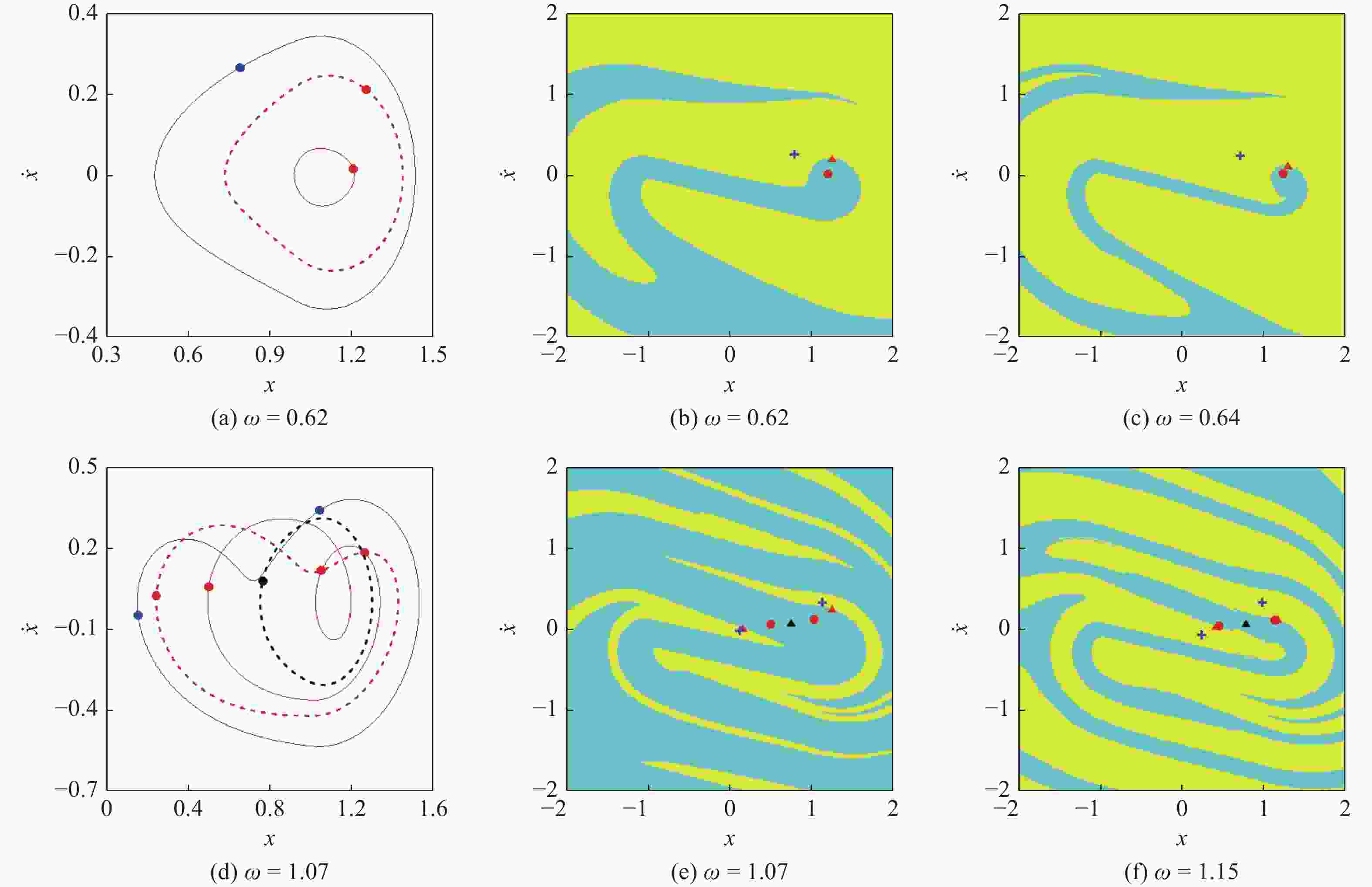

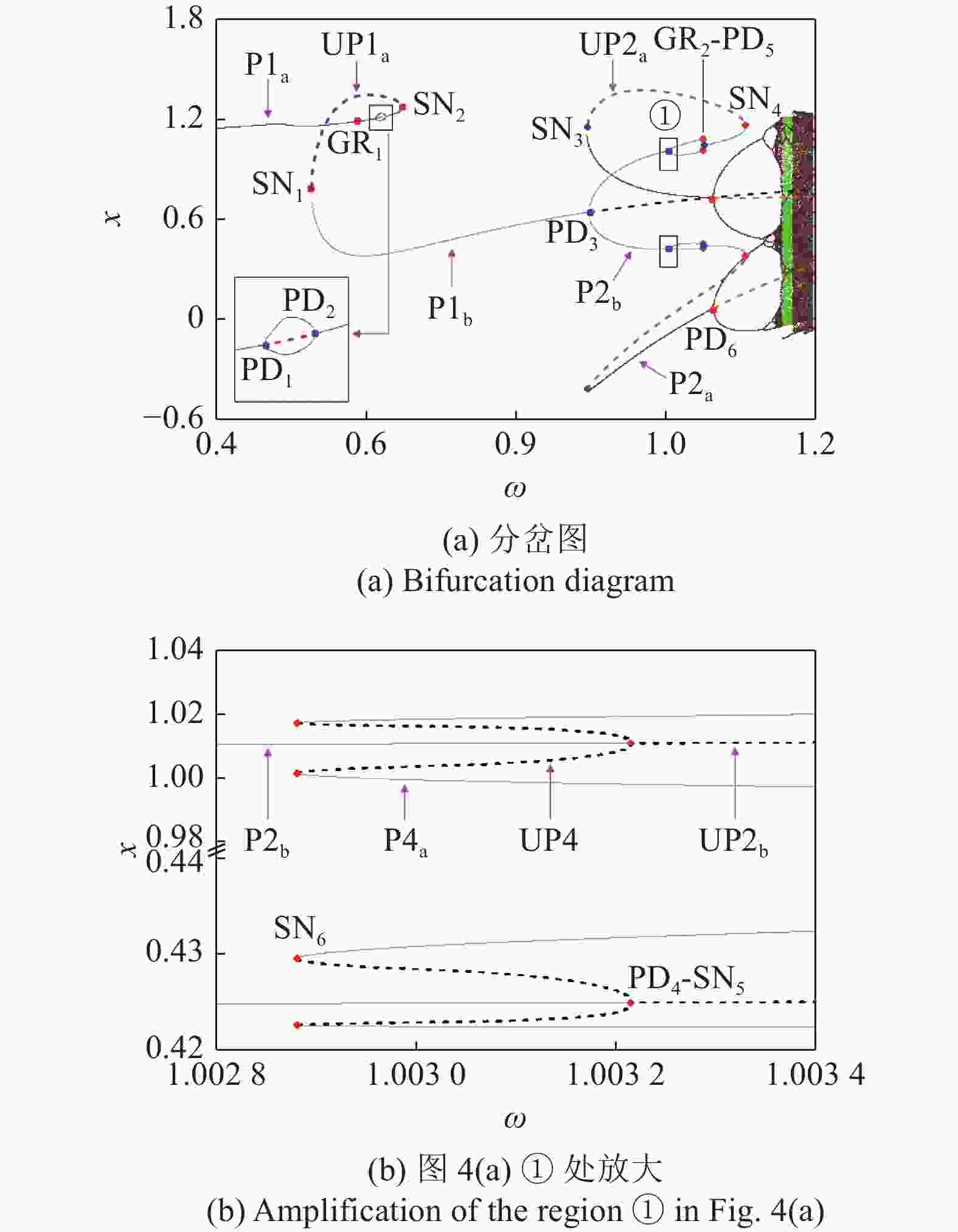

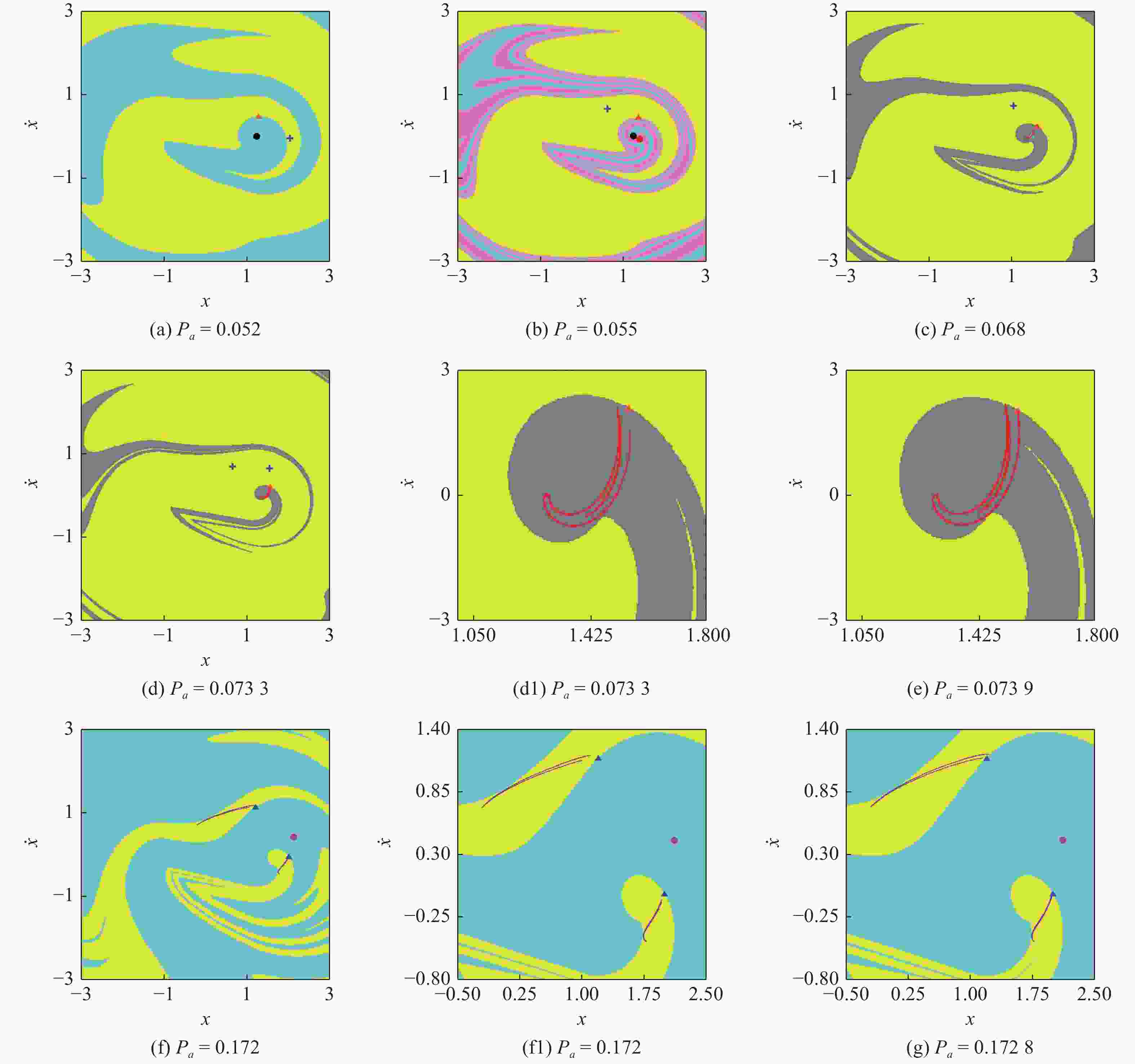

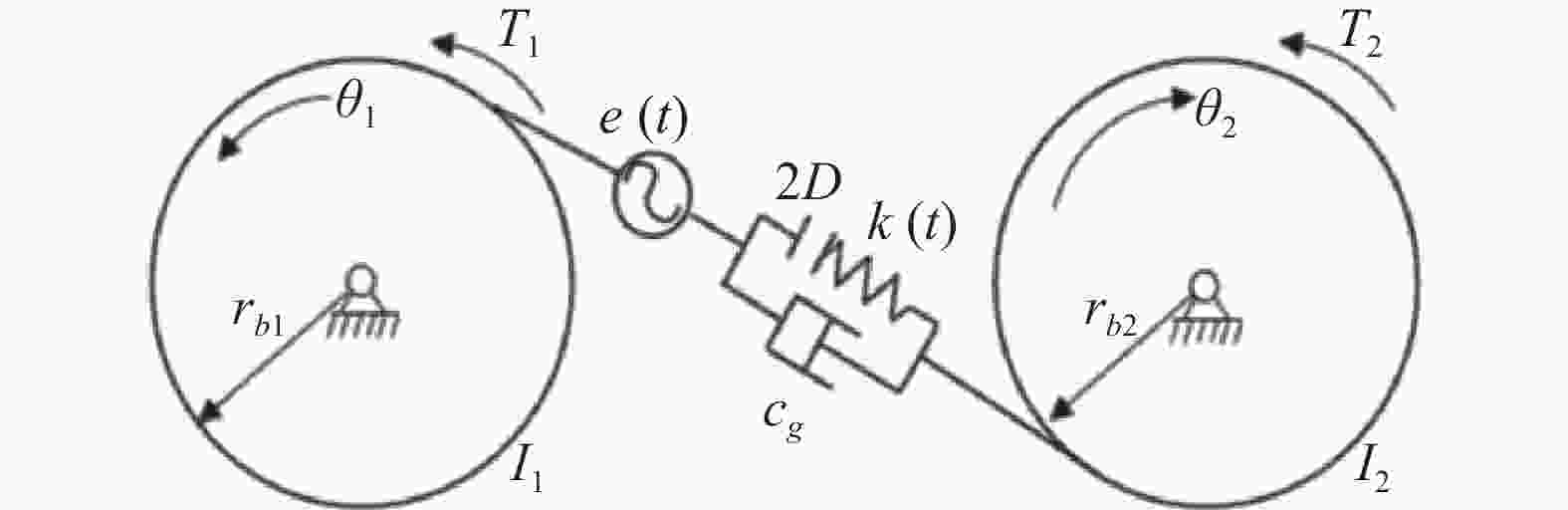

摘要: 大量的多吸引子共存是引起齿轮传动系统具有丰富动力学行为的一个重要因素. 多吸引子共存时, 运动工况的变化以及不可避免的扰动都可能导致齿轮传动系统在不同运动行为之间跳跃变换, 对整个机器产生不良的影响. 目前, 一些隐藏的吸引子没有被发现, 共存吸引子的分岔演化规律没有被完全揭示. 考虑单自由度直齿圆柱齿轮传动系统, 构建由局部映射复合的Poincaré映射, 给出Jacobi矩阵特征值计算的半解析法. 应用数值仿真、延拓打靶法和Floquet特征乘子求解共存吸引子的稳定性与分岔, 应用胞映射法计算共存吸引子的吸引域, 讨论啮合频率、阻尼比和时变激励幅值对系统动力学的影响, 揭示齿轮传动系统倍周期型擦边分岔、亚临界倍周期分岔诱导的鞍结分岔和边界激变等不连续分岔行为. 倍周期分岔诱导的鞍结分岔引起相邻周期吸引子相互转迁的跳跃与迟滞, 使倍周期分岔呈现亚临界特性. 鞍结分岔是共存周期吸引子出现或消失的主要原因. 边界激变引起混沌吸引子及其吸引域突然消失, 对应周期吸引子的分岔终止.Abstract: An important factor of rich dynamics in the gear transmission system is that there are a large number of various types of co-existing attractors. When multiple attractors coexist, the change of motion conditions and the inevitable disturbance may cause the gear transmission system to jump between different motion behaviors. As a result, the whole machine is adversely affected, and sometimes, the system structure will be destroyed. At present, some hidden attractors have not been found, and the bifurcation evolution characteristics of coexisting attractors have not been fully revealed. A single-degree-of-freedom spur gear system is considered. The Poincaré mapping compounded by local maps is constructed, and semi-analytic calculation method of eigenvalues of Jacobi matrix is presented. The stability and bifurcations of coexisting attractors are studied by applying numerical simulation, continuation shooting method and Floquet multipliers, and the basins of attraction of coexisting attractors are calculated by using cell mapping method. The influence of the meshing frequency, damping ratio and amplitude of time-varying excitation on the system dynamics is analyzed, and the discontinuous bifurcation behaviors including PD-type grazing bifurcation, saddle-node bifurcation induced by subcritical period-doubling bifurcation and boundary crisis are revealed in the gear transmission system. The saddle-node bifurcation induced by period-doubling bifurcation leads to the jump and hysteresis in the transition between adjacent periodic attractors, resulting in that the period-doubling bifurcation presents subcritical feature. The saddle-node bifurcation is a major factor for the appearance and disappearance of coexisting periodic attractors. The boundary crisis leads the chaotic attractor and its basin of attraction to disappear, and the bifurcation of corresponding periodic attractor terminates.
-
Key words:
- non-smooth system /
- gear /
- continuation shooting method /
- coexisting attractors /
- bifurcation
-

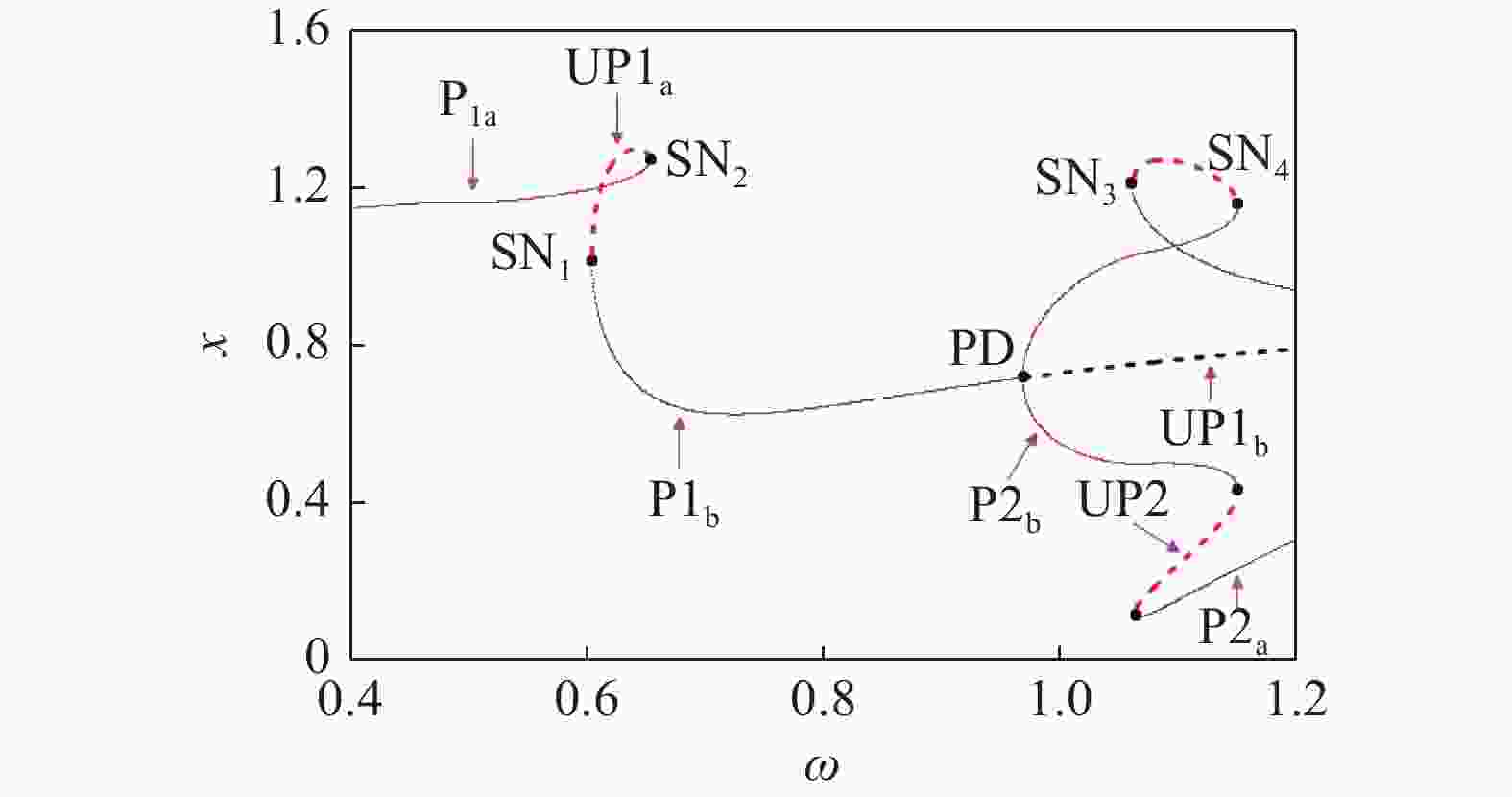

图 2 延拓打靶法计算的分岔图
Figure 2. Bifurcation diagram calculated by continuation shooting method

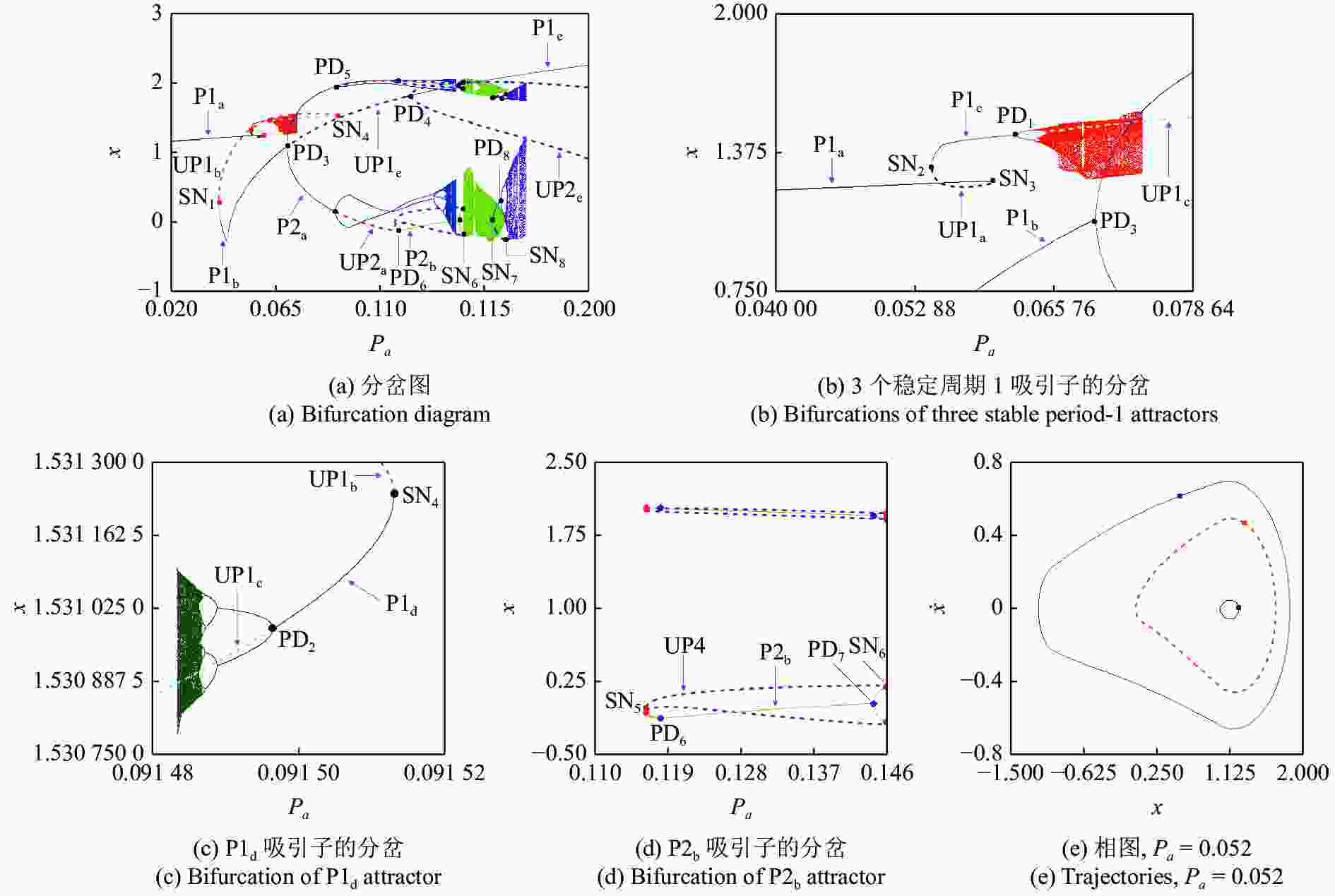

图 6 随Pa变化的分岔图和相图
Figure 6. Bifurcation diagram of displacement as a function of Pa and trajectories
-
[1] Kahram A, Singh R. Interactions between time-varying mesh stiffness and clearance non-linearities in a geared system. Journal of Sound and Vibration, 1991, 145(2): 239-260 doi: 10.1016/0022-460X(91)90590-G [2] Luo ACJ, O'Connor D. Periodic motions with impacting chatter and stick in a gear transmission system. Journal of Vibration and Acoustics, 2009, 131(4): 104-114 [3] 高建设, 崔秉奇, 丁顺良等. 齿轮-轴承传动系统擦边碰撞的动力学特性分析. 振动与冲击, 2022, 41(13): 1-7 (Gao Jianshe, Cui Bingqi, Ding Shunliang et al. Dynamic characteristics analysis of grazing impact of gear-bearing transmission system. Journal of Vibration and Shock, 2022, 41(13): 1-7 (in Chinese) doi: 10.13465/j.cnki.jvs.2022.13.001 [4] 王三民, 沈允文, 董海军. 含摩擦和间隙直齿轮副的混沌与分叉研究. 机械工程学报, 2002, 38(9): 8-11 (Wang Sanmin, Shen Yunwen, Dong Haijun. Chaos and bifurcation analysis of a spur gear pair with combined frictionand clearance. Chinese Journal of Mechanical Engineering, 2002, 38(9): 8-11 (in Chinese) doi: 10.3321/j.issn:0577-6686.2002.09.002 [5] 唐进元, 陈思雨, 钟掘. 一种改进的齿轮非线性动力学模型. 工程力学, 2008, 25(1): 217-223 (Tang Jinyuan, Chen Siyu, Zhong Jue. A improved nonlinear model for a spur gear pair system. Engineering Mechanics, 2008, 25(1): 217-223 (in Chinese) [6] 陈思雨, 唐进元, 王志伟等. 修形对齿轮系统动力学特性的影响规律. 机械工程学报, 2014, 50(13): 59-65 (Chen Siyu, Tang Jinyuan, Wang Zhiwei et al. Effect of modification on dynamic characteristics of gear transmissions system. Journal of Mechanical Engineering, 2014, 50(13): 59-65 (in Chinese) doi: 10.3901/JME.2014.13.059 [7] Theodossiades S, Natsiavas S. Non-linear dynamics of gear-pair systems with periodic stiffness and backlash. Journal of Sound and Vibration, 2000, 229(2): 287-310 doi: 10.1006/jsvi.1999.2490 [8] Chang-Jian CW, Shiuh-Ming C. Bifurcation and chaos analysis of spur gear pair with and without nonlinear suspension. Nonlinear Analysis:Real World Applications, 2011, 12: 979-989 doi: 10.1016/j.nonrwa.2010.08.021 [9] 王立华, 李润方, 林腾蛟等. 齿轮系统时变刚度和间隙非线性振动特性研究. 中国机械工程, 2003, 14(13): 1143-1146 (Wang Lihua, Li Runfang, Lin Tengjiao, et al. Research on nonlinear vibration characteristics due to time-varying mesh stiffness and gear backlash in gear system. China Mechanical Engineering, 2003, 14(13): 1143-1146 (in Chinese) doi: 10.3321/j.issn:1004-132X.2003.13.019 [10] 陈思雨, 唐进元, 谢耀东. 齿轮传动系统的非线性冲击动力学行为分析. 振动与冲击, 2009, 28(4): 70-75 (Chen Siyu, Tang Jinyuan, Xie Yaodong. Analysis of nonlinear impact dynamic behavior for a gear pair system with time-varying stiffness and friction. Journal of Vibration and Shock, 2009, 28(4): 70-75 (in Chinese) doi: 10.3969/j.issn.1000-3835.2009.04.016 [11] 唐进元, 熊兴波, 陈思雨. 基于图胞映射方法的单自由度非线性齿轮系统全局特性分析. 机械工程学报, 2011, 47(5): 59-65 (Tang Jinyuan, Xiong Xingbo, Chen Siyu. Analysis of global character of single degree of freedom nonlinear gear system based on digraph cell mapping method. Journal of Mechanical Engineering, 2011, 47(5): 59-65 (in Chinese) doi: 10.3901/JME.2011.05.059 [12] 刘梦军, 沈允文, 董海军. 齿轮系统参数对全局特性影响的研究. 机械工程学报, 2004, 40(11): 58-63 (Liu Mengjun, Shen Yunwen, Dong Haijun. Research on the affection of the gear system parameters on the global character. Chinese Journal of Mechanical Engineering, 2004, 40(11): 58-63 (in Chinese) doi: 10.3321/j.issn:0577-6686.2004.11.011 [13] Mason JF, Piiroinen PT, Wilson RE, et al. Basins of attraction in non-smooth models of gear rattle. International Journal of Bifurcation and Chaos, 2009, 19: 203-224 doi: 10.1142/S021812740902283X [14] Natsiavas S, Theodossiades S, Goudas I. Dynamic analysis of piecewise linear oscillators with time periodic coefficients. International Journal of Non-Linear Mechanics, 2000, 35(1): 53-68 doi: 10.1016/S0020-7462(98)00087-0 [15] 杨绍普, 申永军, 刘献栋. 基于增量谐波平衡法的齿轮系统非线性动力学. 振动与冲击, 2005, 24(3): 40-43 (Yang Shaopu, Shen Yongjun, Liu Xiandong. Nonlinear dynamics of gear system based on incremental harmonic balance method. Journal of Vibration and Shock, 2005, 24(3): 40-43 (in Chinese) doi: 10.3969/j.issn.1000-3835.2005.03.011 [16] 李华, 沈允文, 孙智民. 基于A-算符方法的齿轮系统的分岔与混沌. 机械工程学报, 2002, 38(6): 11-15 (Li Hua, Shen Yunwen, Sun Zhimin. Bifurcation and chaotic behavior of geared system with clearances based on the A-operator method. Chinese Journal of Mechanical Engineering, 2002, 38(6): 11-15 (in Chinese) doi: 10.3321/j.issn:0577-6686.2002.06.003 [17] 郜志英, 沈允文, 李素有. 间隙非线性齿轮系统周期解结构及其稳定性研究. 机械工程学报, 2004, 5: 17-22 (Gao Zhiying, Shen Yunwen, Li Suyou. Research on the periodic solution structure and its stability of nonlinear gear system with clearance. Chinese Journal of Mechanical Engineering, 2004, 5: 17-22 (in Chinese) doi: 10.3321/j.issn:0577-6686.2004.05.004 [18] Wei S, Han QK, Dong XJ et al. Dynamic response of a single-mesh gear system with periodic mesh stiffness and backlash nonlinearity under uncertainty. Nonlinear Dynamics, 2017, 89(1): 49-60 doi: 10.1007/s11071-017-3435-z [19] 陈思雨, 唐进元. 间隙对含摩擦和时变刚度的齿轮系统动力学响应的影响. 机械工程学报, 2009, 45(8): 119-124 (Chen Siyu, Tang Jinyuan. Effect of backlash on dynamics of spur gear pair system with friction and time-varying stiffness. Chinese Journal of Mechanical Engineering, 2009, 45(8): 119-124 (in Chinese) doi: 10.3901/JME.2009.08.119 [20] Gou XF, Zhu LY, Chen DL. Bifurcation and chaos analysis of spur gear pair in two-parameter plane. Nonlinear Dynamics, 2015, 79: 2225-2235 doi: 10.1007/s11071-014-1807-1 [21] 苟向锋, 朱凌云, 陈代林等. 参数耦合对单自由度直齿圆柱齿轮系统动态特性影响分析. 振动工程学报, 2017, 30(2): 202-213 (Gou Xiangfeng, Zhu Lingyun, Chen Dailin et al. Analysis of effect of parameters coupling on the dynamic characteristics of a single degree-of-freedom spur gear system. Journal of Vibration Engineering, 2017, 30(2): 202-213 (in Chinese) [22] Yang Y, Cao LY, Li H, et al. Nonlinear dynamic response of a spur gear pair based on the modeling of periodic mesh stiffness and static transmission error. Applied Mathematical Modelling, 2019, 72: 444-469 doi: 10.1016/j.apm.2019.03.026 [23] Chong ASE, Yue Y, Pavlovskaia E, et al. Global dynamics of a harmonically excited oscillator with a play: Numerical studies. International Journal of Non-Linear Mechanics, 2017, 94: 98-108 doi: 10.1016/j.ijnonlinmec.2017.03.015 [24] 陈振阳, 韩修静, 毕勤胜. 离散达芬映射中由边界激变所诱发的复杂的张弛振荡. 力学学报, 2017, 49(6): 1380-1389 (Chen Zhenyang, Han Xiujing, Bi Qinsheng. Complex relaxation oscillation triggered by boundary crisis in the discrete Duffing map. Chinese Journal of Theoretical and Applied Mechanics, 2017, 49(6): 1380-1389 (in Chinese) doi: 10.6052/0459-1879-17-138 [25] 刘莉, 徐伟, 岳晓乐等. 一类含非黏滞阻尼的Duffing单边碰撞系统的激变研究. 物理学报, 2013, 62(20): 200501 (Liu Li, Xu Wei, Yue Xiaole et al. Global analysis of crises in a Duffing vibro-impact oscillator with non-viscously damping. Acta Physica Sinica, 2013, 62(20): 200501 (in Chinese) doi: 10.7498/aps.62.200501 [26] 石建飞, 苟向锋, 朱凌云. 两空间耦合下齿轮传动系统多稳态特性研究. 力学学报, 2019, 51(5): 1489-1499 (Shi Jianfei, Gou Xiangfeng, Zhu Lingyun. Research on multi-stability characteristics of gear transmission system with two-space coupling. Chinese Journal of Theoretical and Applied Mechanics, 2019, 51(5): 1489-1499 (in Chinese) doi: 10.6052/0459-1879-19-093 [27] Shi JF, Gou XF, Zhu LY. Bifurcation of multi-stable behaviors in a two-parameter plane for a non-smooth nonlinear system with time-varying parameters. Nonlinear Dynamics, 2020, 10: 3347-3365 [28] 金俐, 陆启韶, 王琪. 非光滑动力系统Floquet特征乘子的计算方法. 应用力学学报, 2004, 3(21): 21-26 (Jin Li, Lu Qishao, Wang Qi. Calculation methods of floquet multipliers for non-smooth dynamic system. Chinese Journal of Applied Mechanics, 2004, 3(21): 21-26 (in Chinese) doi: 10.3969/j.issn.1000-4939.2004.03.005 [29] Jiang HB, Chong ASE, Ueda Y, et al. Grazing-induced bifurcations in impact oscillators with elastic and rigid constraints. International Journal of Mechanical Sciences, 2017, 127(7): 204-214 [30] 徐慧东, 谢建华. 一类单自由度分段线性系统的分岔和混沌控制. 振动与冲击, 2008, 27(6): 20-24 (Xu Huidong, Xie Jianhua. Bifurcation and chaos control of a single−degree-of-freedom system with piecewise-linearity. Journal of Vibration and Shock, 2008, 27(6): 20-24 (in Chinese) doi: 10.3969/j.issn.1000-3835.2008.06.006 [31] Li ZF, Zhu LY, Chen SQ, et al. Study on safety characteristics of the spur gear pair considering time-varying backlash in the established multi-level safety domains. Nonlinear Dynamics, 2022, 109(3): 1297-1324 doi: 10.1007/s11071-022-07467-7 -
