FRACTURE BEHAVIOR OF PERIODIC POROUS STRUCTURES BY PHASE FIELD METHOD
-
摘要: 周期性多孔结构具有质量轻、比密度低、比强度高、隔音等优良特点, 同时也能很好地满足结构-功能一体化的需求, 在许多领域具有广泛的应用前景. 目前, 对周期性多孔结构在复杂载荷下的力学响应和断裂行为的研究较少. 采用细观力学和相场方法相结合, 基于二维代表性体积单元RVE模型, 施加能实现比例加载的周期性边界条件, 研究周期性多孔结构在复杂多轴比例加载状态下的裂纹萌生位置、断裂模式、承载极限及其变化规律. 本文的数值模拟结果表明: 首先, 周期性多孔结构在竖直方向拉伸载荷作用下, 裂纹均从孔边萌生并沿水平方向同步扩展; 其次, 在双轴载荷作用下, 随着水平载荷的增加, 结构在竖直方向的极限拉伸载荷逐渐增大; 当双轴拉伸载荷等值时, 结构的抗拉强度达到最大, 此时断裂模式呈现为十字正交型开裂; 最后, 面内剪切应力的引入会导致结构的拉伸强度极限降低, 孔边裂纹的萌生位置和扩展路径发生偏移, 裂纹模式从单S型转变为双弧线型, 裂纹向水平位置上相邻的孔洞扩展. 随着水平载荷的增加, 裂纹模式最终转变为斜裂纹, 从孔边对角线位置萌生并沿着45°方向扩展.Abstract: Periodic porous structures have excellent characteristics such as low mass, low density, high specific strength, sound insulation, and they are also well satisfy the needs for structural-functional integration, which have a wide range of applications in many fields. At present, the mechanical response and fracture behavior of periodic porous structures under complex loads have been poorly investigated. In this paper, we use a combination of micro-mechanics method and phase field method to investigate the crack initiation location, crack propagation path, fracture mode and the ultimate strength of periodic porous structures under combined multiaxial loading based on a two-dimensional representative volume element (RVE) model with the periodic boundary condition (PBC) that can implement multiaxial proportional loading. Numerical simulation results in this paper show that all cracks in the periodic porous structure established in this paper initiate from the edge of the holes and propagate consequently along the horizontal direction under the uniaxial tensile loading in the vertical direction. Secondly, under the biaxial loadings in both vertical and horizontal directions, the ultimate strength of the periodic porous structure gradually increases with the increase of the horizontal tensile loading. When the horizontal load is equal to the vertical load, the fracture pattern exhibits as orthogonal cross-type cracking and the ultimate strength reaches the maximum value. Thirdly, the in-plane shear stress simultaneously acted on the RVE model of the periodic porous structure results in a significant decrease of the ultimate strength and the variations of initiation location and propagation trajectory of the hole-edge cracks. Hence, the fracture pattern of periodic porous structure subjected to combined multiaxial loadings changes from the single S-type cracking to the double arc-type cracking, and cracks extend toward adjacent holes in horizontal direction. Finally, with the increase of the horizontal tensile loading, cracks initiate diagonally at the edge of the holes and propagate along the 45-degree direction which lead to the oblique cracking of periodic porous structure.
-
Key words:
- periodic porous structure /
- phase field /
- fracture /
- RVE model /
- multiaxial loading
-

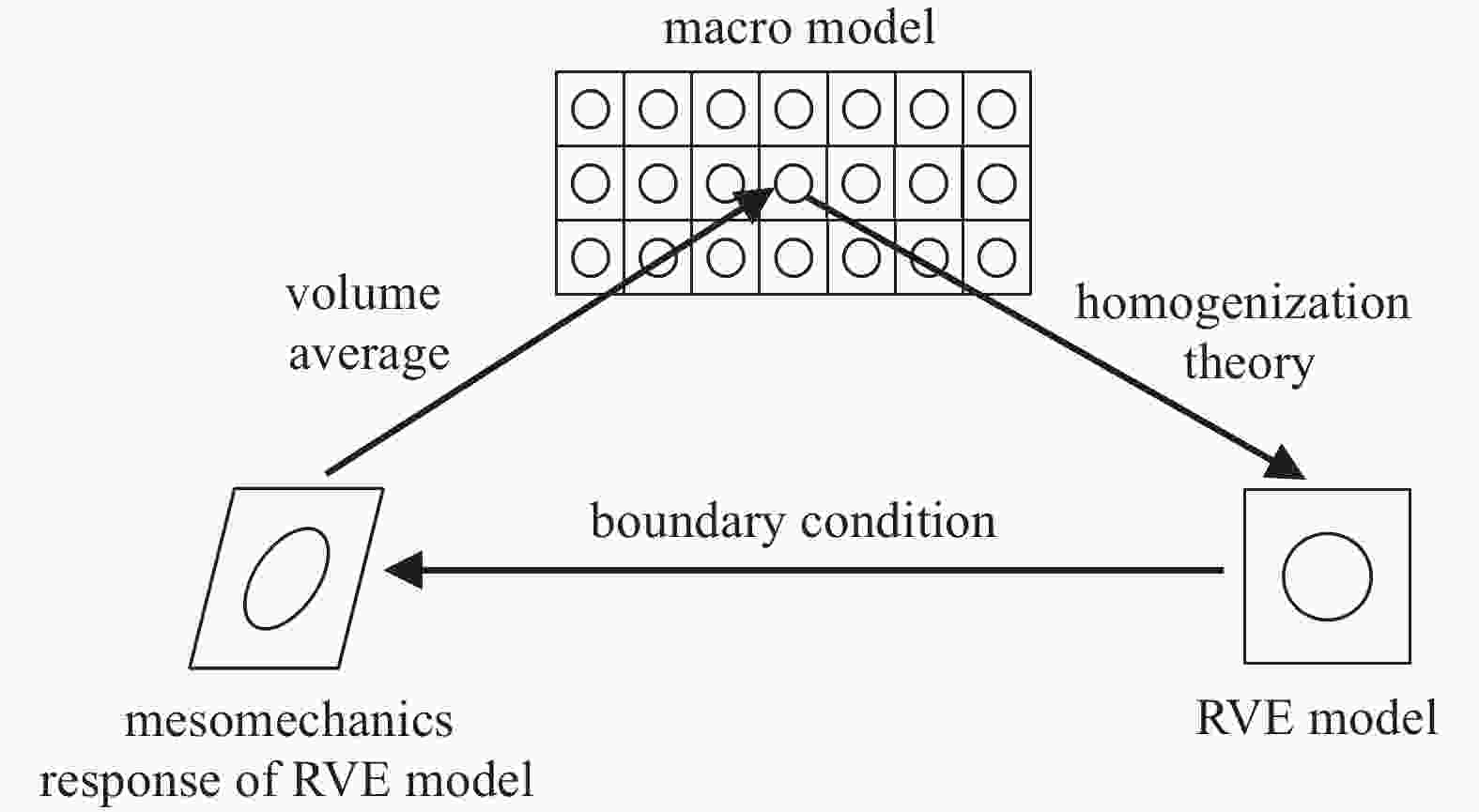

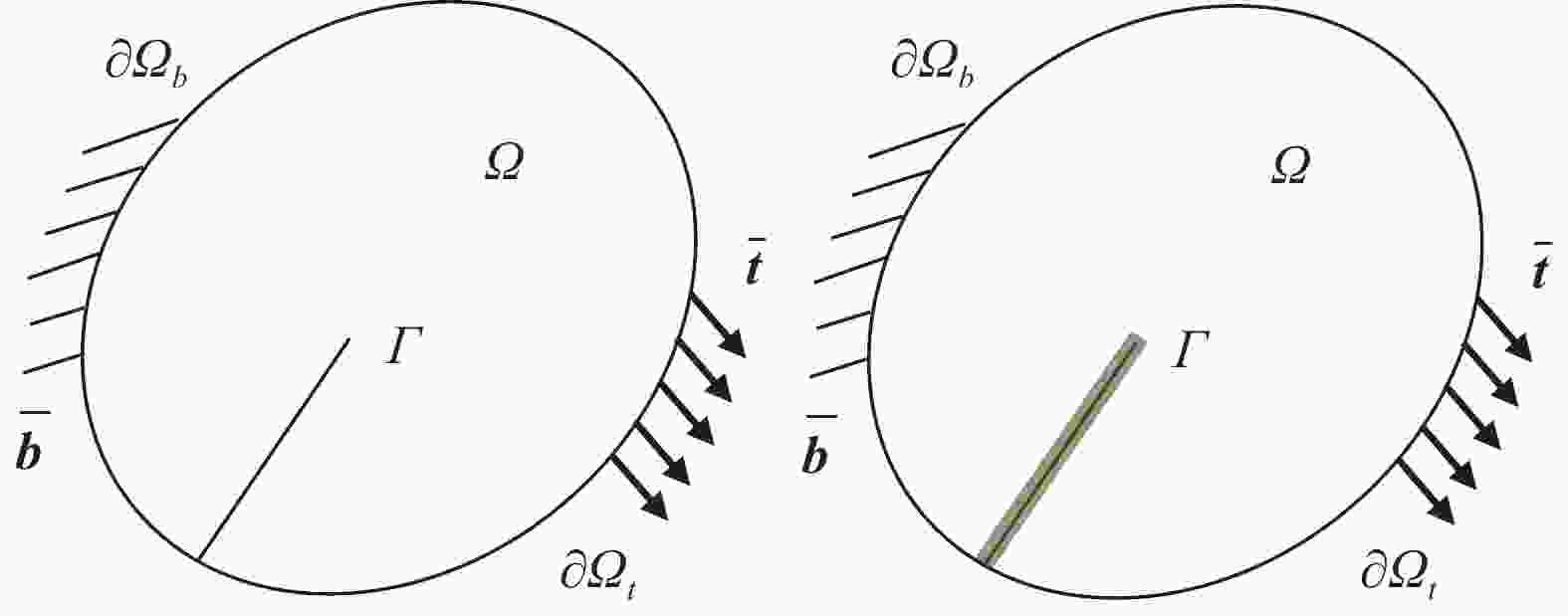

图 3 弥散裂纹与弹性体受力情况, 左侧为尖裂纹, 右侧为弥散裂纹
Figure 3. Diffused crack and elastomeric stresses, with sharp cracks on the left and diffused crack on the right

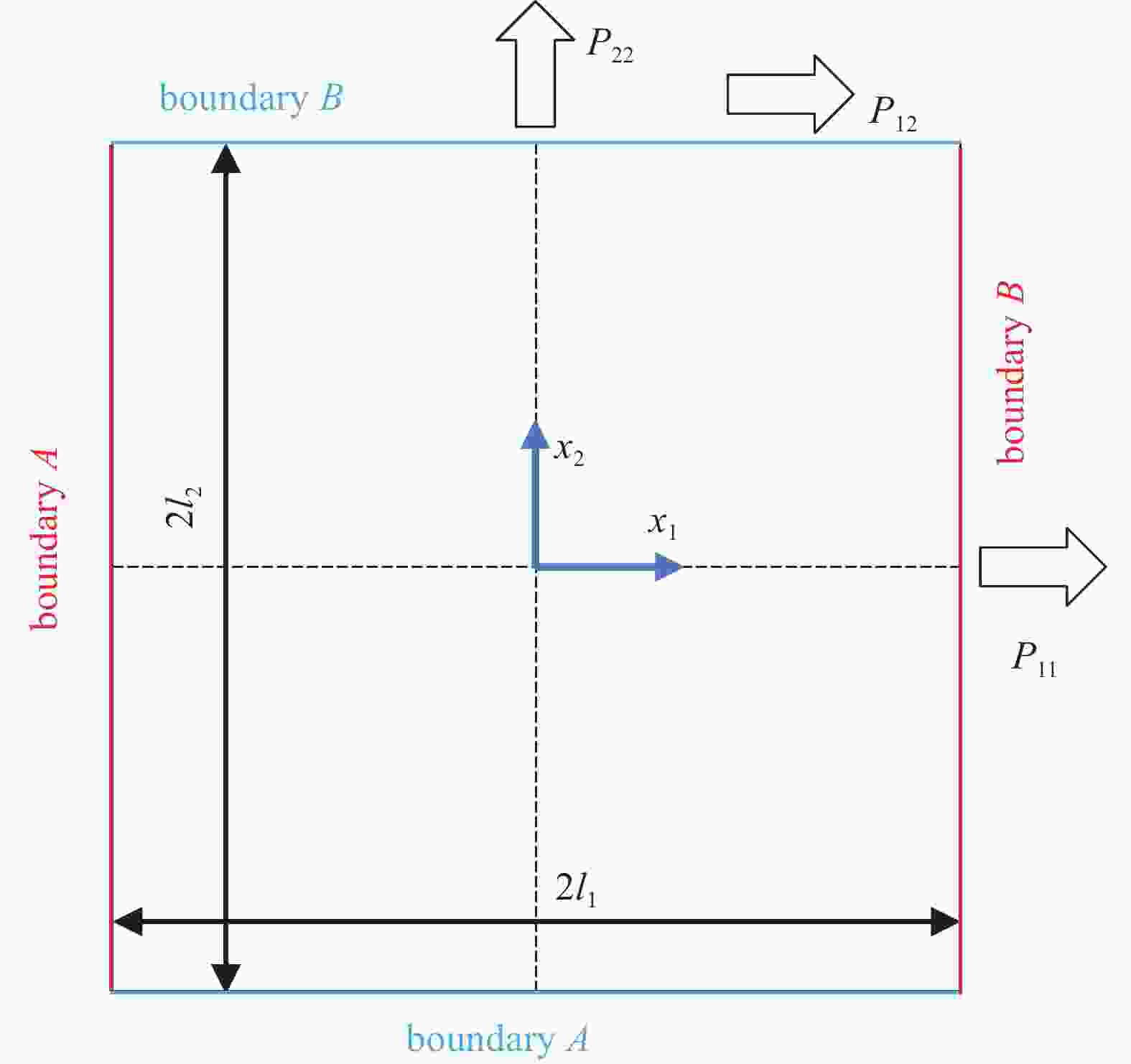

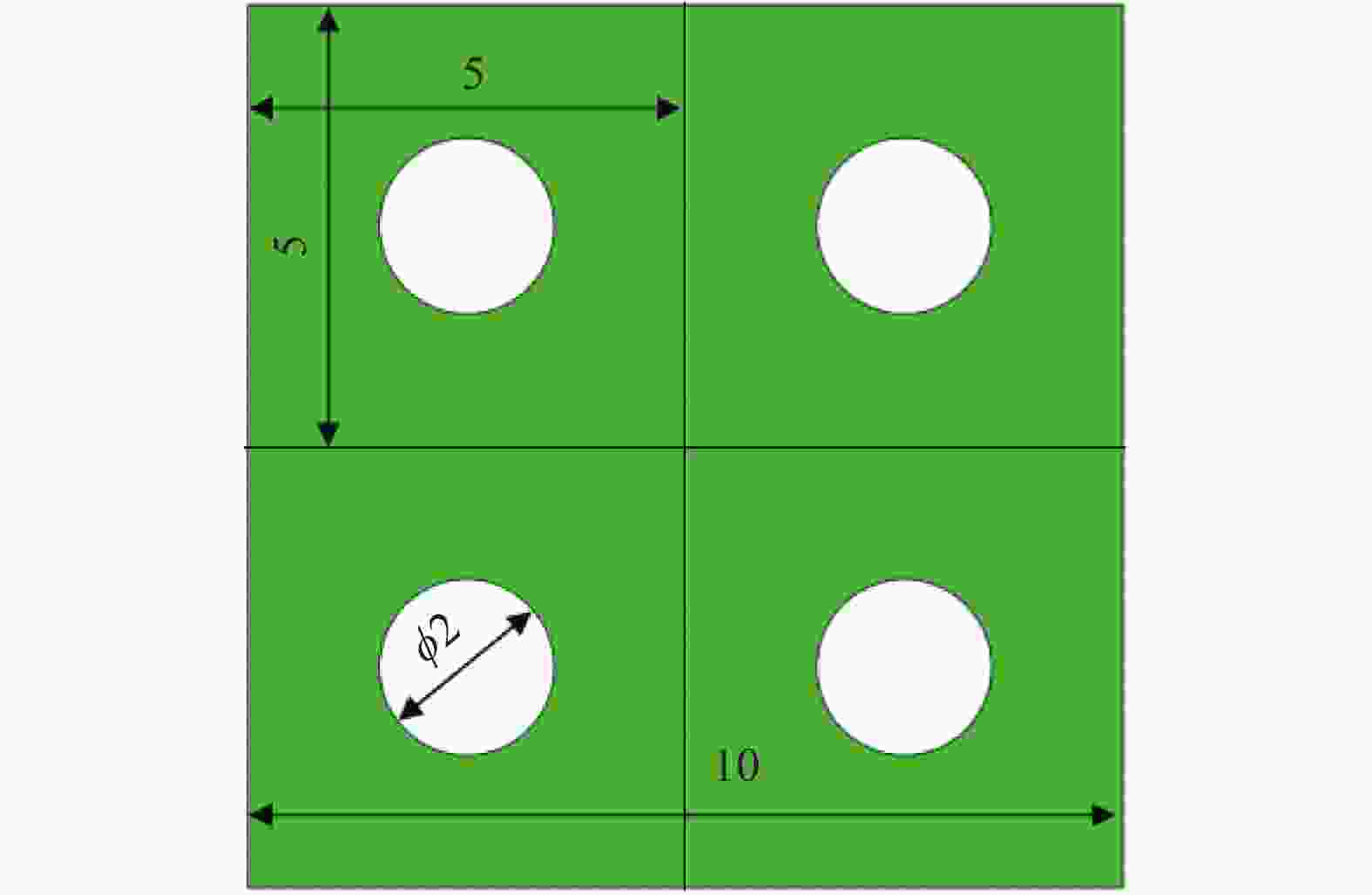

图 5 周期性多孔结构RVE模型的几何构型(单位: mm)
Figure 5. Geometric configuration of the RVE model for periodic porous structures (unit: mm)

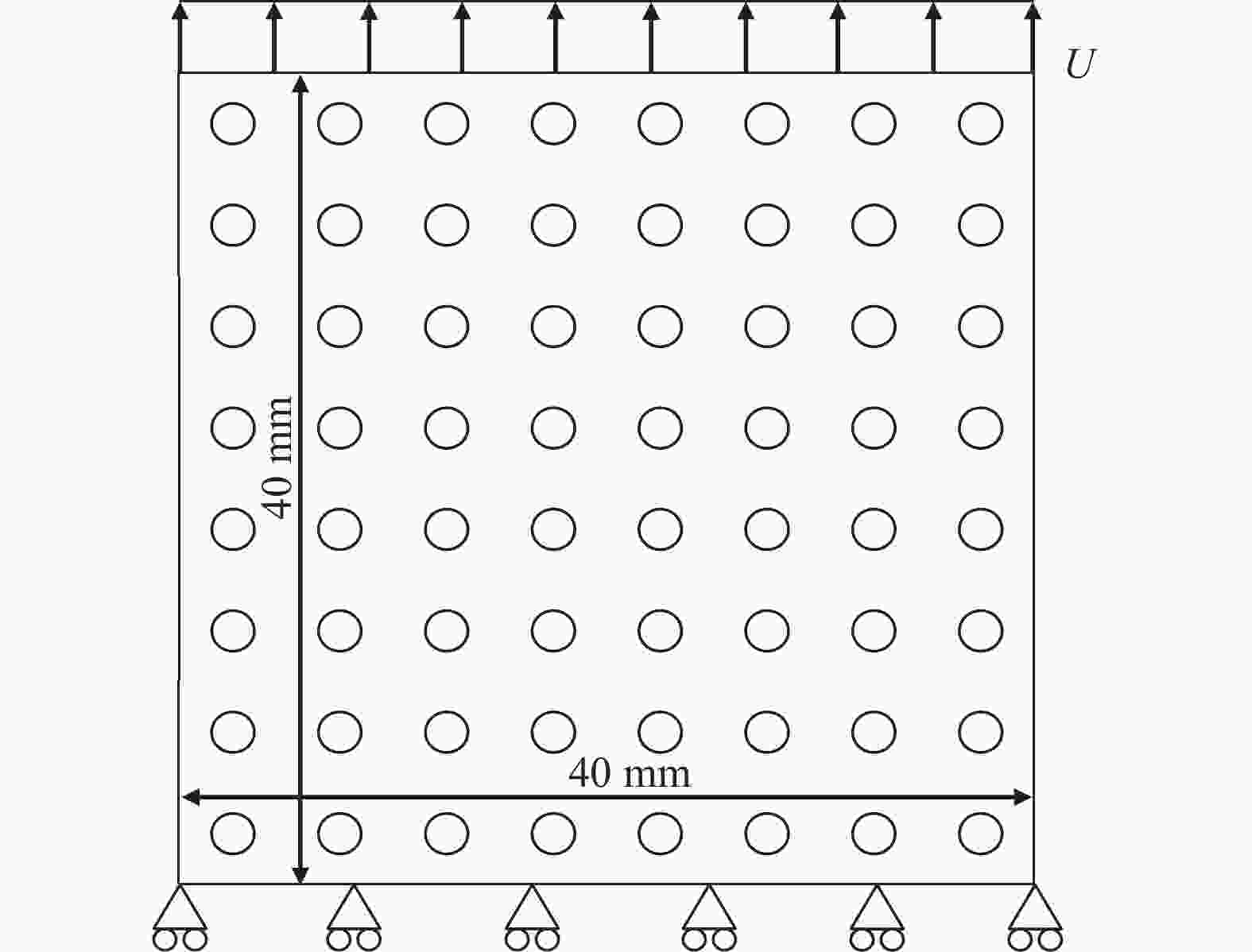

图 6
$ 8 \times 8 $ 多孔模型的单轴拉伸边界条件Figure 6. Boundary conditions for uniaxial stretch of
$ 8 \times 8 $ periodic porous model

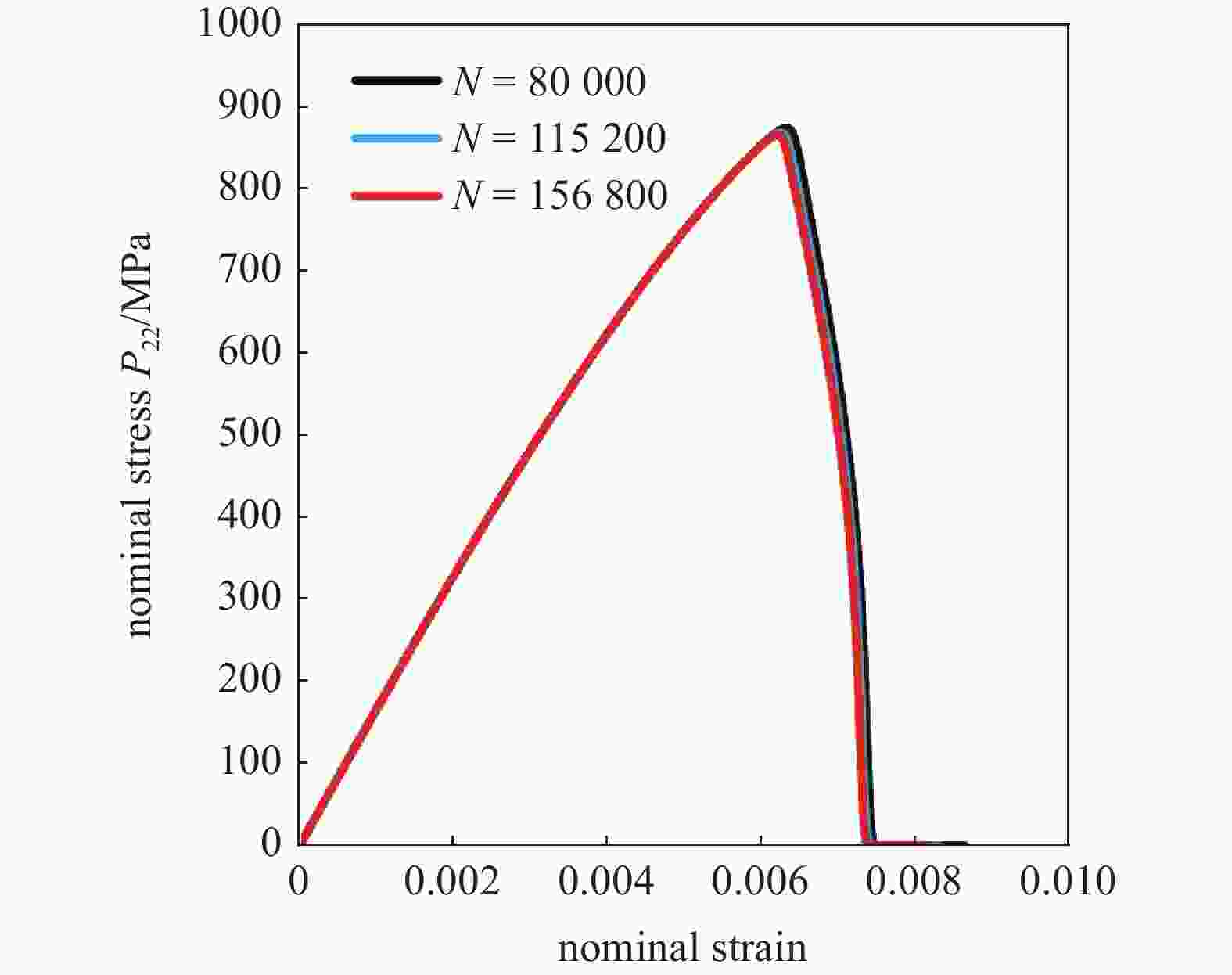

图 7 单轴拉伸载荷下单元数分别为80000, 115200和156800的周期性多孔结构的2×2 RVE模型名义应力-应变曲线的比较
Figure 7. Comparison of nominal stress-strain curves of the RVE model with 80000, 115200 and 156800 elements under tensile loading condition
图 8 单轴拉伸载荷下周期性多孔结构的
$ 2 \times 2 $ RVE模型与$ 8 \times 8 $ 模型的名义应力-应变曲线的比较Figure 8. Comparison of nominal stress-strain curves of the
$ 2 \times 2 $ RVE model and the$ 8 \times 8 $ periodic porous model under uniaxial tensile loading condition

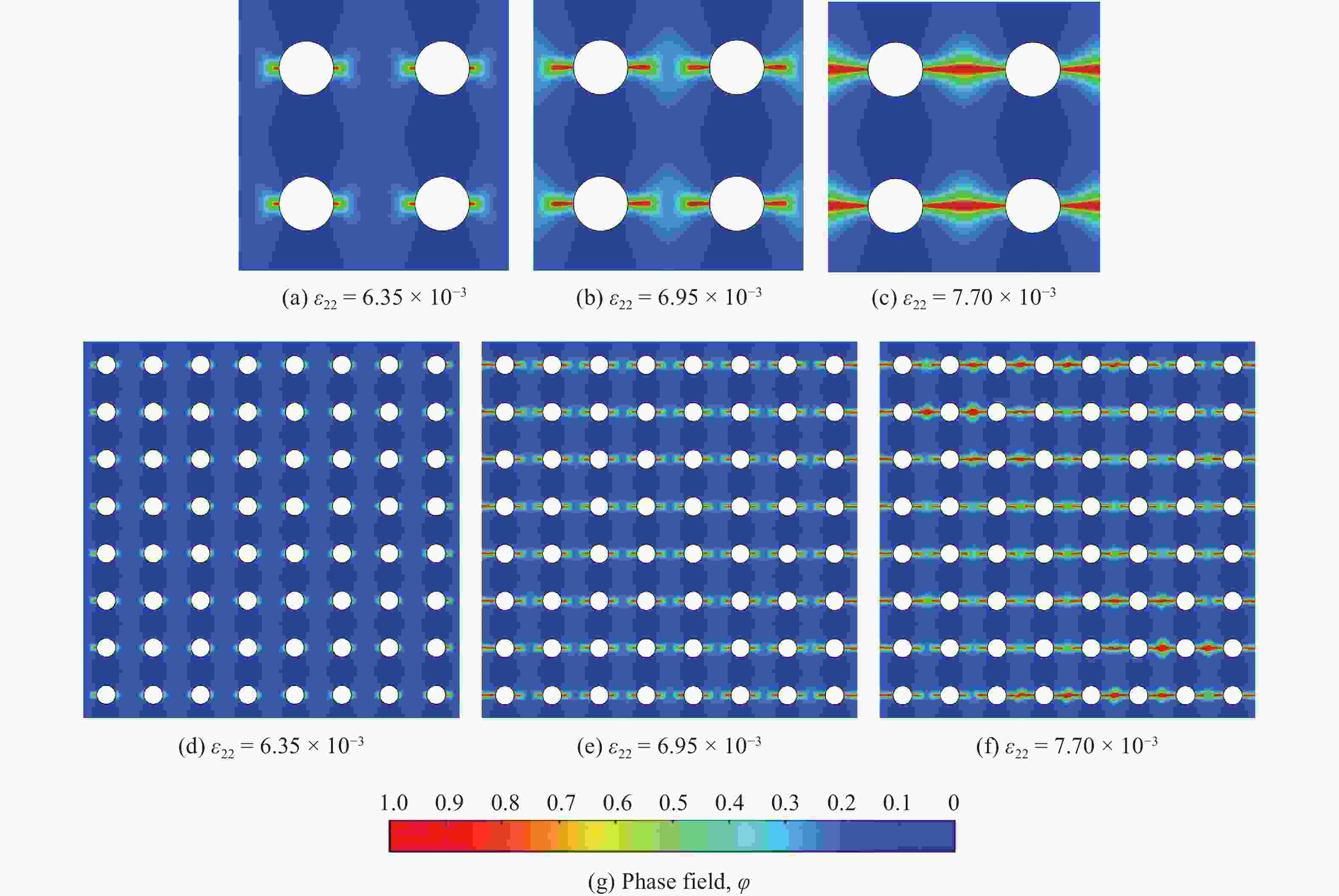

图 9 单轴拉伸载荷下的周期性多孔结构的
$ 2 \times 2 $ RVE模型与$ 8 \times 8 $ 模型的断裂相场云图Figure 9. Phase-field fracture contours of the
$ 2 \times 2 $ RVE model and$ 8 \times 8 $ model for periodic porous structure under uniaxial tensile loading

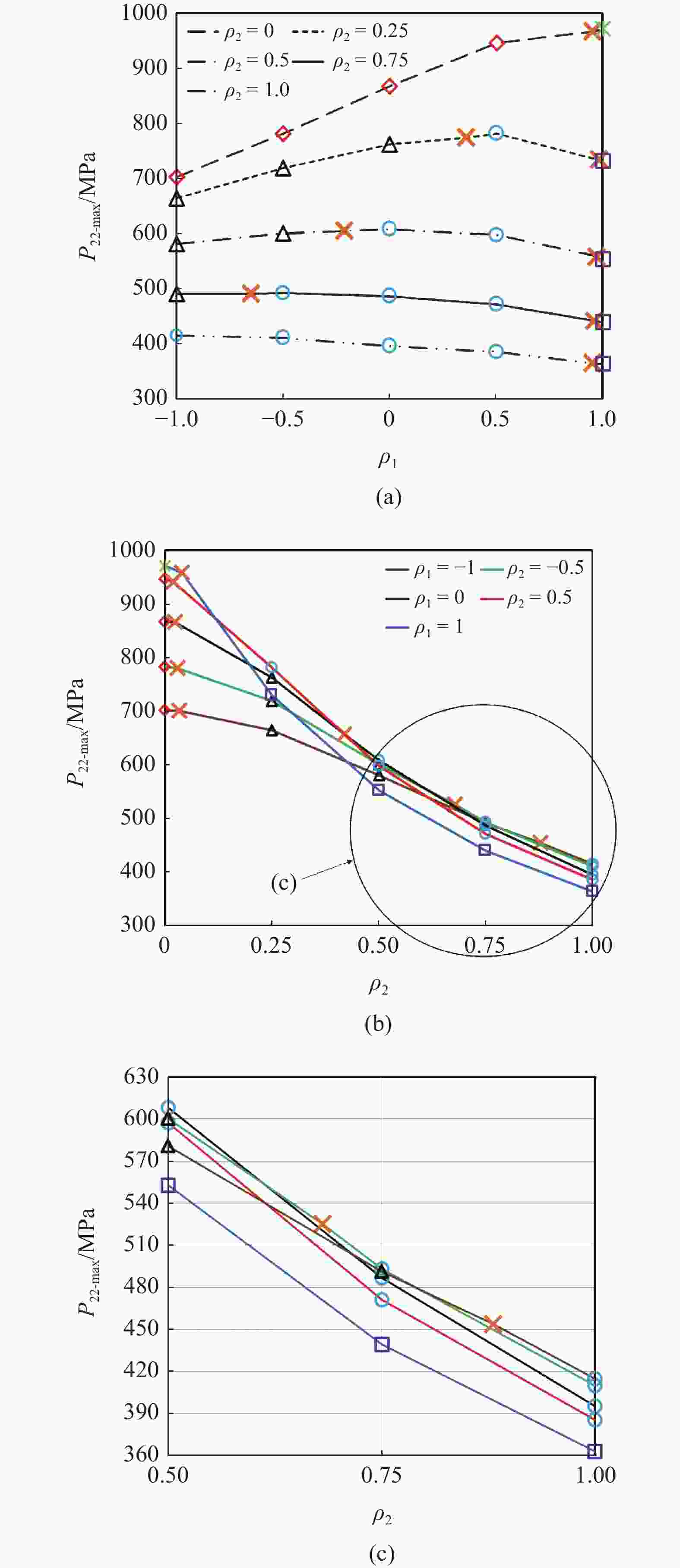

图 11 周期性多孔结构在竖直方向的承载极限
${P_{22 \text{-} \max }}$ 随应力比$ {\rho _1} $ 和$ {\rho _2} $ 变化的曲线: (a)保持应力比$ {\rho _2} $ 不变, (b)保持应力比$ {\rho _1} $ 不变, (c)局部放大图Figure 11. Changing curves of 2-directional extreme load
${P_{22 \text{-} \max }}$ with$ {\rho _1} $ and$ {\rho _2} $ for periodic porous structures: (a) keep$ {\rho _2} $ unchanged, (b) keep$ {\rho _1} $ unchanged and (c) partial enlarged graph

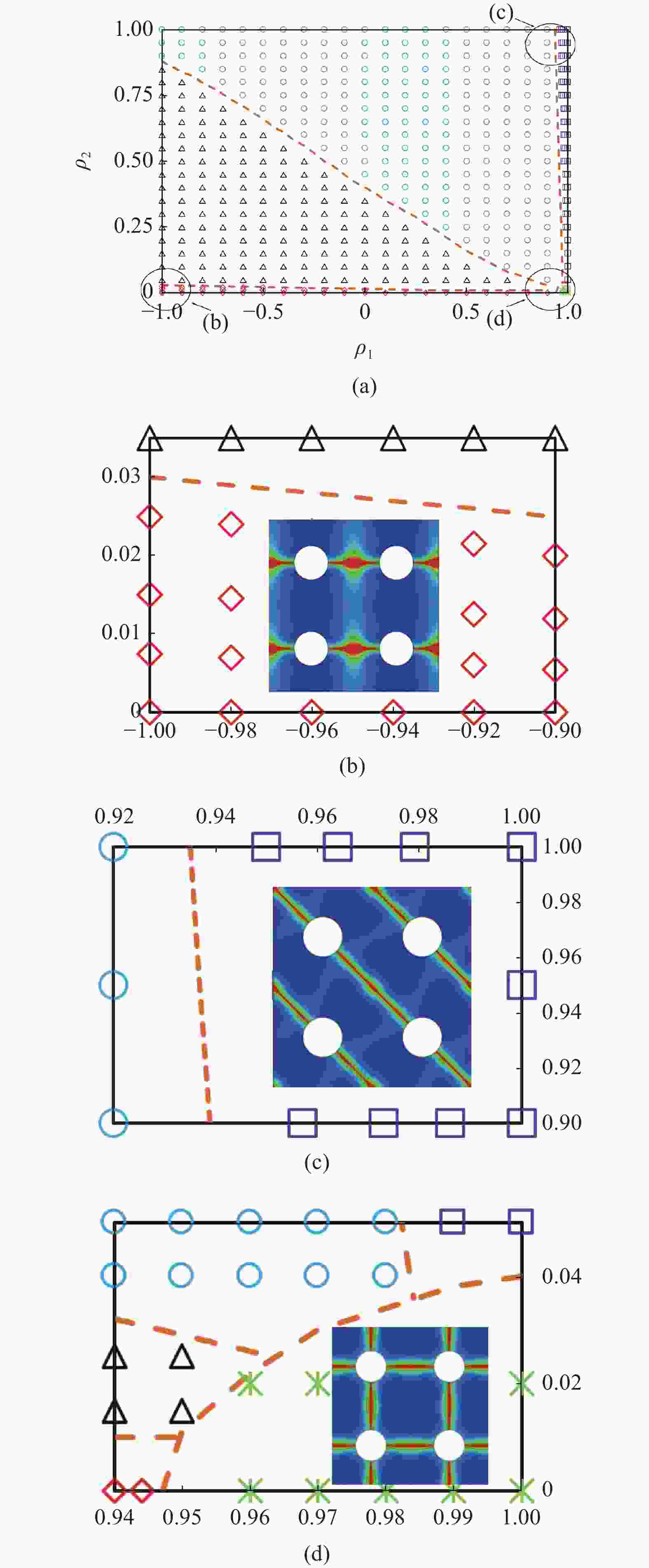

图 12 周期性多孔结构在不同多轴加载条件下的裂纹扩展模式相图
Figure 12. Phase diagram of crack propagation mode for periodic porous structure under different multiaxial proportional loading
表 1 双轴比例加载下的周期性多孔结构的承载极限
${P_{22 \text{-} \max }}$ 与断裂相场云图Table 1. Extreme load
${P_{22 \text{-} \max }}$ and phase-field fracture contours for the RVE model under biaxial proportional loading condition$ {\rho _1} $ −1 −0.5 0 0.5 1 P22-max/MPa 702.26 782.25 867.91 947.08 971.39 Phase-
field fracture contours
下载: 导出CSV
表 2 多轴比例加载下的周期性多孔结构的断裂相场云图
Table 2. Phase-field fracture contours of periodic porous structure model under multiaxial proportional loading
$ {\rho _1} $, $ {\rho _2} $ −1 −0.5 0 0.5 1.0 0
0.25
0.5
0.75
1.0
下载: 导出CSV
表 3 5种不同裂纹扩展模式的表征符号和渐进破坏的断裂相场云图
Table 3. Representative symbols and progressive phase-field fracture contours for the five distinguished crack propagation modes
Representative symbol
crack propagation modes horizontal
typeS-type double arc-type 45°-type orthogonal cross-type progressive phase field
fracture contours
下载: 导出CSV
-
