正弦交流介质阻挡放电等离子体激励器诱导流场研究的进展与展望

张鑫 王勋年

张鑫, 王勋年. 正弦交流介质阻挡放电等离子体激励器诱导流场研究的进展与展望. 力学学报, 2022, 54(12): 1-14 doi: 10.6052/0459-1879-22-377
引用本文: 张鑫, 王勋年. 正弦交流介质阻挡放电等离子体激励器诱导流场研究的进展与展望. 力学学报, 2022, 54(12): 1-14 doi: 10.6052/0459-1879-22-377
Zhang Xin, Wang Xunnian. Research progress and outlook of flow field created by dielectric barrier discharge plasma actuators driven by a sinusoidal alternating current high-voltage power. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(12): 1-14 doi: 10.6052/0459-1879-22-377
Citation: Zhang Xin, Wang Xunnian. Research progress and outlook of flow field created by dielectric barrier discharge plasma actuators driven by a sinusoidal alternating current high-voltage power. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(12): 1-14 doi: 10.6052/0459-1879-22-377

正弦交流介质阻挡放电等离子体激励器诱导流场研究的进展与展望

doi: 10.6052/0459-1879-22-377
基金项目: 国家自然科学基金(11902336)和四川省科技计划(2022JDJQ0022)资助项目
详细信息
    作者简介:

    王勋年, 研究员, 主要研究方向: 流动控制技术研究. E-mail: xunnian@sohu.com

  • 中图分类号: V211.A

RESEARCH PROGRESS AND OUTLOOK OF FLOW FIELD CREATED BY DIELECTRIC BARRIER DISCHARGE PLASMA ACTUATORS DRIVEN BY A SINUSOIDAL ALTERNATING CURRENT HIGH-VOLTAGE POWER

  • 摘要: 正弦交流介质阻挡放电等离子体流动控制技术是基于等离子体激励的主动流动控制技术, 具有响应时间短、结构简单、能耗低、不需要额外气源装置等优点, 在飞行器增升减阻、抑振降噪、助燃防冰等方面具有广阔的应用前景. 针对“激励器消耗的大部分能量尚未被挖掘利用、诱导流场的完整演化过程尚未完全掌握、诱导流场的演化机制尚不明确”这三方面问题, 本文首先从激励器诱导流场的空间结构、时空演化过程、演化机制三个方面回顾总结了激励器诱导流场的研究进展. 在诱导流场空间结构方面, 发现了高电压激励下诱导射流的湍流特性, 辨析了壁面拟序结构与无量纲激励参数之间的关联机制; 从激励器诱导声能方面挖掘出了激励器潜在的能量, 发现了“等离子体诱导超声波与诱导声流”的新现象, 提出了声激励机制; 在时空演化过程方面, 阐明了激励器诱导流场从薄型壁射流发展为“拱形”射流、再演变为启动涡, 最终形成准定常射流的完整演化过程; 在演化机制方面, 结合声学特性提出了以“升推”为主的诱导流场演化机制. 其次, 围绕激励器诱导流场, 进一步凝练出下一步研究重点, 为突破等离子体流动控制技术瓶颈, 打通“概念创新—技术突破—演示验证”的创新链路, 实现工程应用提供支撑.

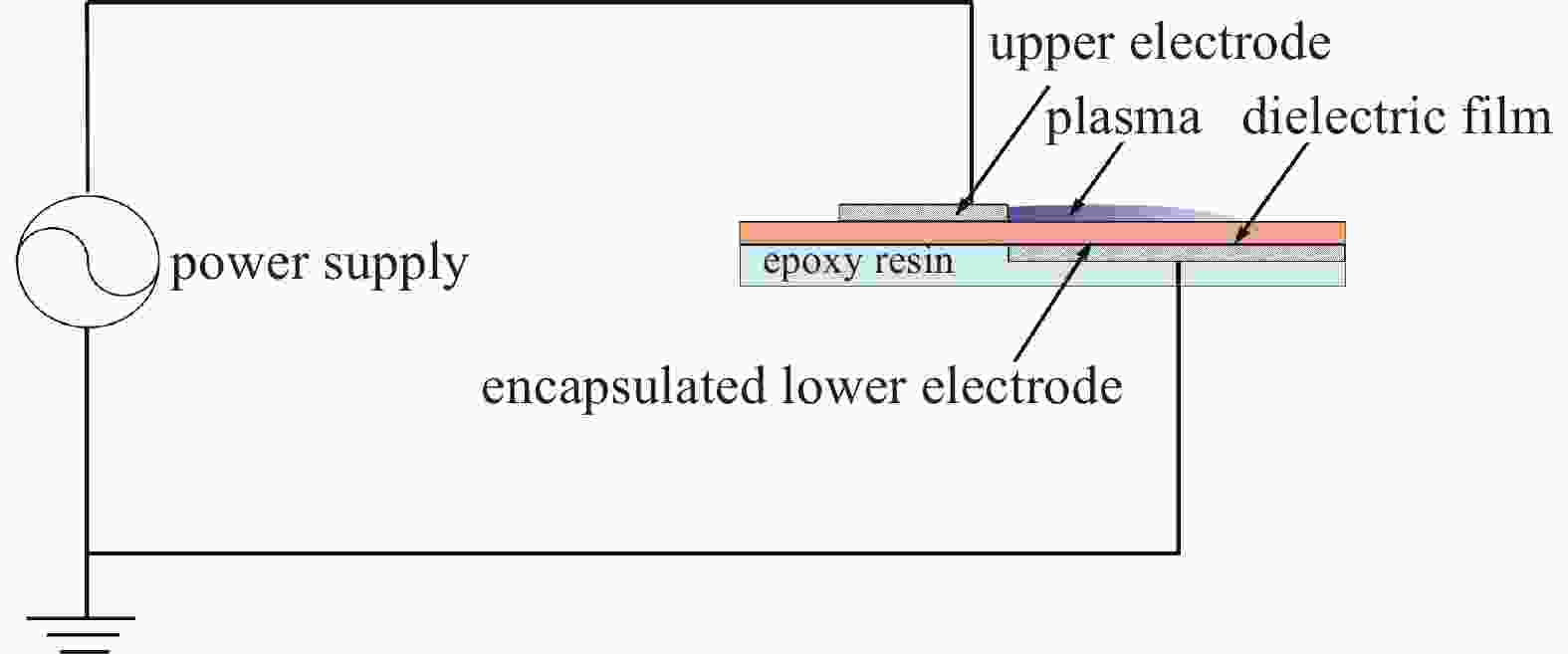

  • 图  1  典型的等离子体激励器布局示意图

    Figure  1.  The typical configuration of DBD plasma actuators

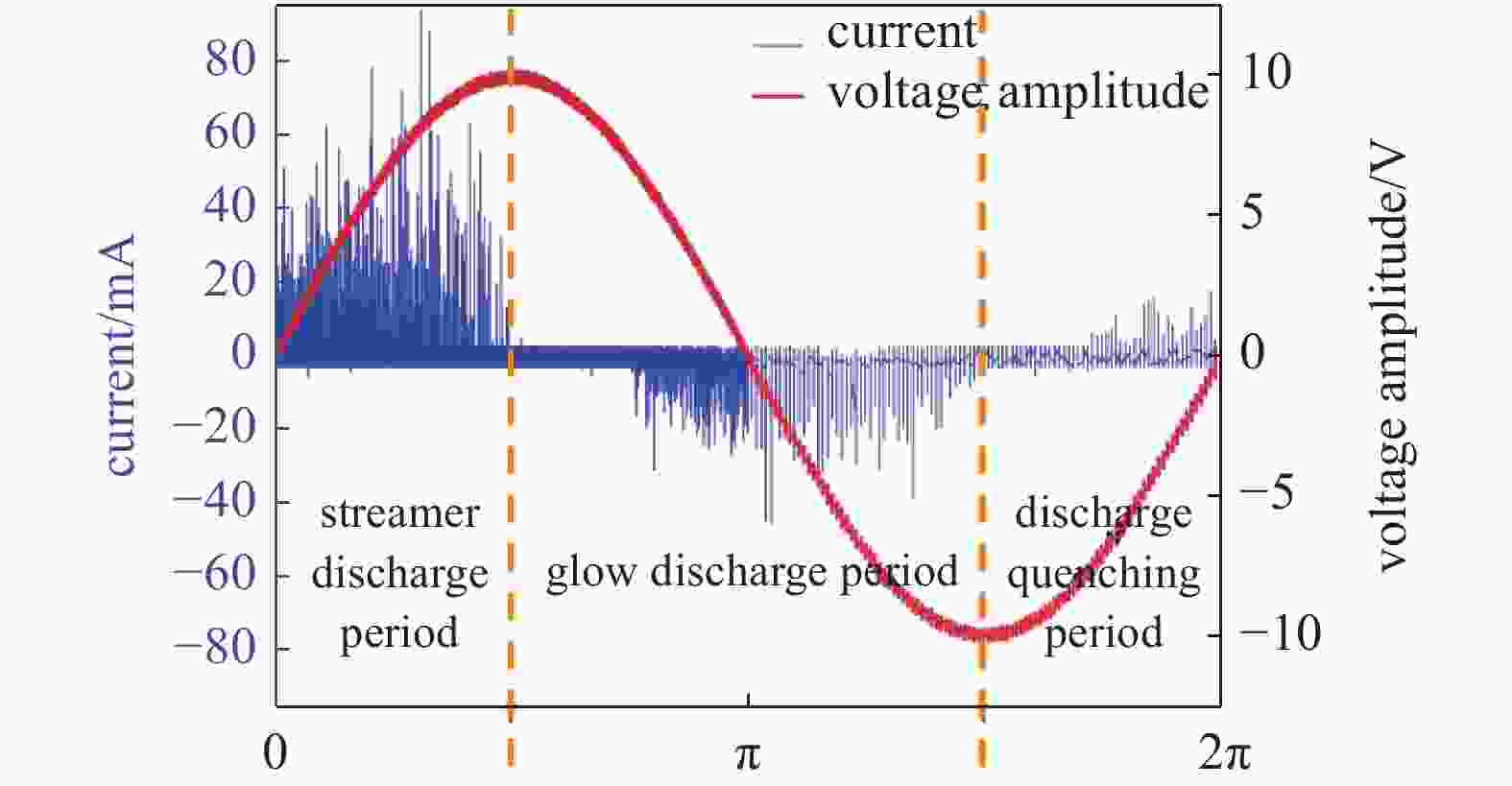

    图  2  等离子体激励器的电压电流特性[57]

    Figure  2.  The characteristics of sinusoidal waveform and the currents[57]

    图  3  等离子体放电图像[67]

    Figure  3.  Plasma discharge images[67]

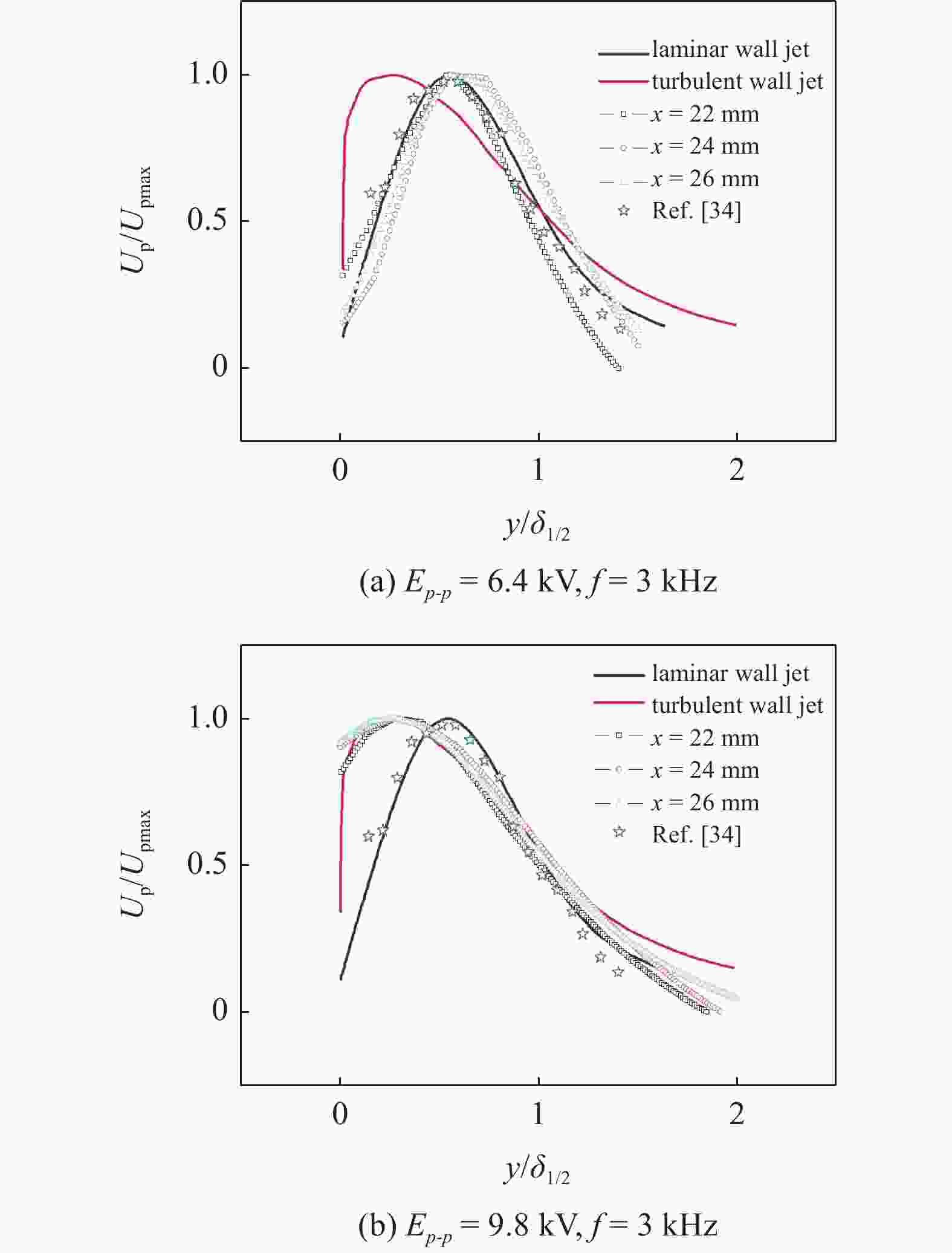

    图  4  激励器诱导射流的无量纲速度剖面

    Figure  4.  Non-dimensional velocity profiles of wall jet produced by DBD plasma actuators

    图  5  激励器诱导瞬态流场的PIV原始图

    Figure  5.  Original PIV images of the instantaneous flow field generated by DBD plasma actuators

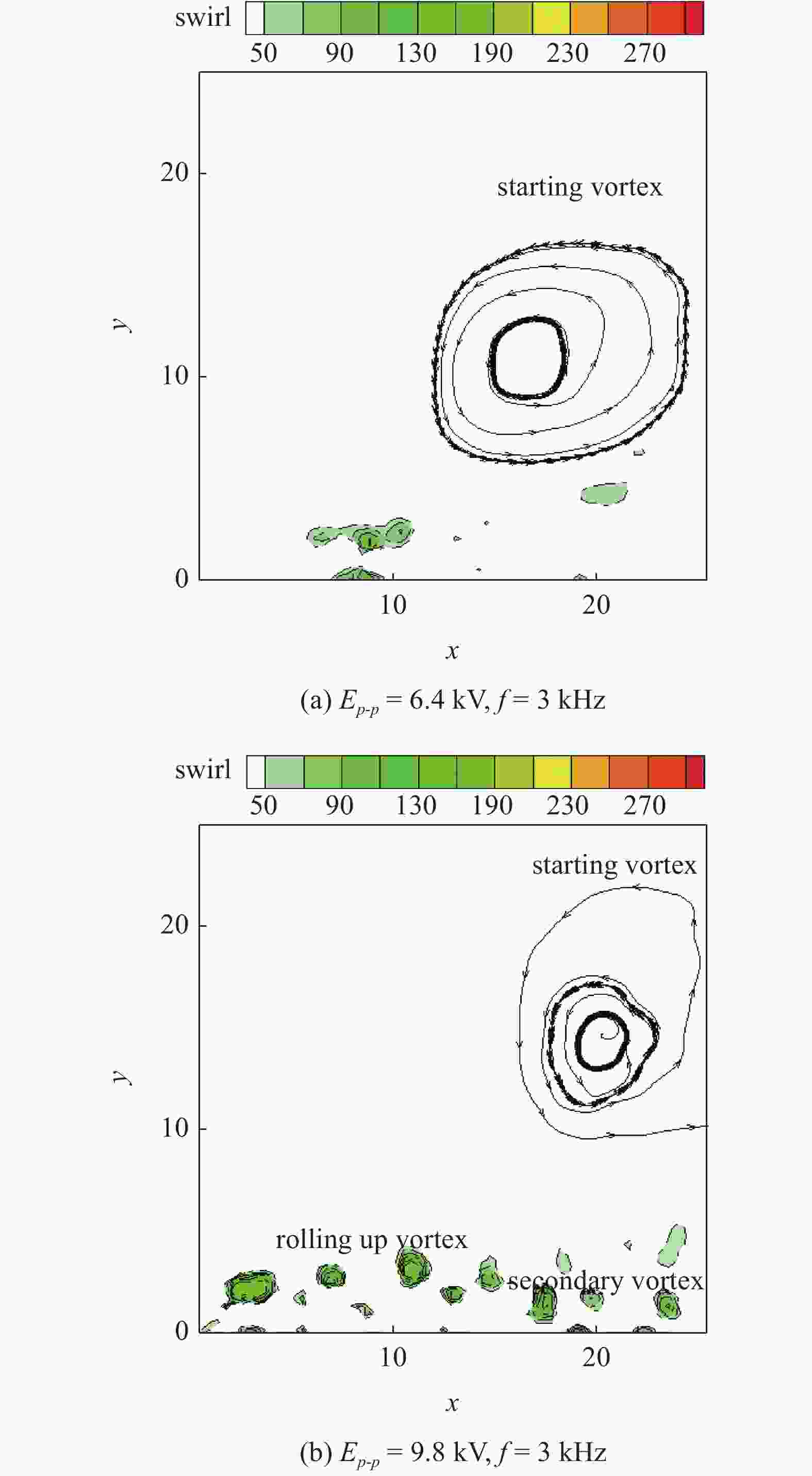

    图  6  激励器诱导射流的瞬态旋涡强度分布

    Figure  6.  The swirling strength distribution of the instantaneous flow field generated by DBD plasma actuators

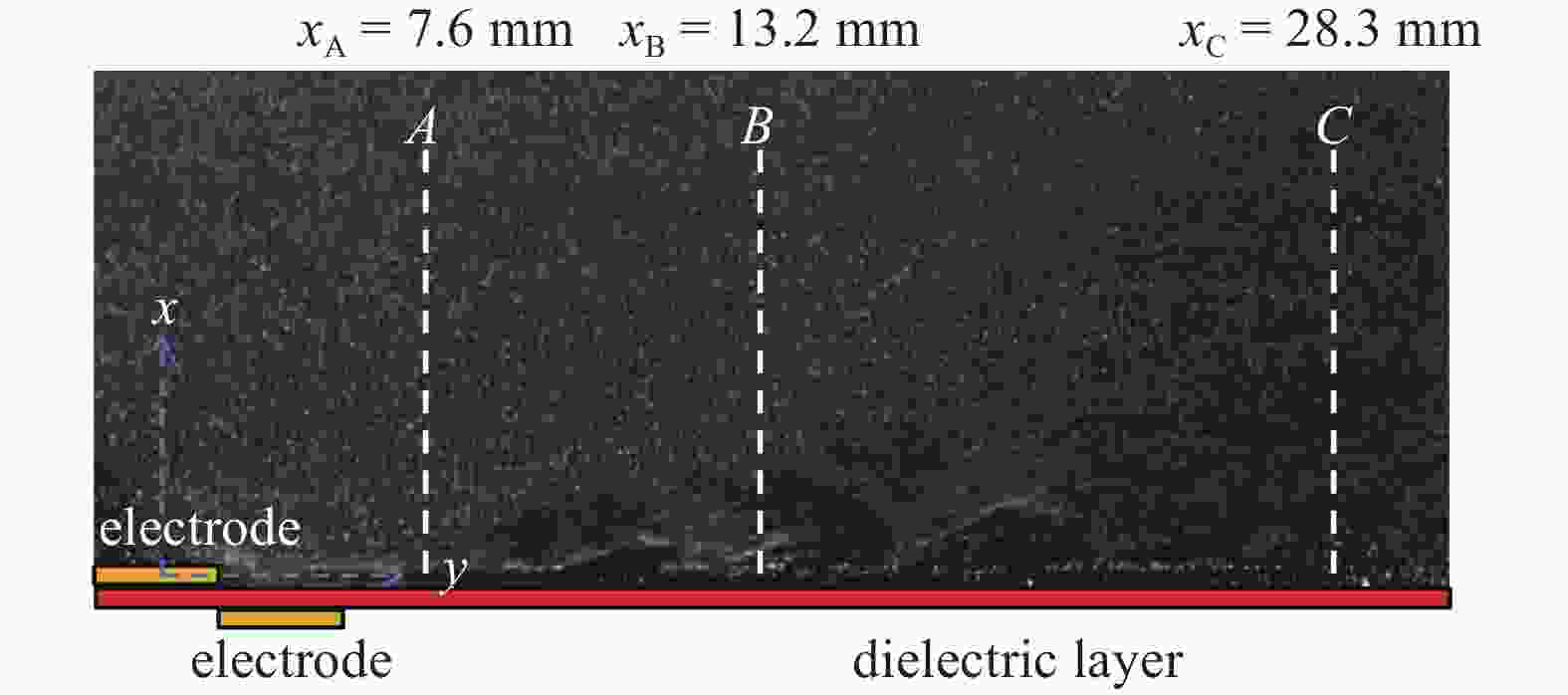

    图  7  计算点的弦向位置

    Figure  7.  The chord-wise positions of the calculation points

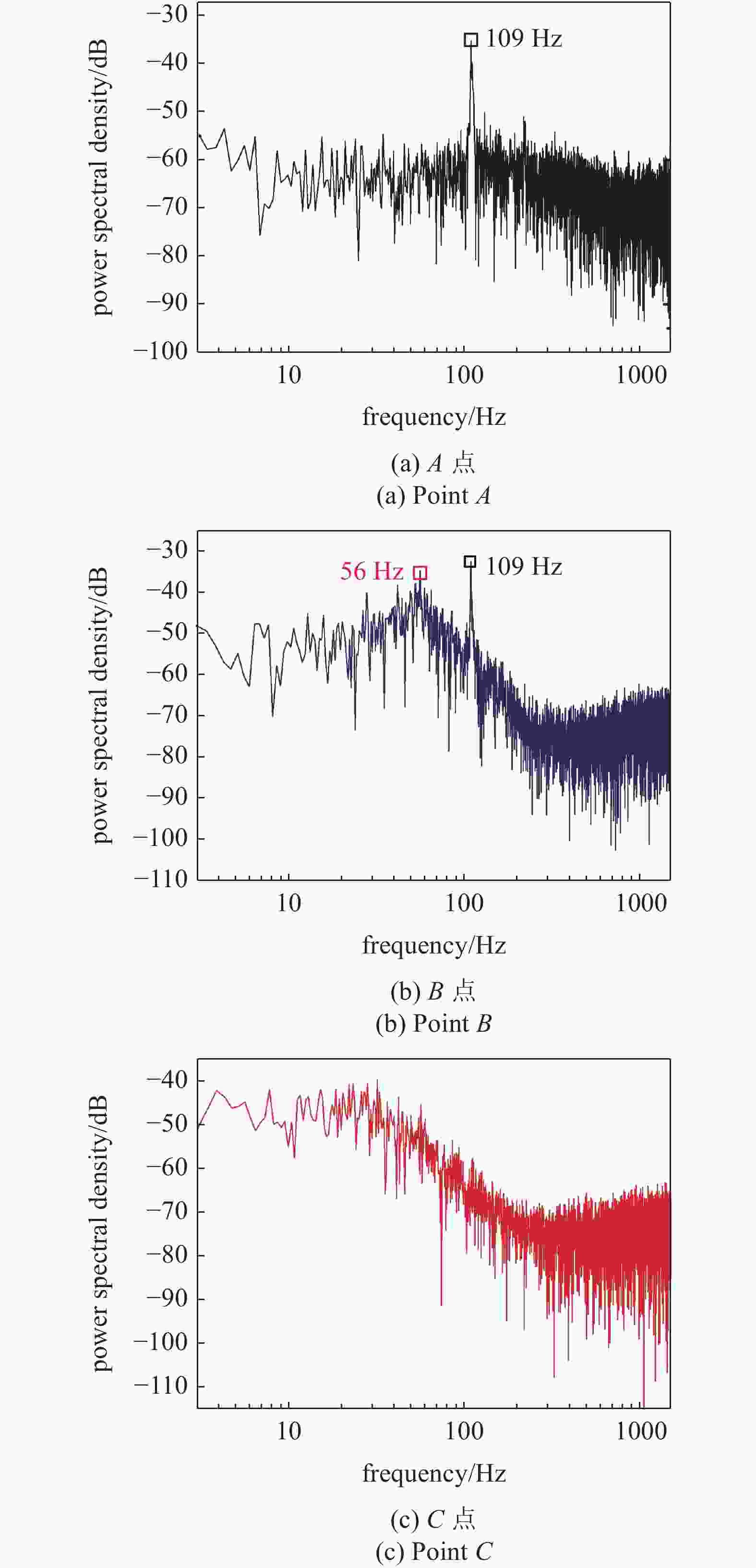

    图  8  不同弦向位置的法向脉动速度功率谱

    Figure  8.  Power spectra of the vertical fluctuating velocity at different chord-wise locations

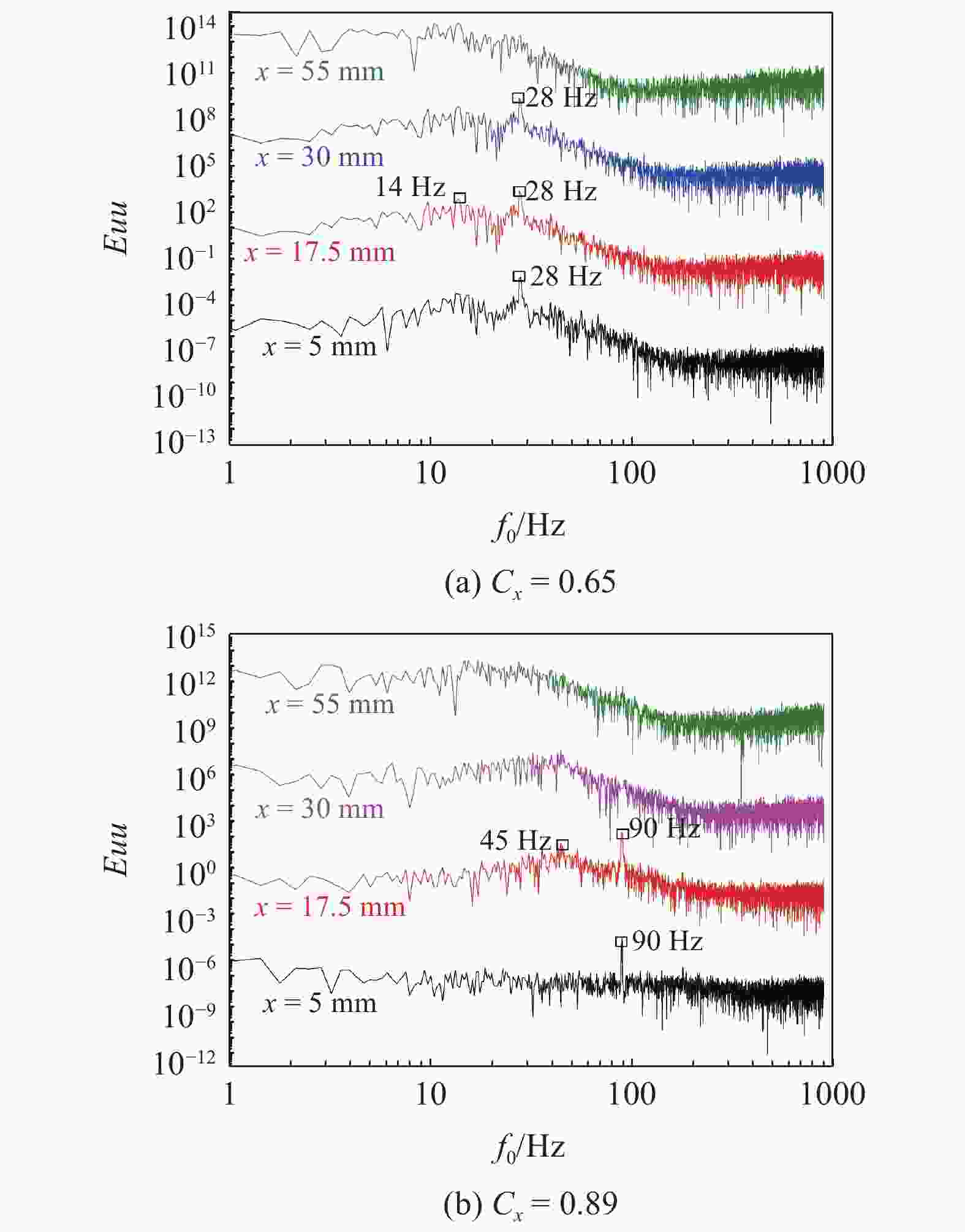

    图  9  不同动量系数下的法向脉动速度功率谱

    Figure  9.  Spectra of the vertical fluctuating velocity component at different momentum coefficients

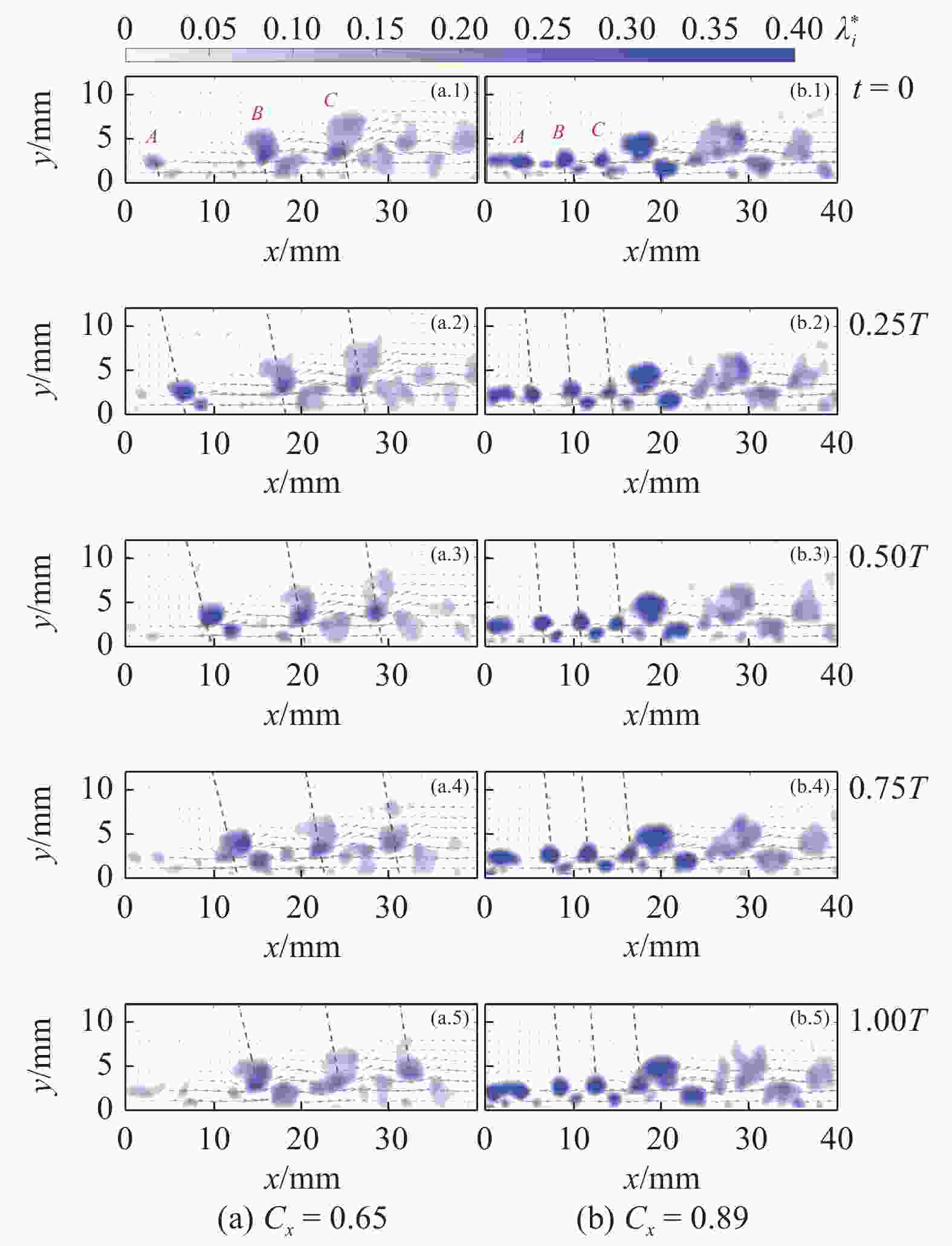

    图  10  一个周期T内旋涡强度的演化过程

    Figure  10.  Evolution of swirling strength in one cycle

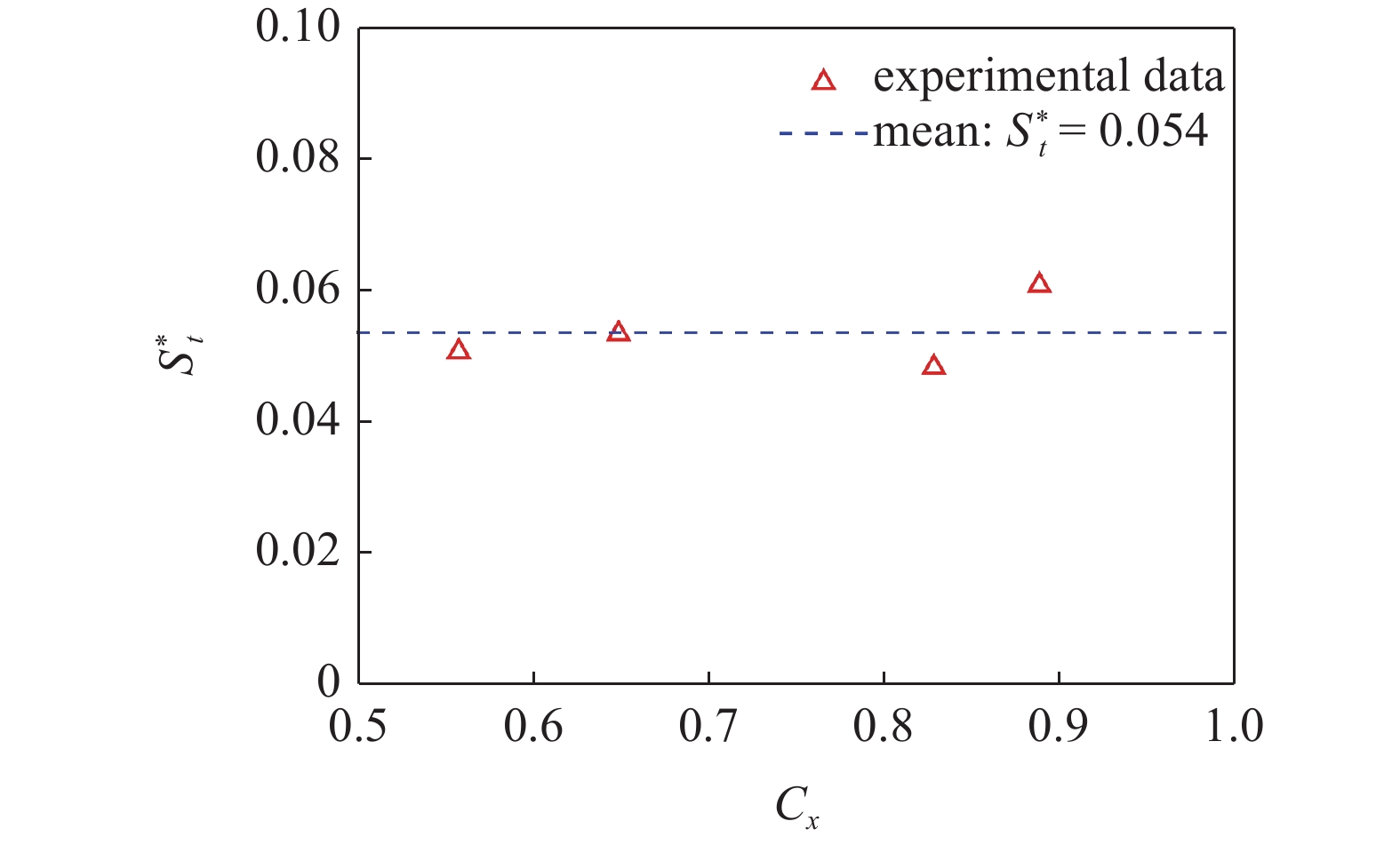

    图  11  不同动量系数下的无量纲斯特劳哈尔数

    Figure  11.  Variation of the Strouhal number with momentum coefficient

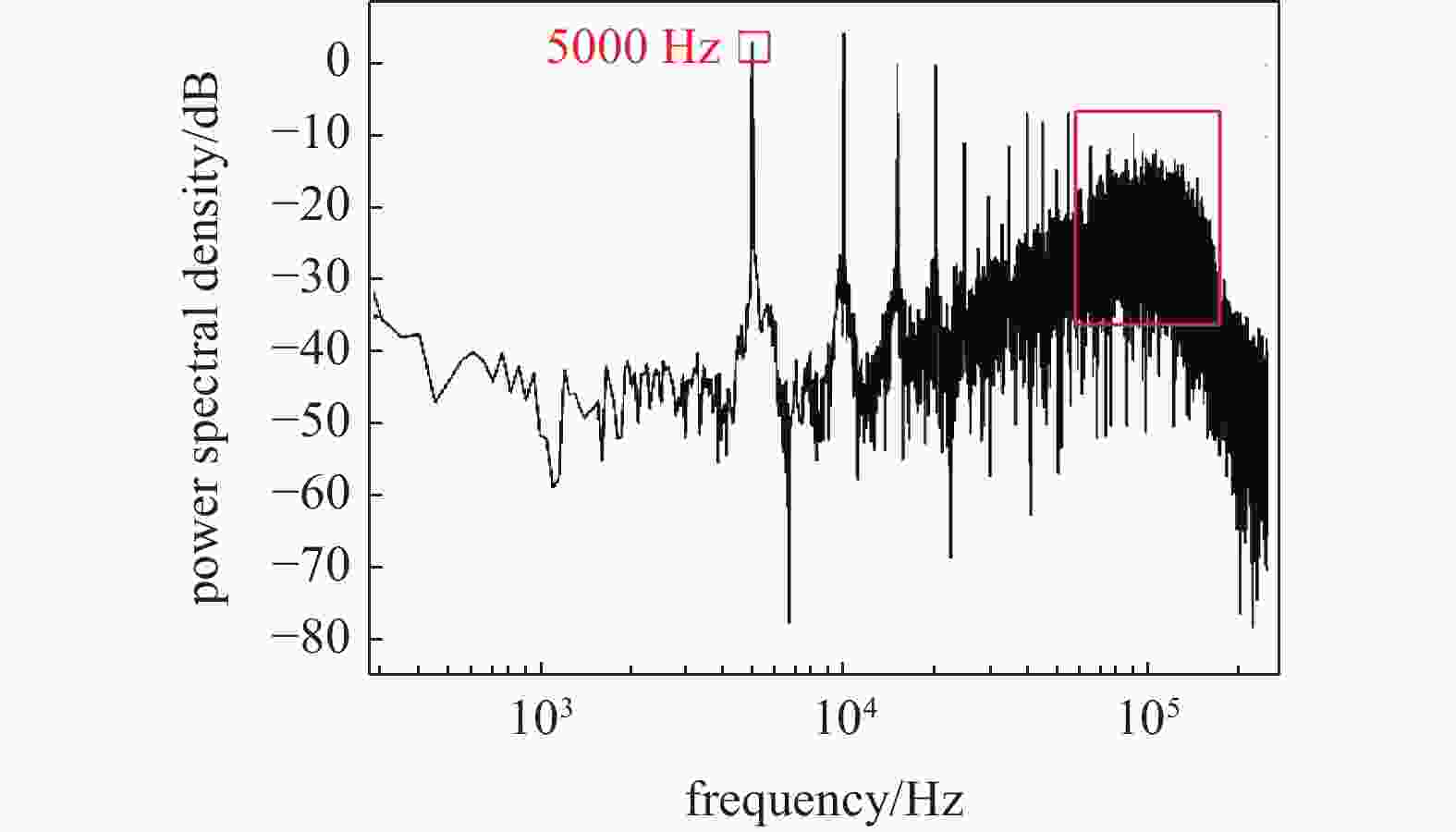

    图  12  激励器诱导压力的功率谱

    Figure  12.  Power spectral density (PSD) analysis of the pressure value with a frequency of f = 5 kHz

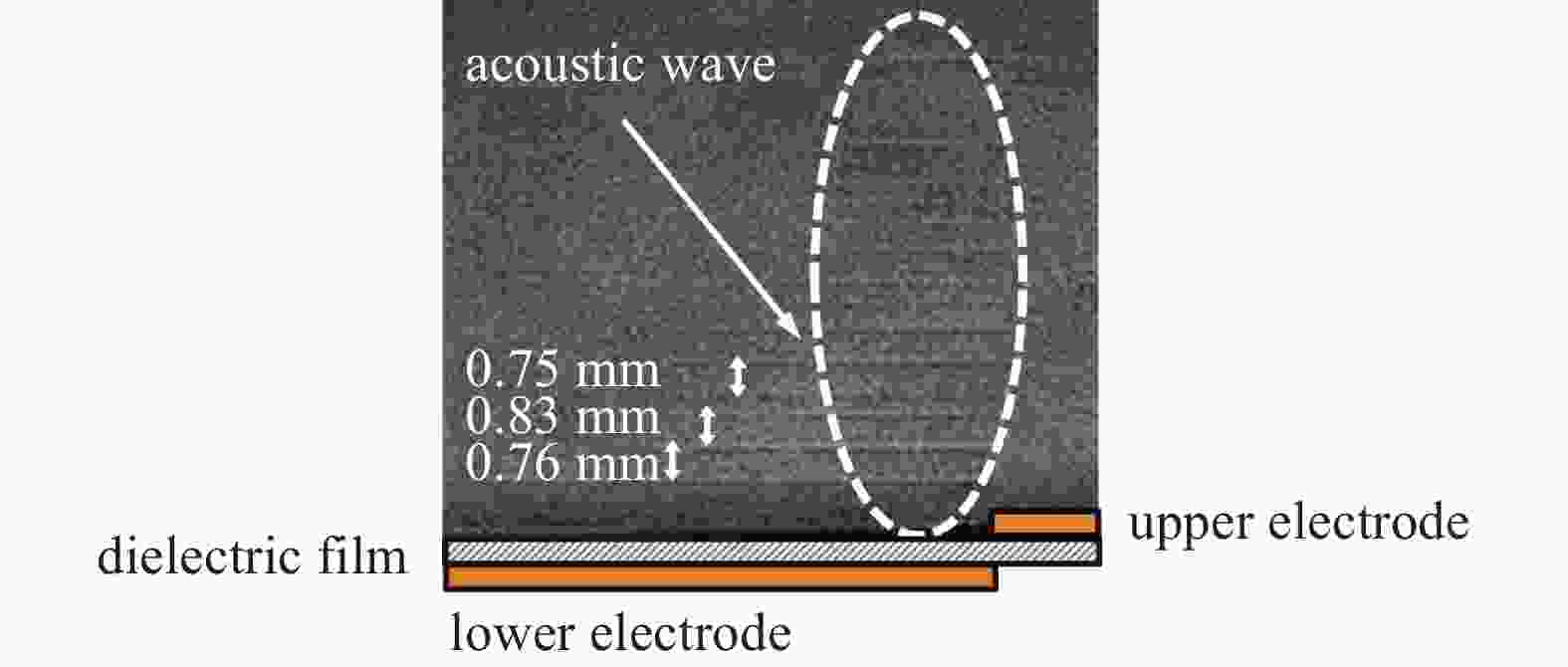

    图  13  激励器诱导超声波的纹影图

    Figure  13.  Schlieren visualization image of the induced propagating pressure waves

    图  14  启动涡阶段的诱导超声波

    Figure  14.  The induced propagating ultrasound at the starting vortex stage

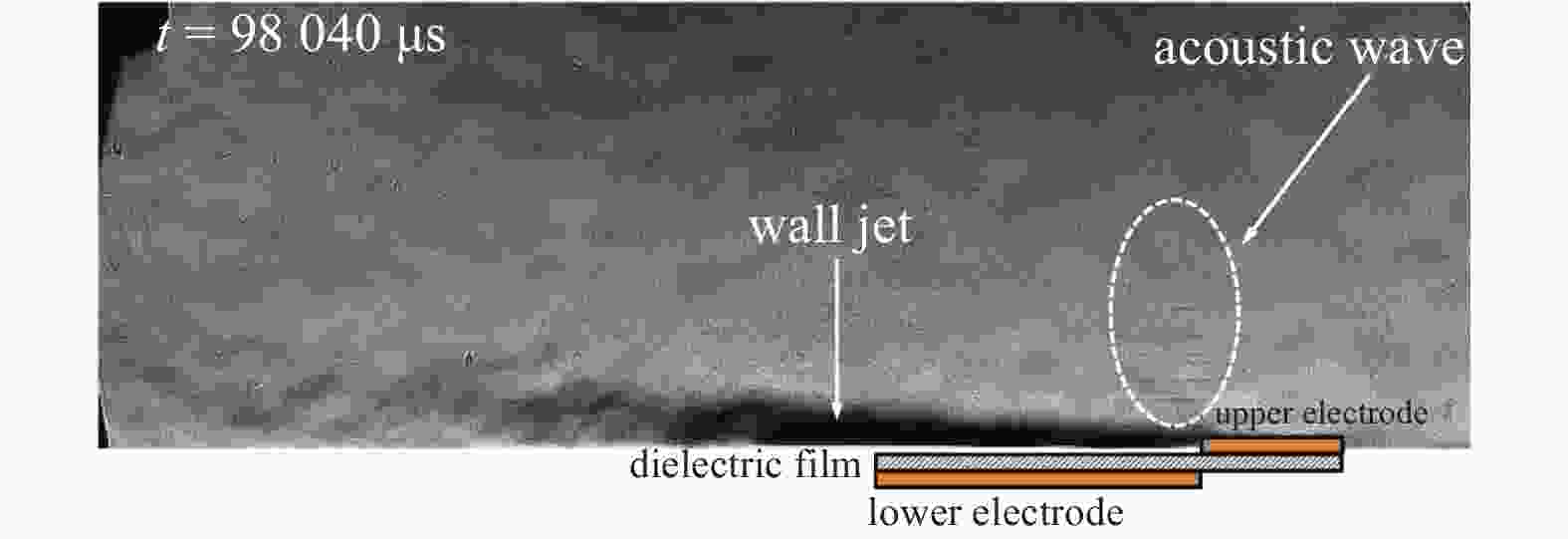

    图  15  射流阶段的诱导超声波

    Figure  15.  The induced propagating ultrasound at the wall jet stage

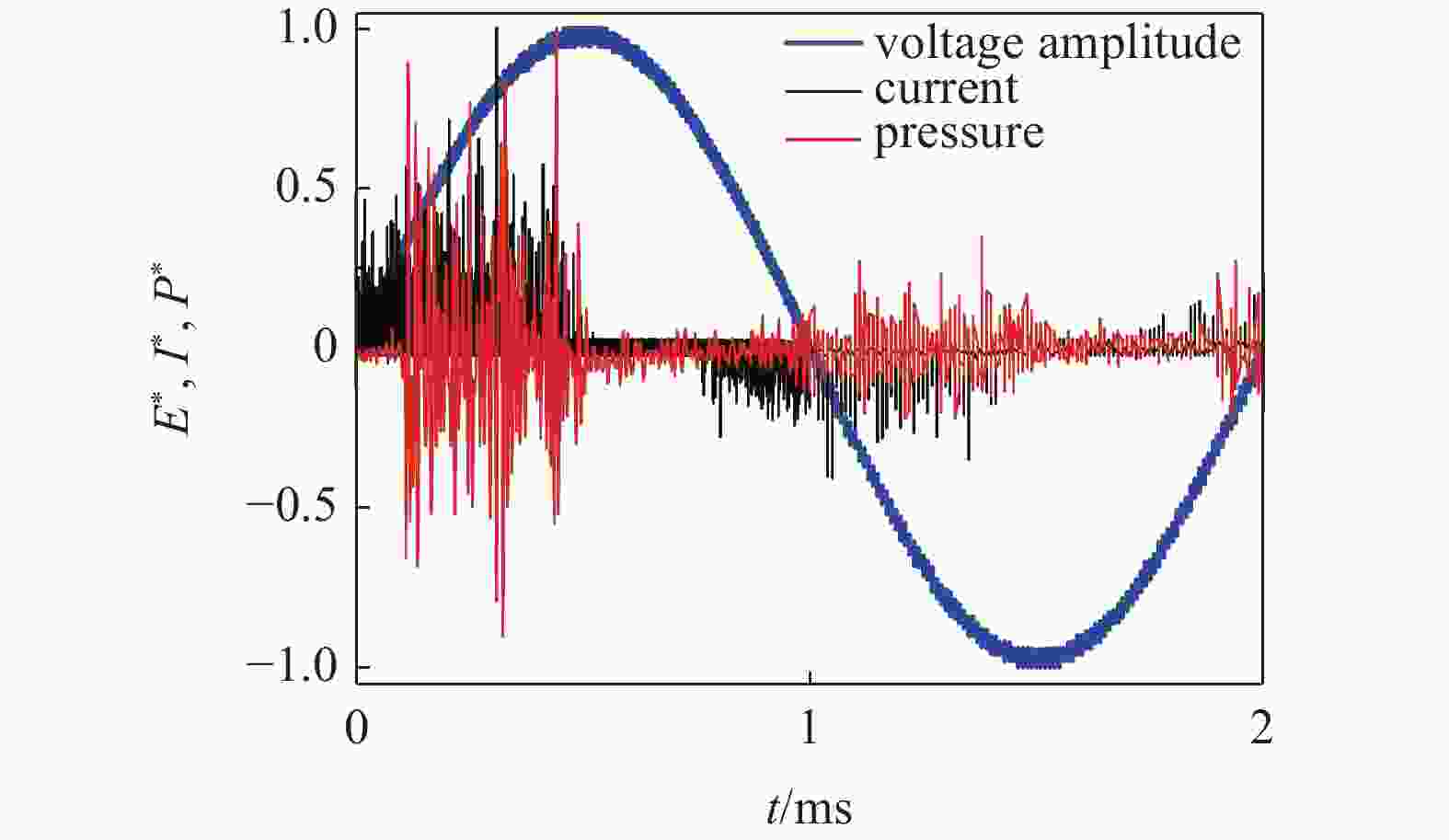

    图  16  无量纲电压波形、电流与压力

    Figure  16.  Normalized sinusoidal high-voltage waveform, current, and pressure over time

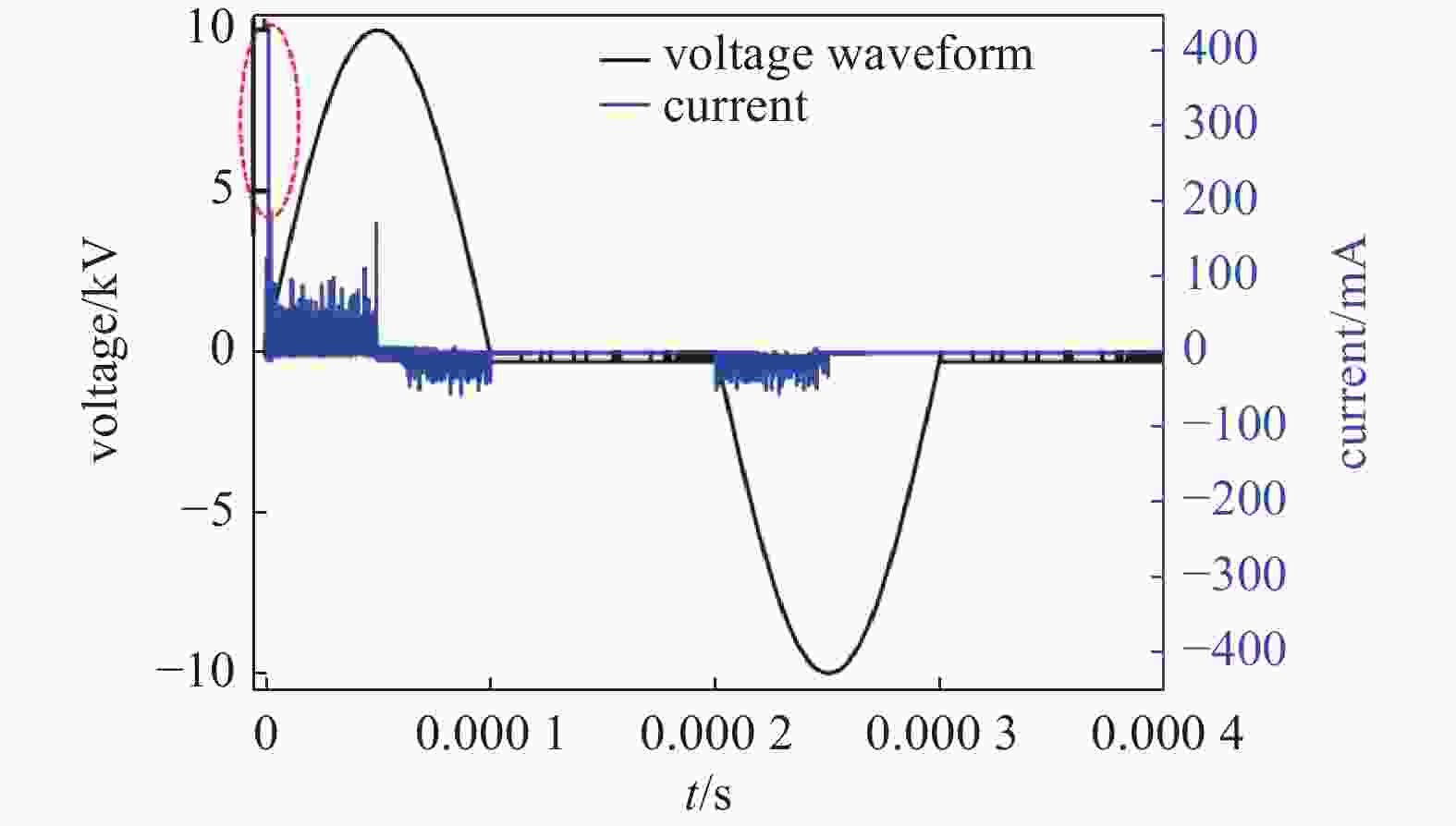

    图  17  非定常交流电压波形及电流

    Figure  17.  Unsteady sinusoidal AC waveforms and the current

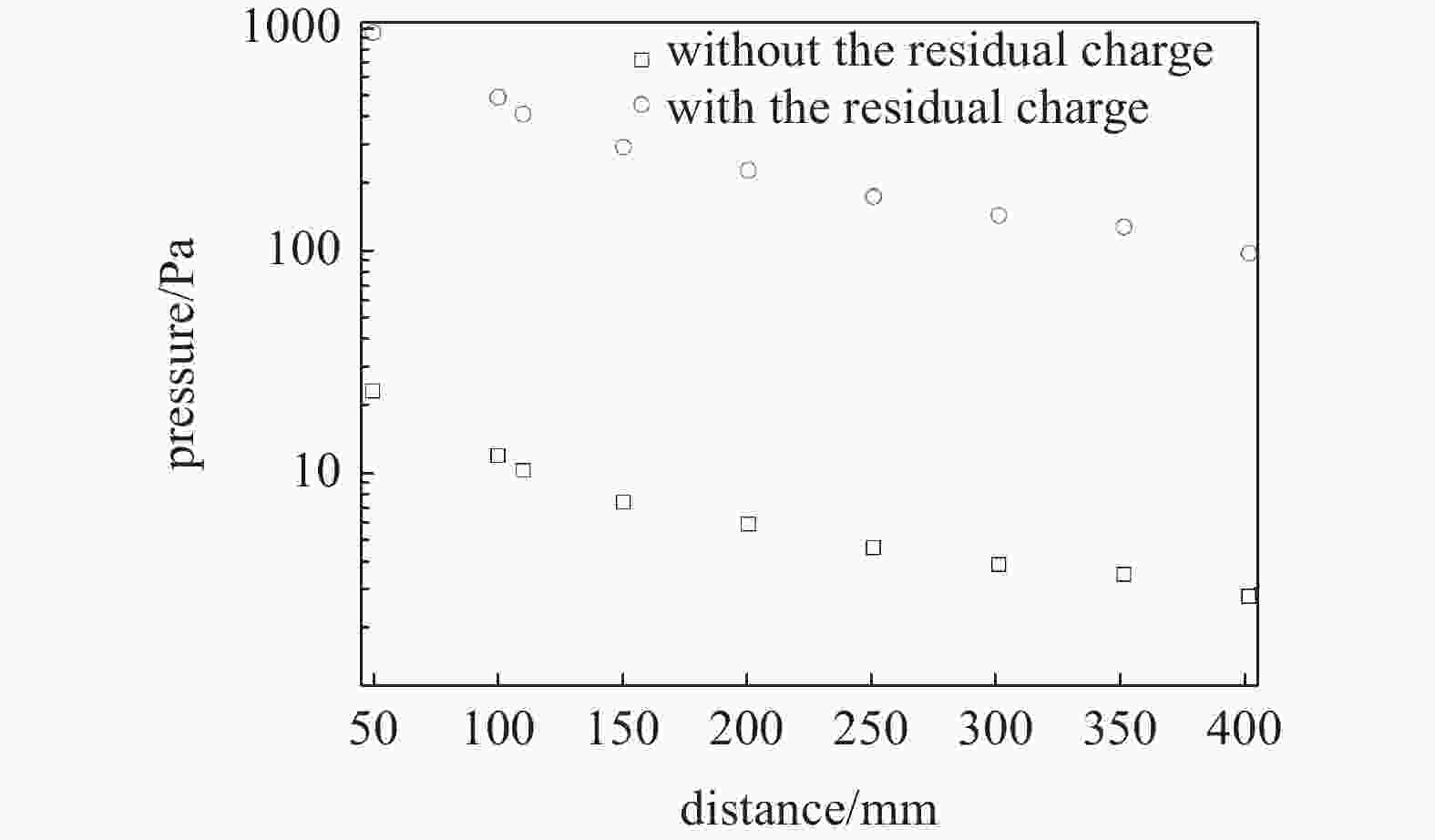

    图  18  有无残余电荷时诱导压力波的峰值压力

    Figure  18.  The peak pressure of the induced pressure wave without and with the residual charge

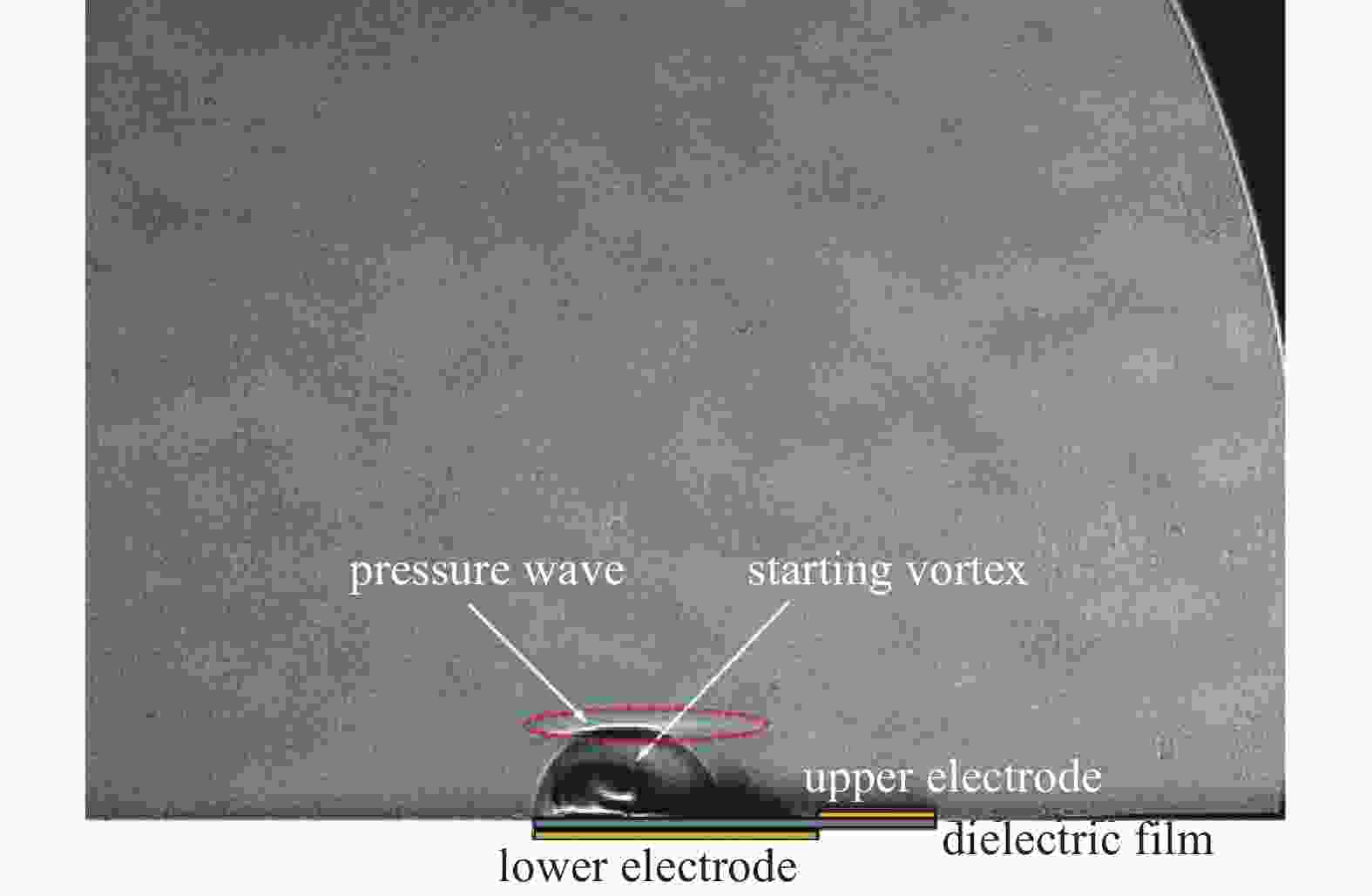

    图  19  非定常交流电压激励下的诱导流场

    Figure  19.  Flow field produced by the plasma actuator driven by the unsteady sinusoidal AC waveforms

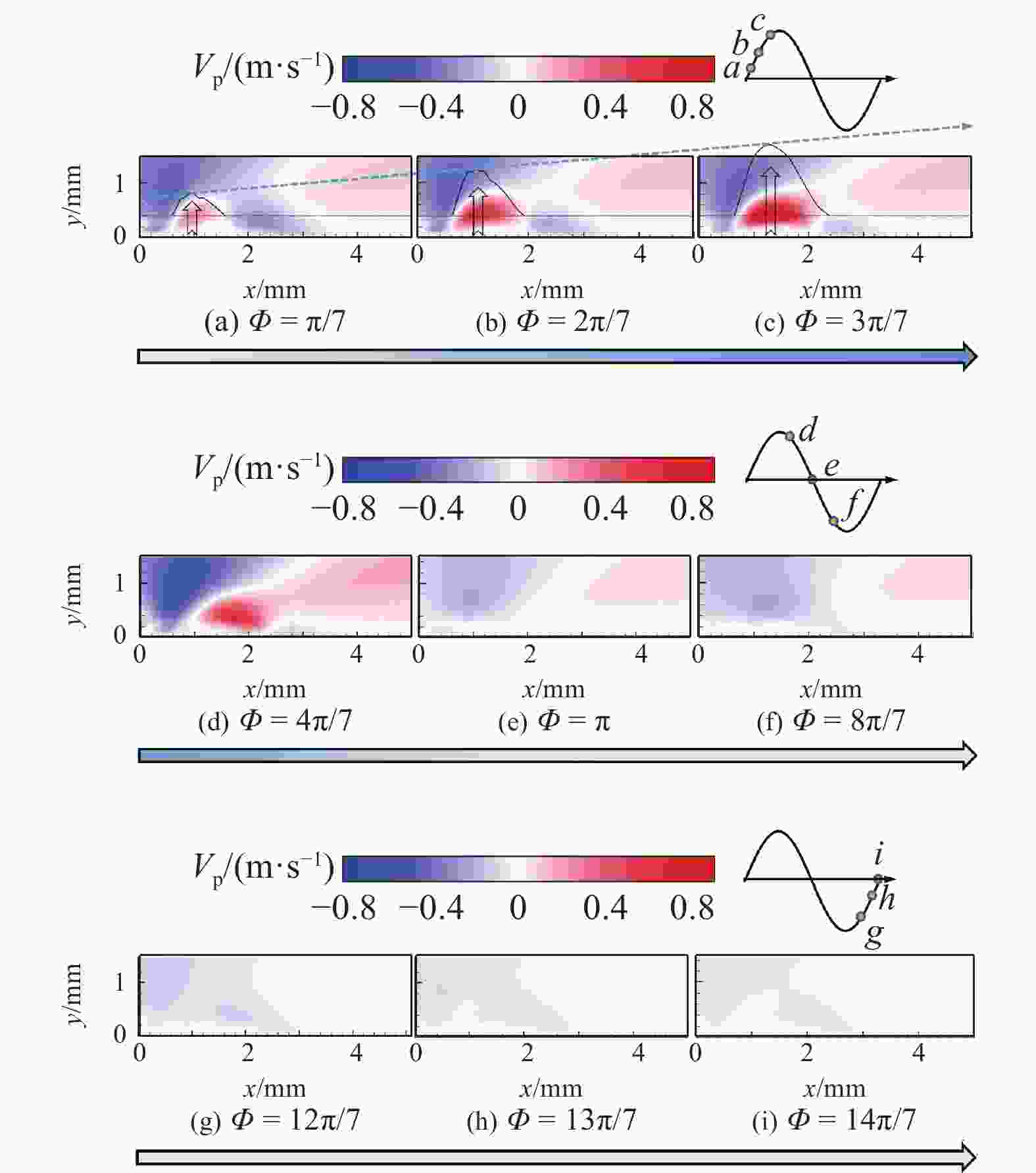

    图  20  不同相位下的法向速度分布

    Figure  20.  Distribution of the induced y-axis velocity component for different phase angles

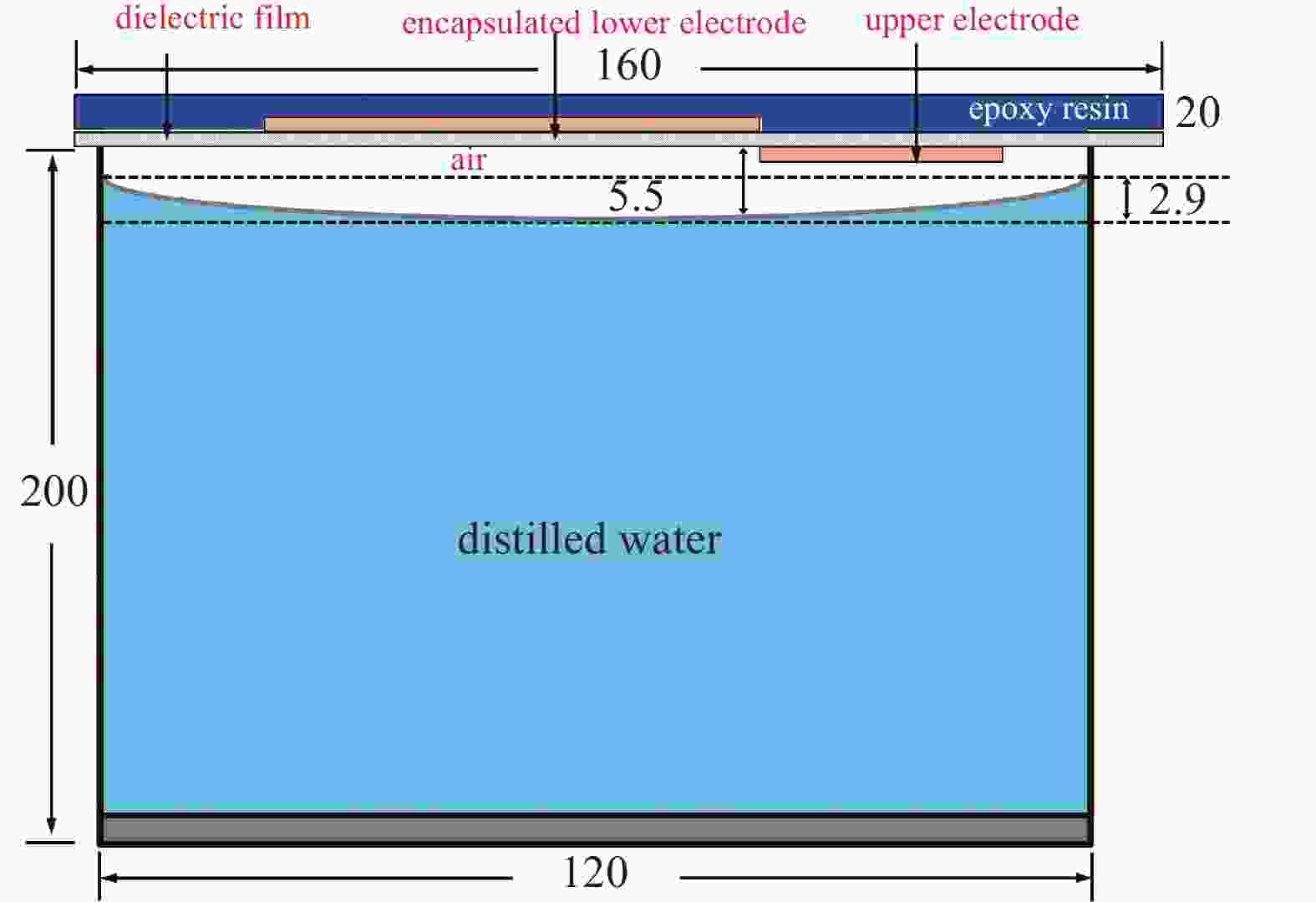

    图  21  诱导声流实验的设备总体布局示意图 (单位: mm)

    Figure  21.  Schematic of the experimental set-up for the overall system (unit: mm)

    图  22  纯水中的诱导声流

    Figure  22.  The induced acoustic streaming flow in distilled water

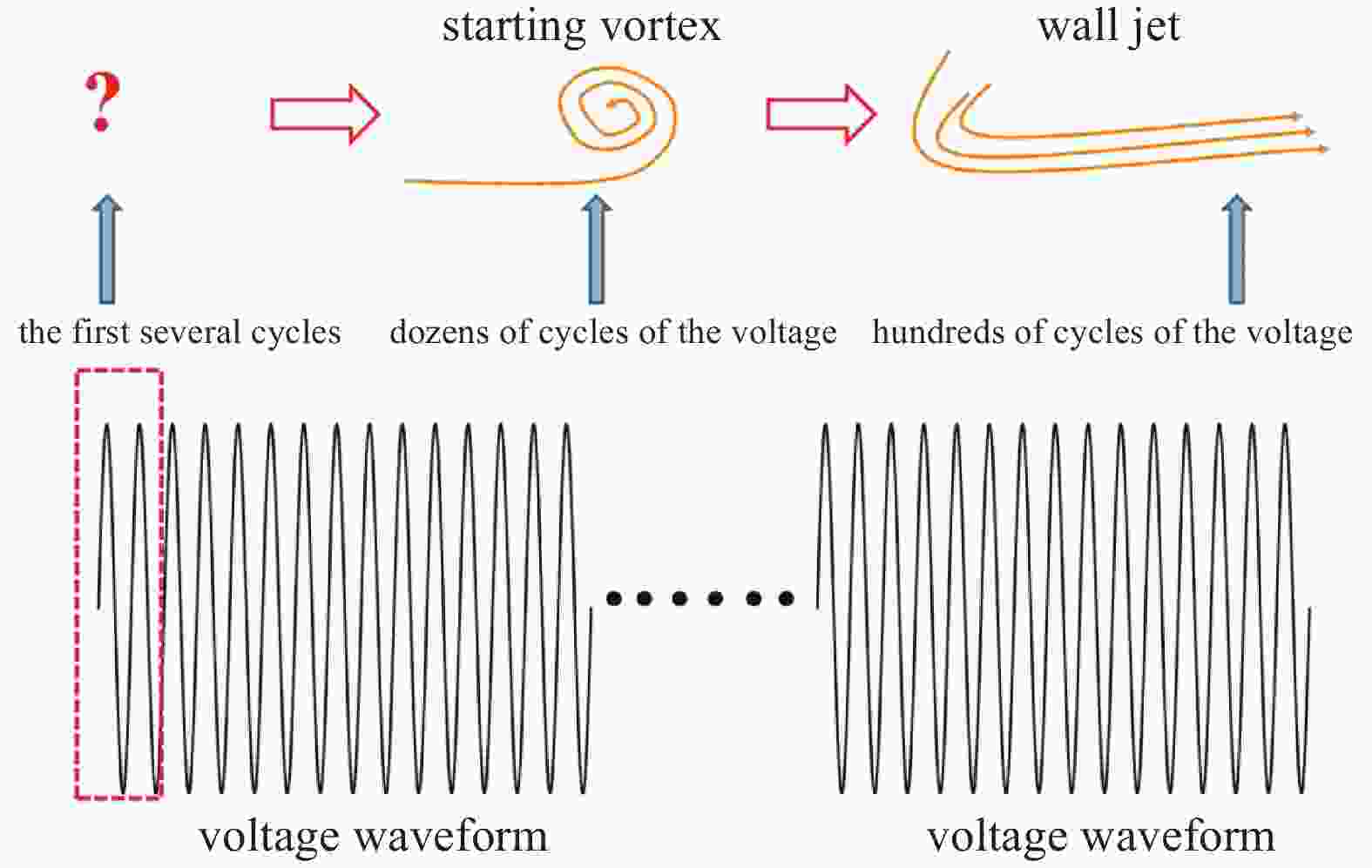

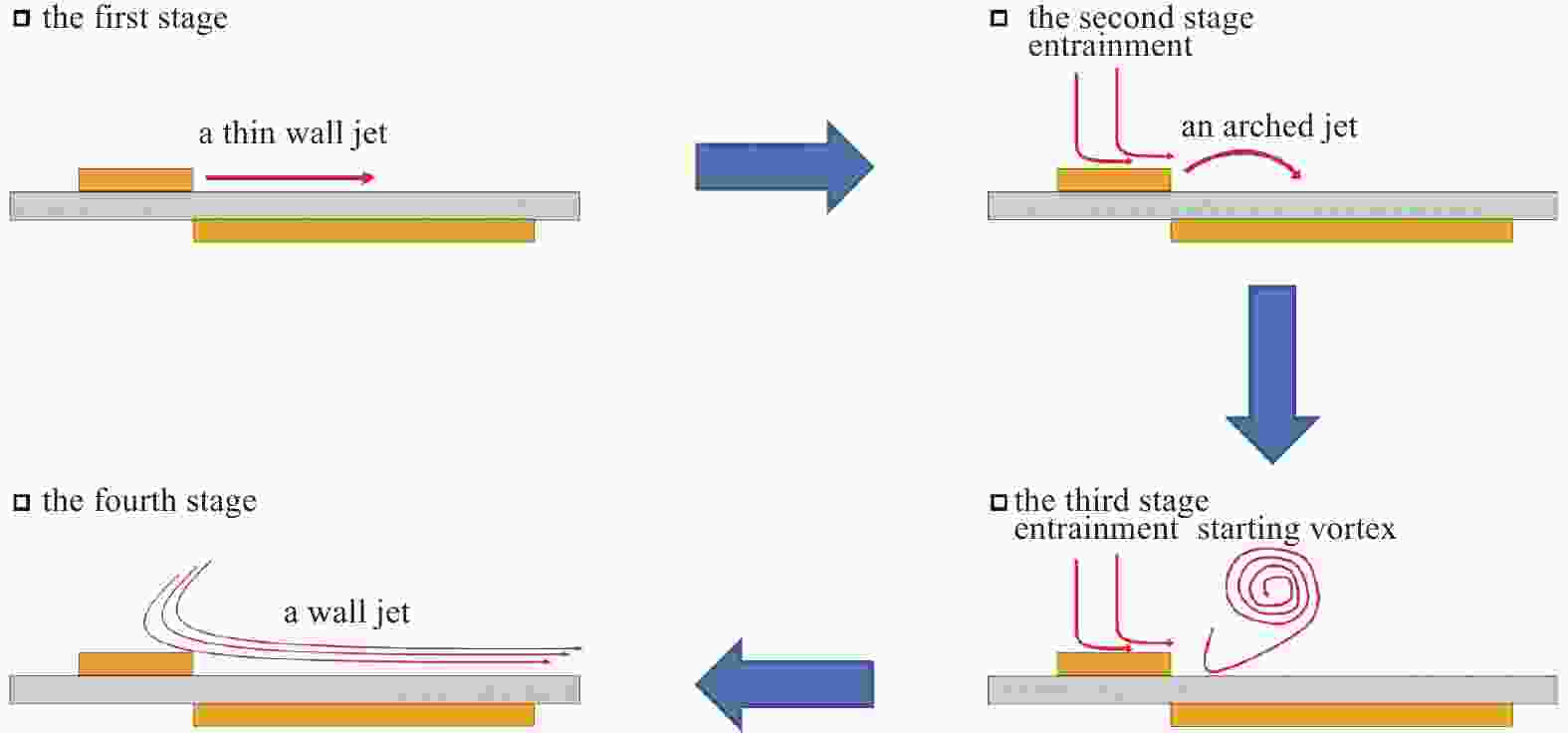

    图  23  激励器诱导流场的演化过程

    Figure  23.  Schematic of flow field induced by a single AC-DBD plasma actuator versus voltage waveform

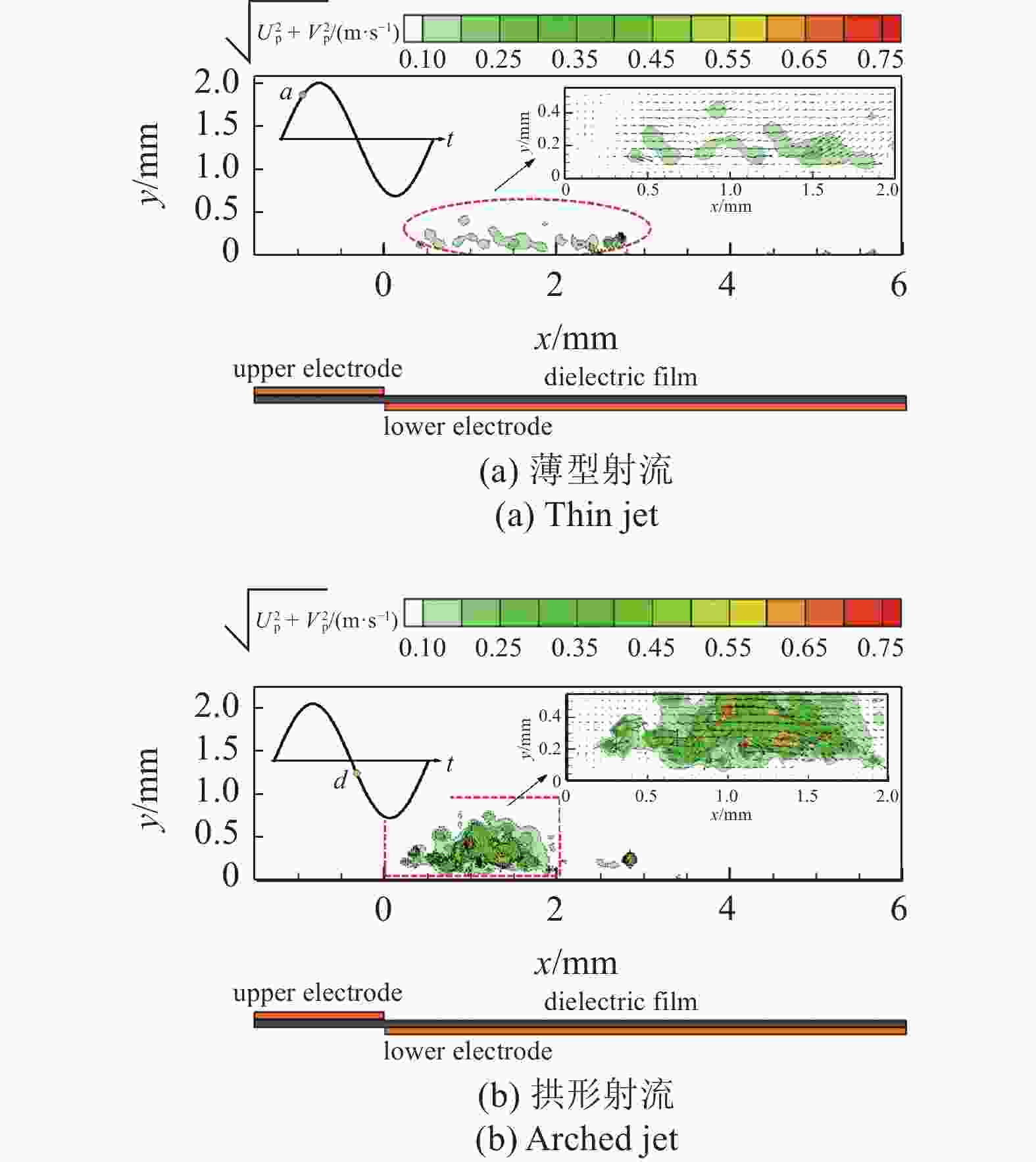

    图  24  等离子体激励器在第一个正弦激励周期内产生的典型流场结构

    Figure  24.  The instantaneous flow field induced by the plasma actuator in the first cycle

    图  25  不同时刻的激励器诱导流场

    Figure  25.  The instantaneous flow field induced by the plasma actuator at different stages

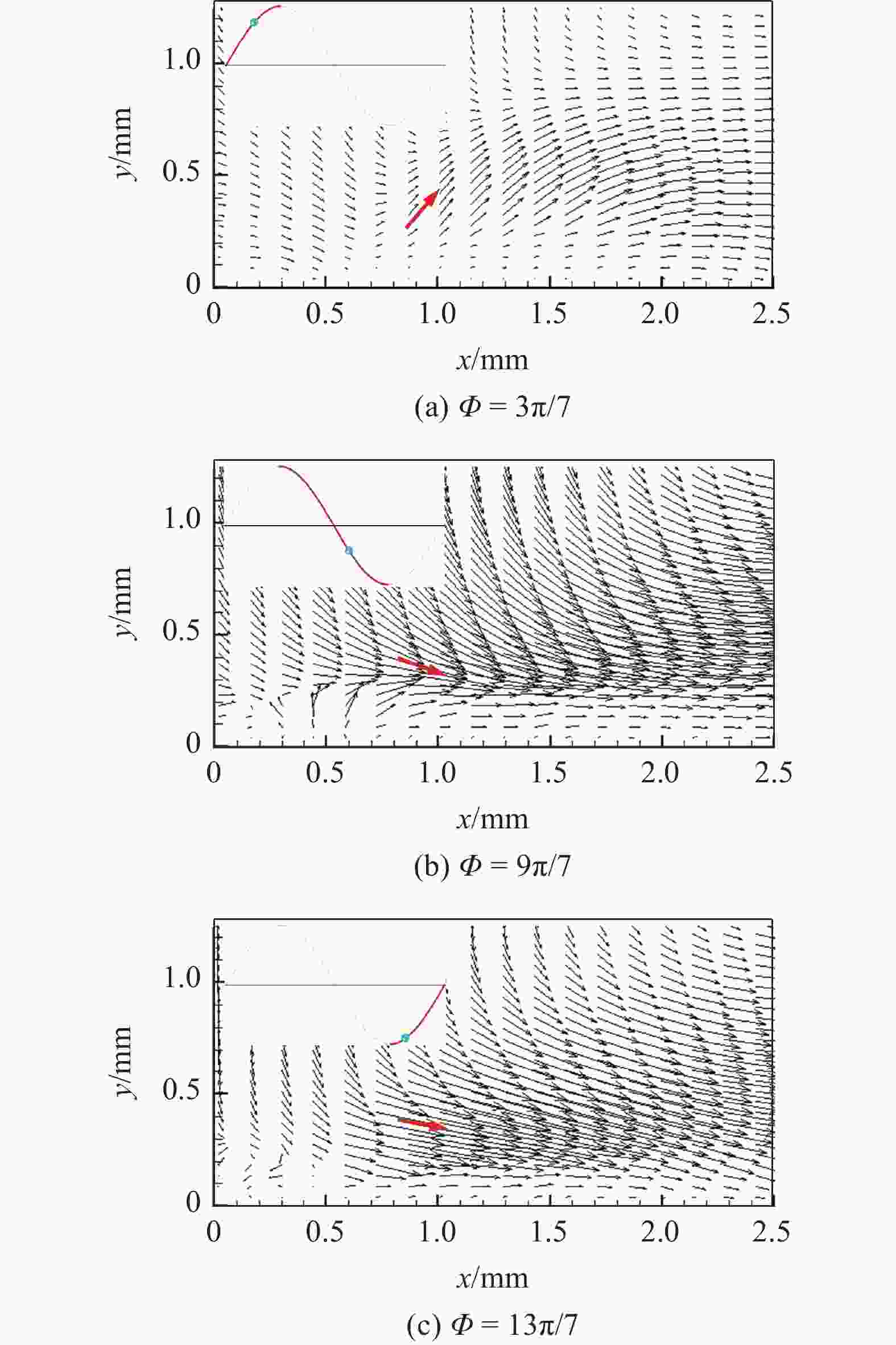

    图  26  激励器诱导的相位平均流场

    Figure  26.  Phase-averaged velocity fields produced by the plasma actuator

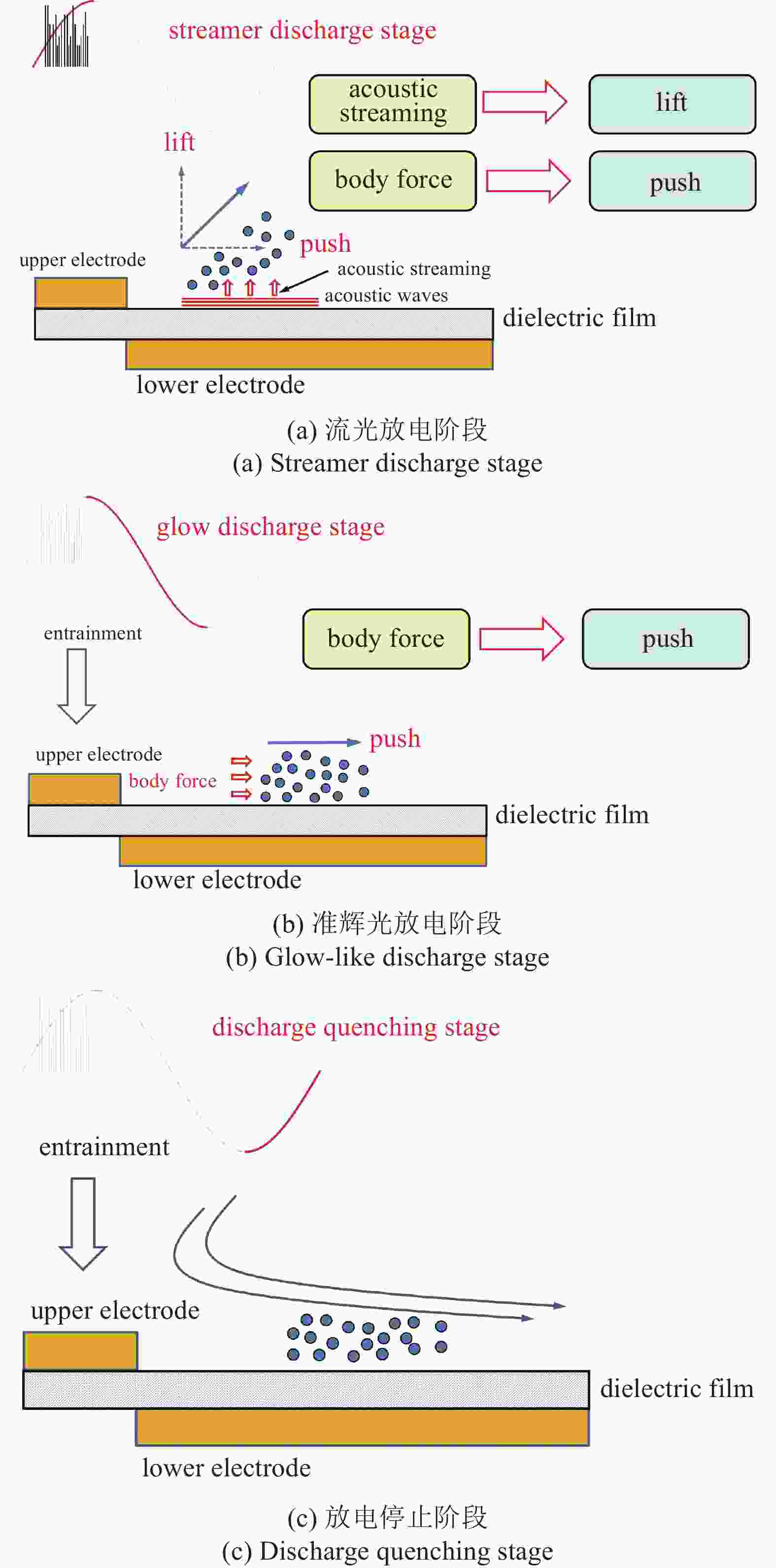

    图  27  激励器诱导流场的演化机制

    Figure  27.  Evolution mechanism of the flow field generated by plasma actuators
