高超声速高焓边界层稳定性与转捩研究进展

陈贤亮 符松

陈贤亮, 符松. 高超声速高焓边界层稳定性与转捩研究进展. 力学学报, 2022, 54(11): 2937-2957 doi: 10.6052/0459-1879-22-184
引用本文: 陈贤亮, 符松. 高超声速高焓边界层稳定性与转捩研究进展. 力学学报, 2022, 54(11): 2937-2957 doi: 10.6052/0459-1879-22-184
Chen Xianliang, Fu Song. Progress in the research of hypersonic and high­enthalpy boundary layer instabilities and transition. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(11): 2937-2957 doi: 10.6052/0459-1879-22-184
Citation: Chen Xianliang, Fu Song. Progress in the research of hypersonic and high­enthalpy boundary layer instabilities and transition. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(11): 2937-2957 doi: 10.6052/0459-1879-22-184

高超声速高焓边界层稳定性与转捩研究进展

doi: 10.6052/0459-1879-22-184
基金项目: 国家重点研发计划(2019YFA0405201), 国家重大项目(GJXM92579), 国家自然科学基金(92052103, 12172195), 1912项目资助
详细信息
    作者简介:

    符松, 教授, 主要研究方向: 流动转捩与湍流. E-mail: fs­dem@tsinghua.edu.cn

  • 中图分类号: O357.4

PROGRESS IN THE RESEARCH OF HYPERSONIC AND HIGH­ENTHALPY BOUNDARY LAYER INSTABILITIES AND TRANSITION

  • 摘要: 边界层由层流向湍流的转捩是高超声速飞行器设计面临的重大空气动力学问题. 随着飞行速域与空域的不断拓展, 高超声速高焓边界层中的高温气体效应会使得量热完全气体假设失效, 从而深刻影响流动转捩过程. 相关研究涉及多个学科, 是典型的多物理场耦合问题. 近年来, 随着相关飞行器技术的快速发展, 高超声速高焓边界层转捩问题的重要性越来越得到体现, 相关研究已成为国际上的热点领域. 本文综述相关研究进展, 首先介绍目前常用的高温气体物理模型, 尤其关注热化学非平衡模型, 并介绍激波捕捉、激波装配和边界层方程解等常用的高焓流动求解方法, 以及相关风洞和飞行试验技术的进展. 然后综述高温气体效应对转捩过程中的感受性、模态增长、瞬态增长和非线性作用等的影响的相关研究, 其中流向不稳定性中出现较大增长率的第三模态和超声速模态引起了广泛的研究兴趣. 最后进行总结, 并对未来发展略作展望.



  • 图  1  各种飞行器的典型轨迹以及需要考虑的物理问题[2]

    Figure  1.  Typical vehicle trajectories and the physics concerned with [2]

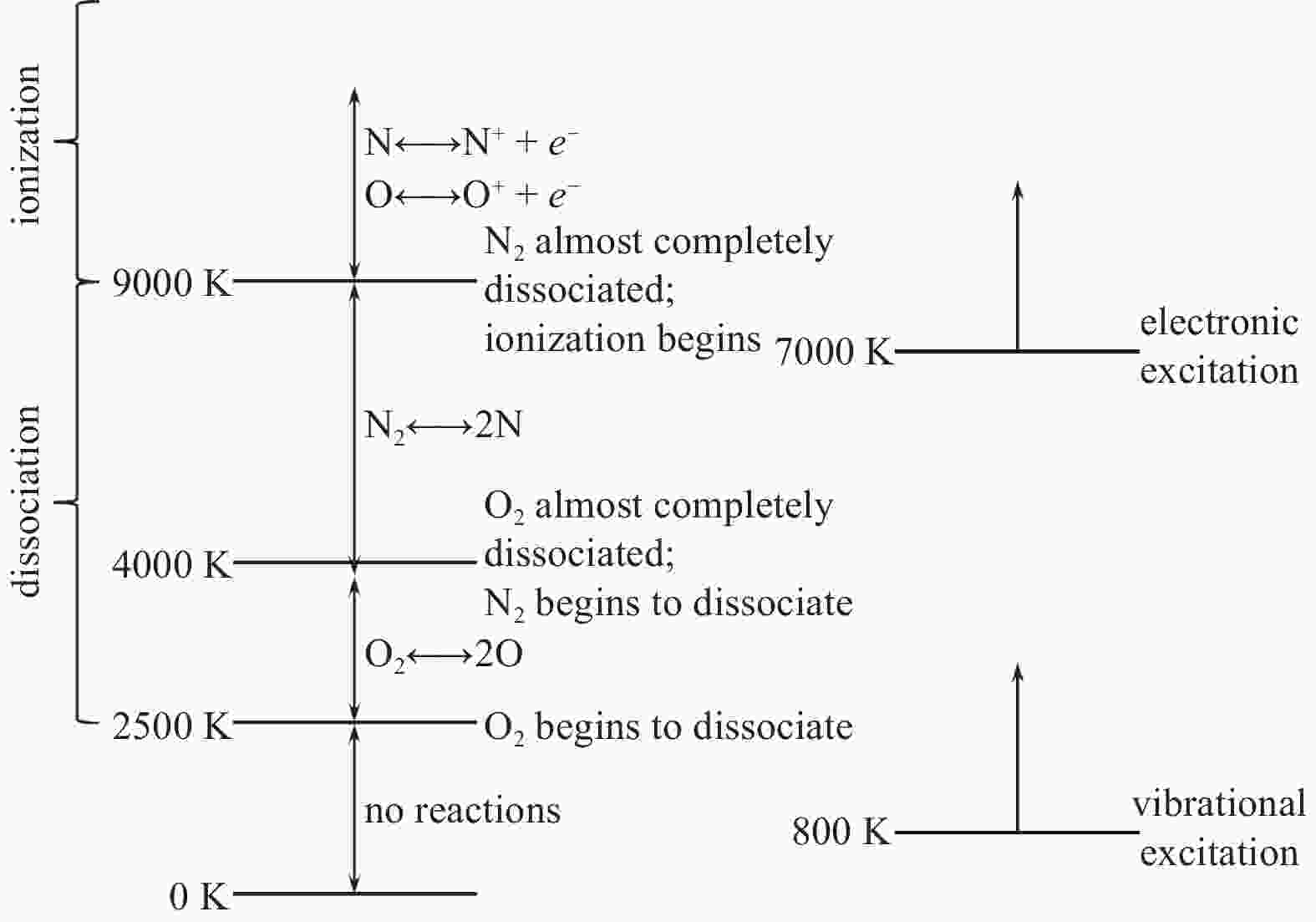

    图  2  标准大气压下平衡态空气发生不同热化学过程的温度范围[8,41,43]

    Figure  2.  Temperature ranges of typical thermochemical processes under standard atmosphere [8,41,43]

    图  3  不同高度H处正激波后温度随波前速度的变化[47]

    Figure  3.  Temperature behind a normal shock with varying pre-shock velocity and altitude [47]

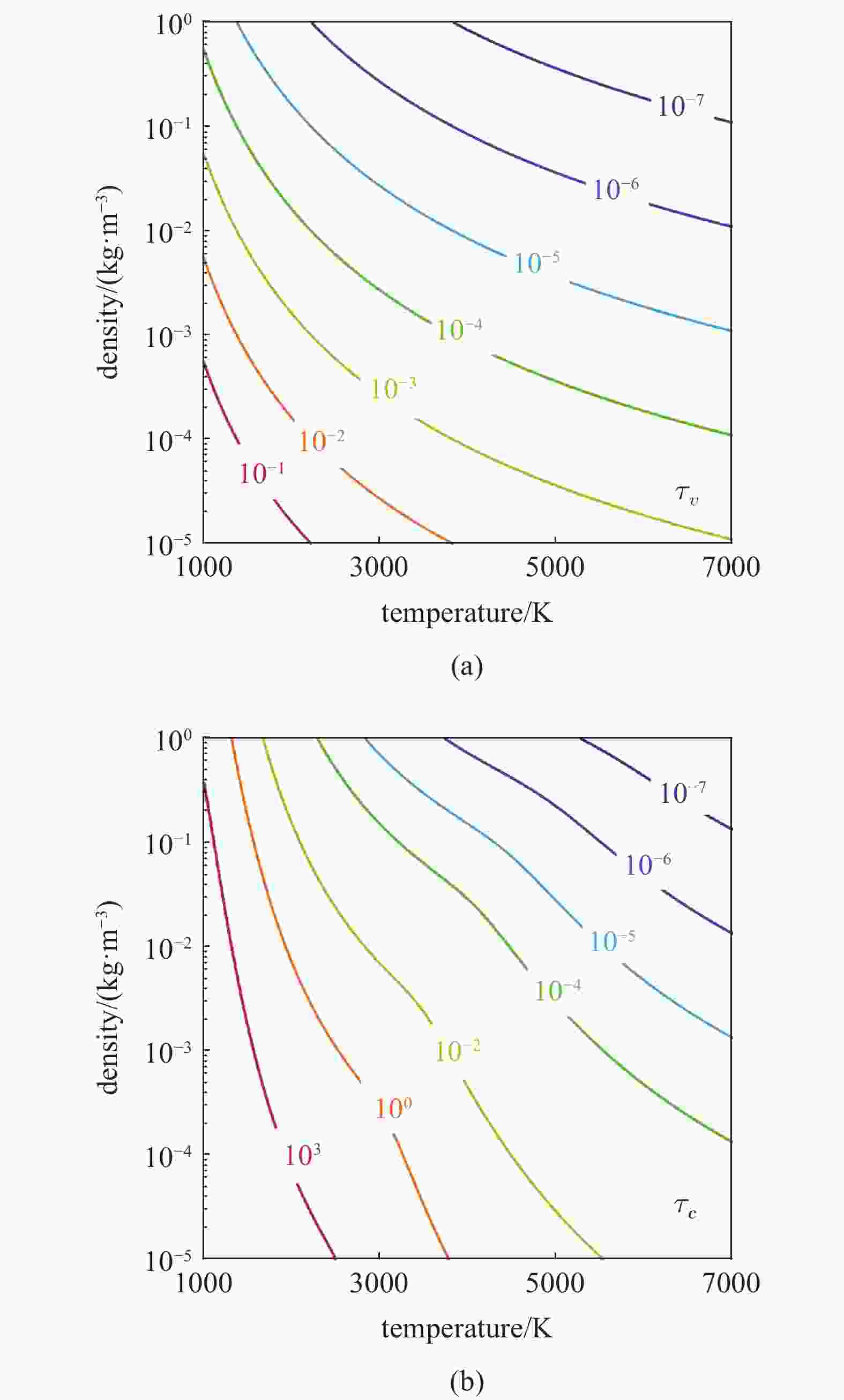

    图  4  氧气有限速率的(a)振动能松弛和(b)化学分解的特征时间($ {\tau }_{v/c} $, 单位s)[48]

    Figure  4.  Time scales of oxygen of (a) vibrational energy relaxation and (b) chemical dissociation ($ {\tau }_{v/c} $ in second) [48]

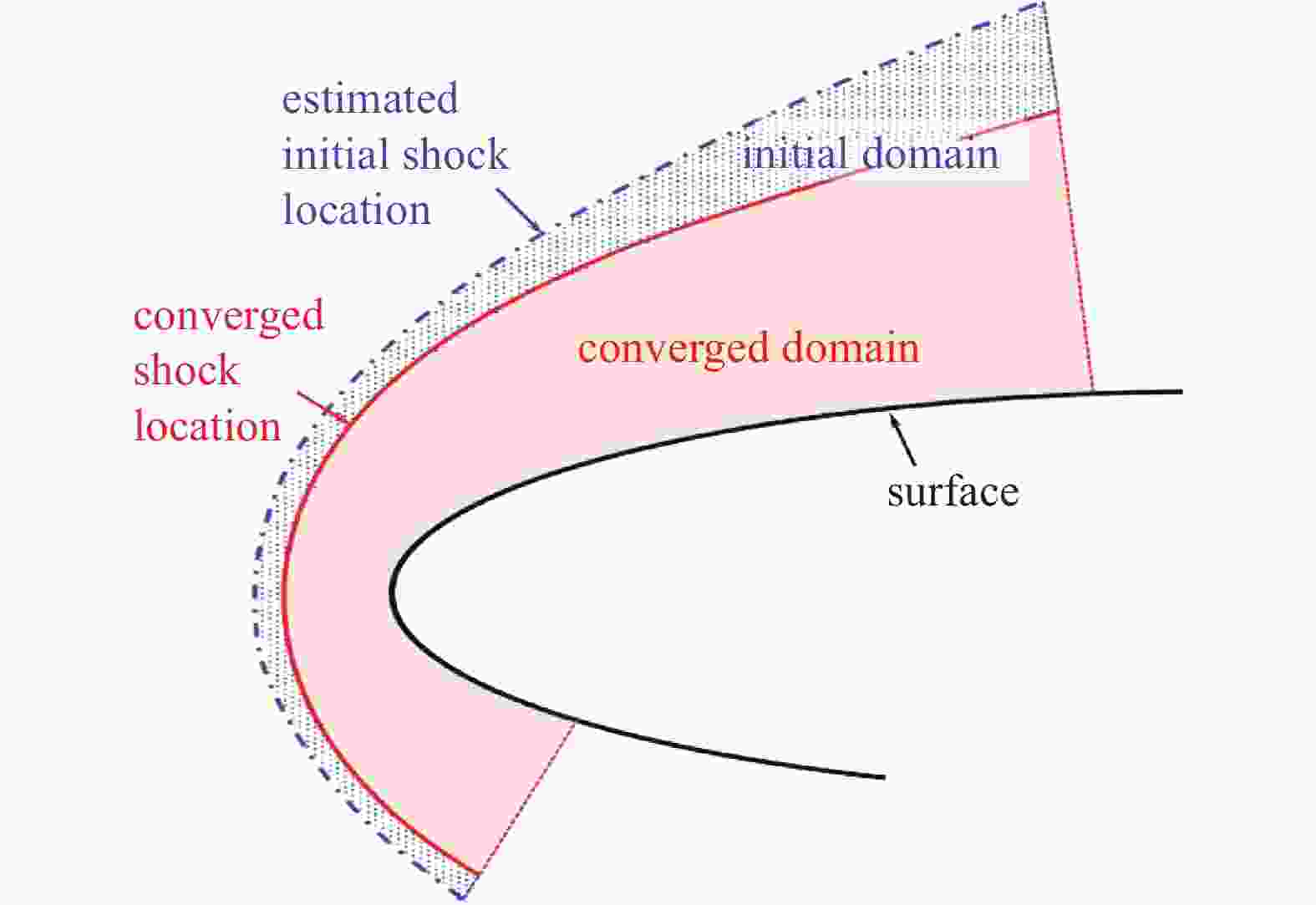

    图  5  边界激波装配法示意图

    Figure  5.  Illustration of the boundary shock-fitting method

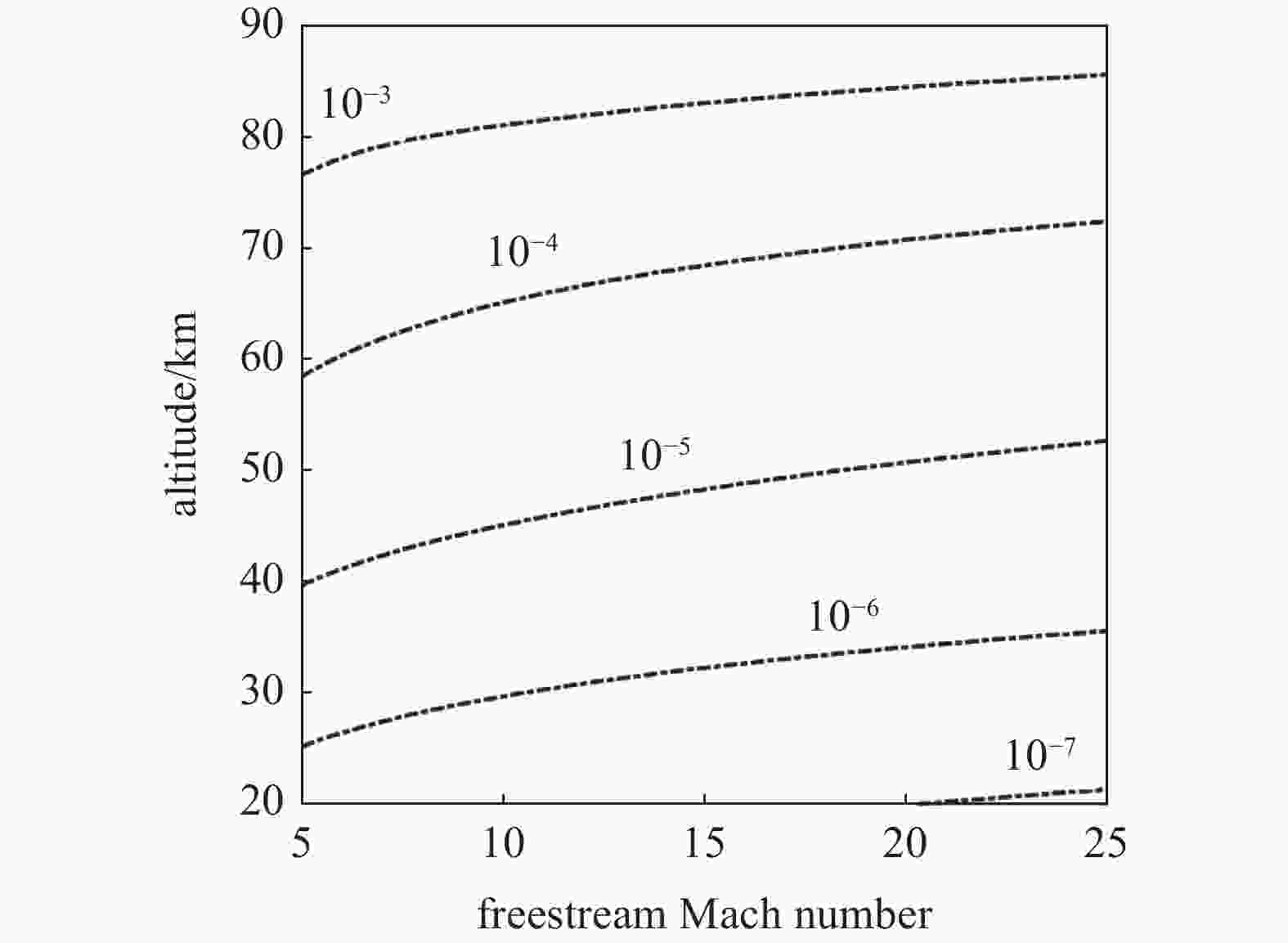

    图  6  式(4)给出的$ \mathrm{\varDelta } $的等值线

    Figure  6.  Contours of $ \mathrm{\varDelta } $ (unit in meter) from Eq. (4)

    图  7  10马赫绝热平板边界层算例中(a)流向速度, (b)温度和振动温度和(c)氧气质量分数的剖面($ {Re}_{\delta } $ = 2000)

    Figure  7.  (a) Streamwise velocity, (b) temperature and vibrational temperature and (c) oxygen mass fraction profiles in a Mach-10 adiabatic flat-plate boundary layer flow

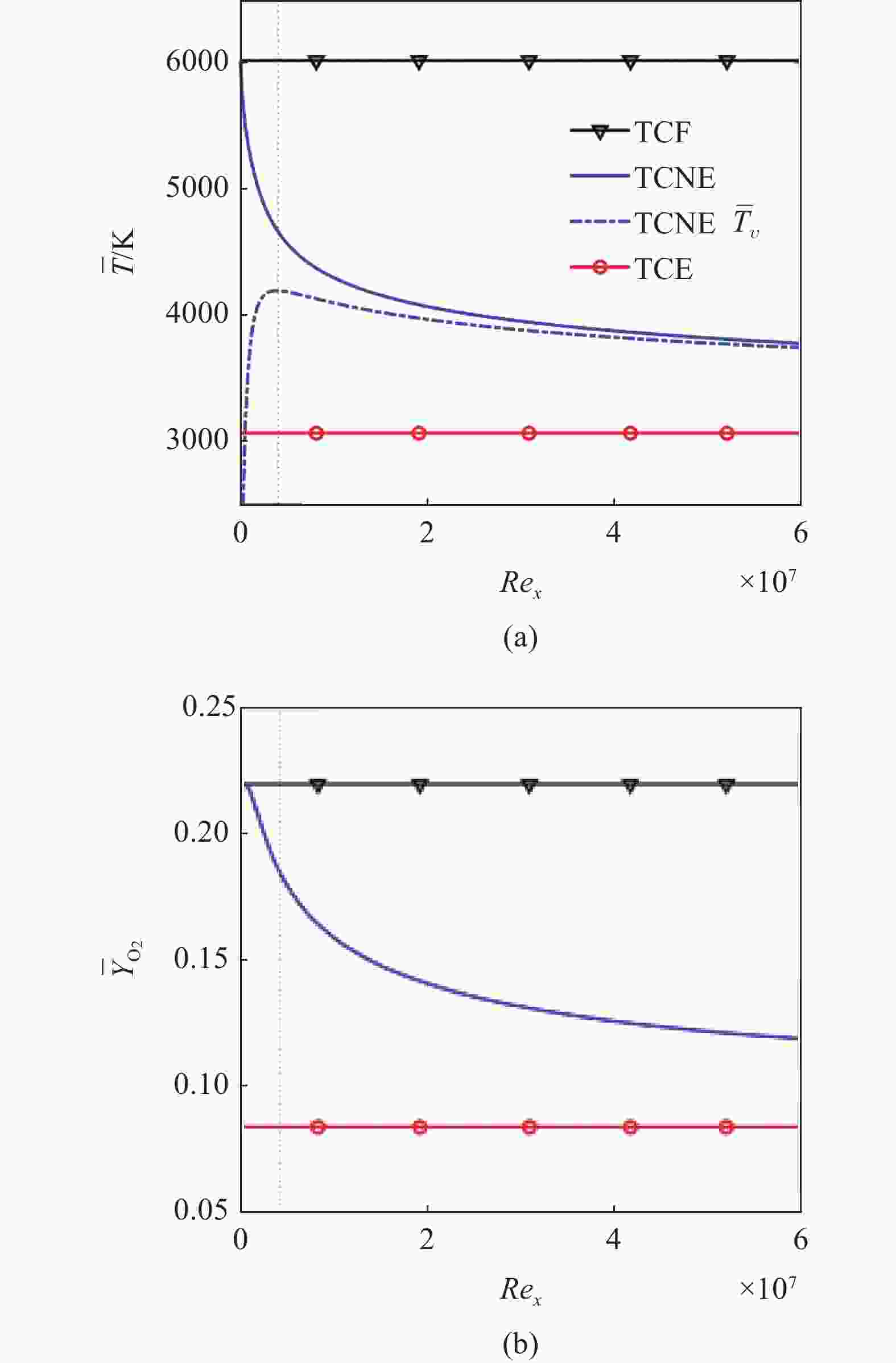

    图  8  壁面物理量随流向的变化: (a)温度和振动温度和(b)氧气质量分数. 虚线标注的流向位置对应于图7

    Figure  8.  Distributions of (a) temperature and vibrational temperature, and (b) oxygen mass fraction at the wall. The dotted lines correspond to the location in Fig. 7

    图  9  扰动增长率等值线: (a)轴对称(零周向波数)模态和(b)三维模态, 算例为来流20马赫的热化学非平衡钝锥边界层[133]

    Figure  9.  Growth rate contours of (a) axisymmetric and (b) 3D modes in a Mach-20 TCNE blunt-cone boundary layer[133]

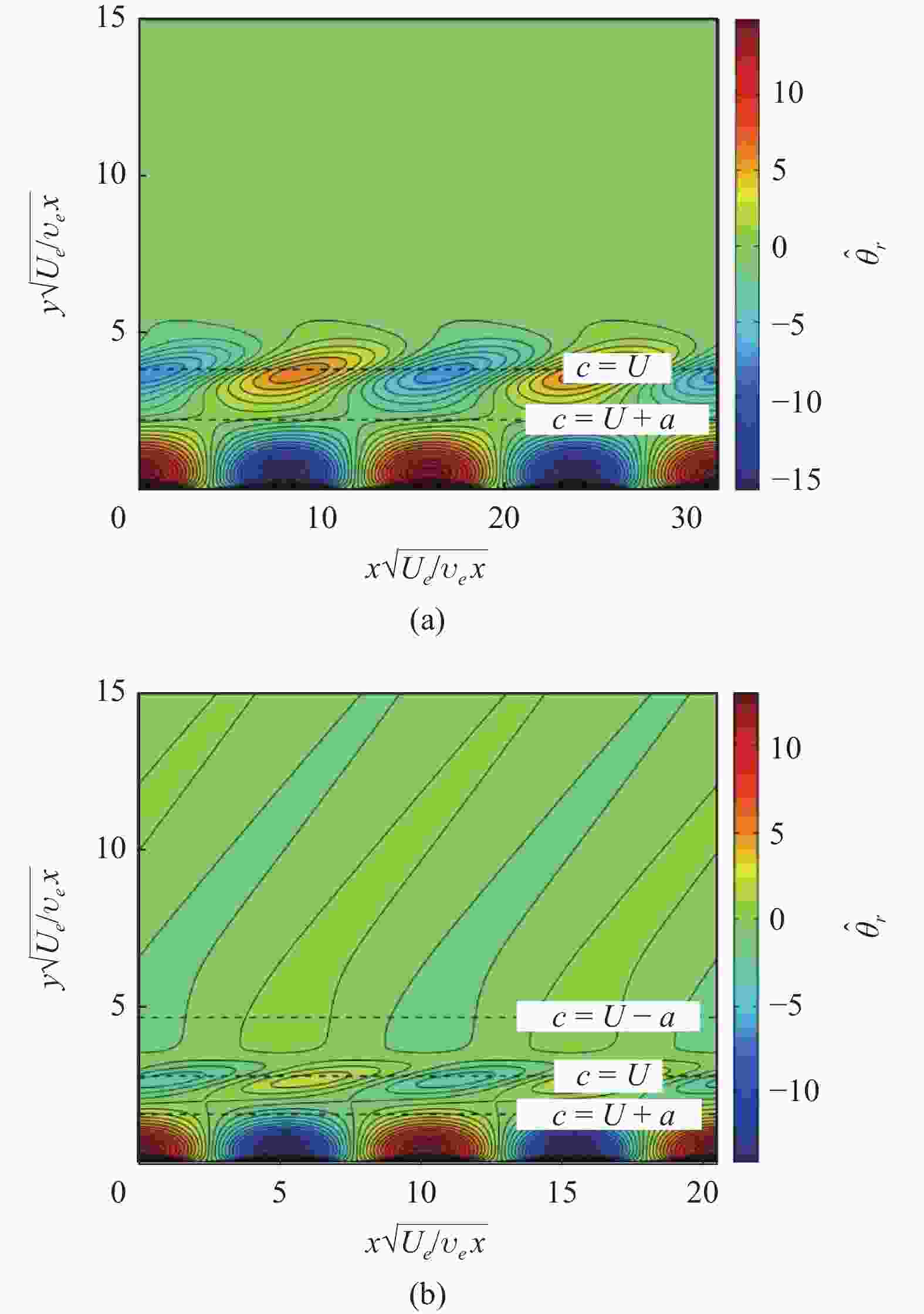

    图  10  (a)亚声速和(b)超声速模态的温度扰动等值线, 算例为5马赫振动非平衡平板边界层[121]

    Figure  10.  Temperature disturbance contours of (a) subsonic and (b) supersonic modes in a Mach-5 vibrational non-equilibrium flat-plate boundary layer [121]

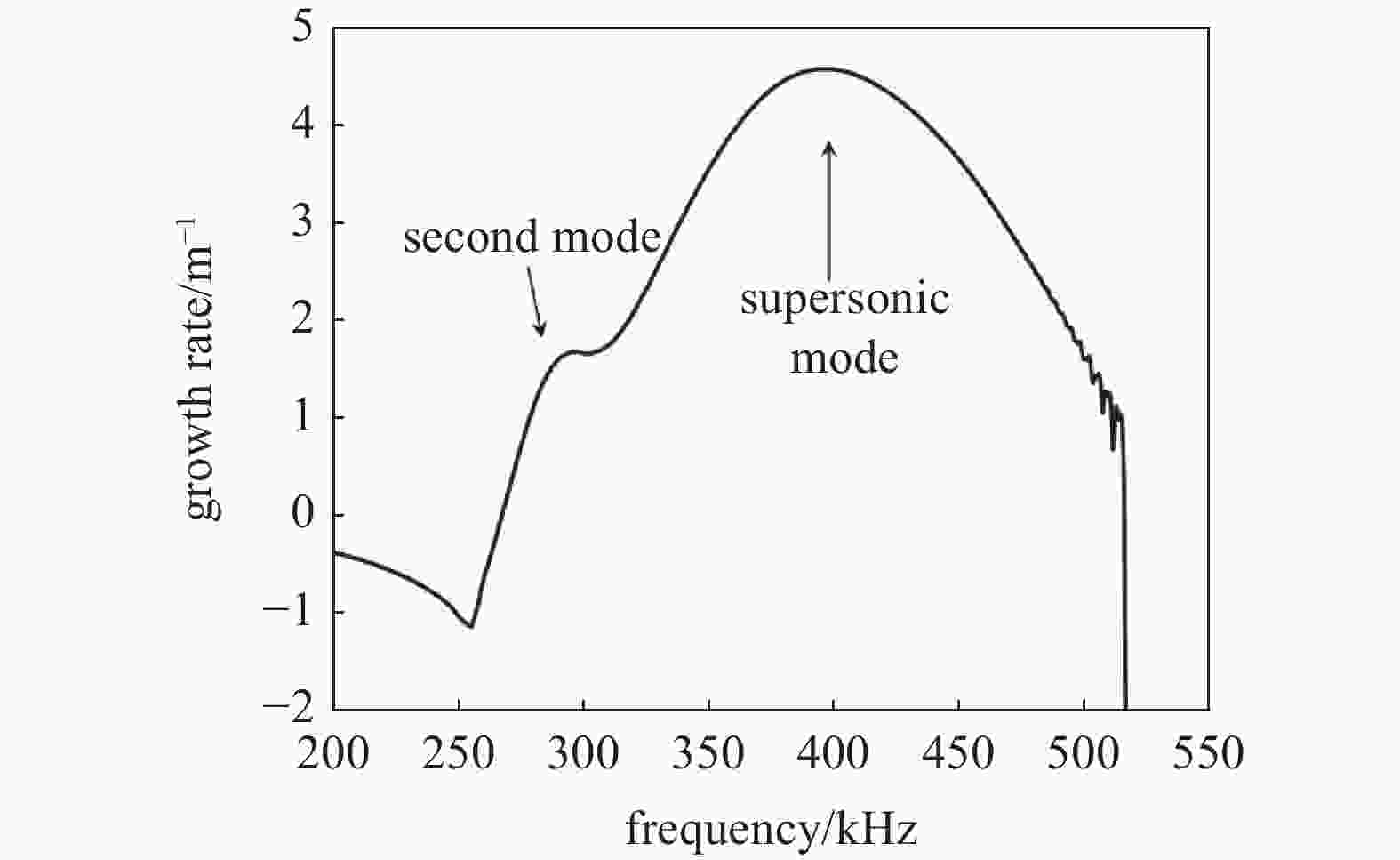

    图  11  大钝度圆锥边界层中失稳模态的增长率特征[139]

    Figure  11.  Disturbance growth rate behaviors in the cone-boundary-layer case with large nose bluntness[139]

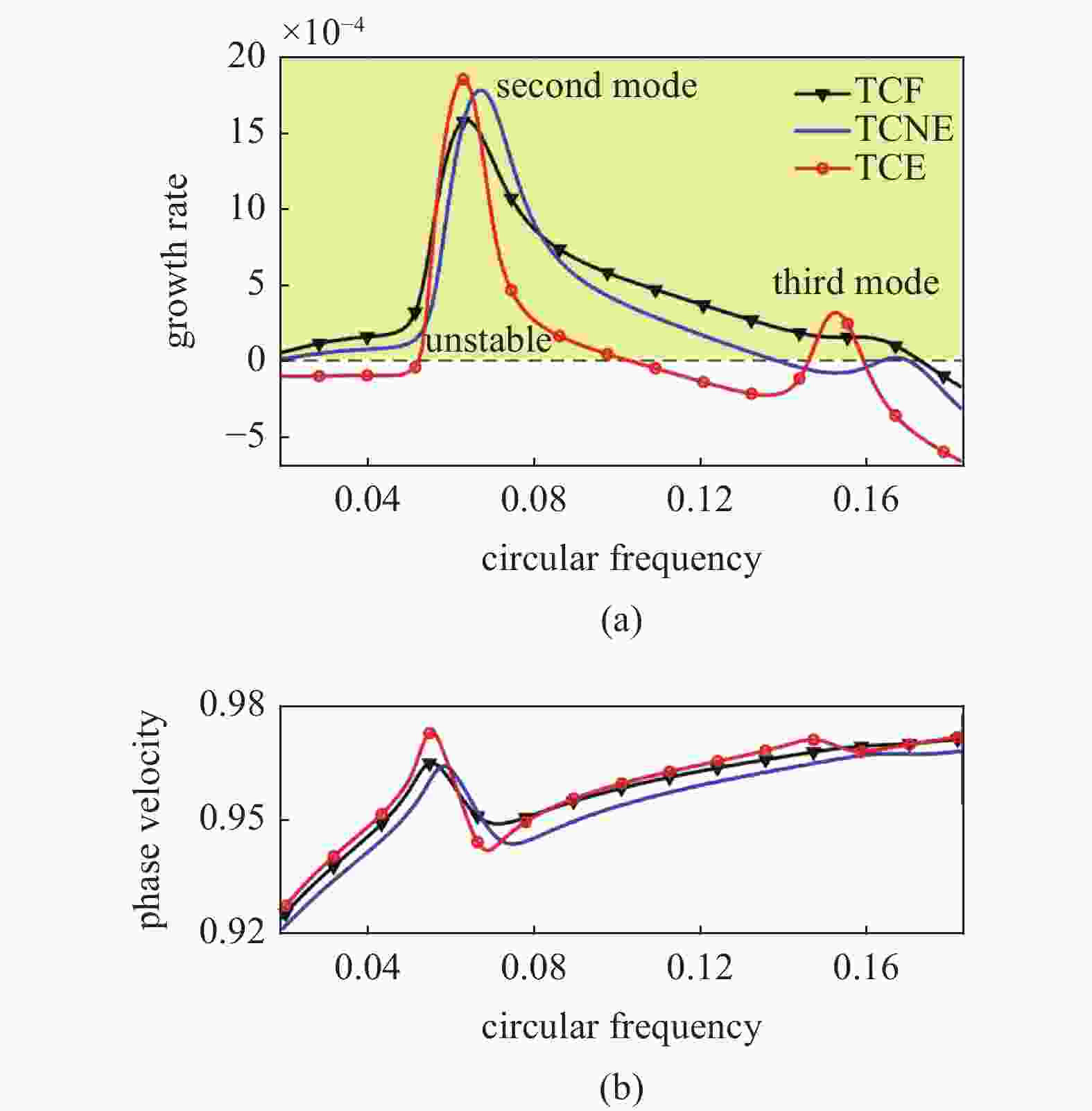

    图  12  10马赫绝热平板边界层中二维模态的(a)增长率和(b)相速度随圆频率的变化($ {Re}_{\delta } $ = 2000)

    Figure  12.  (a) Growth rate and (b) phase velocity of the 2D mode in a Mach-10 adiabatic flat-plate boundary layer

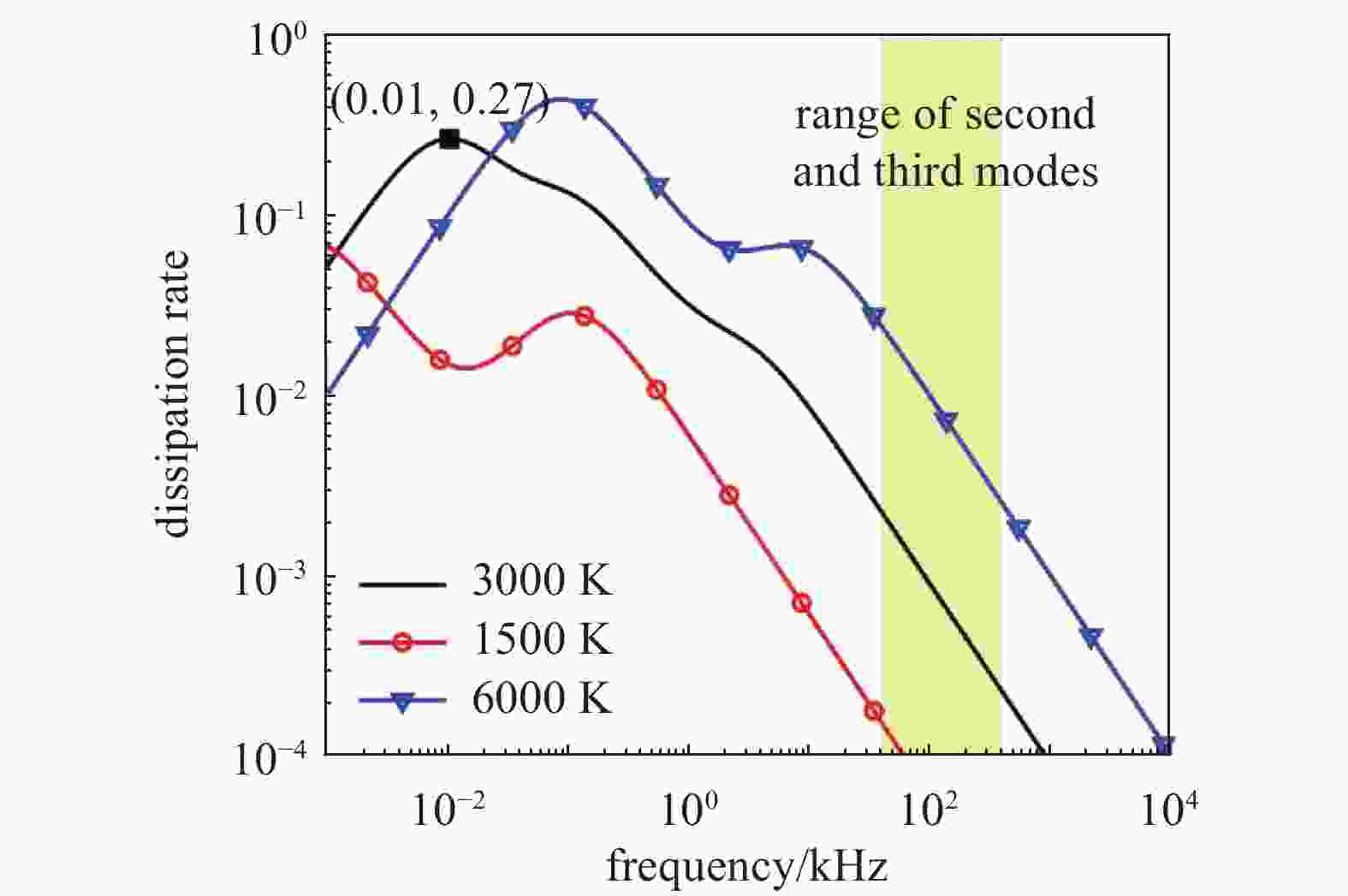

    图  13  自由来流中热化学非平衡扰动的幅值衰减速率, 第二和第三模态的频率范围取自图12

    Figure  13.  Amplitude dissipation rate of disturbance in the uniform free-stream; the frequency ranges of the second and third modes are from Fig. 12

    图  14  振动非平衡边界层中层流(基本流)和扰动的达姆科勒数的量级变化示意图[146]

    Figure  14.  Illustration of the distribution of the mean-flow and disturbance Damköhler numbers in a vibrational non-equilibrium boundary layer [146]

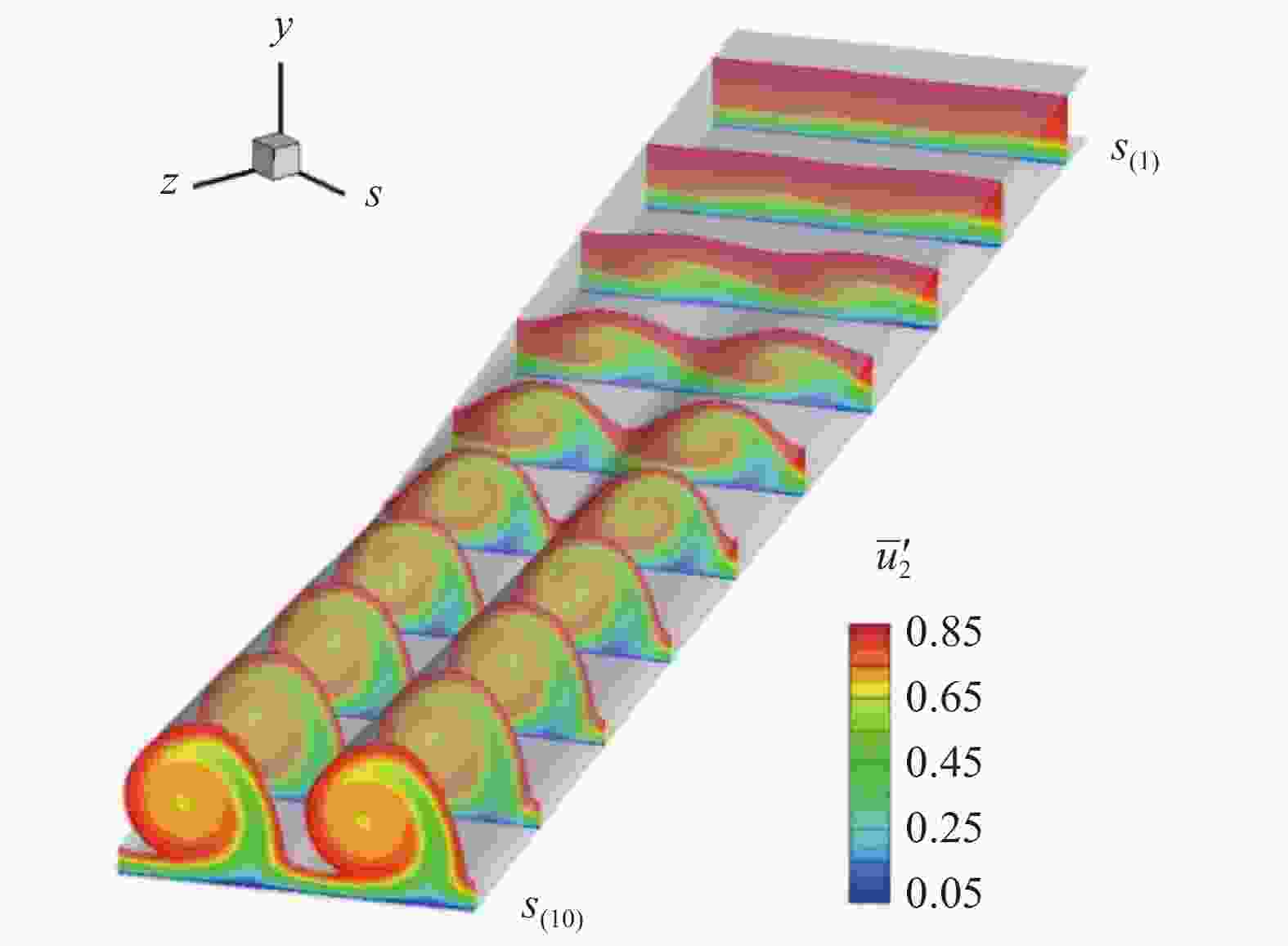

    图  15  16马赫的热化学非平衡后掠抛物体边界层中定常横流涡的演化[160]

    Figure  15.  Evolution of the stationary cross-flow vortices in a Mach-16 TCNE swept-parabola boundary layer [160]

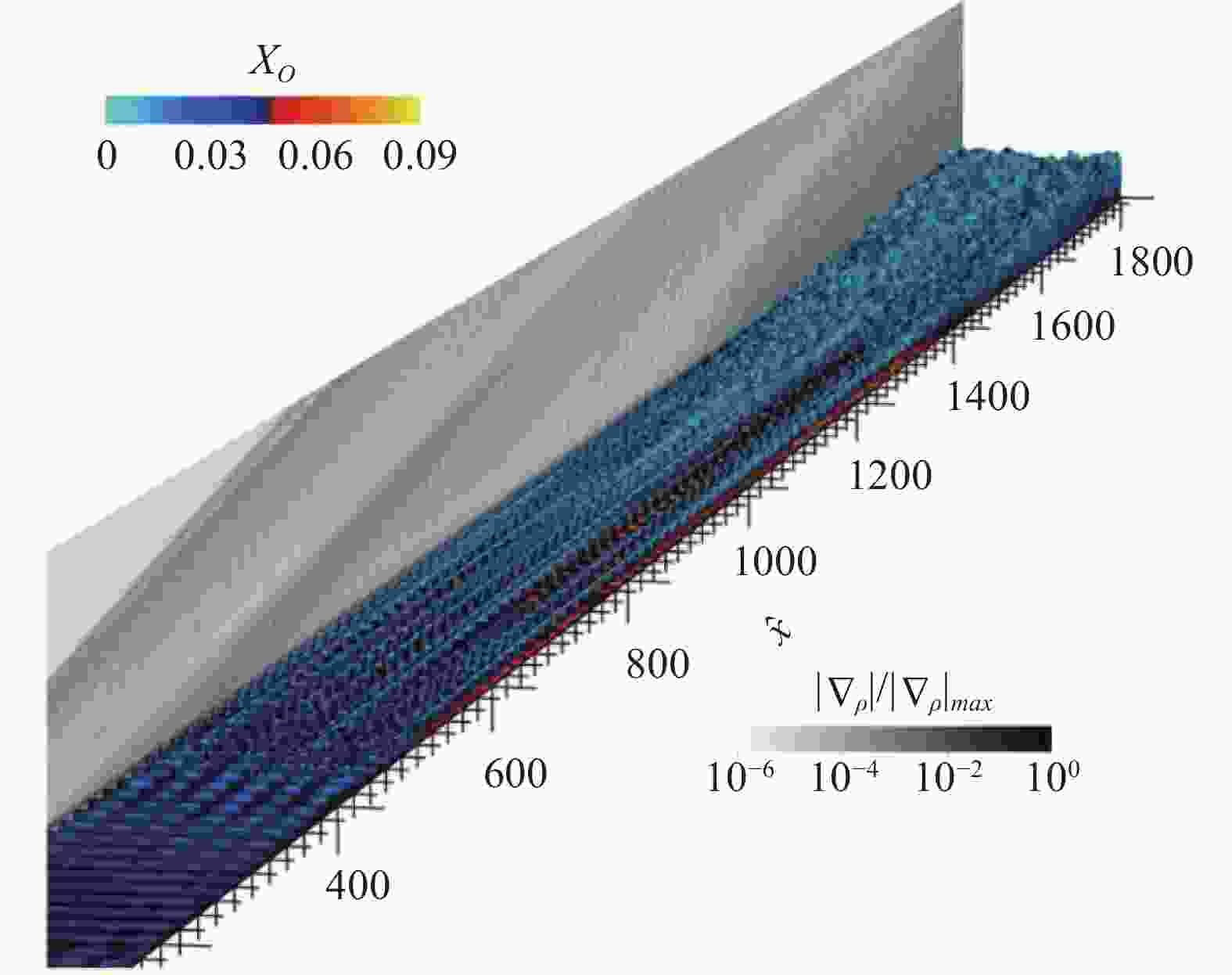

    图  16  10马赫化学非平衡平板边界层中由氧原子的体积分数着色的Q的瞬时等值面[183]

    Figure  16.  Instantaneous Q-isosurface colored by oxygen mass fraction in a Mach-10 chemical non-equilibrium boundary layer[183]

    表  1  热化学非平衡效应对第二模态的影响汇总

    Table  1.   Summary of the influences of TCNE effects on the second mode

    Boundary layer changeOn the second modeKey parameters
    on the base flow (effect I)lower temperature and density, lower speed of soundhigher growth rate, higher frequency$ {Da}_{v}^{\mathrm{b}\mathrm{a}\mathrm{s}\mathrm{e}}\propto \dfrac{1}{{Re}_{x}} $
    on the disturbance (effect II)lower speed of sound (with base flow unchanged)higher growth rate, lower frequency$ {Da}_{v}^{\mathrm{d}\mathrm{i}\mathrm{s}\mathrm{t}}\propto \dfrac{1}{\sqrt{{Re}_{x}}} $
    disturbance amplitude dissipation (endothermic processes)lower growth rate
    下载: 导出CSV
  • [1] 周恒, 苏彩虹, 张永明. 超声速/高超声速边界层的转捩机理及预测. 北京: 科学出版社, 2015

    Zhou Heng, Su Caihong, Zhang Yongming. Transition Mechanism and Prediction of Supersonic/Hypersonic Boundary Layers. Beijing: Science Press, 2015 (in Chinese)
    [2] Bertin JJ, Cummings RM. Critical hypersonic aerothermodynamic phenomena. Annual Review of Fluid Mechanics, 2006, 38: 129­157
    [3] Schmisseur JD. Hypersonics into the 21st century: a perspective on AFOSR-sponsored research in aerothermodynamics. Progress in Aerospace Sciences, 2015, 72: 3­16
    [4] 段毅, 姚世勇, 李思怡等. 高超声速边界层转捩的若干问题及工程应用研究进展综述. 空气动力学学报, 2020, 38(2): 391-403 (Duan Yi, Yao Shiyong, Li Siyi, et al. Review of progress in some issues and engineering application of hypersonic boundary layer transition. Acta Aerodynamica Sinica, 2020, 38(2): 391-403 (in Chinese)
    [5] White FM. Viscous Fluid Flow, 3rd ed. Singapore: McGraw Hill, 2006
    [6] Morkovin MV. Transition at hypersonic speeds. NASA Langley Research Center, 1987
    [7] Defense Science Board Task Force. Report of the defense science board task force on National Aerospace Plane (NASP) program. Defense Science Board, 1992
    [8] Anderson JD. Hypersonic and High-temperature Gas Dynamics, 2nd ed. Reston: AIAA, 2006
    [9] Bertin JJ, Cummings RM. Fifty years of hypersonics: where we’ve been, where we’re going. Progress in Aerospace Sciences, 2003, 39(6): 511­536
    [10] 姜宗林. 高超声速高焓风洞试验技术研究进展. 空气动力学学报, 2019, 37(3): 347-355 (Jiang Zonglin. Progresses on experimental techniques of hypersonic and high-enthalpy wind tunnels. Acta Aerodynamica Sinica, 2019, 37(3): 347-355 (in Chinese)
    [11] Shang JS, Yan H. High-enthalpy hypersonic flows. Advances in Aerodynamics, 2020, 2(1): 19 doi: 10.1186/s42774-020-00041-y
    [12] 苏彩虹. 高超声速边界层转捩预测中的关键科学问题——感受性、扰动演化及转捩判据研究进展. 空气动力学学报, 2020, 38(2): 355-367 (Su Caihong. Progress in key scientific problems of hypersonic boundary-layer transition prediction: receptivity, evolution of disturbances and transition criterion. Acta Aerodynamica Sinica, 2020, 38(2): 355-367 (in Chinese) doi: 10.7638/kqdlxxb-2020.0056
    [13] Fedorov AV. Transition and stability of high-speed boundary layers. Annual Review of Fluid Mechanics, 2011, 43: 79­95
    [14] Schmid PJ. Non-modal stability theory. Annual Review of Fluid Mechanics, 2007, 39: 129­162
    [15] Wu XS. Nonlinear theories for shear-flow instabilities: physical insights and practical implications. Annual Review of Fluid Mechanics, 2019, 51: 451­485
    [16] Hall P, Malik MR, Poll DIA, et al. On the stability of an infinite swept attachment line boundary layer. Proceedings of the Royal Society of London A. Mathematical and Physical Sciences, 1984, 395: 229­245
    [17] Xi YC, Ren J, Fu S. Hypersonic attachment-line instabilities with large sweep Mach numbers. Journal of Fluid Mechanics, 2021, 915: A44 doi: 10.1017/jfm.2021.66
    [18] Mack LM. Boundary-layer linear stability theory. AGARD Special Course on Stability and Transition of Laminar Flow, 1984
    [19] Saric WS. Görtler vortices. Annual Review of Fluid Mechanics, 1994, 26: 379­409
    [20] Ren J, Fu S. Competition of the multiple Görtler modes in hypersonic boundary layer flows. Science China Physics Mechanics & Astronomy, 2014, 57(6): 1178­1193
    [21] Reed HL, Saric WS. Stability of three-dimensional boundary layers. Annual Review of Fluid Mechanics, 1989, 21: 235­284
    [22] Xu GL, Chen JQ, Liu G, et al. The secondary instabilities of stationary cross-flow vortices in a Mach 6 swept wing flow. Journal of Fluid Mechanics, 2019, 873: 914­941
    [23] Schneider SP. Effects of roughness on hypersonic boundary-layer transition. Journal of Spacecraft & Rockets, 2008, 45(2): 193­209
    [24] Xue YF, Wang L, Wang ZJ, et al. Gap-induced transition via oblique breakdown at Mach 6. Shock Waves, 2019, 29(8): 1181­1190
    [25] Reed HL, Saric WS, Arnal D. Linear stability theory applied to boundary layers. Annual Review of Fluid Mechanics, 1996, 28: 389­428
    [26] Herbert T. Parabolized stability equations. Annual Review of Fluid Mechanics, 1997, 29: 245­283
    [27] Herbert T. Secondary instability of boundary layers. Annual Review of Fluid Mechanics, 1988, 20: 487­526
    [28] Theofilis V. Global linear instability. Annual Review of Fluid Mechanics, 2011, 43: 319­352
    [29] 周恒, 赵耕夫. 流动稳定性. 北京: 国防工业出版社, 2004

    Zhou Heng, Zhao Gengfu. Flow Stabilities. Beijing: Press of National Industrial, 2004 (in Chinese)
    [30] 黄章峰, 万兵兵, 段茂昌. 高超声速流动稳定性及转捩工程应用若干研究进展. 空气动力学学报, 2020, 38(2): 368-378 (Huang Zhangfeng, Wan Bingbing, Duan Maochang. Progresses in engineering application research on hypersonic flow stability and transition. Acta Aerodynamica Sinica, 2020, 38(2): 368-378 (in Chinese) doi: 10.7638/kqdlxxb-2020.0047
    [31] Fu S, Wang L. RANS modeling of high-speed aerodynamic flow transition with consideration of stability theory. Progress in Aerospace Sciences, 2013, 58(2): 36­59
    [32] Menter FR, Langtry RB, Likki SR, et al. A correlation-based transition model using local variables —part I: Model formulation. Journal of Turbomachinery, 2006, 128(3): 413­422
    [33] Walters DK, Cokljat D. A three-equation eddy-viscosity model for Reynolds-averaged Navier-Stokes simulations of transitional flow. Journal of Fluids Engineering, 2008, 130(12): 121401 doi: 10.1115/1.2979230
    [34] Wang GX, Xiao ZX, Chen LZ. Simultaneous simulation of transition and massive separation by RANS-LES-Tr model. Aerospace Science and Technology, 2020, 105: 106026 doi: 10.1016/j.ast.2020.106026
    [35] Zhong XL, Wang XW. Direct numerical simulation on the receptivity, instability and transition of hypersonic boundary layers. Annual Review of Fluid Mechanics, 2012, 44: 527­561
    [36] 罗纪生. 高超声速边界层的转捩及预测. 航空学报, 2015, 36(1): 357-372 (Luo Jisheng. Transition and prediction for hypersonic boundary layers. Acta Aeronautica et Astronautica Sinica, 2015, 36(1): 357-372 (in Chinese)
    [37] 解少飞, 杨武兵, 沈清. 高超声速边界层转捩机理及应用的若干进展回顾. 航空学报, 2015, 36(3): 714-723 (Xie Shaofei, Yang Wubing, Shen Qing. Review of progresses in hypersonic boundary layer transition mechanism and its applications. Acta Aeronautica et Astronautica Sinica, 2015, 36(3): 714-723 (in Chinese)
    [38] 陈坚强, 涂国华, 张毅锋等. 高超声速边界层转捩研究现状与发展趋势. 空气动力学学报, 2017, 35(3): 311-337 (Chen Jianqiang, Tu Guohua, Zhang Yifeng, et al. Hypersonic boundary layer transition: what we know, where shall we go. Acta Aerodynamica Sinica, 2017, 35(3): 311-337 (in Chinese)
    [39] 杨武兵, 沈清, 朱德华等. 高超声速边界层转捩研究现状与趋势. 空气动力学学报, 2018, 36(2): 183-195 (Yang Wubing, Shen Qing, Zhu Dehua, et al. Tendency and current status of hypersonic boundary layer transition. Acta Aerodynamica Sinica, 2018, 36(2): 183-195 (in Chinese)
    [40] 刘向宏, 赖光伟, 吴杰. 高超声速边界层转捩实验综述. 空气动力学学报, 2018, 36(2): 196-212 (Liu Xianghong, Lai Guangwei, Wu Jie. Boundary layer transition experiments in hypersonic flow. Acta Aerodynamica Sinica, 2018, 36(2): 196-212 (in Chinese)
    [41] Scoggins JB, Magin TE. Development of Mutation++ : multicomponent thermodynamic and transport properties for ionized plasmas written in C++//11th AIAA/ASME Joint Thermophysics and Heat Transfer Conference, 2014
    [42] Leyva IA. The relentless pursuit of hypersonic flight. Physics Today, 2017, 70(11): 30­36
    [43] Candler GV. Rate effects in hypersonic flows. Annual Review of Fluid Mechanics, 2019, 51: 379­402
    [44] Hilsenrath J, Klein M. Tables of thermodynamic properties of air in chemical equilibrium including second virial corrections from 1500 K to 15000 K. National Bureau of Standards, 1965
    [45] Tannehill JC, Mugge PH. Improved curve fits for the thermodynamic properties of equilibrium air suitable for numerical computation using time-dependent or shock-capturing methods. Iowa State University, 1974
    [46] Srinivasan S, Tannehill JC. Simplified curve fits for the transport properties of equilibrium air. Iowa State University, 1987
    [47] Wittliff CE, Curtis JT. Normal shock wave parameters in equilibrium air. Cornell Aeronautical Laboratory, 1961
    [48] 陈贤亮, 符松. 热化学非平衡高超声速平板边界层线性稳定性分析. 空气动力学学报, 2020, 38(2): 316-325 (Chen Xianliang, Fu Song. Linear stability analysis of hypersonic boundary layer on a flat-plate with thermal-chemical non-equilibrium effects. Acta Aerodynamica Sinica, 2020, 38(2): 316-325 (in Chinese) doi: 10.7638/kqdlxxb-2019.0155
    [49] Gnoffo PA, Gupta RN, Shinn JL. Conservation equations and physical models for hypersonic air flows in thermal and chemical nonequilibrium. NASA Langley Research Center, 1989
