多体空气动力学研究进展

宋威 艾邦成

宋威, 艾邦成. 多体空气动力学研究进展. 力学学报, 2022, 54(6): 1461-1484 doi: 10.6052/0459-1879-22-096
引用本文: 宋威, 艾邦成. 多体空气动力学研究进展. 力学学报, 2022, 54(6): 1461-1484 doi: 10.6052/0459-1879-22-096
Song Wei, Ai Bangcheng. Research progress on multibody aerodynamics. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(6): 1461-1484 doi: 10.6052/0459-1879-22-096
Citation: Song Wei, Ai Bangcheng. Research progress on multibody aerodynamics. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(6): 1461-1484 doi: 10.6052/0459-1879-22-096

多体空气动力学研究进展

doi: 10.6052/0459-1879-22-096
详细信息
    作者简介:

    宋威, 高级工程师, 主要研究方向: 多体空气动力学、多体分离动力学和非定常空气动力学及流动控制等. E-mail: 15210987189@126.com

    艾邦成, 研究员, 主要研究方向: 气动热与热防护. E-mail: aimen011@126.com

  • 中图分类号: V211.7, V212.1

RESEARCH PROGRESS ON MULTIBODY AERODYNAMICS

  • 摘要: 多体飞行器普遍存在于航空航天、空天和武器领域中, 主要有以下三大类型: (1) 多个飞行器相互不接触的近距离飞行; (2) 多体飞行器相互接触或组合飞行; (3) 多体飞行器回收或解锁分离过程的相对运动. 多体飞行器在飞行、回收或分离过程中存在相互的流场干扰或作用, 使多体飞行器具有不同于孤立体飞行器的流动物理或特征, 特别是在超声速、高超声速的多体流动中, 多体间存在多重激波反射、衍射以及激波与旋涡、激波与边界层相互干扰或作用, 这些复杂流动能显著地改变多体飞行器的空气动力学特性. 作者引入“多体空气动力学”概念对多体飞行器这一类问题进行概括和总结, 并阐述其基本内涵、应用场景和研究方法/手段及典型多体构型的超声速/高超声速流动结构和特征.



  • 图  1  孤立体和多体飞行器间的扰动流场对比图[32]

    Figure  1.  Comparison of disturbed flowfield between isolated-body and multibody vehicle[32]

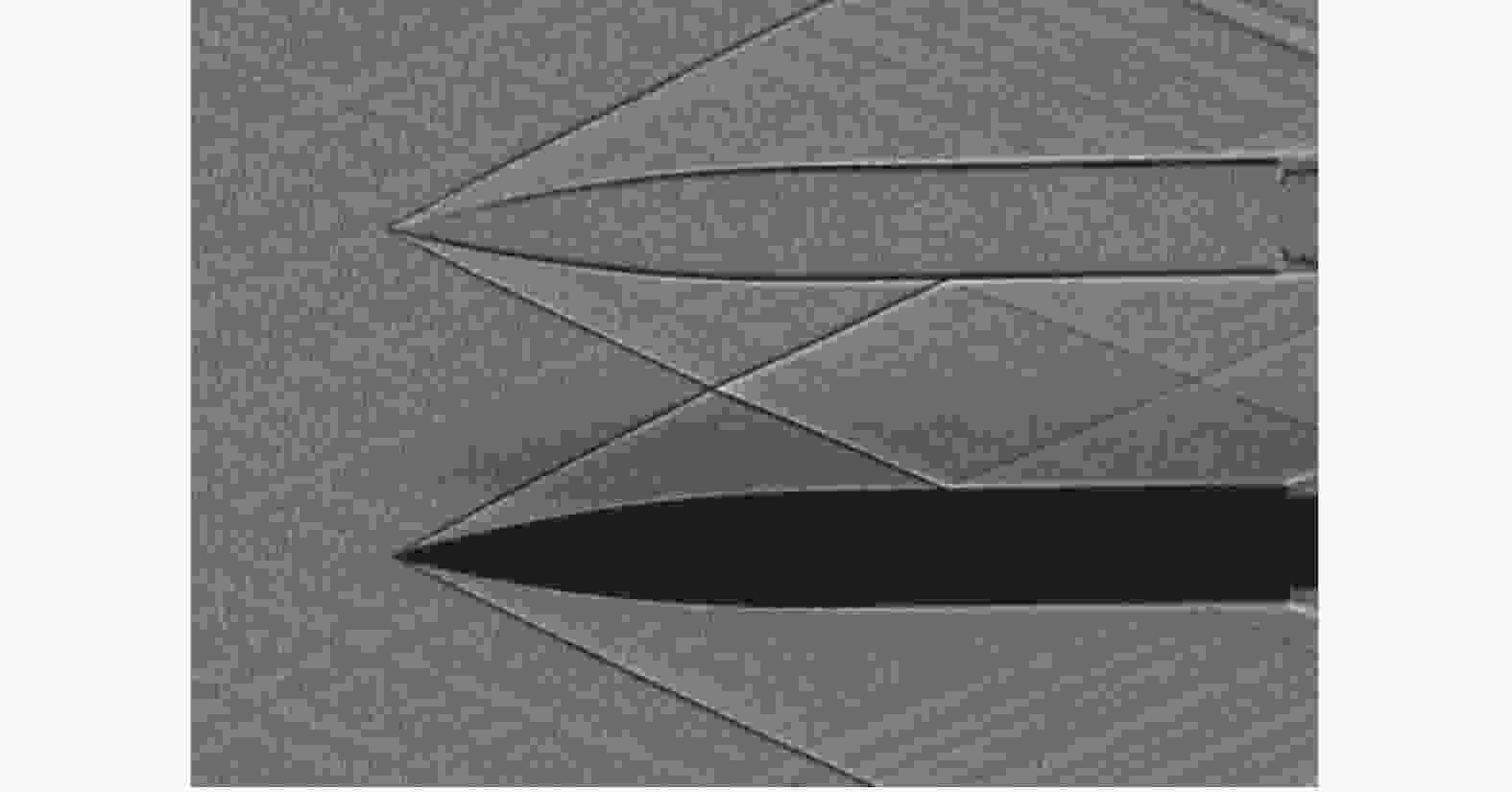

    图  2  典型的多体间的流场干扰阴影图 ($Ma{\text{ = }}2.5$)[32]

    Figure  2.  Shadow diagram of flowfield interference among typical multibody ($Ma{\text{ = }}2.5$)[32]

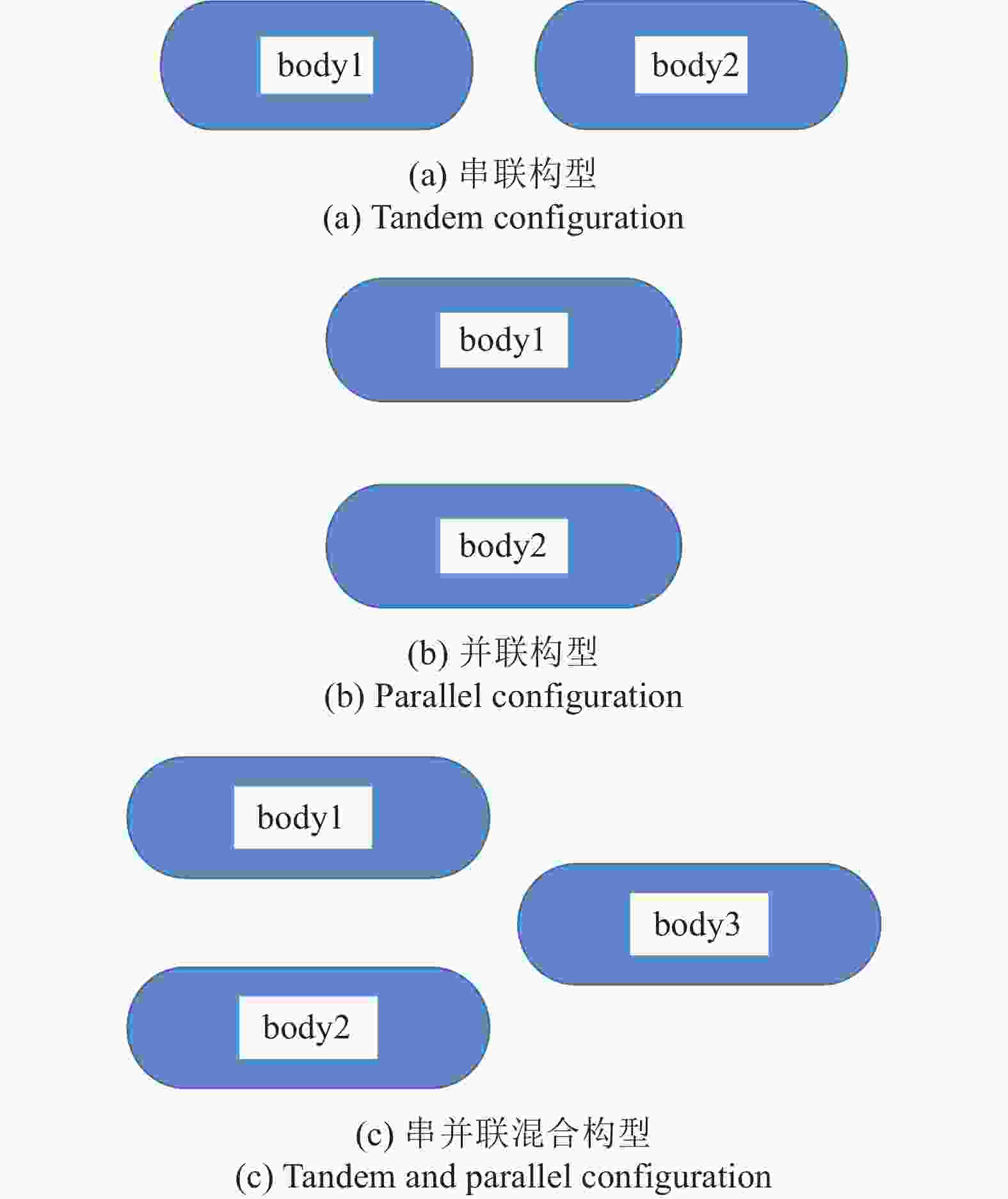

    图  3  多体飞行器构型分类示意图

    Figure  3.  Classification of multibody vehicle configuration

    图  4  编队飞行示意图

    Figure  4.  Schematic diagram of formation flight

    图  5  空中硬式加油示意图

    Figure  5.  Schematic diagram of air-to-air refueling

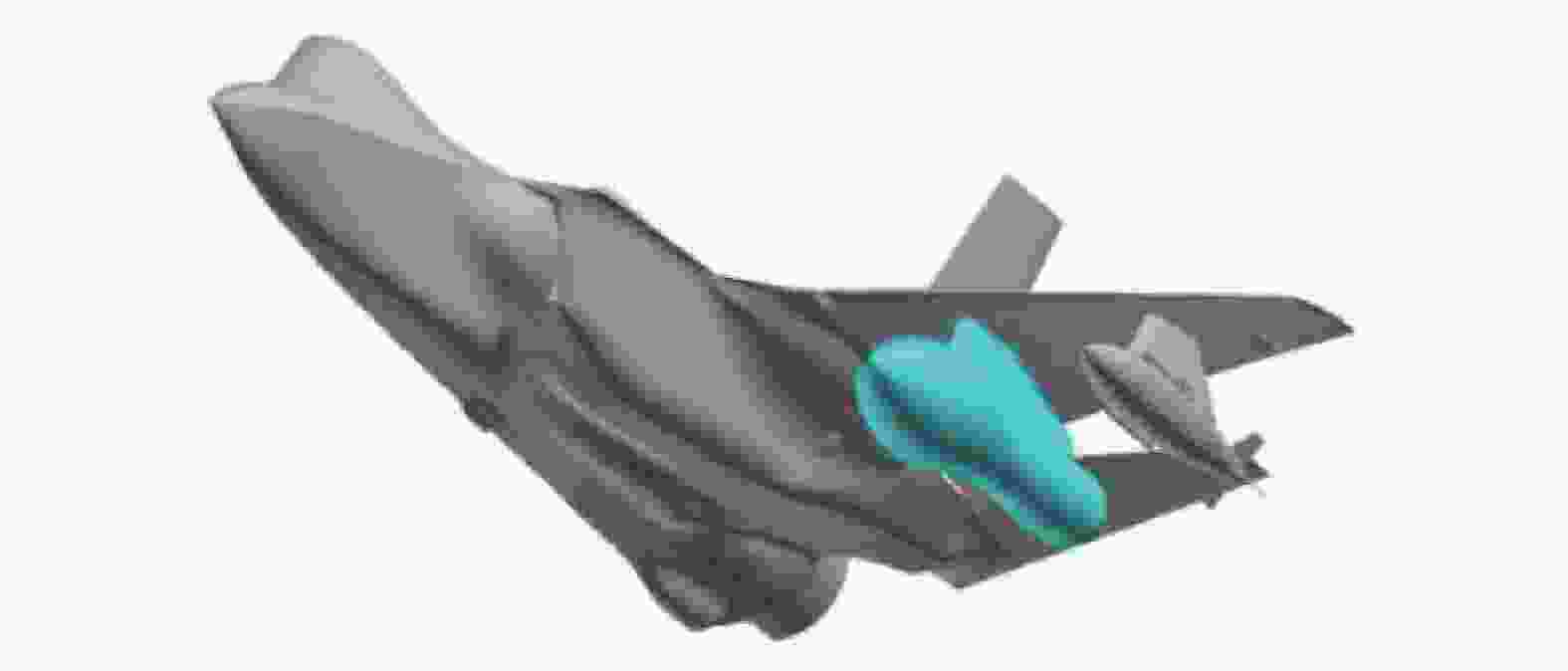

    图  6  副油箱挂载示意图[56]

    Figure  6.  Schematic diagram of external fuel tank on F35 combat-aircraft[56]

    图  7  并联布置的兰利滑翔-返回助推器(LGBB) [60]

    Figure  7.  Parallel configuration of LGBB[60]

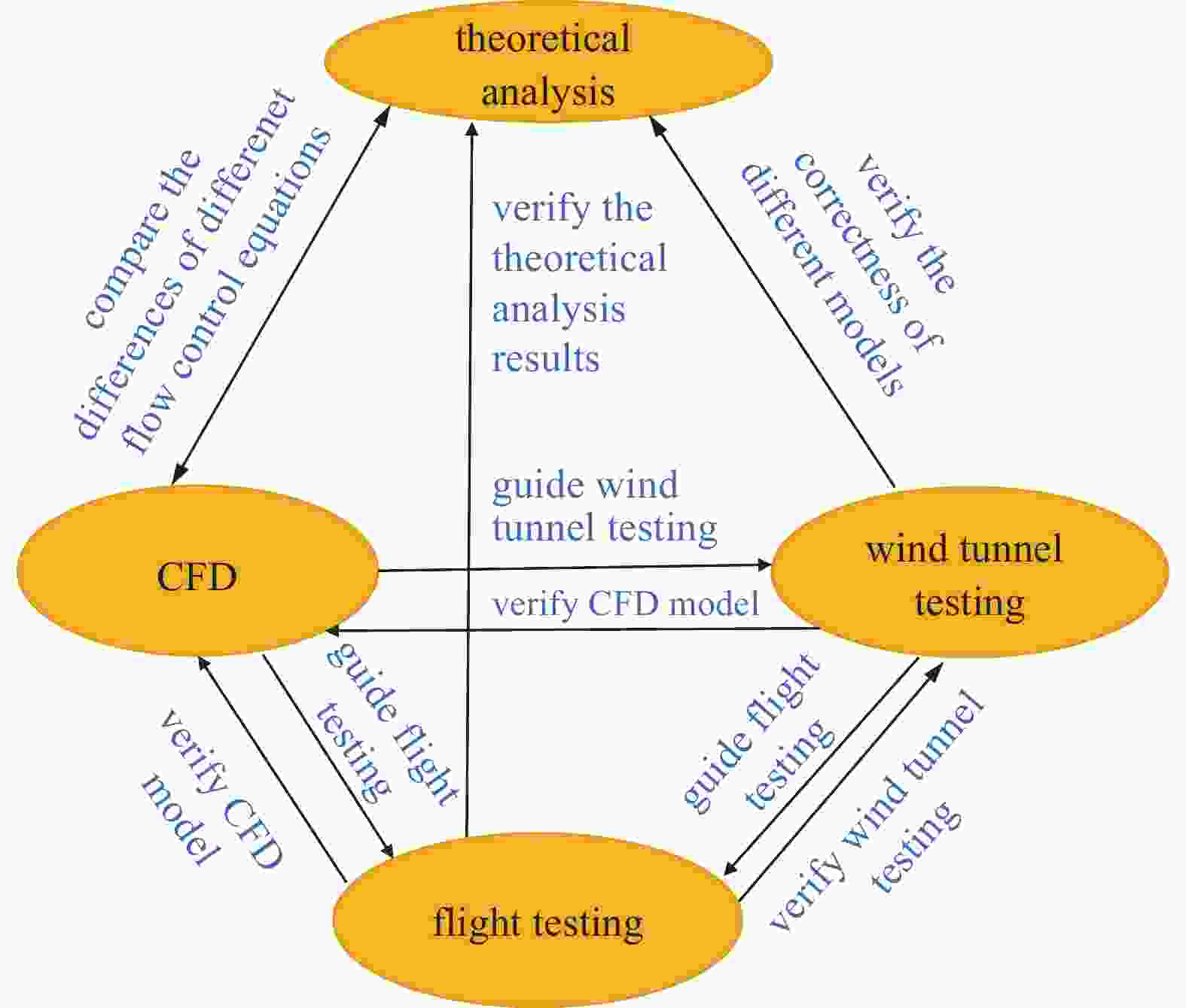

    图  9  多体空气动力学研究方法的相互关系图

    Figure  9.  Relationship of research methods for multibody aerodynamics

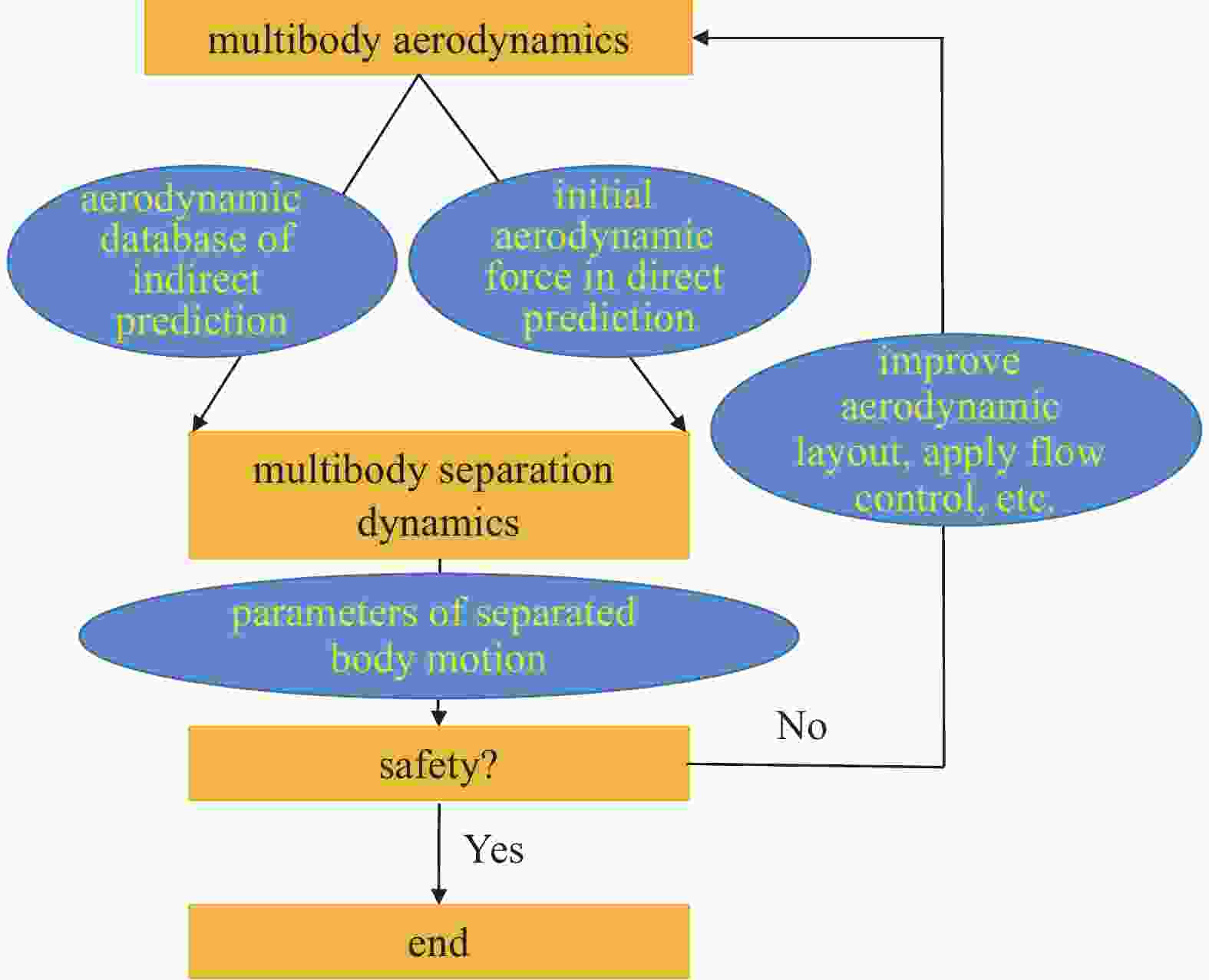

    图  11  多体空气动力学与多体分离动力学及安全性的相互关系图

    Figure  11.  Relationship of multibody aerodynamics, separation dynamics and safety

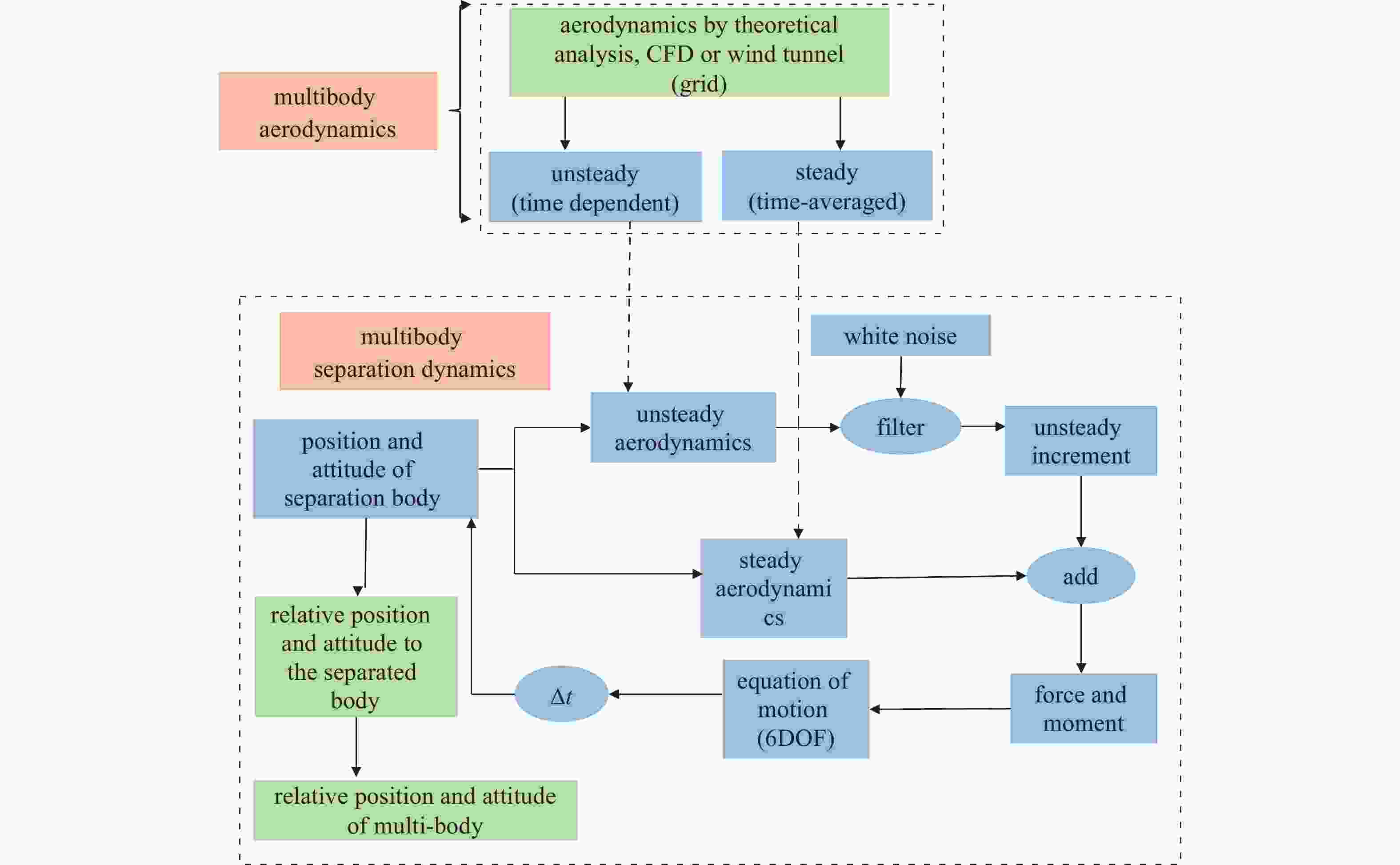

    图  10  网格测量法预测多体分离动力学结构图

    Figure  10.  Schematic diagram of predicting the multibody separation dynamics by GSM

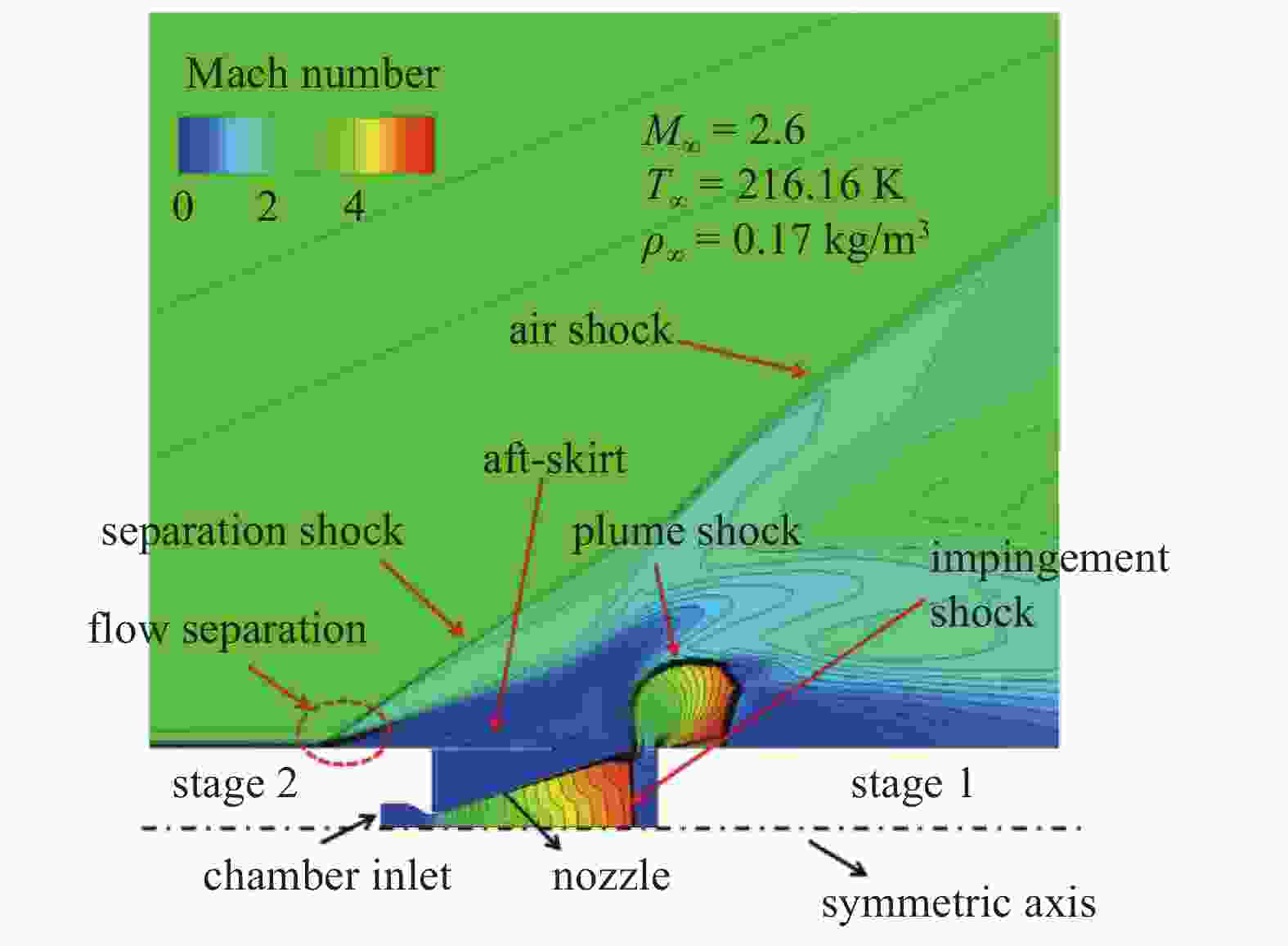

    图  12  热分离时级间段的流动结构[97]

    Figure  12.  Flow structure of interstage during HSS[97]

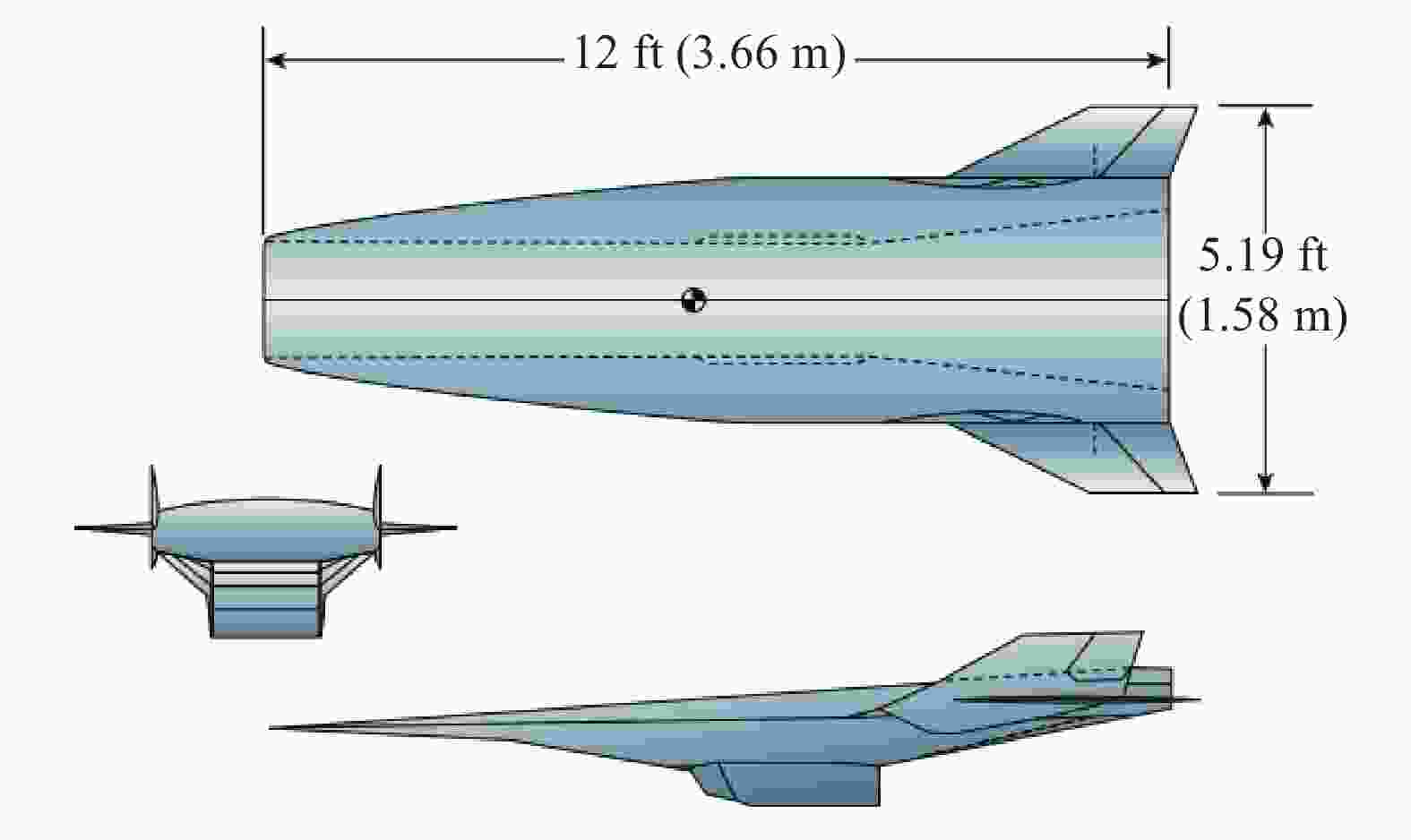

    图  13  X43 A升力体飞行器示意图[90]

    Figure  13.  Schematic diagram of X43 A lifting body vehicle[90]

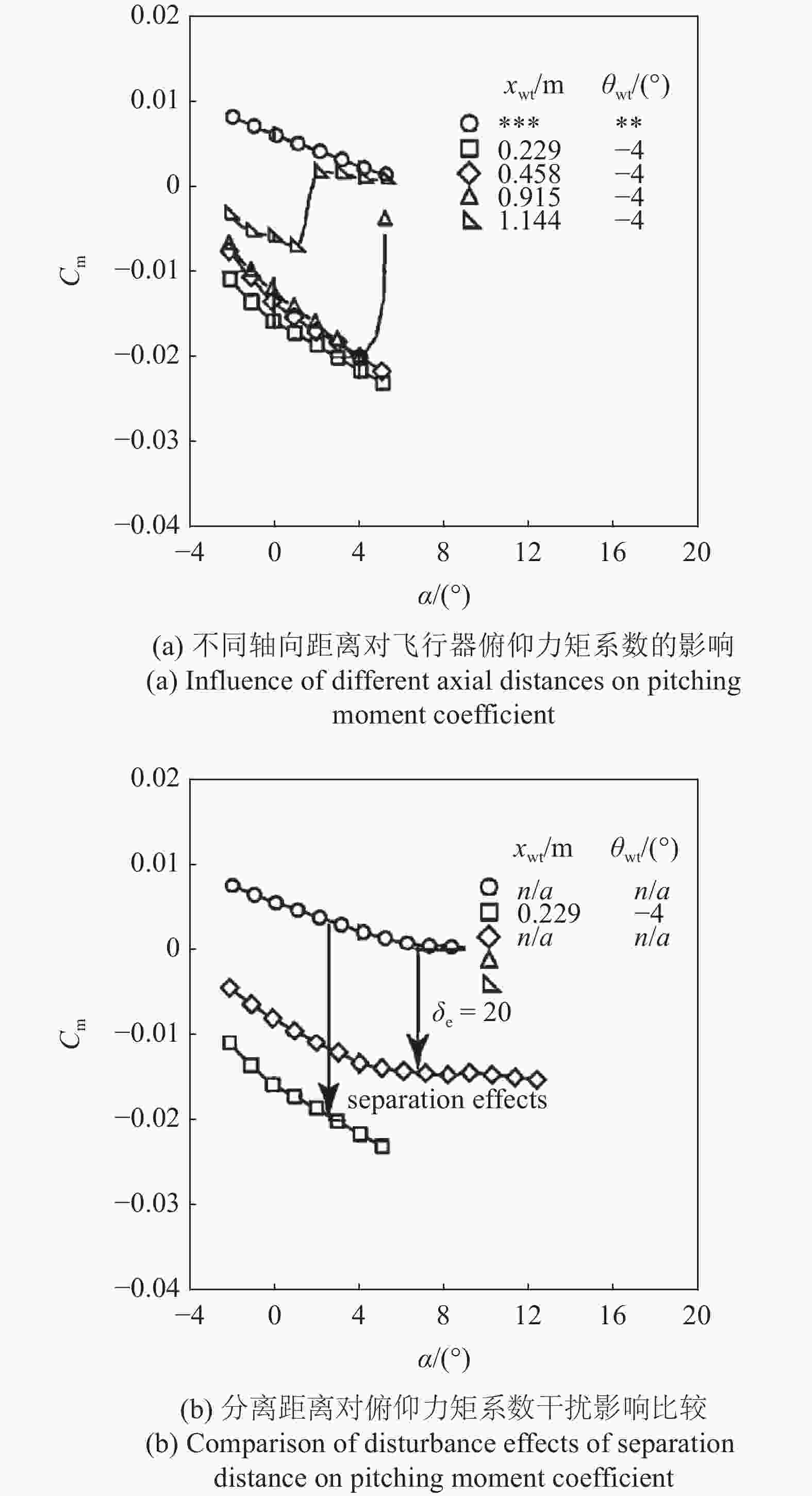

    图  14  助推器与X43 A飞行器间干扰气动力特性[91]

    Figure  14.  Aerodynamic interference characteristics between booster and X43 A vehicle[91]

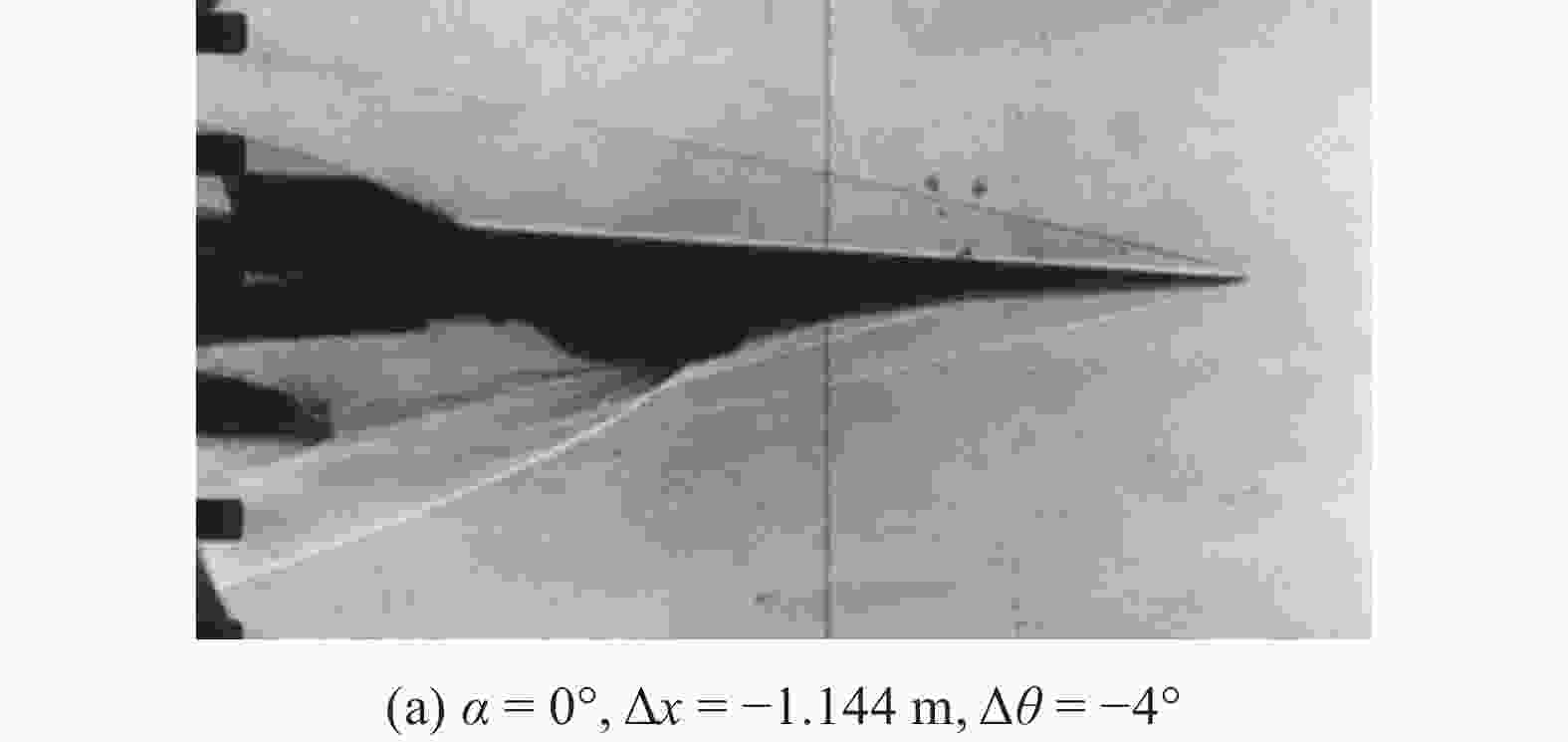

    15  助推器与X43 A飞行器间的流场干扰纹影图[91]

    15.  Schlieren diagram of flowfield interference between booster and X43 vehicle[91]

    15  助推器与X43 A飞行器间的流场干扰纹影图[91](续)

    15.  Schlieren diagram of flowfield interference between booster and X43 vehicle[91] (continued)

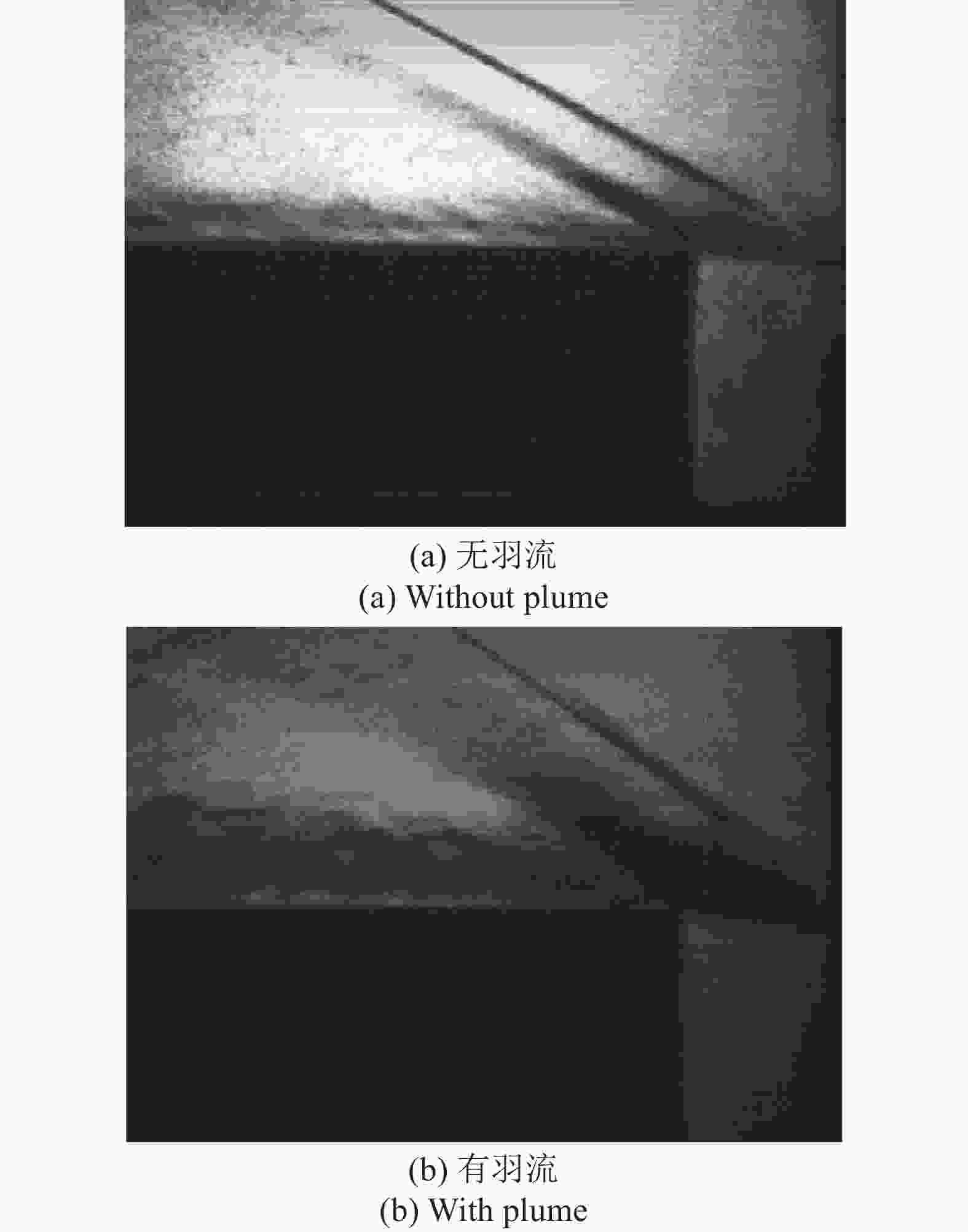

    图  16  有无羽流干扰时的流场结构[95]

    Figure  16.  Flowfield structure with or without plume interference[95]

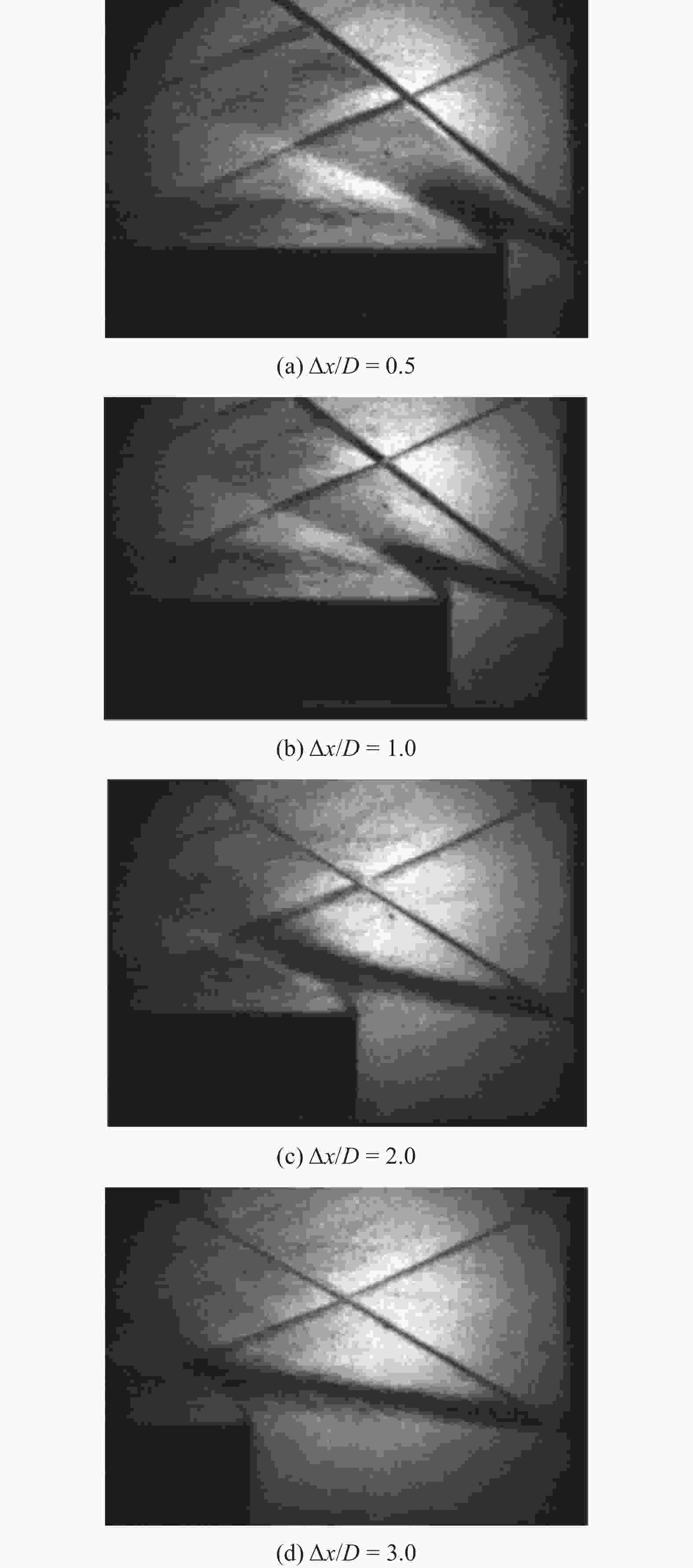

    图  17  不同轴向间距下的阴影图[95]

    Figure  17.  Shadowgraph in different axial distance[95]

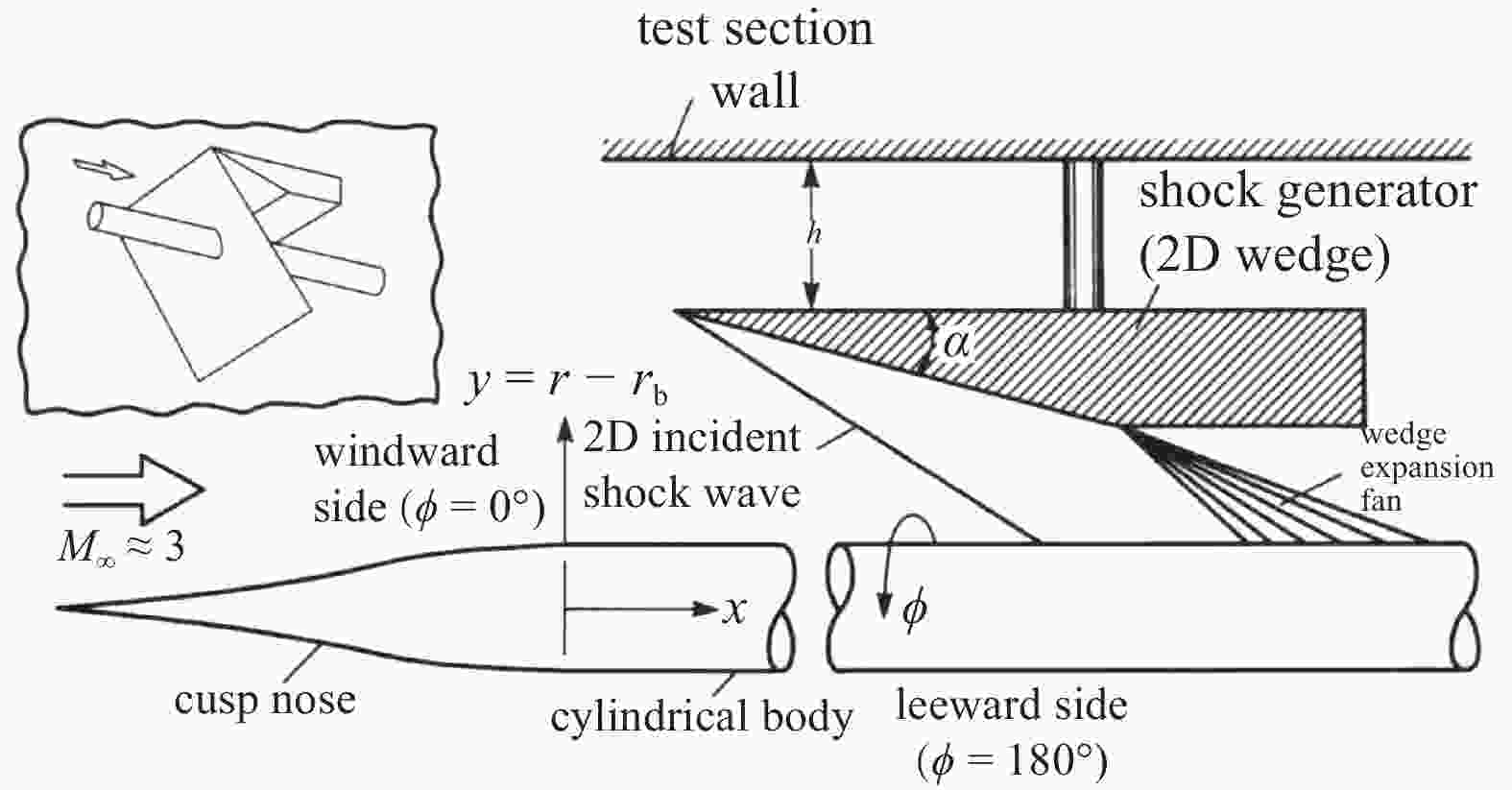

    图  18  二维楔形板和尖拱圆柱体的简化模型[100]

    Figure  18.  Simplified model of two-dimensional wedge-plate and ogive-cylinder[100]

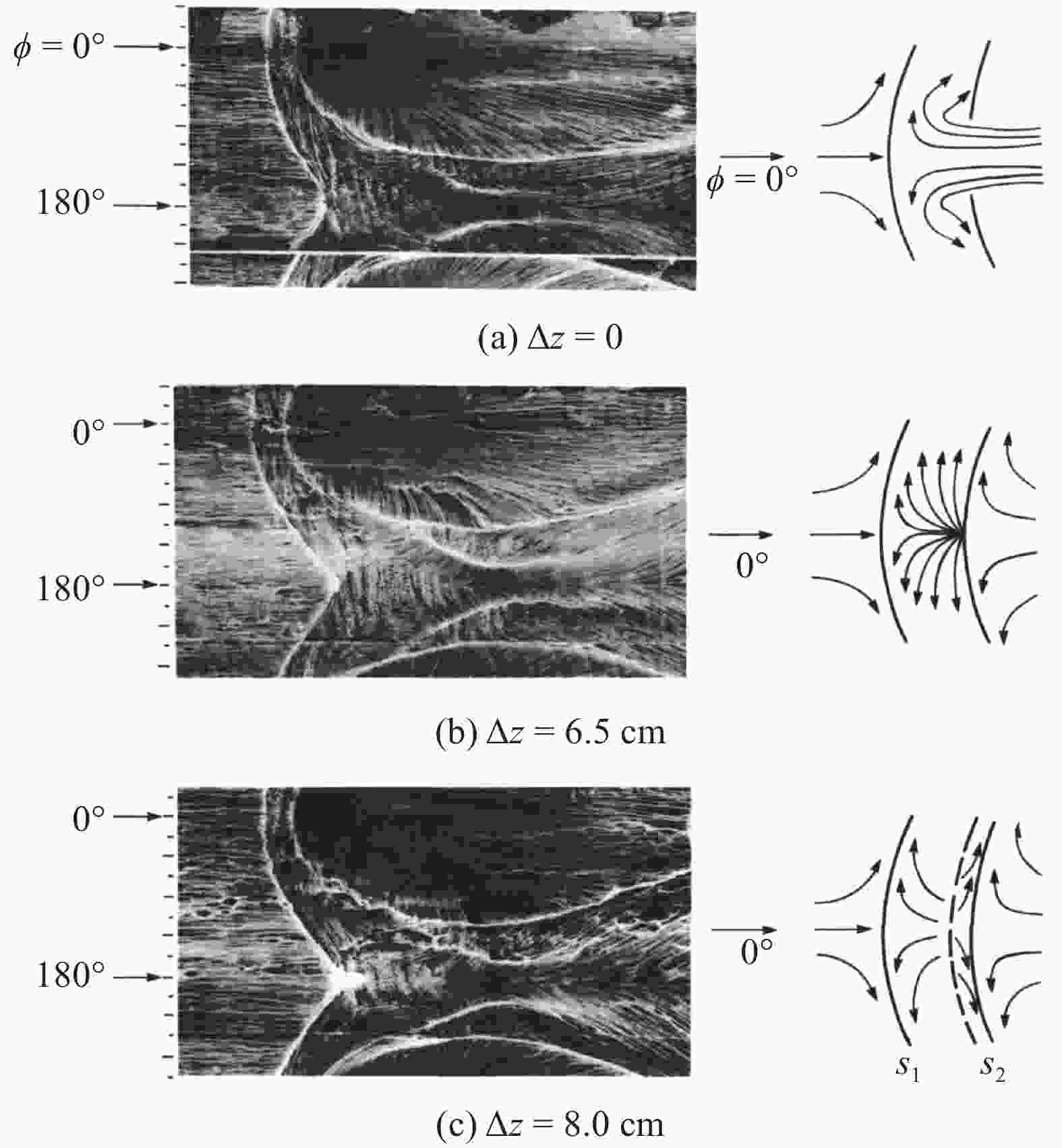

    图  19  不同横向距离对圆柱体表面流动分离的影响[100]

    Figure  19.  Influence of different distance on flow separation on cylinder surface[100]

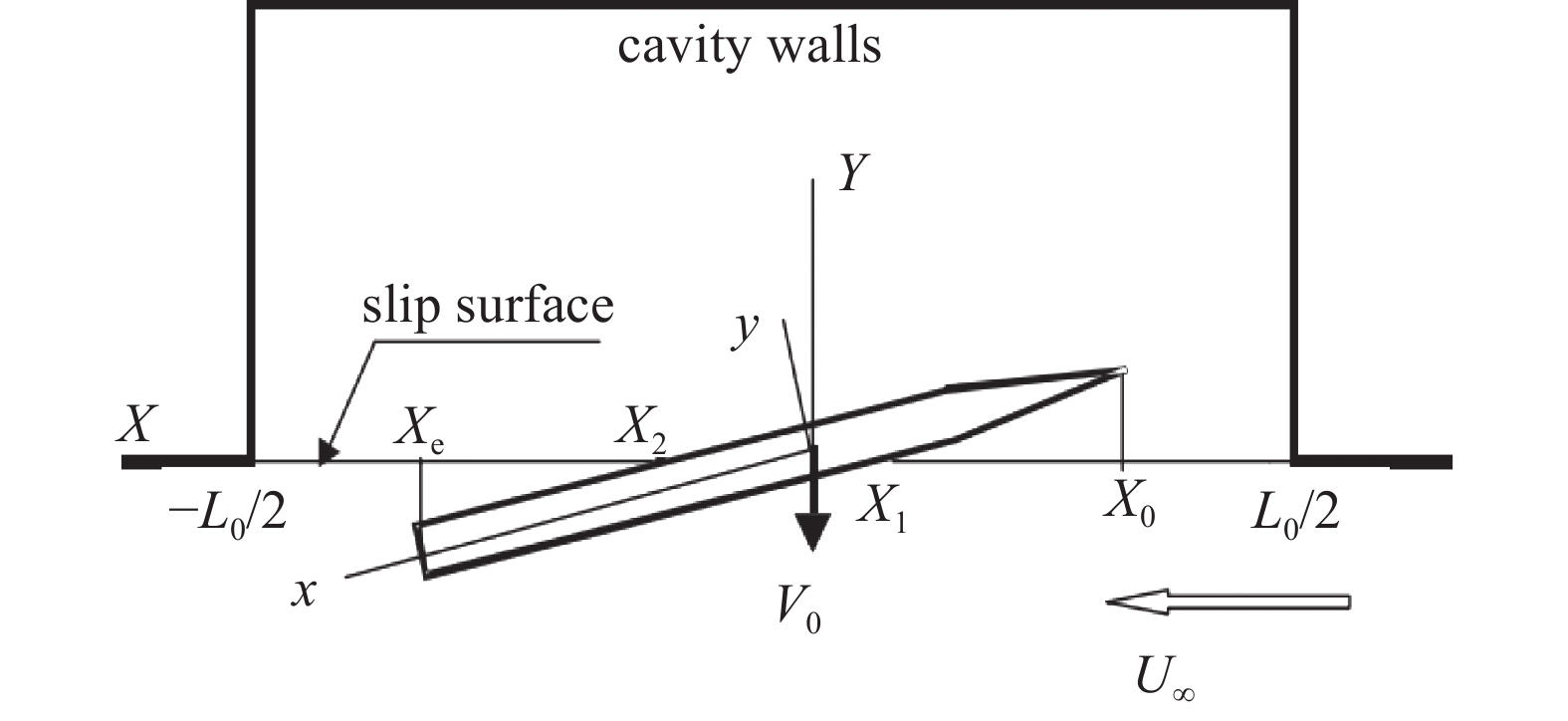

    图  20  空腔-存储物干扰的简化模型[79]

    Figure  20.  Simplified model of cavity-store interference[79]

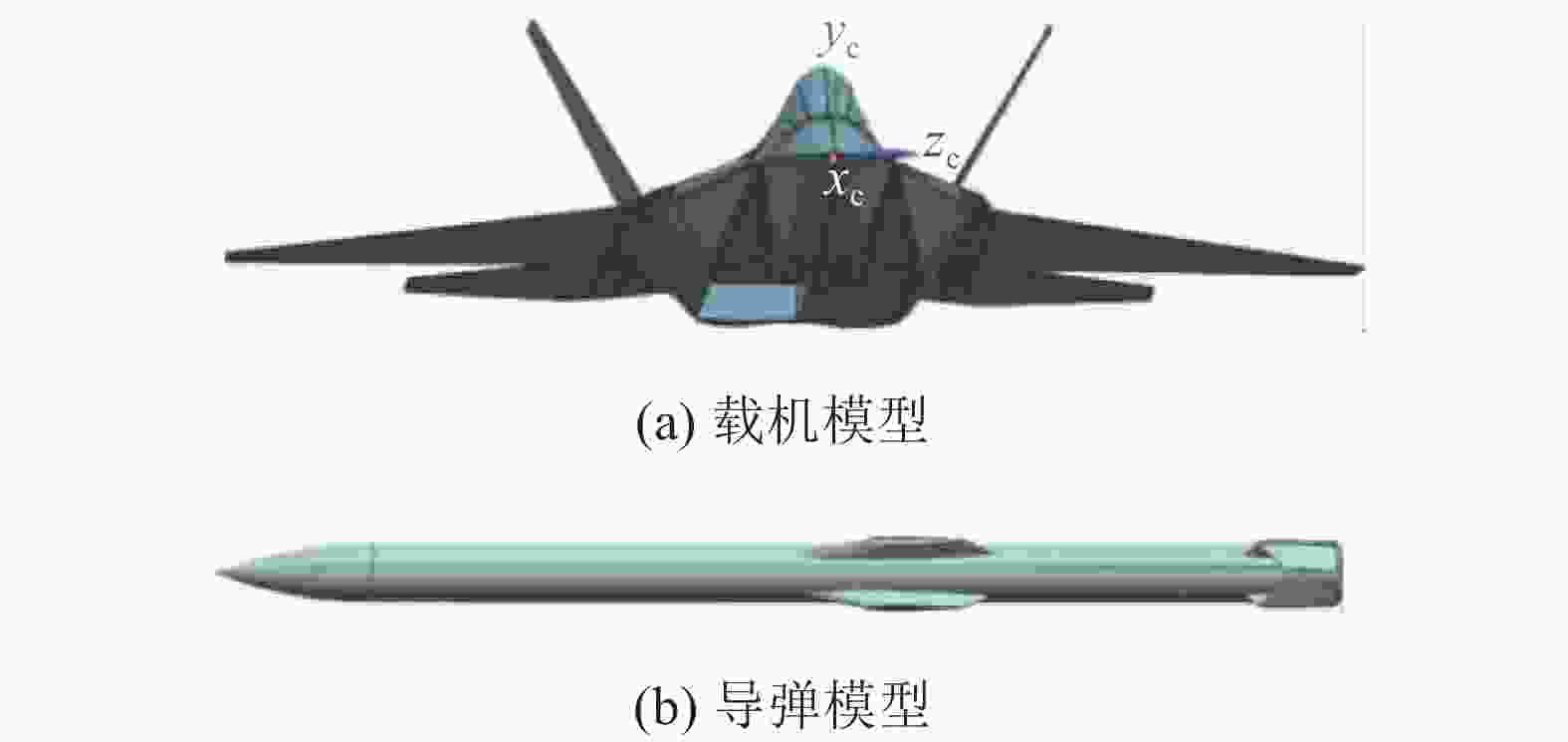

    图  21  风洞实验模型[130]

    Figure  21.  Wind tunnel model[130]

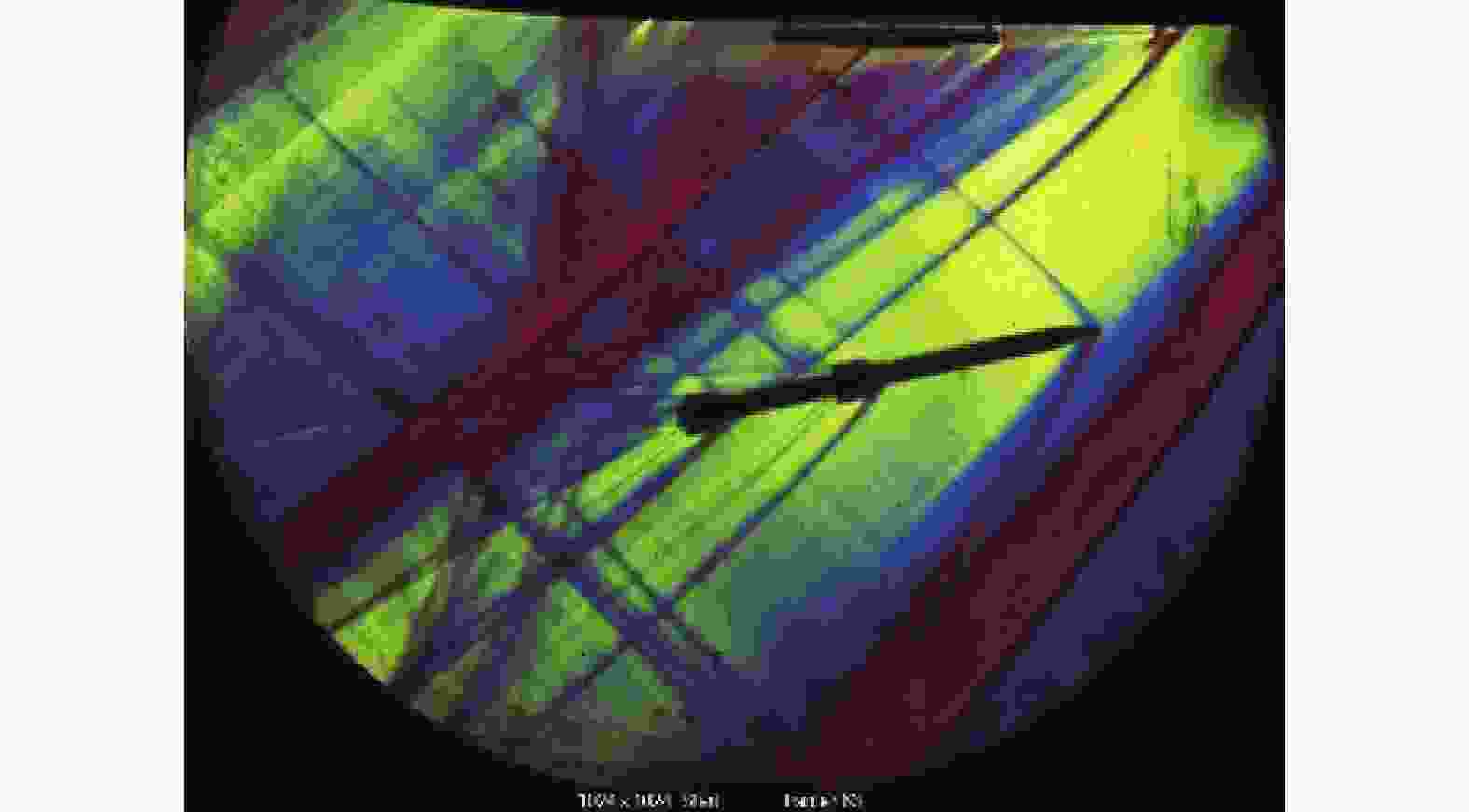

    图  22  典型的风洞纹影图

    Figure  22.  Schlieren of wind tunnel

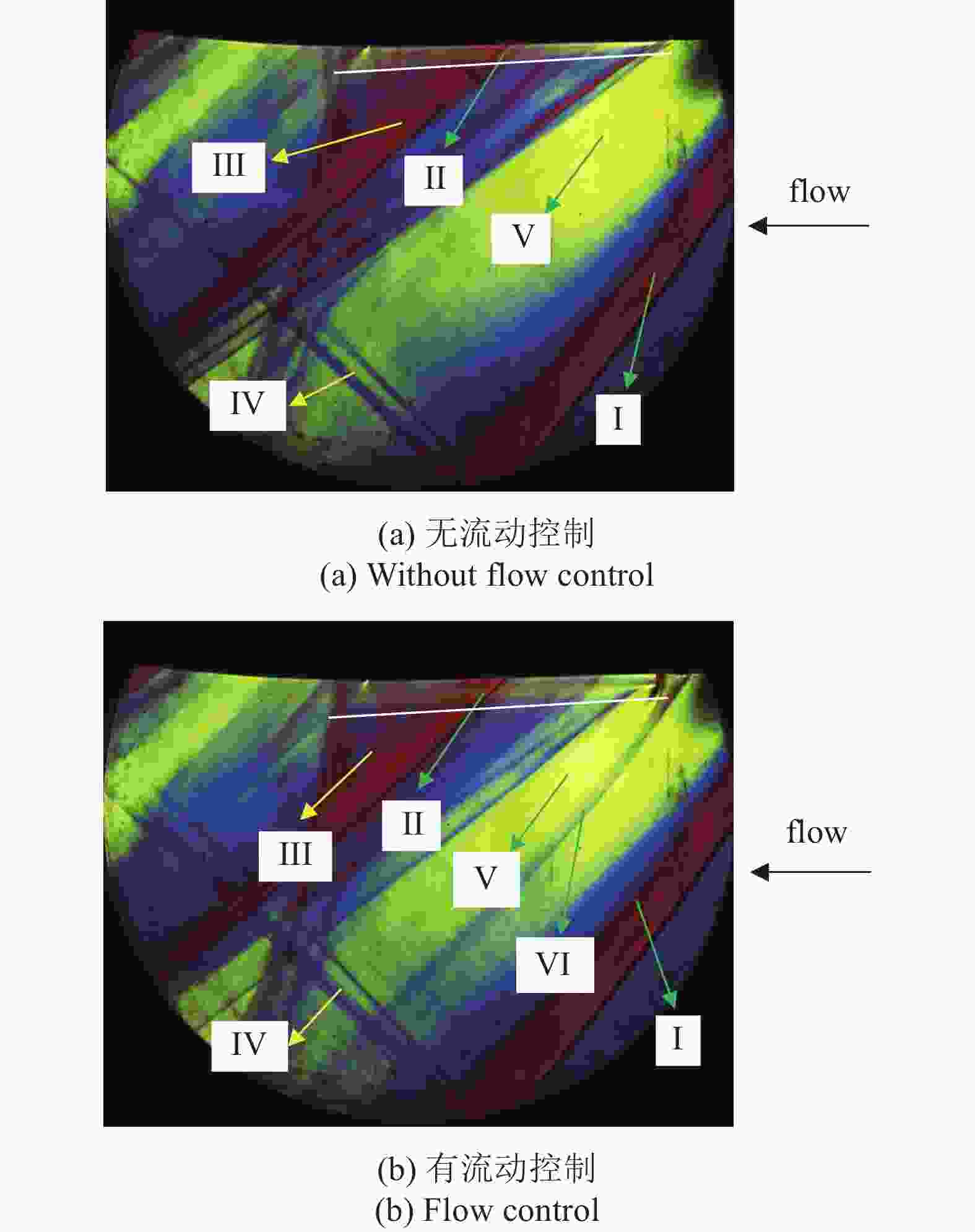

    图  23  典型的流动结构[134]

    Figure  23.  Typical flow structure[134]

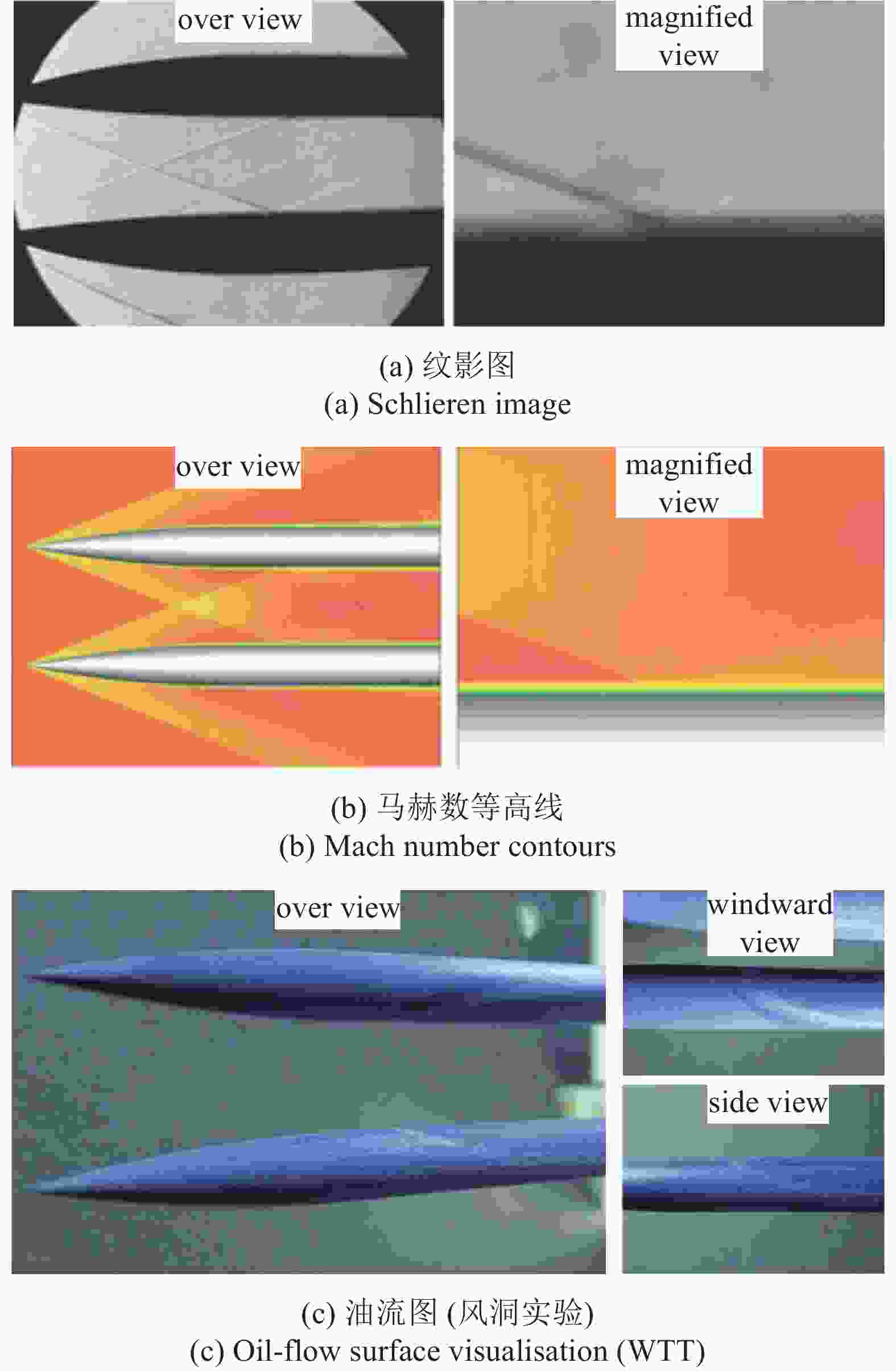

    图  24  尖拱圆柱体上的三维激波与边界层相互作用[136]

    Figure  24.  SWBLI on ogive-cylinder surface[136]

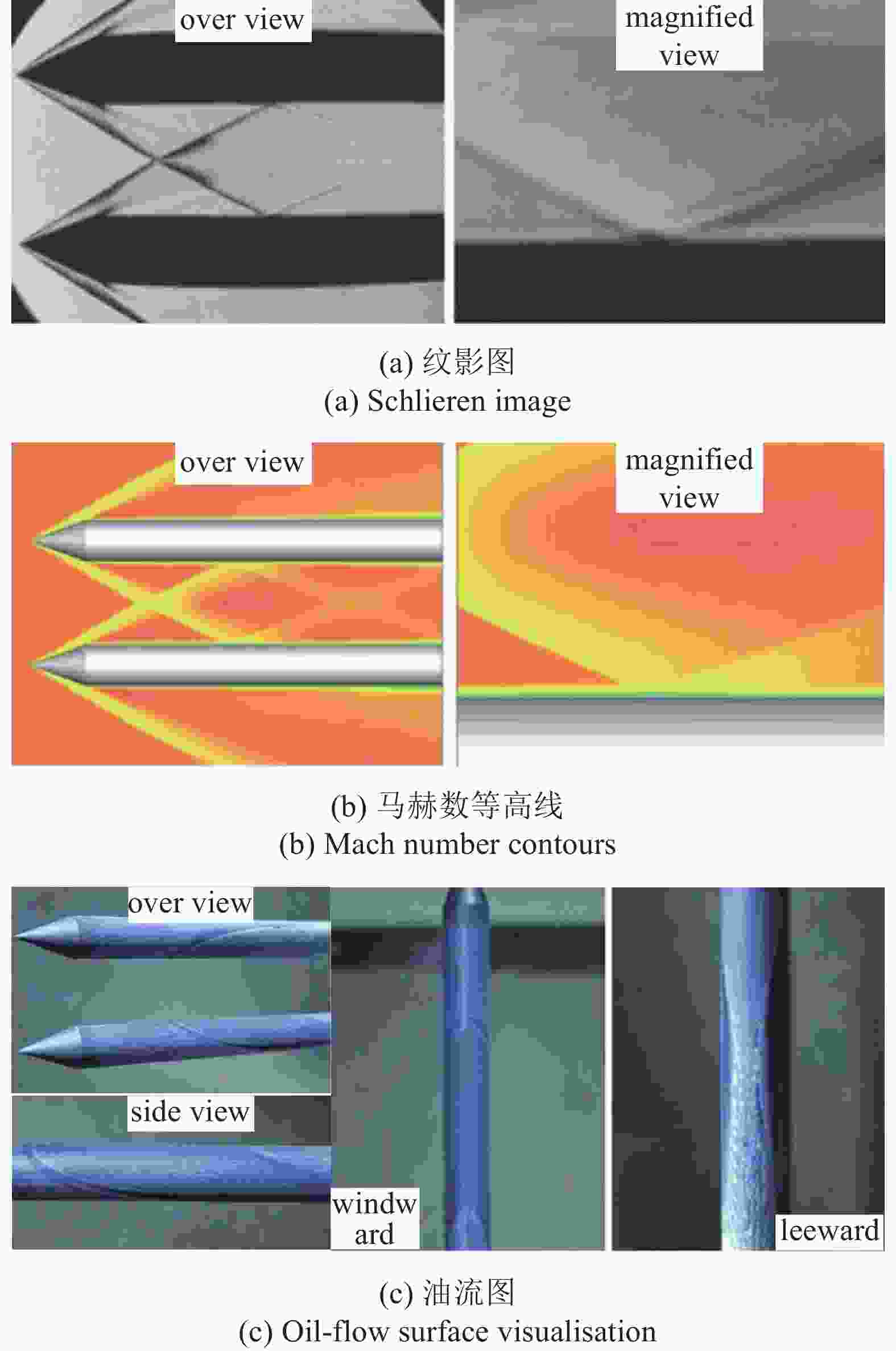

    图  25  圆锥头柱体上的三维激波与边界层相互作用[136]

    Figure  25.  SWBLI on cone-cylinder surface[136]

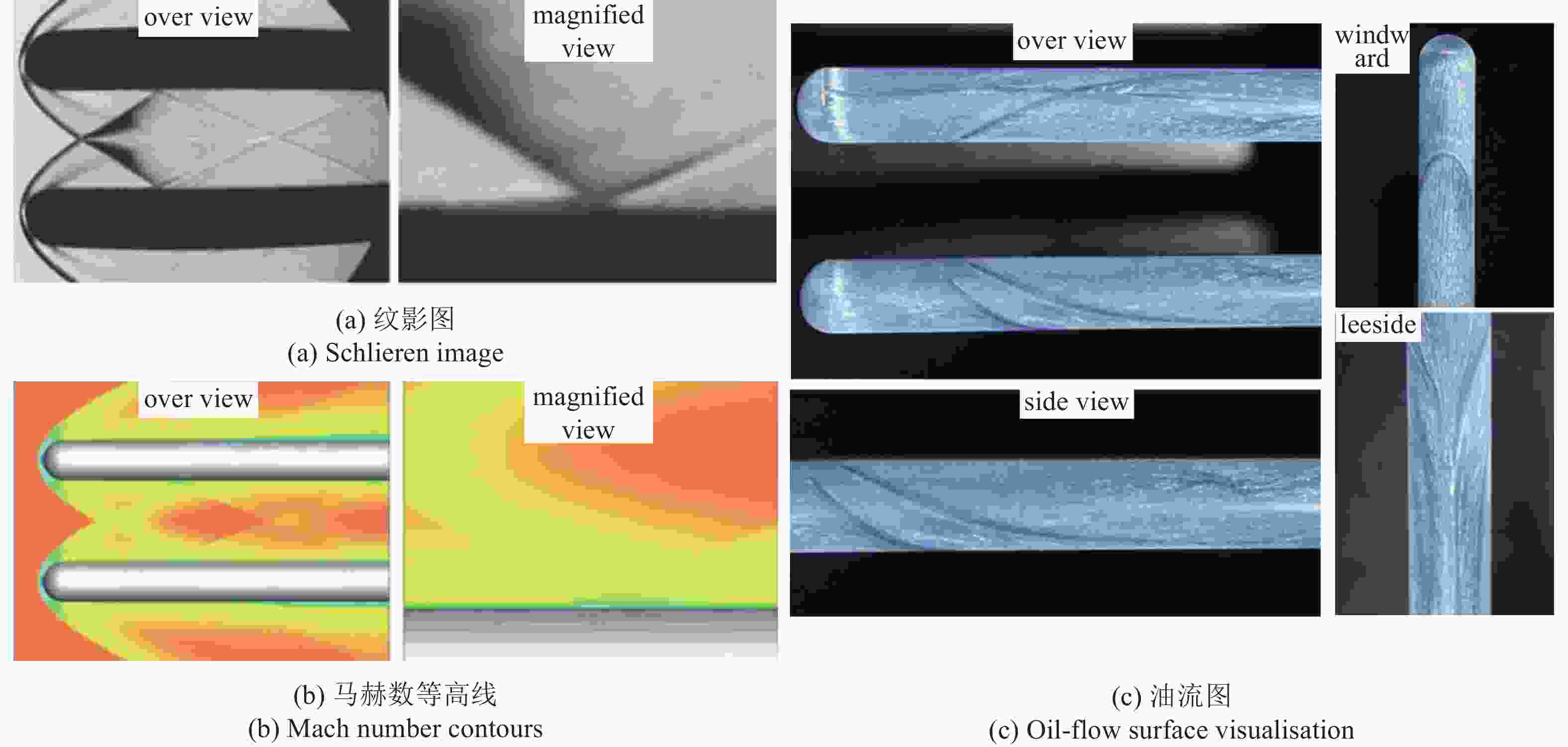

    图  26  半球头圆柱体上的三维激波与边界层相互作用[136]

    Figure  26.  SWBLI on hemispherical-cylinder surface[136]

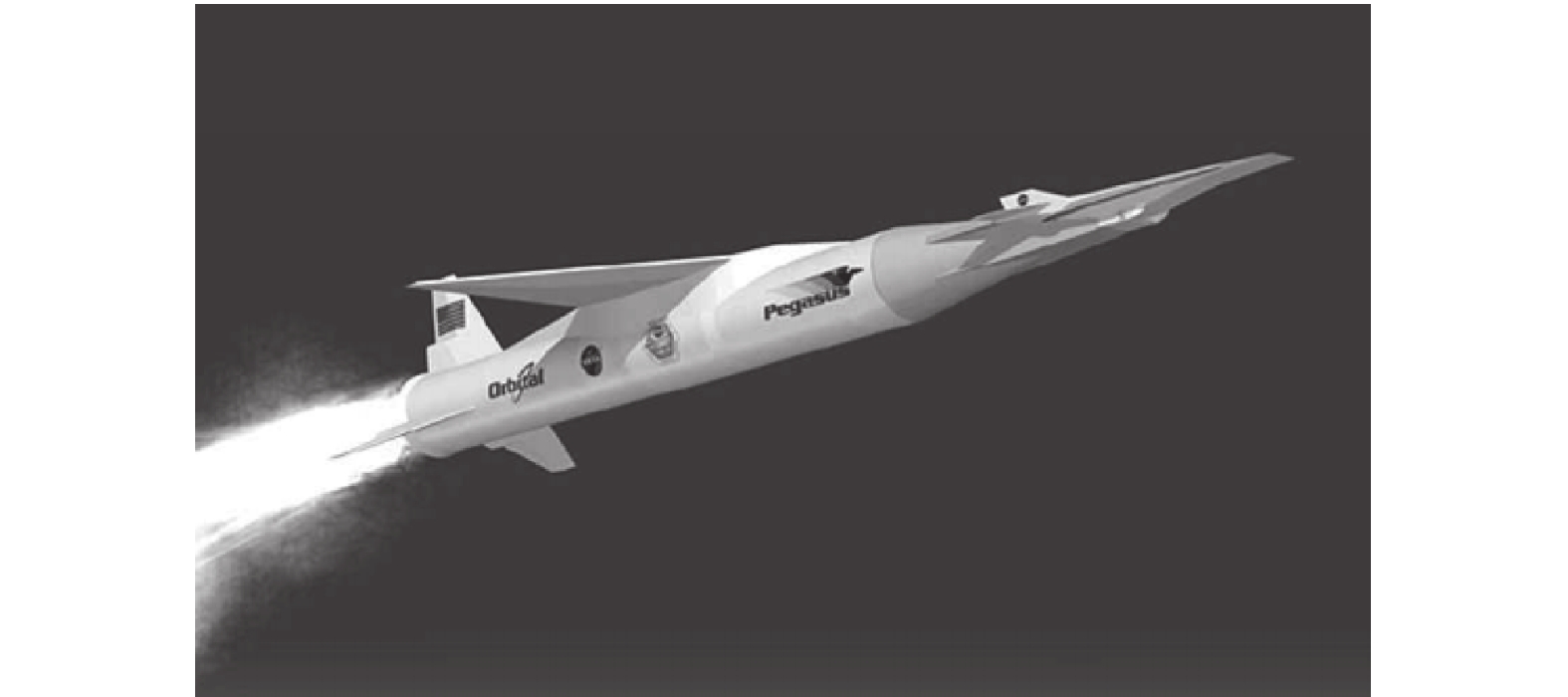

    图  8  Hyper-X计划中串联布局多级飞行器[64]

    Figure  8.  Tandem multistage vehicle in Hyper-X program[64]

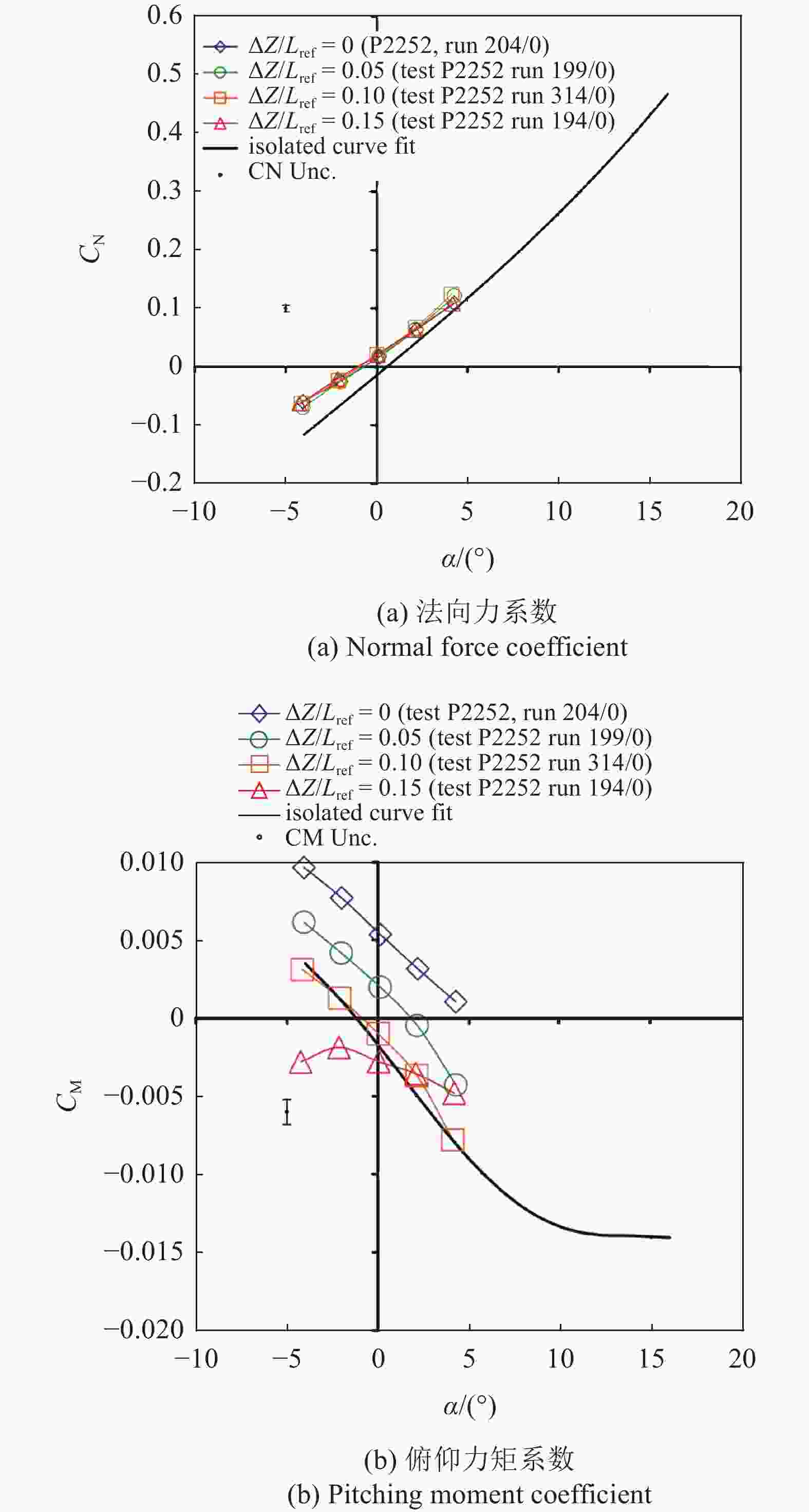

    图  27  近体和孤立体法向力和俯仰力矩系数随攻角变化[140]

    Figure  27.  Diagram of normal force and pitching moment coefficient vs. angle-of-attack of near-body and isolated body[140]

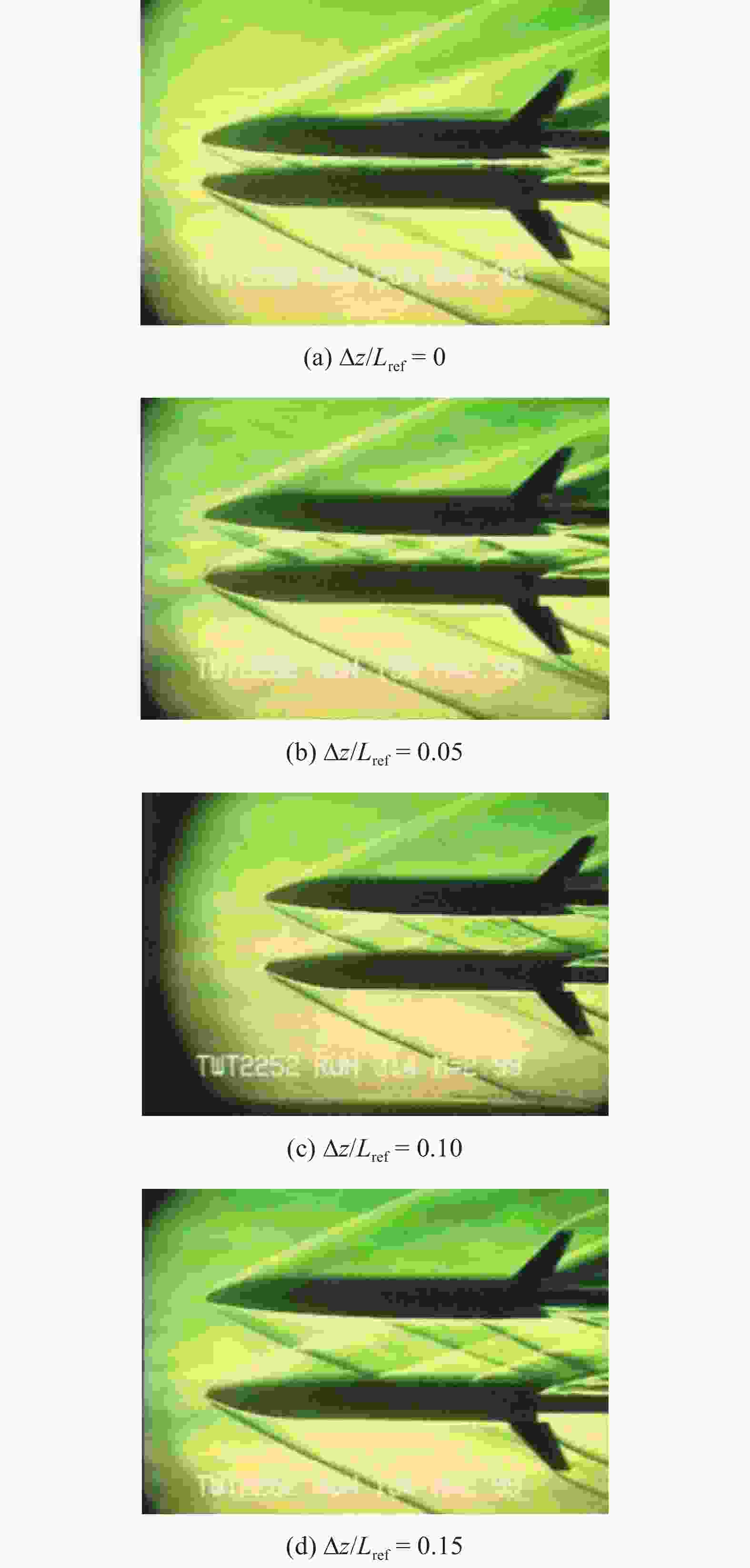

    图  28  不同横向间距时的纹影图(Ma = 2.99) [140]

    Figure  28.  Schlieren diagram with different lateral distance (Ma = 2.99) [140]

    表  1  串联多体构型级间分离的研究概要(检索)

    Table  1.   Summary of stage separation for tandem multibody configuration (retrieved)

    YearAuthorRef.Ma or VMethodFlow visualizationSeparation mode
    2001 [90] booster and X43 A 6.0 SFM CSS
    2001 [91] booster and X43 A 6.0 CTS SCM CSS
    2001 [92] booster and X43 A 0.6~6.0 CFD-RANS CSS
    2001 [93] booster and X43 A 6.0 CFD-RANS CSS
    2008 [94] cylinder and CC 5 km/s DSMC HSS
    2009 [95] ramp and blunt-cone 2.5 SFM SCM HSS
    2013 [96] cone-cylinder and OC 0.9, 1.1, 2.0 CFD-Euler,
    CFD-RANS
    HSS
    2016 [97] cylinder and OC 2.6 CFD-RANS HSS
    Notes: SFM: static force measurment; SPM: static pressure measurment; SCM: schlieren method; DSMC: direct simulation Monte Carlo; CC: cone-cylinder; OC: ogive-cylinder; BC: blunt-cone
    下载: 导出CSV

    表  2  平板/楔形板/翼-存储物并联构型的研究概要(检索)

    Table  2.   Summary of plate/wedge/wing-store configuration (retrieved)

    YearRef.ModelFlow condition
    Ma
    MethodFlow visualizationNotes
    GeneratorReceiver
    1983 [98] plate cylinder 2.5, 3, 4, 6 CFD-Euler
    1983 [99] WP OC 3.0 SPM SOF WA = 13°, 16°, 19°; ISA=19°
    CFD-TLNS
    1983 [100] WP OC 3.0 SPM SOF
    SGM
    WA = 13°, 16°, 19°; ISA = 19°
    1985 [101] WP OC 3.0 SPM SGM WA = 13°, 16°, 19°; ISA = 19°
    CFD-TLNS
    1983 [102] WP OC 4.0 CFD-TLNS ISA = 24°
    1983 [103] WP OC 1.5 IFM WA = 2.5°
    1992 [104] WP OC 10 CFD-Euler WA = 4°; ISA = 22.5°
    1996 [105] plate wedge-body 1.5, 1.9 SPM, UPM WA = 6.1°
    1999-2000 [106-108] plate orbiter 6.8 CFD-Euler
    CFD-RANS
    2013 [109] WP OC 3.0 SFM, SPM SOF
    SCM
    WA = 10°
    CFD-RANS
    2015 [110] WP OC 2.0 SFM SGM
    SOF
    WA = 10°
    CFD-RANS
    2019 [111] WP OC 2.0 SFM SGM
    SOF
    WA = 10°
    CFD-RANS
    2020 [112] WP OC 2.0 SPM (PSP)
    UPM
    WA = 10°
    2021 [113] WP OC 3.4 SVM SPIV WA = 10°, 15°, 20°
    2020 [116-117] delta wing SC 8.1 CFD-RANS
    Notes: TLNS: thin-layer Navier-Stokes equations; SOF: surface oil flow; WA: wedge angle; ISA: incident shock angle; SGM: shadowgraph method; UPM: unsteady pressure measurement; PSP: pressure sensitive paint; PIV: particle image velocimetry; SVM: surface velocity measurement; SPIV: stereoscopic particle image velocimetry; WP: wedge-plate; OC: ogive-cylinder; SC: spherical-cylinder
    下载: 导出CSV

    表  3  近二十年关于两细长体并联多体构型研究概要

    Table  3.   Summary of two slender bodies in recent twenty years

    YearRef.ModelRatio of length to diameter λFlow conditionMethodFlow visualization
    GeneratorReceiverMaRe
    2009 [32] SC OC (wing and no-wing) 7.358 2.43 1.4 × 106 (D) SFM, SPM SGM, PSP
    CFD-RANS
    2010 [33] OC OC 7.358 2.5 7.6 × 106 (m) SFM, SPM SCM
    CFD-RANS
    2011 [35] OC
    SC
    OC 7.358 2.43 1.4 × 106 (D) SFM, SPM SGM
    CFD-RANS
    2011 [35] OC OC 7.358 2.43 6.97 × 107 (m) SFM, SPM PSP
    2016 [36] OC
    SC
    OC (wing) 7.358 2.43 1.4 × 106 (D) SFM, SPM SGM
    PSP
    CFD-RANS
    2008 [38] OC OC 18 2 TA-SBT
    2010 [39] OC OC 18 2 TA-SBT
    2006 [135] spherical spherical 6.0 0.22 SFM
    TA-SBT
    2011 [136] OC
    CC
    HSC
    OC
    CC
    HSC
    2.5, 3.0, 3.2 2.0 × 107 (m) SVM SCM, SOF
    CFD-RANS
    2017 [137] OC
    CC
    SC
    OC
    CC
    SC
    5.0 3.0 0.17 × 106 (D) SOF
    CFD-RANS
    Notes: TA-SBT: theoretical analysis-Slender body theory; OC: ogive-cylinder; SC: spherical-cylinder; HSC: hemispherical-cylinder; CC: cone-cylinder
    下载: 导出CSV

    表  4  LGBB并联构型的研究概要

    Table  4.   Summary of LGBB parallel configuration

    YearRef.Flow condition
    Ma
    MethodFlow visualizationComments
    2003[140]2.99SFM, SCMSCMThe proximity aerodynamics are mainly dominated by complex bow-shock interaction, and the booster is statically unstable at several separation positions. Compared with the isolated body, the normal force of the proximity changes almost the same with the angle of attack, and the axial force of both bodies increases by about 3%.
    2004[141-142]3.0, 6.0SFM
    CFD-Euler
    SCMUnsteady aerodynamic effect is not important to the separation characteristics of Bimese-LGBB aircraft at high Mach number.
    2004[143]3.0, 6.0CFD-Euler
    CFD-RANS
    2004[144]0.6, 1.05, 1.1, 2, 3, 4.5, 6, 10SFM
    CFD-Euler
    CFD-RANS
    SCMThe research progress of stage separation of Bimese-LGBB aircraft is reviewed.
    2007[16]3.0, 6.0DMSThe ConSep tool is used to analyze and simulate the separation dynamics of Bimese-LGBB, and the influences of mass, inertia, flight angle, altitude and separation parameters are evaluated. Aerodynamic data are obtained from wind tunnel experiments. The results show that complete pneumatic separation is feasible for the interstage separation at Mach number 3, but it is not feasible at Mach number 6, which requires external power.
    2012[145]3.79DMSThe constraint force equation (CFE) method is applied to the simulation of the dynamic problem of LGBB aircraft stage separation.
    2020[146]2.3, 3.0, 4.5SFMSCMOrbiter and booster models show highly nonlinear aerodynamic response, which is the result of a flow separation system induced by complex shock waves, reflected shocks and possible shocks. The influence area of the booster orbiter is limited to a relatively small area in the experimental space, while the booster remains in the orbiter influence area of the whole test grid matrix, except that the highest test Mach number is 4.5. The effect of stage separation interference is sensitive to Mach number, relative angle of attack and rolling angle direction of the booster relative to the orbiter.
    下载: 导出CSV
