NUMERICAL SIMULATION OF OLDROYD-B VISCOELASTIC DROPLET COLLISION
-
摘要: 复杂的流变特性使凝胶推进剂的雾化过程存在一定困难, 这制约了它的发展. 聚合物胶凝剂的加入使凝胶推进剂具有黏弹性, 从而在雾化时会产生黏弹性液滴, 因此为了进一步认识凝胶推进剂的雾化机理、提高凝胶推进剂的雾化性能, 对黏弹性液滴的碰撞行为进行数值模拟研究. 针对凝胶推进剂雾化过程中出现的液滴撞击现象, 考虑流体具有的黏弹性效应, 采用流体体积法(VOF)、自适应网格细化技术(AMR)和对数构象张量方法相结合, 使用Oldroyd-B本构模型描述液滴的黏弹性, 对两个相等体积的黏弹性液滴的碰撞过程进行直接数值模拟, 主要关注黏弹性液滴的正撞过程, 研究了松弛时间、黏度比、韦伯数对液滴正撞的影响, 并对不同参数下黏弹性液滴的撞击过程进行能量计算, 另外观察了不同偏心度下的液滴碰撞行为. 通过改变撞击速度, 得到了合并和反弹的碰撞结果, 结果表明增大松弛时间有利于合并液滴的挤压和回缩程度, 并且延迟液滴的变形过程, 这与牛顿流体得到的结果不同. 增大黏度比会阻碍合并液滴的振荡行为, 碰撞的偏心程度较大时会出现拉伸旋转, 偏心度越大时拉伸距离越长, 偏心度越小时动能耗散的速率越快, 并且耗散的动能越多.Abstract: The complex rheological properties make the atomization process of gel propellant difficult, which restricts its development. The addition of polymer gelling agent makes the gel propellant viscoelastic, so that viscoelastic droplets will be generated during atomization. Therefore, in order to further understand the atomization mechanism of gel propellant and improve the atomization performance of gel propellant , to carry out numerical simulation research on the collision behavior of viscoelastic droplets. Aiming at the droplet collision phenomenon in the atomization process of gel propellant, considering the viscoelastic effect of fluid, volume of fluid (VOF), adaptive mesh refinement (AMR), and log-conformation transformation were adopted. The Oldroyd-B constitutive model was used to describe the viscoelasticity of droplets, and a direct numerical simulation of the collision process of two viscoelastic droplets of equal volume was carried out. The head-on collision process of viscoelastic droplets is mainly concerned. The effect of relaxation time, viscosity ratio, Weber number on the head-on collision behavior was studied, the energy evolution of the droplet coalescence process under different physical properties was also calculated. In addition, the droplet collision behavior under different eccentricity was observed. By changing the collision velocity, the collision results of merging and bouncing are obtained. The results show that increasing the relaxation time is beneficial to the extrusion and retraction process of the coalesced droplet, and delaying the process of the droplet deformation, this is different from the results obtained by Newtonian fluids. Increasing the viscosity ratio can hinder the oscillation behavior of the coalesced droplet. As the eccentricity of the collision increases, extension and rotation occur, and the extensional distance increases with the degree of eccentricity. When the eccentricity decreases, the kinetic energy dissipation rate increases, and more kinetic energy is dissipated.
-
Key words:
- droplet collision /
- viscoelasticity /
- numerical simulation /
- VOF
-

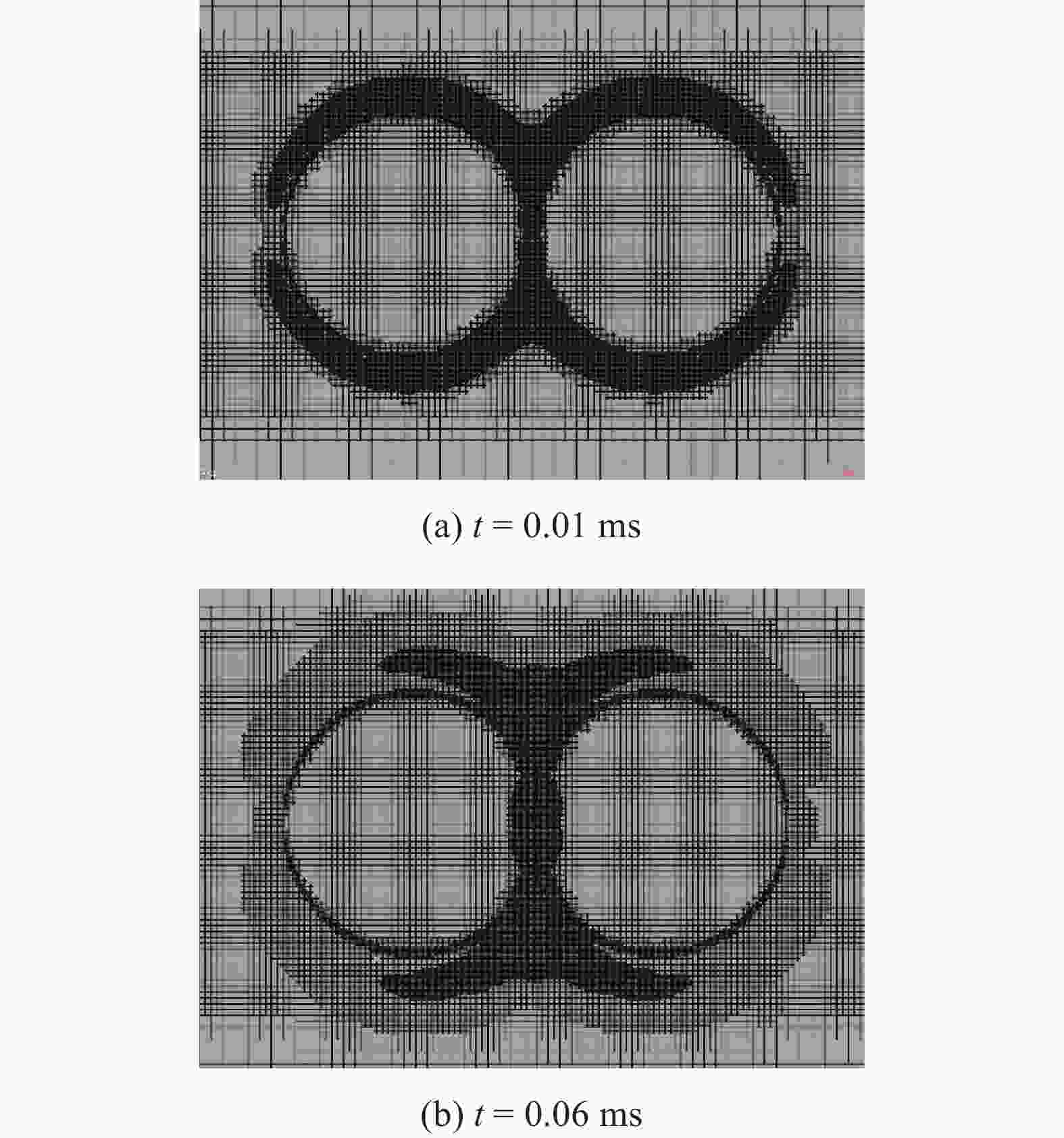

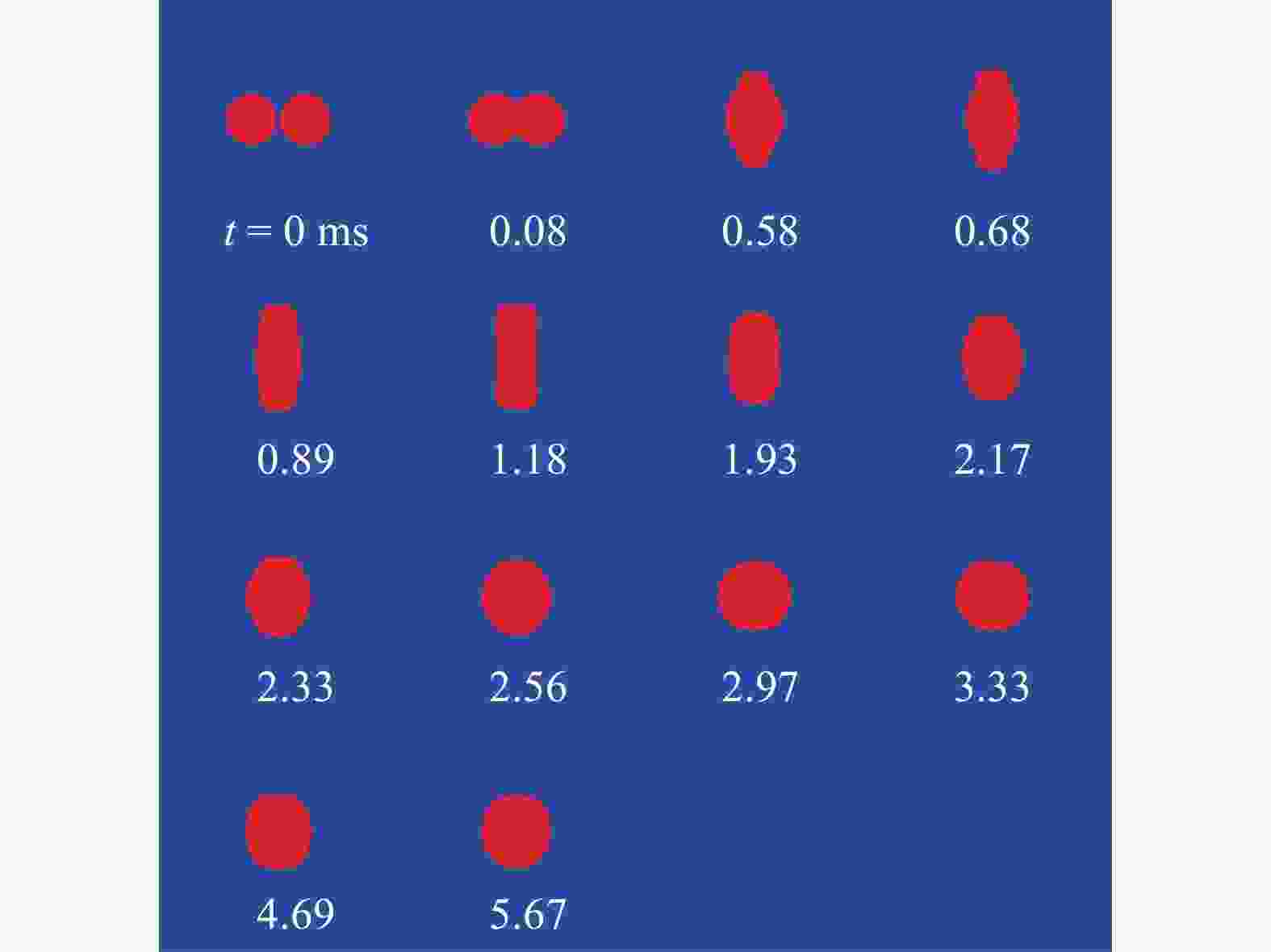

图 3 黏弹性液滴的碰撞融合过程(u = 1 m/s)
Figure 3. Collision and coalescence process of viscoelastic droplet (u = 1 m/s)

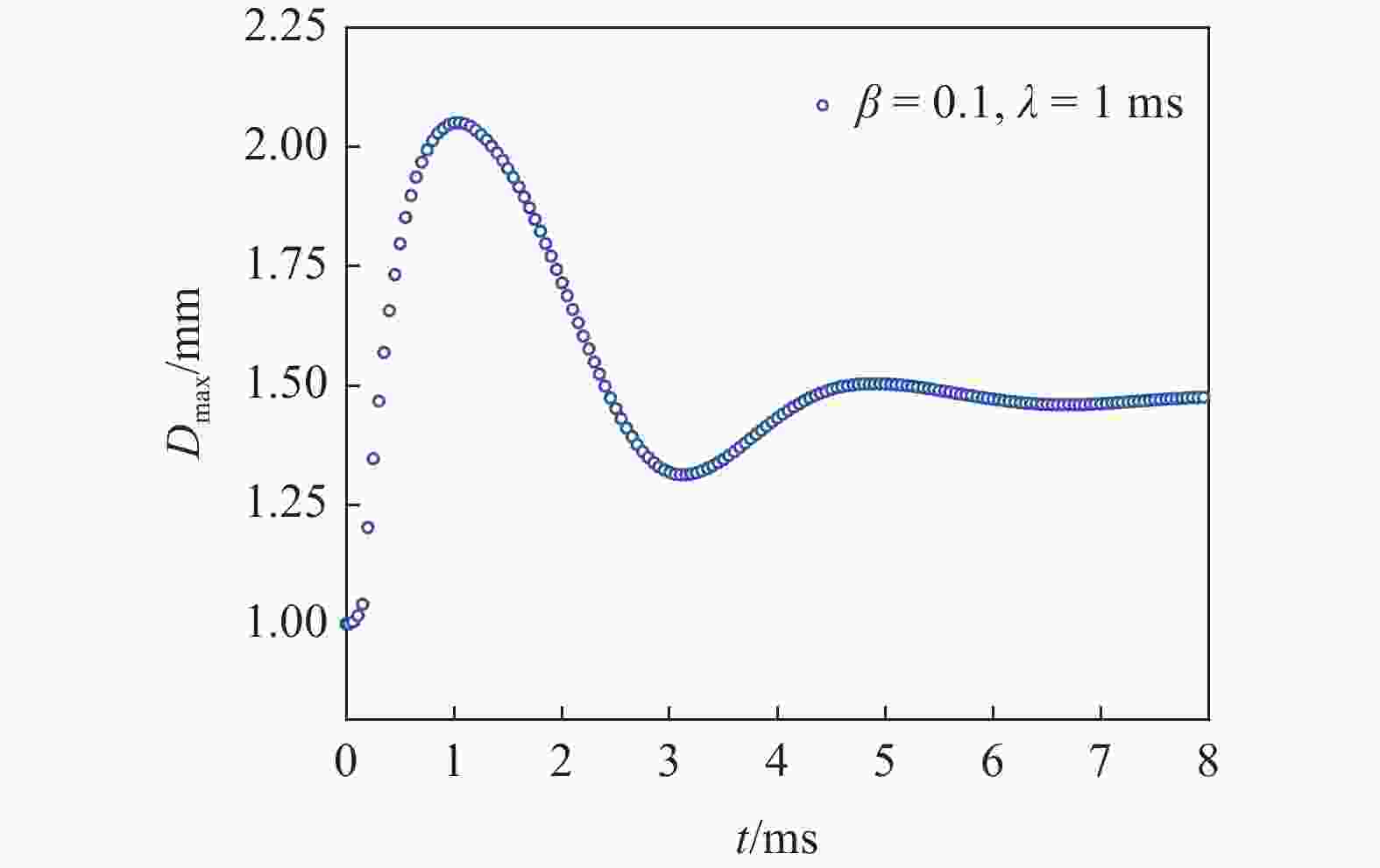

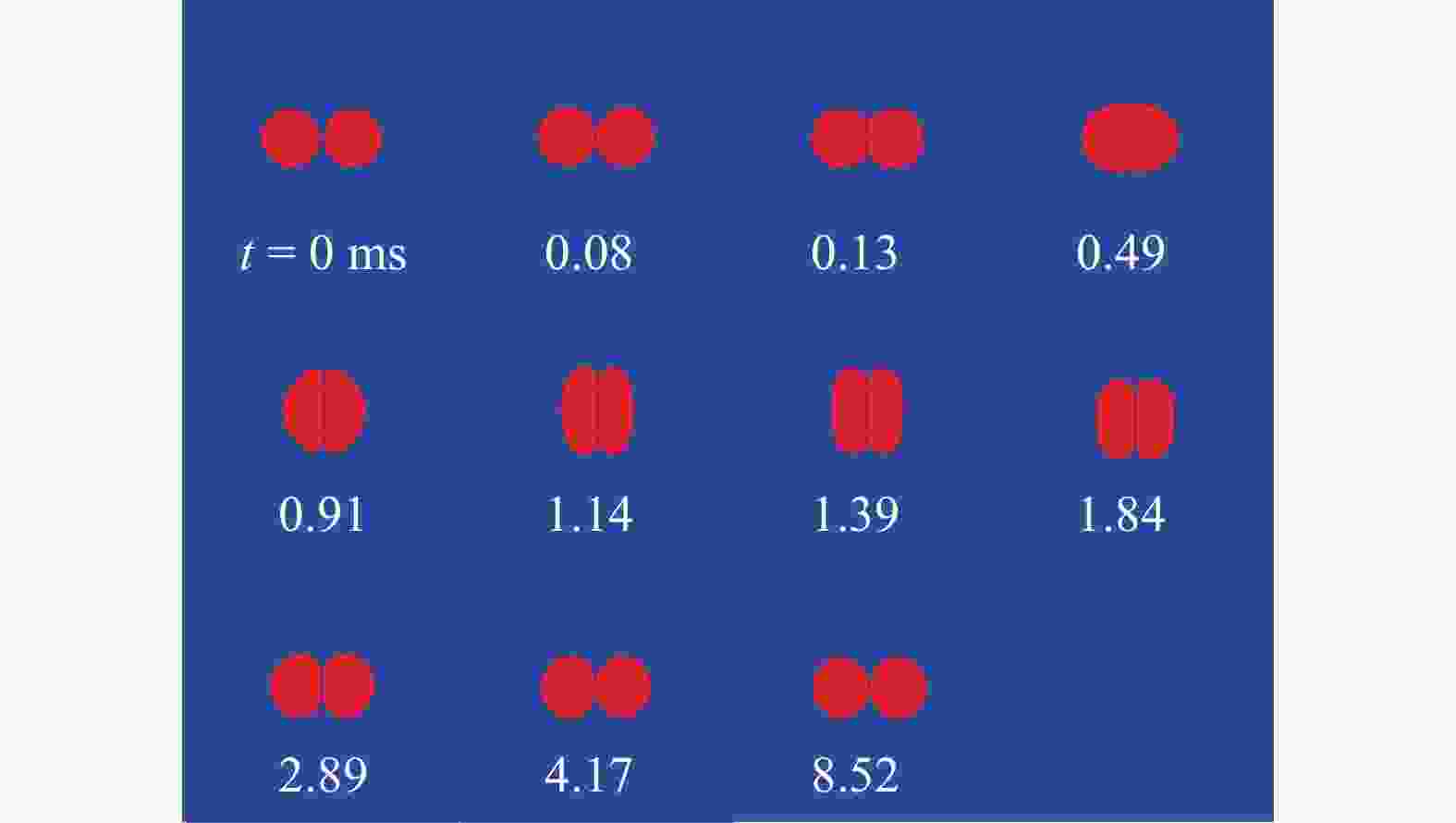

图 5 黏弹性液滴的碰撞反弹过程(u = 0.5 m/s)
Figure 5. Collision and bounce process of viscoelastic droplet (u = 0.5 m/s)

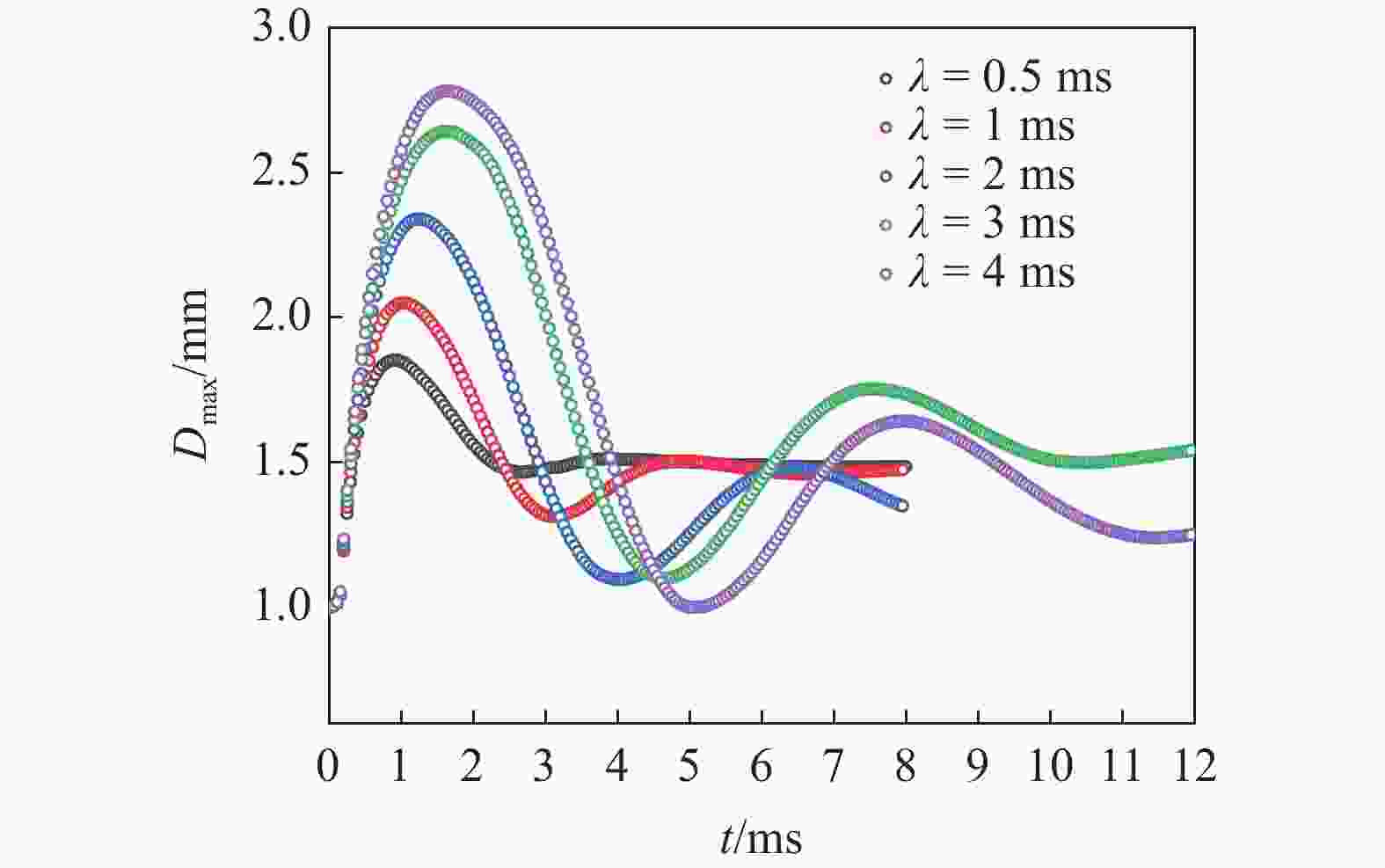

图 6 不同松弛时间λ下液滴最大宽度Dmax随时间的变化
Figure 6. The curve of droplet maximum width Dmax with time at different relaxation time λ

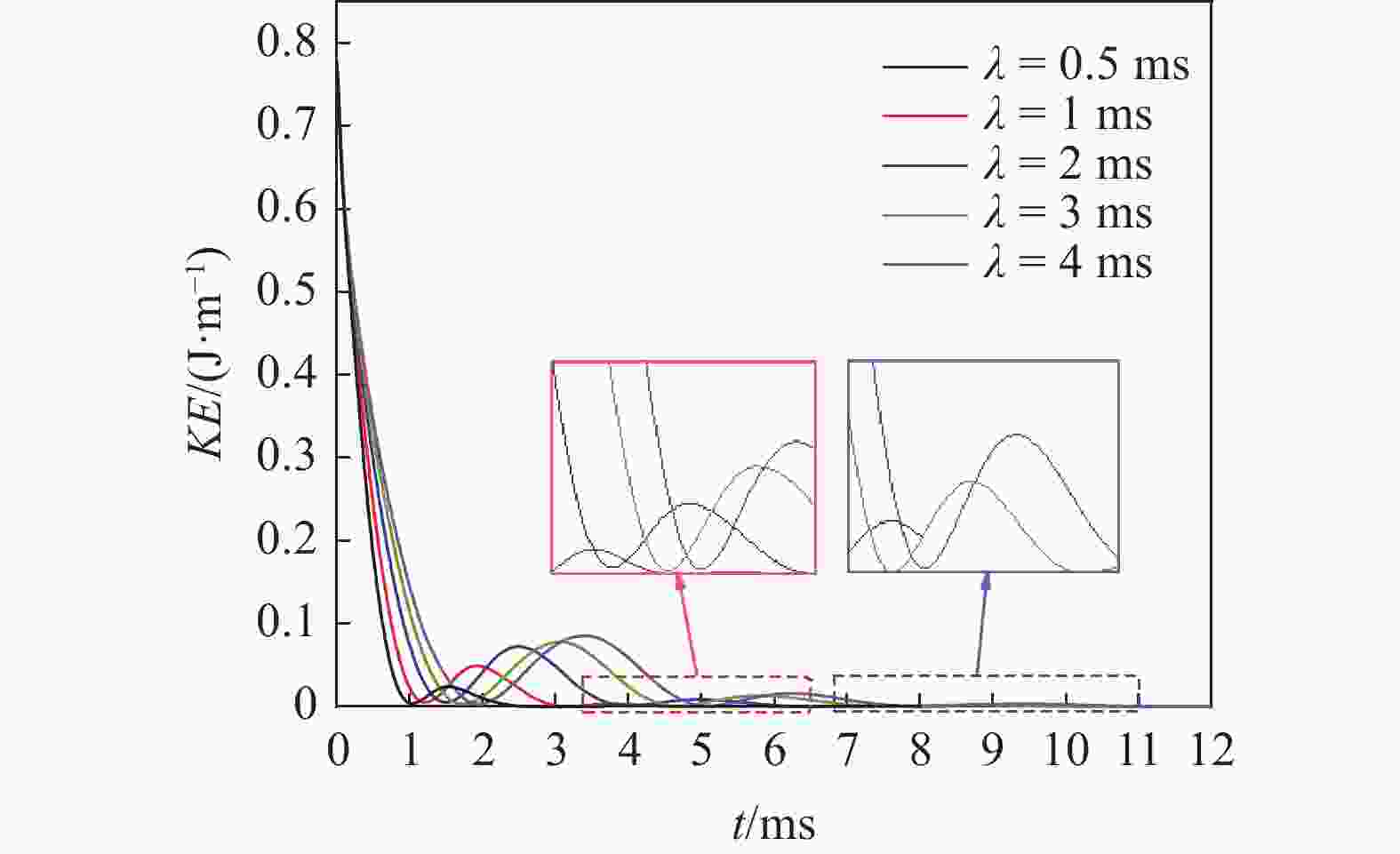

图 7 不同松弛时间λ下动能KE随时间的变化
Figure 7. Kinetic energy KE variation curve with time at different relaxation time λ

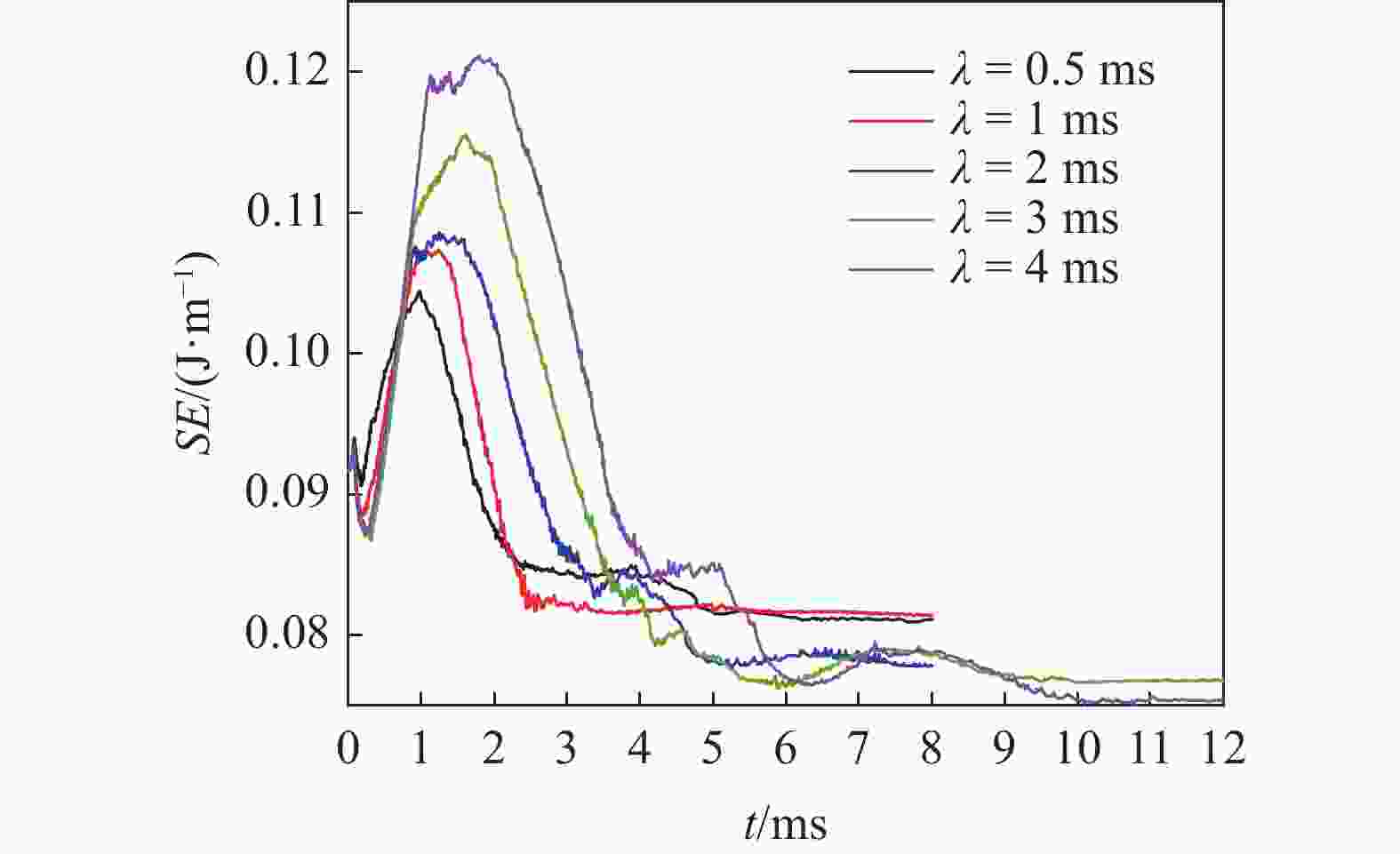

图 8 不同松弛时间λ下表面能SE随时间的变化
Figure 8. Surface energy SE variation curve with time at different relaxation time λ

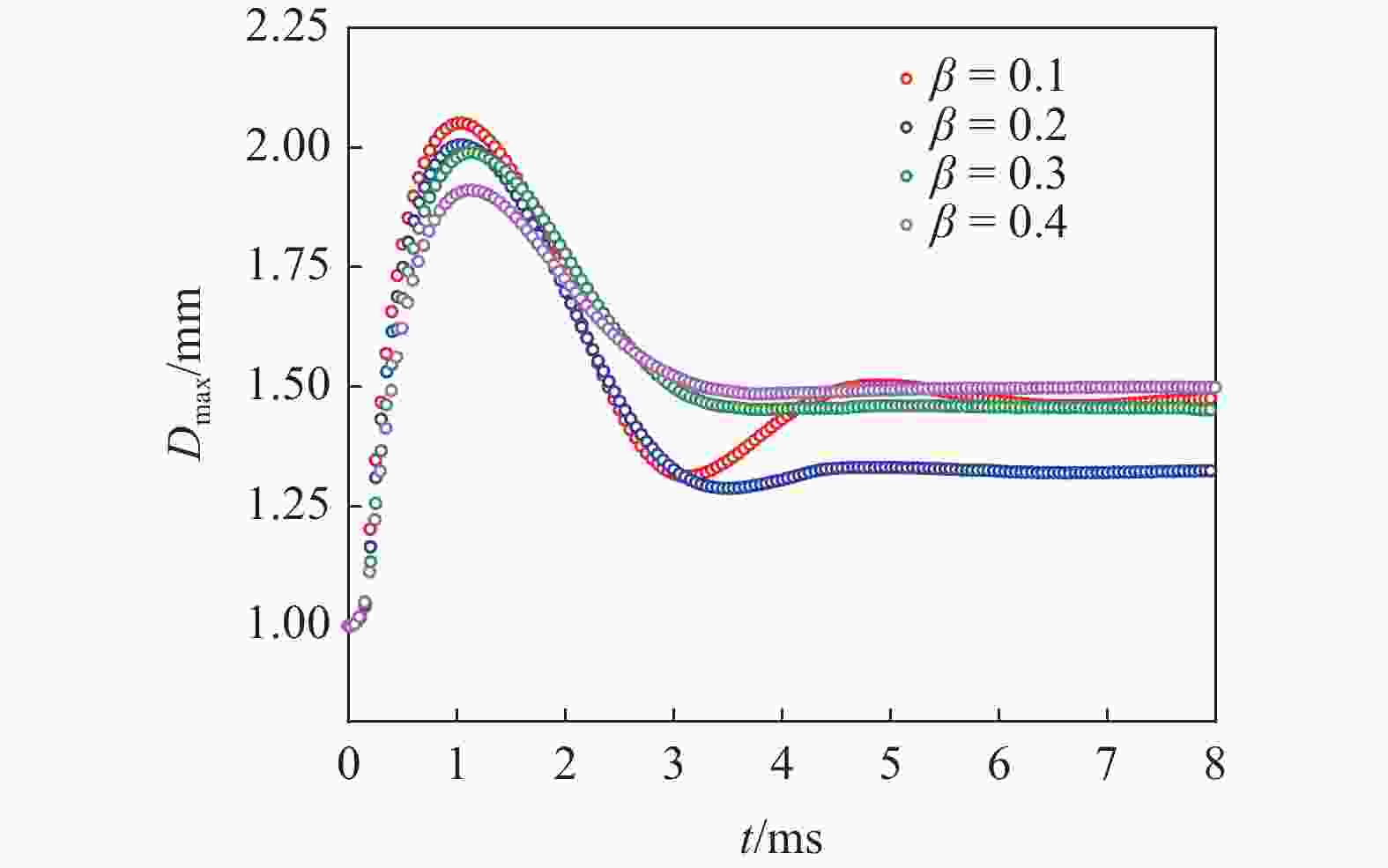

图 9 不同黏度比β下液滴最大宽度Dmax随时间的变化
Figure 9. The curve of droplet maximum width Dmax with time at different viscosity ratio β

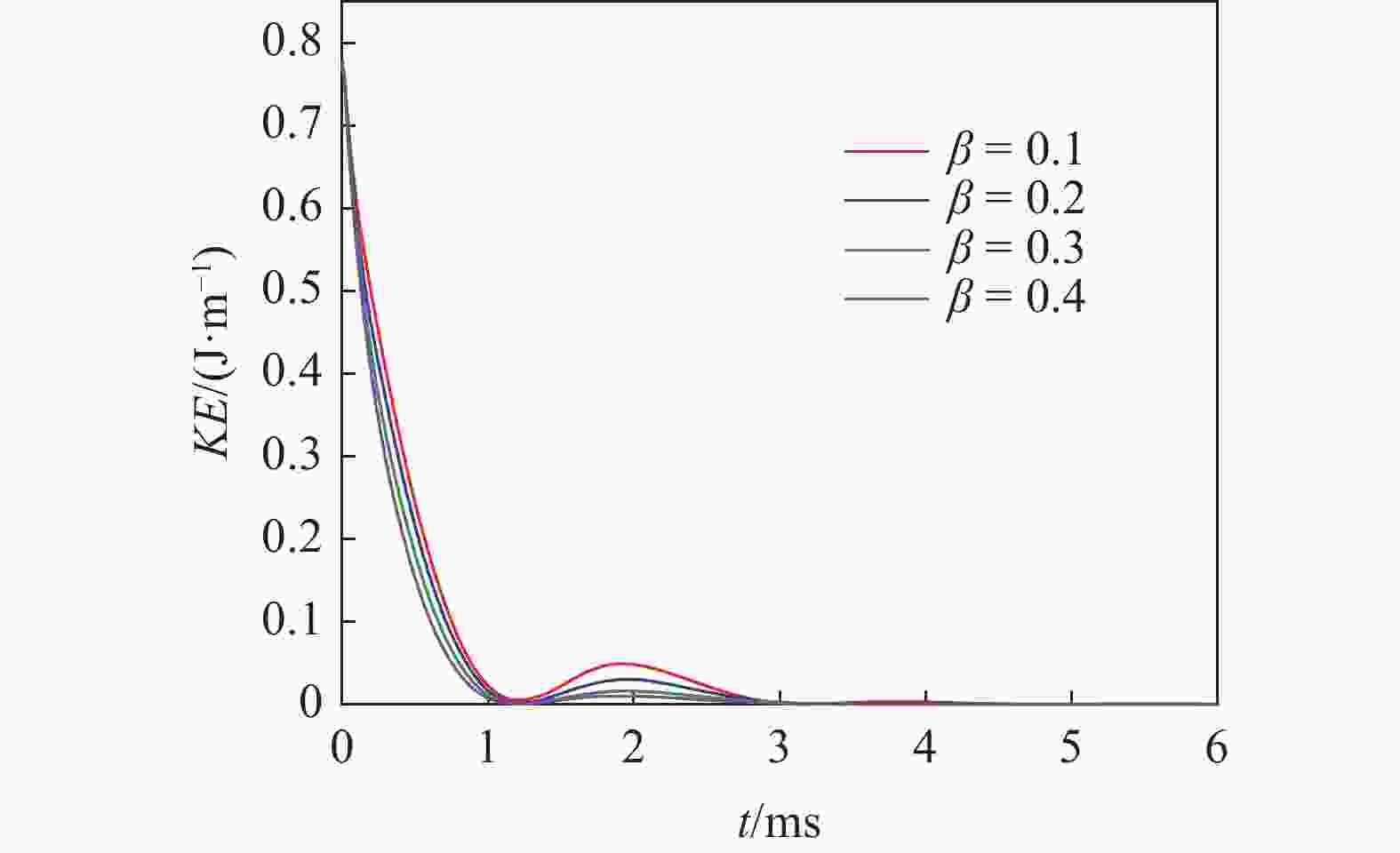

图 10 不同黏度比β下动能KE随时间的变化
Figure 10. Kinetic energy KE variation curve with time at different viscosity ratio β

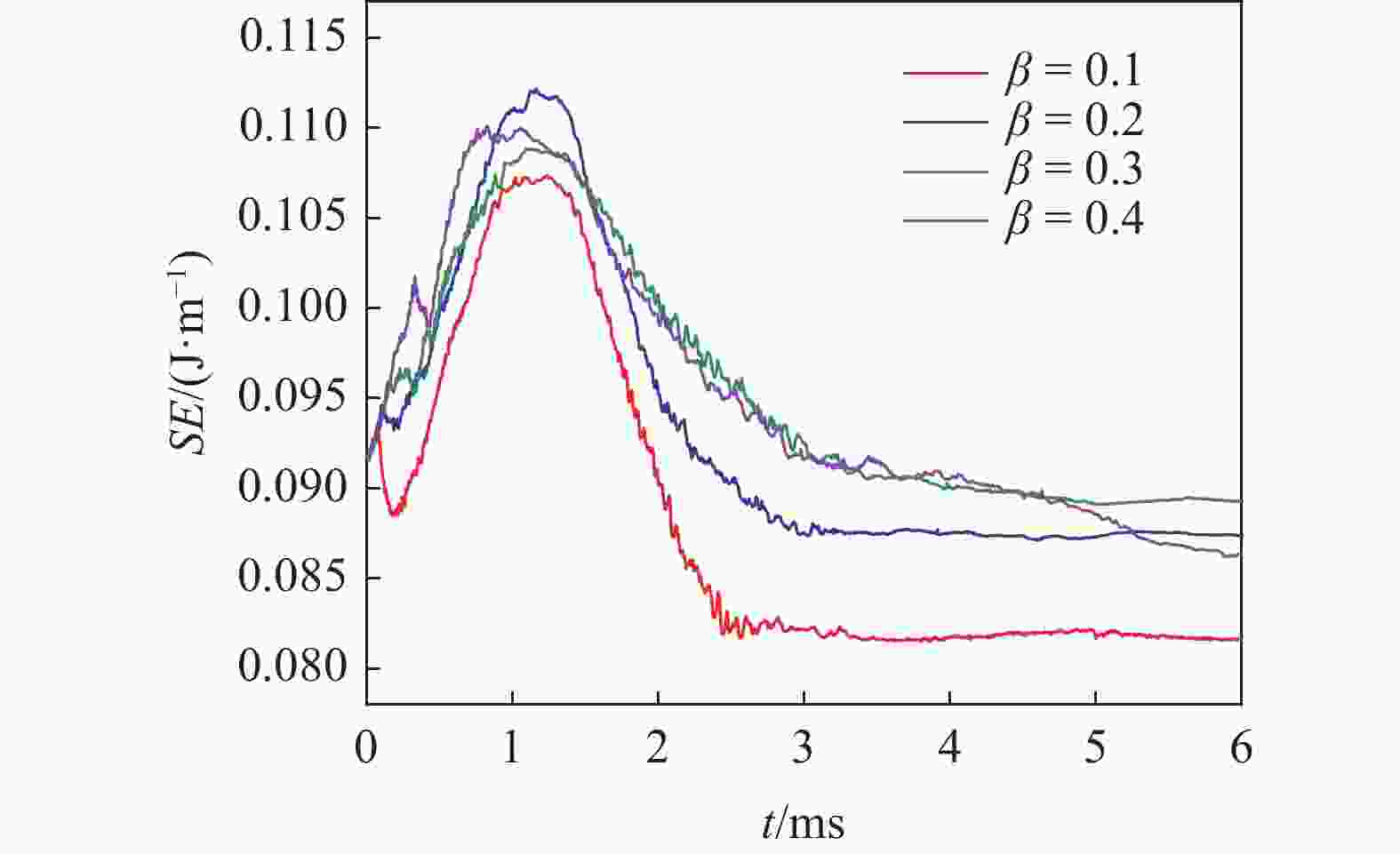

图 11 不同黏度比β下表面能SE随时间的变化
Figure 11. Surface energy SE variation curve with time at different viscosity ratio β
图 12 不同We下液滴最大宽度Dmax随时间的变化
Figure 12. The curve of droplet maximum width Dmax with time at different Weber number

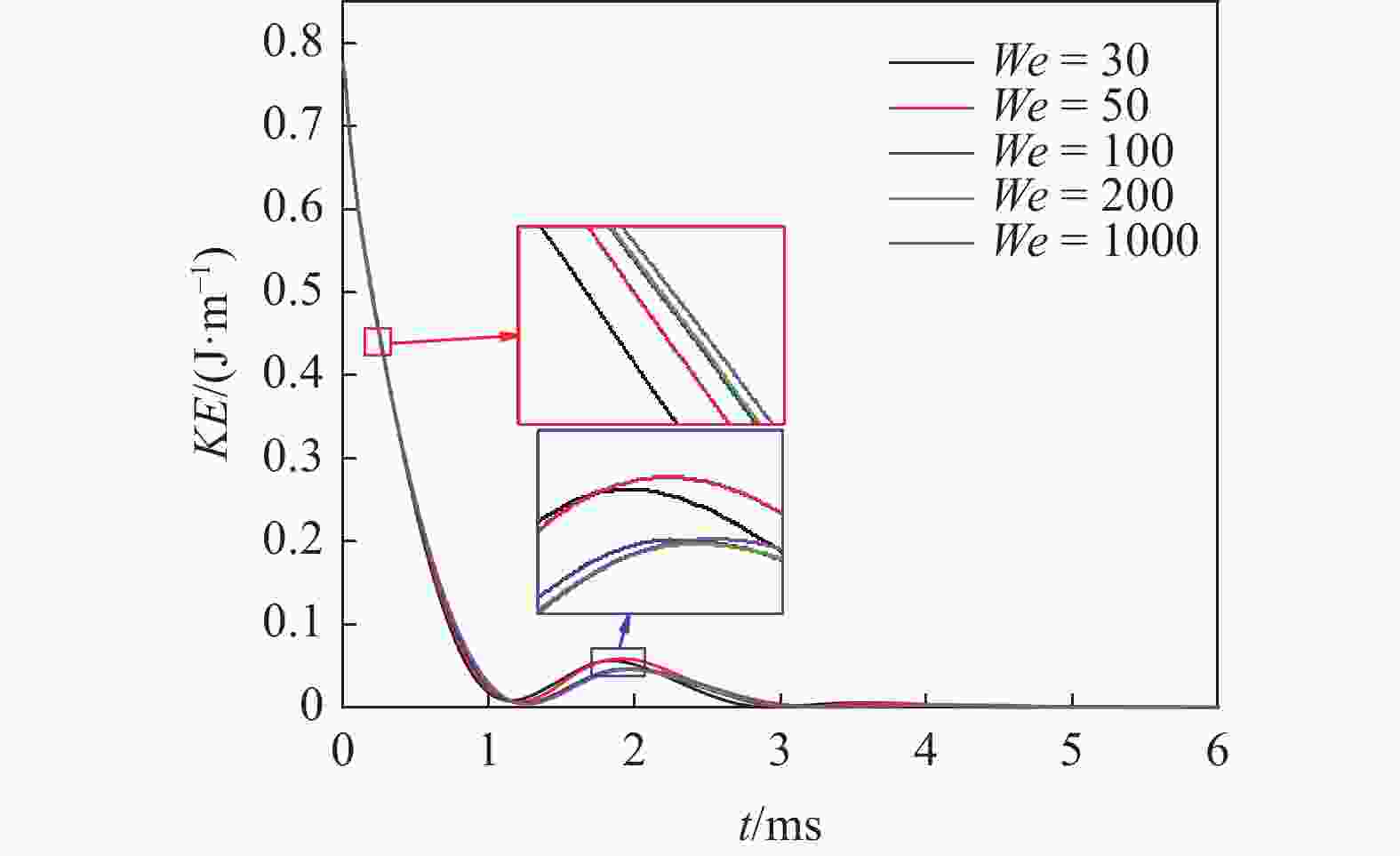

图 13 不同We下动能KE随时间的变化
Figure 13. Kinetic energy KE variation curve with time at different Weber number

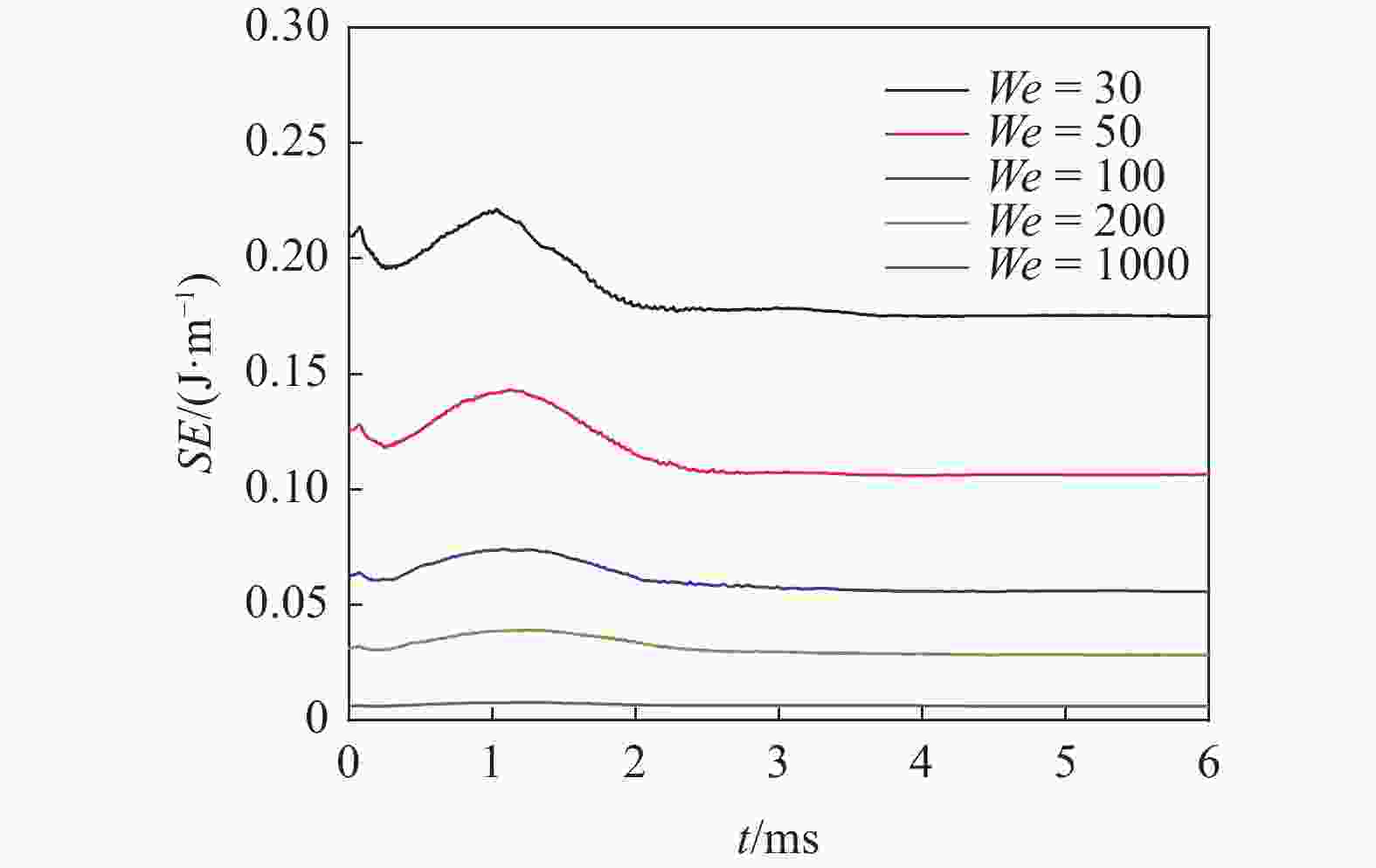

图 14 不同We下表面能SE随时间的变化
Figure 14. Surface energy SE variation curve with time at different Weber number

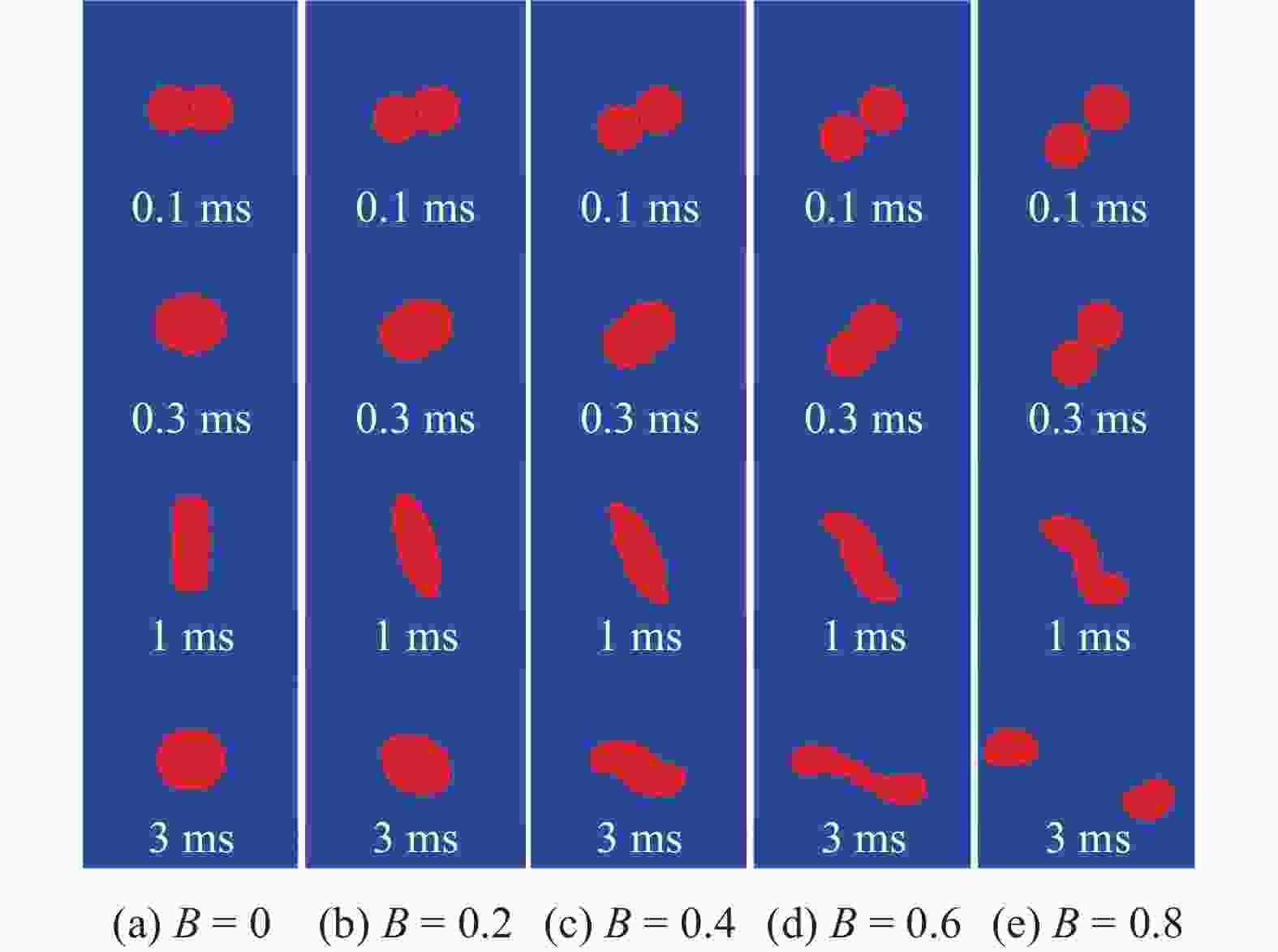

图 15 不同碰撞因子B下液滴的碰撞过程
Figure 15. The collision process of droplet under different impact factor B

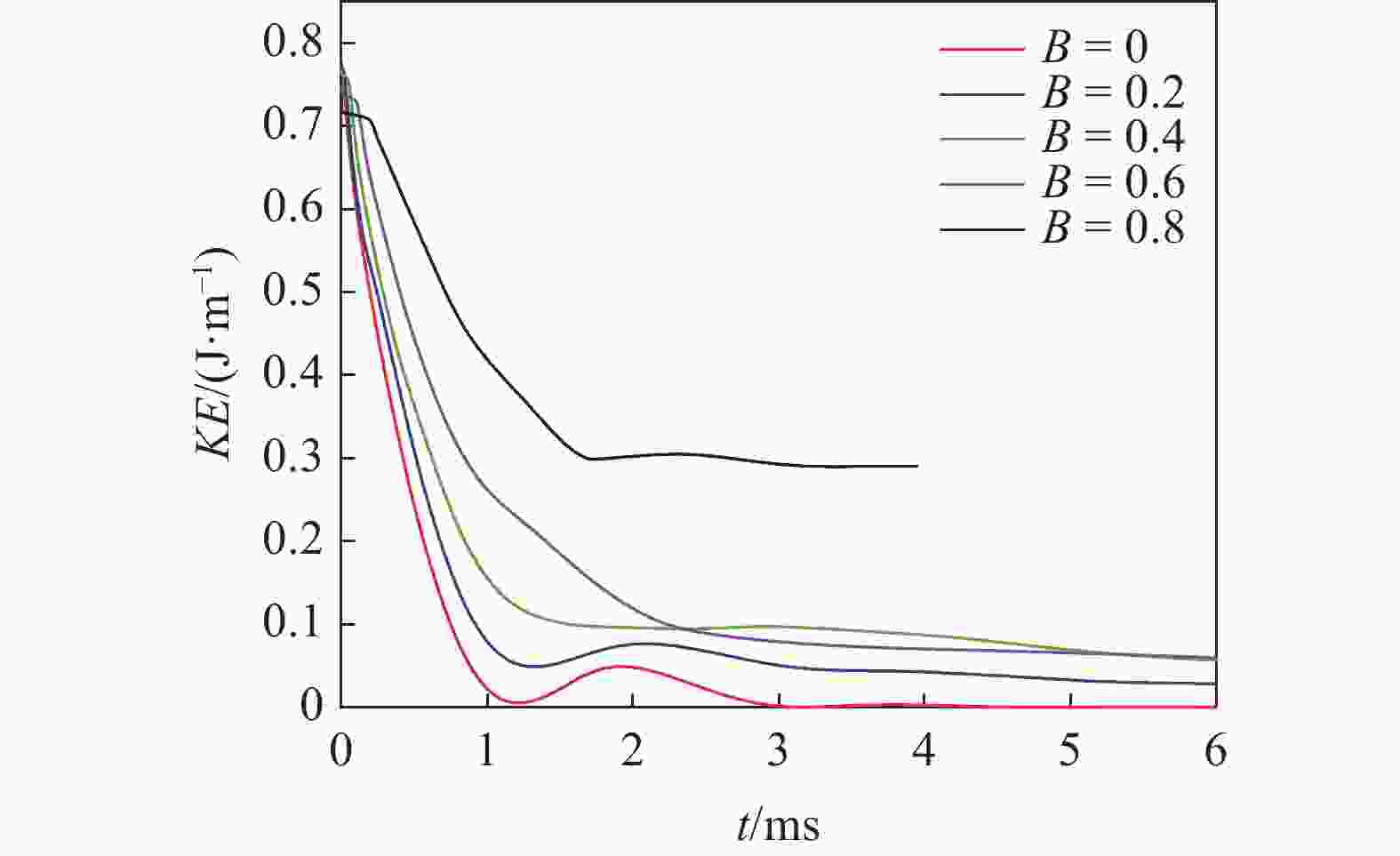

图 16 不同B下动能KE随时间的变化
Figure 16. Kinetic energy KE variation curve with time at different impact factor B
-

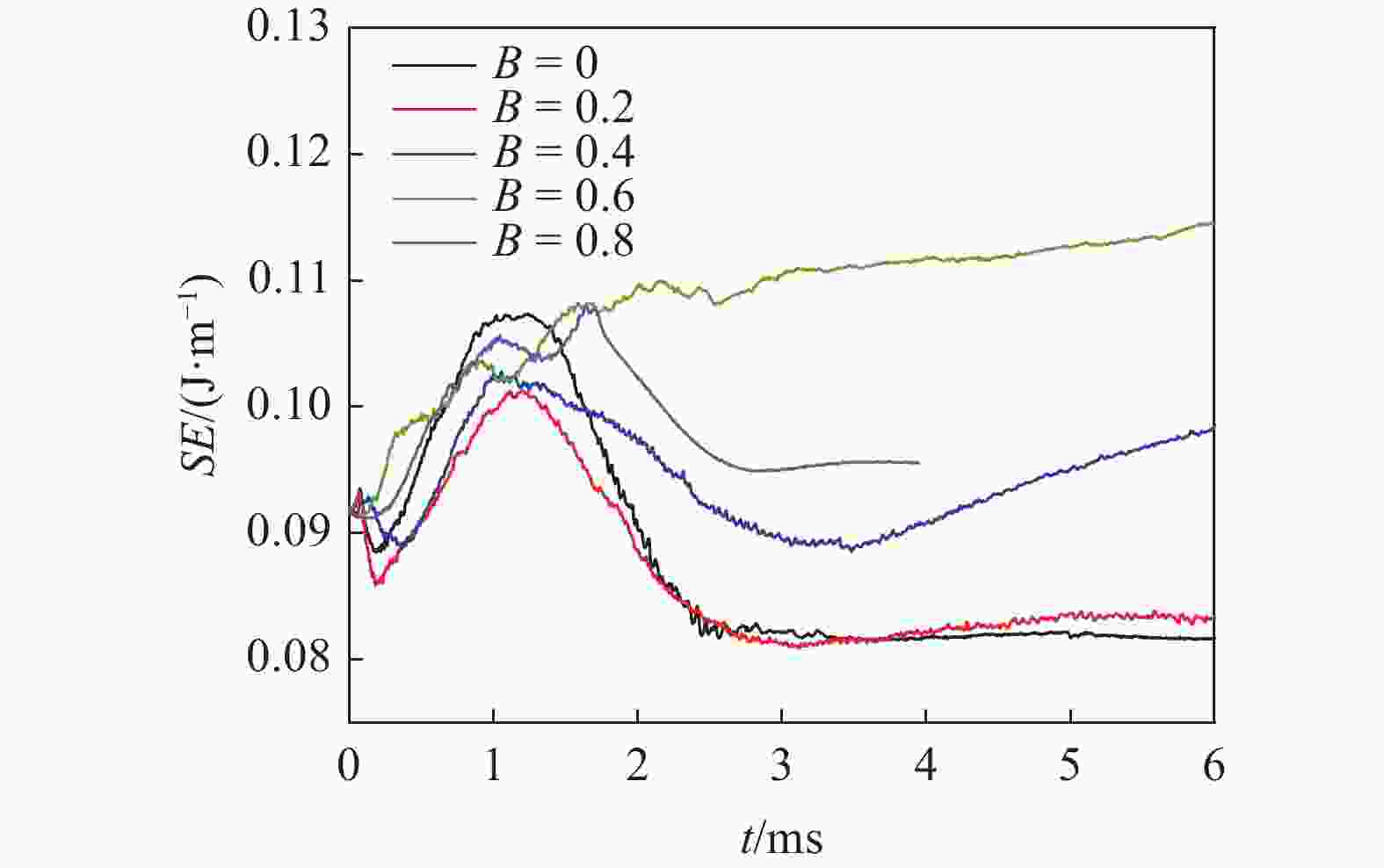

[1] Rapp DC, Zurawski RL. Characterization of Aluminum/RP-1 gel propellant properties//24th AIAA/ASME/SAE/ASEE Joint Propulsion Conference, Boston, Massachusetts, 1988: 1-21 [2] Hodge KF, Crofoot TA, Nelson S. Gelled propellants for tactical missile applications//35th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, Los Angeles, California, 1999: 1-7 [3] Varma M, Pein R. Optimisation of processing conditions for gel propellant production. International Journal of Energetic Materials and Chemical Propulsion, 2009, 8(6): 501-513 doi: 10.1615/IntJEnergeticMaterialsChemProp.v8.i6.30 [4] Caldas PP, Hopfe N, Ramsel J, et al. Scalability of gelled propellant rocket motors//7th European Conference for Aeronautics and Space Sciences Milan, Italy, 2017 [5] Haddad A, Natan B, Arieli R. The performance of a boron-loaded gel-fuel ramjet//Progress in Propulsion Physics, 2012: 499-518 [6] Baek G, Kim C. Rheological properties of carbopol containing nanoparticles. Journal of Rheology, 2011, 55(2): 313-330 doi: 10.1122/1.3538092 [7] Globus RH, Vander Wall EM, Cabeal JA. System analysis of gelled space-storable propellants//6th Propulsion Joint Specialist Conference, 1970: 1-8 [8] Ciezki HK, Naumann KW. Some aspects on safety and environmental impact of the German green gel propulsion technology. Propellants, Explosives, Pyrotechnics, 2016, 41(3): 539-547 doi: 10.1002/prep.201600039 [9] Natan B, Rahimi S. c. Combustion of Energetic Materials, 2001, 5: 172-194 doi: 10.1615/IntJEnergeticMaterialsChemProp.v5.i1-6.200 [10] 王宝成, 李鑫, 赵凤起等. 凝胶推进剂研究进展. 化学推进剂与高分子材料, 2015, 13(1): 6 (Wang Baocheng, Li Xin, Zhao Fengqi, et al. Research progress of gel propellant. Chinese Journal of Theoretical and Applied Mechanics, 2015, 13(1): 6 (in Chinese) [11] 闫大庆, 周宏民, 单建胜. 凝胶/膏状推进剂研究发展状况. 火箭推进, 2003, 29(1): 38-46 (Yan Daqing, Zhou Hongmin, Shan Jiansheng. Research and development status of gel/paste propellant. Journal of Rocket Propulsion, 2003, 29(1): 38-46 (in Chinese) doi: 10.3969/j.issn.1672-9374.2003.01.009 [12] 孙瑜. 凝胶推进剂静电雾化行为规律研究. [硕士论文]. 厦门: 厦门大学, 2018Sun Yu. Study on behaviors and rules of electrostatic atomization of gel propellant. [Master Thesis]. Xiamen: Xiamen University, 2018 (in Chinese) [13] Dennis JD, Yoon C, Santos PH, et al. Characterization of gelling systems for development of hypergolic gels//4th European Conference for Aerospace Sciences (EUCASS), Saint Petersburg, 2011: 1-15 [14] Fineman CN. High shear capillary rheometry of gelled hypergolic propellants. [Master Thesis]. West Lafayette: Purdue University, 2012 [15] Mallory JA, DeFini SJ, Sojka PE. Formulation of gelled propellant simulants//46th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, Nashville, TN, 2010: 1-9 [16] Rahimi S, Natan B. Atomization characteristics of gel fuels//34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, 1998: 1-14 [17] Qian J, Law CK. Regimes of coalescence and separation in droplet collision. Journal of Fluid Mechanics, 1997, 331: 59-80 [18] Finotello G, De S, Vrouwenvelder JCR, et al. Experimental investigation of non-newtonian droplet collisions: the role of extensional viscosity. Experiments in Fluids, 2018, 59(7): 113 doi: 10.1007/s00348-018-2568-2 [19] Minakov AV, Shebeleva AA, Strizhak PA, et al. Study of the weber number impact on secondary breakup of droplets of coal water slurries containing petrochemicals. Fuel, 2019, 254: 115606 doi: 10.1016/j.fuel.2019.06.014 [20] Fostiropoulos S, Strotos G, Nikolopoulos N, et al. Numerical investigation of heavy fuel oil droplet breakup enhancement with water emulsions. Fuel, 2020, 278: 118381 doi: 10.1016/j.fuel.2020.118381 [21] Tavangar S, Hashemabadi SH, Saberimoghadam A. CFD simulation for secondary breakup of coal–water slurry drops using OpenFOAM. Fuel Processing Technology, 2015, 132: 153-163 [22] Stefanitsis D, Malgarinos I, Strotos G, et al. Numerical investigation of the aerodynamic breakup of diesel and heavy fuel oil droplets. International Journal of Heat and Fluid Flow, 2017, 68: 203-215 doi: 10.1016/j.ijheatfluidflow.2017.10.012 [23] Jing L, Xu X. Direct numerical simulation of secondary breakup of liquid drops. Chinese Journal of Aeronautics, 2010, 23(2): 153-161 doi: 10.1016/S1000-9361(09)60199-0 [24] Khare P, Yang V. Breakup of non-newtonian liquid droplets//44th AIAA Fluid Dynamics Conference, 2014 [25] Gupta A, Sbragaglia M. Deformation and break-up of viscoelastic droplets using Lattice Boltzmann Models. Procedia IUTAM, 2015, 15: 215-227 doi: 10.1016/j.piutam.2015.04.030 [26] Izbassarov D, Muradoglu M. Effects of viscoelasticity on drop impact and spreading on a solid surface. Physical Review Fluids, 2016, 1(2): 023302 doi: 10.1103/PhysRevFluids.1.023302 [27] Liu Z, Wu J, Zhen H, et al. Numerical simulation on head-on binary collision of gel propellant droplets. Energies, 2013, 6(1): 204-219 doi: 10.3390/en6010204 [28] Qian L, Cong H, Zhu C. A numerical investigation on the collision behavior of polymer droplets. Polymers, 2020, 12(2): 263 doi: 10.3390/polym12020263 [29] Sun K, Zhang P, Law CK, et al. Collision dynamics and internal mixing of droplets of non-newtonian liquids. Physical Review Applied, 2015, 4(5): 054013 doi: 10.1103/PhysRevApplied.4.054013 [30] Focke C, Bothe D. Computational analysis of binary collisions of shear-thinning droplets. Journal of Non-Newtonian Fluid Mechanics, 2011, 166(14-15): 799-810 doi: 10.1016/j.jnnfm.2011.03.011 [31] Motzigemba M, Roth N, Bothe D, et al. The effect of non-newtonian flow behaviour on binary droplet collisions: VOF-simulation and experimental analysis//Institute for Liquid Atomization and Spray System-Europe, Zaragoza, 2002 [32] Focke C, Bothe D. Direct numerical simulation of binary off-center collisions of shear thinning droplets at high Weber numbers. Physics of Fluids, 2012, 24(7): 750-755 [33] Popinet S. An accurate adaptive solver for surface-tension-driven interfacial flows. Journal of Computational Physics, 2009, 228(16): 5838-5866 doi: 10.1016/j.jcp.2009.04.042 [34] Fattal R, Kupferman R. Constitutive laws for the matrix-logarithm of the conformation tensor. Journal of Non-Newtonian Fluid Mechanics, 2004, 123(2-3): 281-285 doi: 10.1016/j.jnnfm.2004.08.008 [35] Fattal R, Kupferman R. Time-dependent simulation of viscoelastic flows at high Weissenberg number using the log-conformation representation. Journal of Non-Newtonian Fluid Mechanics, 2005, 126(1): 23-37 doi: 10.1016/j.jnnfm.2004.12.003 [36] Hao J, Pan TW. Simulation for high Weissenberg number. Applied Mathematics Letters, 2007, 20(9): 988-993 doi: 10.1016/j.aml.2006.12.003 [37] Chen XD, Yang V. Direct numerical simulation of multiscale flow physics of binary droplet collision. Physics of Fluids, 2020, 32: 062103 doi: 10.1063/5.0006695 [38] Sun K, Jia M, Wang TY. Numerical investigation of head-on droplet collision with Lattice Boltzmann Method. International Journal of Heat and Mass Transfer, 2013, 58(1-2): 260-275 doi: 10.1016/j.ijheatmasstransfer.2012.11.014 -
