复杂大气入流下海上风机力学特性研究

徐顺; 赵伟文; 万德成

doi:10.6052/0459-1879-21-693

复杂大气入流下海上风机力学特性研究

doi: 10.6052/0459-1879-21-693

上海交通大学船舶海洋与建筑工程学院, 船海计算水动力学研究中心(CMHL), 上海 200240

基金项目: 国家自然科学基金(51879159, 52131102)和国家重点研发计划(2019YFB1704200)资助项目

详细信息

作者简介:
万德成, 教授, 主要研究方向: 计算流体力学(船舶与海洋工程). E-mail: dcwan@sjtu.edu.cn

中图分类号: TK89
计量
- 文章访问数: 445
- HTML全文浏览量: 223
- PDF下载量: 103
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-29
- 录用日期: 2022-02-18
- 网络出版日期: 2022-02-19
- 刊出日期: 2022-04-18

NUMERICAL STUDY OF DYNAMIC CHARACTERISTICS FOR OFFSHORE WIND TURBINE UNDER COMPLEX ATMOSPHERIC INFLOW

Computational Marine Hydrodynamics Lab (CMHL), School of Naval Architecture, Ocean and Civil Engineering, Shanghai Jiao Tong University, Shanghai 200240

摘要

摘要: 随着风能技术的不断进步, 风机叶片逐渐向大型化发展, 这使得真实复杂大气入流对风机运行性能的影响愈发显著. 为研究真实复杂大气入流下海上风机的力学特性响应, 利用基于大涡模拟的域前模拟方法生成复杂大气入流, 并结合致动线模型模拟风机叶片, 对中性复杂大气入流下海上固定式风机进行数值模拟, 重点分析风机的气动性能及转子和叶片根部的力学特性, 并与均匀入流计算工况进行对比. 计算结果表明, 中性复杂大气入流中的大尺度低速气流团使得风机气动功率输出值在较长一段时间处于较低水平, 此外, 中性复杂大气入流的高湍流强度特征使得风机气动功率的变化幅值和标准差较均匀入流工况大幅增加; 风机轴向推力的标准差值增加到均匀入流的53倍, 中性复杂大气入流的来流流场扰动引起偏航力矩的最大值、均方根和标准差分别增加到均匀入流的10、4.4和4.3倍; 速度垂向分布的不均匀性以及轮毂高度附近的大尺度低速羽流结构导致摆振剪力和弯矩的标准差响应值分别为均匀入流的2倍和4.6倍.
- 海上风机 /
- 复杂大气入流 /
- 域前模拟 /
- 致动线模型 /
- 力学特性
Abstract: With the great development of wind energy technology, the blades of wind turbine have gradually developed to large-scale, which makes the real and complex atmospheric inflow have more and more significant impacts on the operating performance of wind turbines. The numerical simulation of bottom-fixed offshore wind turbine under neutral complex atmospheric inflow is performed to study the dynamic responses of wind turbine under that complex inflow. A precursor simulation method based on large eddy simulations is used to generate the complex atmospheric inflow, and the actuator line model is combined to model the wind turbine blades. The numerical results are compared with the uniform inflow condition, and the results are focusing on the analysis of aerodynamic performance and the dynamic characteristics of rotor and blade root. The numerical results show that the large-scale low-velocity airflow in the neutral and complex atmospheric inflow is responsible for the lower output of wind turbine aerodynamic power in a long period time. In addition, the high turbulence intensity characteristics of the neutral and complex atmospheric inflow lead to the significant increase of varying amplitude and standard deviation of wind turbine aerodynamic power. The standard deviation of rotor thrust increased to 53 times of the uniform inflow condition, and the maximum value, root mean square and standard deviation of yaw moment increased to 10, 4.4 and 4.3 times of uniform inflow condition, because of the disturbance of the neutral and complex atmospheric inflow. The standard deviation values of flapwise shear force and bending moment reach up to 2 and 4.6 times of uniform inflow condition, respectively, caused by the collective effects between the inhomogeneity of the velocity vertical distribution and the large-scale low-velocity plume structures near the hub height.
- offshore wind turbine /
- complex atmospheric inflow /
- precursor simulation /
- actuator line model /
- dynamic characteristics

HTML全文

图 1 二维翼型的速度矢量

Figure 1. Velocity vectors of two-dimensional airfoil

下载: 全尺寸图片幻灯片

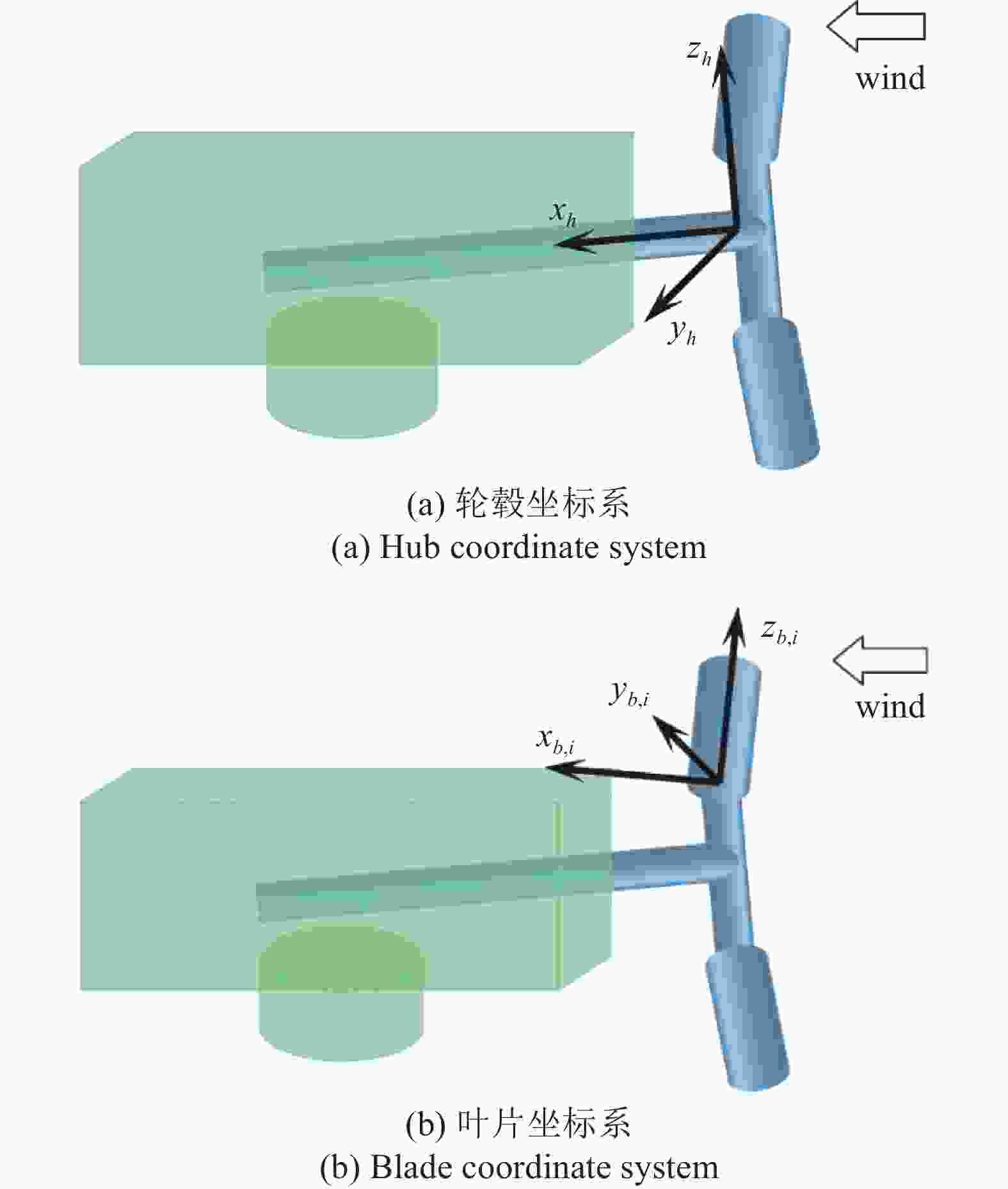

图 2 局部坐标系示意图

Figure 2. Local coordinate systems

下载: 全尺寸图片幻灯片

图 3 域前模拟计算域及边界条件(单位: km)

Figure 3. Calculation region and boundary conditions of precursor simulation (unit: km)

下载: 全尺寸图片幻灯片

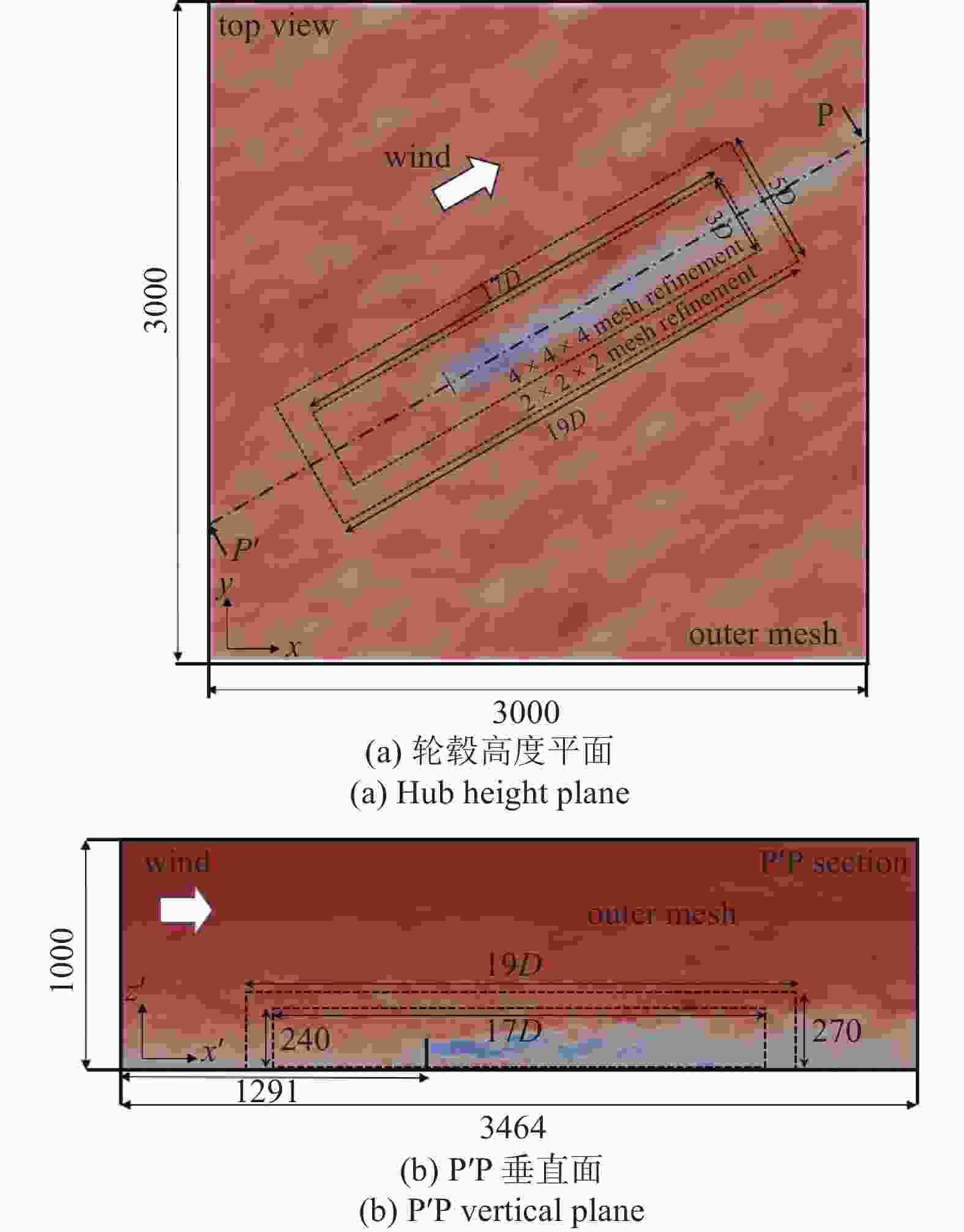

图 4 主模拟计算域布置 (单位: m)

Figure 4. Successor simulation calculation region (unit: m)

下载: 全尺寸图片幻灯片

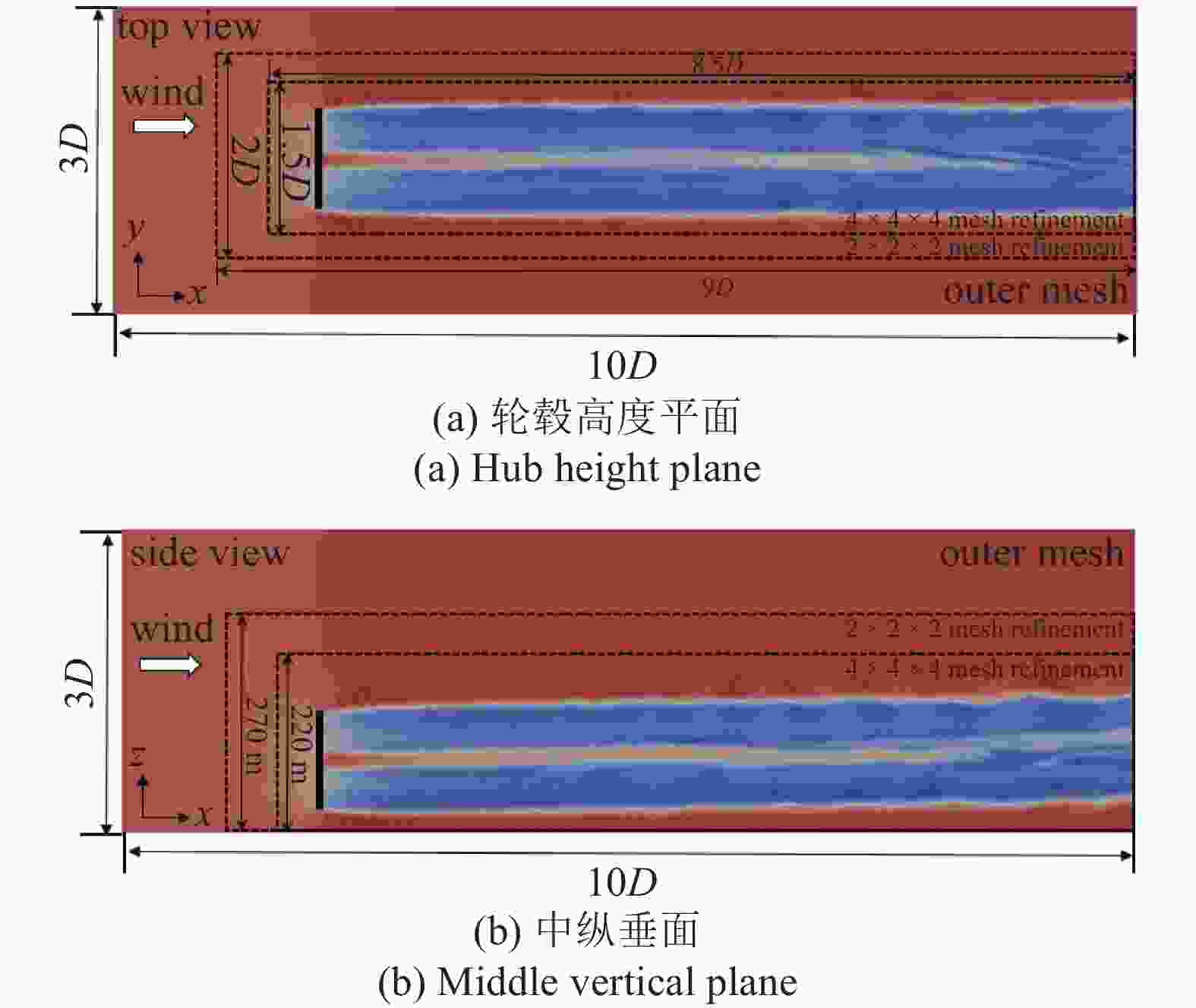

图 5 均匀入流计算域布置

Figure 5. Calculation region of uniform inflow

下载: 全尺寸图片幻灯片

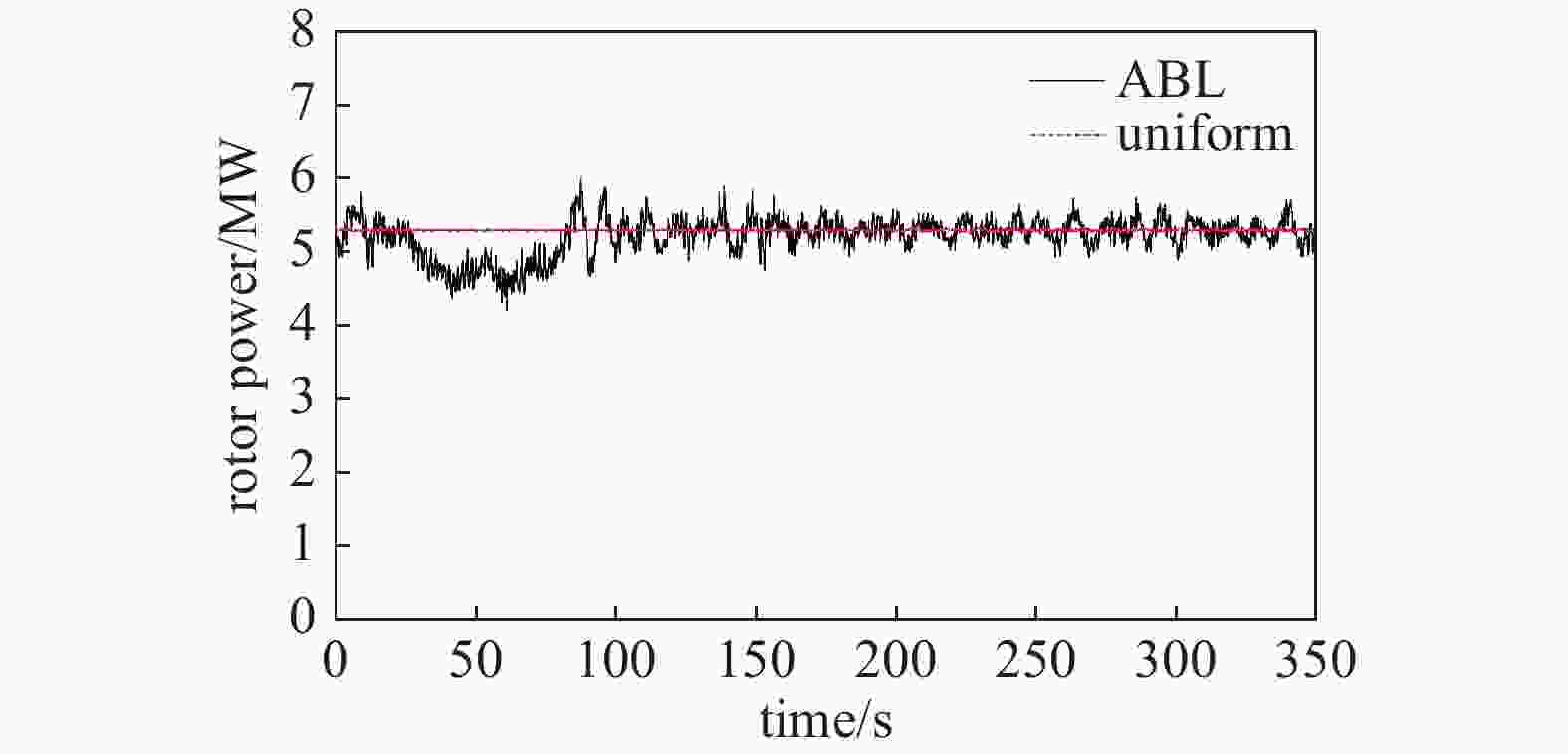

图 6 功率对比

Figure 6. Comparison of rotor power

下载: 全尺寸图片幻灯片

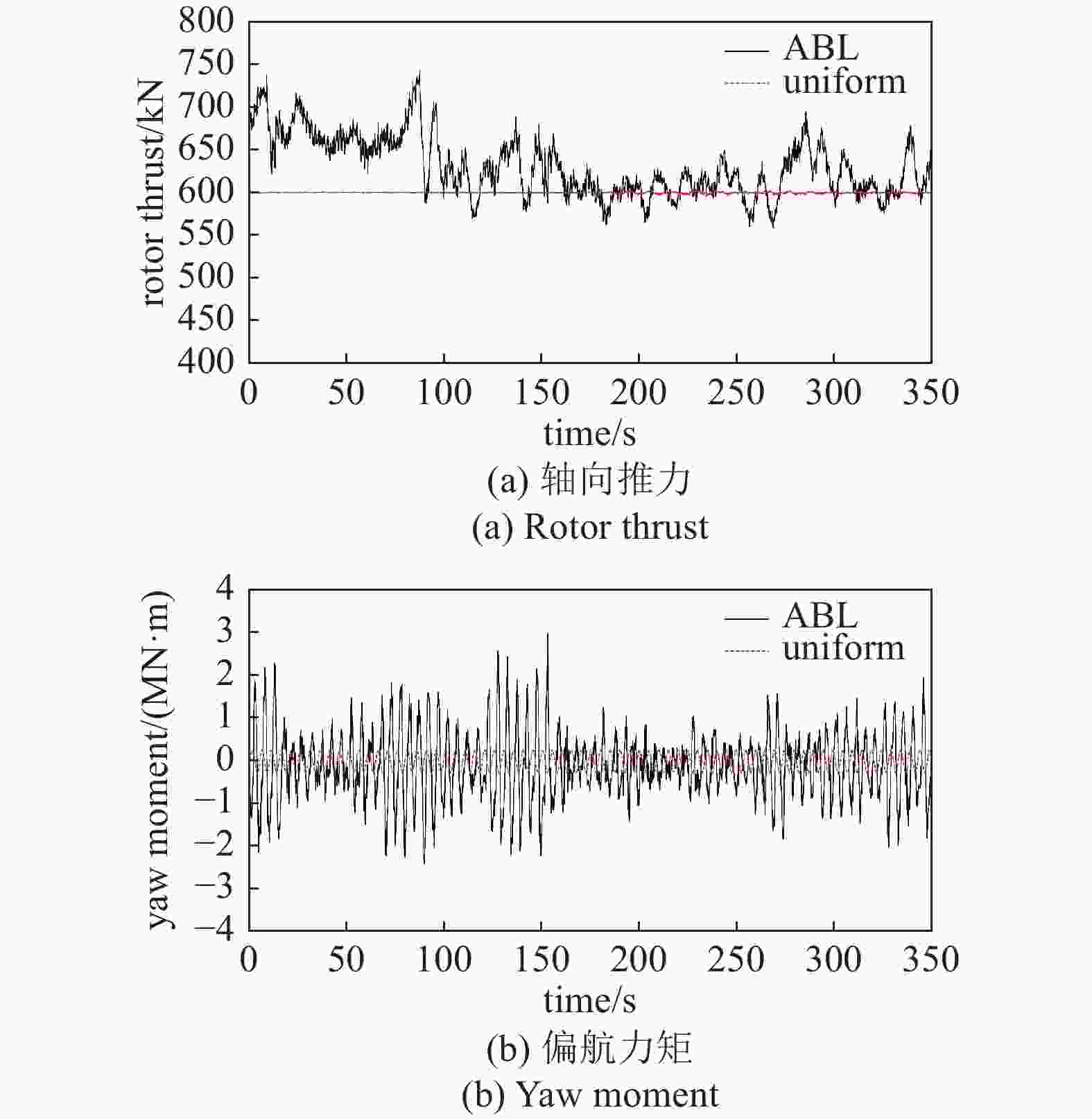

图 7 轴向推力和偏航力矩对比

Figure 7. Comparisons of rotor thrust and yaw moment

下载: 全尺寸图片幻灯片

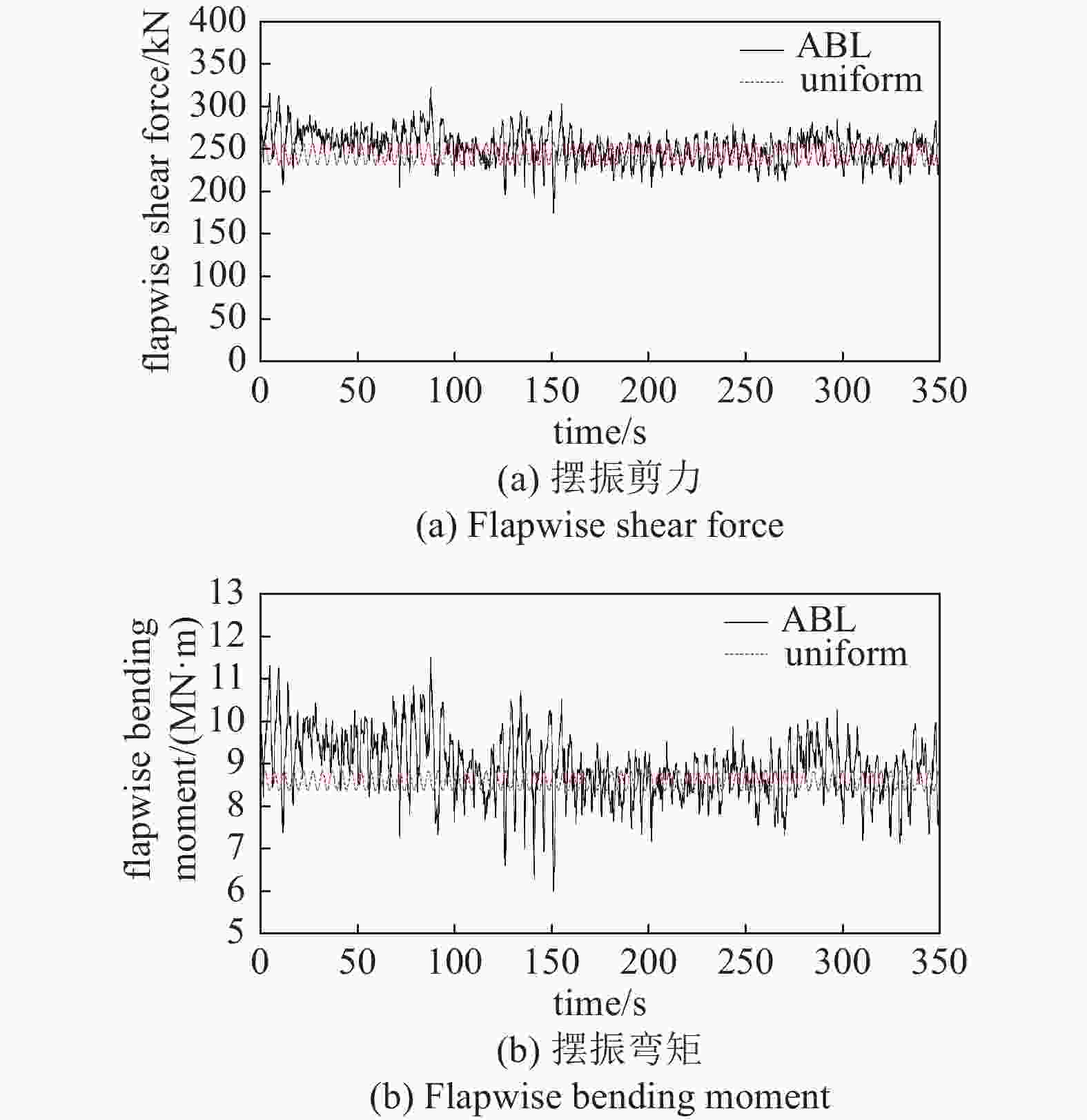

图 8 摆振剪力和弯矩对比

Figure 8. Comparisons of flapwise shear force and bending moment

下载: 全尺寸图片幻灯片

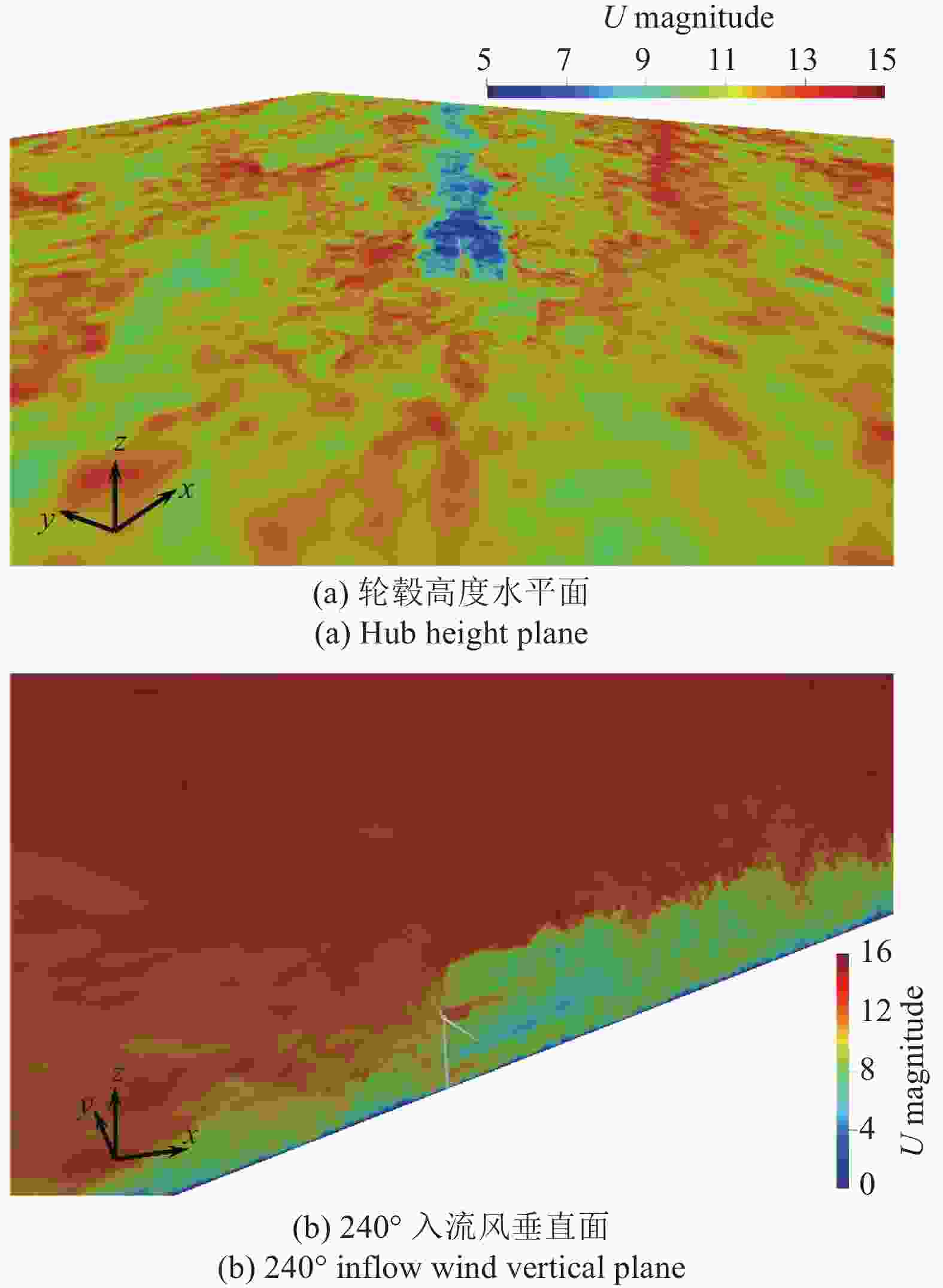

图 9 瞬时速度尾流场

Figure 9. Instantaneous velocity wake field

下载: 全尺寸图片幻灯片

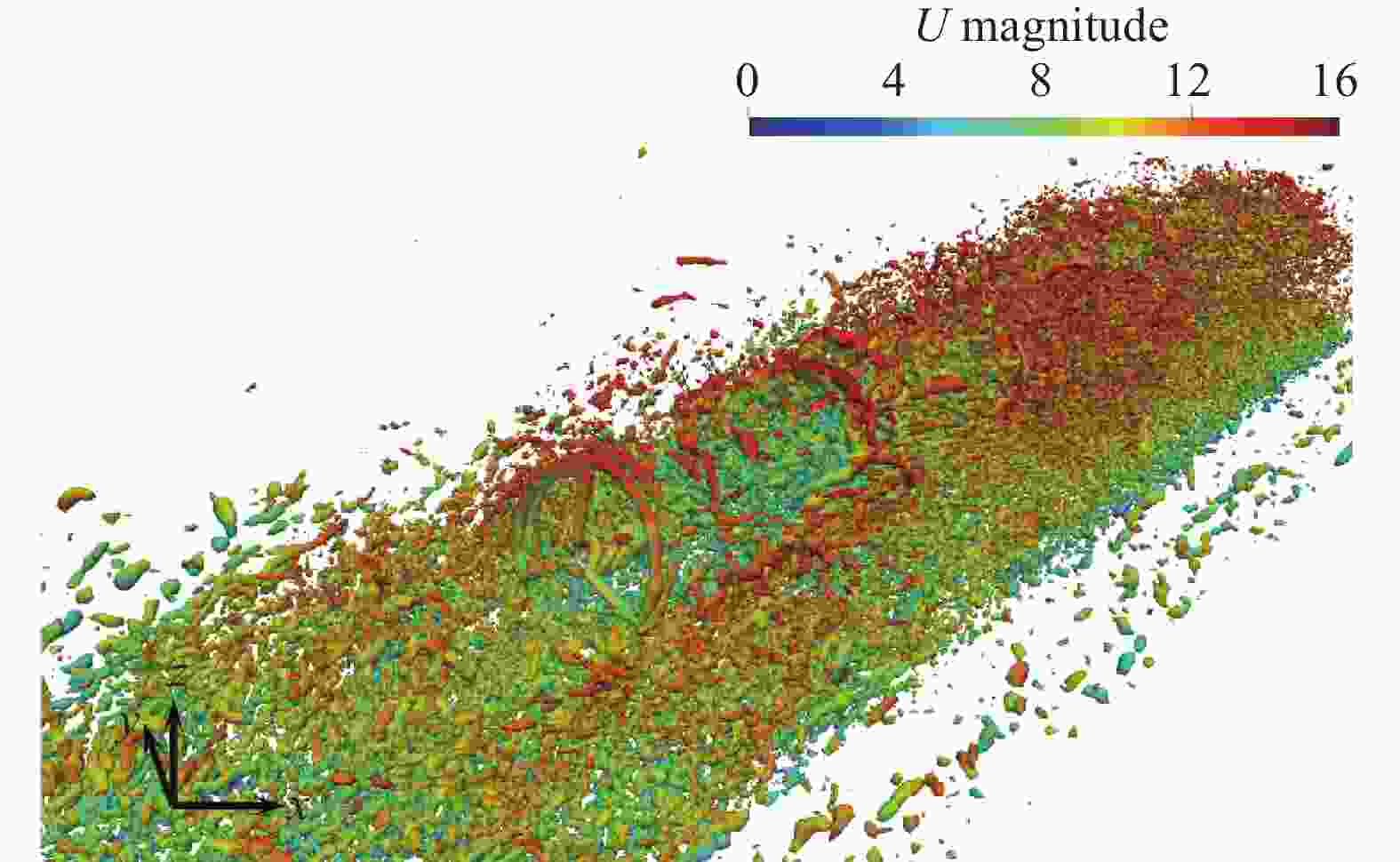

图 10 尾涡结构($ \left|Liutex\right|=0.18 $)

Figure 10. Vortex structures ($ \left|Liutex\right|=0.18 $)

下载: 全尺寸图片幻灯片

表 1 NREL 5 MW风机主要参数

Table 1. Main parameters of NREL 5 MW wind turbine

Parameter	Value
rated power/MW	5
rated wind speed/(m·s⁻¹)	11.4
rated rotor speed/(r·min⁻¹)	12.1
hub height/m	90
number of blades	3
rotor orientation	upwind

下载: 导出CSV

表 2 气动功率统计值

Table 2. Aerodynamic power statistics

Case	Aerodynamic power/MW
Case	max	min	mean	rms	std
ABL	6.04	4.20	5.21	5.22	0.26
uniform	5.33	5.26	5.30	5.30	0.07

下载: 导出CSV

表 3 轴向推力和偏航力矩统计值

Table 3. Statistics of rotor thrust and yaw moment

Case	Rotor thrust/kN
Case	max	min	mean	rms	std
ABL	745	559	632	633	35.2
uniform	605	598	601	601	0.67
Case	Yaw moment/(kN·m)
Case	max	min	mean	rms	std
ABL	2990	−2409	−111	803	796
uniform	294.4	−294.7	1.85	184	184

下载: 导出CSV

表 4 摆振剪力和弯矩统计值

Table 4. Statistics of flapwise shear force and bending moment

Case	Flapwise shear force/kN
Case	max	min	mean	rms	std
ABL	323.4	174.8	252.8	253.5	18.4
uniform	258.9	230.4	244.5	244.7	9.11
Case	Flapwise bending moment/(kN·m)
Case	max	min	mean	rms	std
ABL	11530	6002	8943	8974	741.7
uniform	8861	8347	8609	8610	160.1

下载: 导出CSV

参考文献(30)

[1]	Chehouri A, Younes R, Ilinca A, et al. Review of performance optimization techniques applied to wind turbines. Applied Energy, 2015, 142: 361-388 doi: 10.1016/j.apenergy.2014.12.043
[2]	Council GWE. GWEC global wind report 2021//Global Wind Energy Council, Brussels, Belgium, 2021
[3]	周桐, 闫渤文, 杨庆山等. 大气边界层大涡模拟入口湍流生成方法研究. 工程力学, 2020, 37(7): 68-76 (Zhou Tong, Yan Bowen, Yang Qingshan, et al. Study of inflow turbulence generation methods with large eddy simulation for atmospheric. Engineering Mechanics, 2020, 37(7): 68-76 (in Chinese) doi: 10.6052/j.issn.1000-4750.2019.07.0381
[4]	宁旭. 大气边界层内风机气动及尾流特性的数值研究. [硕士论文]. 上海: 上海交通大学, 2020 Ning Xu. Numerical study of wind turbine aerodynamics and wake characteristics under atmospheric boundary layer. [Master Thesis]. Shanghai: Shanghai Jiao Tong University, 2020 (in Chinese)
[5]	Huang SH, Li QS, Wu JR. A general inflow turbulence generator for large eddy simulation. Journal of Wind Engineering and Industrial Aerodynamics, 2010, 98(10-11): 600-617 doi: 10.1016/j.jweia.2010.06.002
[6]	Castro HG, Paz RR. A time and space correlated turbulence synthesis method for large eddy simulations. Journal of Computational Physics, 2013, 235: 742-763 doi: 10.1016/j.jcp.2012.10.035
[7]	Xie B, Gao F, Boudet J, et al. Improved vortex method for large-eddy simulation inflow generation. Computers & Fluids, 2018, 168: 87-100
[8]	Hlevca D, Degeratu M. Atmospheric boundary layer modeling in a short wind tunnel. European Journal of Mechanics-B/Fluids, 2020, 79: 367-375 doi: 10.1016/j.euromechflu.2019.10.003
[9]	Li QA, Murata J, Endo M, et al. Experimental and numerical investigation of the effect of turbulent inflow on a horizontal axis wind turbine (Part I: Power performance). Energy, 2016, 113: 713-722 doi: 10.1016/j.energy.2016.06.138
[10]	Murata J, Endo M, Maeda T, et al. Experimental and numerical investigation of the effect of turbulent inflow on a horizontal axis wind turbine (Part II: Wake characteristics). Energy, 2016, 113: 1304-1315 doi: 10.1016/j.energy.2016.08.018
[11]	Phuc PV, Nozu T, Kikuchi H, et al. Wind pressure distributions on buildings using the coherent structure Smagorinsky model for LES. Computation, 2018, 6(2): 32 doi: 10.3390/computation6020032
[12]	周桐, 杨庆山, 闫渤文等. 大气边界层大涡模拟入口湍流生成方法综述. 工程力学, 2020, 37(5): 15-25 (Zhou Tong, Yang Qingshan, Yan Bowen, et al. Review of inflow turbulence generation methods with large eddy simulation for atmospheric boundary layer. Engineering Mechanics, 2020, 37(5): 15-25 (in Chinese)
[13]	Fleming P, Gebraad P, van Wingerden JW, et al. SOWFA super-controller: A high-fidelity tool for evaluating wind plant control approaches//National Renewable Energy Laboratory, Golden, CO, USA, 2013
[14]	Lee S, Churchfield M, Moriarty P, et al. Atmospheric and wake turbulence impacts on wind turbine fatigue loadings//Proceedings of the 50th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, 2012: 540
[15]	Ning X, Wan D. LES study of wake meandering in different atmospheric stabilities and its effects on wind turbine aerodynamics. Sustainability, 2019, 11(24): 6939 doi: 10.3390/su11246939
[16]	白鹤鸣, 万德成, 王尼娜等. 大气边界层入流下错列排布三风机气动性能数值模拟. 水动力学研究与进展(A辑), 2021, 36(1): 10-19 (Bai Heming, Wan Decheng, Wang Nina. Numerical simulation of aerodynamic performance of three wind turbines with staggered strategies under atmospheric boundary layer flow. Chinese Journal of Hydrodynamics, 2021, 36(1): 10-19 (in Chinese)
[17]	李德顺, 郭涛, 李伟等. 中性大气边界层中风力机的湍流演化及叶根载荷分析. 科学通报, 2019, 64(17): 1832-1843 (Li Deshun, Guo Tao, Li Wei, et al. Evolution of turbulence in a wind turbine flow field with a neutral atmospheric boundary layer and an analysis of the blade root load. Chinese Science Bulletin, 2019, 64(17): 1832-1843 (in Chinese) doi: 10.1360/N972019-00213
[18]	Johlas HM, Martínez-Tossas LA, Schmidt DP, et al. Large eddy simulations of floating offshore wind turbine wakes with coupled platform motion. Journal of Physics:Conference Series, 2019, 1256(1): 012018 doi: 10.1088/1742-6596/1256/1/012018
[19]	Johlas HM, Martínez-Tossas LA, Lackner MA, et al. Large eddy simulations of offshore wind turbine wakes for two floating platform types. Journal of Physics:Conference Series, 2020, 1452(1): 012034 doi: 10.1088/1742-6596/1452/1/012034
[20]	Jonkman JM, Buhl ML. FAST User's Guide. Golden, CO, USA: National Renewable Energy Laboratory, 2005
[21]	Sørensen JN, Shen WZ. Numerical modeling of wind turbine wakes. Journal of Fluids Engineering, 2002, 124(2): 393-399 doi: 10.1115/1.1471361
[22]	Troldborg N. Actuator line modeling of wind turbine wakes. [PhD Thesis]. Denmark: Technical University of Denmark, 2008
[23]	Churchfield MJ, Lee S, Michalakes J, et al. A numerical study of the effects of atmospheric and wake turbulence on wind turbine dynamics. Journal of Turbulence, 2012, 13: N14
[24]	Jonkman J, Butterfield S, Musial W, et al. Definition of a 5-MW reference wind turbine for offshore system development//National Renewable Energy Laboratory, Golden, CO, USA, 2009
[25]	Moeng CH. A large-eddy-simulation model for the study of planetary boundary-layer turbulence. Journal of the Atmospheric Sciences, 1984, 41(13): 2052-2062 doi: 10.1175/1520-0469(1984)041<2052:ALESMF>2.0.CO;2
[26]	Cheng P, Huang Y, Wan D. A numerical model for fully coupled aero-hydrodynamic analysis of floating offshore wind turbine. Ocean Engineering, 2019, 173: 183-196 doi: 10.1016/j.oceaneng.2018.12.021
[27]	Huang Y, Cheng P, Wan D. Numerical analysis of a floating offshore wind turbine by coupled aero-hydrodynamic simulation. Journal of Marine Science and Application, 2019, 18(1): 82-92 doi: 10.1007/s11804-019-00084-8
[28]	Huang Y, Wan D. Investigation of interference effects between wind turbine and spar-type floating platform under combined wind-wave excitation. Sustainability, 2020, 12(1): 246
[29]	Yang J, Fang L, Song D, et al. Review of control strategy of large horizontal-axis wind turbines yaw system. Wind Energy, 2021, 24(2): 97-115 doi: 10.1002/we.2564
[30]	王义乾, 桂南. 第三代涡识别方法及其应用综述. 水动力学研究与进展(A辑), 2019, 34(4): 413-429 (Wang Yiqian, Gui Nan. A review of the third-generation vortex identification method and its applications. Chinese Journal of Hydrodynamics, 2019, 34(4): 413-429 (in Chinese)
