基于恒等映射多层极限学习机的高速列车踏面磨耗预测模型

王美琪 王艺 陈恩利 刘永强 刘鹏飞

王美琪, 王艺, 陈恩利, 刘永强, 刘鹏飞. 基于恒等映射多层极限学习机的高速列车踏面磨耗预测模型. 力学学报, 2022, 54(6): 1720-1731 doi: 10.6052/0459-1879-21-692
引用本文: 王美琪, 王艺, 陈恩利, 刘永强, 刘鹏飞. 基于恒等映射多层极限学习机的高速列车踏面磨耗预测模型. 力学学报, 2022, 54(6): 1720-1731 doi: 10.6052/0459-1879-21-692
Wang Meiqi, Wang Yi, Chen Enli, Liu Yongqiang, Liu Pengfei. High-speed train tread wear prediction model based on I-ML-ELM. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(6): 1720-1731 doi: 10.6052/0459-1879-21-692
Citation: Wang Meiqi, Wang Yi, Chen Enli, Liu Yongqiang, Liu Pengfei. High-speed train tread wear prediction model based on I-ML-ELM. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(6): 1720-1731 doi: 10.6052/0459-1879-21-692

基于恒等映射多层极限学习机的高速列车踏面磨耗预测模型

doi: 10.6052/0459-1879-21-692
基金项目: 国家自然科学基金(12102273, 12072205, 52072249)河北省科技计划(20310803 D)资助项目
详细信息
    作者简介:

    陈恩利, 教授, 主要研究方向: 车辆系统动力学、损伤识别与故障诊断. E-mail: chenenl@stdu.edu.cn

  • 中图分类号: TH117.1

HIGH-SPEED TRAIN TREAD WEAR PREDICTION MODEL BASED ON I-ML-ELM

  • 摘要: 针对高速列车车轮踏面磨耗单一模型无法对各种复杂工况下列车车轮踏面磨耗进行定量计算的问题, 提出一种基于恒等映射多层极限学习机的高速列车车轮踏面磨耗测量方法. 首先将恒等映射引入到多层极限学习机中, 提出一种基于恒等映射的多层极限学习机模型(identity multilayer extreme learning machine, I-ML-ELM), 采用机器学习公共数据集对该模型进行性能验证, 数值结果表明I-ML-ELM模型具有较好的准确性与泛化性; 然后基于车辆-轨道耦合动力学理论建立高速列车的车辆-轨道耦合动力学模型, 模拟列车运行的不同工况, 观测和分析高速列车的车轮踏面磨耗情况, 并通过I-ML-ELM预测模型对高速列车车轮踏面磨耗量进行学习及预测; 最后应用高速列车车轮踏面磨耗的实际测量值对I-ML-ELM预测模型进行进一步的验证, 结果表明: I-ML-ELM预测模型的各项性能参数指标在整体上优于以下五种网络: ELM, FLN, ML-ELM, ML-KELM和DLSFLN, 通过高速列车线路实测数据的进一步验证表明, 本文提出的基于I-ML-ELM的高速列车车轮踏面磨耗预测模型能较好地反映不同参数对高速列车车轮踏面磨耗值的影响规律.

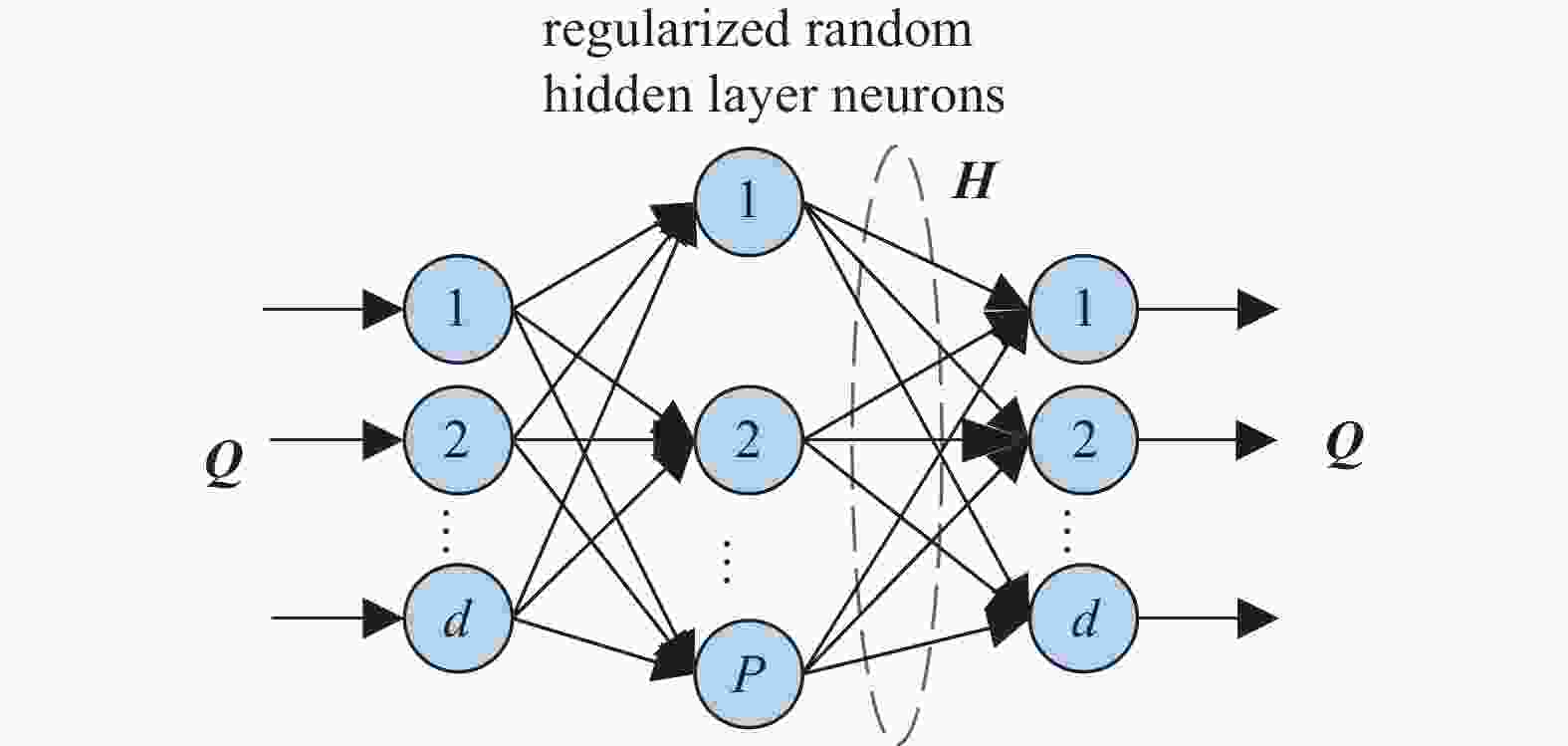

  • 图  1  ELM-AE网络结构图

    Figure  1.  Network structure diagram of ELM-AE

    图  2  I-ML-ELM网络结构图

    Figure  2.  Network structure diagram of I-ML-ELM

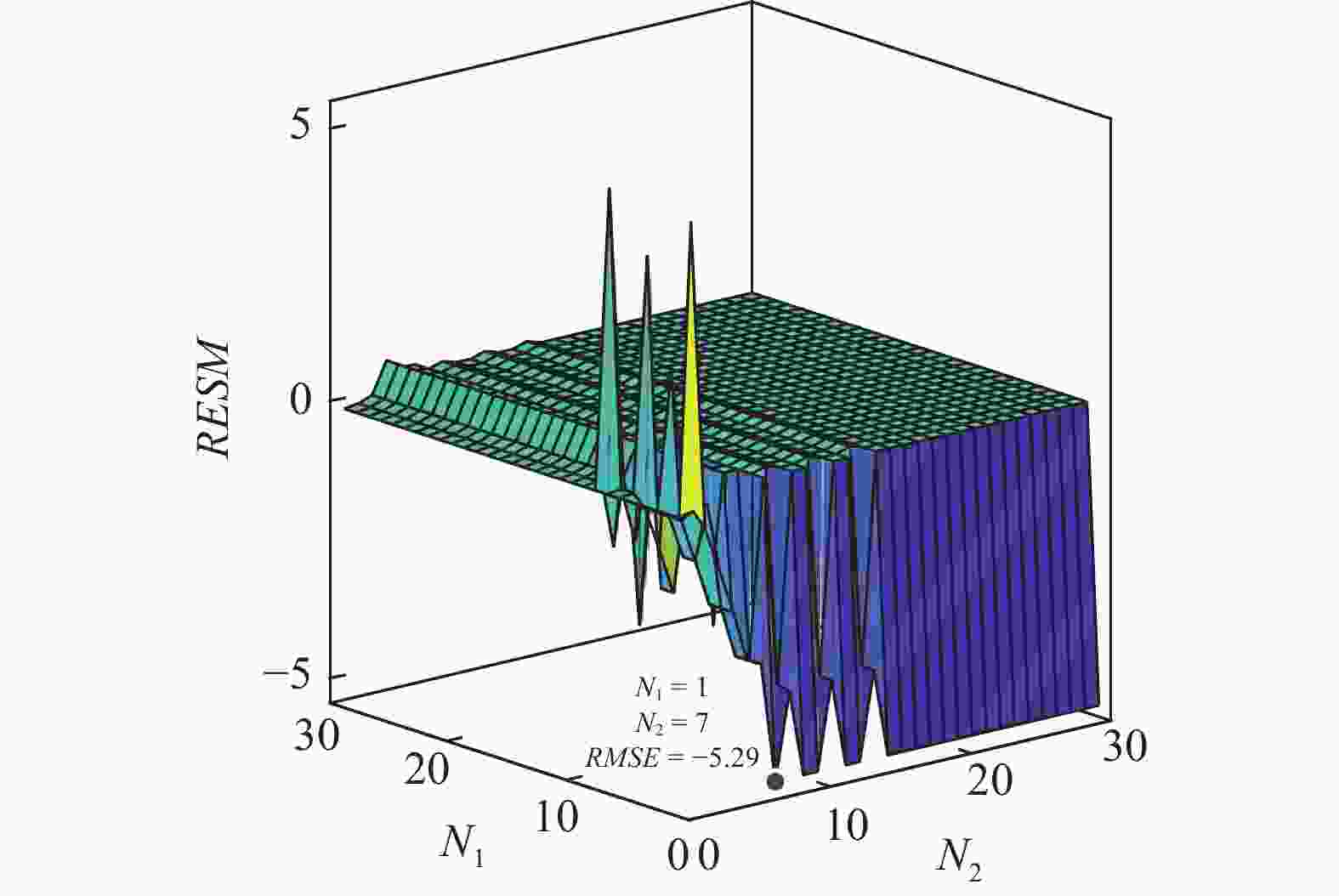

    图  3  不同隐层神经元条件下的网络回归精度变化趋势

    Figure  3.  Variation trend of network regression accuracy under different hidden layer neurons

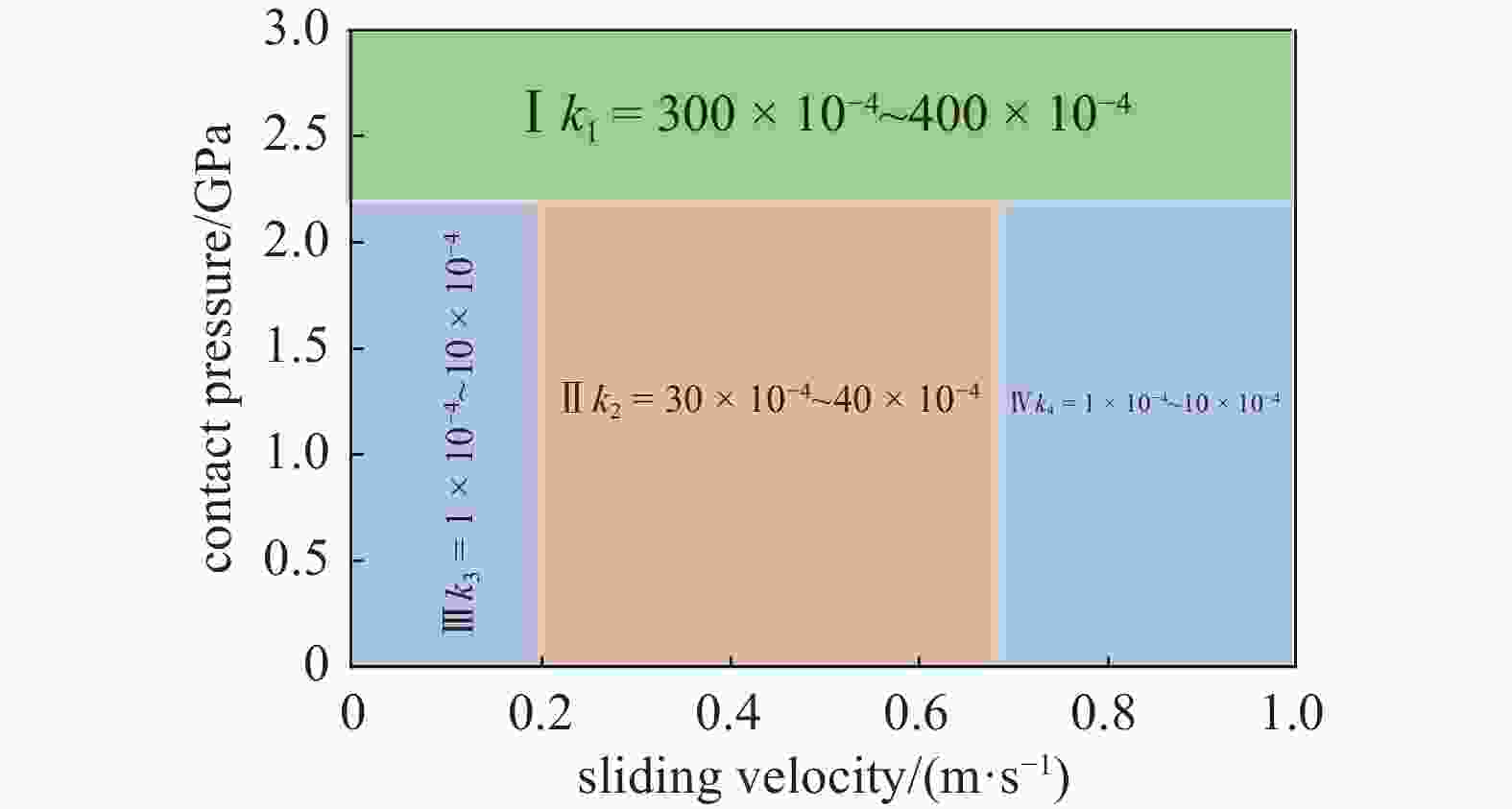

    图  4  磨耗系数分布图

    Figure  4.  Wear coefficient map

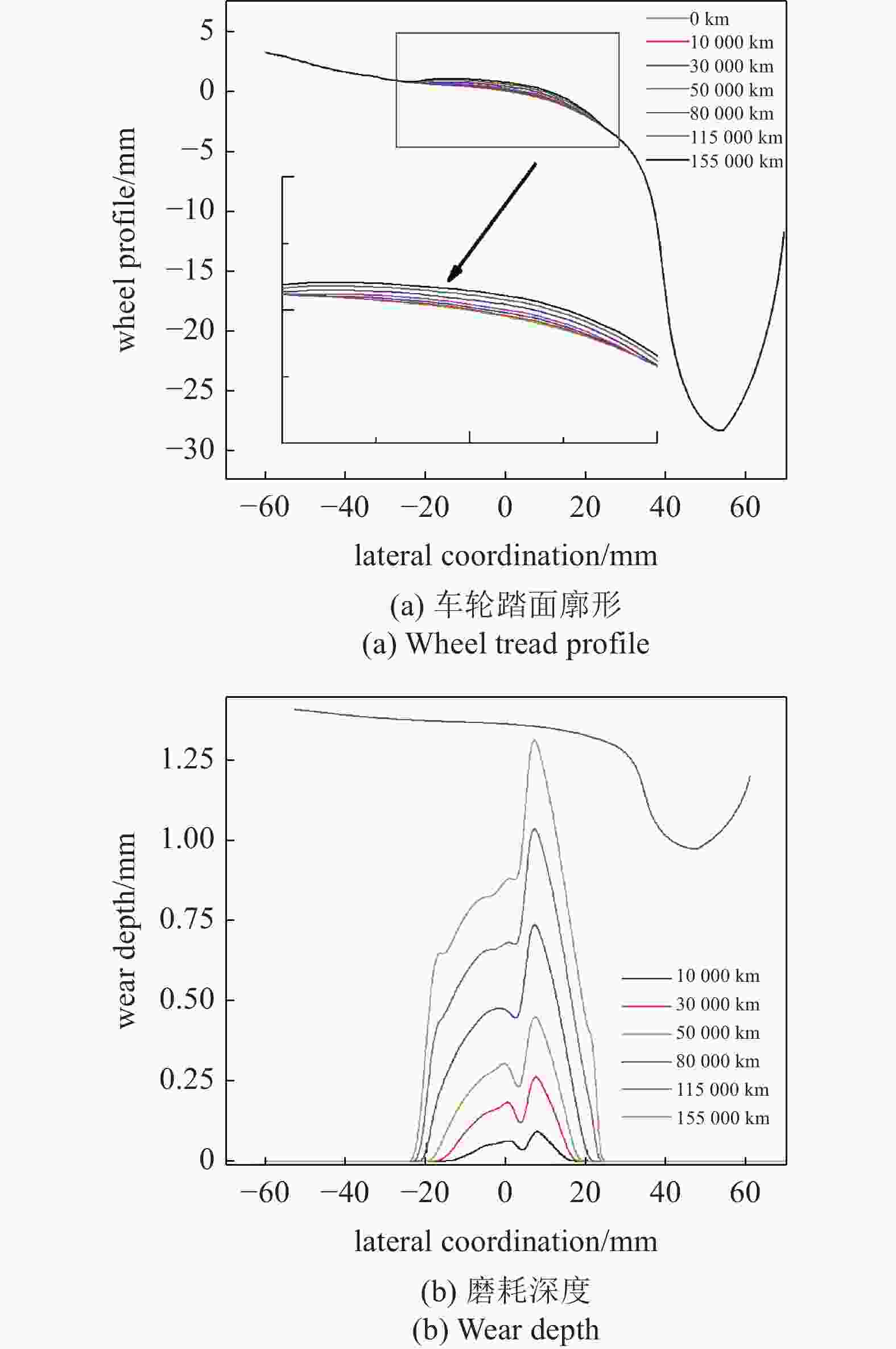

    图  5  列车运行不同里程时踏面廓形及磨耗深度

    Figure  5.  The tread profile and wear depth under different mileage of train operation

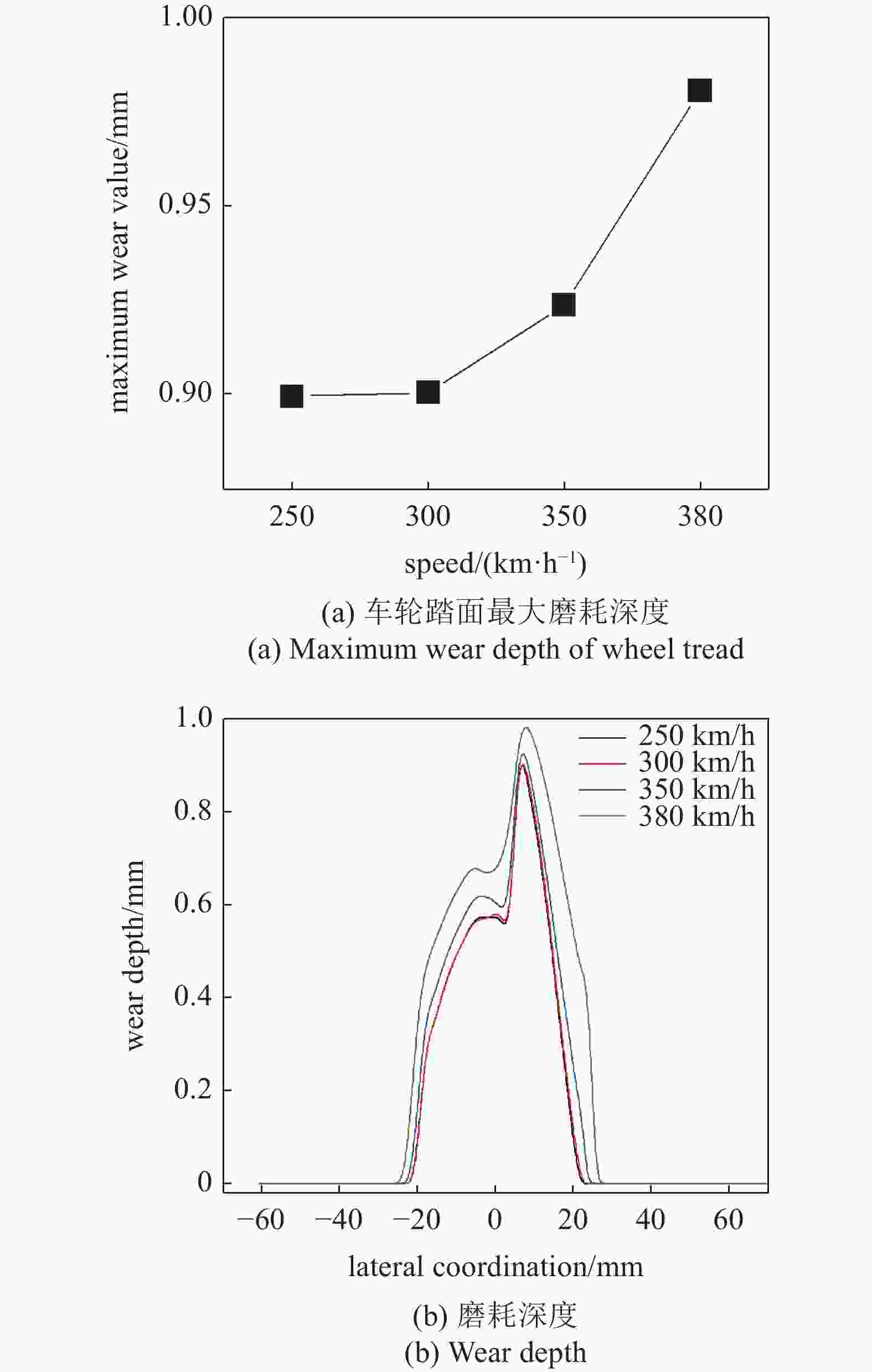

    图  6  不同车速下列车运行100000 km 磨耗深度

    Figure  6.  100000 km wear depth of train running at different speeds

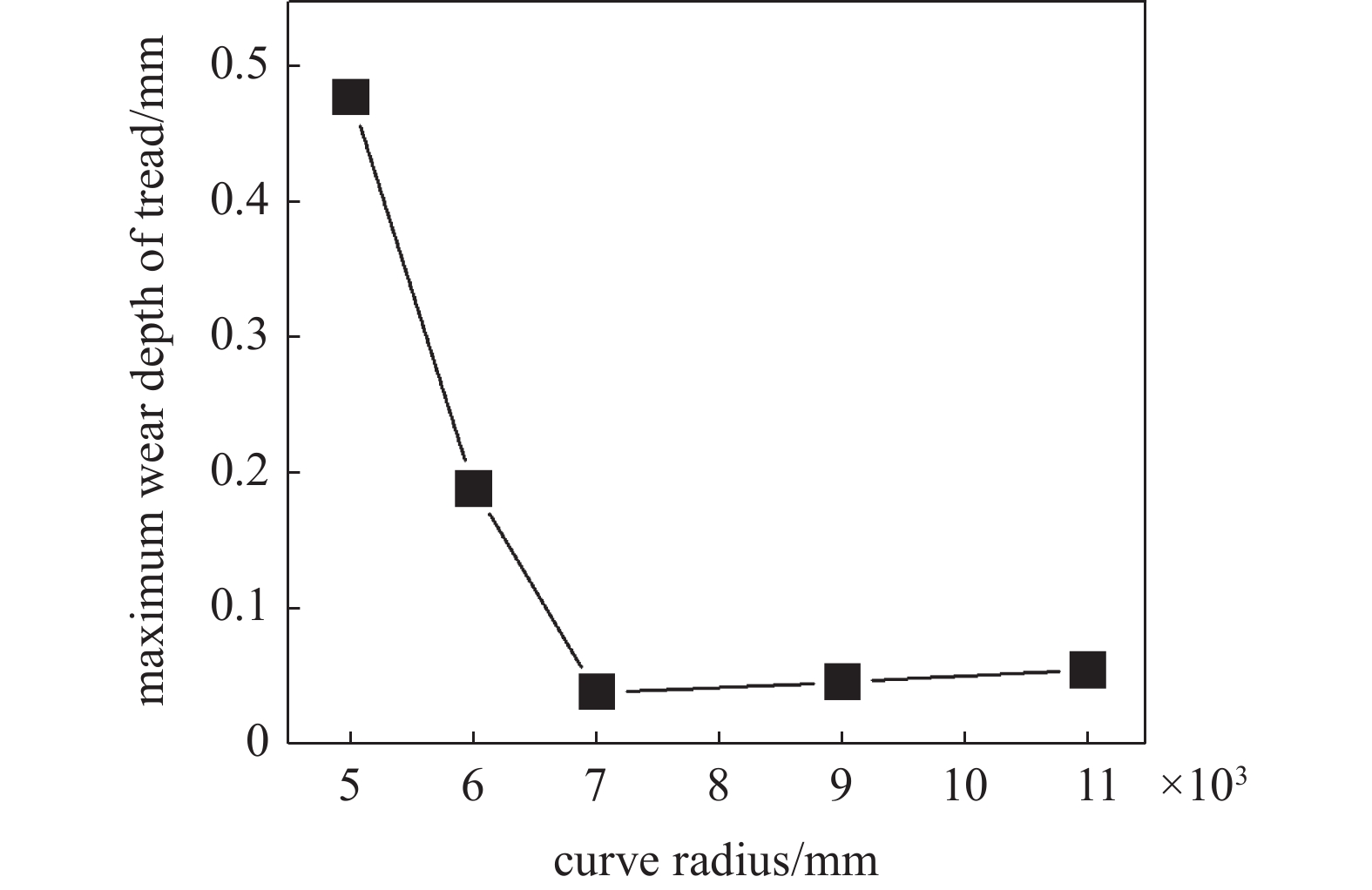

    图  7  不同曲线半径下车轮磨耗深度值

    Figure  7.  Wheel wear depth under different curve radius

    图  8  实测列车运行不同里程下车轮踏面廓形图

    Figure  8.  Measured wheel tread profile under different mileage of train operation

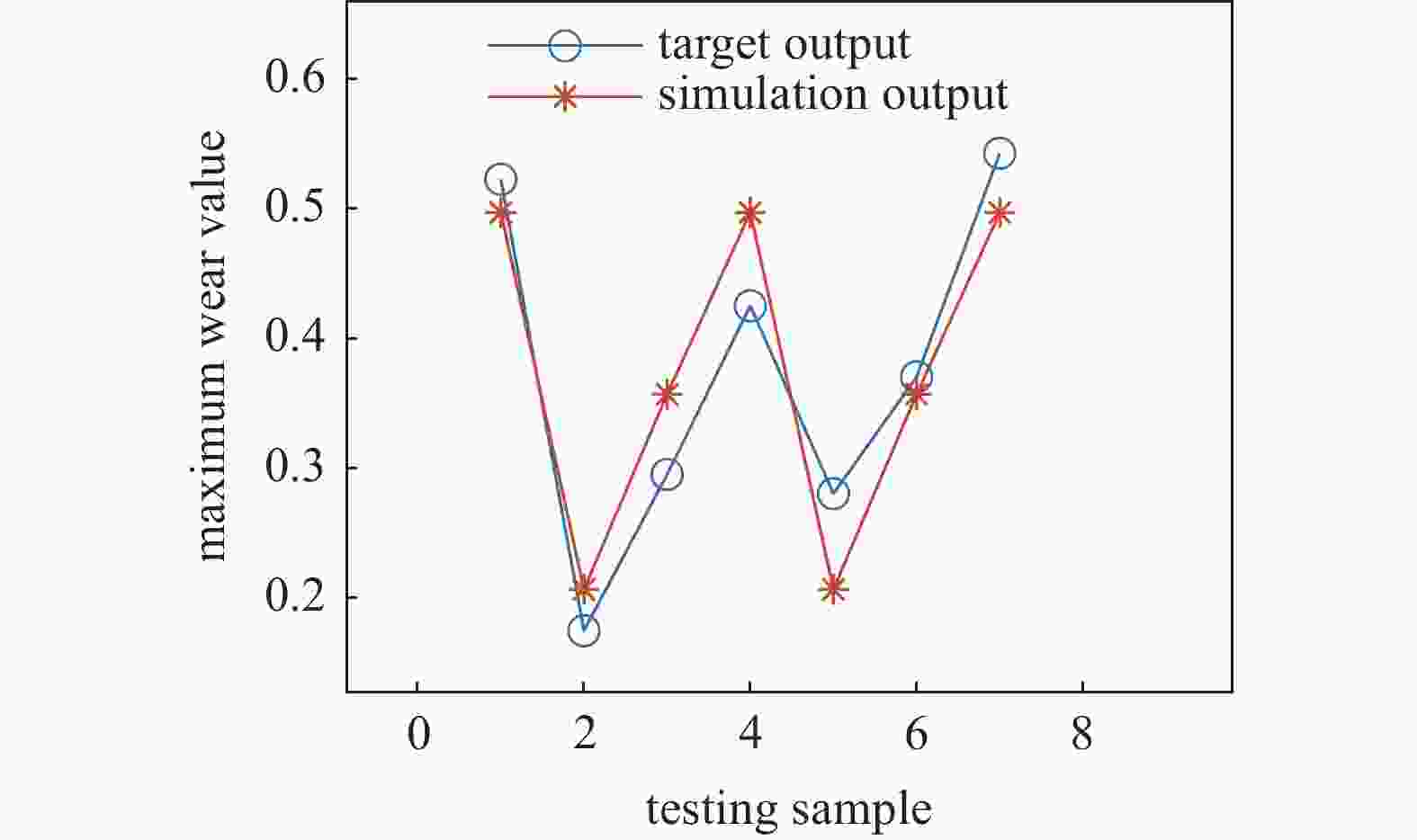

    图  9  测试样本的踏面磨耗预测值和实际测量值对比图

    Figure  9.  Comparison between predicted value and sample value of testing sample of wheel tread wear value

    表  1  数据集的基本数据信息

    Table  1.   Basic data information of data set

    Data setAttributesTraining samplesTesting samples
    machine CPU615059
    wine quality1134291469
    California housing8144486192
    estate valuation6290124
    下载: 导出CSV

    表  2  算法在不同网络下数据集RMSE值比较

    Table  2.   Obtained RMSE by different networks of the algorithm

    AlgorithmsMachine CPUWine qualityCalifornia housingEstate valuetion
    ELM0.16160.00190.17910.0011
    FLN0.41850.00190.23080.0011
    DLSFLN127.870.0016195.630.0012
    ML-ELM0.06520.00190.22690.0017
    ML-KELM0.05680.00180.24680.0018
    I-ML-ELM0.03220.00150.13990.0012
    下载: 导出CSV

    表  3  算法在不同网络下数据集MAXE值比较

    Table  3.   Obtained MAXE by different networks of the algorithm

    AlgorithmsMachine CPUWine qualityCalifornia housingEstate valuation
    ELM0.90520.03877.99920.0049
    FLN2.40280.034014.11350.0052
    DLSFLN982.190.00941.53 × 1040.0052
    ML-ELM0.26650.00770.75080.0058
    ML-KELM0.25150.00650.60280.0060
    I-ML-ELM0.12840.00721.26380.0048
    下载: 导出CSV

    表  4  算法在不同网络下数据集MAPE值比较

    Table  4.   Obtained MAPE by different networks of the algorithm

    AlgorithmsMachine CPUWine qualityCalifornia housingEstate valuation
    ELM0.68510.10290.28370.1502
    FLN0.84690.10360.29210.0011
    DLSFLN17.25610.09949.50980.1649
    ML-ELM1.24940.10820.53940.2583
    ML-KELM1.04520.10550.55800.2946
    I-ML-ELM0.56840.09000.28310.1764
    下载: 导出CSV

    表  5  算法在不同网络下数据集MAE值比较

    Table  5.   Obtained MAE by different networks of the algorithm

    AlgorithmsMachine CPUWine qualityCalifornia housingEstate valuation
    ELM0.05860.00130.10908.13 × 10−4
    FLN0.11590.00130.10948.08 × 10−4
    DLSFLN16.70330.00132.58879.13 × 10−4
    ML-ELM0.04500.00140.18131.30 × 10−3
    ML-KELM0.03790.00140.19231.40 × 10−3
    I-ML-ELM0.02340.00110.10239.36 × 10−4
    下载: 导出CSV

    表  6  算法在不同网络下数据集的测试时间(s)比较

    Table  6.   Data test time (s) comparison of the algorithm under different networks

    AlgorithmsMachine CPUWine qualityCalifornia housingEstate valuation
    ML-ELM0.63600.81331.22360.7140
    ML-KELM0.00290.52960.24680.0025
    I-ML-ELM0.00280.00340.00430.0029
    下载: 导出CSV

    表  7  高速列车主要参数

    Table  7.   Basic parameters of high-speed vehicle

    NameSpecification
    car body mass/kg33766
    length between bogie centers/m17.5
    frame mass/kg2280
    wheelset mass/kg1901.8
    running circle diameter/m0.86
    wheelset semibase/m1.493
    下载: 导出CSV

    表  8  不同网络模型在仿真数据下的性能参数

    Table  8.   Performance parameters of different network models under simulation data

    AlgorithmsRMSEMAXEMAPEMAE
    ELM0.09500.2000165.01500.0702
    FLN0.11080.2529279.53500.0826
    DLSFLN0.03550.185020.37850.0158
    ML-ELM0.00210.003412.23210.0019
    ML-KELM0.00180.00600.29460.0014
    I-ML-ELM2.111 × 10−45.5786 × 10−40.47811.6527 × 10−4
    下载: 导出CSV

    表  9  不同模型在现场数据下的性能参数

    Table  9.   Performance parameters of different algorithms under field data

    AlgorithmsRMSEMAXEMAPEMAE
    ELM0.00550.01020.23430.0046
    FLN0.00550.01020.23430.0046
    DLSFLN0.00550.01020.23430.0046
    ML-ELM0.01010.01710.34560.0081
    ML-KELM0.01060.01780.36140.0087
    I-ML-ELM0.00320.00470.15390.0029
    下载: 导出CSV
  • [1] 丁叁叁, 陈大伟, 刘加利. 中国高速列车研发与展望. 力学学报, 2021, 53(1): 35-50 (Ding Sansan, Chen Dawei, Liu Jiali. Research, development and prospect of China high-speed train. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(1): 35-50 (in Chinese)

    Ding Sansan, Chen Dawei, Liu Jiali. Research, development and prospect of China high-speed train. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(1): 35-50 (in Chinese)
    [2] 许磊, 程道来, 许聪等. 350 km/h动车组车轮磨耗对动力学影响研究. 科学技术与工程, 2020, 20(17): 7046-7051 (Xu Lei, Cheng Daolai, Xu Cong, et al. Effect of wheel wear on dynamics performance of 350 km/h EMU. Science Technology and Engineering, 2020, 20(17): 7046-7051 (in Chinese) doi: 10.3969/j.issn.1671-1815.2020.17.050

    Xu Lei, Cheng Daolai, Xu Cong, et al. Effect of wheel wear on dynamics performance of 350 km/h EMU. Science Technology and Engineering, 2020, 20(17): 7046-7051 (in Chinese) doi: 10.3969/j.issn.1671-1815.2020.17.050
    [3] 曾元辰, 张卫华, 宋冬利. 高速列车踏面凹形磨耗及其动力学影响规律. 铁道机车车辆, 2018, 38(4): 5-9 (Zeng Yuanchen, Zhang Weihua, Song Dongli. Wheel profile concave wear and its effect law on vehicle dynamics of high-speed trains. Railway Locomotive & Car, 2018, 38(4): 5-9 (in Chinese) doi: 10.3969/j.issn.1008-7842.2018.04.02

    Zeng Yuanchen, Zhang Weihua, Song Dongli. Wheel profile concave wear and its effect law on vehicle dynamics of high-speed trains. Railway Locomotive & Car, 2018, 38(4): 5-9 (in Chinese) doi: 10.3969/j.issn.1008-7842.2018.04.02
    [4] Archard JF. Contact and rubbing of flat Surfaces. Journal of Applied Physics, 1953, 24(8): 981-988 doi: 10.1063/1.1721448
    [5] Chudzikiewicz A. Modeling of wheel and rail wear. The Archives of Transport, 2001, 13: 5-24
    [6] Krause H, Poll G. Wear of wheel-rail surfaces. Wear, 1986, 113(1): 103-122 doi: 10.1016/0043-1648(86)90060-8
    [7] Mcewen IJ, Harvey RF. Full-scale wheel-on-rail wear testing: Comparisons with service wear and a developing theoretical predictive method. Lubrication Engineering, 1985, 41(2): 80-88
    [8] 陶功权, 李霞, 邓永果等. 基于车辆横向运动稳定性的车轮磨耗寿命预测. 机械工程学报, 2013, 49(10): 28-34 (Tao Gongquan, Li Xia, Deng Yongguo, et al. Wheel wear life prediction based on lateral motion stability of vehicle system. Journal of Mechanical Engineering, 2013, 49(10): 28-34 (in Chinese) doi: 10.3901/JME.2013.10.028

    Tao Gongquan, Li Xia, Deng Yongguo, et al. Wheel wear life prediction based on lateral motion stability of vehicle system. Journal of Mechanical Engineering, 2013, 49(10): 28-34 (in Chinese) doi: 10.3901/JME.2013.10.028
    [9] 吴娜, 曾京. 高速车辆轮轨接触几何关系及车轮磨耗疲劳研究. 中国铁道科学, 2014, 35(4): 80-87 (Wu Na, Zeng Jing. Investigation into wheel-rail contact geometry relationship and wheel wear fatigue of high-speed vehicle. China Railway Science, 2014, 35(4): 80-87 (in Chinese) doi: 10.3969/j.issn.1001-4632.2014.04.12

    Wu Na, Zeng Jing. Investigation into wheel-rail contact geometry relationship and wheel wear fatigue of high-speed vehicle. China Railway Science, 2014, 35(4): 80-87 (in Chinese) doi: 10.3969/j.issn.1001-4632.2014.04.12
    [10] 孙丽霞, 李晓峰, 胡晓依等. 高速动车组车轮磨耗对轮轨接触关系及车辆动力学性能的影响. 中国铁道科学, 2020, 41(6): 117-126 (Sun Lixia, Li Xiaofeng, Hu Xiaoyi, et al. Influence of wheel wear on wheel-rail contact relationship and vehicle dynamic performance of high-speed EMU. China Railway Science, 2020, 41(6): 117-126 (in Chinese) doi: 10.3969/j.issn.1001-4632.2020.06.13

    Sun Lixia, Li Xiaofeng, Hu Xiaoyi, et al. Influence of wheel wear on wheel-rail contact relationship and vehicle dynamic performance of high-speed EMU. China Railway Science, 2020, 41(6): 117-126 (in Chinese) doi: 10.3969/j.issn.1001-4632.2020.06.13
    [11] 谢晨月, 袁泽龙, 王建春等. 基于人工神经网络的湍流大涡模拟方法. 力学学报, 2021, 53(1): 1-16 (Xie Chenyue, Yuan Zelong, Wang Jianchun, et al. Artificial neural network-based subgrid-scale models for large-eddy simulation of turbulence. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(1): 1-16 (in Chinese)

    Xie Chenyue, Yuan Zelong, Wang Jianchun, et al. Artificial neural network-based subgrid-scale models for large-eddy simulation of turbulence. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(1): 1-16 (in Chinese)
    [12] 汪运鹏, 杨瑞鑫, 聂少军等. 基于深度学习技术的激波风洞智能测力系统研究. 力学学报, 2020, 52(5): 1304-1313 (Wang Yunpeng, Yang Ruixin, Nie Shaojun, et al. Deep-learning-based intelligent force measurement system using in a shock tunnel. Chinese Journal of Theoretical and Applied Mechanics, 2020, 52(5): 1304-1313 (in Chinese)

    Wang Yunpeng, Yang Ruixin, Nie Shaojun, et al. Deep-learning-based intelligent force measurement system using in a shock tunnel. Chinese Journal of Theoretical and Applied Mechanics, 2020, 52(5): 1304-1313 (in Chinese)
    [13] 梁乃生, 脱友才, 邓云等. 基于主成分分析与支持向量机的渠道闸前冰输移与堆积判别模型. 力学学报, 2021, 53(3): 703-713 (Liang Naisheng, Tuo Youcai, Deng Yun, et al. Classification model of ice transport and accumulation in front of channel gates based on PCA-SVM. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(3): 703-713 (in Chinese)

    Liang Naisheng, Tuo Youcai, Deng Yun, et al. Classification model of ice transport and accumulation in front of channel gates based on PCA-SVM. Chinese Journal of Theoretical and Applied Mechanics. 2021, 53(3): 703-713 (in Chinese)
    [14] 曹蕾蕾, 朱旺, 武建华等. 基于人工神经网络的声子晶体逆向设计. 力学学报, 2021, 53(7): 1992-1998 (Cao Leilei, Zhu Wang, Wu Jianhua, et al. Inverse design of phononic crystals by artificial neural networks. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(7): 1992-1998 (in Chinese)

    Cao Leilei, Zhu Wang, Wu Jianhua, et al. Inverse design of phononic crystals by artificial neural networks. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(7): 1992-1998 (in Chinese)
    [15] 张珍, 叶舒然, 岳杰顺等. 基于组合神经网络的雷诺平均湍流模型多次修正方法. 力学学报, 2021, 53(6): 1532-1542 (Zhang zhen, Ye Shuran, Yue Jieshun, et al. A combined neural network and multiple modification strategy for Reynolds-averaged Navier-Stokes turbulence modeling. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(6): 1532-1542 (in Chinese)

    Zhang zhen, Ye Shuran, Yue Jieshun, et al. A combined neural network and multiple modification strategy for Reynolds-averaged Navier-Stokes turbulence modeling. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(6): 1532-1542 (in Chinese)
    [16] Lei Z, Zhou Y, Sun B, et al. An intrinsic timescale decomposition-based kernel extreme learning machine method to detect tool wear conditions in the milling process. The International Journal of Advanced Manufacturing Technology, 2020, 106: 1-4 doi: 10.1007/s00170-019-04744-5
    [17] Nakai ME, Aguiar PR, Guillardi HJ, et al. Evaluation of neural models applied to the estimation of tool wear in the grinding of advanced ceramics. Expert Systems with Applications, 2015, 42(20): 7026-7035 doi: 10.1016/j.eswa.2015.05.008
    [18] 姜涵文, 高亮, 安博伦等. 基于神经网络的钢轨磨耗与通过总重关联关系的预测方法. 铁道学报, 2021, 43(10): 75-83 (Jiang Hanwen, Gao Liang, An Bolun, et al. A neural network-based prediction approach of relationship between rail wear and gross traffic tonnage. Journal of the China Railway Society, 2021, 43(10): 75-83 (in Chinese)

    Jiang Hanwen, Gao Liang, An Bolun, et al. A neural network-based prediction approach of relationship between rail wear and gross traffic tonnage, Journal of the China Railway Society, 2021, 43(10): 75-83 (in Chinese)
    [19] 程泽华. 基于人工神经网络的MATLAB接触线磨耗预测模型研究. [硕士论文]. 北京: 中国铁道科学研究院, 2018

    Cheng Zehua. Research on contact wire wear predicting model by using MATLAB based on artificial neural network. [Master Thesis]. Beijing: China Academy of Railway Sciences, 2018 (in Chinese)
    [20] Zhang Y, Zhang JW, Luo L, et al. Optimization of LMBP high-speed railway wheel size prediction algorithm based on improved adaptive differential evolution algorithm. International Journal of Distributed Sensor Networks, 2019, 15(10): 1-9
    [21] Wang SW, Yan H, Liu CX, et al. Analysis and prediction of high-speed train wheel wear based on SIMPACK and backpropagation neural networks. Expert Systems, 2021, 38(7): e12417
    [22] Huang GB, Zhu QY, Siew CK. Extreme learning machine: Theory and applications. Neurocomputing, 2006, 70(1-3): 489-501 doi: 10.1016/j.neucom.2005.12.126
    [23] Kapil BS. On extreme learning machine for ε-insensitive regression in the primal by Newton method. Neural Computing and Applications, 2013, 22(3-4): 559-567 doi: 10.1007/s00521-011-0798-9
    [24] Gao Z, Hu QG, Xu XY. Condition monitoring and life prediction of the turning tool based on extreme learning machine and transfer learning. Neural Computing and Applications, 2022, 34(5): 3399-3410
    [25] 丁世飞, 张楠, 史忠植. 拉普拉斯多层极速学习机. 软件学报, 2013, 22(3-4): 559-567 (Ding Shifei, Zhang Nan, Shi Zhongzhi. Laplacian multilayer extreme learning machine. Journal of Software, 2013, 22(3-4): 559-567 (in Chinese)

    Ding Shifei, Zhang Nan, Shi Zhongzhi. Laplacian multilayer extreme learning machine. Journal of Software, 2013, 22(3-4): 559-567 (in Chinese)
    [26] Dwivedi V, Srinivasan B. Physics informed extreme learning machine (PIELM)–A rapid method for the numerical solution of partial differential equations. Neurocomputing, 2020, 391: 96-118 doi: 10.1016/j.neucom.2019.12.099
    [27] Kasun LLC, Zhou HM, Huang GB, et al. Representational learning with extreme learning machine for big data. IEEE Intelligent System, 2013, 28(6): 31-34
    [28] Shebani A, Iwnicki S. Prediction of wheel and rail wear under different contact conditions using artificial neural networks. Wear, 2018, 406-407: 173-184 doi: 10.1016/j.wear.2018.01.007
    [29] Hinton GE, Salakhutdinov RR. Reducing the dimensionality of data with neural networks. Science, 2006, 313(5786): 504-507 doi: 10.1126/science.1127647
    [30] Jendel T. Prediction of wheel profile wear—Comparisons with field measurements. Wear, 2002, 253(1): 89-99
    [31] Piotrowski J, Kik W. A simplified model of wheel/rail contact mechanics for non-Hertzian problems and its application in rail vehicle dynamic simulations. Vehicle System Dynamics, 2008, 46(1-2): 27-48 doi: 10.1080/00423110701586444
