ENERGY SAVING MECHANISM OF HYDRODYNAMIC COLLECTIVE BEHAVIOR OF MULTIPLE FLEXIBLE BEAMS IN V FORMATION
-
摘要: V型排列是自然界中常见的动物(如大雁等迁徙性鸟类)集群模式, 普遍推测该模式可以有效地降低能耗, 然而目前没有研究给出相关的直接数据证据. 开展其节能机理研究有助于提升对集群自然现象的认知水平, 为集群仿生应用打下基础. 本文采用基于Fluent二次开发的数值方法求解多个柔性体−流体介质相互作用的流固耦合问题, 其中流体动力学方程采用有限体积法进行求解, 柔性体动力学控制方程通过用户自定义模块(UDF)嵌入, 并采用模态叠加法和4阶龙格库塔法求解, 流固交界面形变使用动网格技术处理. 实现了多个自推进二维柔性梁自主形成V型集群运动过程的数值模拟, 并将得到的推进性能参数(平均速度, 输入功率和效率)与单独自推进柔性体的数据进行对比. 研究发现: 该V型集群运动中不仅后排柔性梁的速度和推进效率得到提升, 领头柔性梁性能也得到大幅提升, 增幅均超过14%. 此外, 对V型集群运动的流场细节(涡量和压力云图)开展分析, 揭示了多柔性梁V型集群行为产生的原因和节能的内在机理, 特别是对领头柔性梁的节能机理进行了阐述.Abstract: The phenomenon of aggregation of animals in V formation is ubiquitous in our daily life, such as bird flocks in migration. It is commonly recognized that this collective mode helps to save energy of the group. However, little direct evidence is given. Research on the energy saving mechanism of this collective behavior can not only help to improve the understanding of nature secret, but also lay a foundation for its bionic application. In this paper, a simulation method developed based on Fluent is adopted to solve this fluid-structure interaction problem of hydrodynamic collective behavior of multiple flexible beams in V formation. Specifically, finite volume method is used to simulate the flow field, governing equations of Euler-Bernoulli beam are complemented through user-defined function, and then solved by the mode superposition method and fourth-order Runge-Kutta method. Dynamic mesh technique is adopted to trace the coupling interface between flow field and structural field. The hydrodynamic aggregations of multiple (three or five) self-propelled 2D flexible beams in V configuration are simulated. Three propulsive properties (mean velocity, input power and efficiency) of beams in V formation are compared with the corresponding data of single self-propelled beam. It is found that not only the following beams in V formation possess the promotion of mean velocity and propulsive efficiency, the performance of leading beam also increases, and the growing rate surpasses 14%. Those data provide the direct evidence of energy saving in the collective behavior of V formation. In addition, in order to find out the mechanism of the formation of hydrodynamic aggregation behavior and the reason of the energy saving of beams (especially the leading beam) in V formation, the obtained flow details (vortices contour and pressure contour) are analyzed.
-

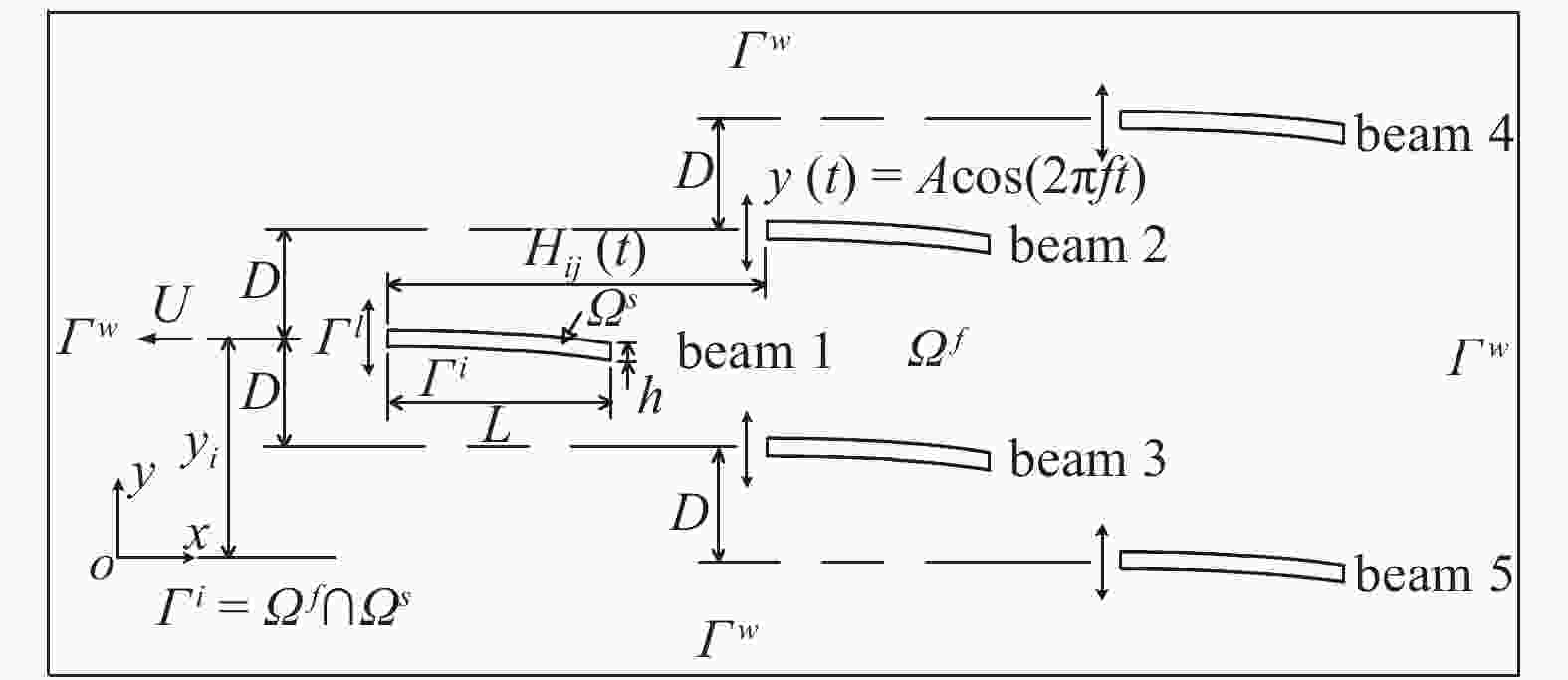

图 1 多个柔性体自推进V型排列计算模型示意图
Figure 1. Schematic of multiple self-propelled flexible beams in V configuration

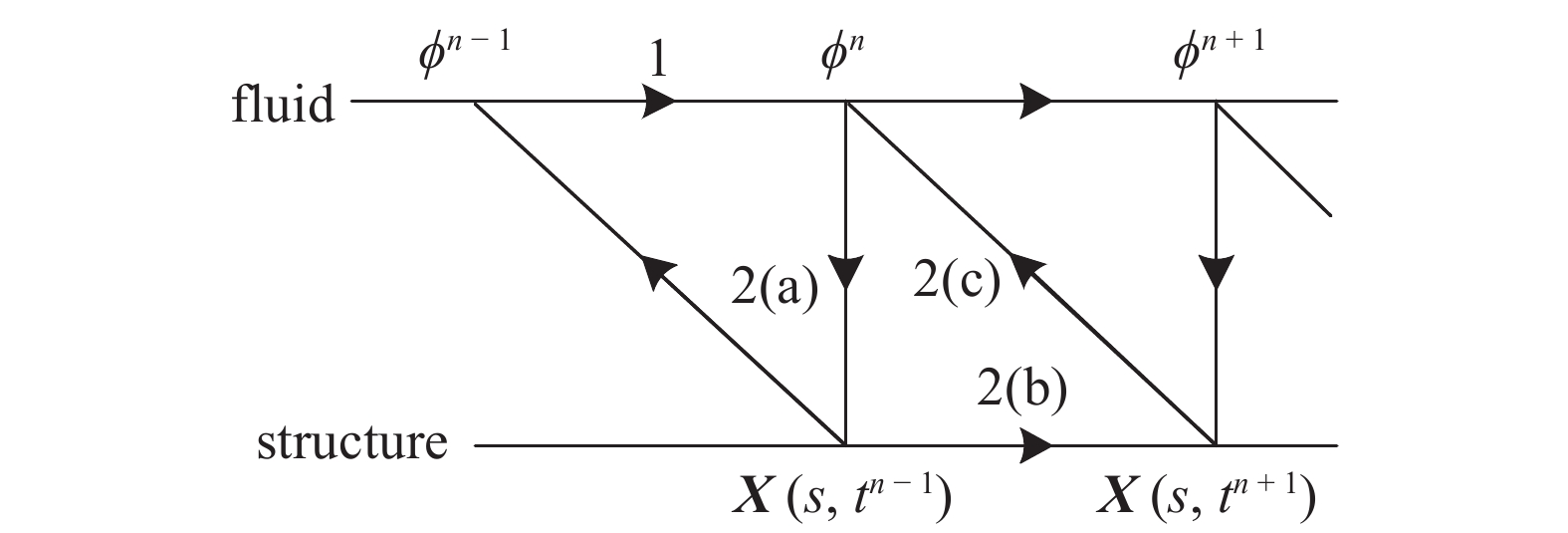

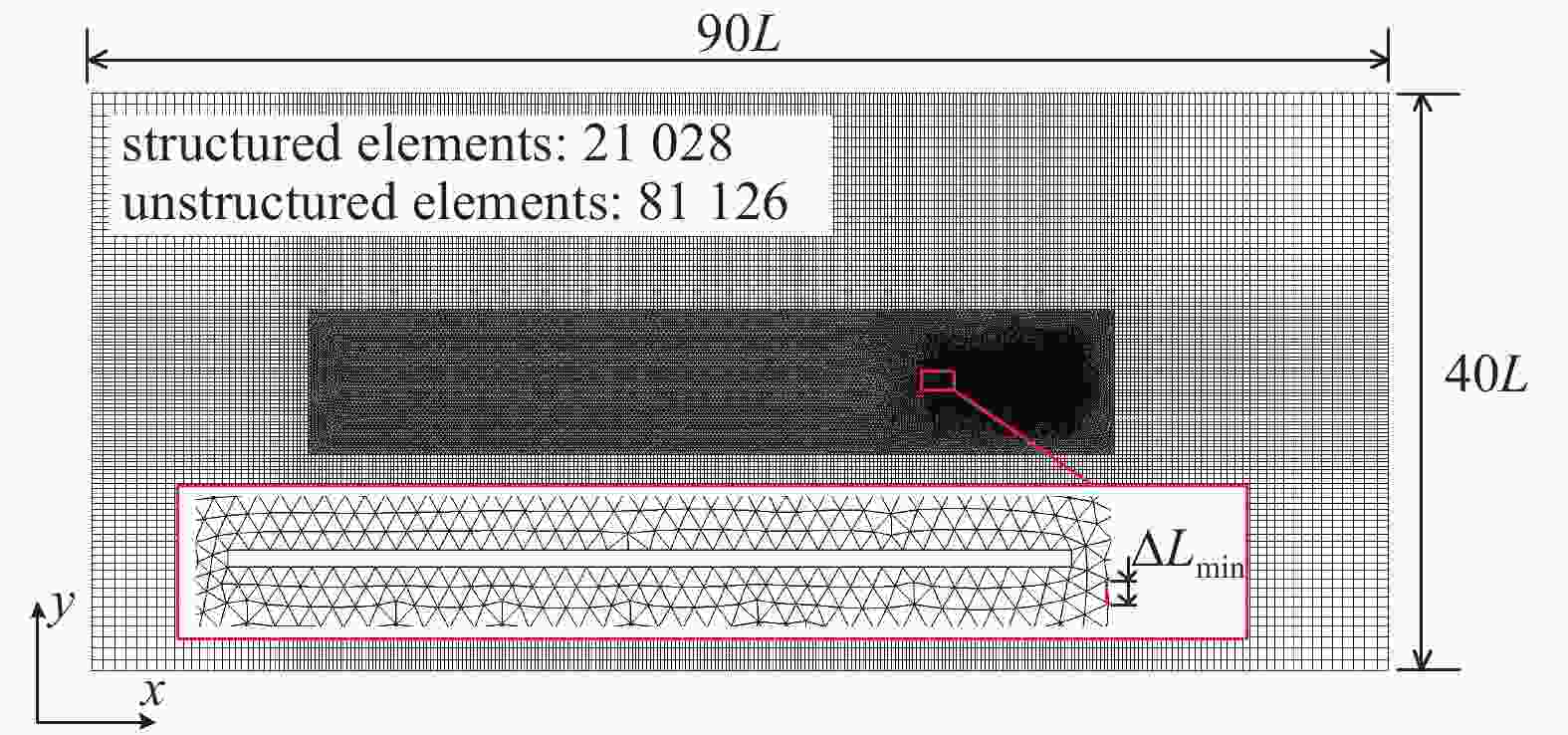

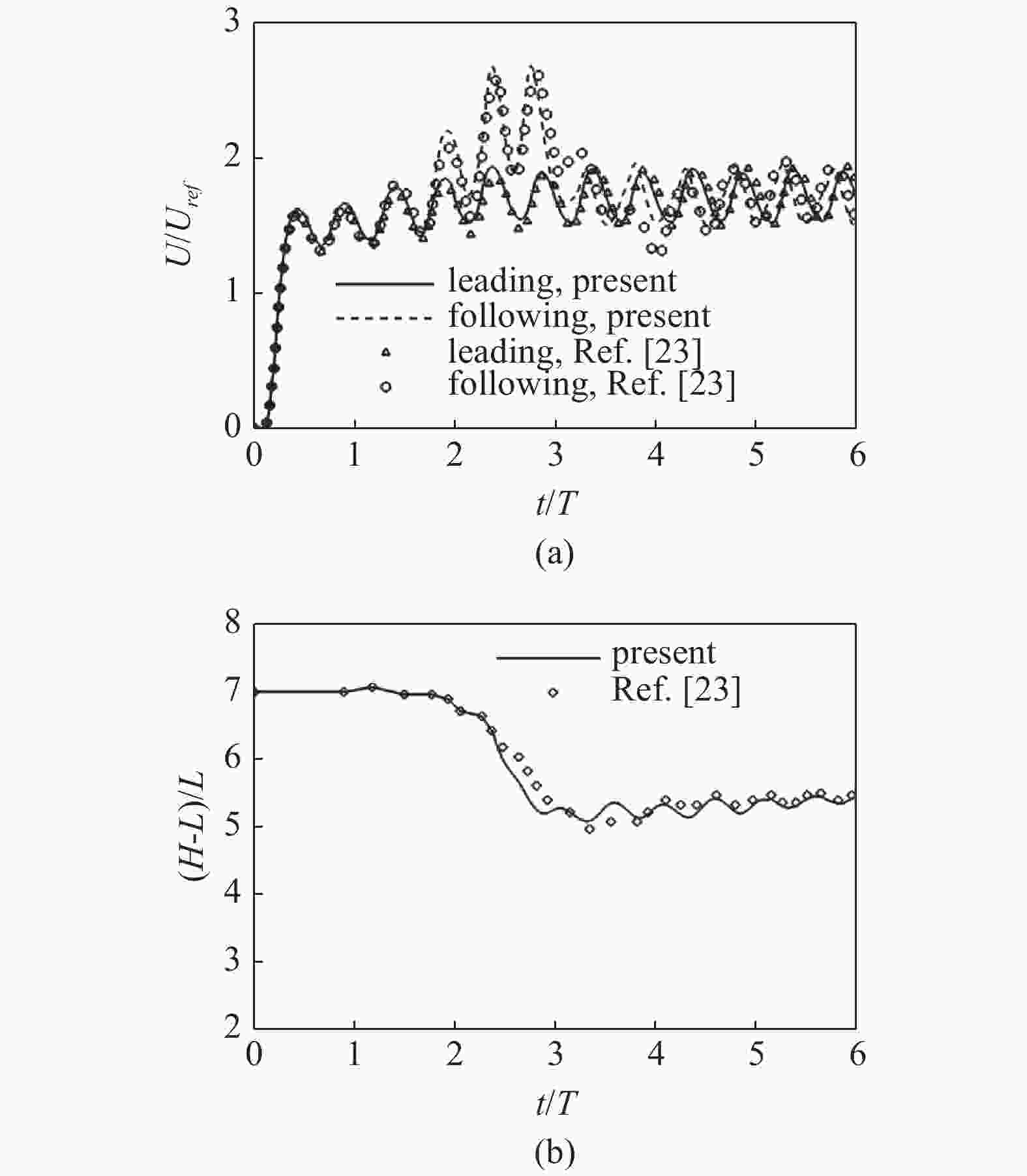

图 4 纵向排列柔性梁导边运动参数时历曲线对比: (a) 水平运动速度; (b) 纵向间距
Figure 4. Comparison of time history of (a) streamwise velocity and (b) longitudinal separation distance of two tandem beams between the present solutions and Ref. [23]

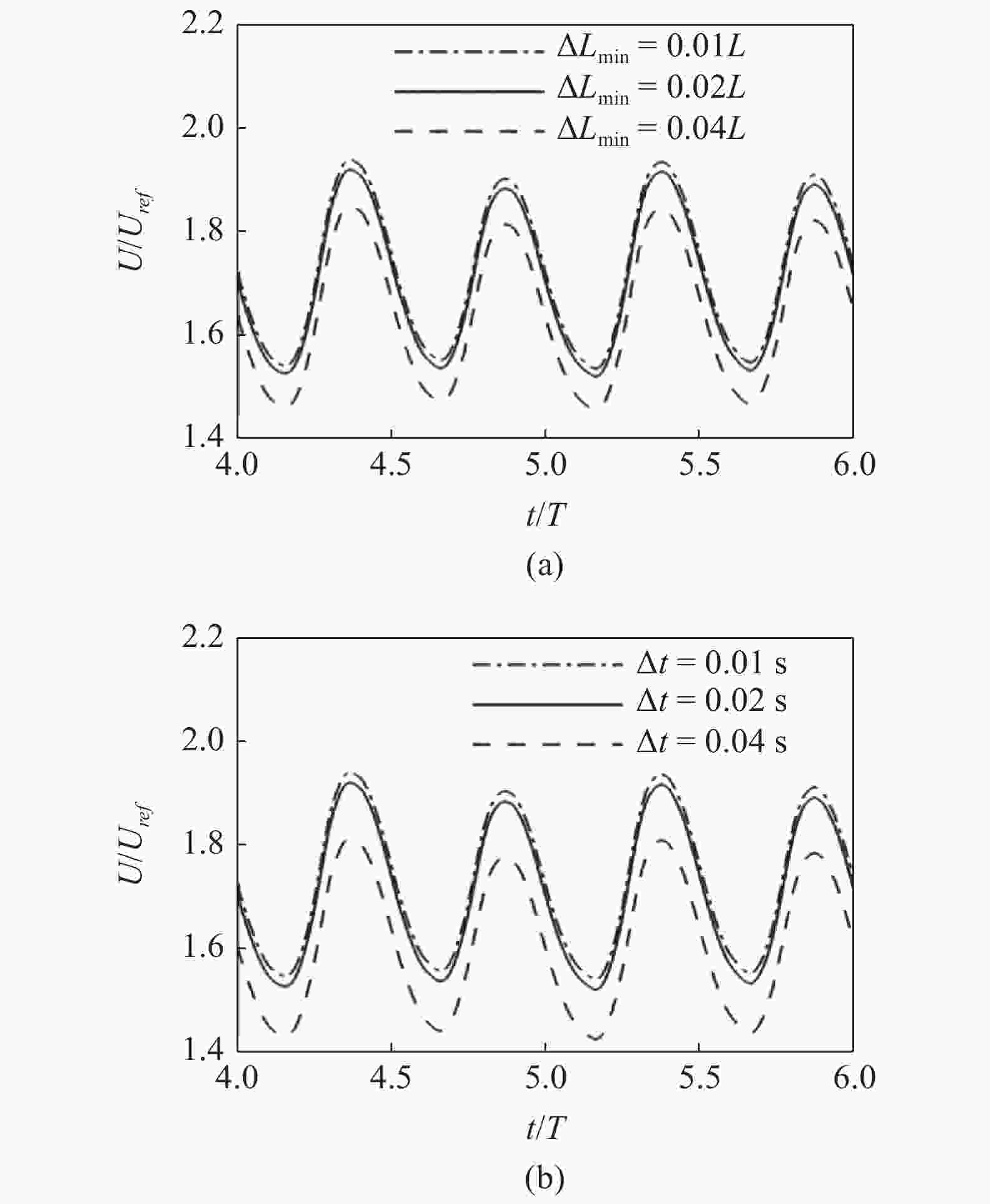

5 柔性梁导边水平运动速度时历曲线对比: (a) 网格无关性分析; (b) 时间步长无关性分析; (c) 模态截断分析
5. Comparison of streamwise velocity curves of the leading edge in (a) grid independence study, (b) time-step independence study, and (c) mode truncation study

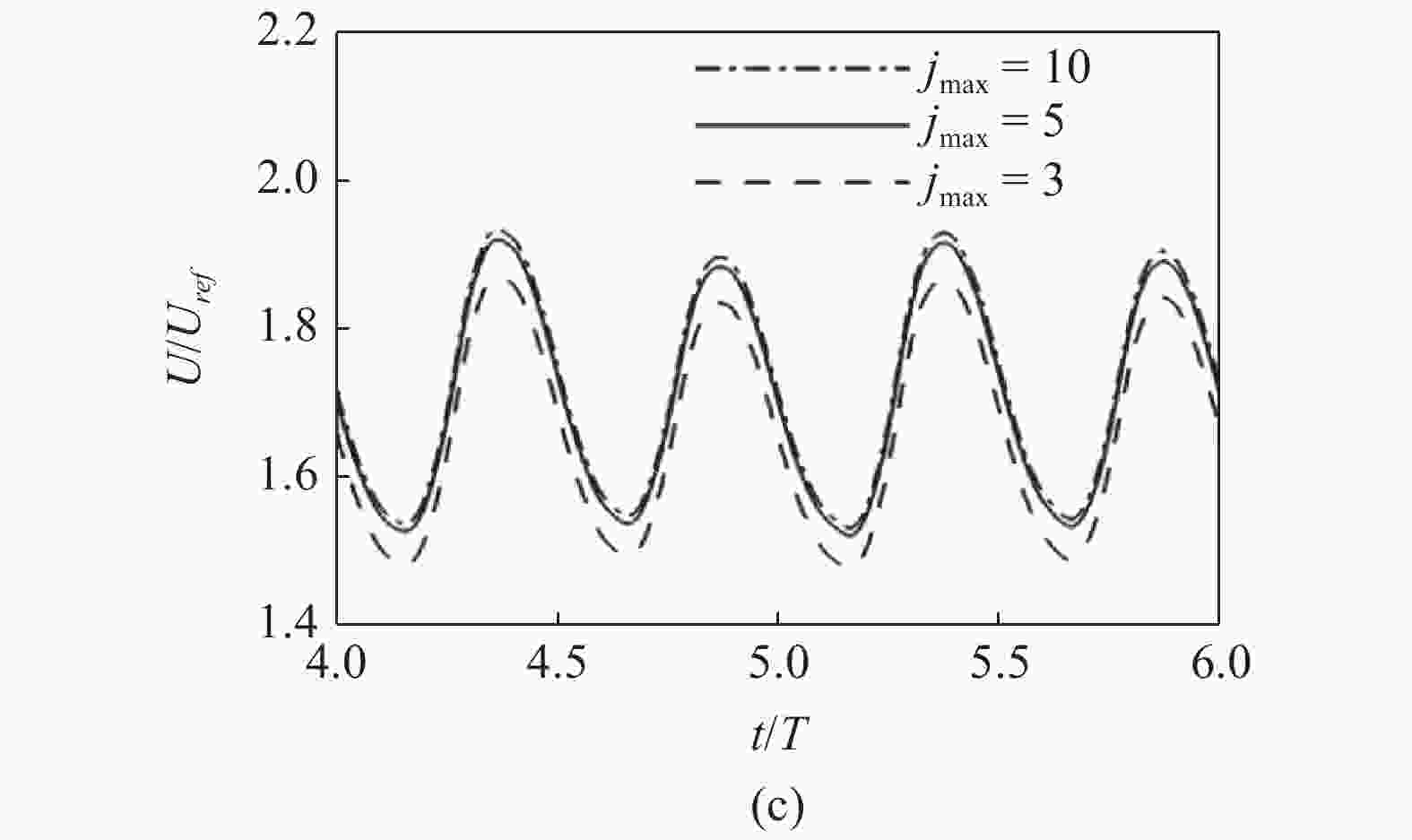

5 柔性梁导边水平运动速度时历曲线对比: (a) 网格无关性分析; (b) 时间步长无关性分析; (c) 模态截断分析(续)
5. Comparison of streamwise velocity curves of the leading edge in (a) grid independence study, (b) time-step independence study, and (c) mode truncation study (continued)

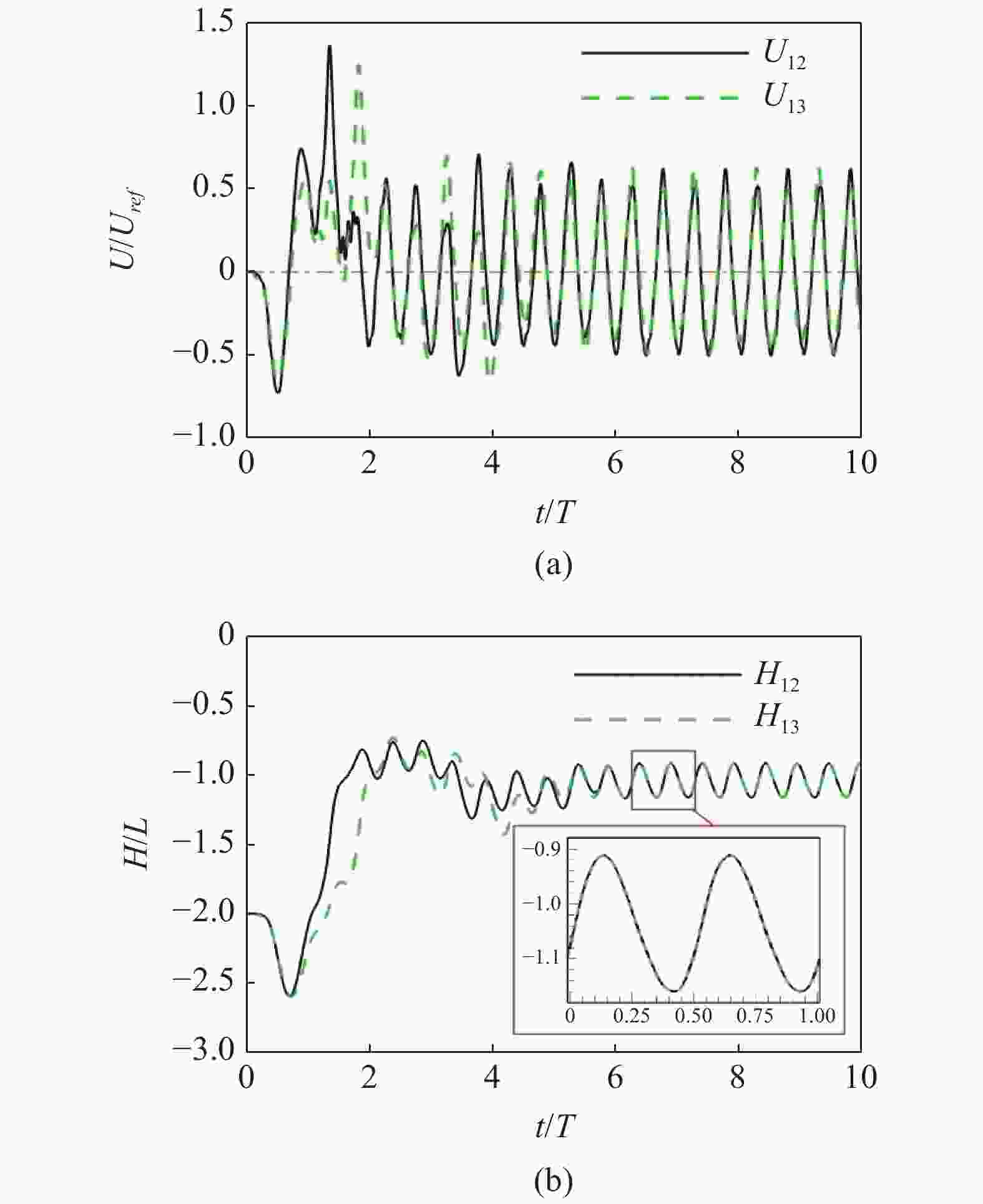

图 6 3个柔性梁V型排列运动参数时历曲线: (a) 速度差值Uij(t) = ui(t)−uj(t); (b) 纵向间距Hij(t) = Xi(s = 0, t)−Xj(s = 0, t) (i, j = 1, 2, 3)
Figure 6. Time history of (a) velocity difference Uij(t) = ui(t)−uj(t), and (b) longitudinal separation distance Hij(t) = Xi(s = 0, t)−Xj(s = 0, t) (i, j = 1, 2, 3) of three beams in V configuration

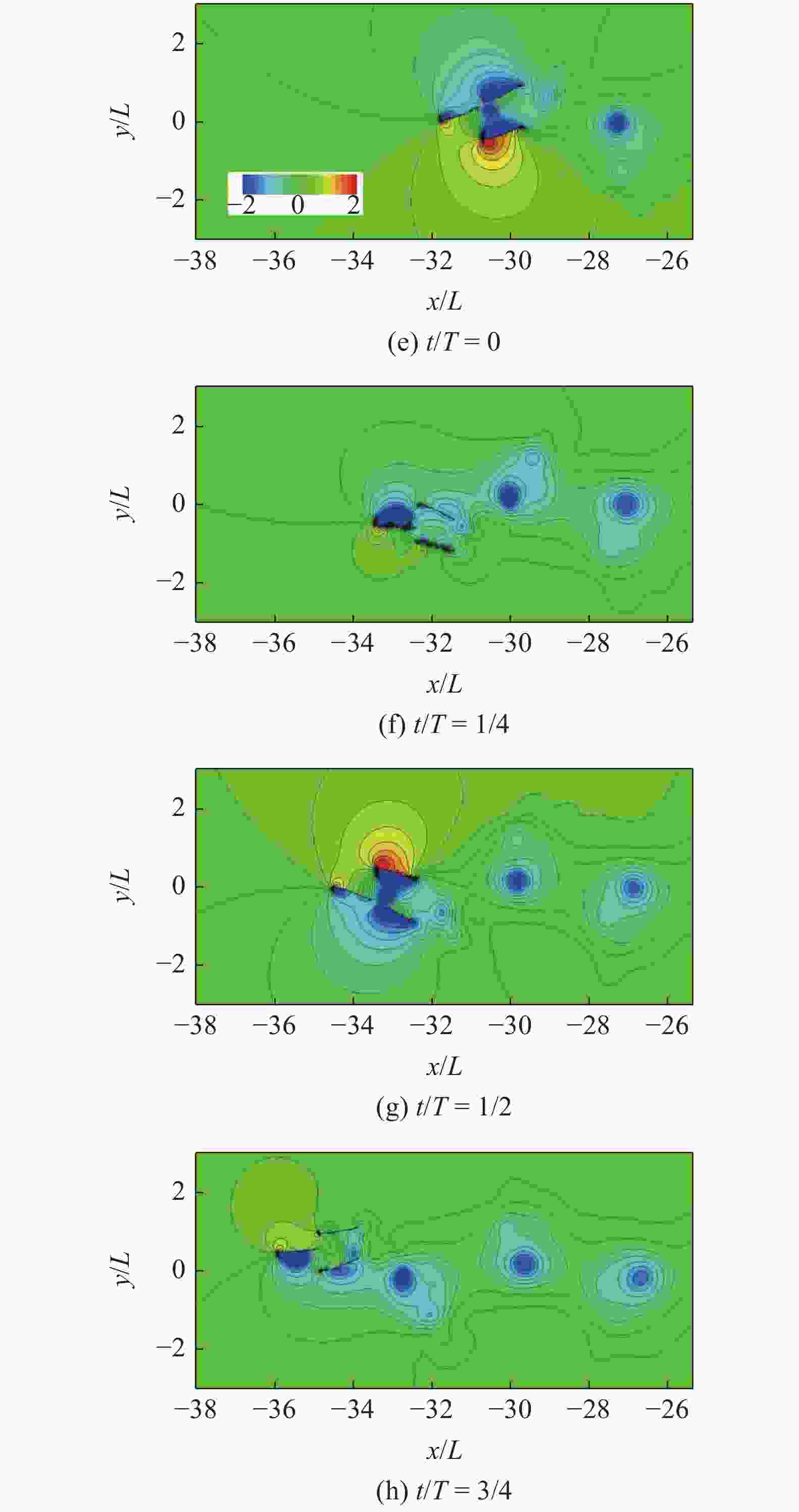

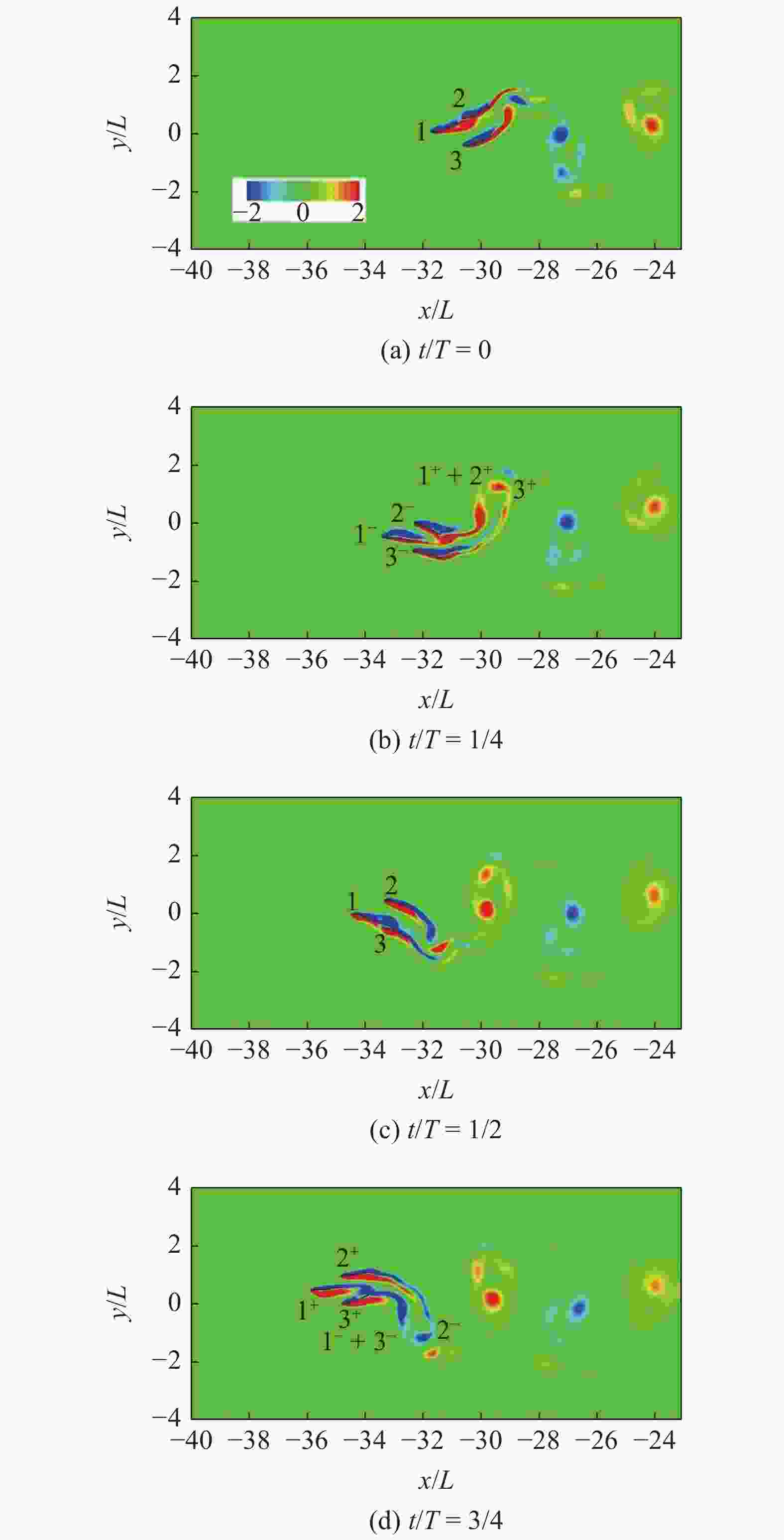

7 3个柔性梁V型排列流场细节图: (a~d) 涡量云图; (e~h) 压力云图. 特征值ωref=Uref /L和pref=ρf
$U_{ref}^2 $ 分别被用来无因次化计算得到的涡量和压力7. Fluid details: (a~d) vortices contour and (e~h) pressure contour of three beams in V configuration. The vortices and pressures are normalized by ωref=Uref /L, pref=ρf
$U_{ref}^2 $ , respectively

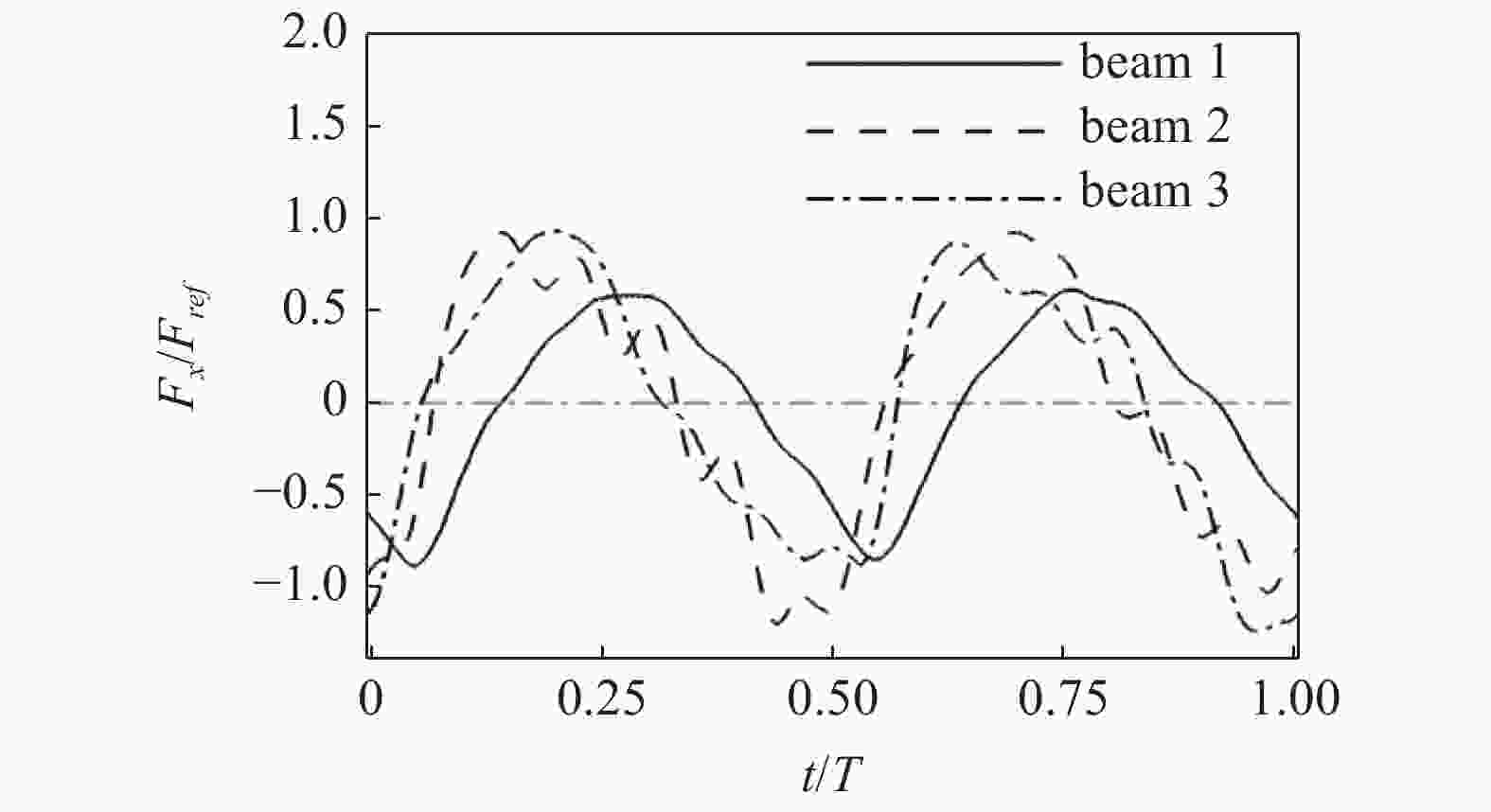

图 8 3个柔性梁水平受力时历曲线, 特征值Fref=(1/2)ρf
$U_{ref}^2{L}$ 被用来无因次化计算得到的合力Figure 8. Hydrodynamic force experienced by three flexible beams in the horizontal direction during one heaving motion period. The forces are normalized by Fref=(1/2)ρf
$U_{ref}^2{L}$

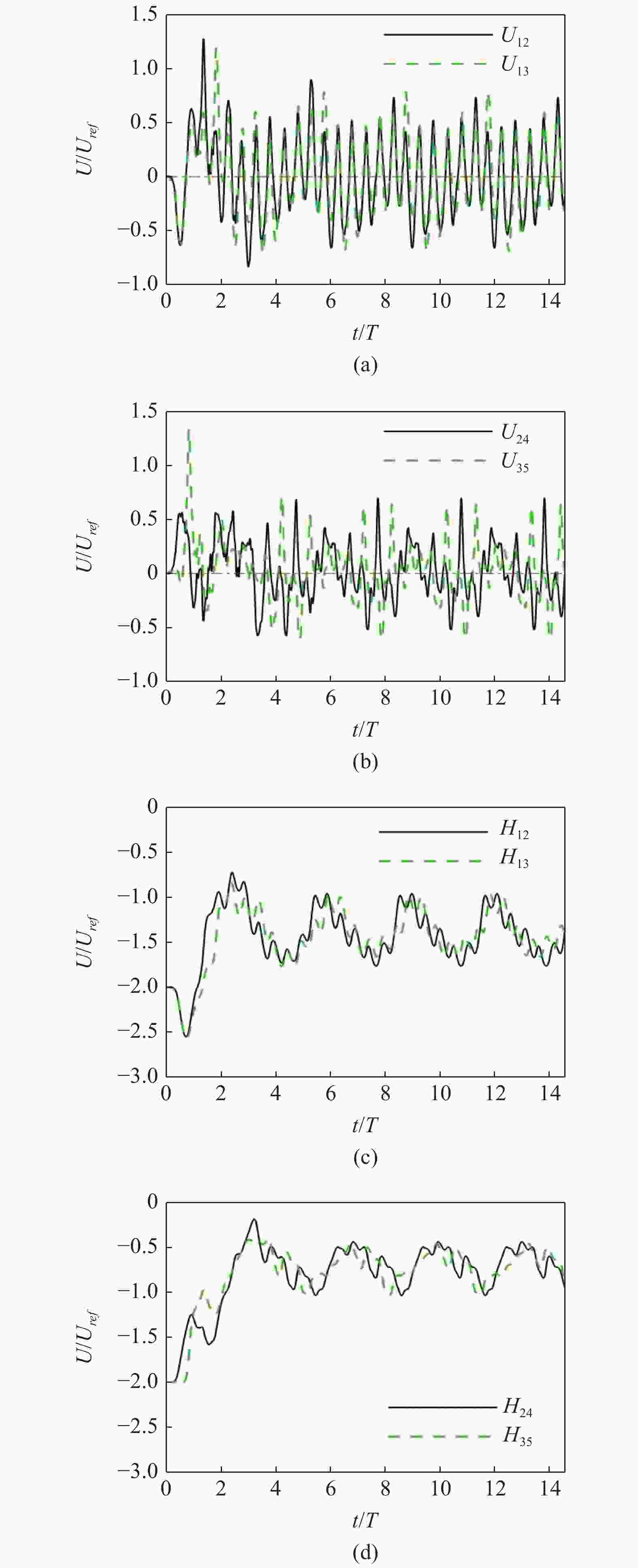

图 9 5个柔性梁V型排列运动参数时历曲线: (a, b) 速度差值Uij(t) = ui(t)−uj(t); (c, d) 纵向间距Hij(t) = Xi(s = 0, t)−Xj(s = 0, t) (i, j = 1, 2, 3, 4, 5)
Figure 9. Time history of (a, b) velocity difference Uij(t) = ui(t)−uj(t), and (c, d) longitudinal separation distance Hij(t) = Xi(s = 0, t)−Xj(s = 0, t) (i, j = 1, 2, 3, 4, 5) of five beams in V configuration

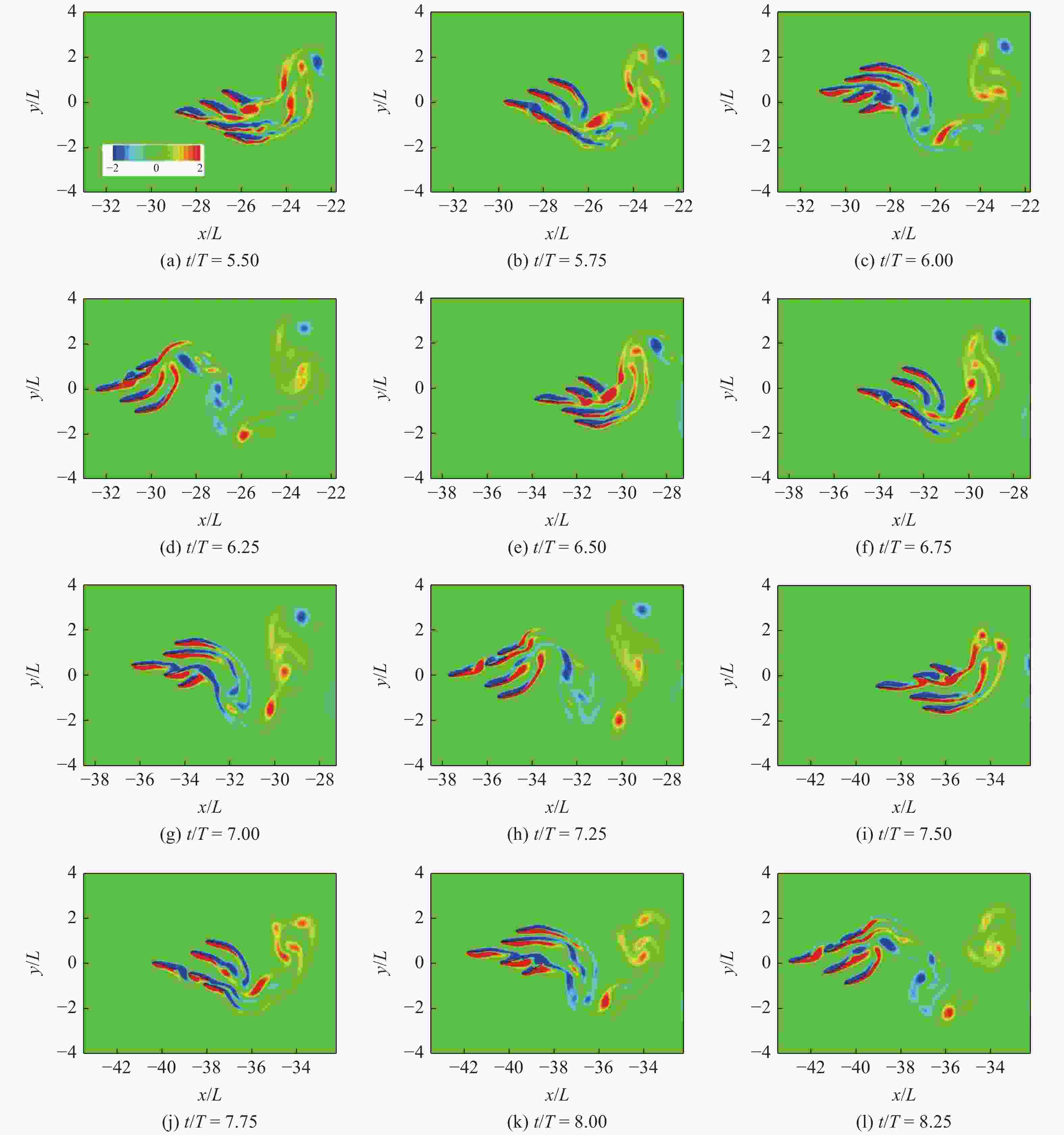

图 10 5个柔性梁V型排列流场涡量云图. 特征值ωref = Uref /L被用来无因次化计算得到的涡量
Figure 10. Vortices contour of five beams in V configuration. The vortices are normalized by ωref = Uref /L

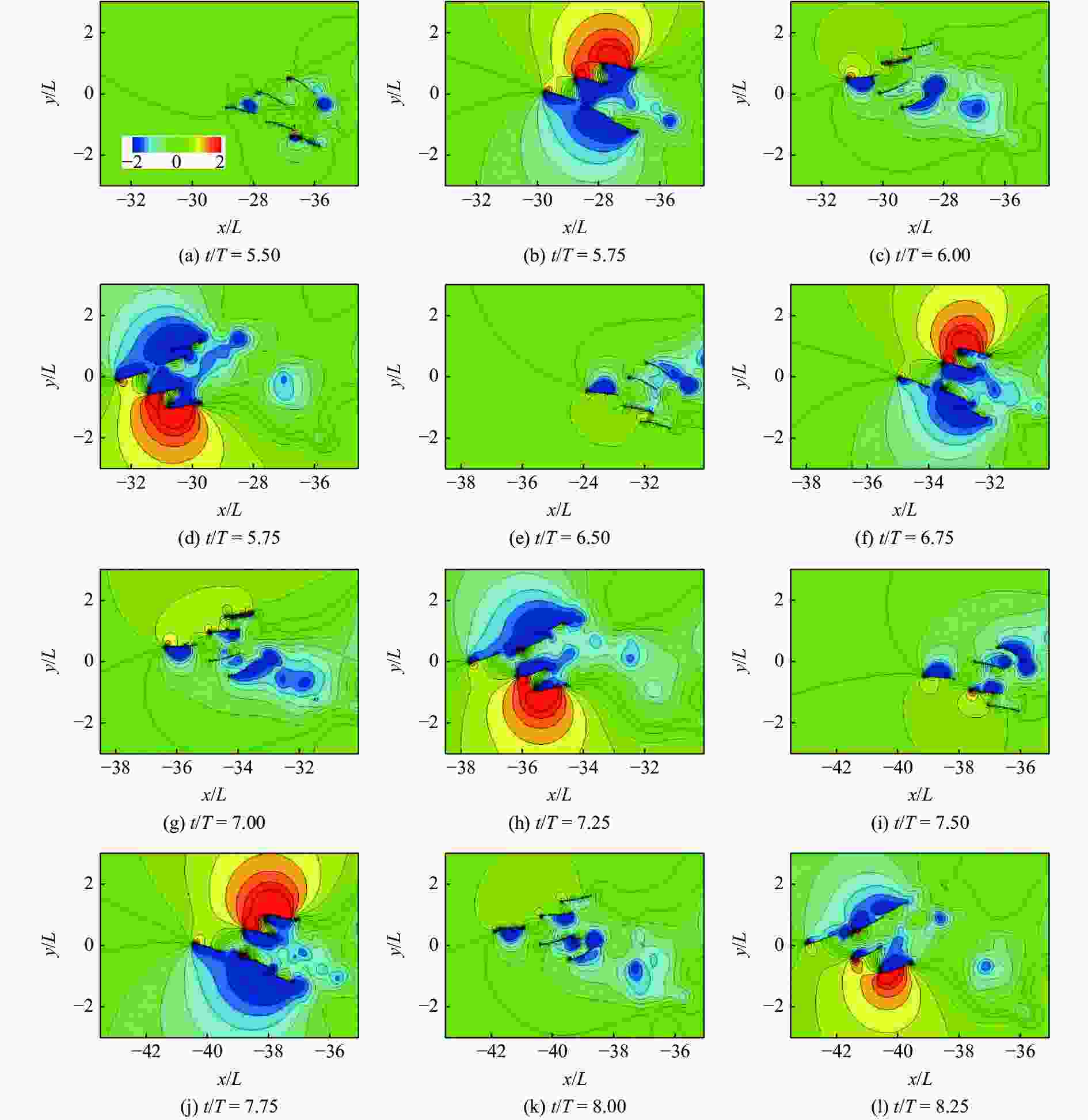

图 11 5个柔性梁V型排列流场压力云图. 特征值pref = ρf
$U_{ref}^2 $ 被用来无因次化计算得到的压力Figure 11. Pressure contour of five beams in V configuration. The pressures are normalized by pref = ρf
$U_{ref}^2 $

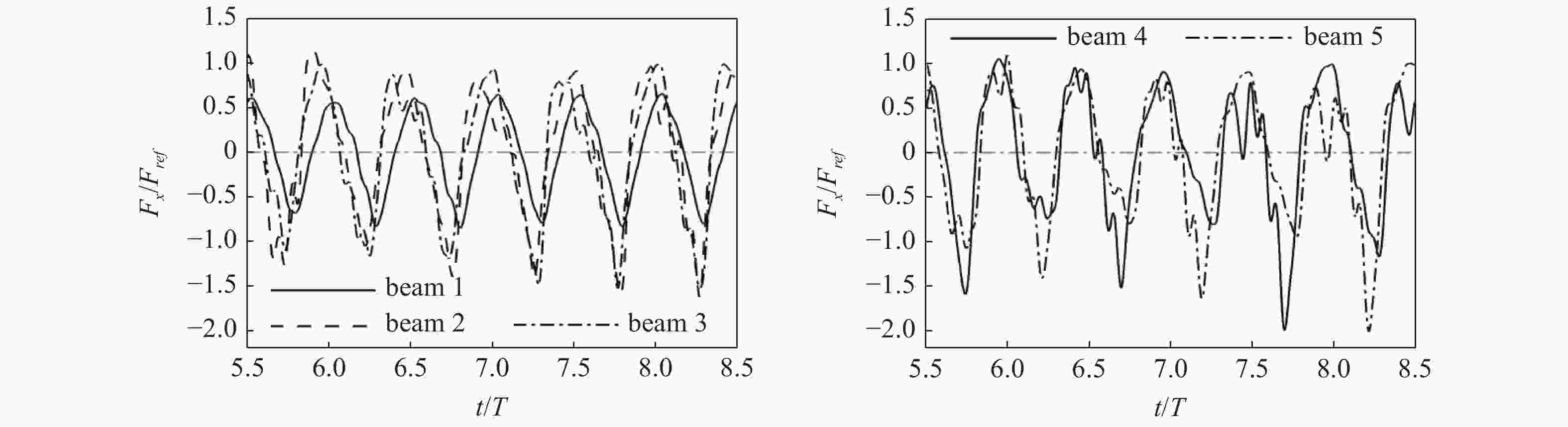

图 12 5个柔性梁水平受力时历曲线, 特征值Fref = (1/2)ρf
$U_{ref}^2{L}$ 被用来无因次化计算得到的合力Figure 12. Hydrodynamic force experienced by five flexible beams in the horizontal direction during three heaving motion periods. The forces are normalized by Fref = (1/2)ρf
$U_{ref}^2{L}$

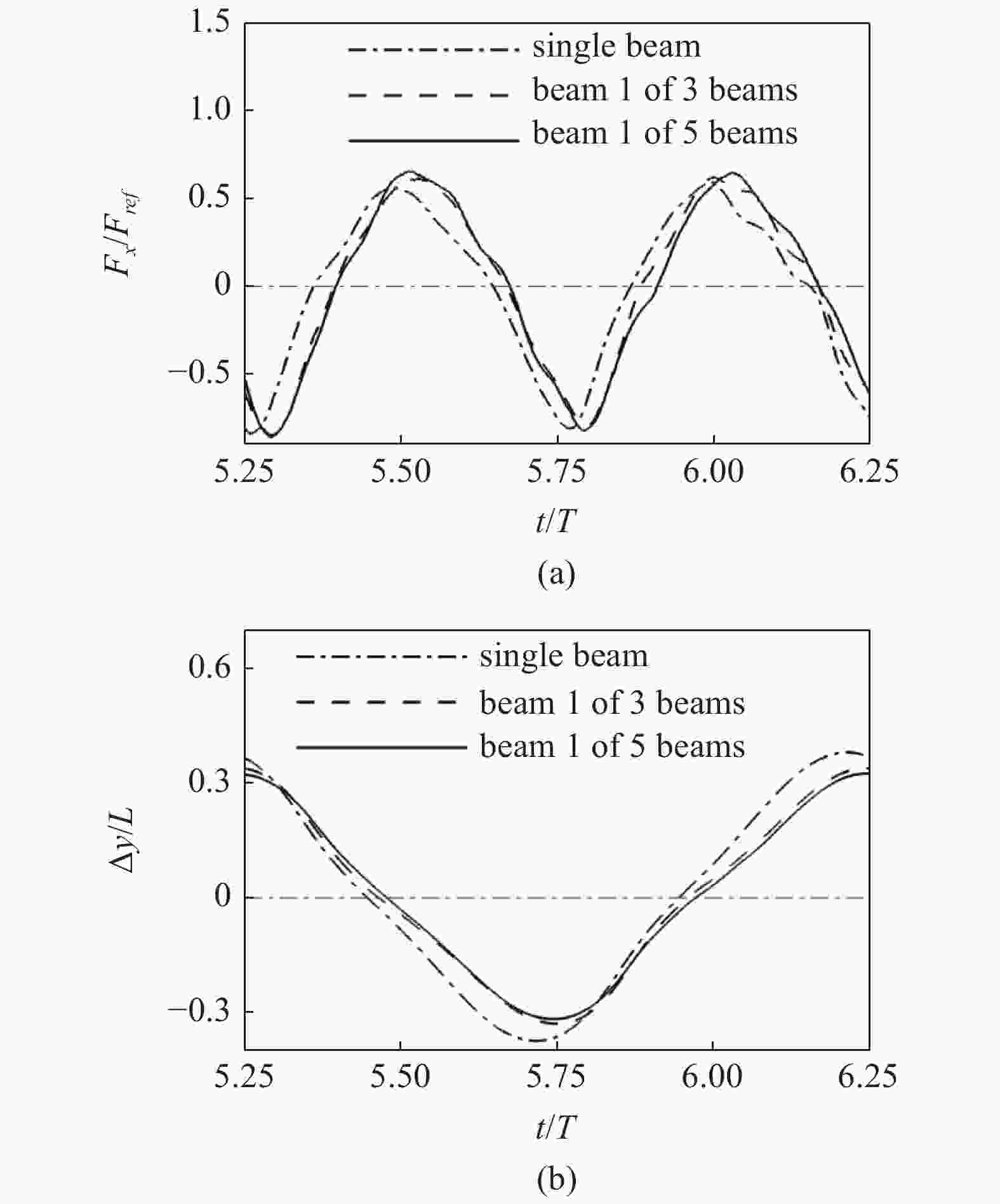

图 13 领头柔性梁对比: (a) 水平受力时历曲线; (b) 横向形变时历曲线. 特征值Fref = (1/2)ρf
$U_{ref}^2{L} $ 被用来无因次化计算得到的合力Figure 13. The comparison of the leading beams: (a) hydrodynamic force in the horizontal direction and (b) lateral deformation during one heaving motion period. The forces are normalized by Fref = (1/2)ρf
$U_{ref}^2{L}$

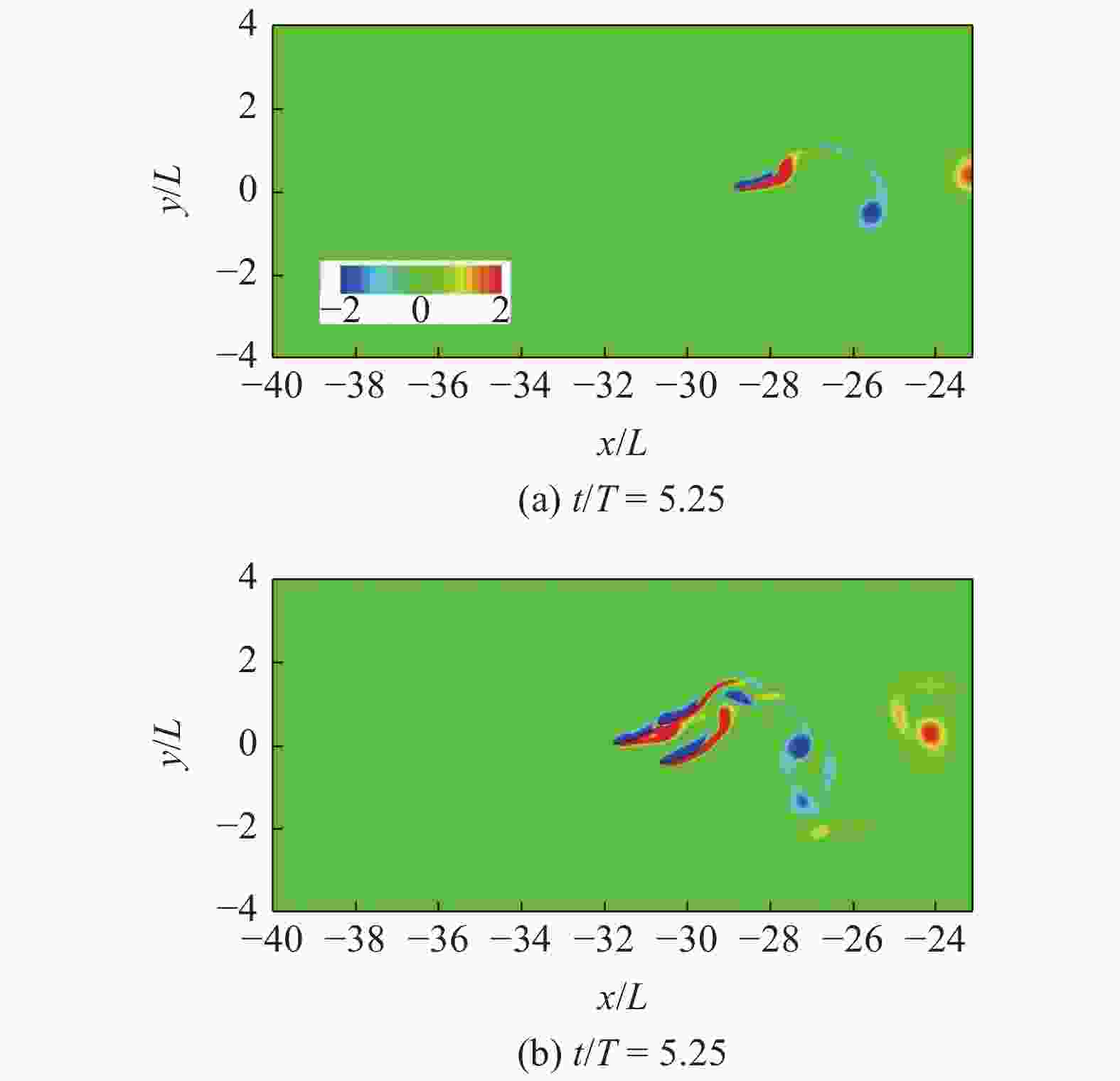

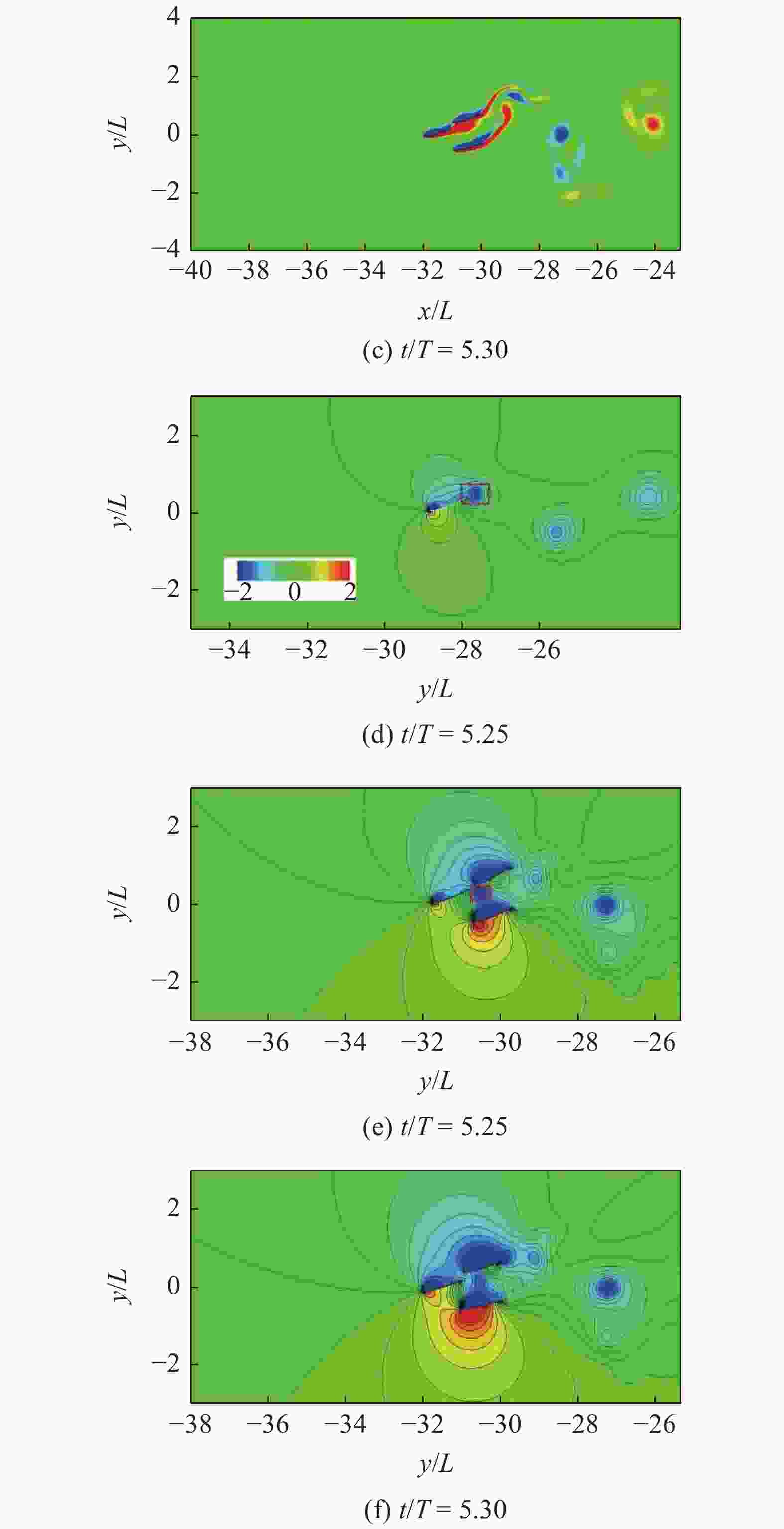

14 单柔性体和3个柔性梁流场细节图: (a~c) 涡量云图; (d~f) 压力云图. 特征值ωref = Uref /L和pref = ρf
$U_{ref}^2$ 分别被用来无因次化计算得到的涡量和压力14. Fluid details of single beam and 3 beams: (a-c) vortices contour and (d-f) pressure contour. The vortices and pressures are normalized by ωref = Uref /L, pref = ρf
$U_{ref}^2$ , respectively表 1 多个自推进柔性体性能参数比较
Table 1. Propulsive performance of multiple self-propelled flexible beams
Collective behavior Velocity Input power Efficiency/% U P1 P2 P3 P4 P5 η1 η2 η3 η4 η5 single beam 1.74 1.22 7.90 3 beams 2.01 1.26 1.29 1.28 10.2 10.0 10.1 5 beams 2.02 1.24 1.44 1.44 1 27 1.28 10.5 9.05 9.05 10.3 10.2
下载: 导出CSV
-
[1] Humston R, Ault JS, Lutcavage M, et al. Schooling and migration of large pelagic fishes relative to environmental cues. Fisheries Oceanography, 2010, 9(2): 136-146 [2] Olson RS, Hintze A, Dyer FC, et al. Predator confusion is sufficient to evolve swarming behavior. Journal of the Royal Society Interface, 2013, 10(85): 20130305 doi: 10.1098/rsif.2013.0305 [3] Peng H, Maldonado-Chaparro AA, Farine DR. The role of habitat configuration in shaping social structure: a gap in studies of animal social complexity. Behavioral Ecology and Sociobiology, 2019, 73(1): 1-14 [4] Shelton DS, Shelton SG, Daniel DK, et al. Collective behavior in wild zebrafish. Zebrafish, 2020, 17(4): 243-252 doi: 10.1089/zeb.2019.1851 [5] Lissaman PBS, Schollenberger CA. Formation flight of birds. Science, 1970, 168(3934): 1035 [6] Weihs D. Hydromechanics of fish schooling. Nature, 1973, 241: 290-291 doi: 10.1038/241290a0 [7] Weimerskirch H, Martin J, Clerquin Y, et al. Energy saving in flight formation. Nature, 2001, 413: 697-698 doi: 10.1038/35099670 [8] Portugal SJ, Hubel TY, Fritz J, et al. Upwash exploitation and downwash avoidance by flap phasing in ibis formation flight. Nature, 2014, 505(7483): 399 doi: 10.1038/nature12939 [9] Liao JC, Beal DN, Lauder GV, et al. Fish exploiting vortices decrease muscle activity. Science, 2003, 302: 1566-1569 doi: 10.1126/science.1088295 [10] Gopalkrishnan R, Triantafyllou MS, Triantafyllou GS, et al. Active vorticity control in a shear flow using a flapping foil. Journal of Fluid Mechanics, 1994, 274: 1-21 doi: 10.1017/S0022112094002016 [11] Beal DN, Hover FS, Triantafyllou MS, et al. Passive propulsion in vortex wakes. Journal of Fluid Mechanics, 2006, 549: 385-402 doi: 10.1017/S0022112005007925 [12] Lauder GV, Anderson EJ, Tangorra J, et al. Fish biorobotics: kinematics and hydrodynamics of self-propulsion. Journal of Experimental Biology, 2007, 210: 2767-2780 doi: 10.1242/jeb.000265 [13] Ristroph L, Zhang J. Anomalous hydrodynamic drafting of interacting flapping flags. Physical Review Letters, 2008, 101(19): 194502 doi: 10.1103/PhysRevLett.101.194502 [14] 王思滢. 柔性体与流体耦合运动的数值模拟和试验研究. [博士论文]. 合肥: 中国科学技术大学, 2010Wang Siying. Numerical and experimental investigation on the interaction between moving fluid and flexible bodies. [PhD Thesis]. Hefei: University of Science and Technology of China, 2010 (in Chinese) [15] Boschitshch BM, Dewey PA, Smith AJ. Propulsive performance of unsteady tandem hydrofoils in an in-line configuration. Physics of Fluids, 2014, 26: 051901 doi: 10.1063/1.4872308 [16] Becker AD, Masoud H, Newbolt JW, et al. Hydrodynamic schooling of flapping swimmers. Nature Communications, 2015, 6: 8514 doi: 10.1038/ncomms9514 [17] Ramananarivo S, Fang F, Oza A, et al. Flow interactions lead to orderly formations of flapping wings in forward flight. Physical Review Fluid, 2016, 1: 071201 doi: 10.1103/PhysRevFluids.1.071201 [18] Zhu LD, Peskin CS. Interaction of two flapping filaments in a flowing soap film. Physics of Fluids, 2003, 15(7): 1954-1960 doi: 10.1063/1.1582476 [19] Huang WX, Shin SJ, Sung HJ. Simulation of flexible filaments in a uniform flow by the immersed boundary method. Journal of Computational Physics, 2007, 226: 2206-2228 doi: 10.1016/j.jcp.2007.07.002 [20] Zhang L, Zou SY, Wang CZ, et al. A loosely-coupled scheme for the flow-induced flapping problem of two-dimensional flexible plate with strong added-mass effect. Ocean Engineering, 2020, 217: 107656 doi: 10.1016/j.oceaneng.2020.107656 [21] Zhu LD. Interaction of two tandem deformable bodies in a viscous incompressible flow. Journal of Fluid Mechanics, 2009, 635: 455-475 doi: 10.1017/S0022112009007903 [22] Uddin E, Huang WX, Sung HJ. Actively flapping tandem flexible flags in a viscous flow. Journal of Fluid Mechanics, 2015, 780: 120-142 doi: 10.1017/jfm.2015.460 [23] Zhu XJ, He GW, Zhang X. Flow-mediated interactions between two self-propelled flapping filaments in tandem configuration. Physical Review Letters, 2014, 113: 238105 doi: 10.1103/PhysRevLett.113.238105 [24] Peng ZR, Huang HB, Lu XY. Hydrodynamic schooling of multiple self-propelled flapping plates. Journal of Fluid Mechanics, 2018, 853: 587-600 doi: 10.1017/jfm.2018.634 [25] Peng ZR, Huang HB, Lu XY. Collective locomotion of two closely spaced self-propelled flapping plates. Journal of Fluid Mechanics, 2018, 849: 1068-1095 doi: 10.1017/jfm.2018.447 [26] 彭泽瑞. 仿生自主推进柔性板集群运动的流固耦合数值研究. [博士论文]. 合肥: 中国科学技术大学, 2018Peng Zerui. Numerical investigation of hydrodynamic schooling of bio-inspired self-propulsive flexible plates. [PhD Thesis]. Hefei: University of Science and Technology of China, 2018 (in Chinese) [27] Zhang L, Wang CZ, Sun JL, et al. Study on the hydrodynamic aggregation of parallel self-propelled flexible plates based on a loosely coupled partitioned algorithm. Ocean Engineering, 2021, 223: 108703 doi: 10.1016/j.oceaneng.2021.108703 [28] 克拉夫, 彭津. 结构动力学. 王光远译. 北京: 高等教育出版社, 2006Clough R, Penzein J. Dynamics of Structures. Wang GY trans. Beijing: Higher Education Press, 2006 (in Chinese) [29] Hua RN, Zhu L, Lu XY. Locomotion of a flapping flexible plate. Physics of Fluids, 2013, 25(12): 121901 doi: 10.1063/1.4832857 [30] Liu K, Huang H, Lu XY. Hydrodynamic benefits of intermittent locomotion of a self-propelled flapping plate. Physical Review E, 2020, 102: 053106 [31] Liu K, Huang H, Lu XY. Self-propelled plate in wakes behind tandem cylinders. Physical Review E, 2019, 100: 033114 doi: 10.1103/PhysRevE.100.033114 -
