RESEARCH ON DYNAMIC RESPONSE ANALYSIS AND CABLE FORCE IDENTIFICATION METHOD OF SUBMERGED ANCHOR CABLES
-
摘要: 海洋资源和海洋空间的开发利用是21世纪人类发展海洋的两大主题. 锚索作为海洋装备和深海建筑的重要承力和锚固构件, 其损伤和破坏将直接影响整个结构的安全性和耐久性, 因此有必要对锚索的服役期状态进行实时监测和评估. 索力是反映锚索静动力学特性的重要物理量, 掌握索力的实时变化情况对于锚索的健康监测及状态评估具有重要意义. 现有研究通常在张紧弦或简支梁模型的基础上, 采用修正索力公式或智能优化算法来识别索力, 未能充分考虑垂度引起的几何非线性影响. 为了在理论上给出物理意义更加明确、识别精度更高的锚索索力识别公式, 针对水下锚索的几何非线性及阻尼非线性特点, 首先利用等效线性化技术, 推导了锚索自由振动频率和响应的摄动解, 给出了考虑锚索垂度的频率解析表达式; 在此基础上给出了基于振动法的索力识别方案; 数值案例表明本文方法识别结果与真实值一致, 从而验证了本文方法的准确性. 相关理论和结论能够为此类工程结构的动力分析和健康监测提供理论依据.Abstract: The development and utilization of marine resources and space are two major themes of human development of the ocean in the 21st century. As an important force-supporting and anchoring component of marine equipment and deep-sea structures, the damage and destruction of anchor cable will directly affect the safety and durability of the whole structure, so it is necessary to monitor and evaluate the service state of anchor cable in real time. Cable force is an important physical quantity reflecting the static and dynamic characteristics of anchor cable. It is of great significance to master the real-time change of cable force for the health monitoring and state assessment of anchor cable. The existing researches usually use modified cable force formula or intelligent optimization algorithm to identify cable force on the basis of tension string or simply supported beam model, but fail to fully consider the geometric nonlinearity caused by sag. In order to give a more explicit physical meaning and more accurate identification formula of anchor cable force in theory, aiming at the geometric nonlinearity and damping nonlinearity of underwater anchor cable, firstly, the perturbation solution of free vibration frequency and response of anchor cable is derived by using equivalent linearization technique, and the analytical expression of frequency considering sag of anchor cable is given. On this basis, the cable force identification scheme based on vibration method is given. Numerical examples show that the recognition results of this method are consistent with the real values, thus verifying the accuracy of this method. The relevant theories and conclusions can provide theoretical basis for dynamic analysis and health monitoring of such engineering structures.
-
图 2 两种方法位移响应时程对比
Figure 2. Comparison of displacement response calculated by the two methods

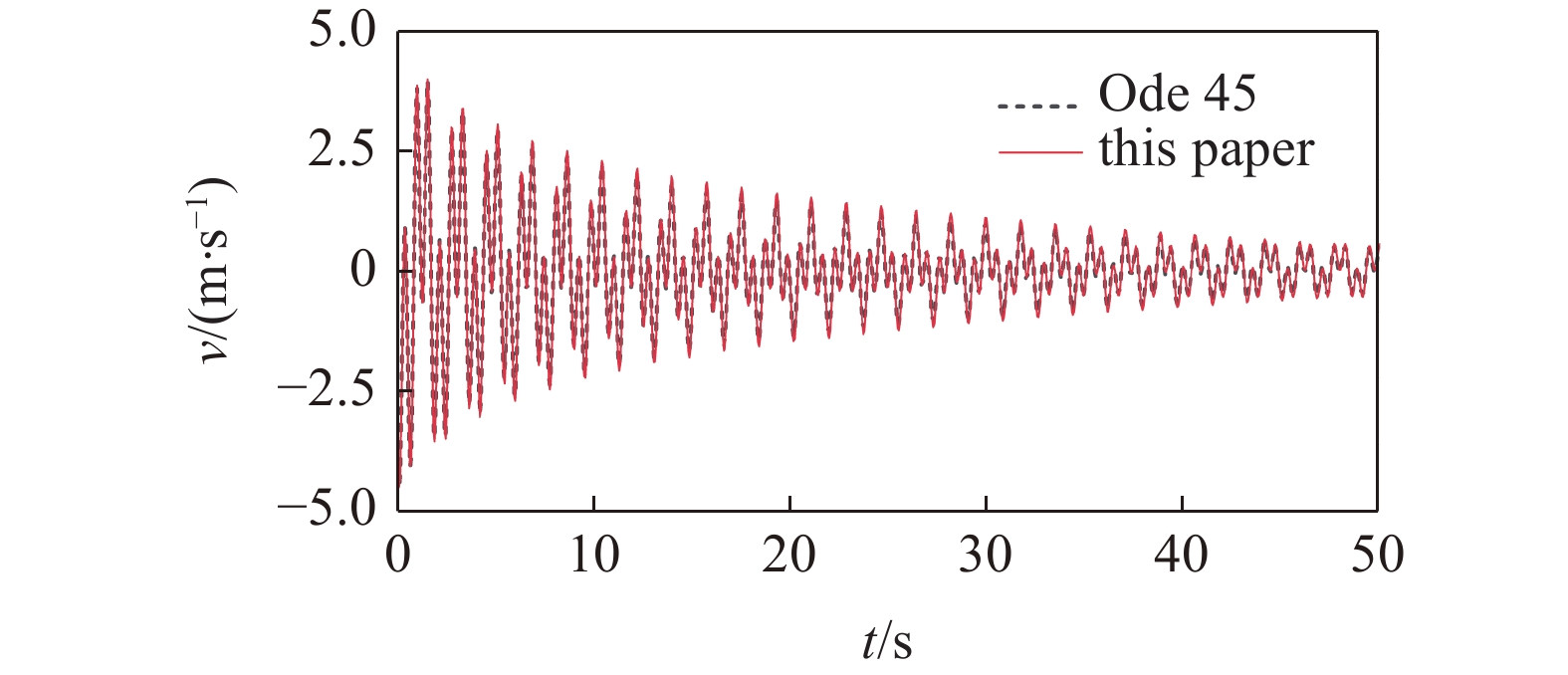

图 3 两种方法速度响应时程对比
Figure 3. Comparison of velocity response calculated by the two methods

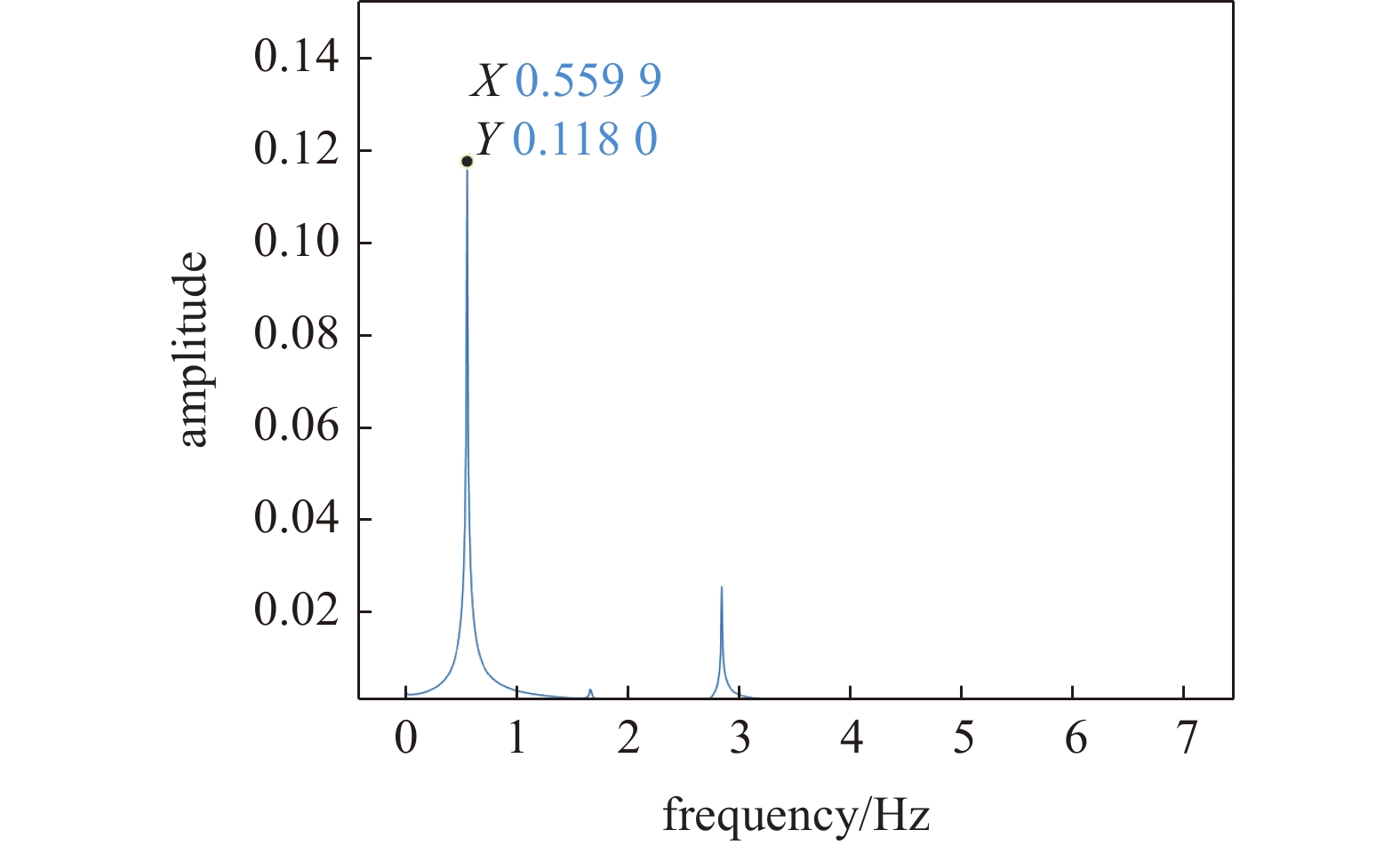

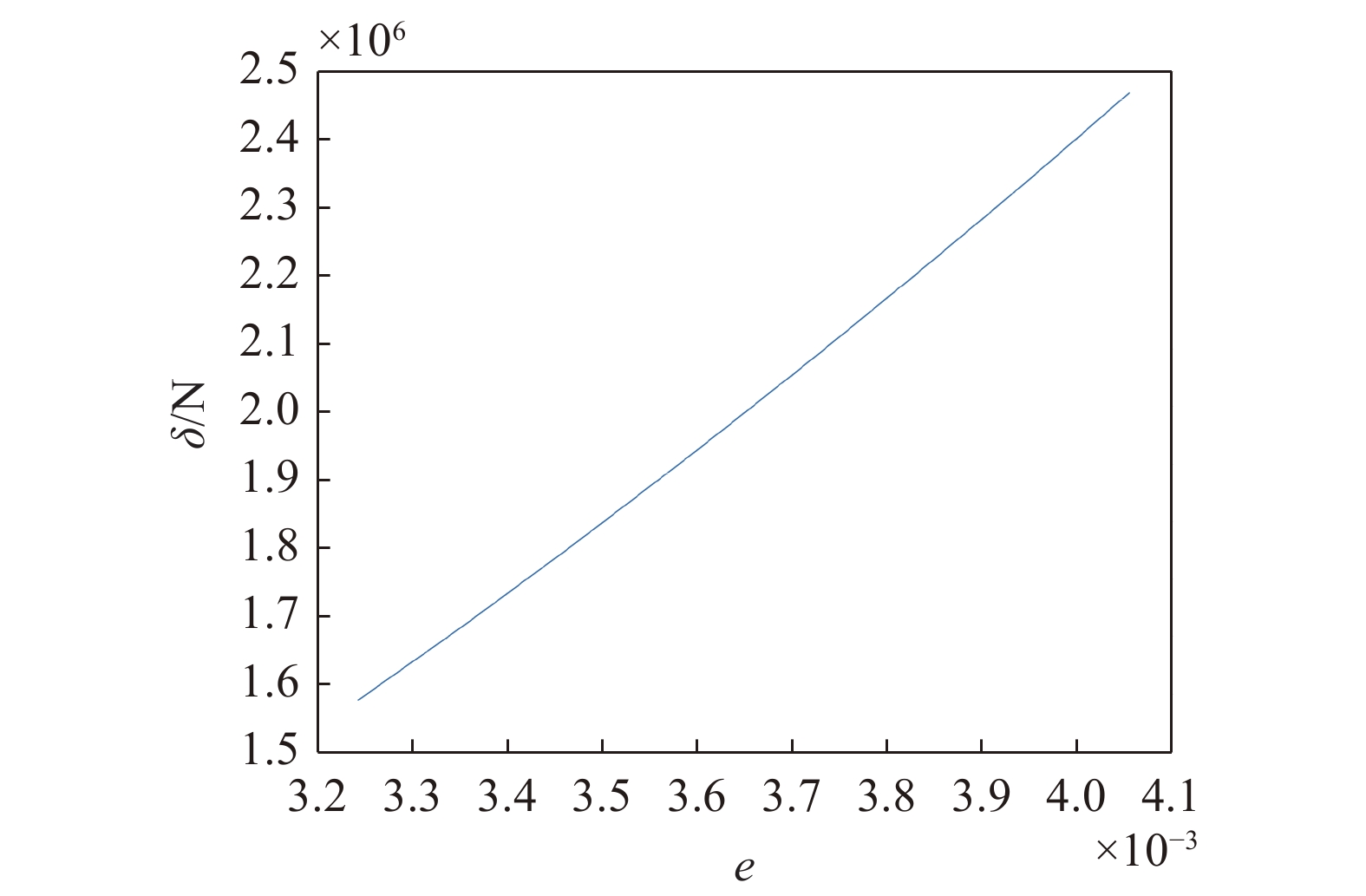

表 1 索力识别迭代过程
Table 1. Iteration of cable force identification
Step ${H_0}$/kN $\eta $ $\bar H/{\rm{kN}}$ 1 4197 4.2648 4051 2 4051 4.5853 4040 3 4040 4.5853 4040
下载: 导出CSV
-
[1] 王梦恕. 水下交通隧道发展现状与技术难题——兼论"台湾海峡海底铁路隧道建设方案". 岩石力学与工程学报, 2008, 27(11): 2161-2172 (Wang Mengshu. Current developments and technical issues of underwater traffic tunnel—discussion on construction scheme of Taiwan strait undersea railway tunnel. Chinese Journal of Rock Mechanics and Engineering, 2008, 27(11): 2161-2172 (in Chinese) doi: 10.3321/j.issn:1000-6915.2008.11.001 [2] 丁浩, 程亮, 李科. 悬浮隧道结构动力响应研究进展与展望. 隧道建设, 2019, 39(6): 901-912 (Ding hao, Cheng Liang, Li Ke. Research progress and prospect on dynamic response of SFT structures. Tunnel Construction, 2019, 39(6): 901-912 (in Chinese) [3] 项贻强, 杨赢. 中国沿海跨海峡通道建设挑战与技术构想. 中国市政工程, 2016, 5: 1-5 (Xiang Yiqiang, Yang Ying. Construction challenges & technology conceptions of cross-strait channels in China coastal area. China Municipal Engineering, 2016, 5: 1-5 (in Chinese) [4] Muhammad N, Khan A, Baloch Z. Effect of cable stiffness and waves parameters on the dynamic responses of submerged floating tunnel. Journal of Applied and Emerging Sciences, 2019, 8(2): 152-159 [5] Jin C, Kim MH. Tunnel-mooring-train coupled dynamic analysis for submerged floating tunnel under wave excitations. Applied Ocean Research, 2020, 94: 102008 doi: 10.1016/j.apor.2019.102008 [6] Lin H, Xiang YQ, Yang YS. Vehicle-tunnel coupled vibration analysis of submerged floating tunnel due to tether parametric excitation. Marine Structures, 2019, 67: 102646 doi: 10.1016/j.marstruc.2019.102646 [7] Sato M, Kanie S, Mikami T. Mathematical analogy of a beam on elastic supports as a beam on elastic foundation. Applied Mathematical Modelling, 2008, 32(5): 688-699 doi: 10.1016/j.apm.2007.02.002 [8] Lu W, Ge F, Wang L, et al. On the slack phenomena and snap force in tethers of submerged floating tunnels under wave conditions. Marine Structures, 2011, 24(4): 358-376 doi: 10.1016/j.marstruc.2011.05.003 [9] Chen ZY, Xiang YQ, Lin H, et al. Coupled vibration analysis of submerged floating tunnel system in wave and current. Applied Sciences, 2018, 8(8): 1311 doi: 10.3390/app8081311 [10] Han F, Zhang YL, Zang JB, et al. Exact dynamic analysis of shallow sagged cable system — theory and experimental verification. International Journal of Structural Stability and Dynamics, 2019, 19(245): 1950153 [11] Xiang YQ, Chao CF. Vortex-induced dynamic response analysis for the submerged floating tunnel system under the effect of currents. Journal of Waterway, Port, Coastal, and Ocean Engineering, 2013, 139(3): 183-189 [12] Pilato DM, Perotti F, Fogazzi P. 3D dynamic response of submerged floating tunnels under seismic and hydrodynamic excitation. Engineering structures, 2008, 30(1): 268-281 doi: 10.1016/j.engstruct.2007.04.001 [13] Xu LF, Ge L, Wang YS, et al. Effects of fundamental structure parameters on dynamic responses of submerged floating tunnel under hydrodynamic loads. Acta Mechanica Sinica, 2009, 25(3): 335-344 doi: 10.1007/s10409-009-0233-y [14] Cifuentes C, Kim S, Kim MH, et al. Numerical simulation of the coupled dynamic response of a submerged floating tunnel with mooring lines in regular waves. Ocean Systems Engineering, 2015, 5(2): 109-123 doi: 10.12989/ose.2015.5.2.109 [15] Jin C, Kim MH, Choi J, et al. Coupled dynamics simulation of submerged floating tunnel for various system parameters and wave conditions//The 37th International Conference on Ocean, Offshore and Arctic Engineering, Madrid, 2018-06-17-22, ASME, American Society of Mechanical Engineers Digital Collection, doi: 10.1115/OMAE2018-78687 [16] 刘铭, 李家旺, 朱克强. 基于集中质量法的水下拖曳缆索动力响应分析. 水道港口, 2017, 38(4): 405-411 (Liu Ming, Li Jiawang, Zhu Keqiang. Dynamic response analysis of the undersea towed cable based on lump-mass method. Journal of Waterway and Harbor, 2017, 38(4): 405-411 (in Chinese) [17] Nakajima T, Motora S, Fujino M. On the dynamic responses of the moored object and the mooring lines in regular waves. Journal of the Society of Naval Architects of Japan, 1981, 1981(150): 266-277 doi: 10.2534/jjasnaoe1968.1981.150_266 [18] Chen L, Basu B, Nielsen SRK. A coupled finite difference mooring dynamics model for floating offshore wind turbine analysis. Ocean Engineering, 2018, 162: 304-315 doi: 10.1016/j.oceaneng.2018.05.001 [19] Wang K, Er GK, Iu VP. Nonlinear dynamical analysis of moored floating structures. International Journal of Non-Linear Mechanics, 2018, 98: 189-197 doi: 10.1016/j.ijnonlinmec.2017.10.025 [20] Davidson J, Ringwood J. Mathematical modelling of mooring systems for wave Energy converters—A review. Energies, 2017, 10(5): 666 doi: 10.3390/en10050666 [21] 苏志彬, 孙胜男. 参数激励作用下水下悬浮隧道锚索的稳定性研究. 中南大学学报: 自然科学版, 2013, 44(6): 2549-2553 (Su Zhibin, Sun Shengnan. Stability of submerged floating tunnel tether subjected to parametric excitation. Journal of Central South University (Science and Technology) , 2013, 44(6): 2549-2553 (in Chinese) [22] Irvine HM. Free vibrations of inclined cables. Journal of the Structural Division, 1978, 104(2): 343-347 doi: 10.1061/JSDEAG.0004860 [23] Dan DH, Han F, Cheng W, et al. Unified modal analysis of complex cable systems via extended dynamic stiffness method and enhanced computation. Structural Control and Health Monitoring, 2019, 26(10): e2435 [24] 曹懿, 韩飞, 杨凯等. 一种适用于小垂度拉索的精确动力分析方法. 西北工业大学学报, 2020, 38(2): 451-457 (Cao Yi, Han Fei, Yang Kai et al. An exact dynamic analysis method for shallow sagged cables. Journal of Northwestern Polytechnical University, 2020, 38(2): 451-457 (in Chinese) [25] Han F, Dan DH, Free vibration of the complex cable system—An exact method using symbolic computation. Mechanical Systems and Signal Processing, 2020, 139: 106636 [26] Sarpkaya T, Isaacson M, Wehausen JV, et al. Mechanics of wave forces on offshore structures. Journal of Applied Mechanics, 1982, 49(2): 466-467 [27] Wilson JF. Dynamics of Offshore Structures. New Jersey: Wiley, 2003 [28] Arnaldo C, Sami E, Walter L. Metamaterial beam with embedded nonlinear vibration absorbers. International Journal of Non-Linear Mechanics, 2018, 98: 32-42 doi: 10.1016/j.ijnonlinmec.2017.10.002 [29] Han F, Deng ZC, Dan DH. Modelling and analysis framework for nonlinear dynamics of submerged tensioned cables. Ocean Engineering, 2021, 232: 109123 [30] Han F, Dan DH, Zou YQ, et al. Experimental and theoretical study on cable-supporting system. Mechanical Systems and Signal Processing, 2020, 140: 106638 doi: 10.1016/j.ymssp.2020.106638 -
