压气机流动稳定性自适应控制方法研究进展

许登科 董旭 徐瑞泽 李佳 孙大坤 孙晓峰

许登科, 董旭, 徐瑞泽, 李佳, 孙大坤, 孙晓峰. 压气机流动稳定性自适应控制方法研究进展. 力学学报, 2022, 54(3): 559-576 doi: 10.6052/0459-1879-21-560
引用本文: 许登科, 董旭, 徐瑞泽, 李佳, 孙大坤, 孙晓峰. 压气机流动稳定性自适应控制方法研究进展. 力学学报, 2022, 54(3): 559-576 doi: 10.6052/0459-1879-21-560
Xu Dengke, Dong Xu, Xu Ruize, Li Jia, Sun Dakun, Sun Xiaofeng. Research progress of adaptive control methods for compressor flow stability. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(3): 559-576 doi: 10.6052/0459-1879-21-560
Citation: Xu Dengke, Dong Xu, Xu Ruize, Li Jia, Sun Dakun, Sun Xiaofeng. Research progress of adaptive control methods for compressor flow stability. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(3): 559-576 doi: 10.6052/0459-1879-21-560

压气机流动稳定性自适应控制方法研究进展

doi: 10.6052/0459-1879-21-560
基金项目: 国家自然科学基金(51822601, 51790514, 51906004), 国家科技重大专项(2017-II-0005-0018)和北京航空航天大学博士研究生卓越学术基金资助项目
详细信息
    作者简介:

    孙大坤, 教授, 主要研究方向: 航空压气机流动稳定性. E-mail: sundk@buaa.edu.cn

  • 中图分类号: V231.3

RESEARCH PROGRESS OF ADAPTIVE CONTROL METHODS FOR COMPRESSOR FLOW STABILITY

  • 摘要: 压气机流动稳定性自适应控制是未来智能航空发动机的一项关键技术. 基础研究需要回答3个关切: 如何描述系统的稳定性?如何改变系统的稳定性?如何监测系统的稳定性?为此, 本团队在压气机流动稳定性通用理论、壁面阻抗边界扩稳方法和在线实时失速预警技术等3个方面开展了系统深入的研究工作. (1)所发展的叶轮机流动稳定性通用理论既能包含流动非均匀性又能考虑叶片几何, 计算高效, 预测精度高, 为压气机气动/稳定性一体化设计提供了可靠的评估工具. (2)所发展的基于壁面阻抗边界调控策略的SPS (stall precursor-suppressed)机匣处理和泡沫金属机匣处理在扩稳、降噪和保持系统气动性能方面取得实质性进展, 采用等价分布源方法建立了包含机匣处理影响的压气机失速起始预测模型, 对SPS机匣处理和泡沫金属机匣处理关键结构参数进行敏感性分析, 使其具有明确的理论设计准则. 实验结果证实, SPS机匣处理通过抑制失速先兆波的非线性演化达到扩稳的目的, 在扩稳的同时可以保持压气机的压比和效率特性; 泡沫金属机匣处理可以实现扩稳和降噪的双重效果, 也具有良好的工程应用前景. (3)所发展的基于气动声学原理的实时失速预警方法将压气机失速预警时间提高到秒量级以上, 能够在线监测系统稳定性. 综合上述理论预测方法、扩稳技术和实时失速预警技术, 发展了闭环反馈自适应控制方法, 为未来智能航空发动机提供了一种自适应扩稳控制技术.

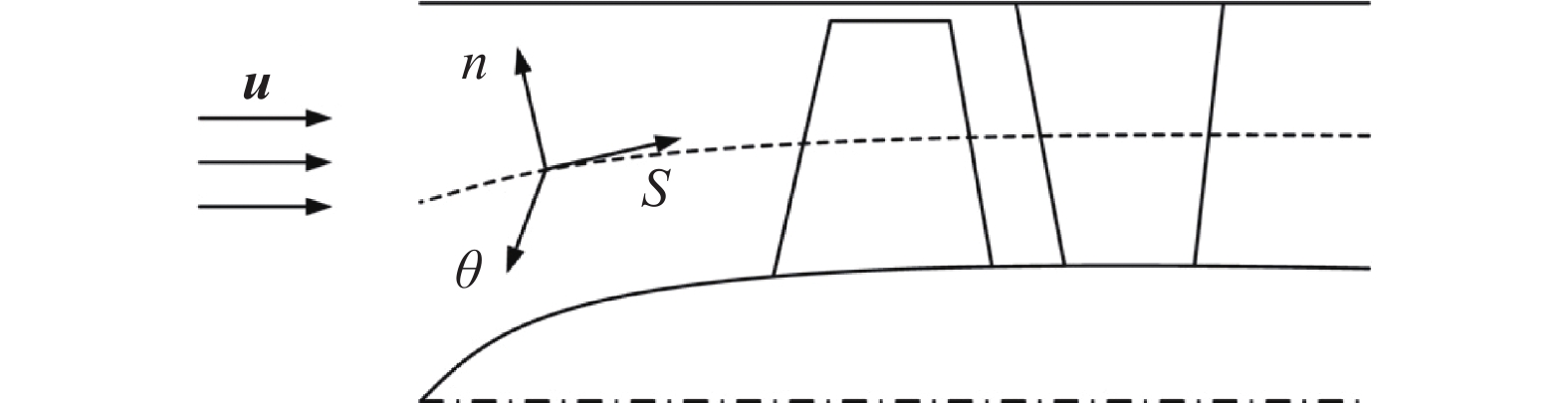

  • 图  1  流线坐标系

    Figure  1.  Streamline coordinate system

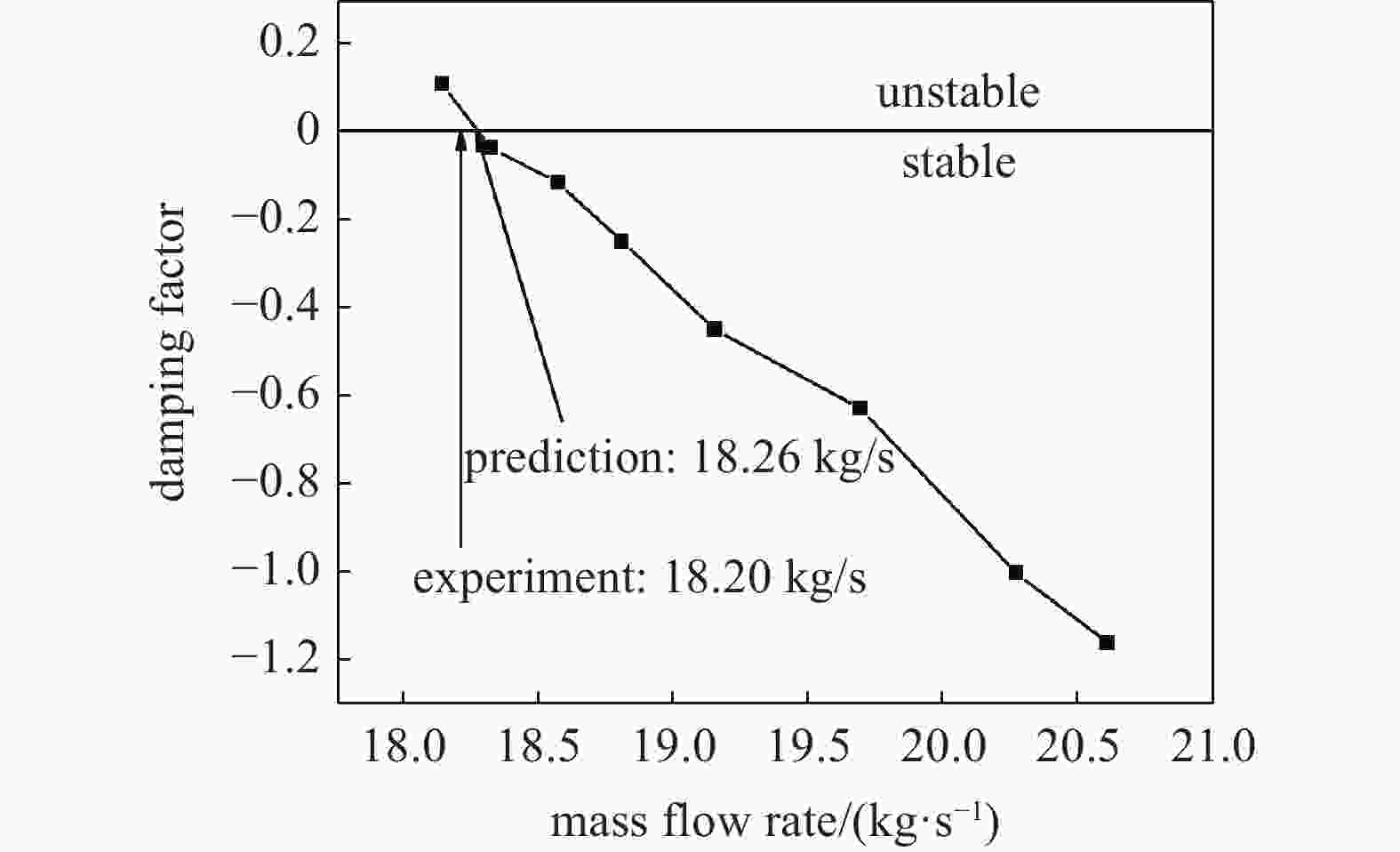

    图  2  NASA Stage35子午面模型预测结果[38]

    Figure  2.  Prediction result of NASA Stage35 via meridian surface model[38]

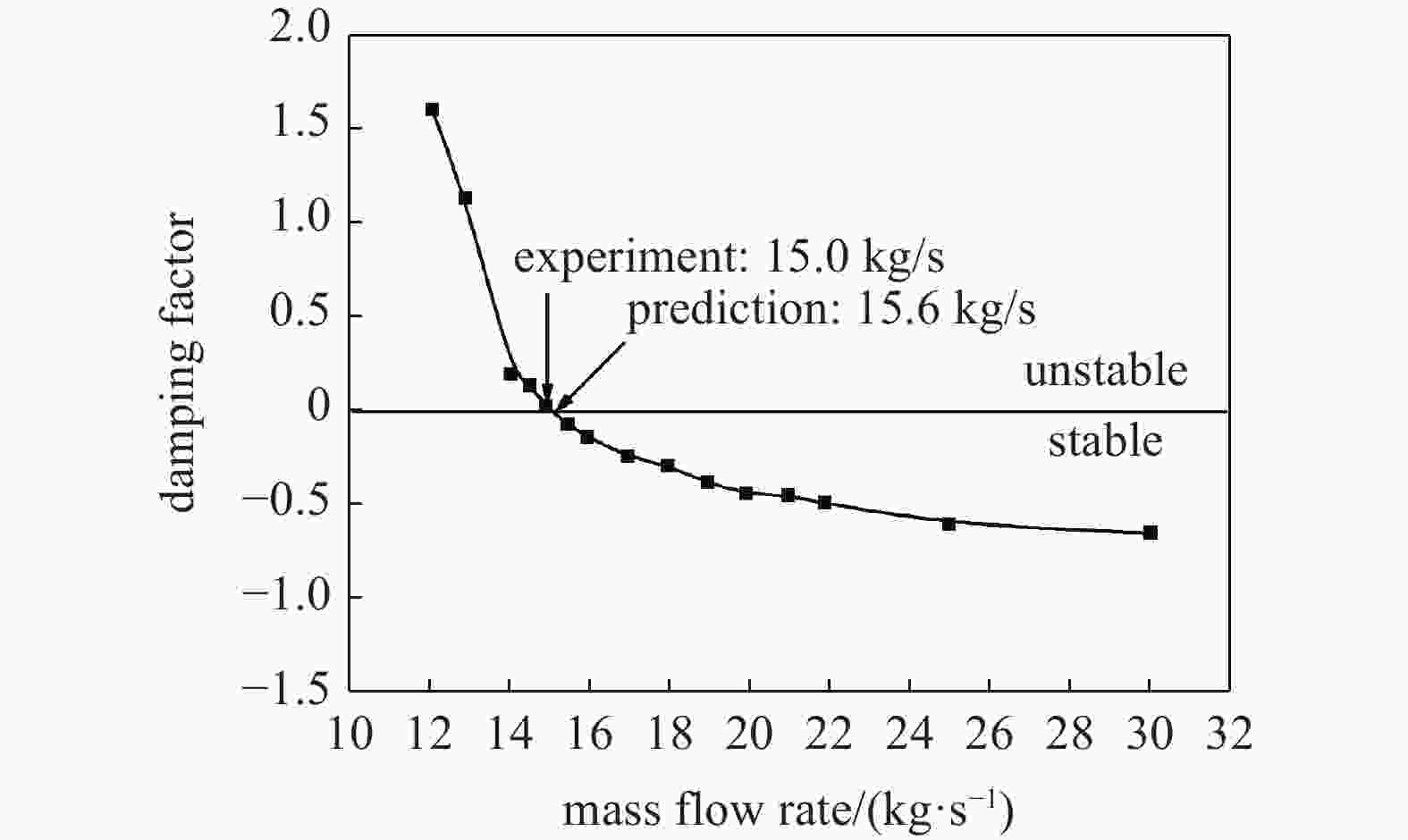

    图  3  NASA低速离心压气机径向展开模型预测结果[41]

    Figure  3.  Prediction result of NASA low-speed centrifugal compressor via radial expansion model[41]

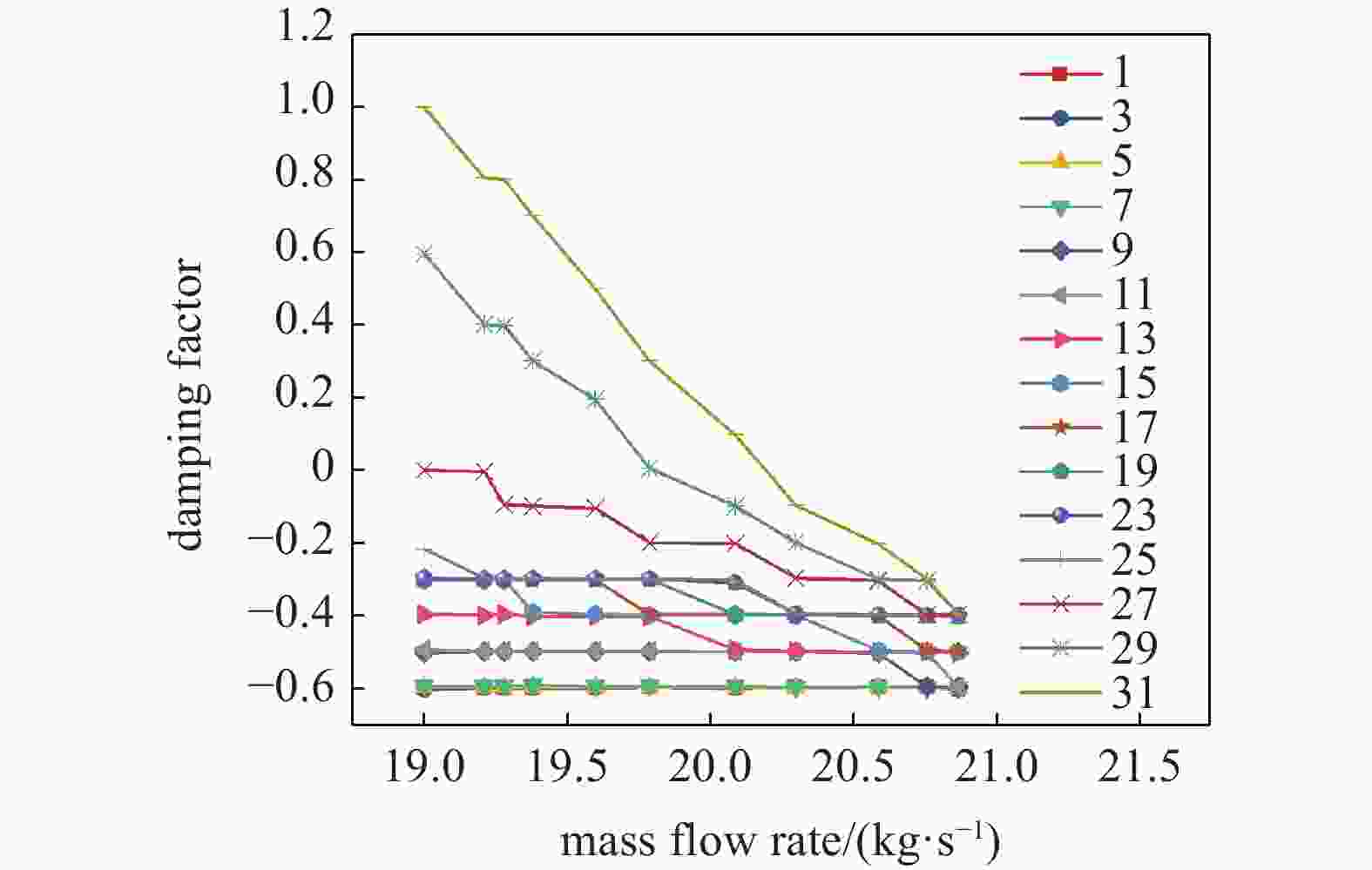

    图  4  NASA Rotor37流线模型预测结果[40]

    Figure  4.  Prediction result of NASA Rotor37 via streamline model[40]

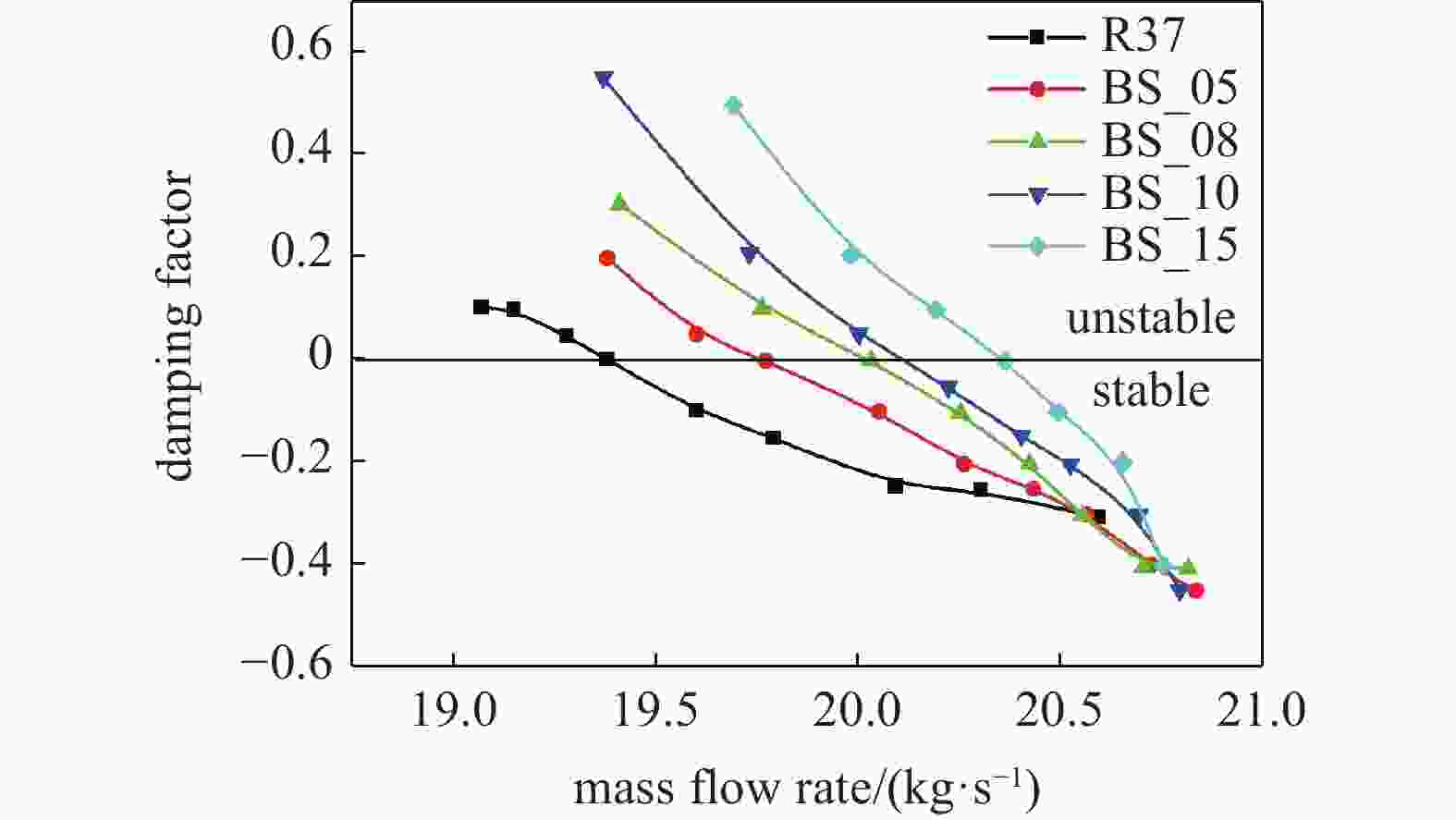

    图  5  叶片后掠对NASA Rotor37流动稳定性的影响[39]

    Figure  5.  Effect of backward swept blades on flow stability of NASA Rotor37[39]

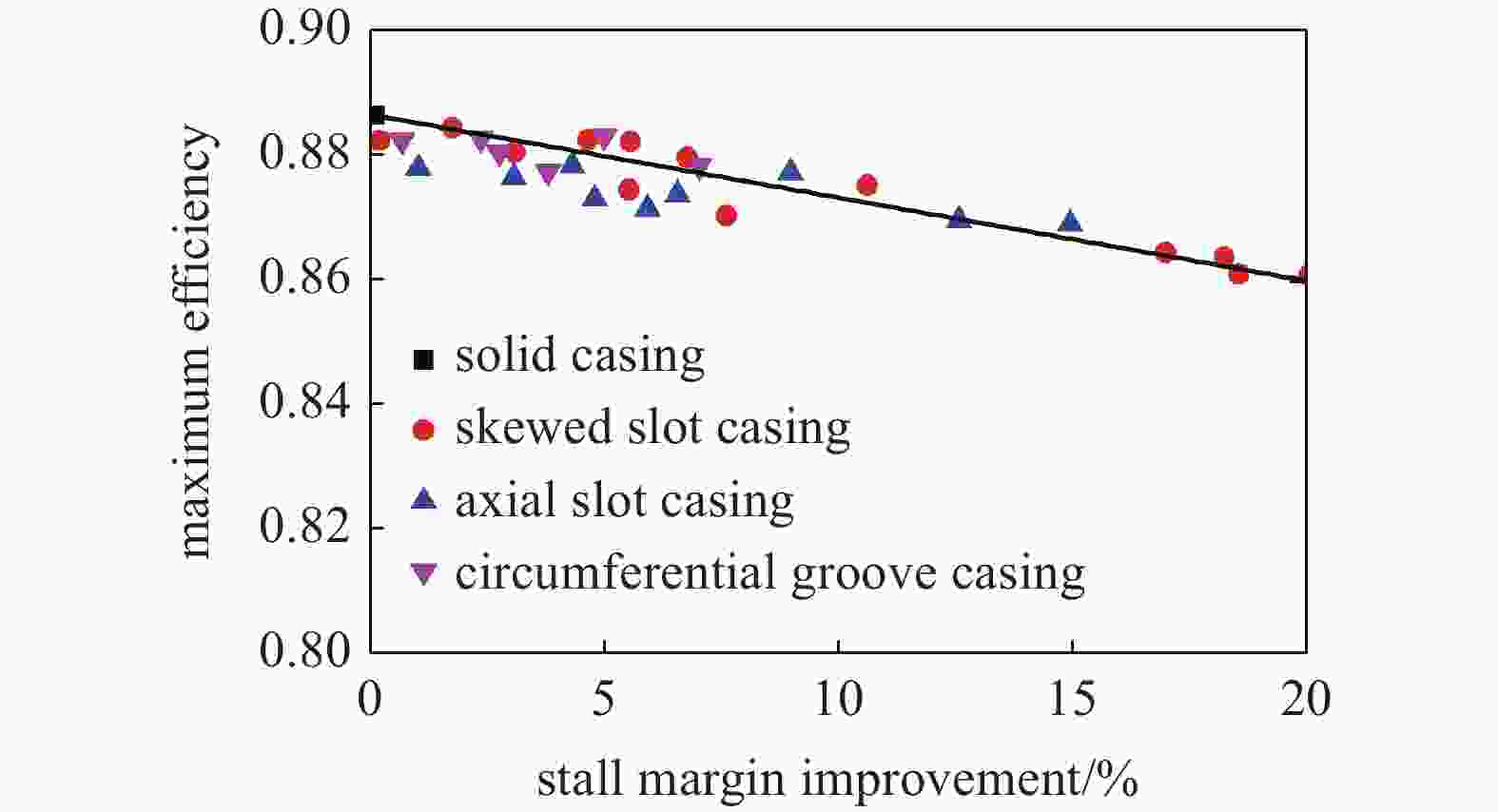

    图  6  不同机匣处理下的转子最大效率与失速裕度提升[42]

    Figure  6.  Relation between rotor maximum efficiency and stall margin improvement[42]

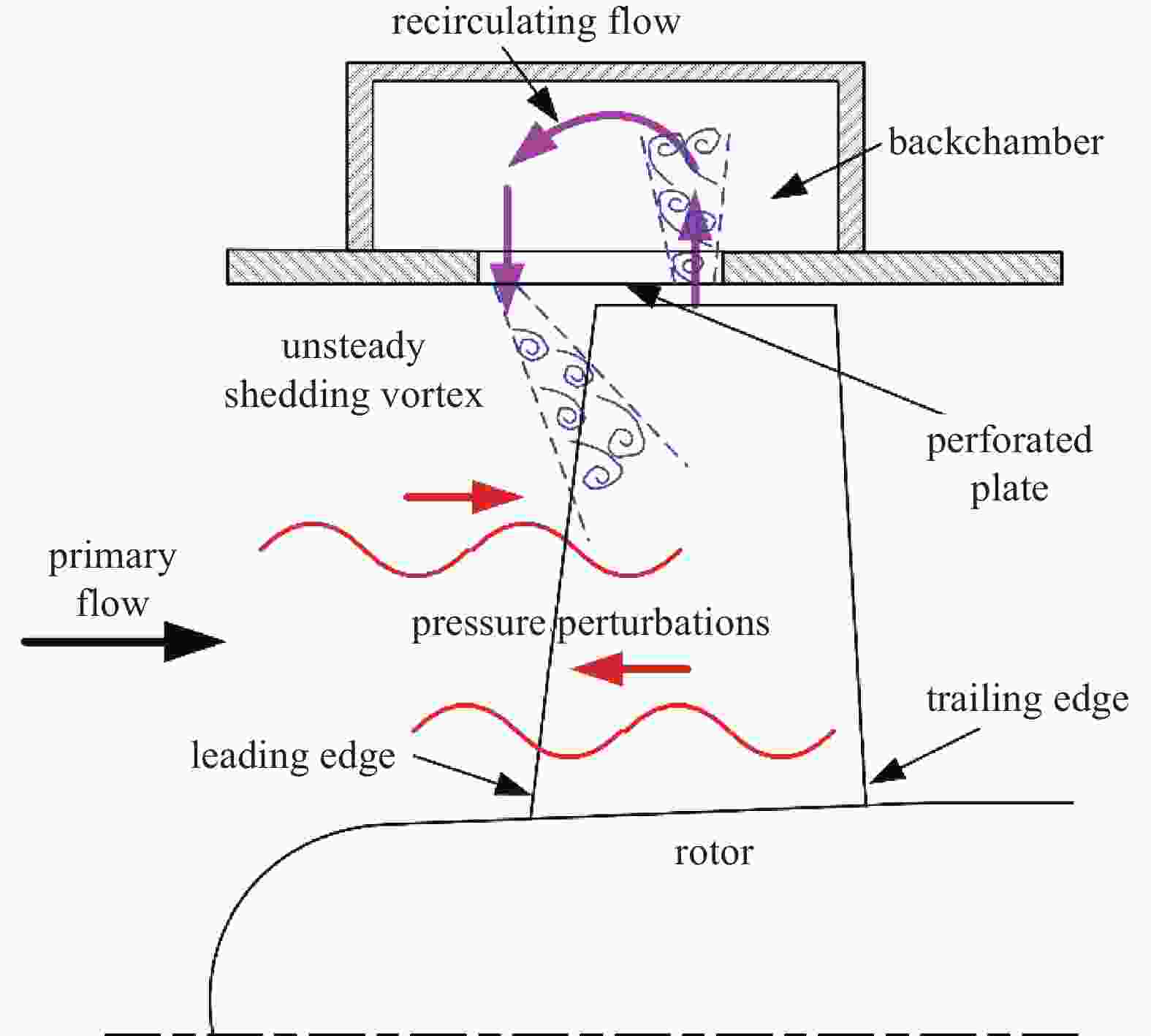

    图  7  SPS机匣处理波涡相互作用示意图

    Figure  7.  Diagram of wave vortex interaction in SPS casing treatment

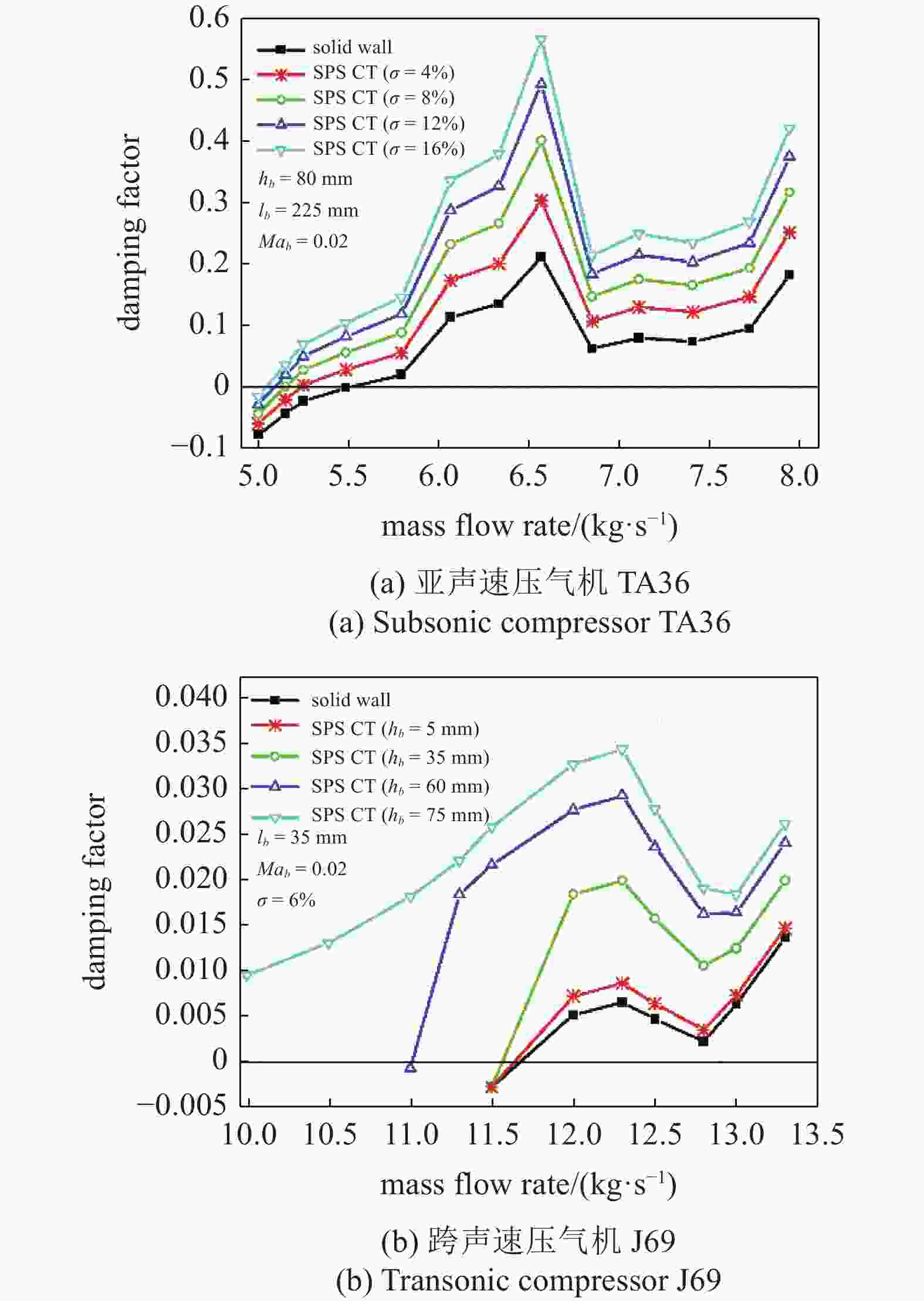

    图  8  不同结构参数SPS机匣处理扩稳效果理论预测[48]

    Figure  8.  Stability prediction of SPS casing treatment with different structural parameters[48]

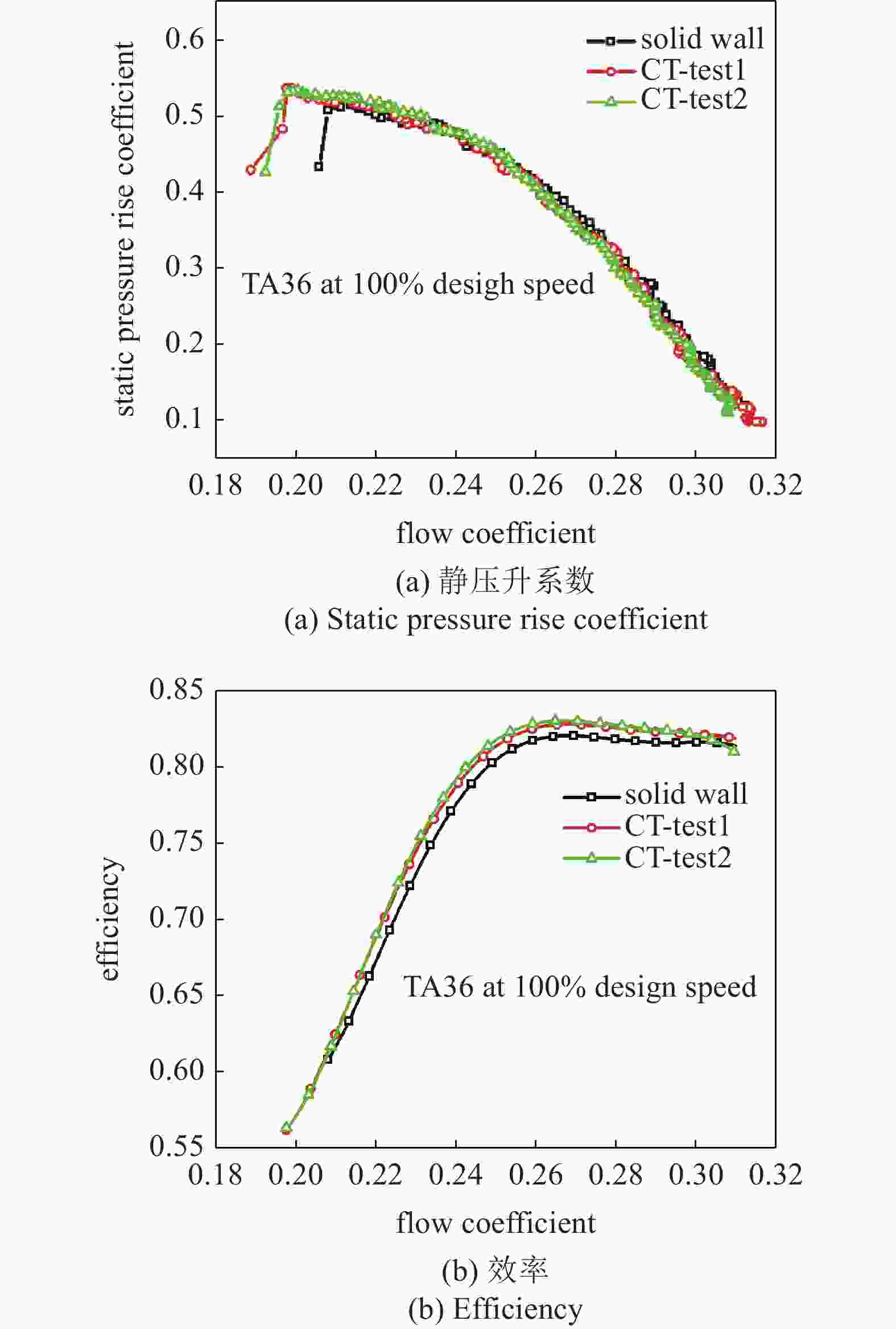

    图  9  SPS机匣处理在亚声速压气机TA36上的扩稳实验结果[31]

    Figure  9.  Experimental results of SPS casing treatment on subsonic compressor TA36[31]

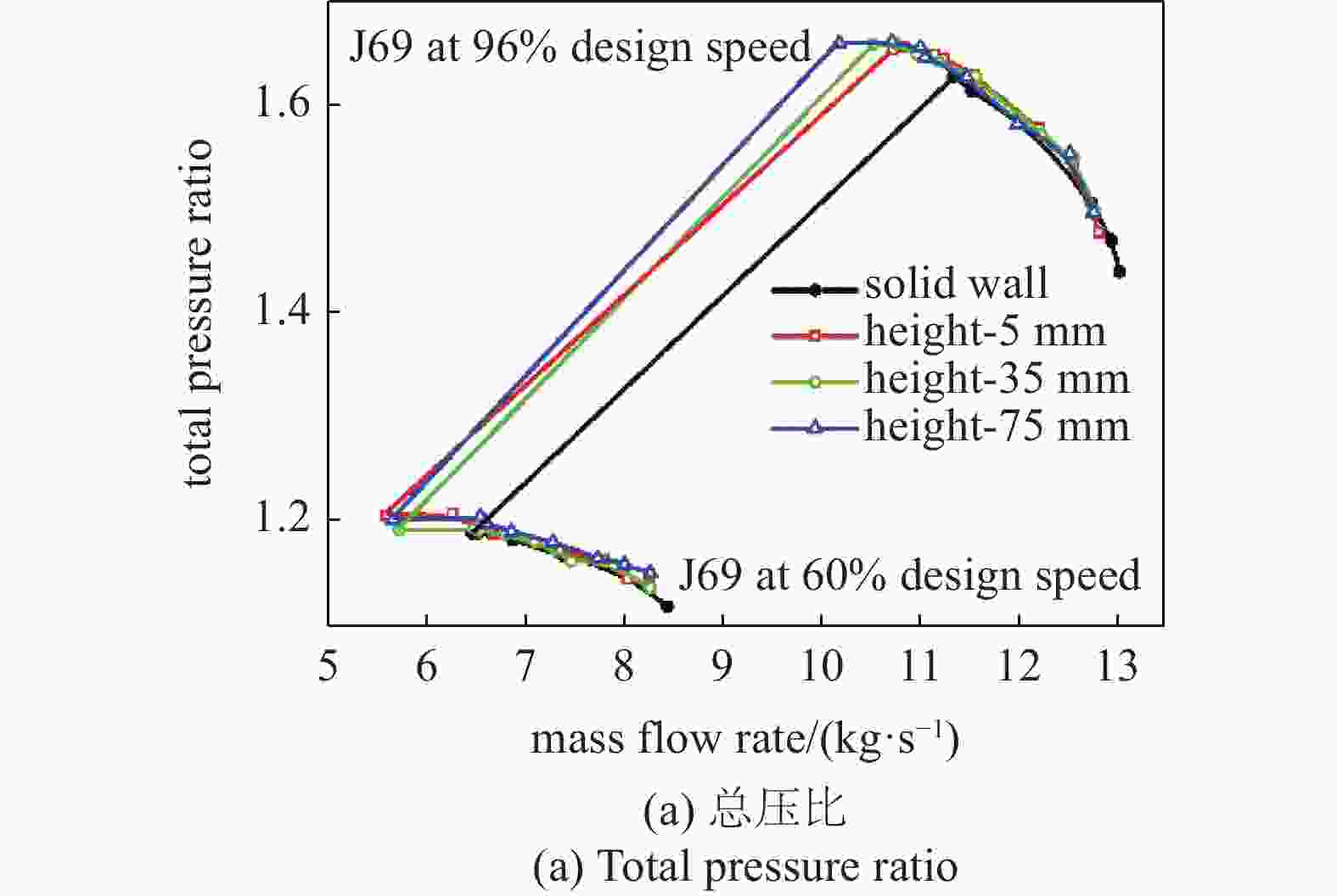

    10  SPS机匣处理在跨声速压气机J69上的扩稳实验结果[49]

    10.  Experimental results of SPS casing treatment on transonic compressor J69[49]

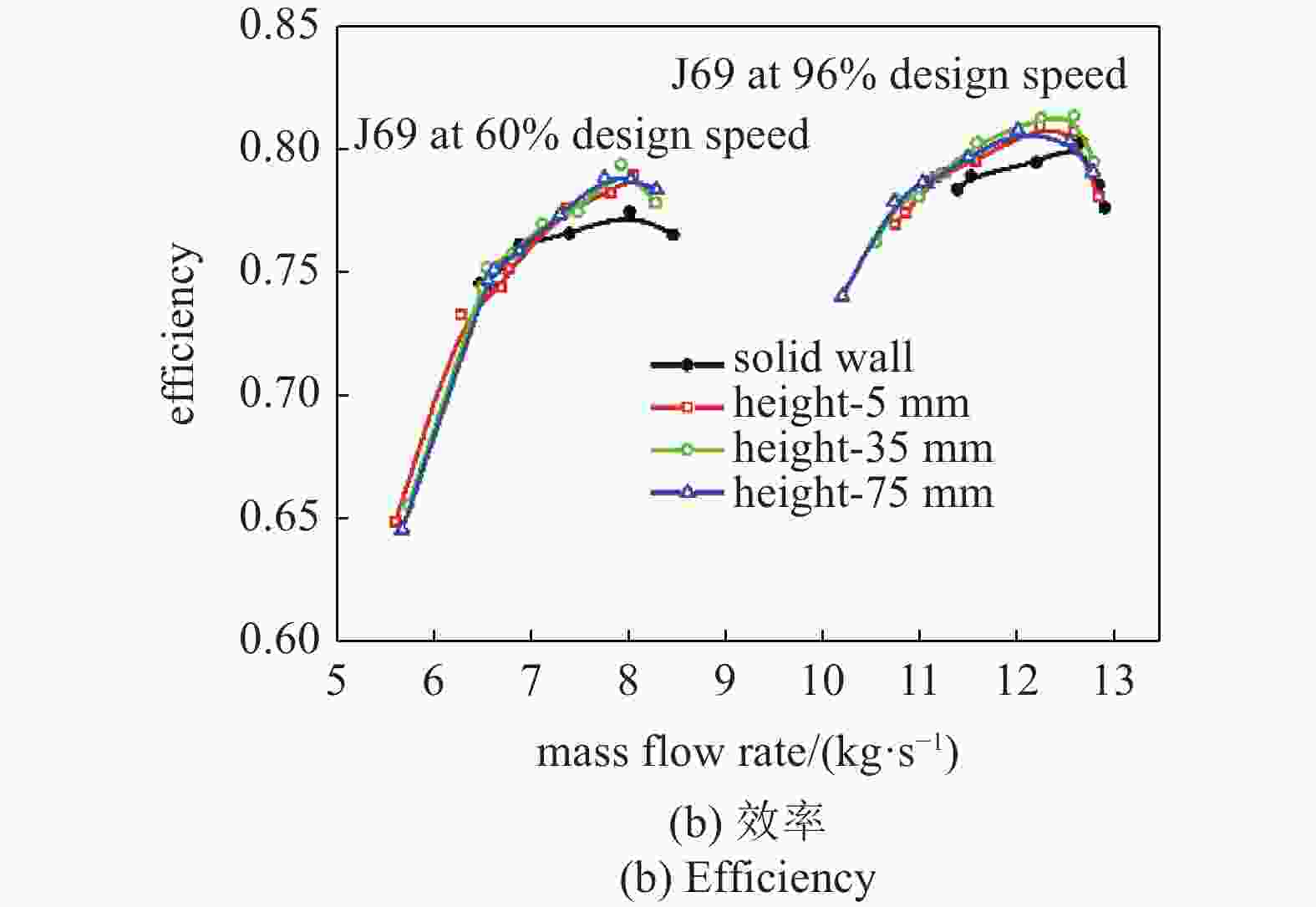

    图  10  SPS机匣处理在跨声速压气机J69上的扩稳实验结果[49](续)

    Figure  10.  Experimental results of SPS casing treatment on transonic compressor J69[49] (continued)

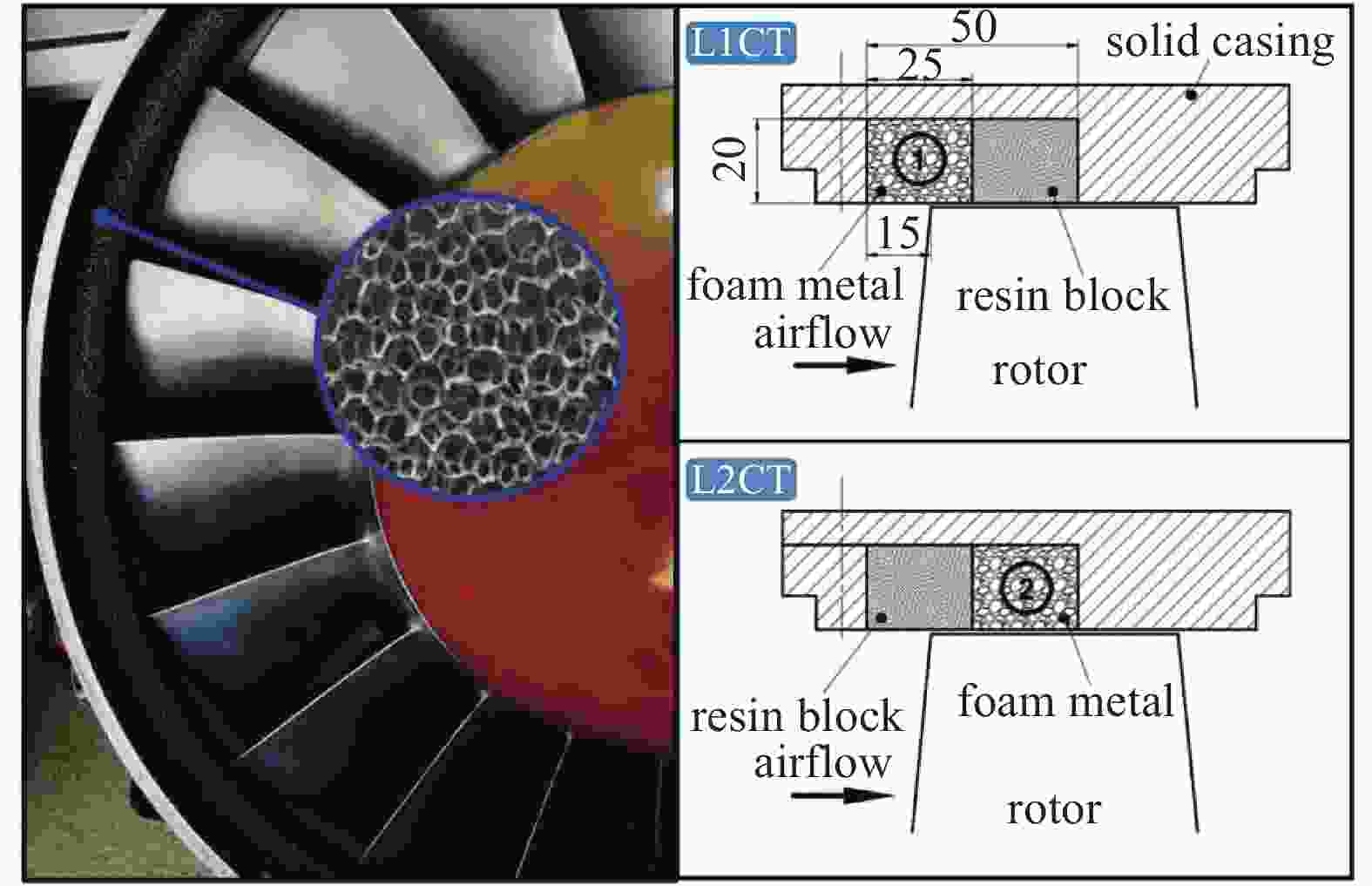

    图  11  泡沫金属机匣处理在实验中的安装

    Figure  11.  Installation of foam metal casing treatment in experiment

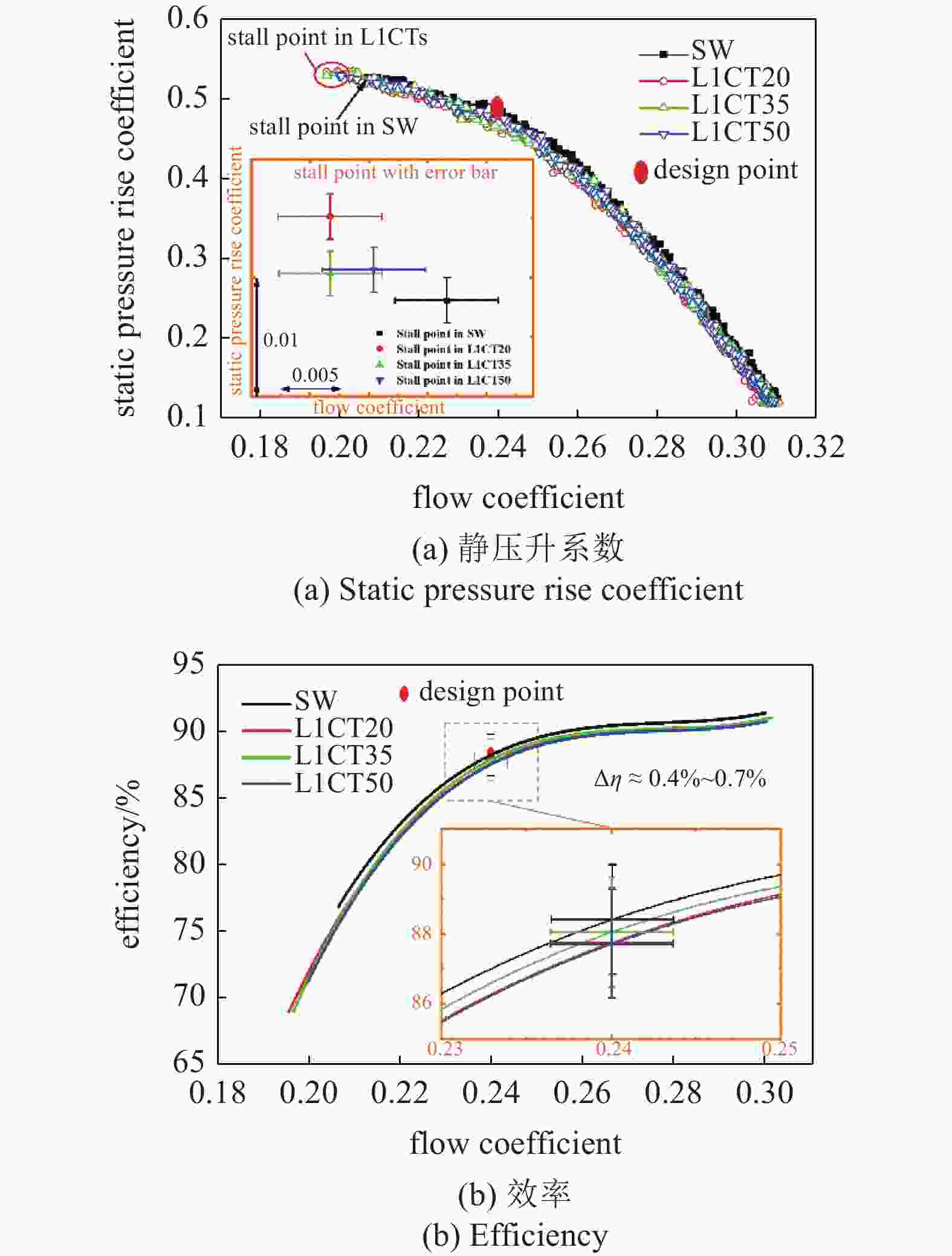

    图  12  带L1 CT的压气机特性线[52]

    Figure  12.  Compressor characteristics with L1 CT[52]

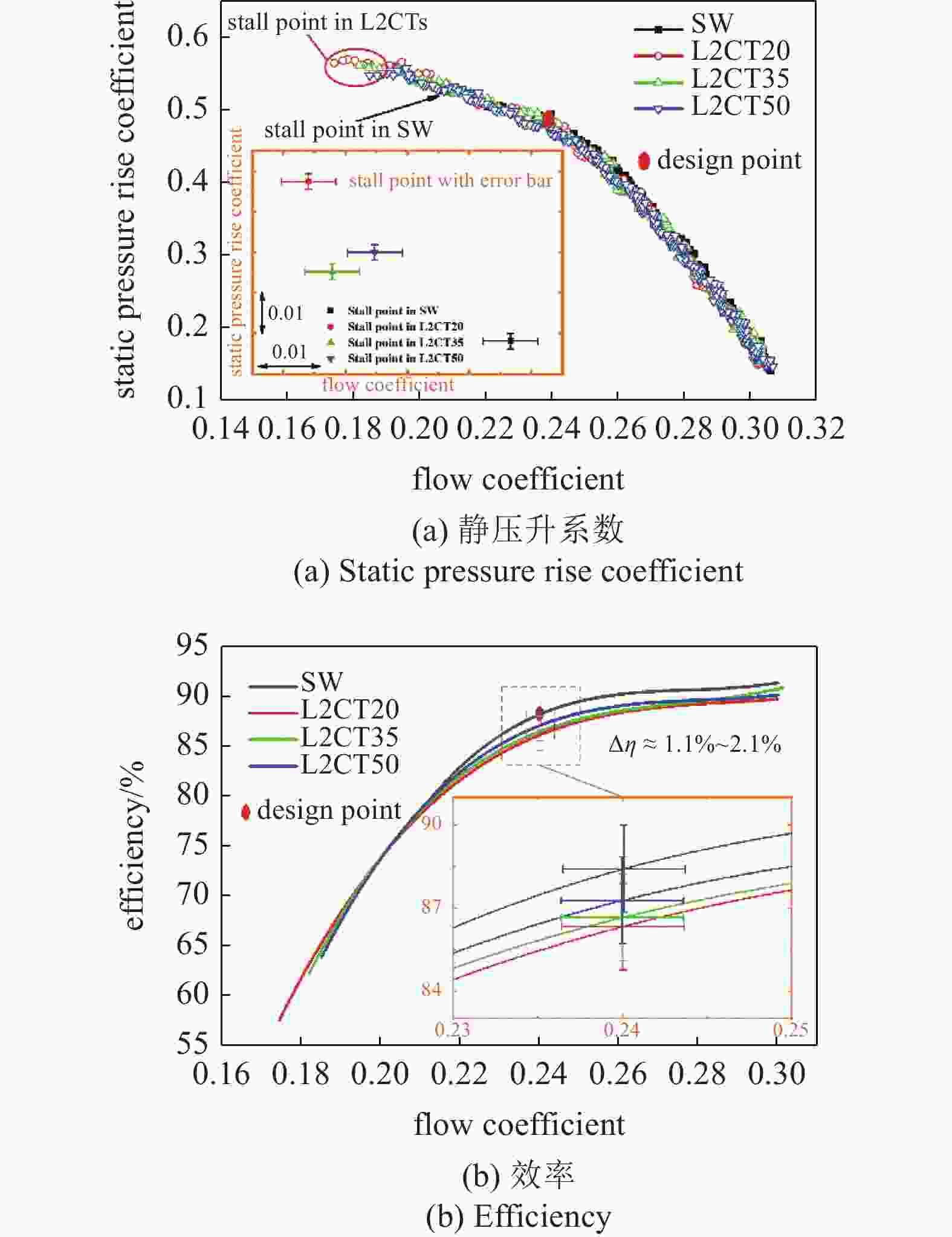

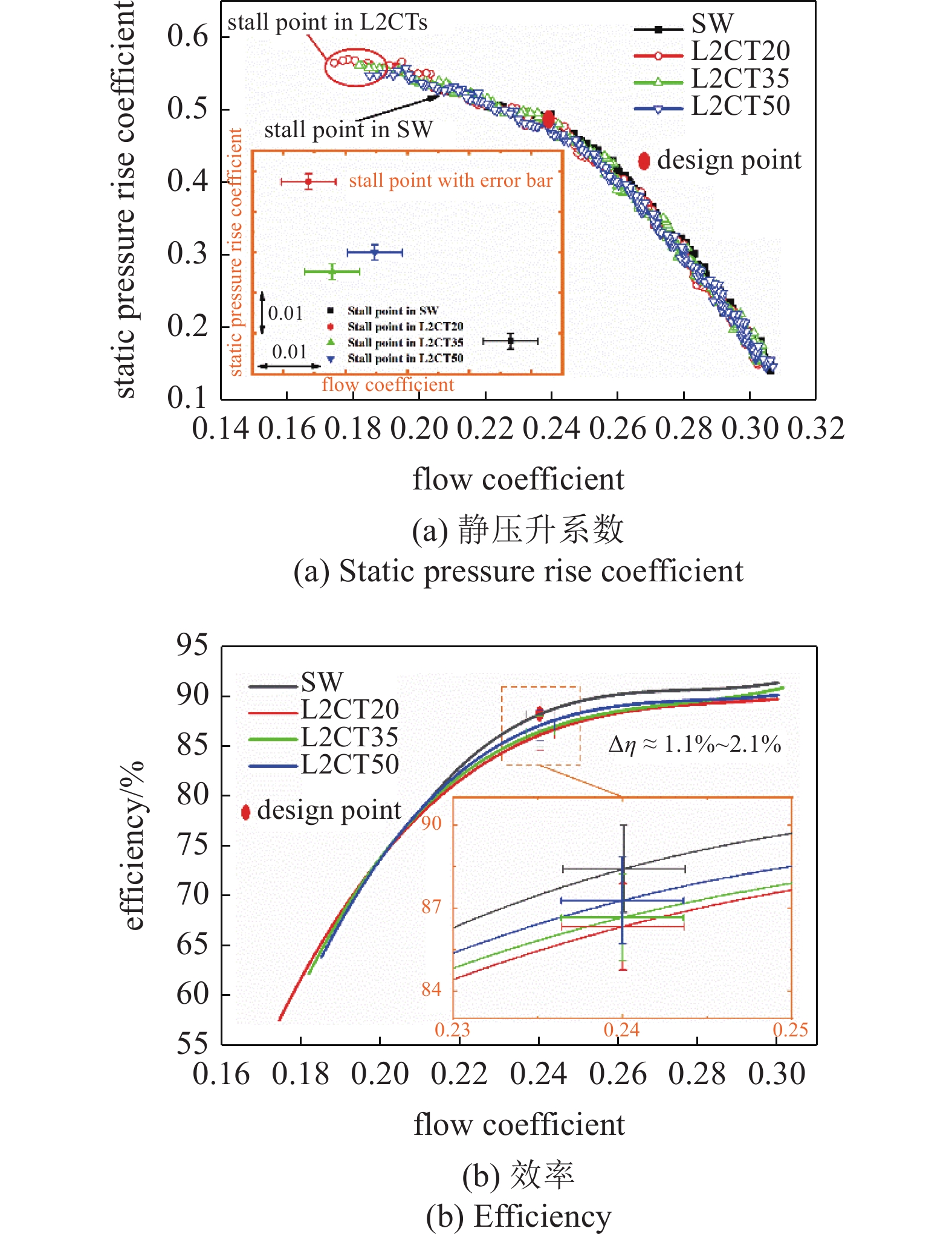

    图  13  带L2 CT的压气机特性线[52]

    Figure  13.  Compressor characteristics with L2 CT[52]

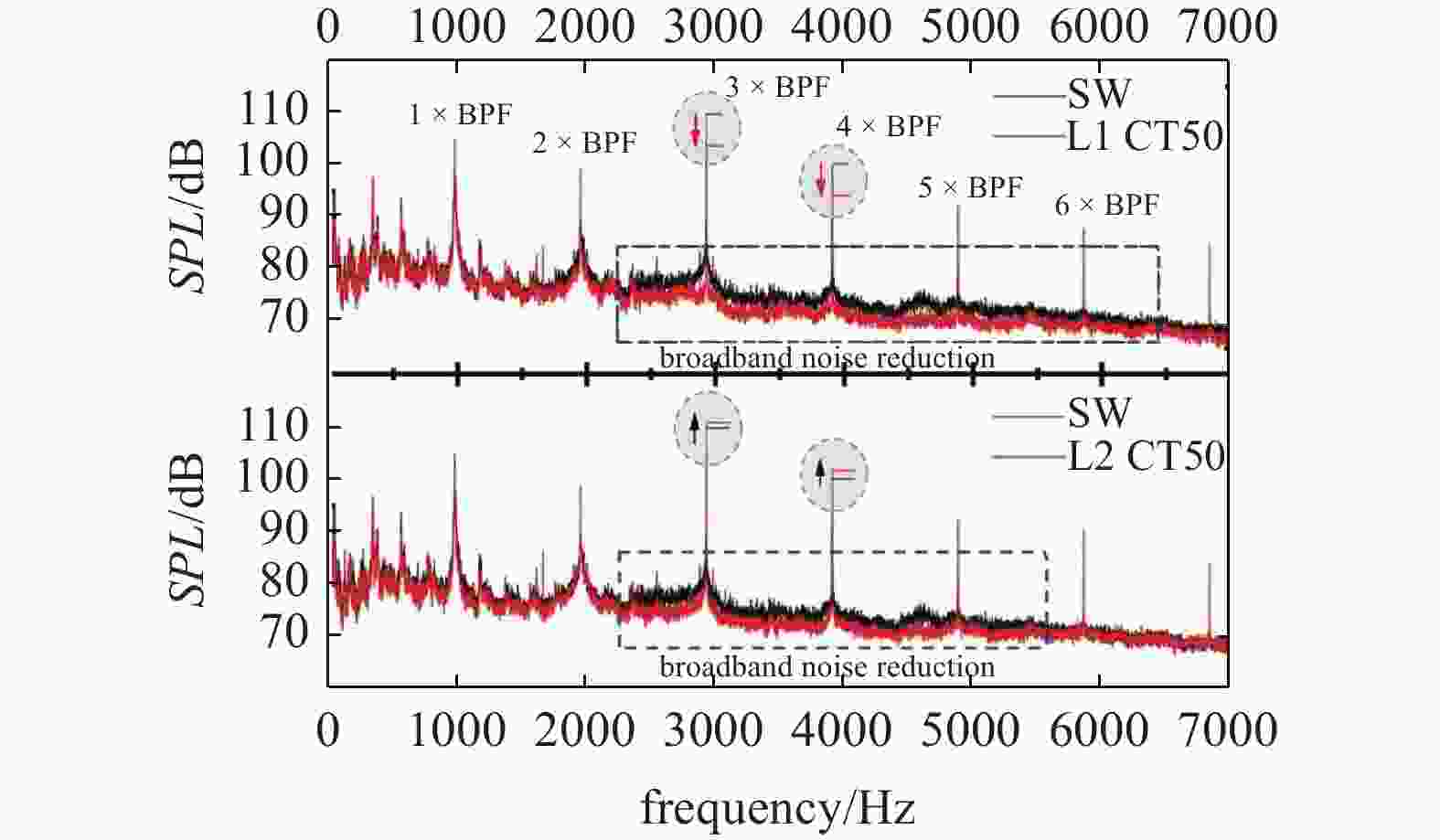

    图  14  设计工况下L1 CT50, L2 CT50和光壁机匣下压气机的声压级[52]

    Figure  14.  Sound pressure levels of compressors with L1 CT50, L2 CT50 and solid wall casing at design operating condition[52]

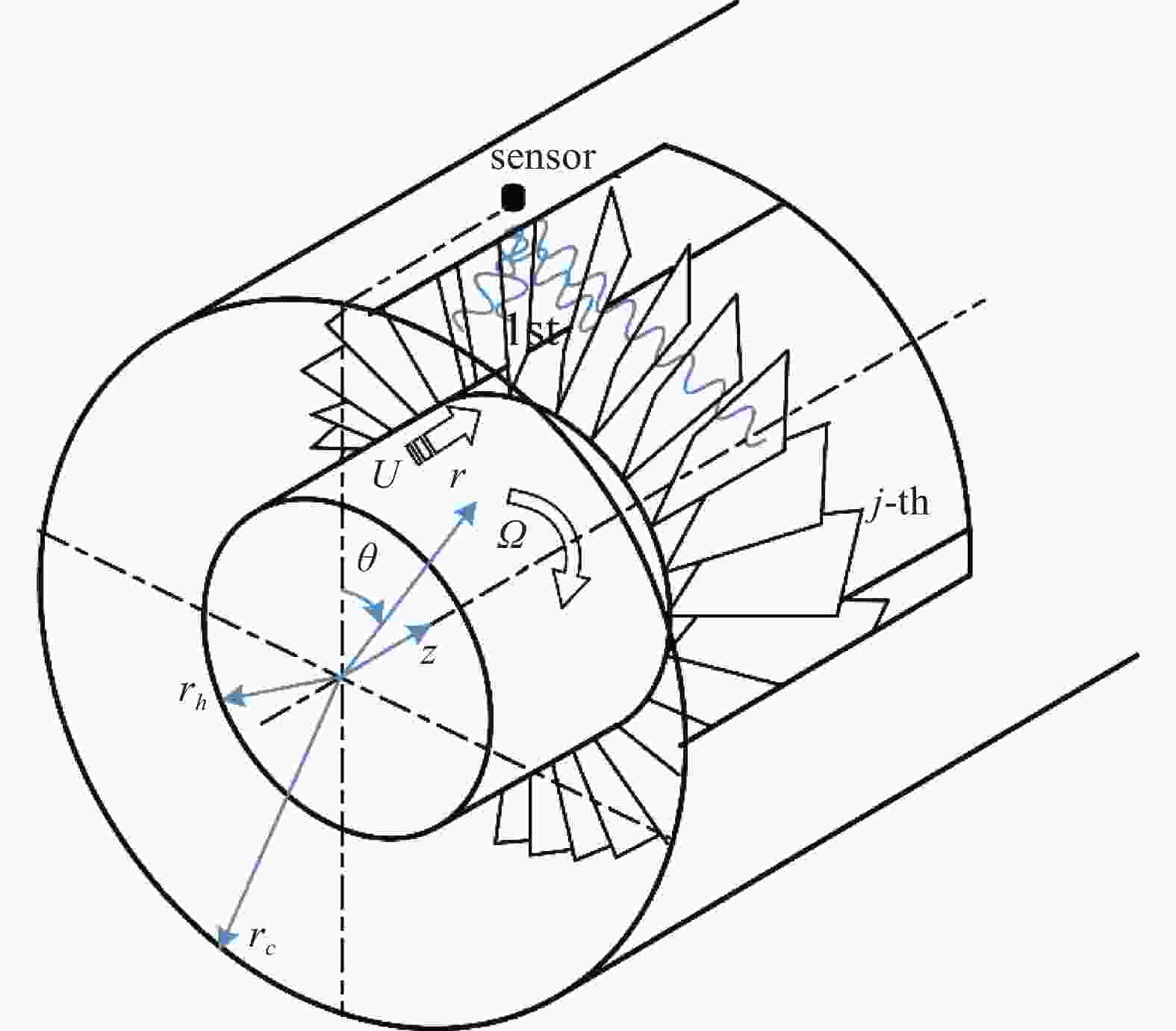

    图  15  压力传感器安装位置示意图

    Figure  15.  Installation position of pressure sensor

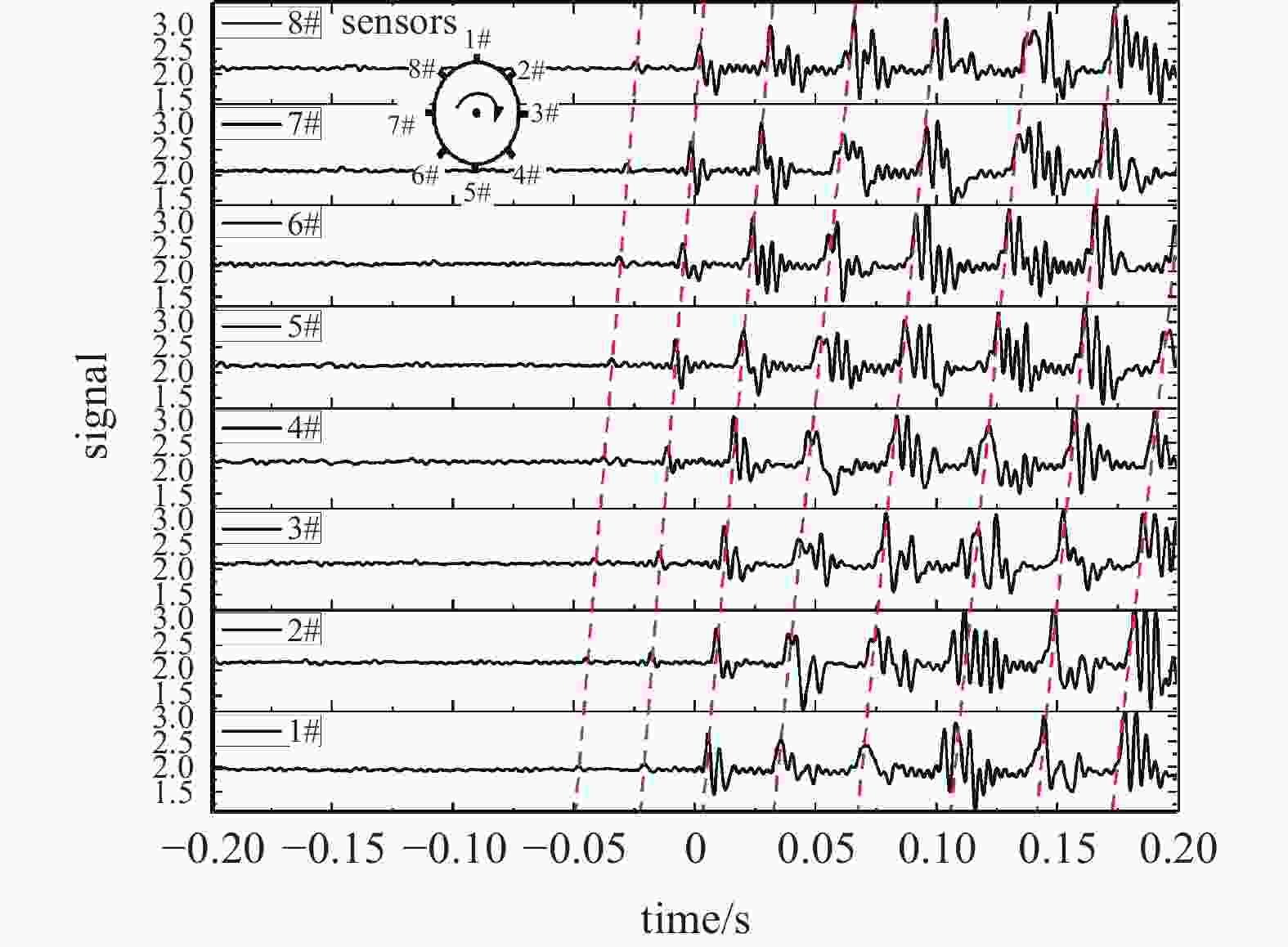

    图  16  失速先兆实验测试结果[54]

    Figure  16.  Experimental results of stall precursor[54]

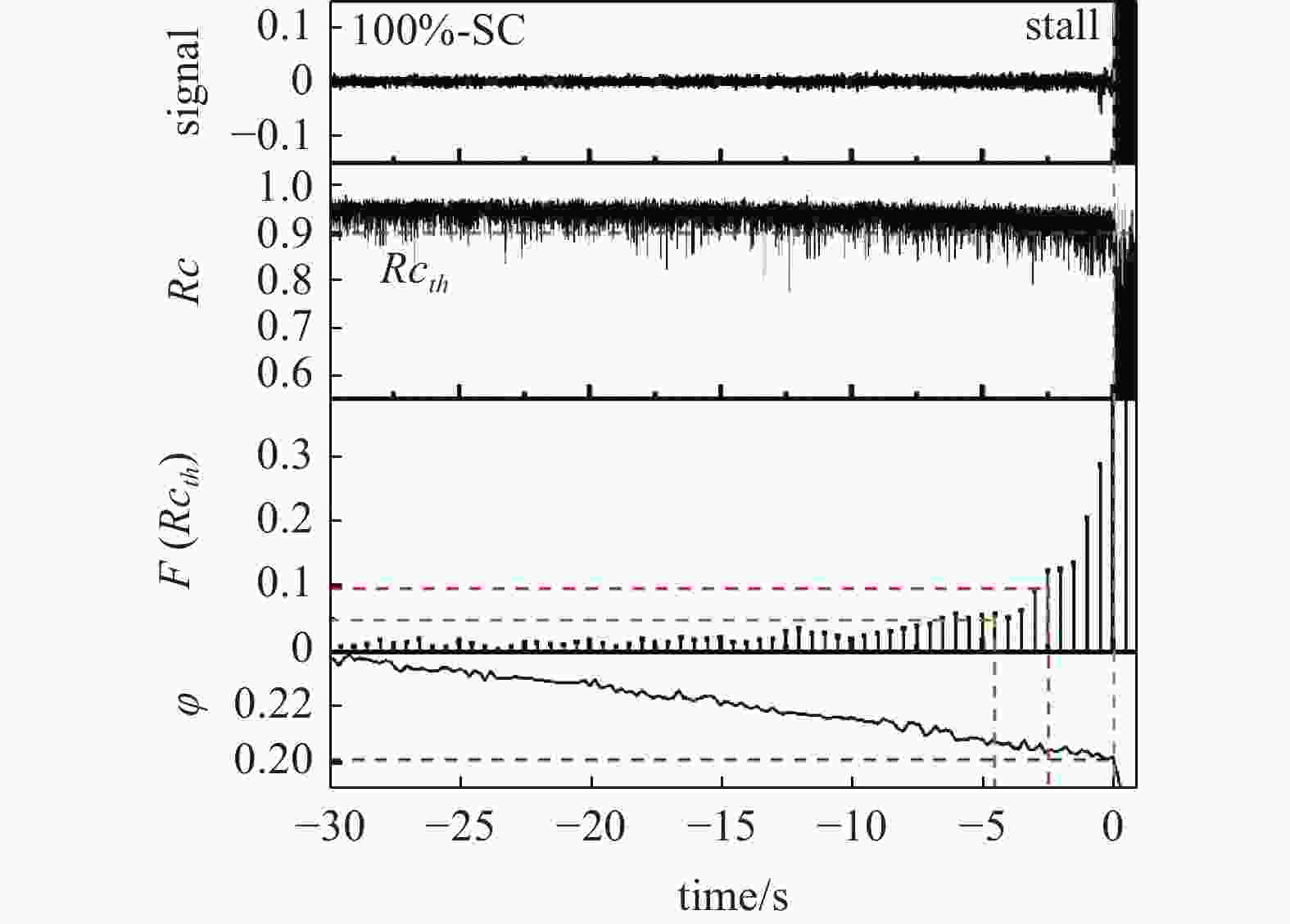

    图  17  设计转速下在线预警结果[54]

    Figure  17.  On-line stall warning at design rotating speed[54]

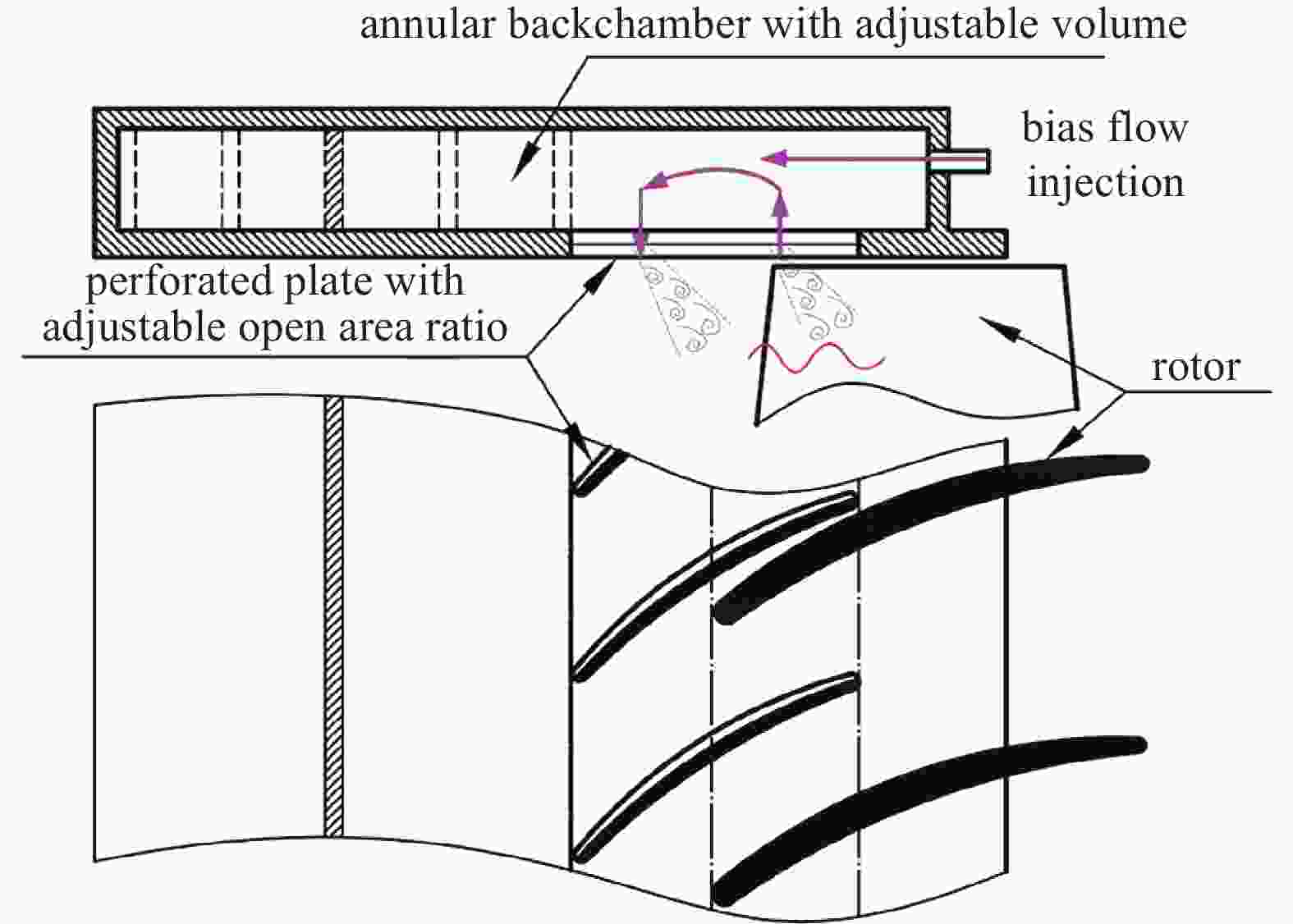

    图  18  可调几何参数的SPS机匣处理简图

    Figure  18.  Diagram of SPS casing treatment with adjustable geometric parameters

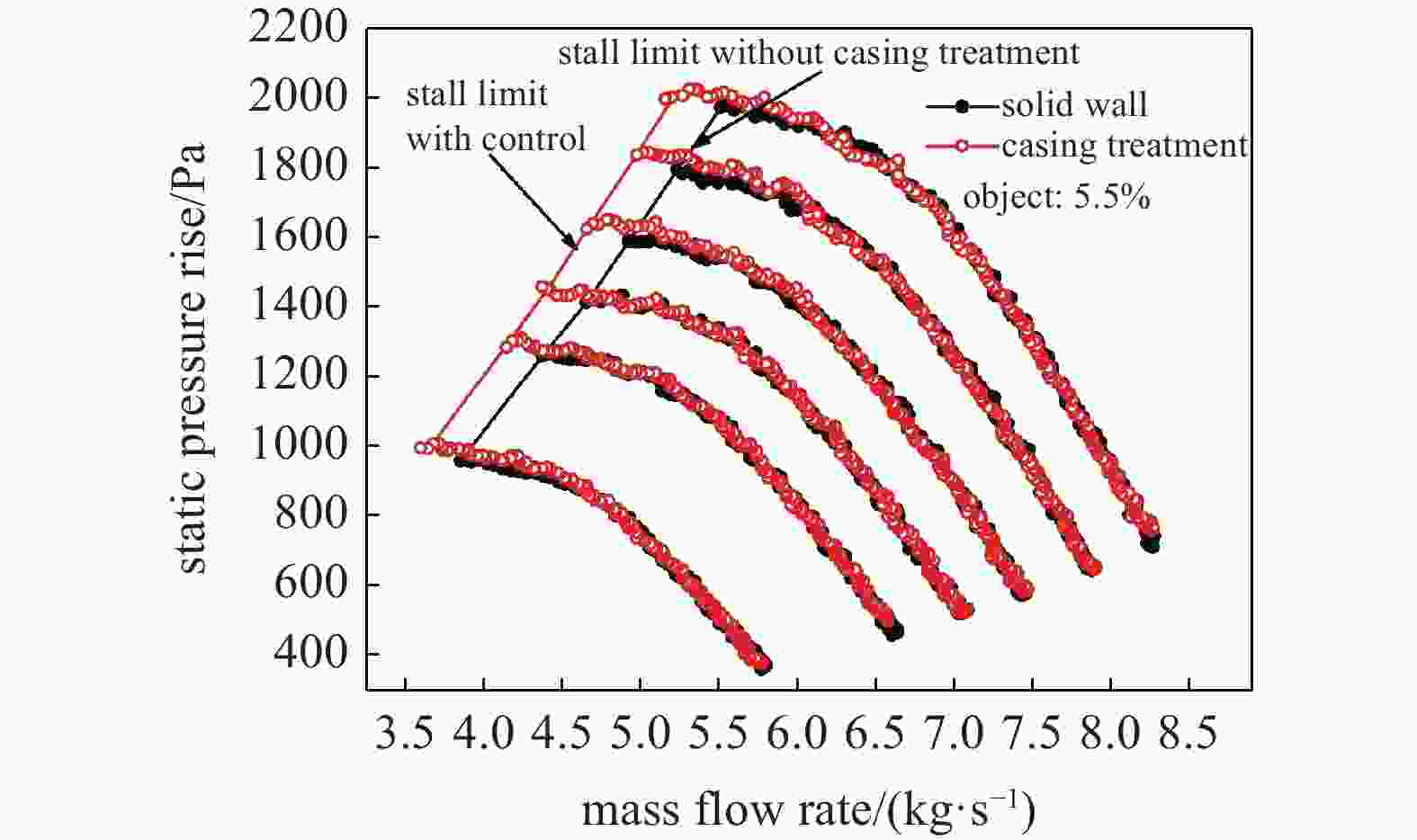

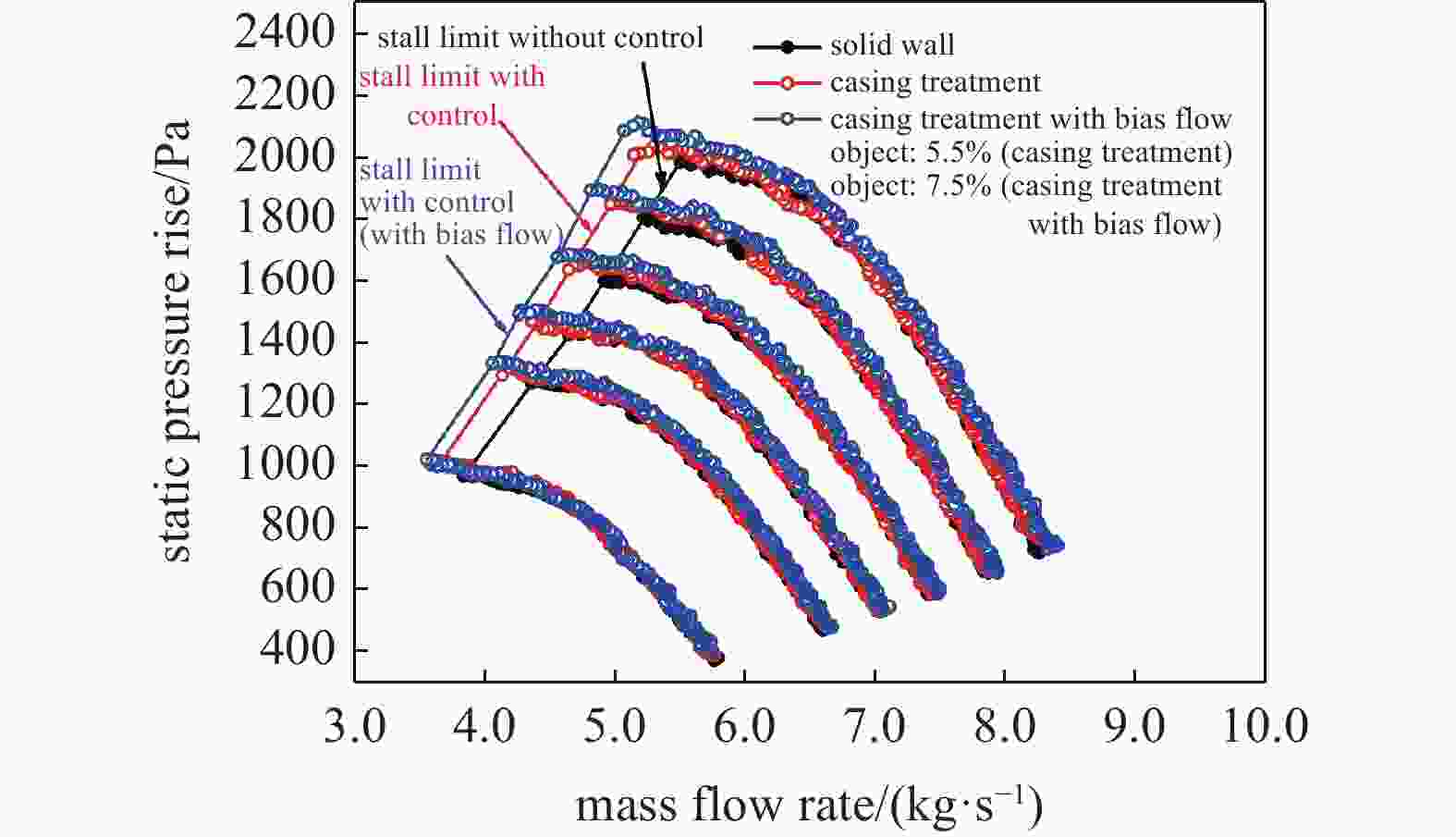

    图  19  扩稳目标5.5%下实现的全转速开环稳定性控制效果[56]

    Figure  19.  Open-loop stability control at 5.5% object of stall margin enhancement[56]

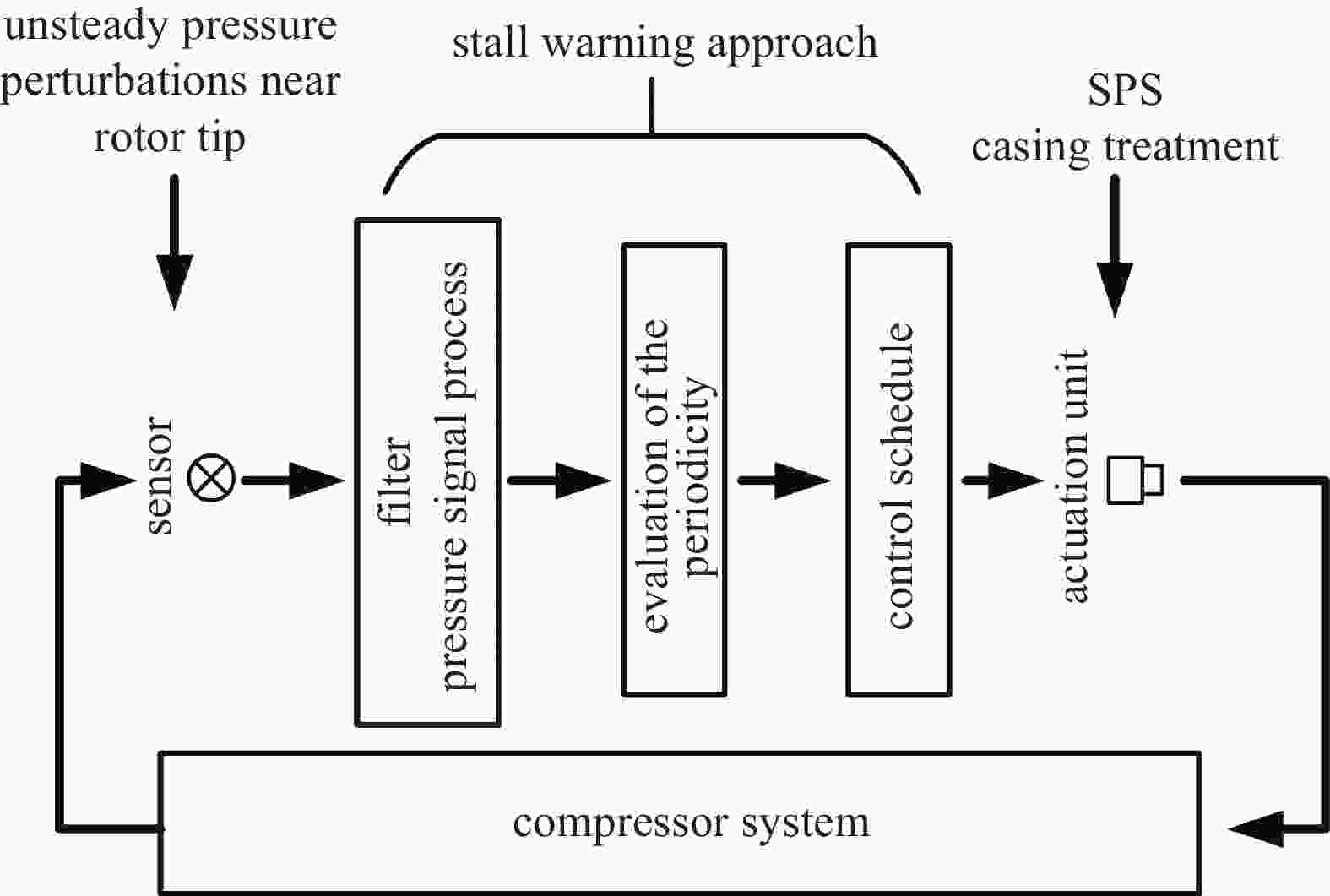

    图  20  自适应扩稳控制流程图

    Figure  20.  Flowchart of adaptive control

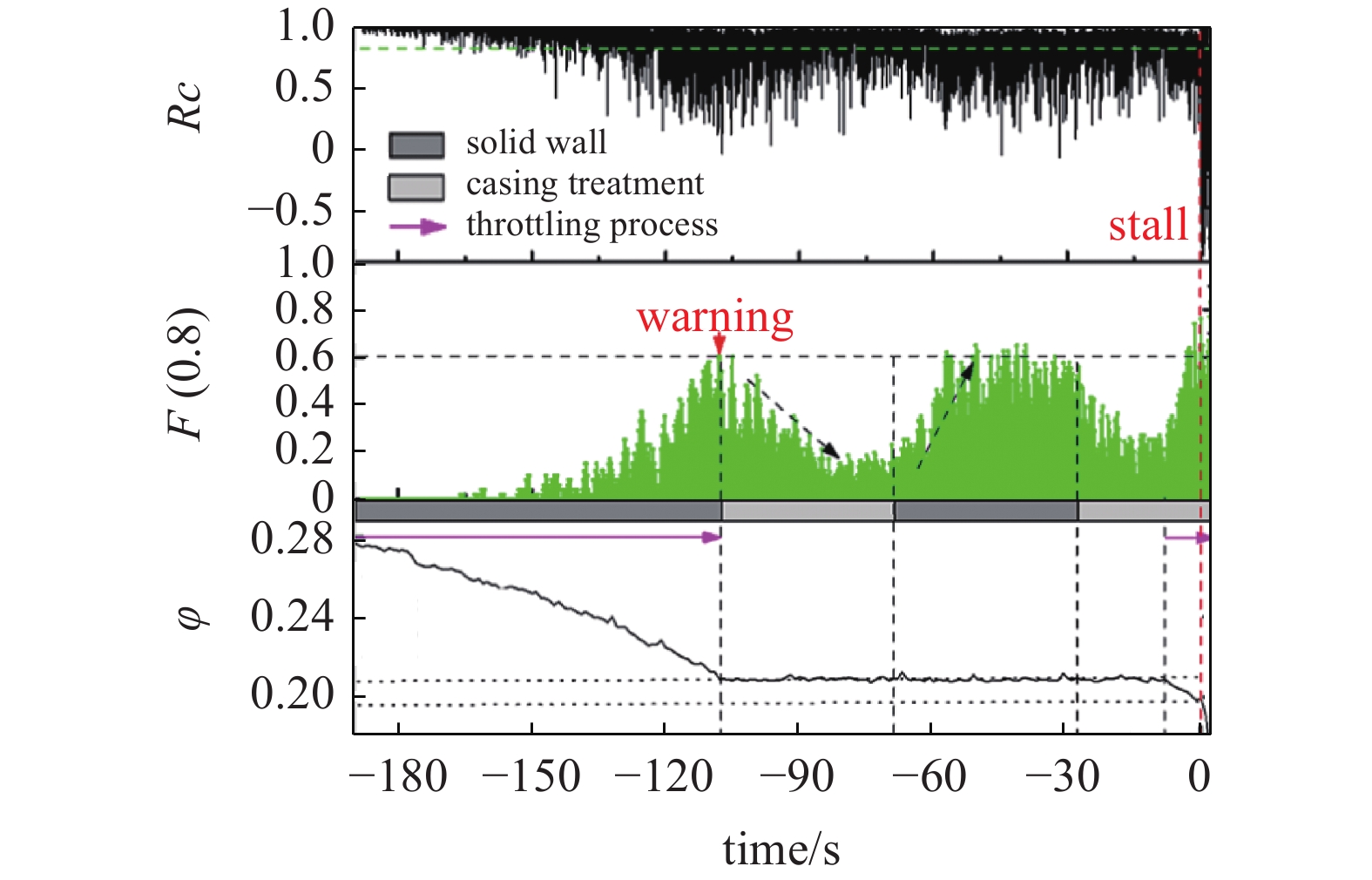

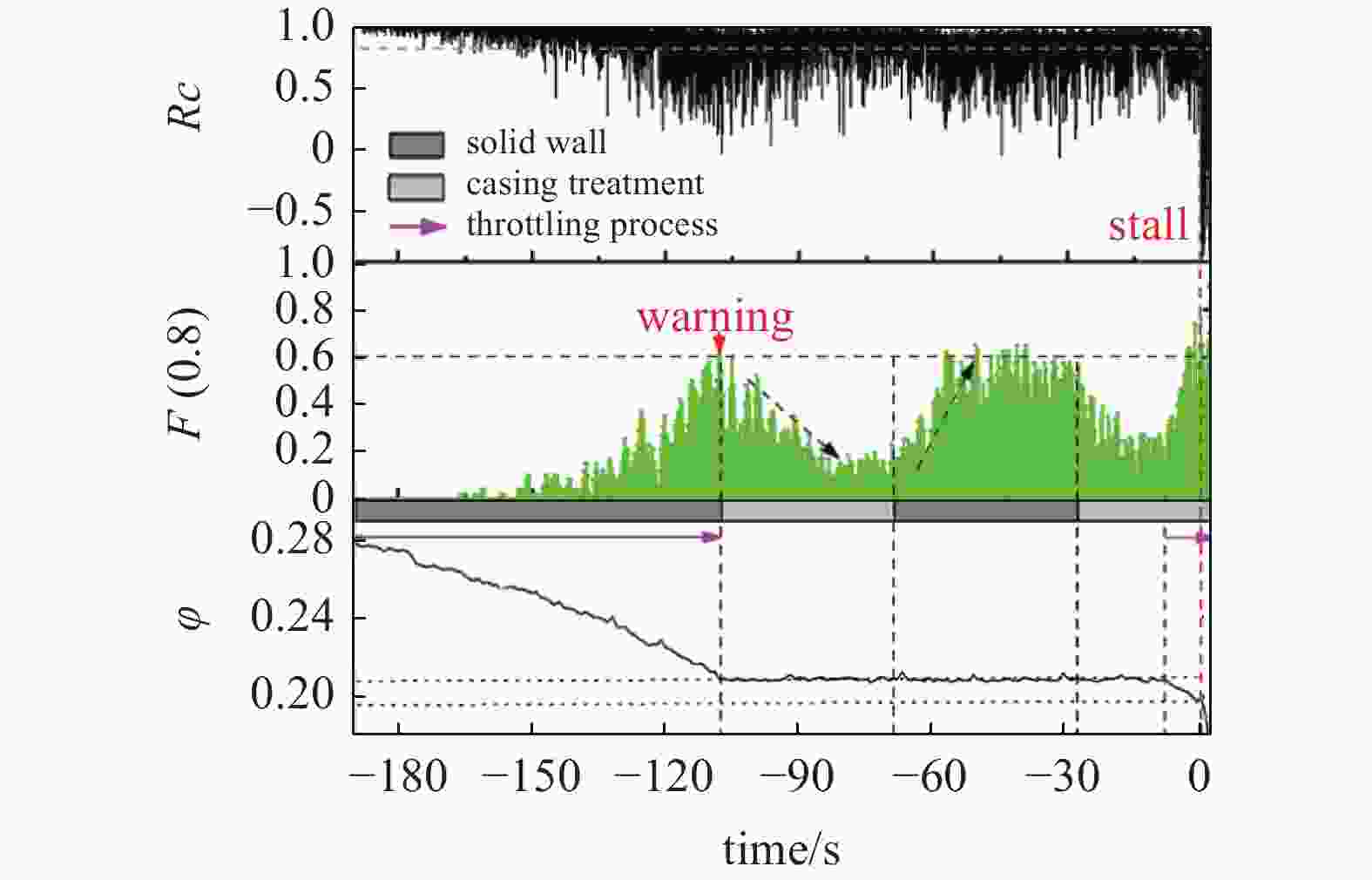

    图  21  在线自适应控制监测结果[56]

    Figure  21.  Online adaptive control results[56]

    图  22  全转速SPS机匣处理自适应控制效果[56]

    Figure  22.  Adaptive control effect of SPS casing treatment at different rotating speeds[56]

    表    符号表

    A, B, C, E, G, H, M, N, Q, R 系数矩阵
    $ B $ 叶片数
    $ {c_0} $ 声速
    $ {c_v} $ 定容比热
    $ DF $ 衰减因子
    $ e $ 内能
    $ F $ 与叶片力相关的系数矩阵
    $ f $ 叶片力向量
    $ {\boldsymbol{I}} $ 3阶单位阵
    $ {\rm{i}} $ 虚数单位
    $ k $ 压力波的波数
    $ {k_{mn}} $ 特征方程的特征值
    $ M $ 背景流马赫数
    $ m $ 压力波的周向模态阶数
    $ {m_{\text{c}}} $ 扰动量的周向波数
    $ n $ 压力波的径向模态阶数
    $ {n_{\text{r}}} $ 扰动量的径向波数
    $ (n,\theta ,s) $ 流线坐标系
    $ p $ 静压
    $ q $ 任一气动物理量
    $ \hat q $ 热源项
    $ Rc $ 评估压力信号时间周期性的参数
    $ R{c_{th}} $ $ Rc $的阈值
    $ {R_g} $ 比气体常数
    $ RS $ 相对速度
    $ (r,\theta ,z) $ 圆柱坐标系
    $ SPL $ 声压级, $ {\text{dB}} $
    $ T $ 静温
    $ T_{ij}^{'} $ Lighthill张量
    $ t $ 时间
    $ U $ 背景流绝对速度
    $ {\boldsymbol{u}} $ 绝对速度向量
    $ u $ 径向绝对速度
    $ v $ 周向绝对速度
    $ W $ 相对速度
    $ w $ 轴向绝对速度
    $ x' = \left( {r',\theta ',z'} \right) $ 转子坐标系
    $ {z_s} $ 传感器位置
    $ \varGamma $ 环量
    $ \gamma $ 比热比
    $ \lambda $ 导热系数
    $ \mu $ 动力黏性系数
    $ {\boldsymbol{\varPi}} $ 二阶应力张量
    $ \rho $ 密度
    $ \tilde {\boldsymbol{\varPhi}} $ 扰动量幅值组成的列向量
    $ {\phi _{mn}} $ 特征方程
    $ \varphi $ 流量系数
    $ \varOmega $ 转子转速, rad/s
    $ \omega $ 复数特征频率
    $ \nabla $ 梯度算子
    $ \nabla \cdot $ 散度算子
    下标:
    $ {\text{i}} $ 特征频率的虚部
    $ {\text{r}} $ 特征频率的实部
    $ {\text{ref}} $ 基准声压
    $ sound $ 声压
    上标:
    $ {\rm{T}} $ 矩阵转置
    ~ 扰动量幅值
    $ ' $ 扰动量
    $ - $ 背景物理量
    下载: 导出CSV
  • [1] Epstein AH. "Smart" engine components-a micro in every blade?//21st Joint Propulsion Conference, Monterey, 1986
    [2] Wu CH. A general through-flow theory of fluid flow with subsonic or supersonic velocity in turbomachines of arbitrary hub and casing shapes. NACA TN 2302, 1951
    [3] Wu CH. A general theory of three-dimensional flow in subsonic and supersonic turbomachines of axial-, radial-, and mixed-flow types. NACA TN 2604, 1952
    [4] Moore FK, Greitzer EM. A theory of post-stall transients in axial compression systems: part I-development of equations. ASME Journal of Engineering for Gas Turbines and Power, 1986, 108(1): 68-76 doi: 10.1115/1.3239887
    [5] Day IJ, Freeman C. The unstable behavior of low and high speed compressors. ASME Journal of Turbomachinery, 1994, 116(2): 194-201 doi: 10.1115/1.2928353
    [6] Tryfonidis M, Etchevers O, Paduano JD, et al. Prestall behavior of several high-speed compressors. ASME Journal of Turbomachinery, 1995, 117(1): 62-80 doi: 10.1115/1.2835644
    [7] McDougall NM, Cumpsty NA, Hynes TP. Stall inception in axial compressors. ASME Journal of Turbomachinery, 1990, 112(1): 116-123 doi: 10.1115/1.2927406
    [8] Garnier VH, Epstein AH, Greitzer EM. Rotating waves as a stall inception indication in axial compressors. ASME Journal of Turbomachinery, 1991, 113(2): 290-301 doi: 10.1115/1.2929105
    [9] Epstein AH, Ffowcs Williams JE, Greitzer EM. Active suppression of aerodynamic instabilities in turbomachines. AIAA Journal of Propulsion and Power, 1989, 5(2): 204-211 doi: 10.2514/3.23137
    [10] Ffowcs Williams JE. The aerodynamic potential of anti-sound//15th Congress of International Council of the Aeronautical Sciences, London, 1986
    [11] Day IJ. Stall inception in axial flow compressors. ASME Journal of Turbomachinery, 1993, 115(1): 1-9 doi: 10.1115/1.2929209
    [12] Paduano JD, Greitzer EM, Epstein AH. Compression system stability and active control. Annual Review of Fluid Mechanics, 2001, 33(1): 491-517 doi: 10.1146/annurev.fluid.33.1.491
    [13] Day IJ. Active suppression of rotating stall and surge in axial compressors. ASME Journal of Turbomachinery, 1993, 115(1): 40-47 doi: 10.1115/1.2929216
    [14] Koch CC. Experimental evaluation of outer case blowing or bleeding of single stage axial flow compressor. NASA-CR-54592, 1970
    [15] Ziabasharhagh M, McKenzie AB, Elder RL. Recess vane passive stall control. ASME-92-GT-36, 1992
    [16] Osborn WM, Lewis GW, Heidelberg LJ. Effect of several porous casing treatments on stall limit and on overall performance of an axial flow compressor rotor. NASA TN D-6537, 1971
    [17] Osborn WM, Moore RD. Effect of casing treatment on overall performance of axial-flow transonic fan stage with pressure ratio of 1.75 and tip solidity of 1.5. NASA TM X-3477, 1977
    [18] Takata H, Tsukuda Y. Stall margin improvement by casing treatment - its mechanism and effectiveness. ASME Journal of Engineering for Gas Turbines and Power, 1979, 99(1): 121-133
    [19] Smith GDJ, Cumpsty NA. Flow phenomena in compressor casing treatment. ASME Journal of Engineering for Gas Turbines and Power, 1984, 106(3): 532-541 doi: 10.1115/1.3239604
    [20] Liao S, Chen J. Time-frequency analysis of compressor rotating stall by means of wavelet transform. ASME 96-GT-057, 1996
    [21] Guan D, Sun D, Xu R, et al. Experimental investigation on axial compressor stall phenomena using aeroacoustics measurements via empirical mode and proper orthogonal decomposition methods. Aerospace Science and Technology, 2021, 112: 106655
    [22] Inoue M, Kuroumaru M, Iwamoto T, et al. Detection of a rotating stall precursor in isolated axial flow compressor rotors. ASME Journal of Turbomachinery, 1991, 113(2): 281-287 doi: 10.1115/1.2929102
    [23] Lieblein S, Schwenk FC, Broderick RL. Diffusion factor for estimating losses and limiting blade loadings in axial-flow-compressor blade elements. Technical Report Archive and Image Library, 1953
    [24] Emmons HW, Pearson CE, Grant HP. Compressor surge and stall propagation. Transactions of the ASME, 1955, 79: 455-469
    [25] Hynes TP, Greitzer EM. A method for assessing effects of circumferential flow distortion on compressor stability. ASME Journal of Turbomachinery, 1987, 109(3): 371-379 doi: 10.1115/1.3262116
    [26] Bonnaure LP. Modelling high speed multistage compressor stability. Cambridge: Massachusetts Institute of Technology, 1991
    [27] Sun X. On the relation between the inception of rotating stall and casing treatment//32th AIAA/ASME/SAE/ASEE Joint Propulsion Conference, Lake Buena Vista, FL, 1996, No. AIAA-96-2579
    [28] 于巍巍, 孙晓峰. 跨音压气机/风扇旋转失速稳定性模型. 航空动力学报, 2005, 20(6): 1018-1027 (Yu Weiwei, Sun Xiaofeng. Rotating stall stability theory of the transonic axial compressors/fans. Journal of Aerospace Power, 2005, 20(6): 1018-1027 (in Chinese) doi: 10.3969/j.issn.1000-8055.2005.06.021
    [29] Sun X, Sun D, Yu W. A model to predict stall inception of transonic axial flow fan/compressors. Chinese Journal of Aeronautics, 2011, 24(6): 687-700 doi: 10.1016/S1000-9361(11)60081-2
    [30] Sun X, Sun D, Liu X, et al. Theory of compressor stability enhancement using novel casing treatment, part I: methodology. AIAA Journal of Propulsion and Power, 2014, 30(5): 1224-1235 doi: 10.2514/1.B34900
    [31] Sun D, Liu X, Jin D, et al. Theory of compressor stability enhancement using novel casing treatment, part II: experiment. AIAA Journal of Propulsion and Power, 2014, 30(5): 1236-1247 doi: 10.2514/1.B34901
    [32] He L. Computational study of rotating-stall inception in axial compressors. AIAA Journal of Propulsion and Power, 2012, 13(1): 31-38
    [33] Hoying DA, Tan CS, Vo HD, et al. Role of blade passage flow structurs in axial compressor rotating stall inception. ASME Journal of Turbomachinery, 1998, 121(4): 735-742
    [34] Chen JP, Hathaway MD, Herrick GP. Prestall behavior of a transonic axial compressor stage via time-accurate numerical simulation. ASME Journal of Turbomachinery, 2008, 130(4): 353-368
    [35] Sun X, Liu X, Hou R, et al. A general theory of flow-instability inception in turbomachinery. AIAA Journal, 2013, 51(7): 1675-1687 doi: 10.2514/1.J052186
    [36] Gong Y, Tan CS, Gordon KA, et al. A computational model for short wavelength stall inception and development in multi-stage compressors. ASME Journal of Turbomachinery, 1999, 121(4): 726-734
    [37] Liu X, Sun D, Sun X. Basic studies of flow-instability inception in axial compressors using eigenvalue method. ASME Journal of Fluids Engineering, 2014, 136(3): 644-649
    [38] He C, Sun D, Sun X. Stall inception analysis of transonic compressors with chordwise and axial sweep. ASME Journal of Turbomachinery, 2018, 140(4): 041009 doi: 10.1115/1.4038873
    [39] He C, Ma Y, Liu X, et al. Aerodynamic instabilities of swept airfoil design in transonic axial-flow compressors. AIAA Journal, 2018, 56(5): 1-16
    [40] Xu D, He C, Sun D, et al. Analysis method of compressor stability based on eigenvalue theory. ASME Journal of Fluids Engineering, 2020, 142(7): 071204 doi: 10.1115/1.4046558
    [41] Sun X, Ma Y, Liu X, et al. Flow stability model of centrifugal compressors based on eigenvalue approach. AIAA Journal, 2016, 54(8): 2361-2376 doi: 10.2514/1.J054350
    [42] Fujita H, Takata H. A study on configurations of casing treatment for axial flow compressors. Bulletin of the Japanese Society of Mechanical Engineers, 1984, 27(230): 1675-1681 doi: 10.1299/jsme1958.27.1675
    [43] Howe MS. Theory of Vortex Sound. Cambridge: Cambridge University Press, 2003
    [44] Howe MS. On the theory of unsteady high Reynolds number flow through a circular aperture. Proceedings of the Royal Society London A, 1979, 366(1725): 205-223
    [45] Jing X, Sun X. Effect of plate thickness on impedance of perforated plates with bias flow. AIAA Journal, 2000, 38(9): 1573-1578 doi: 10.2514/2.1139
    [46] Namba M, Fukushige K. Application of the equivalent surface source method to the acoustics of duct systems with non-uniform wall impedance. Journal of Sound and Vibration, 1981, 73(1): 125-146
    [47] 王晓宇, 孙晓峰. 等价分布源方法新发展. 工程热物理学报, 2006, 27(21): 125-146 (Wang Xiaoyu, Sun Xiaofeng. Development of the equivalent source surface. Journal of Engineering Thermophysics, 2006, 27(21): 125-146 (in Chinese)
    [48] Sun D, Liu X, Sun X. An evaluation approach for the stall margin enhancement with stall precursor-suppressed casing treatment. ASME Journal of Fluids Engineering, 2015, 137(8): 081102
    [49] Sun D, Nie C, Liu X, et al. Further investigation on transonic compressor stall margin enhancement with stall precursor-suppressed casing treatment. ASME Journal of Turbomachinery, 2016, 138(2): 021001
    [50] Sutliff DL, Jones MG. Low-speed fan noise attenuation from a foam-metal liner. AIAA Journal of Aircraft, 2009, 46(4): 1381-1394 doi: 10.2514/1.41369
    [51] Xu C, Mao YJ. Passive control of centrifugal fan noise by employing open-cell metal foam. Applied Acoustics, 2016, 103: 10-19 doi: 10.1016/j.apacoust.2015.10.006
    [52] Sun D, Li J, Dong X, et al. Foam-metal casing treatment on an axial flow compressor: stability improvement and noise reduction. ASME Journal of Turbomachinery, 2022, 144(1): 011003
    [53] Li J, Sun D, Xu R, et al. Effect of the foam metal casing treatment on a low-speed axial compressor//Proceedings of the ASME Turbo Expo, 2020, GT2020-15149, V02 ET41 A020
    [54] Li F, Li J, Dong X, et al. Stall-warning approach based on aeroacoustic principle. AIAA Journal of Propulsion and Power, 2016, 32(6): 1353-1364 doi: 10.2514/1.B35814
    [55] Goldstein ME. Aeroacoustics. New York: McGraw-Hill, 1976: 192-208
    [56] 孙晓峰, 孙大坤. 高速叶轮机流动稳定性. 北京: 国防工业出版社, 2018: 388-405

    Sun Xiaofeng, Sun Dakun. Internal Flow Stability in High-speed Turbomachinery. Beijing: National Defense Industry Press, 2018: 388-405 (in Chinese)
