基于离散单元法和人工神经网络的近壁颗粒动力学特征研究

赵云华 段总样 徐璋

赵云华, 段总样, 徐璋. 基于离散单元法和人工神经网络的近壁颗粒动力学特征研究. 力学学报, 2021, 53(10): 1-11 doi: 10.6052/0459-1879-21-313
引用本文: 赵云华, 段总样, 徐璋. 基于离散单元法和人工神经网络的近壁颗粒动力学特征研究. 力学学报, 2021, 53(10): 1-11 doi: 10.6052/0459-1879-21-313
ZHAO Yunhua, DUAN Zongyang, XU Zhang. Characterization of near-wall particle dynamics based on discrete element method andartificial neural network. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(10): 1-11 doi: 10.6052/0459-1879-21-313
Citation: ZHAO Yunhua, DUAN Zongyang, XU Zhang. Characterization of near-wall particle dynamics based on discrete element method andartificial neural network. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(10): 1-11 doi: 10.6052/0459-1879-21-313

基于离散单元法和人工神经网络的近壁颗粒动力学特征研究

doi: 10.6052/0459-1879-21-313
基金项目: 国家自然科学基金资助项目(51976194)
详细信息
    作者简介:

    赵云华, 副教授, 主要研究方向: 气固两相流. E-mail: zhaoyh@zjut.edu.cn

  • 中图分类号: TK05

CHARACTERIZATION OF NEAR-WALL PARTICLE DYNAMICS BASED ON DISCRETE ELEMENT METHOD ANDARTIFICIAL NEURAL NETWORK

  • 摘要: 颗粒与壁面的相互作用往往对颗粒流动具有显著影响. 为研究颗粒与壁面作用机理, 对滚筒内颗粒流动过程进行离散单元法(DEM)数值模拟. 基于模拟结果统计分析靠近壁面处颗粒的运动特征, 结果表明小摩擦系数时颗粒平动和旋转速度均近似满足正态分布, 但由于壁面影响, 摩擦系数增大时颗粒沿滚筒轴向的旋转速度偏离正态分布, 颗粒动力学理论推导壁面边界条件时应考虑速度正态分布的修正及速度脉动的各向异性. 采用人工神经网络(ANN)构建了颗粒无因次旋转温度、滑移速度和平动温度之间的函数模型, 进而可以在常规双流模型壁面边界条件中考虑颗粒旋转的影响. 基于DEM模拟及结果分析可以为壁面边界条件的理论构造和半经验修正提供基础数据和封闭模型.

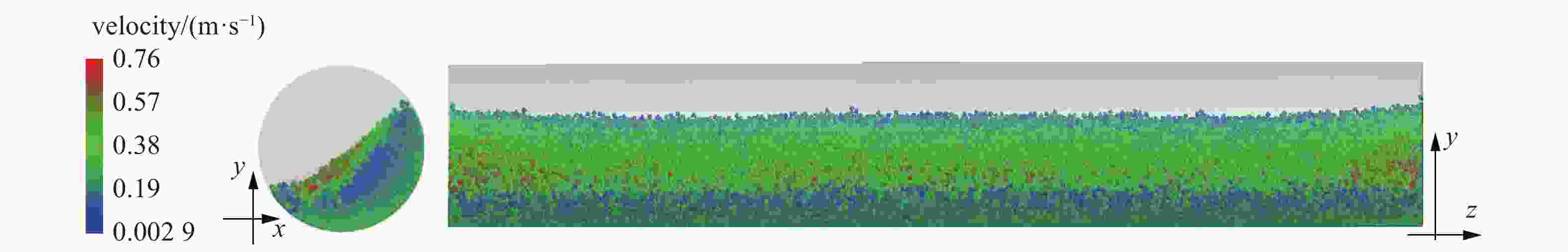

  • 图  1  滚筒内的颗粒分布

    Figure  1.  Particle distribution in the drum

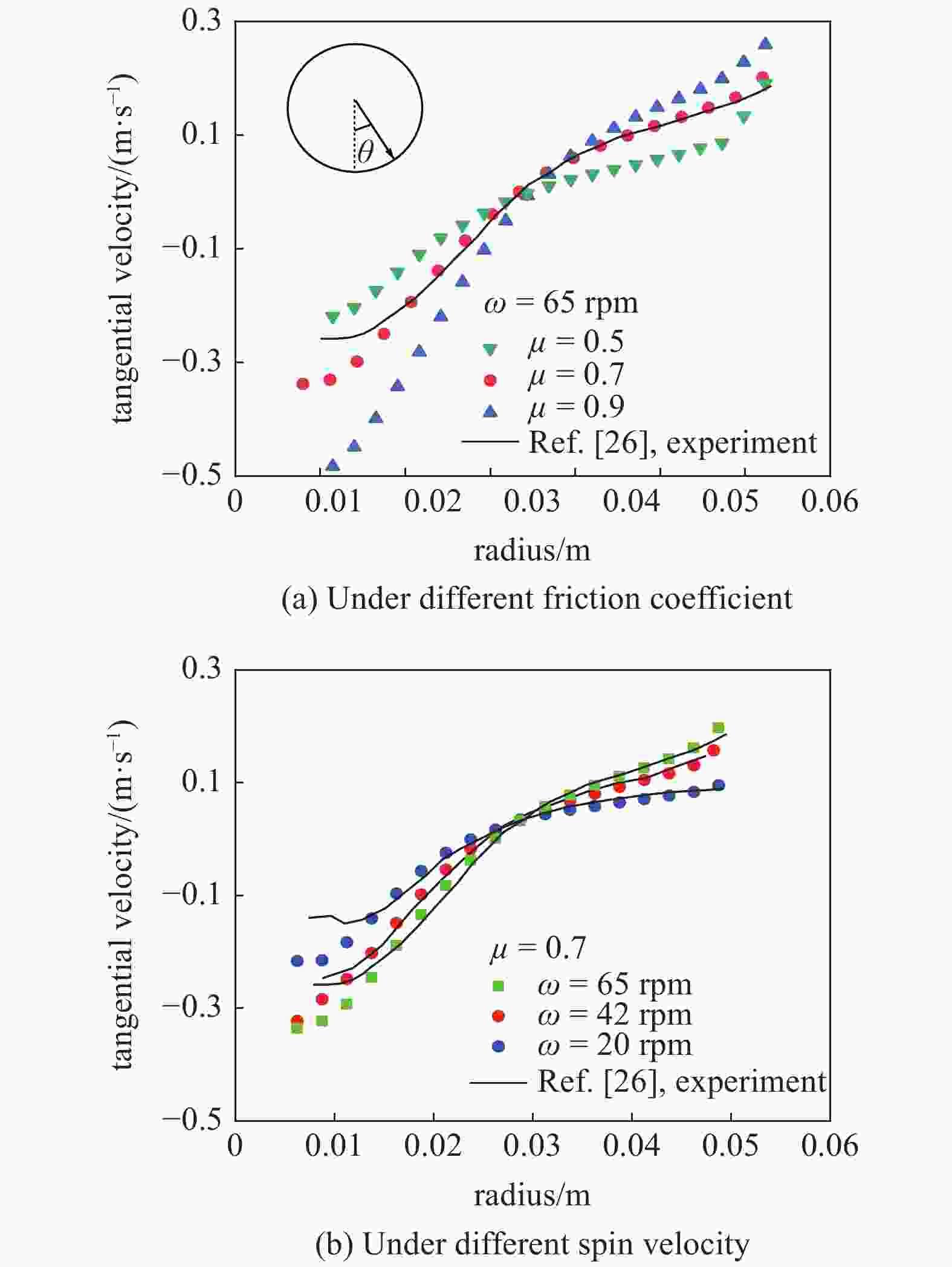

    图  2  切向速度与实验数据的比较

    Figure  2.  Comparison of the tangential velocity with experiment data

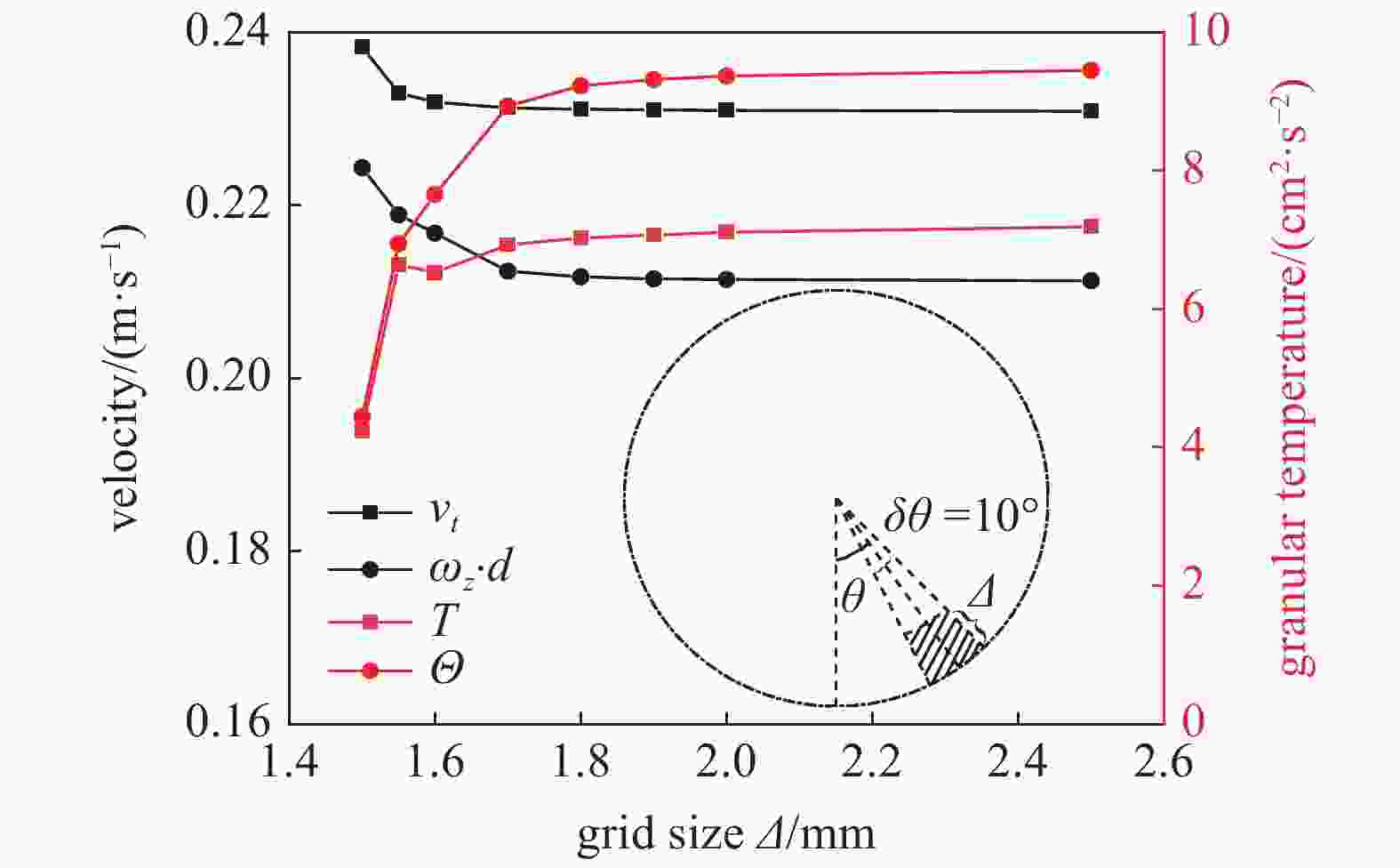

    图  3  网格大小与平均颗粒变量的关系

    Figure  3.  Relationship between mesh size and averaged particle variables

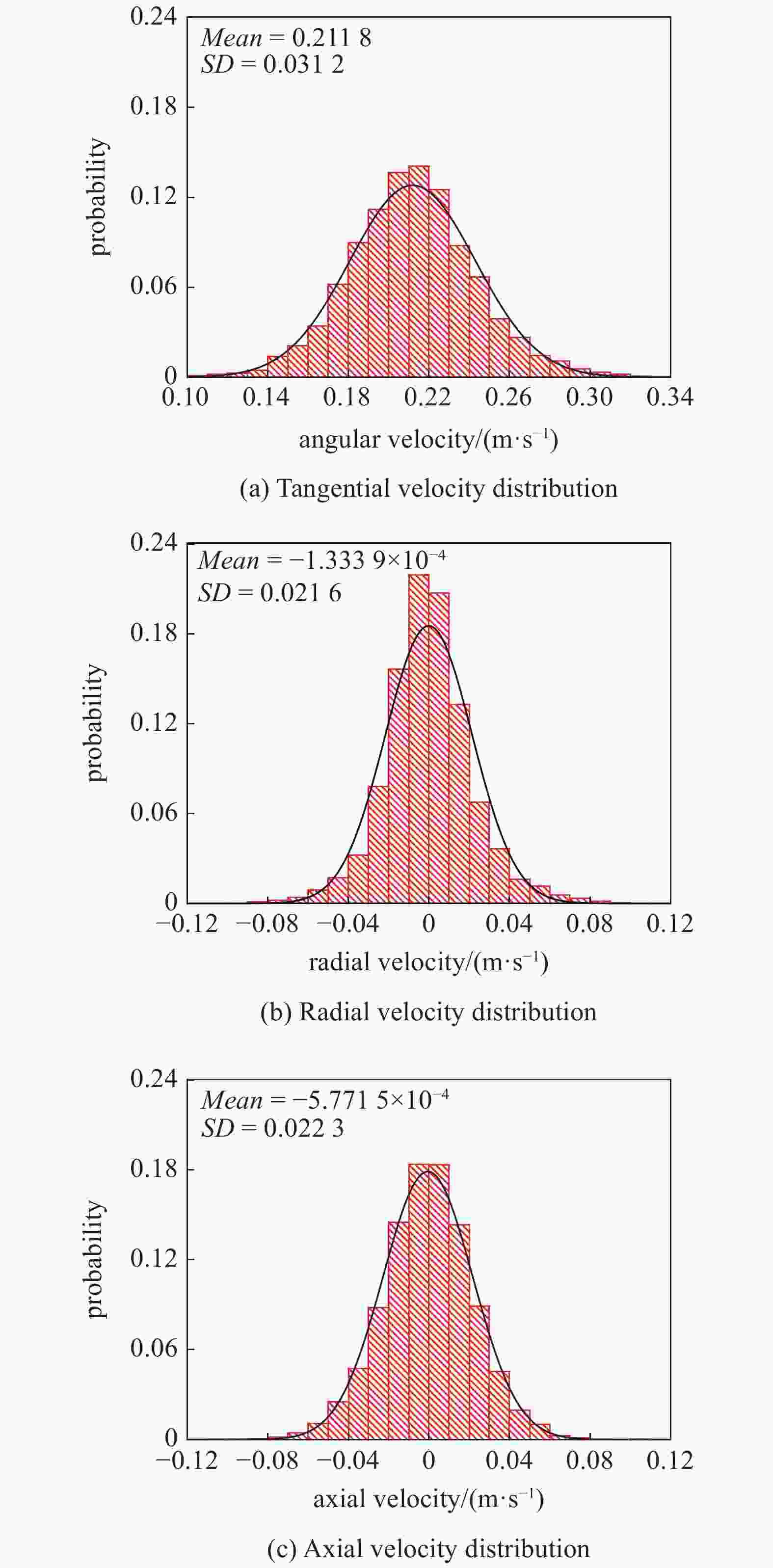

    图  4  近壁颗粒平动速度分布

    Figure  4.  Translational velocity distribution of near-wall particles

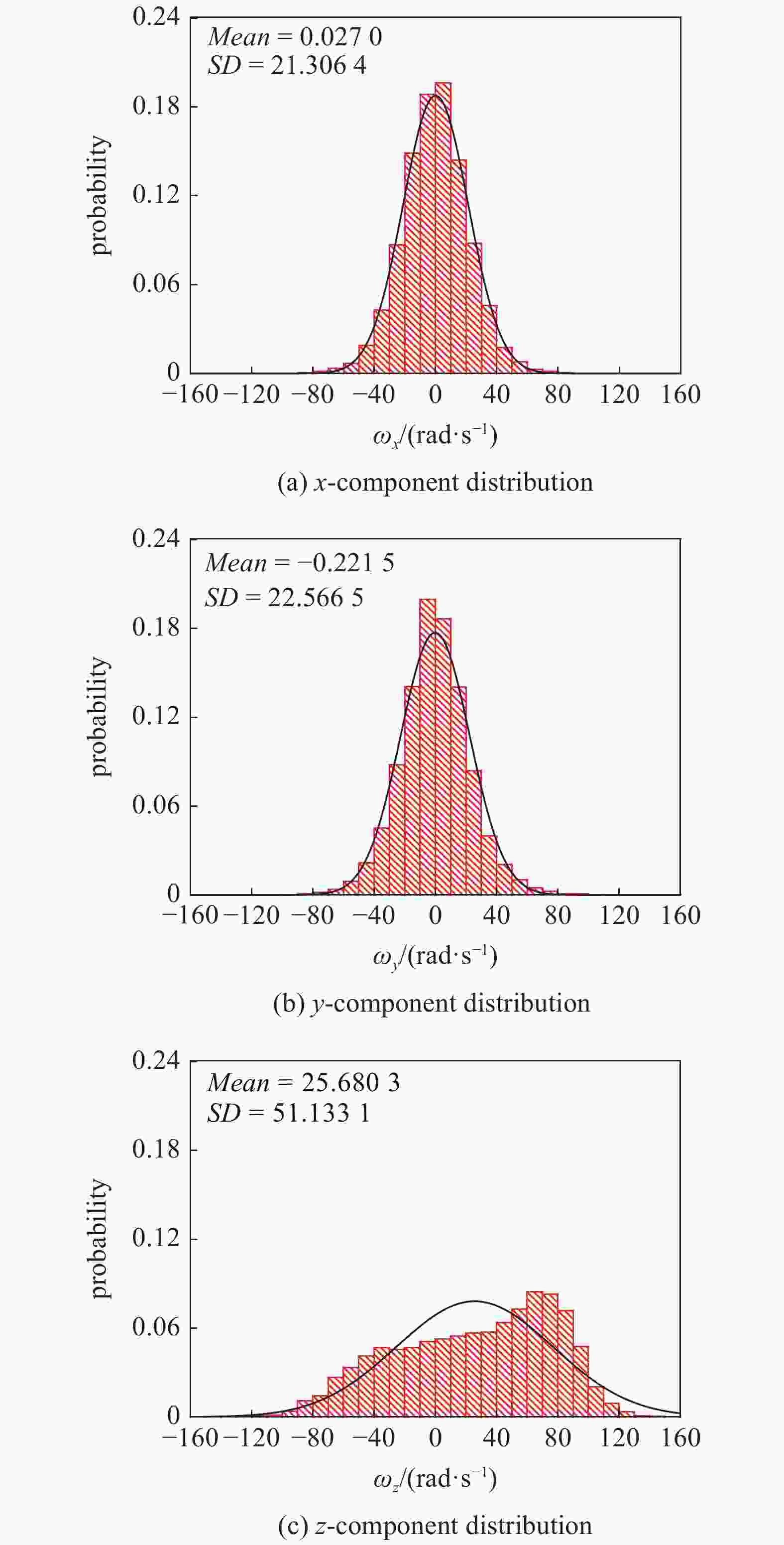

    图  5  近壁颗粒旋转速度分布

    Figure  5.  Rotational velocity distribution of near-wall particles

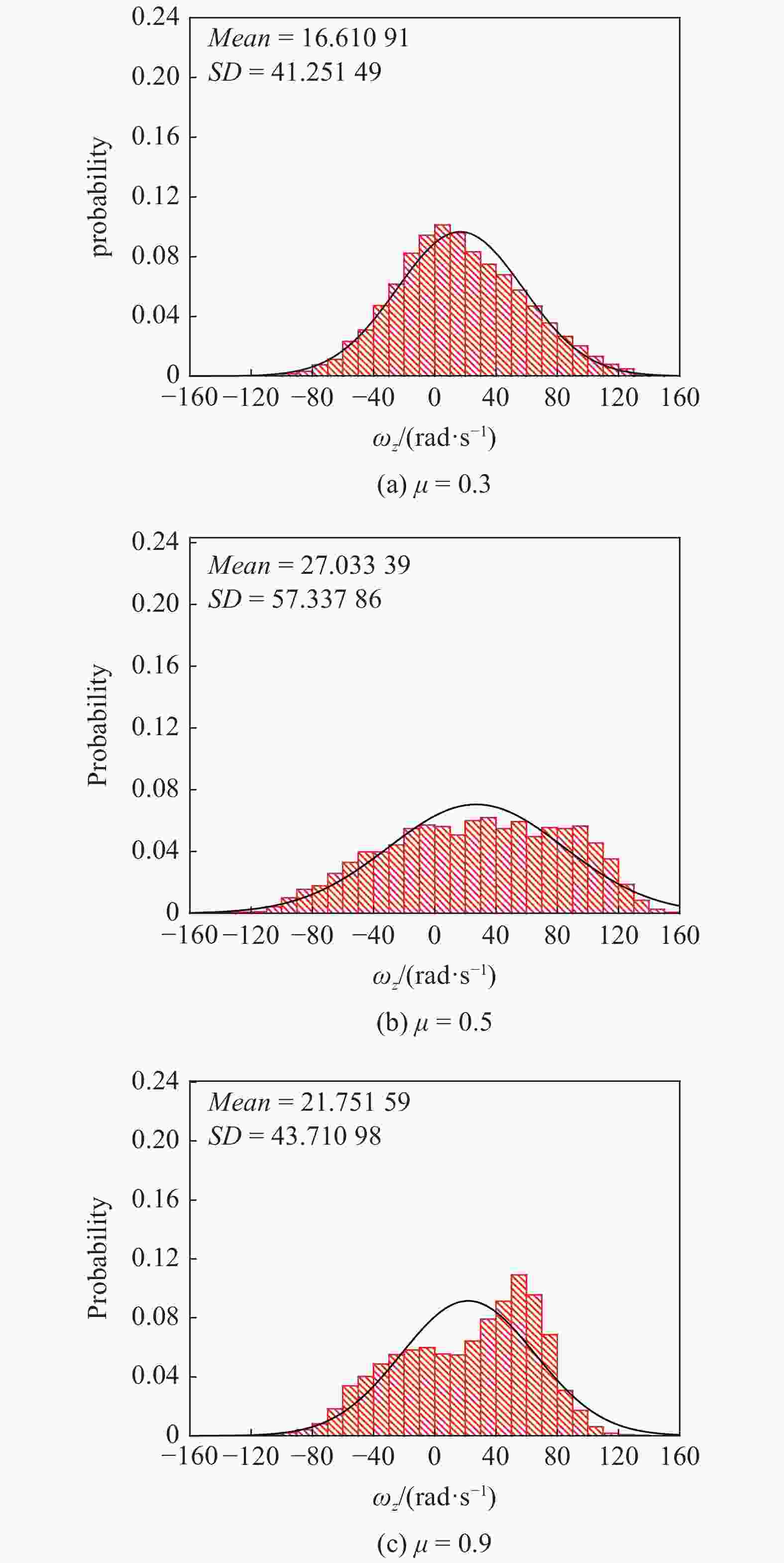

    图  6  不同摩擦系数下的近壁颗粒轴向旋转速度分布

    Figure  6.  Axial rotational velocity distribution of near-wall particles under different friction coefficients

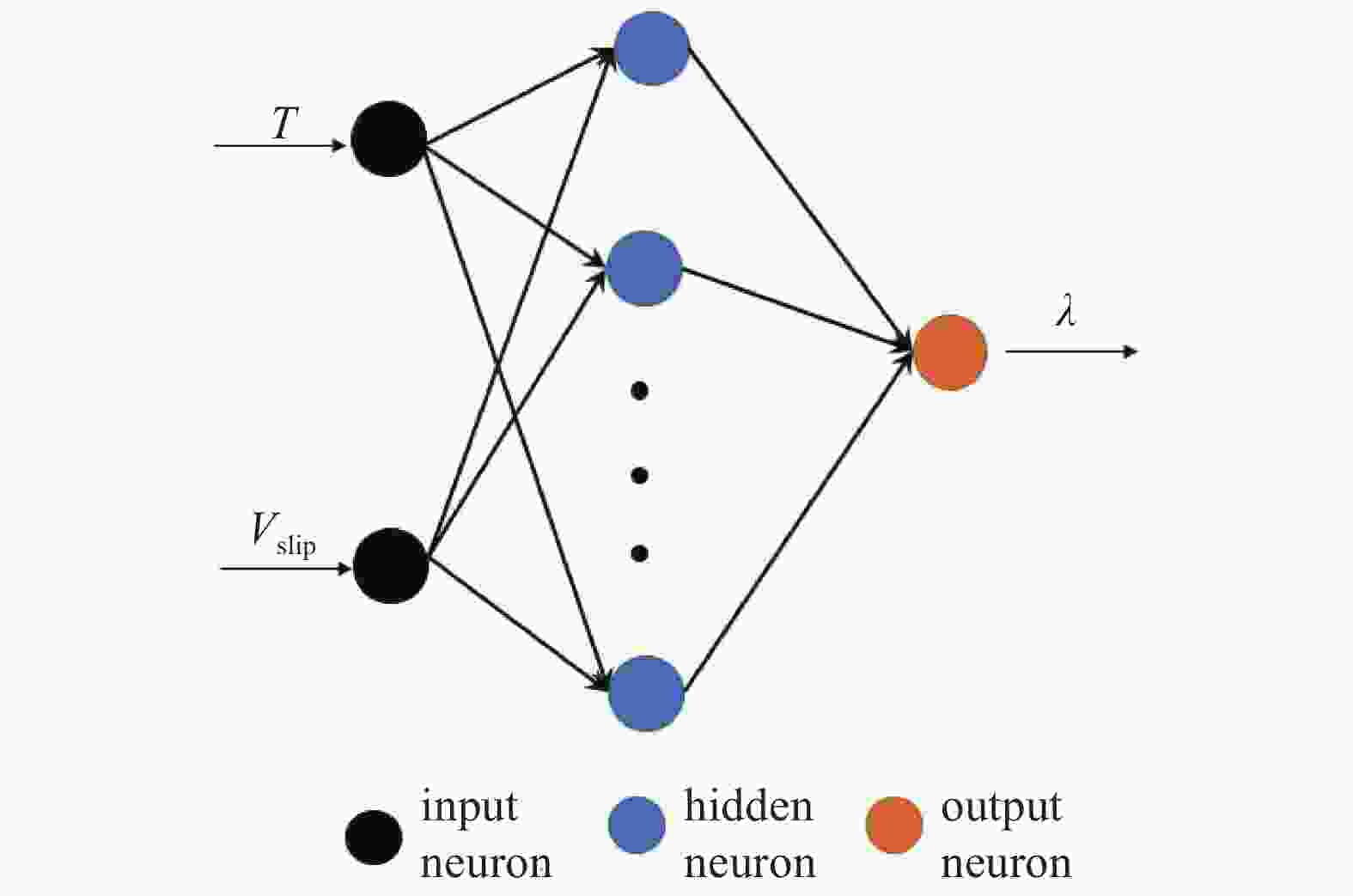

    图  7  本文使用的神经网络结构

    Figure  7.  Structure of neural network used in present work

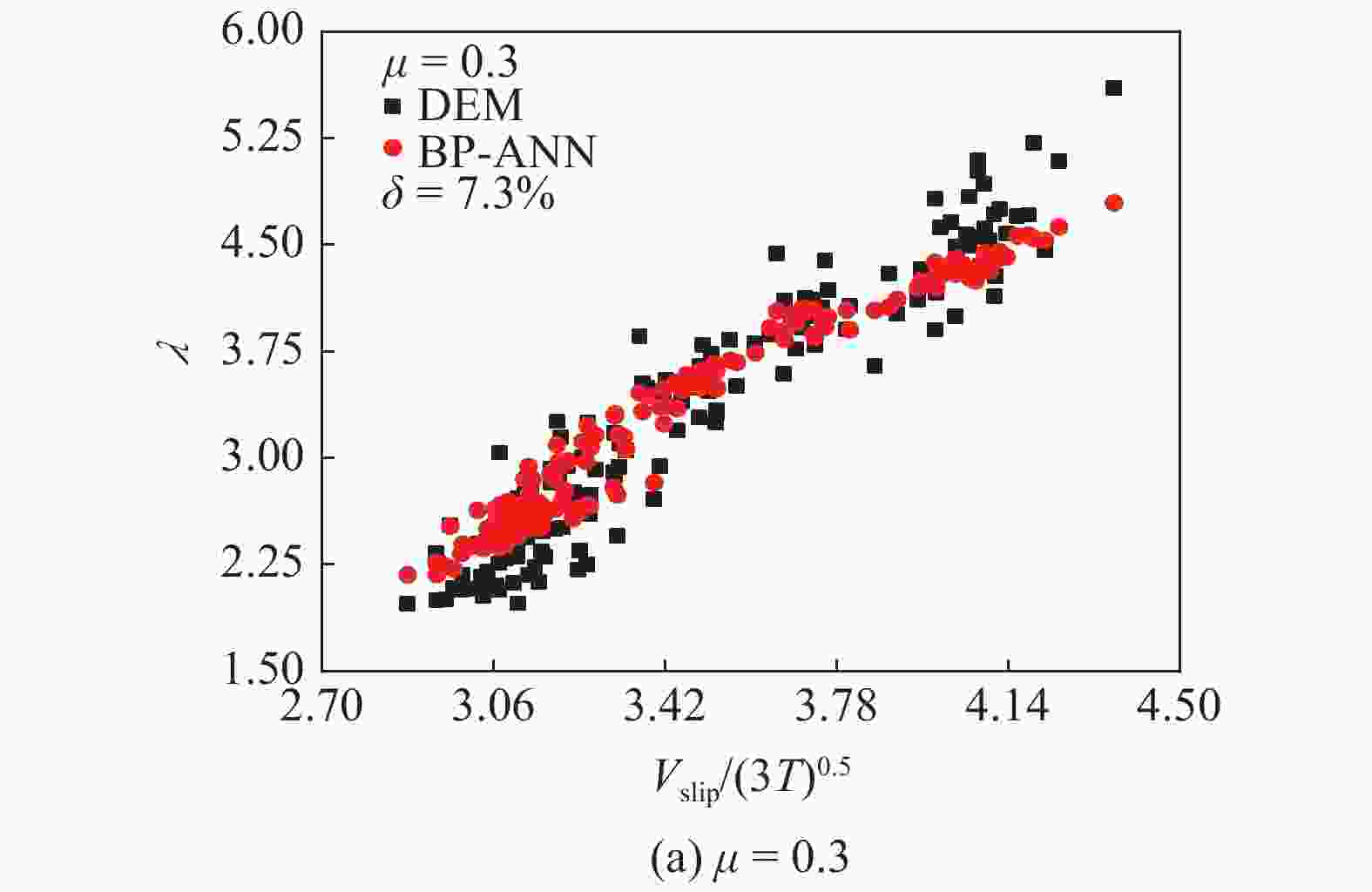

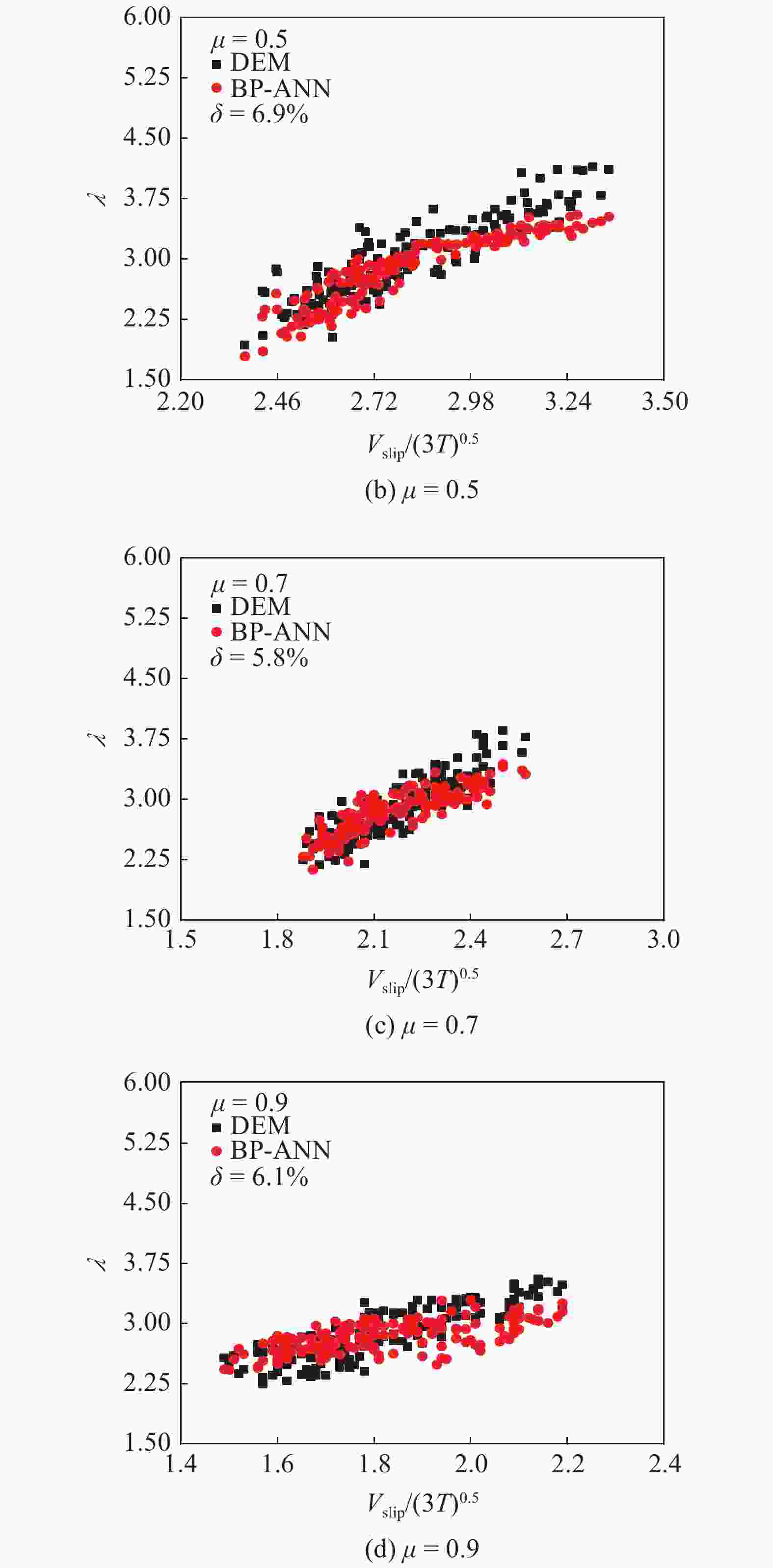

    图  8  无因次旋转温度的模型预测与DEM统计结果对比

    Figure  8.  Comparison of predicted dimensionless rotational temperature with DEM results

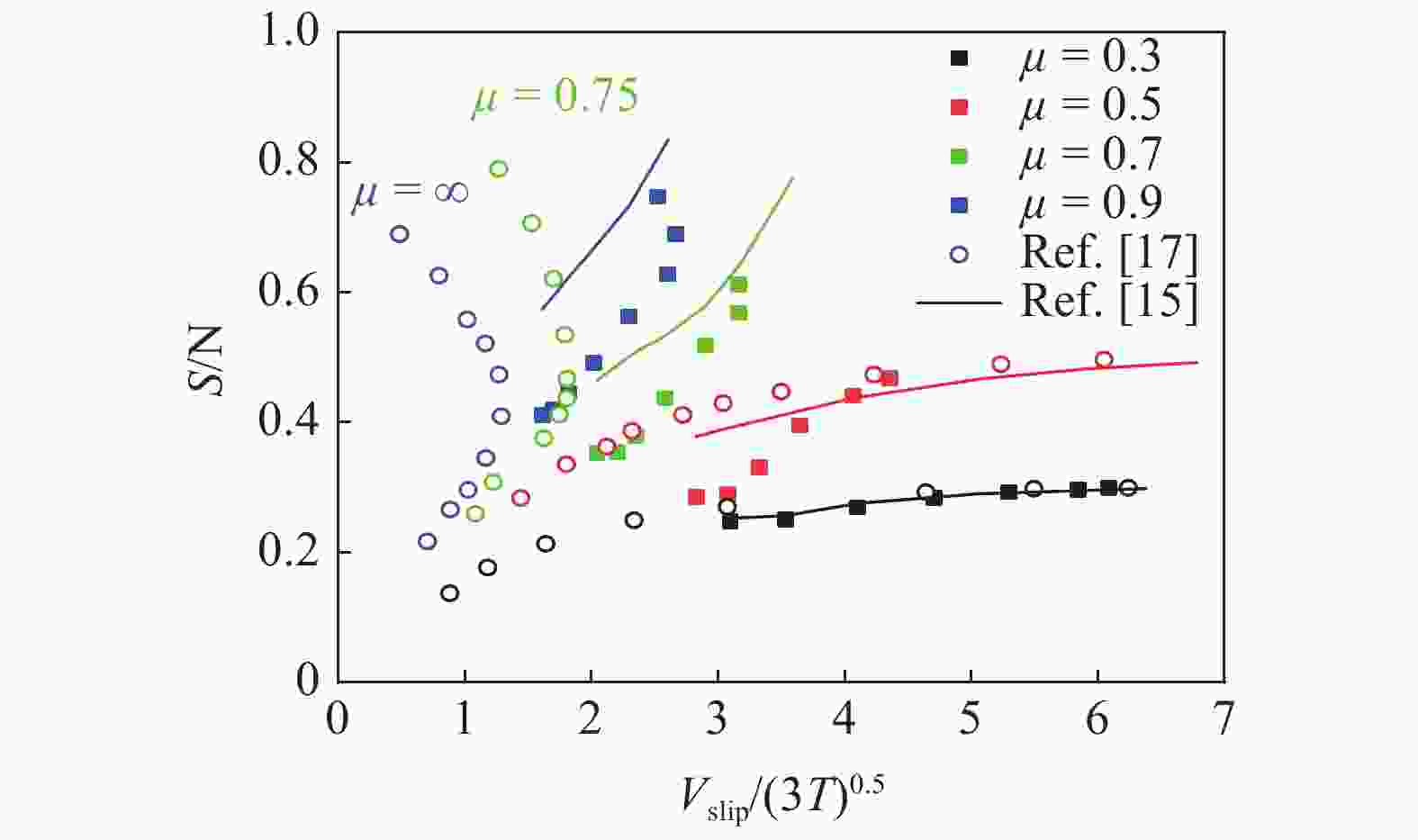

    图  9  不同摩擦系数下壁面切向与法向应力比

    Figure  9.  Wall stress ratio under different friction

    表  1  模拟参数

    Table  1.   Simulation parameters

    ParametersValue
    Drum diameter, D (m) 0.1
    Drum length, L (m) 0.65
    Drum fill level 35%
    Total number of particles 72000
    Particle diameter, d (m) 0.003
    Particles density, ρ (kg/m3) 2500
    Young modulus, E (N/m) 1.0 × 107
    Poisson ratio, $ \nu $ 0.29
    Restitution coefficient, e 0.9
    Sliding friction coefficient, μ 0.7
    Rolling friction coefficient, μr 0.01
    下载: 导出CSV

    表  2  平动速度分布的标准差和决定系数

    Table  2.   Standard deviation and determination coefficient of translational velocity distribution

    μ0.30.50.70.9
    SD切向0.023770.030480.031220.02929
    SD径向0.013120.020870.021570.02168
    SD轴向0.01890.020230.022330.02215
    R2切向0.935130.963930.988870.99515
    R2径向0.926830.931840.961790.97895
    R2轴向0.985240.996930.995750.99548
    下载: 导出CSV

    表  3  旋转速度分布的标准差和决定系数

    Table  3.   Standard deviation and determination coefficient of rotational velocity distribution

    μ0.30.50.70.9
    SDX11.9036818.6548221.3064321.80627
    SDY15.8622922.5867622.5665221.88801
    SDZ41.2514957.3378651.1331343.71098
    R2X0.986820.992910.995690.99535
    R2Y0.990720.984690.985890.98491
    R2Z0.977120.870480.767090.72841
    下载: 导出CSV

    表  4  人工神经网络模型的细节

    Table  4.   Details of the artificial neural network model

    No.ParticularsSpecifications
    1Network typeBP neural network
    2Activation functionSigmoid and Linear
    3Error calculationMSE
    4Number of input layer unit2
    5Input parametersTVsilp
    6Number of output layer unit1
    7output parametersλ
    8Number of hidden layer unit8
    9learning rate0.0002
    10Training times600
    11Training set size2060
    12Test set size560
    下载: 导出CSV

    表  5  神经网络预测模型

    Table  5.   Prediction model from the neural network

    $\lambda = W\dfrac{1}{ {1 + {e^{ - ({W_x}x + {b_1})} } } } + {b_2}$
    $x = \left[ T \right.\;\left. {{V_{{\text{slip}}}}} \right]$
    ${b_1} = [0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17\;0.028\;820\;17] $
    ${b_2} = 0.718\;393\;26$
    ${W_x} = [\begin{array}{*{20}{c}}{{W_1}}&{{W_2}{]^T}} \end{array}$
    ${W_1} = [ - {0.522\;647\;14} - {0.522\;647\;14} - {0.522\;647\;14} - {0.522\;647\;14} - {0.522\;647\;14} - {0.522\;647\;14} - {0.522\;647\;14} - 0.522\;647\;14]$
    ${W_2} = [0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71\;0.087\;477\;71]$
    $W = {[0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85\; 0.613\;576\;85]^{\text{T}}}$
    下载: 导出CSV
  • [1] 宋晓阳, 及春宁, 许栋. 明渠湍流边界层中颗粒的运动与分布. 力学学报, 2015, 47(2): 231-241 (Song Xiaoyang, and Chun Ning, Xu Dong. Motion and distribution of particles in turbulent boundary layer of open channel. Journal of Theoretical and Applied Mechanics, 2015, 47(2): 231-241
    [2] 彭宁宁, 刘志丰, 王连泽. 亚微米颗粒在汇作用下运动机理的实验研究. 力学学报, 2017, 49(2): 289-298 (Peng Ningning, Liu Zhifeng, Wang lianze. Experimental study on motion mechanism of submicron particles under sink effect. Journal of Theoretical and Applied Mechanics, 2017, 49(2): 289-298
    [3] 孙倩, 彭天骥等. 密集颗粒流动的连续性方法应用研究. 原子能科学技术, 2019, 53(12): 2367-2374 (Sun Qian, Peng Tianji, et al. Application research on the continuity method of dense particle flow. Atomic Energy Science and Technology, 2019, 53(12): 2367-2374 doi: 10.7538/yzk.2018.youxian.0872
    [4] 姚晶星, 杨遥等. 颗粒黏度模型对采用欧拉多相流模型模拟超密相颗粒流动行为的影响. 化工学报, 2020, 71(11): 4945-4956 (Yao JinXing, Yang Yao, et al. The effect of particle viscosity model on the simulation of ultra-dense particle flow behavior with Eulerian multiphase flow model. Journal of Chemical Industry and Engineering (China), 2020, 71(11): 4945-4956
    [5] 李锡夔, 万柯. 颗粒材料多尺度分析的连接尺度方法. 力学学报, 2010, 42(5): 889-900 (Li Xikui, Wan Ke. Connected scale method for multiscale analysis of granular materials. Journal of Theoretical and Applied Mechanics, 2010, 42(5): 889-900
    [6] 王帅, 郝振华, 徐鹏飞等. 粗糙颗粒动理学及稠密气固两相流动的数值模拟. 力学学报, 2012, 44(2): 278-286 (Wang Shuai, Hao Zhenhua, Xu Pengfei, et al. Kinetics of coarse particles and numerical simulation of dense gas-solid two-phase flow. Journal of Theoretical and Applied Mechanics, 2012, 44(2): 278-286
    [7] 郝振华, 王帅, 陆慧林等. 考虑颗粒旋转的颗粒动力学模拟提升管气固两相流动特性. 高校化学工程学报, 2010, 24(5): 776-782 (Hao Zhenhua, Wang Shuai, Lu Huilin, et al. Particle dynamics simulation of gas-solid two-phase flow characteristics in riser considering particle rotation. Chemical Engineering Journal of Chinese Universities, 2010, 24(5): 776-782 doi: 10.3969/j.issn.1003-9015.2010.05.009
    [8] 王淑彦, 何玉荣, 陆慧林等. 颗粒旋转对鼓泡流化床内气固两相流动特性影响的数值模拟. 化工学报, 2007(11): 2738-2746 (Wang Shuyan, He Yurong, Lu Huilin, et al. Numerical simulation of the effect of particle rotation on gas-solid two-phase flow characteristics in a bubbling fluidized bed. Journal of Chemical Industry and Engineering(China) , 2007(11): 2738-2746 doi: 10.3321/j.issn:0438-1157.2007.11.009
    [9] Johnson P C, Jackson R. Frictional–collisional constitutive relations for granular materials, with application to plane shearing. Journal of Fluid Mechanics, 1987, 176: 67-93 doi: 10.1017/S0022112087000570
    [10] Rong WJ, Feng YQ, Li BK, et al. Numerical study of the solid flow behavior in a rotating drum based on a multiphase CFD model accounting for solid frictional viscosity and wall friction, Powder Technology, 2020, 361: 87-98.
    [11] Machado M V C, Nascimento S M, Duarte C R, et al. Boundary conditions effects on the particle dynamic flow in a rotary drum with a single flight, Powder Technology, 2017, 311: 341-349
    [12] Li T W, Benyahia S. Revisiting Johnson and Jackson boundary conditions for granular flows. AIChE Journal, 2012, 58(7): 2058-2068 doi: 10.1002/aic.12728
    [13] Jenkins J T. Boundary conditions for rapid granular flow: flat, frictional walls. International Journal Of Applied Mechanics, 1992, 59(1): 120-127 doi: 10.1115/1.2899416
    [14] Schneiderbauer S, Schellander D, Loderer A, et al. Non-Steady State Boundary Conditions for Collisional Granular Flows at Flat Frictional Moving Walls. International Journal of Multiphase Flow, 2012, 43: 149-156 doi: 10.1016/j.ijmultiphaseflow.2012.03.006
    [15] Zhao YH, Zhong YJ, Ding TQ, et al. A Specularity Coefficient Model and Its Application to Dense Particulate Flow Simulations. Industrial & Engineering Chemistry Research, 2016, 55(5): 1439-1448
    [16] Yang L, Padding J T, Kuipers J A M. Padding and J. A. M. Kuipers Partial slip boundary conditions for collisional granular flows at flat frictional walls. AIChE Journal, 2017, 63(6): 1853-1871 doi: 10.1002/aic.15534
    [17] Louge M Y. Computer simulations of rapid granular flows of spheres interacting with a flat, frictional boundary. physics of fluids, 1994, 6(7): 2253-2269 doi: 10.1063/1.868178
    [18] 胡洲, 刘小燕, 武伟宁. 基于数据驱动的非球形散体颗粒休止角智能建模方. 中国有色金属学报, 2020, 30(1): 227-234 (Hu Zhou, Liu Xiaoyan, Wu Weining. Intelligent modeling method for angle of repose of non-spherical granular particles based on data drive. The Chinese Journal of Nonferrous Metals, 2020, 30(1): 227-234
    [19] 闫盛楠, 唐天琪, 任安星等. 基于人工神经网络模型的非球形颗粒曳力系数预测. 工程热物理学报, 2017(10): 2171-2175 (Yan Shengnan, Tang Tianqi, Ren Anxing, et al. Prediction of drag coefficient of non-spherical particles based on artificial neural network model. Journal of Engineering Thermophysics, 2017(10): 2171-2175
    [20] 谭援强, 肖湘武, 张江涛. 尼龙粉末在SLS预热温度下的离散元模型参数确定及其流动特性分析. 力学学报, 2019, 51(1): 56-63 (Tan Yuanqiang, Xiao Xiangwu, Zhang Jiangtao. Determination of discrete element model parameters of nylon powder at SLS preheating temperature and analysis of its flow characteristics. Journal of Theoretical and Applied Mechanics, 2019, 51(1): 56-63
    [21] Vh A, Cmw B, Ma A. Elucidation of the role of cohesion in the macroscopic behaviour of coarse particulate systems using DEM. Powder Technology, 2020, 361: 374-388 doi: 10.1016/j.powtec.2019.07.070
    [22] Zhao L, Zhao Y, Bao C, et al. Laboratory-scale validation of a DEM model of screening processes with circular vibration. Powder Technology, 2016, 303: 269-277 doi: 10.1016/j.powtec.2016.09.034
    [23] D. Ilic, A. Roberts, C. Wheeler, et al Modelling bulk solid flow interactions in transfer chutes: Shearing flow. Powder Technology, 2019, 354: 30-44 doi: 10.1016/j.powtec.2019.05.058
    [24] 顾丛汇, 张鑫, 袁竹林等. 散体颗粒在滚筒内运动特性的实验研究与数值模拟. 东南大学学报(自然科学版), 2015, 45(3): 491-496 (Gu Conghui, Zhang Xin, Yuan Zhulin, et al. Experimental study and numerical simulation of the movement characteristics of loose particles in the drum. Journal of Southeast University (Natural Science Edition), 2015, 45(3): 491-496 (in Chinese)
    [25] 胡陈枢, 罗坤, 樊建人等. 滚筒内二组元颗粒混合与分离的数值模拟. 工程热物理学报, 2015, 36(9): 1947-1951 (Hu Chenshu, Luo Kun, Fan Jianren, et al. Numerical simulation of the mixing and separation of binary particles in the drum. Journal of Engineering Thermophysics, 2015, 36(9): 1947-1951 (in Chinese)
    [26] 张立栋, 程硕, 李连好等. 滚筒内柱体内构件对二元颗粒体系混合的影响. 化工进展, 2017, 36(12): 4363-4370 (Zhang Lidong, Cheng Shuo, Li Lianhao, et al. The influence of the internal components of the cylinder on the mixing of the binary particle system. Chemical Industry Progress, 2017, 36(12): 4363-4370
    [27] 马华庆, 赵永志. 喷动流化床中杆状颗粒混合特性的CFD-DEM模拟. 浙江大学学报(工学版), 2020, 54(7): 1347-1354 (Ma Huaqing, Zhao Yongzhi. Cfd-dem simulation of mixing characteristics of rod particles in spouted fluidized bed. Journal of Zhejiang University (Engineering Science), 2020, 54(7): 1347-1354
    [28] 董辉, 伍开松, 况雨春等. 基于DEM-CFD水力旋流器的水合物浆体分离规律研究. 浙江大学学报(工学版), 2018, 52(9): 1811-1820 (Dong Hui, Wu Kaisong, Kuang Yuchun, et al. Study on hydrate slurry separation based on dem-cfd hydrocyclone. Journal of Zhejiang University (Engineering Science), 2018, 52(9): 1811-1820 (in Chinese)
    [29] 卢竟蔓, 蓝兴英, 高金森等. 壁面条件对FCC颗粒湍动床气固流动影响的模拟. 化学反应工程与工, 2014(1): 57-62 (Lu Jingman, Lan Xingying, Gao Jinsen, et al. Simulation of the effect of wall conditions on gas-solid flow in a turbulent bed of FCC particles. Chemical Reaction Engineering and Technology, 2014(1): 57-62 (in Chinese)
    [30] Parker D J, Dijkstra A E, Martin T W, et al. Positron emission particle tracking studies of spherical particle motion in rotating drums, Chemical Engineering Science, 1997, 52(13): 2011-2022.
    [31] Zhang Z W, Gui N, Ge L, et al. Numerical study of mixing of binary-sized particles in rotating tumblers on the effects of end-walls and size ratios. Powder Technology, 2017, 314: 164-174 doi: 10.1016/j.powtec.2016.09.072
    [32] 陈巨辉, 孟诚, 于广滨等. 考虑多组分颗粒运动各向异性的鼓泡流化床生物质气化数值模拟. 高校化学工程学报, 2017, 31(2): 361-368 (Chen Juhui, Meng Cheng, Yu Guanbin, et al. Numerical Simulation of Bubbling Fluidized Bed Biomass Gasification Considering the Anisotropy of Multi-component Particle Motion. Chinese Journal of Chemical Engineering, 2017, 31(2): 361-368 (in Chinese) doi: 10.3969/j.issn.1003-9015.2017.02.015
    [33] Jenkins JT, Zhang C. Kinetic theory for identical, frictional, nearly elastic spheres. Physics of fluids. 2002, 14(3): 1228–1235.
    [34] Zhao YH, Zhong YJ. He YR, et al Boundary conditions for collisional granular flows of frictional and rotational particles at flat walls. AIChE Journal, 2014, 60: 4065-4075 doi: 10.1002/aic.14596
