EVALUATION METHOD AND APPLICATION OF FOAM DYNAMIC STABILITY IN HETEROGENEOUS CORES BASED ON NUCLEAR MAGNETIC RESONANCE TECHNOLOGY
-

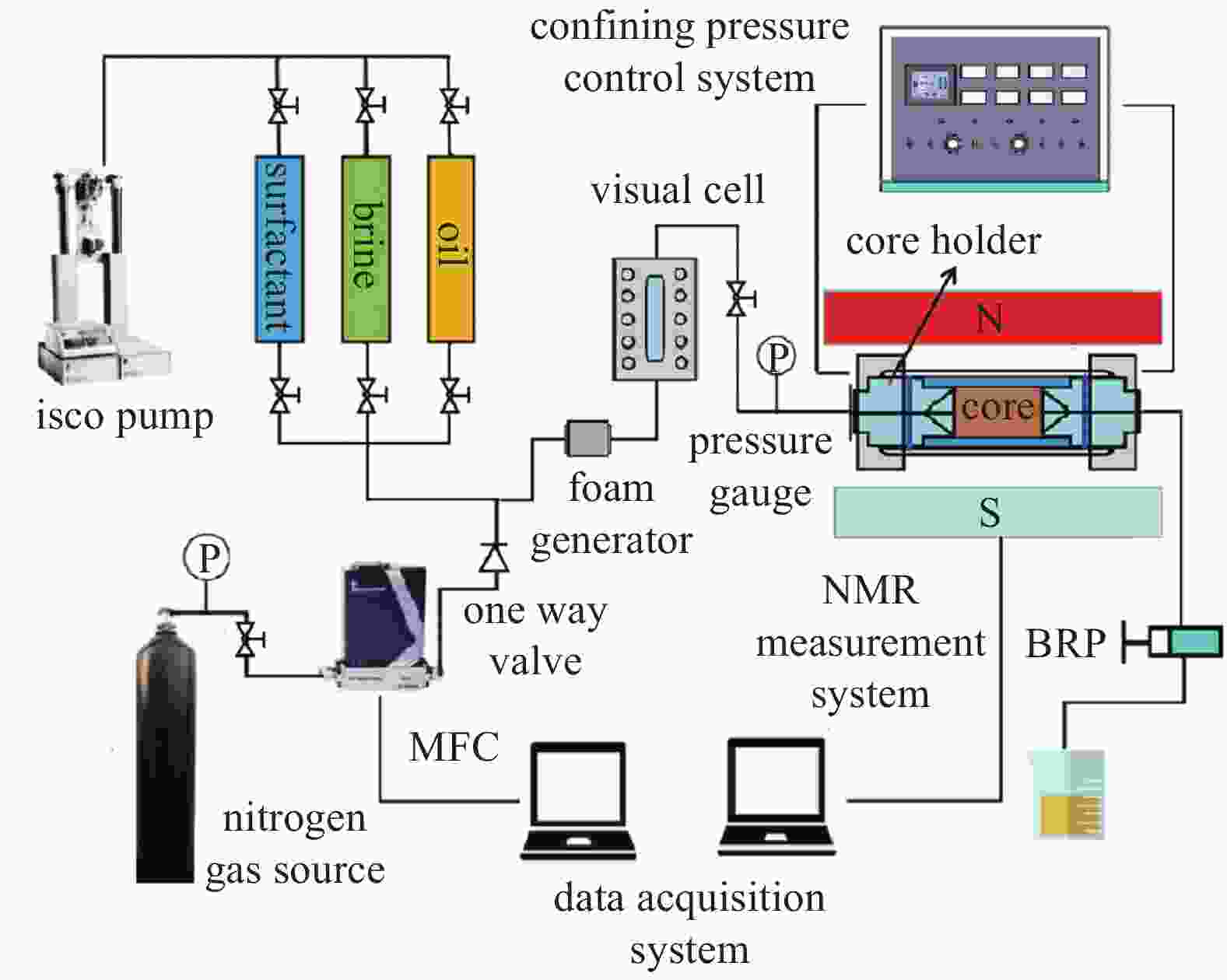

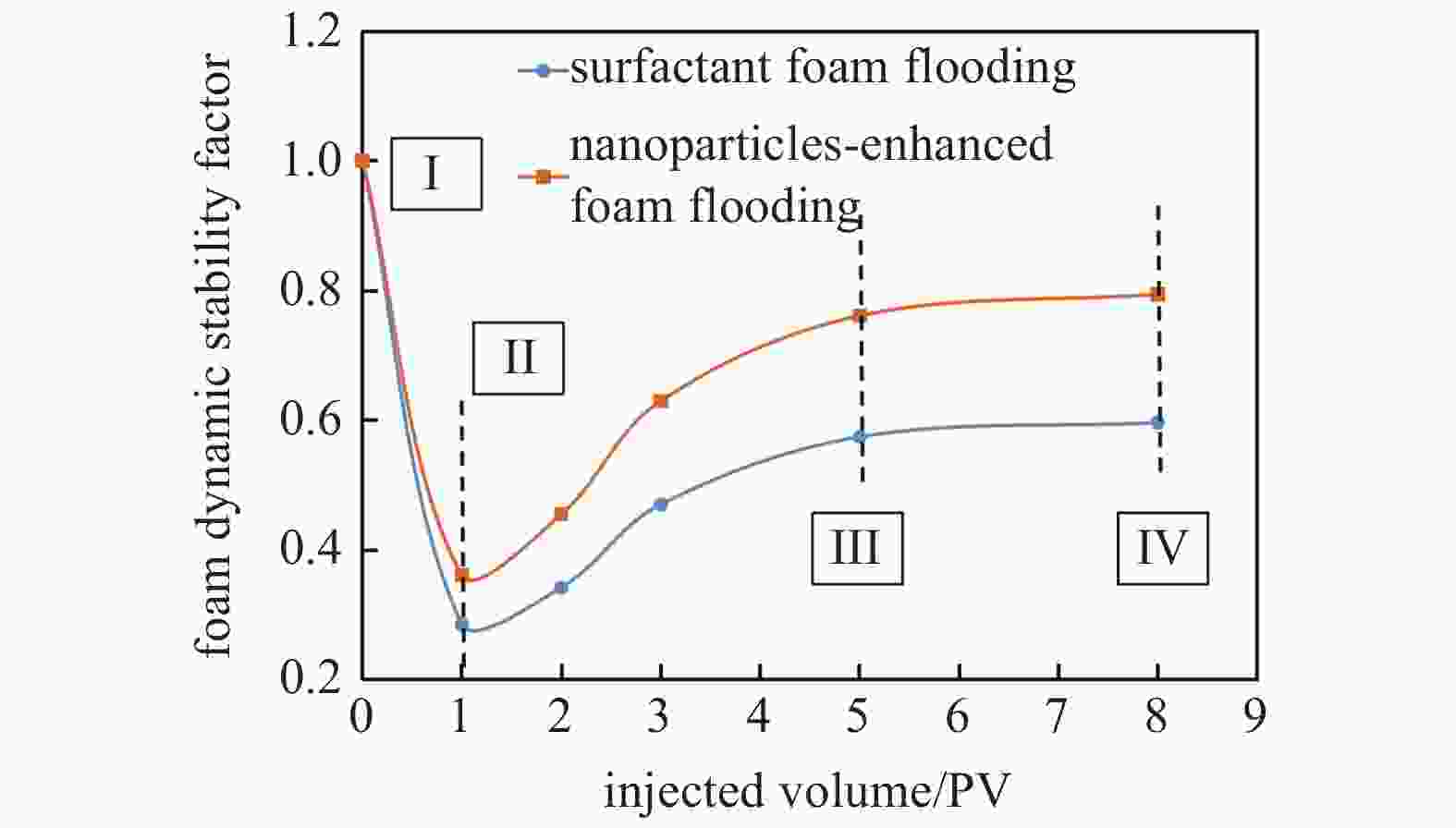

摘要: 基于有效孔隙体积守恒和核磁共振技术建立了泡沫在岩心中的动态稳定性的评价方法. 利用油、水标定方法测量了岩心中油相和泡沫液的体积, 计算了泡沫在岩心驱替过程中的动态稳定因子. 测试了双层非均质岩心的横向弛豫谱线及核磁共振图像, 比较了纳米颗粒强化泡沫和表面活性剂泡沫的驱油效果和动态稳定因子. 结果表明, 岩心中的含水体积在注入2.0 PV泡沫前快速上升随后基本稳定; 而含气体积逐渐上升, 注入5.0 PV泡沫后上升速率变小. 泡沫的动态稳定因子经历了骤减、递增和平稳3个阶段. 泡沫前期的驱油效果主要依赖于水相, 随着含水体积基本稳定, 岩心的产油速率和泡沫动态稳定因子的增长速率具有明显正相关关系, 即中后期取决于泡沫气体对剩余油的驱替能力. 与表面活性剂泡沫相比, 纳米颗粒强化泡沫提高了低渗层的波及能力和驱油效率, 抑制了泡沫发展的不稳定阶段并且提高了动态稳定因子最终的平衡值. 该稳定性评价方法可用于反映泡沫渗流特点并筛选适合储层特征的稳定泡沫体系.Abstract: Based on the conservation of effective pore volume and nuclear magnetic resonance technology, an evaluation method for the dynamic stability of foam in the cores was established. The oil and water calibration method was used to measure the volume of the oil phase and foam liquid in the cores, and the dynamic stability factor of the foam during the core displacement process was calculated. The transverse relaxation spectrum and nuclear magnetic resonance image of the double-layer heterogeneous core were tested. The oil displacement effect and dynamic stability factor of the nanoparticles-enhanced foam and the surfactant foam were compared. The results showed that the water phase volume in the core rose rapidly before 2.0 PV of foam was injected and then was basically stable; while the gas volume increased gradually, and the rising rate decreased after 5.0 PV of foam was injected. The dynamic stability factor of the foam had experienced three stages which was sharp decreasing, progressive increasing and stabilization. The oil displacement effect in the early stage of the foam mainly depended on the water phase. As the water phase volume was basically stable, the oil production rate of the cores had an obvious positive correlation with the growth rate of the foam dynamic stability factor, that was, the displacement of the remaining oil depended on the foam gas during middle and late stages. Compared with surfactant foam, nanoparticles-enhanced foam improved the sweeping capacity and oil displacement efficiency in the low permeability layer, inhibited the unstable stage of foam development and improved the final equilibrium value of the dynamic stability factor. The stability evaluation method could be used to reflect the characteristics of foam seepage and to screen stable foam systems suitable for reservoir characteristics.
-
Key words:
- foams /
- dynamic stability /
- heterogeneous cores /
- NMR /
- nanoparticles
-

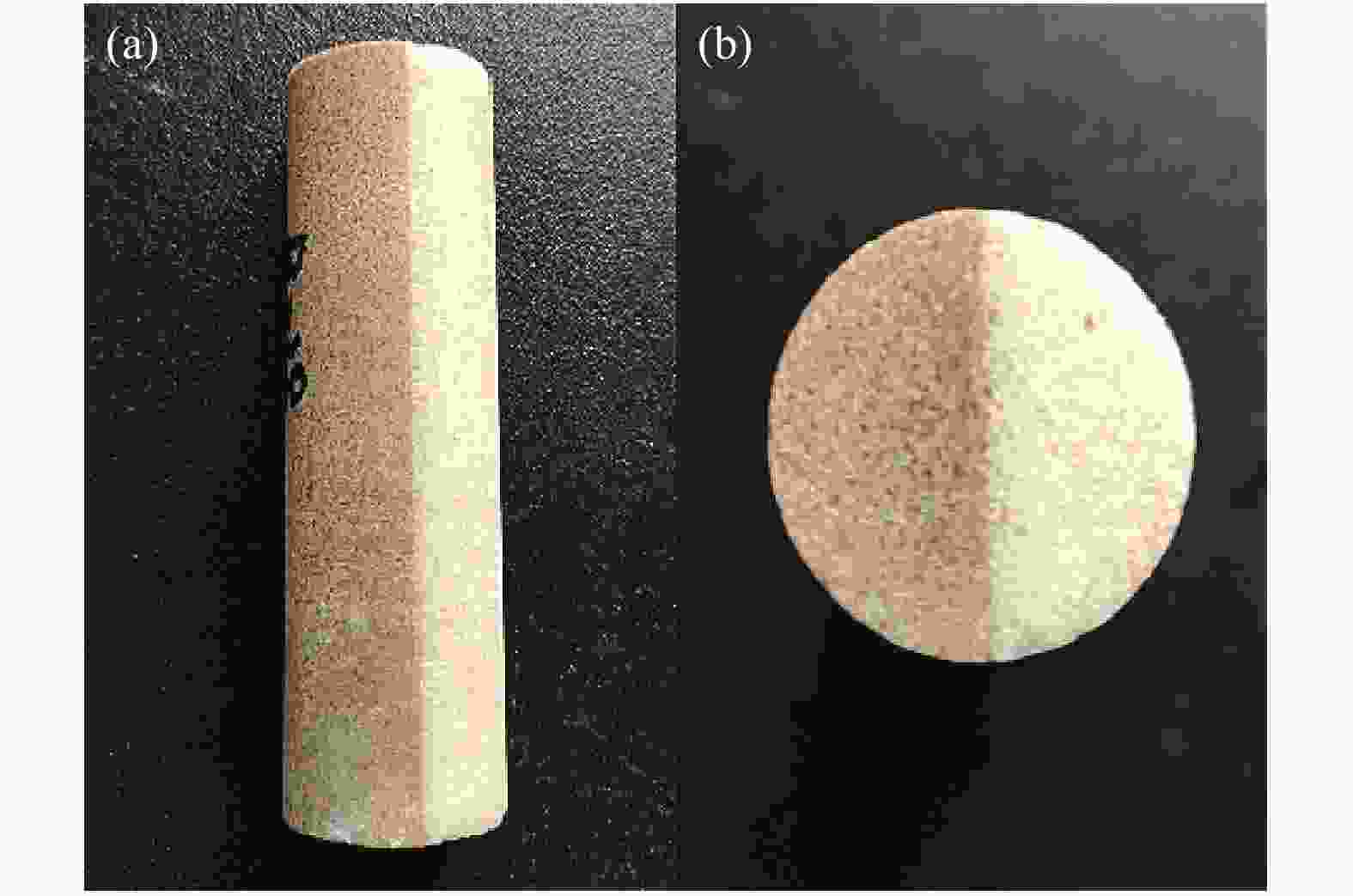

图 2 非均质砂岩岩心的(a)冠状面和(b)横截面
Figure 2. (a) Coronal plane and (b) transverse plane of heterogeneous sandstone core

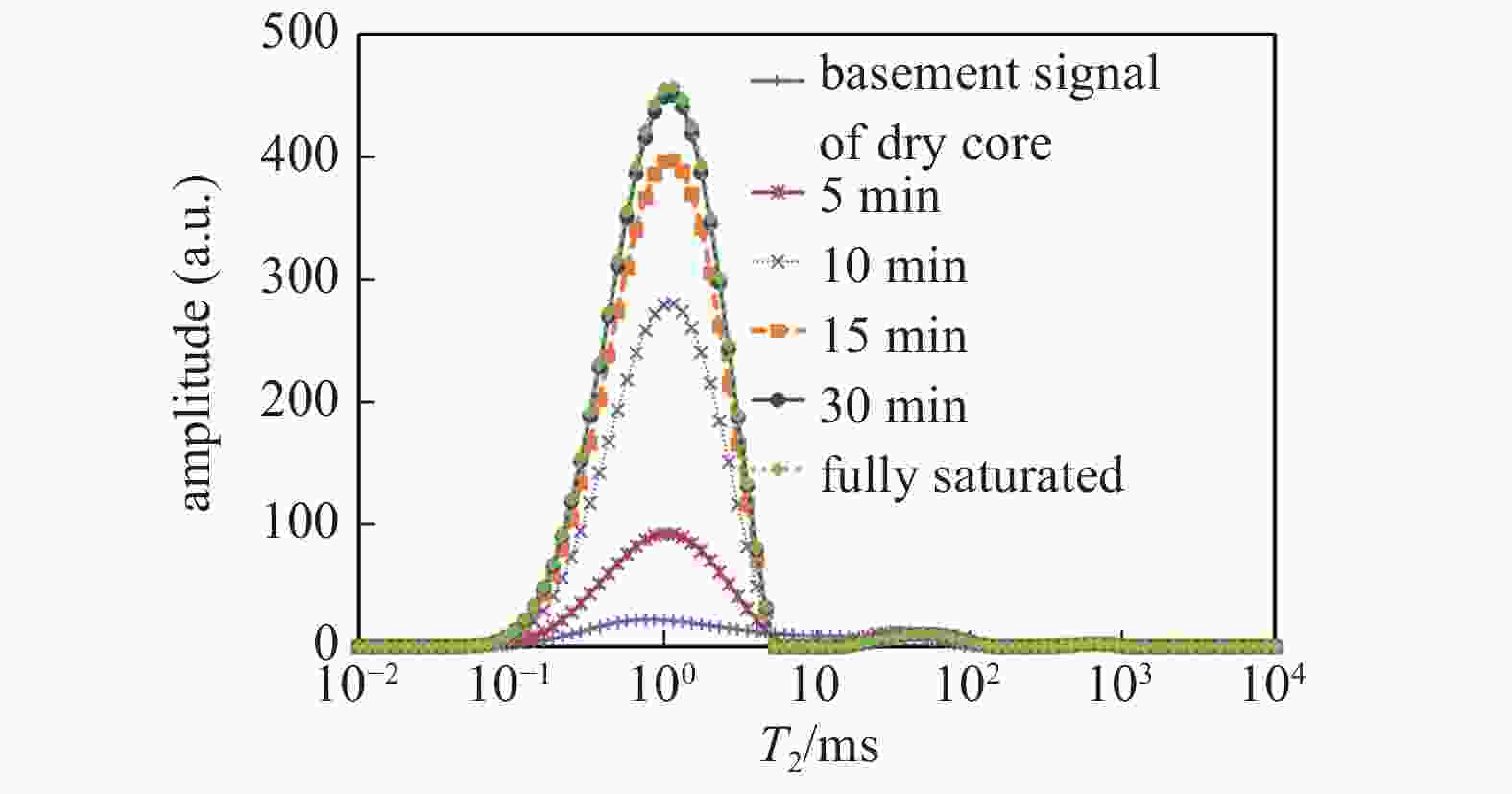

图 3 饱和MnCl2溶液过程中岩心C-01的T2谱
Figure 3. T2 spectrum of C-01during injection of MnCl2 solution

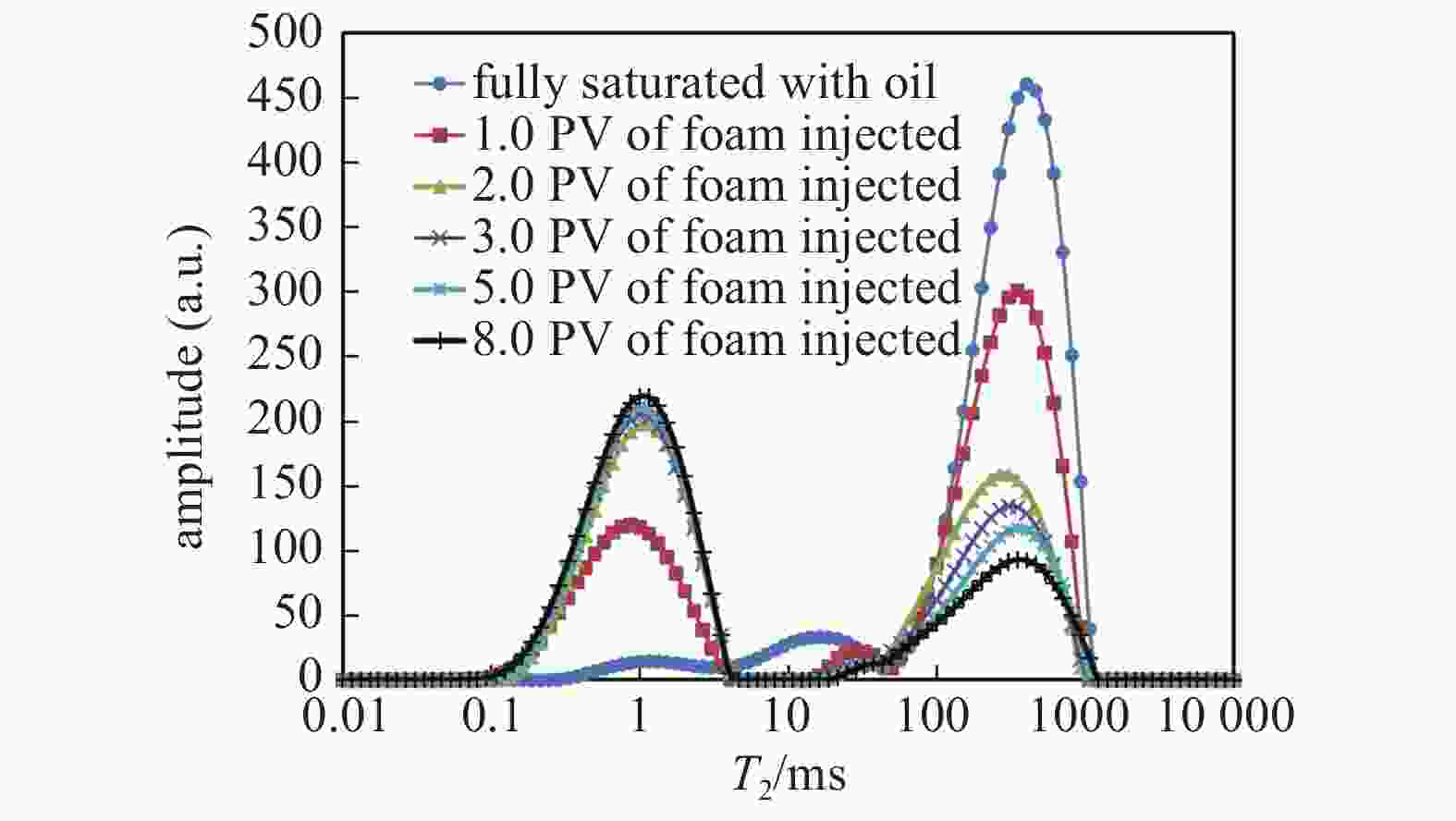

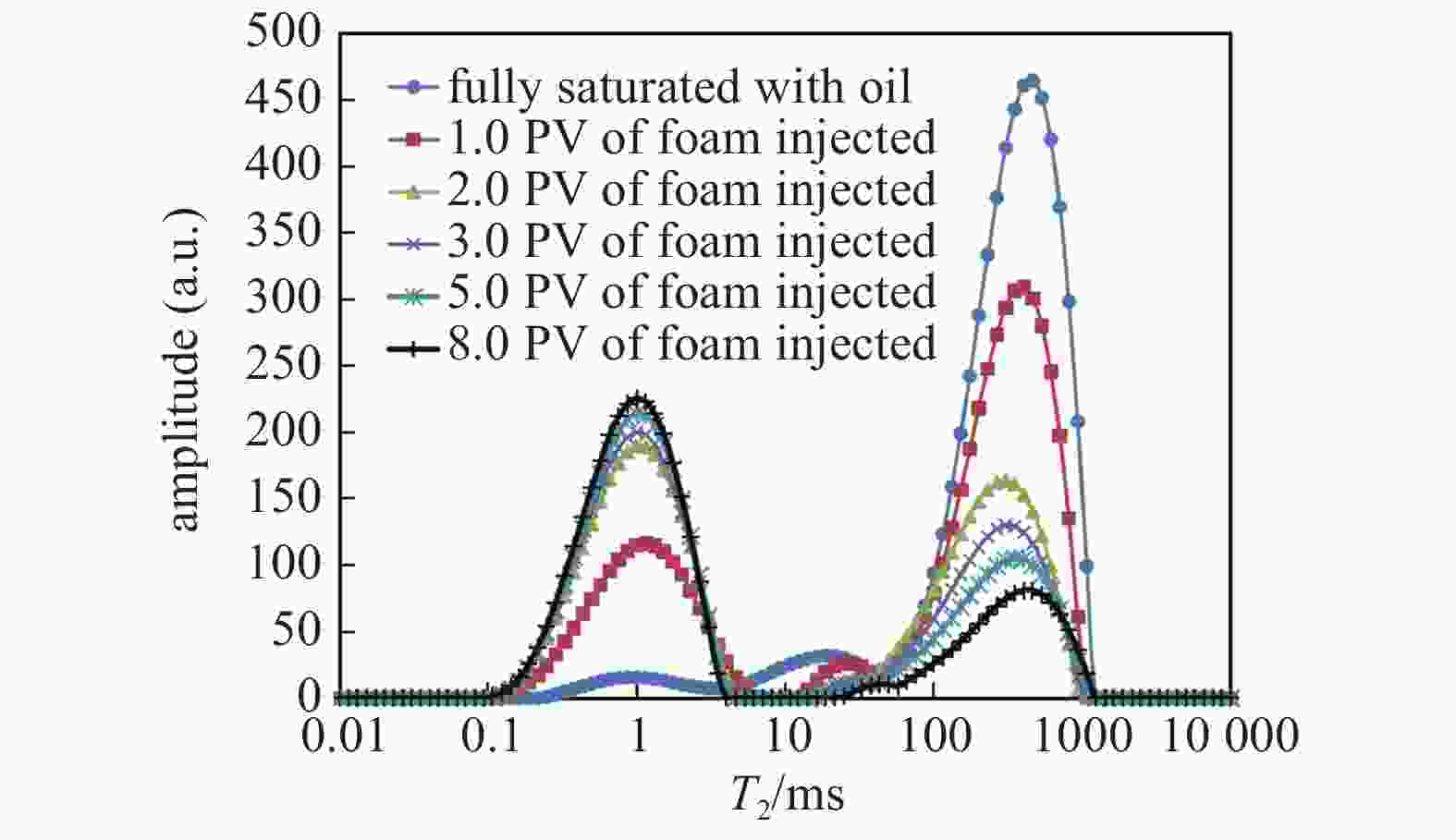

图 6 纳米颗粒强化SDS泡沫驱过程中岩心C-02的T2谱
Figure 6. T2 spectrum of core C-02 for nanoparticles-enhanced SDS foam flooding

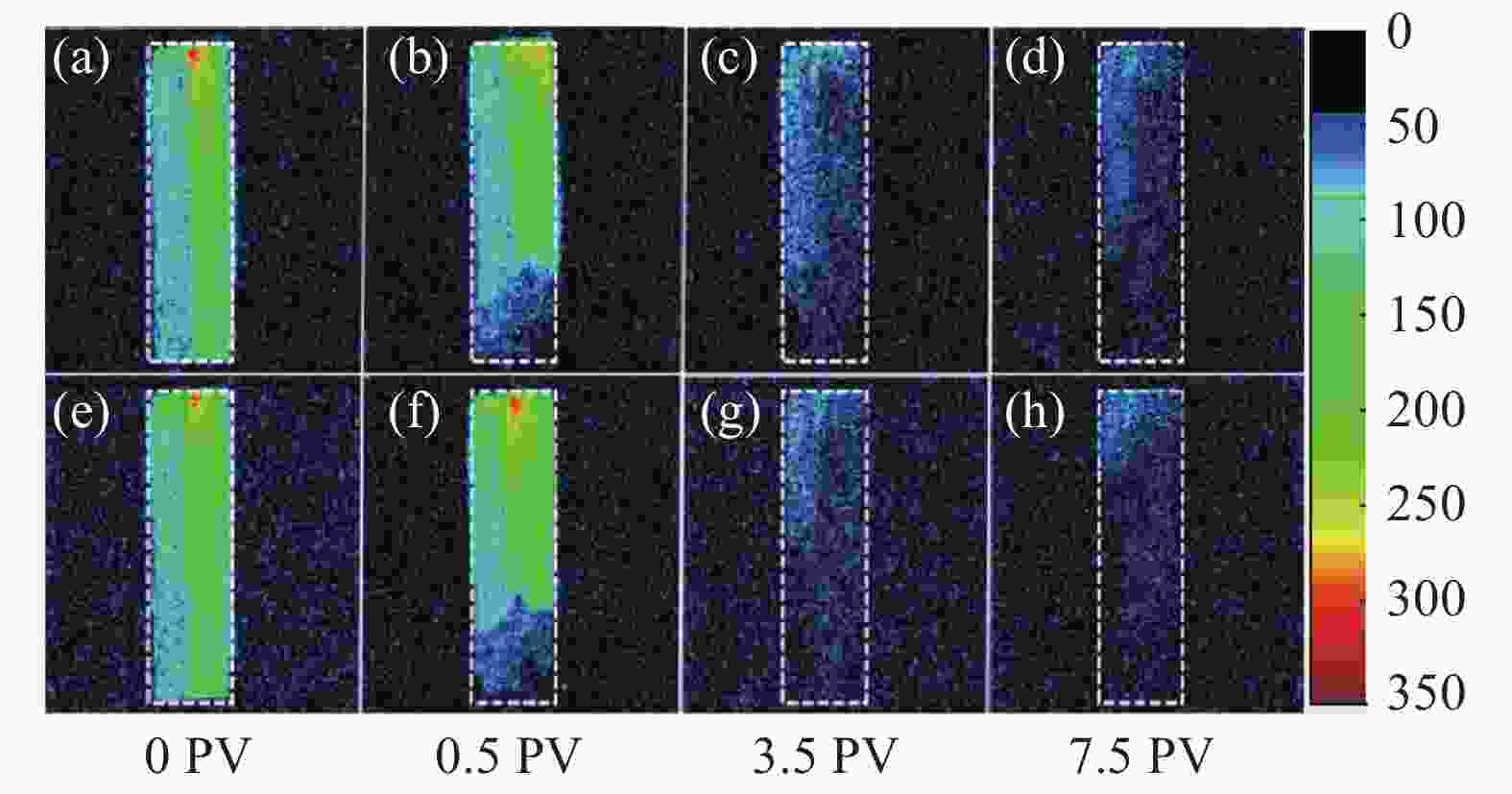

图 7 泡沫驱过程中非均质岩心的磁共振成像(信号为油相, (a) ~ (d)为SDS泡沫驱, (e) ~ (f)为纳米颗粒强化SDS泡沫驱)
Figure 7. Magnetic resonance images of heterogeneous cores during foam flooding (signal represents oil phase, (a) ~ (d): SDS foam, (e) ~ (f): nanoparticles-enhanced SDS foam)

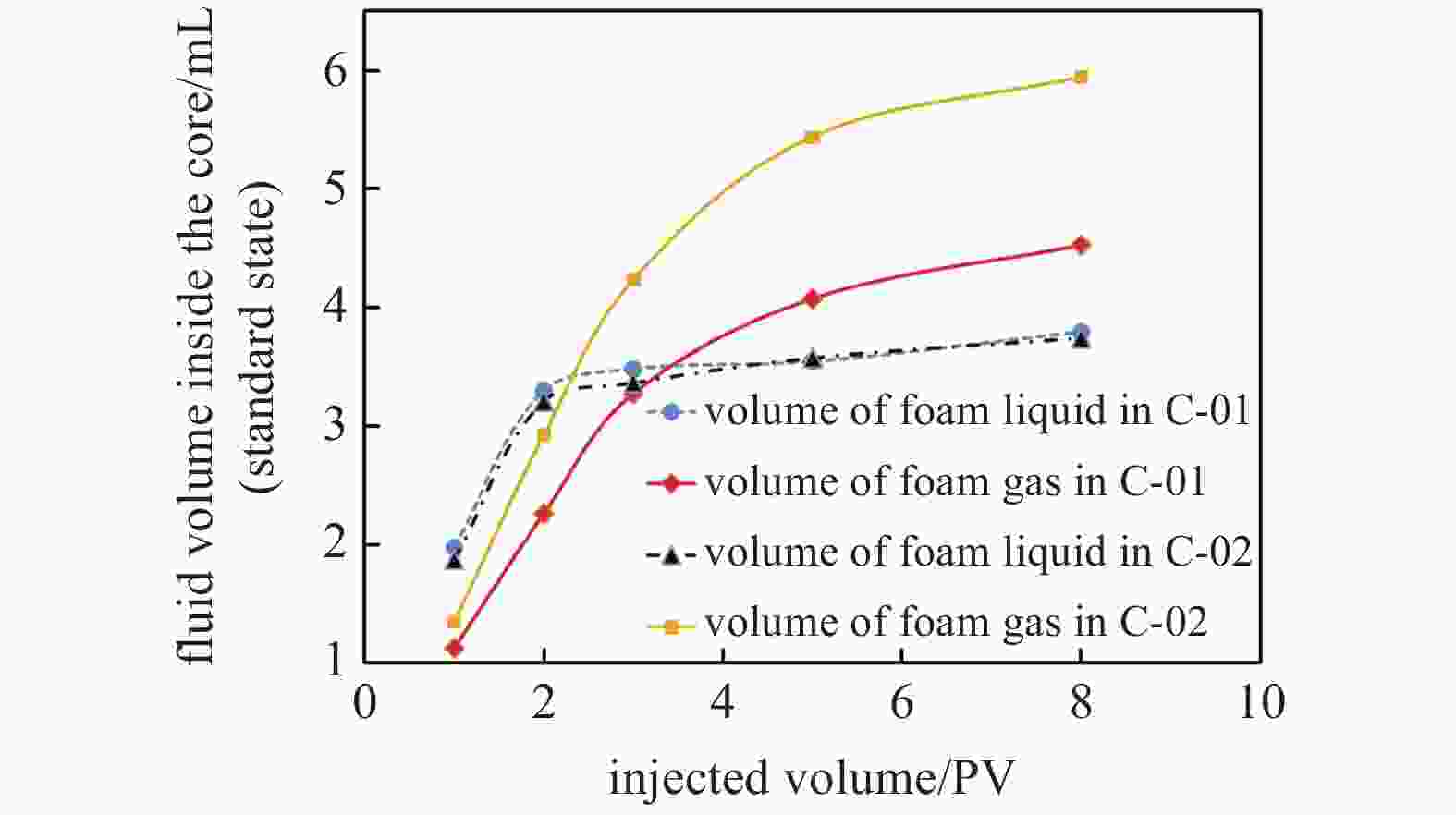

图 9 泡沫驱过程岩心中气、液体积变化情况
Figure 9. Variation of gas and liquid volume in core during foam flooding

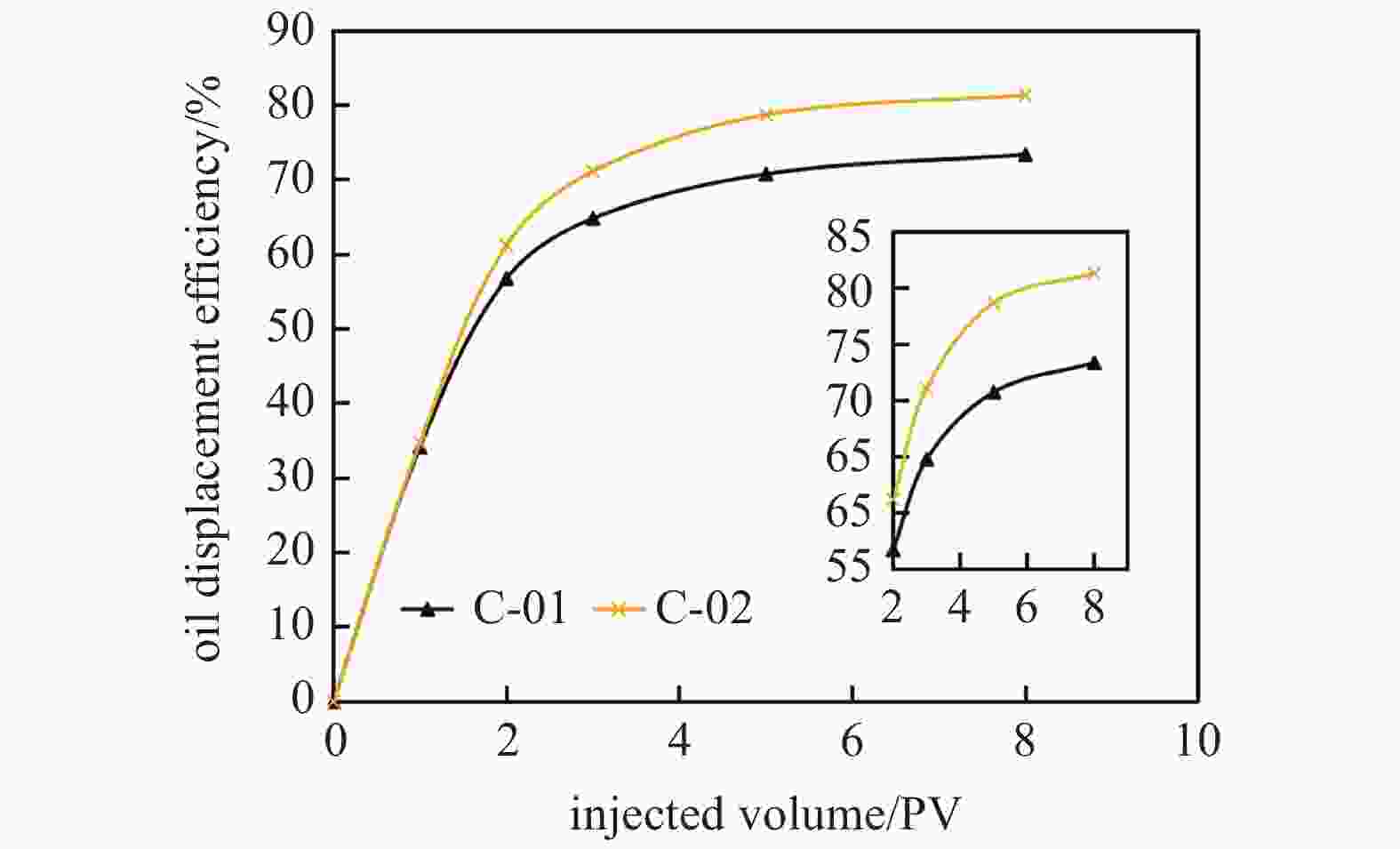

图 10 泡沫驱过程中岩心驱油效率的变化情况
Figure 10. Variation of oil displacement efficiency during foam flooding
表 1 岩心物性参数
Table 1. Physical parameters of cores
Core symbol C-01 C-02 diameter/cm 2.49 2.50 length/cm 8.67 8.78 pore volume/mL 9.34 9.46 porosity 22.13% 21.96% permeability/mD 1873.44 1954.72
下载: 导出CSV

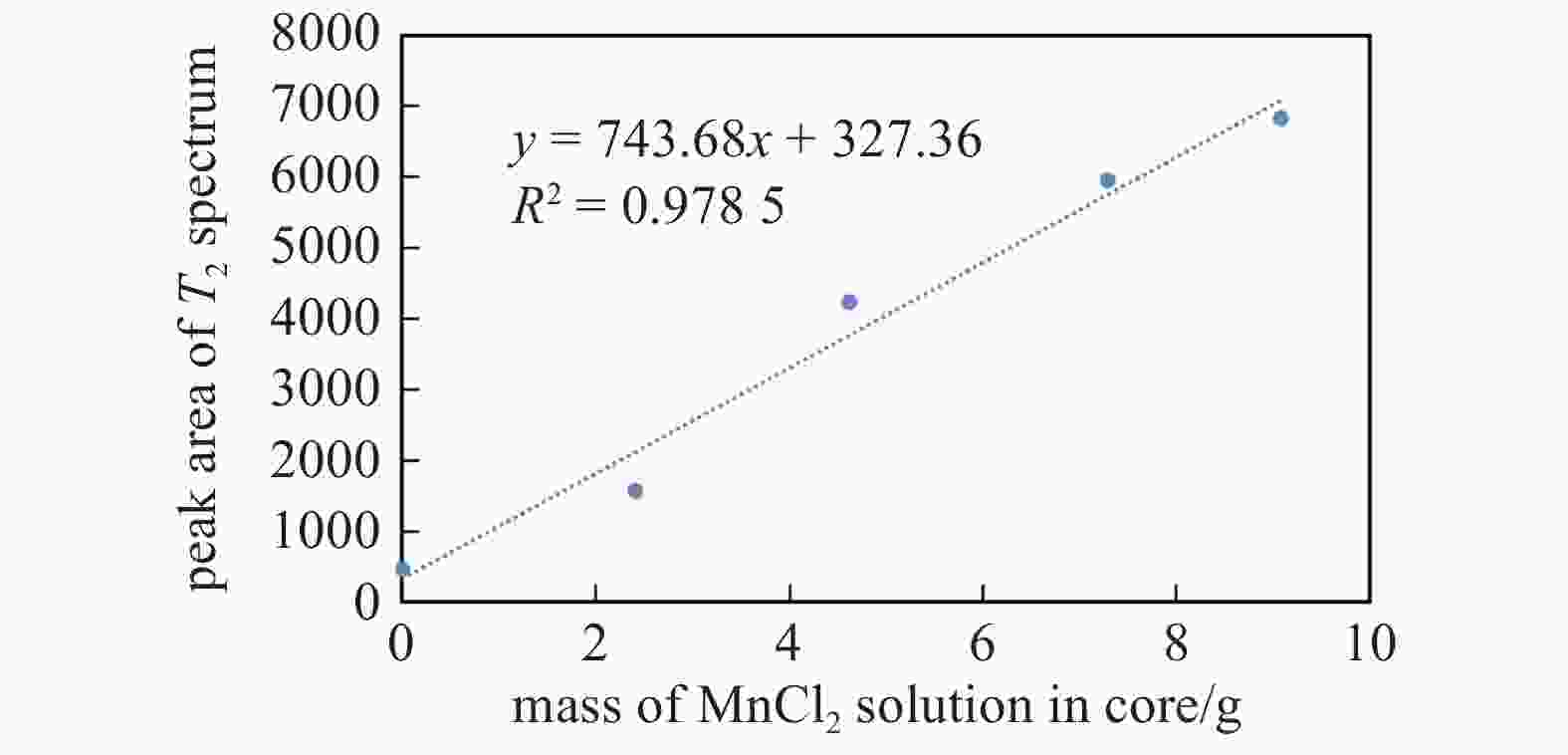

表 2 C-01中MnCl2溶液质量与T2谱峰面积关系
Table 2. Relationship between the mass of MnCl2 solution in C-01 and the peak area of T2 spectrum
Injected time of MnCl2 solution/min Mass of MnCl2 solution
in core/gPeak area of T2 spectrum 0 0 465.82 5 2.41 1565.71 10 4.62 4228.43 15 7.29 5951.11 30 9.08 6827.79
下载: 导出CSV
-
[1] Hernández EM, Grassia P, Hokri N. Modelling foam improved oil recovery within a heterogeneous reservoir. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2016, 510: 43-52 [2] Rezaei A, Derikvand Z, Parsaei R, et al. Surfactant-silica nanoparticle stabilized N2-foam flooding: A mechanistic study on the effect of surfactant type and temperature. Journal of Molecular Liquids, 2020, 325: 110591-110601 [3] Guo F, Aryana SA. Improved sweep efficiency due to foam flooding in a heterogeneous microfluidic device. Journal of Petroleum science & Engineering, 2018, 164: 155-163 [4] Zhang Y, Liu Q, Hang Y, et al. Nanoparticles as foam stabilizer: Mechanism, control parameters and application in foam flooding for enhanced oil recovery. Journal of Petroleum Science and Engineering, 2021, 202(8): 108561 [5] Yekeen N, Manan MA, Idris AK, et al. A comprehensive review of experimental studies of nanoparticles-stabilized foam for enhanced oil recovery. Journal of Petroleum Science and Engineering, 2018, 164: 43-74 doi: 10.1016/j.petrol.2018.01.035 [6] Yekeen N, Idris AK, Manan MA, et al. Bulk and bubble-scale experimental studies of influence of nanoparticles on foam stability. Chinese Journal of Chemical Engineering, 2017, 25(3): 347-357 doi: 10.1016/j.cjche.2016.08.012 [7] Farhadi H, Riahi S, Ayatollahi S, et al. Experimental study of nanoparticle-surfactant stabilized CO2 foam: Stability and mobility control. Chemical Engineering Research & Design, 2016, 111: 449-460 [8] Singh R, Mohanty KK. Synergy between nanoparticles and surfactants in stabilizing foams for oil recovery. Energy & Fuels, 2015, 29(2): 467-479 [9] 王莉娟, 张高勇, 董金凤等. 泡沫性能的测试和评价方法进展. 日用化学工业, 2005, 35(3): 171-173 (Wang Lijuan, Zhang Gaoyong, Dong Jinfeng, et al. Progress in test and evaluation methods for foaming performance. China Surfactant Detergent & Cosmetics, 2005, 35(3): 171-173 (in Chinese) doi: 10.3969/j.issn.1001-1803.2005.03.010 [10] 张景楠, 狄勤丰, 华帅等. 泡沫驱油核磁共振实验及泡沫动态稳定性评价. 石油勘探与开发, 2018, 45(5): 853-860 (Zhang Jingnan, Di Qinfeng, Hua Shuai, et al. Nuclear magnetic resonance experiments on foam flooding and evaluation of foam dynamic stability. Petroleum Exploration and Development, 2018, 45(5): 853-860 (in Chinese) [11] 李传亮. 岩石应力敏感指数与压缩系数之间的关系式. 岩性油气藏, 2007, 19(4): 95-98 (Li Chuanliang. The relationship between rock stress sensitivity index and compressibility. Lithologic Reservoirs, 2007, 19(4): 95-98 (in Chinese) doi: 10.3969/j.issn.1673-8926.2007.04.017 [12] 刘毅, 周绍骑, 韩开进等. 基于BWRS方程的压缩空气压缩因子计算. 后勤工程学院学报, 2014, 30(4): 66-71 (Liu Yi, Zhou Shaoqi, Han Kaijin, et al. Calculation of compressed air compression factor based on BWRS equation. Journal of Logistics Engineering Institute, 2014, 30(4): 66-71 (in Chinese) doi: 10.3969/j.issn.1672-7843.2014.04.013 [13] 狄勤丰, 张景楠, 华帅等. 聚合物-弱凝胶调驱核磁共振可视化实. 石油勘探与开发, 2017, 44(2): 270-274 (Di Qinfeng, Zhang Jingnan, Hua Shuai, et al. Visualization experiments on polymer-weak gel profile control and displacement by NMR technique. Petroleum Exploration and Development, 2017, 44(2): 270-274 (in Chinese) [14] Wei B, Zhang X, Wu R, et al. Pore-scale monitoring of CO2 and N2 flooding processes in a tight formation under reservoir conditions using nuclear magnetic resonance (NMR): A case study. Fuel, 2019, 246: 34-41 doi: 10.1016/j.fuel.2019.02.103 [15] Li Yuan, Di Qinfeng, Hua Shuai, et al. Investigation of the blocking effect of foam with and without nanoparticles in cores with different permeabilities. Energy & Fuels, 2021, 35(6): 4815-4822 [16] 狄勤丰, 华帅, 顾春元等. 岩心微流动的核磁共振可视化研究. 实验流体力学, 2016, 30(3): 98-103 (Di Qinfeng, Hua Shuai, Gu Chunyuan, et al. Nuclear magnetic resonance visualization of core microflow. Experimental Fluid Mechanics, 2016, 30(3): 98-103 (in Chinese) [17] Li Yuan, Di Qinfeng, Hua Shuai, et al. Visualization of foam migration characteristics and displacement mechanism in heterogeneous cores. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2020, 607: 125336-125344 doi: 10.1016/j.colsurfa.2020.125336 [18] 狄勤丰, 贾欣昌, 罗强等. 岩心驱替实验中基于LF-NMR的油、水动态定标方法及应用. 石油钻采工艺, 2020, 42(2): 181-188 (Di Qinfeng, Jia Xinchang, Luo Qiang, et al. LF-NMR-based oil and water dynamic calibration method and application in core displacement experiment. Petroleum Drilling &Production Technology, 2020, 42(2): 181-188 (in Chinese) [19] 李莺歌, 张娜, 吕伟峰等. 多孔介质内泡沫渗流过程入口效应的数值研究. 工程热物理学报, 2017, 38(9): 1960-1964 (Li Yingge, Zhang Na, Lyu Weifeng, et al. Numerical study on the inlet effect of foam seepage process in porous media. Journal of Engineering Thermophysics, 2017, 38(9): 1960-1964 (in Chinese) [20] Almajid MM, Kovscek AR. Pore-level mechanics of foam generation and coalescence in the presence of oil. Adv. Colloid Interface, 2016, 233: 65-82 doi: 10.1016/j.cis.2015.10.008 [21] 李兆敏, 张习斌, 李松岩等. 氮气泡沫驱气体窜流特征实验研究. 中国石油大学学报(自然科学版), 2016, 40(5): 96-103 (Li Zhaomin, Zhang Xibin, Li Songyan, et al. Experimental study on gas channeling characteristics of nitrogen foam flooding. Journal of China University of Petroleum (Natural Science) , 2016, 40(5): 96-103 (in Chinese) [22] Li YL, Li HB, Wang X, et al. Experimental study and field demonstration of air-foam flooding for heavy oil EOR. Journal of Petroleum Science and Engineering, 2020, 185(5): 106659 [23] Sun HQ, Wang ZW, Sun YH, et al. Laboratory evaluation of an efficient low interfacial tension foaming agent for enhanced oil recovery in high temperature flue-gas foam flooding. Journal of Petroleum Science and Engineering, 2020, 195(5): 107580 [24] Lu M, Liu Z, Jia L, et al. Visualizing pore-scale foam flow in micromodels with different permeabilities. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2020, 600: 124923 doi: 10.1016/j.colsurfa.2020.124923 [25] Kong D, Li Y, Yu M, et al. Experimental investigation on block and transport characteristics of foam in porous media for enhanced oil recovery processes. Colloids and Surfaces A Physicochemical and Engineering Aspects, 2019, 570: 22-31 [26] Kovscek AR, Bertin HJ. Foam mobility in heterogeneous porous media. Transport in Porous Media, 2003, 52(1): 17-35 doi: 10.1023/A:1022312225868 [27] Singh R, Mohanty KK. Foam flow in a layered, heterogeneous porous medium: A visualization study. Fuel, 2017, 197: 58-69 doi: 10.1016/j.fuel.2017.02.019 [28] Kapetas L, Bonnieu SV, Danelis S, et al. Effect of temperature on foam flow in porous media. Journal of Industrial & Engineering Chemistry, 2016, 36: 229-237 [29] Zhao J, Torabi F, Yang J. The synergistic role of silica nanoparticle and anionic surfactant on the static and dynamic CO2 foam stability for enhanced heavy oil recovery: An experimental study. Fuel, 2020, 287(22): 119443 [30] Babamahmoudi S, Riahi S. Application of nano particle for enhancement of foam stability in the presence of crude oil: Experimental investigation. Journal of Molecular Liquids, 2018, 36: 229-237 [31] 王玉斗, 李茂辉, 温科扬等. 泡沫渗流机理及渗流模型研究. 石油钻探技术, 2010, 38(4): 104-107 (Wang Yudou, Li Maohui, Wen Keyang, et al. Study on foam seepage mechanism and seepage model. Petroleum Drilling Technology, 2010, 38(4): 104-107 (in Chinese) [32] Eftekhari AA, Farajzadeh R. Effect of foam on liquid phase mobility in porous media. Scientific Reports, 2017, 7: 743870-743878 -
