RESEARCH ON THE AERO-HEATING AT THE SHARPENED LEADING EDGE BASED ON NONLINEAR COUPLED CONSTITUTIVE RELATIONS
-
摘要: 结合数值模拟与风洞试验技术, 在高超声速连续/稀薄滑移流条件下对尖化前缘这一典型构型的气动加热影响开展深入研究. 在三维有限体积框架下, 应用非线性耦合本构关系(nonlinear coupled constitutive relations, NCCR)模型对试验工况下的尖化前缘外形开展数值计算, 检验NCCR模型在尖化前缘构型中准确描述局部稀薄非平衡流动和物面气动热的性能. 数值结果与实验数据对比表明, 在等效高度33 km的风洞试验条件下, NCCR模型计算得到的驻点热流系数峰值同实验值偏差为1.81%, Fay-Riddell公式和纳维−斯托克斯(Navier-Stokes, NS)方程得到的驻点热流系数峰值同实验值偏差均在5%以内, 物面其他位置的壁面热流系数计算值与实验值偏差均在10%以内, 证明此时飞行器尖化前缘区域局部稀薄气体效应对气动加热影响程度较弱; 在等效高度60 km时, 飞行器尖化前缘区域附近的局部稀薄气体效应对气动加热的影响较为明显, NS方程计算的驻点热流系数偏差为33.31%, Fay-Riddell公式计算驻点热流系数同实验值偏差为29.5%, NCCR模型计算的驻点热流系数与实验值的偏差为11.77%. 体现出NCCR模型求解稀薄非平衡流动的优势.Abstract: The aerodynamic heating effect of a representative sharpened leading-edge model under hypersonic continuous/rarefied flow conditions is investigated through the integration of numerical simulation and wind tunnel testing methodologies in this study. Based on a three-dimensional finite volume framework, the sharpened leading-edge model is numerically analyzed using the nonlinear coupled constitutive relations (NCCR) model, facilitating the accurate representation of local rarefied non-equilibrium flow and surface heat flux. The performance of the NCCR model in describing the sharpened leading-edge is evaluated and corroborated in comparison with the experimental data. Under wind tunnel test conditions at an equivalent altitude of 33 km, it is observed that the discrepancy between the peak heat flux coefficient at the stagnation point computed by the NCCR model and the experimental data is a mere 1.81%. Moreover, the peak heat flux coefficient at the stagnation point obtained by the Fay-Riddell formula and the Navier-Stokes (NS) equations is within 5% according to the experimental value, the coefficient of heat flux at other locations on the surface is also well maintained from the experiment value, i.e., the deviations is within a range of 10%, which proves that the local rarefied gas effect near the sharpened leading-edge of the aircraft has a weak effect on aerodynamic heating. In contrast, at an equivalent altitude as high as 60 km, the effect of local rarefied gas near the sharpened leading-edge on aerodynamic heating is obvious, and the deviation between the coefficient of heat flux at the stagnation point with the help of the NS equations and the experimental data amounts to 33.31%. The deviation of the peak heat flux coefficient at the stagnation point calculated by the Fay-Riddell formula is 29.5% in terms of the experimental value. However, the variation in stagnation heat flux coefficient obtained from the NCCR model remains comparatively low at 11.77%. It shows the advantage of the NCCR model for solving rarefied nonequilibrium flows.
-
引 言
由于临近空间高超声速飞行器有着更快的飞行速度和高空机动能力, 逐渐成为了世界各航空航天大国追逐的热点. 对高超声速飞行器而言, 升阻比越高, 机动性越好[1]. 由于尖化前缘这一构型能够为飞行器提供更大的升阻比, 高超声速飞行器的设计普遍选择尖前缘外形. 然而, 相比于钝头设计, 高超声速来流在飞行器的尖化前缘处会产生更剧烈的气动加热现象, 引发诸如气动热载荷大、热防护难等难题, 给快速准确的热环境预示提出了更高的要求和挑战. 尖化前缘热环境的准确刻画是尖化前缘热防护研究的前提[2]. 黄飞等[3]分别采用纳维−斯托克斯(Navier-Stokes, NS)方程和蒙特卡洛直接数值模拟(direct simulation Monte Carlo, DSMC)方法计算不同努森数条件下尖前缘气动特性, 发现驻点热流密度受局部稀薄效应影响较大. 姜贵庆等[4]发现尖化前缘表面热流密度在离驻点2 ~ 3个分子自由程长度时下降至驻点热流密度的1/3, 而表面温度此处仅下降至驻点温度的90%. 表明尖化前缘的局部稀薄效应对驻点热流密度的精确预示产生了较大影响. 工程问题中, 连续流条件下驻点热流密度的工程快速预测通常可采用Fay-Riddell公式[5], 热流密度和前缘半径的关系可以表示为
$$ {q_s} \propto \frac{1}{{\sqrt {{R_N}} }} $$ (1) 式中, $ {q}_{s} $为尖化前缘的驻点热流密度, $ R_{N} $表示飞行器的前缘半径. 当前缘半径过小时, 驻点处易出现显著的局部稀薄气体效应, 基于连续介质假设和层流边界层假设的Fay-Riddell公式也会失效. 理论上前缘半径趋近于0时, 驻点热流密度将趋近于无穷大, 但实际上热流密度会趋近于自由分子流的极限[6].
在含局部稀薄效应的连续−稀薄耦合流动区域, NS方程线性本构模型不足以准确描述稀薄非平衡和多尺度非线性的流动机理. 高超声速飞行器的飞行环境介于稠密大气层和稀薄大气层之间, 飞行环境不再单一, 在尖前缘可能出现显著的局部稀薄气体效应, 叠加滑移边界条件的NS方程结果仍需通过实验数据或其他多尺度高精度计算模型进行校准[7]. 近年来, 针对连续−稀薄跨流域流动现象的描述, Myong等[8]在广义流体动力学方程基础上发展了非线性耦合本构关系(nonlinear coupled constitutive relations, NCCR)模型, 并通过经典非平衡流动问题验证了NCCR模型准确描述高速多尺度和稀薄非平衡流动现象的能力[9-11]. 随后, NCCR模型得到了国内外众多学者的深入研究和理论验证[12-14], 在计算框架[15]、求解算法[16-18]、边界条件[19-20]、热化学非平衡流动[21-23]、非结构网格求解[24-25]等方面进展显著. 然而, NCCR模型在高速连续/稀薄流实验验证方面的研究工作寥寥[26], 并且缺少专门针对局部稀薄条件下的尖化前缘气动加热机理的影响研究.
本文首先通过圆柱绕流算例验证NCCR模型的非平衡多尺度模拟能力; 再通过对比等效高度33 km和60 km条件下NCCR模型计算的流场温度和壁面热流分布与实验值的偏差, 检验NCCR模型在尖化前缘构型中准确描述局部稀薄非平衡流动和物面气动热的性能.
1. 非线性耦合本构关系模型
非线性耦合本构关系模型是Eu在广义流体动力学方程的基础上对高阶非守恒量的时间项和对流项进行简化处理得到的[27-28]. 守恒量和非守恒量的方程可写为
$$ \frac{{\partial \rho }}{{\partial t}} + \nabla \cdot \left( {\rho {\boldsymbol{u}}} \right) = 0 $$ (2) $$ \frac{{\partial \rho {\boldsymbol{u}}}}{{\partial t}} + \nabla \cdot \left( {\rho {\boldsymbol{uu}} + p{ {\boldsymbol{I}}}} \right) + \nabla \cdot \left( {{\boldsymbol{\varPi }} + \Delta {{{ {\boldsymbol{I}}}}}} \right) = {\boldsymbol{0}} $$ (3) $$ \frac{{\partial \rho E}}{{\partial t}} + \nabla \cdot \left[ {\left( {\rho E + p} \right){\boldsymbol{u}}} \right] + \nabla \cdot \left[ {\left( {{\boldsymbol{\varPi}} + \Delta {{{ {\boldsymbol{I}}}}}} \right) \cdot {\boldsymbol{u}}{\text{ + }}{\boldsymbol{Q}}} \right] = 0 $$ (4) $$\begin{split} & \rho \frac{{\rm{D}}}{{{\rm{D}}t}}\left( {\frac{{\boldsymbol{\varPi}} }{\rho }} \right) + \nabla \cdot {{\boldsymbol{\psi}} ^{(4)}} + 2{\left[ {{\boldsymbol{\varPi}} \cdot \nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}} + \\ &\qquad 2(p + \varDelta ){\left[ {\nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}}{\text{ = }} - \frac{p}{\eta }{\boldsymbol{\varPi }}q\left( \kappa \right) \end{split} $$ (5) $$\begin{split} & \rho \frac{{\rm{D}}}{{{\rm{D}}t}}\left( {\frac{\varDelta }{\rho }} \right) + \nabla \cdot {{\boldsymbol{\psi}} ^{(5)}} + 2\gamma '({\boldsymbol{\varPi }} + \Delta {{{ {\boldsymbol{I}}}}}):\nabla {\boldsymbol{u}} +\\ &\qquad \frac{2}{3}\gamma 'p\nabla \cdot {\boldsymbol{u}}{\text{ = }} - \frac{{2p}}{{3{\eta _b}}}\gamma '\Delta q\left( \kappa \right) \end{split} $$ (6) $$ \begin{split} & \rho \frac{{\rm{D}}}{{{\rm{D}}t}}\left( {\frac{{\boldsymbol{Q}}}{\rho }} \right) + \nabla \cdot {{\boldsymbol{\psi}} ^{(6)}} + {\varphi ^{\left( 3 \right)}}:\nabla {\boldsymbol{u}} + \\ &\qquad {\boldsymbol{Q}} \cdot \nabla {\boldsymbol{u}} + {\boldsymbol{\varPi}} \cdot {c_p}\nabla T + (p + \varDelta ){c_p}\nabla T- \\ &\qquad \frac{{\nabla \cdot \left[ {(p + \varDelta ){{{ {\boldsymbol{I}}}}} + {\boldsymbol{\varPi }}} \right]}}{\rho } \cdot ({\boldsymbol{\varPi}} + \Delta {{{ {\boldsymbol{I}}}}}){\text{ = }} - \frac{{p{c_p}}}{\lambda }{\boldsymbol{Q}}q\left( \kappa \right) \end{split} $$ (7) 式中, $\rho ,{\boldsymbol{u}},p,E,T$分别为密度、速度、压力、能量和温度, ${\boldsymbol{\varPi }},\varDelta ,{\boldsymbol{Q}},{\boldsymbol{I}},{c_p}$分别表示剪切应力张量、附加体积应力、热流、单位矩阵和气体的定压比热; $ \eta, \eta_{b}, \lambda $为剪切黏性系数、体积黏性系数和热传导系数; $\gamma^{\prime} = \dfrac{5-3 \gamma}{2}$是气体的比热比, $ q{\text{(}}\kappa {\text{)}} $是非线性耗散项, 非线性耗散项$ q{\text{(}}\kappa {\text{)}} $的引入不仅增强了方程组的非线性度, 同时使非守恒变量都耦合在一起
$$ q{\text{(}}\kappa {\text{) = }}\frac{{{\rm{sin}}{\rm{h}}(\kappa )}}{\kappa } $$ (8) $$ \kappa = \frac{{{{\left( {m{k_B}} \right)}^{\tfrac{1}{4}}}}}{{\sqrt 2 d}}\frac{{{T^{\tfrac{1}{4}}}}}{p}{\left( {\frac{{{\boldsymbol{\varPi }}:{\boldsymbol{\varPi }}}}{{2\eta }} + \gamma '\frac{{{\varDelta ^2}}}{{{\eta _b}}} + \frac{{{\boldsymbol{Q}} \cdot {\boldsymbol{Q}}}}{{\lambda T}}} \right)^{\tfrac{1}{2}}} $$ (9) 经过Eu的高阶矩封闭以及Eu和Myong绝热假设简化[8], 可以得到非线性耦合本构关系模型表达式为
$$ \begin{split} & {{\boldsymbol{\varPi }}_{{\rm{NCCR}}}}q{\text{(}}\kappa {\text{)}} = - 2\eta {\left[ {\nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}} - 2{N_\delta }\eta \frac{{{\varDelta _{{\rm{NCCR}}}}}}{p}{\left[ {\nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}} - \\ &\qquad 2{N_\delta }\frac{\eta }{p}{\left[ {{{\boldsymbol{\varPi }}_{{\rm{NCCR}}}} \cdot \nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}} \end{split} $$ (10) $$ \begin{split} & {\varDelta _{{\rm{NCCR}}}}q{\text{(}}\kappa {\text{)}} = - {\eta _b}\nabla \cdot {\boldsymbol{u}}- \\ &\qquad 3{N_\delta }\frac{{{\eta _{b}}}}{p}({{\boldsymbol{\varPi }}_{{\rm{NCCR}}}} + {\varDelta _{{\rm{NCCR}}}}{\boldsymbol{I}}):\nabla {\boldsymbol{u}} \end{split} $$ (11) $$ \begin{split} & {{\boldsymbol{Q}}_{{\rm{NCCR}}}}q{\text{(}}\kappa {\text{)}} = - \lambda \nabla T- \\ &\qquad \frac{\lambda }{p}Pr{{\boldsymbol{\varPi }}_{{\rm{NCCR}}}} \cdot \nabla T - \frac{\lambda }{p}Pr{\varDelta _{{\rm{NCCR}}}} \cdot \nabla T \end{split} $$ (12) 为方便比较, NS方程线性本构模型也在这给出
$$\qquad\qquad\quad {{\boldsymbol{\varPi }}_{{\rm{NS}}}} = - 2\eta {\left[ {\nabla {\boldsymbol{u}}} \right]^{\left( 2 \right)}} $$ (13) $$\qquad\qquad\quad {\varDelta _{{\rm{NS}}}} = - {\eta _b}\nabla \cdot {\boldsymbol{u}} $$ (14) $$\qquad\qquad\quad {{\boldsymbol{Q}}_{{\rm{NS}}}} = - \lambda \nabla T $$ (15) 通过对比可以看出, NCCR模型具有更强的非线性, 从而在非平衡流动问题描述中可能具备更高的模拟精度和准确性.
2. 算例验证
为验证非线性耦合本构关系模型求解连续−稀薄跨流域流动问题, 本文选取了以压缩流动为主的高超声速圆柱绕流算例对NCCR模型理论体系进行验证. 圆柱算例半径为6 inch (1 inch = 2.54 cm), 计算域网格采用结构网格, 壁面和径向方向网格数目分别为100和100. 气体黏性使用逆幂律分子模型求解, 参考温度$T_{\text {ref }} = 273 \mathrm{ ~ K}$其逆幂律指数为$ s = 0.74 $, NCCR常数为1.02029, 气体常数为$296.8 \mathrm{ ~ m}^{2} /\left(\mathrm{s}^{2}\cdot \mathrm{K}\right)$, 普朗特常数${Pr} = 0.72$, 气体比热比$ \gamma = 1.4 $, 参考黏性$\eta_{{\rm{ref}}} = 1.656 \times 10^{-5}\;{\rm{N}}\cdot {\rm{s}} / \mathrm{m}^{2}$. 数值模拟的计算状态均与文献[29]中DSMC的计算状态一致[29]. 具体来流参数见表1.
表 1 流动状态Table 1. Flow stateKn v/(m·s−1) T/K Tw/K P/Pa 0.002 2883 200 500 27.90 0.01 2883 200 500 1.17 0.05 2883 200 500 0.23 图1给出了Kn分别为0.002, 0.01和0.05时NCCR模型、NS方程和DSMC模拟得到的驻点线对比曲线. 可以看出在连续流条件下, NCCR模型计算结果同NS方程数据保持一致, 且两种方法计算结果同DSMC数据也保持一致. 在非连续流区域, NCCR模型计算结果同DSMC数据更为吻合、误差更小, NS方程结果与DSMC模拟结果的偏差随流动稀薄程度的增加而增加, 流动越稀薄, NS方程的准确性越差. 通过此算例, 验证了NCCR模型在稀薄流动领域能获得比NS方程更为准确、更符合物理的数值解, 同时也证明了NS方程线性本构模型在高努森数稀薄流动领域的不适用性.
![]()

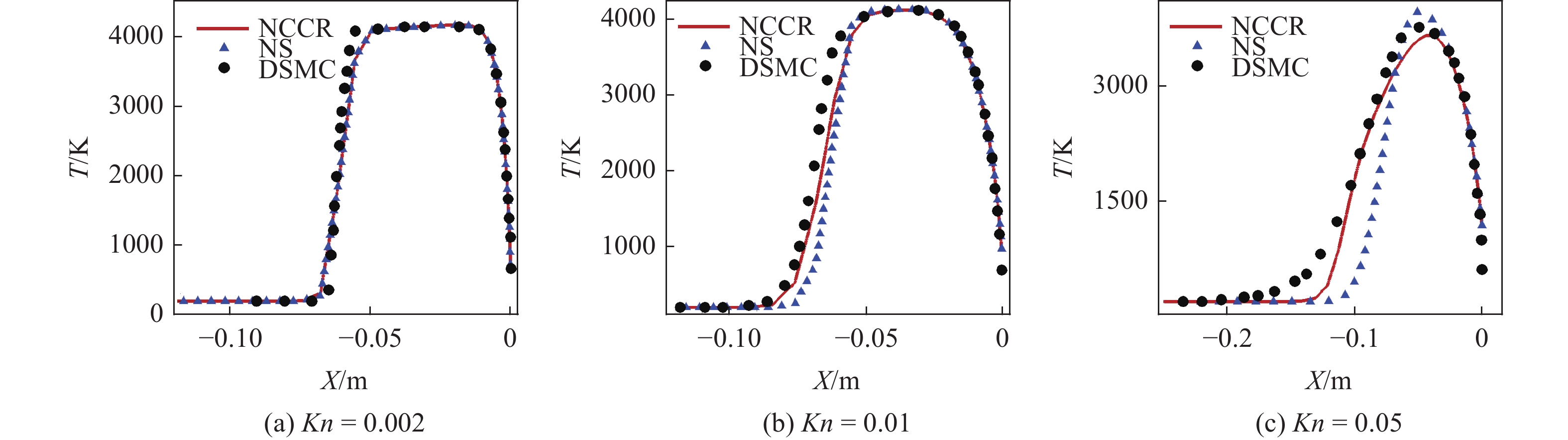

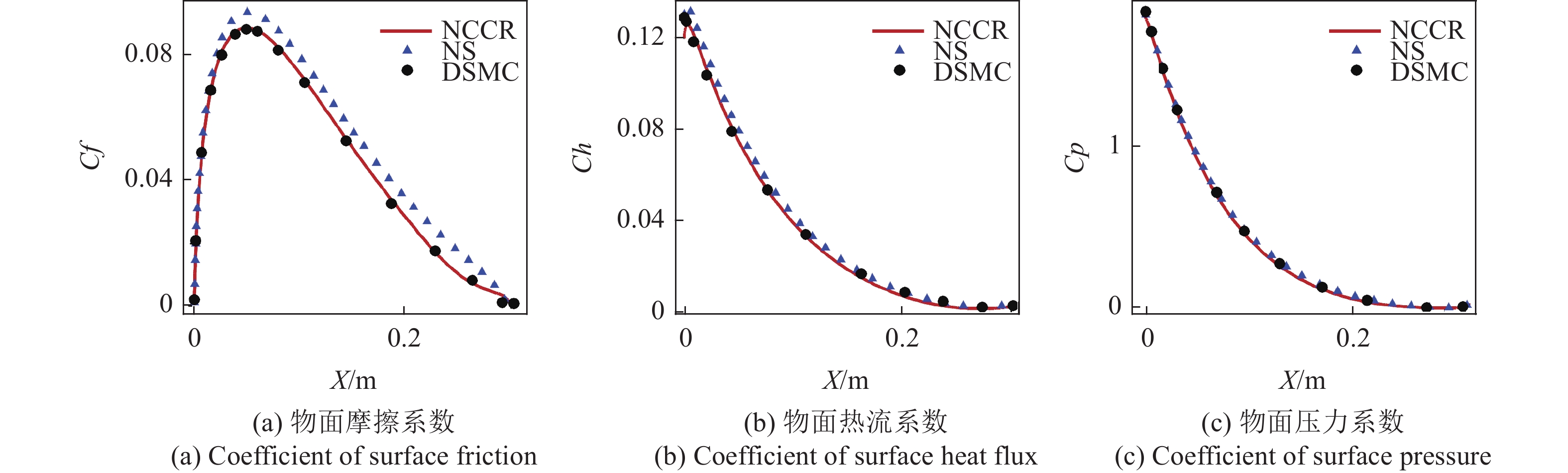

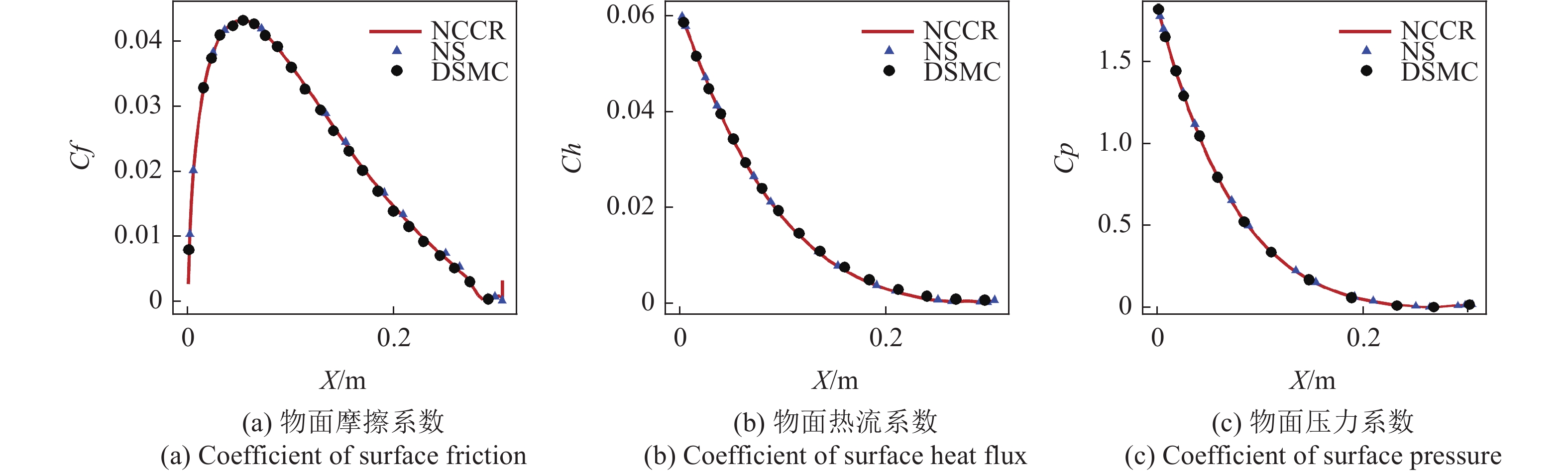

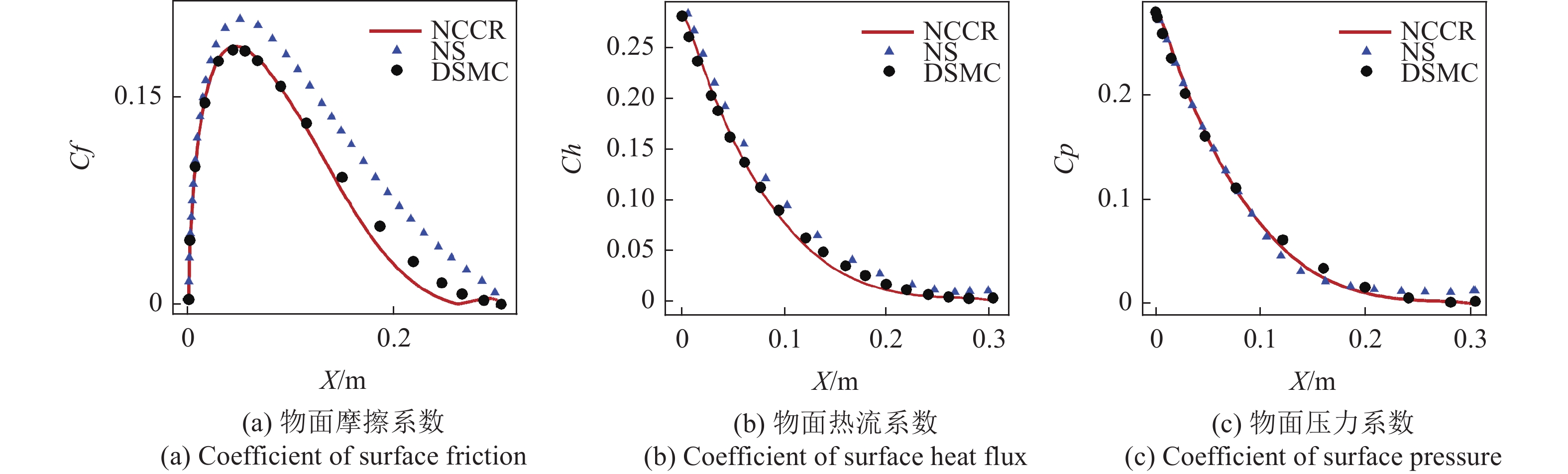

图 1 不同努森数条件下圆柱沿驻点线温度分布Figure 1. Temperature distribution of cylinders in different Kn along the stagnation line图2给出了Kn = 0.002连续流条件下圆柱模型壁面摩擦、热流和压力系数分布, NCCR模型、NS方程及DSMC数据基本一致. 证明在连续流区域NCCR模型计算结果能够回归到NS方程结果上. 图3 ~ 图4为Kn = 0.01, 0.05时圆柱模型壁面摩擦、热流、压力系数的DSMC数据、NCCR模型和NS方程的结果对比. 从连续流过渡到滑移流的过程中可以看出, NCCR模型同NS方程计算结果出现差距, 且随着Kn数的增大, NCCR模型同NS方程之间的差距逐渐增大, NCCR模型计算结果比NS方程更贴合DSMC数据结果. 随着来流稀薄程度的增加, 壁面热流系数和壁面压力系数的变化较小, 壁面摩擦系数的变化最为明显. 此时NCCR模型与NS方程计算结果的差距进一步扩大, 从结果上看, NCCR模型仍然比NS方程更为贴近DSMC的仿真数据. NCCR模型的计算结果同DSMC的仿真数据之间仍有部分差异, 这可能是由于NCCR模型为降低收敛难度而对某些项简化导致了计算结果精度的降低, 在后续工作中将进一步开展研究.
3. 尖化前缘气动加热计算
在连续流域, 前缘的驻点热流密度可以通过工程中常用的Fay-Riddell公式进行预测, 但在尖化前缘驻点区域发生局部稀薄效应时, Fay-Riddell公式预测值将偏离真值[30]. 本文选择前缘半径R = 0.5 mm的飞行器, 尖化前缘外形如图5所示. 通过分别对比连续流和滑移流域NCCR模型、NS方程及尖化前缘风洞试验结果, 分析飞行器的尖化前缘区域是否出现局部稀薄流动, 并探究NCCR模型在计算局部稀薄流动方面的准确性.
模型长度为640 mm, 尾部宽度为616.78 mm, 前缘半径0.5 mm, 尾部高度113.35 mm.
风洞试验在中国科学院力学研究所高温气体动力学国家重点实验室JF8A和JF10高超声速风洞中进行. 试验模型的来流条件见表2, Ma = 8.0的飞行条件在JF8A中试验[31], JF10风洞中进行Ma = 10.0飞行条件试验[32], 后续计算模型的流动参数同风洞试验参数保持一致.
表 2 流场状态参数Table 2. Flow field status parametersMa P0/MPa T0/K Re/m−1 8 7.8 760 1.7 × 107 10 1.0 5224 6.6 × 104 3.1 33 km处高超声速尖化前缘连续流动效应分析
等效高度33 km飞行条件下, 前缘半径R = 0.5 mm模型的尖化前缘局部Kn数为0.007, 处于连续流区域, 计算条件为U = 1190.25 m/s, Ma = 8.0, T = 55.07 K, Tw = 300 K, P = 798.95 Pa. 计算仿真模型各项尺寸同试验模型保持一致. 图6对比了NCCR模型与NS方程计算的沿驻点线温度云图, 两种计算方法的结果基本吻合、数值模拟结果保持一致.
![]()

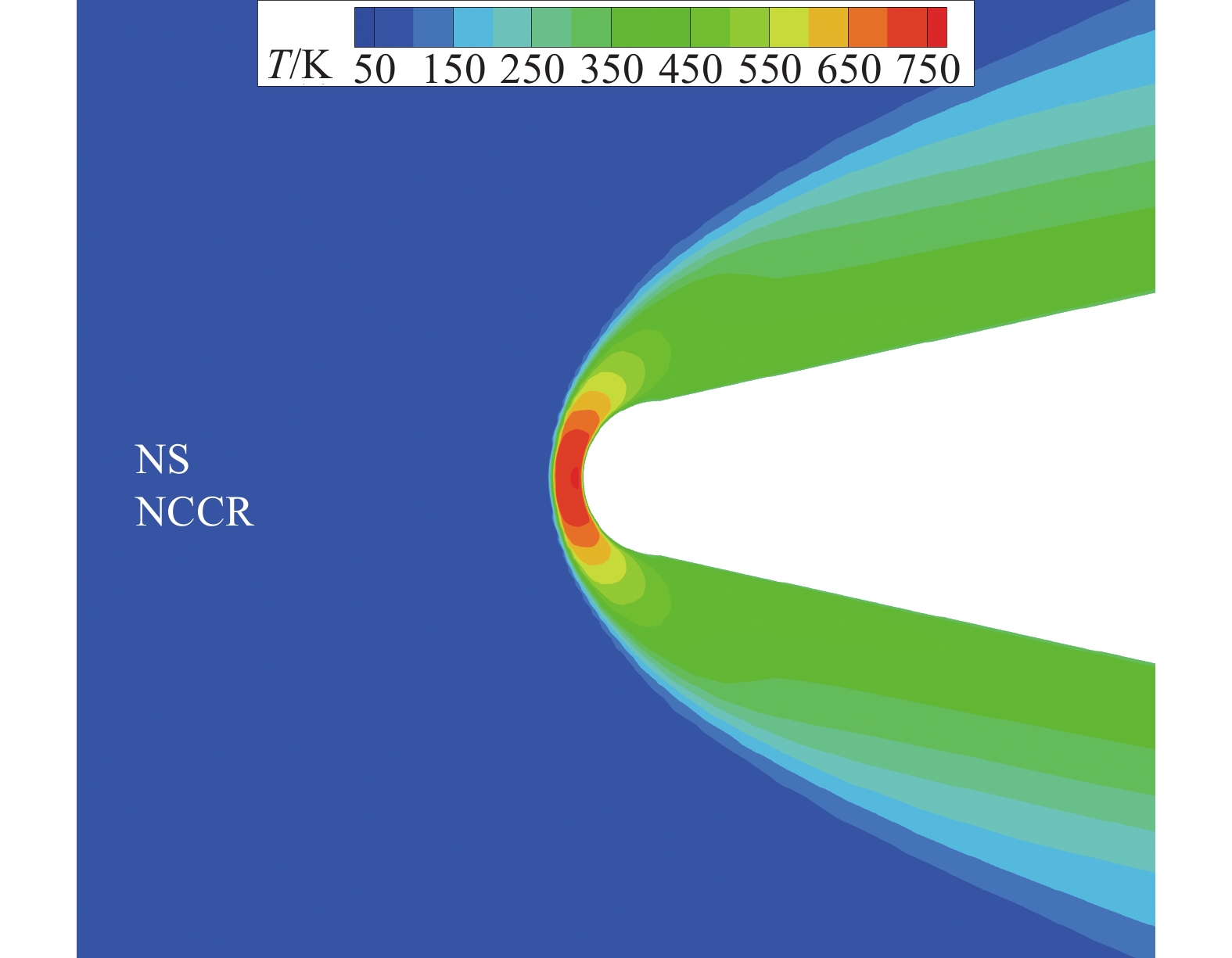

图 6 驻点附近的温度对比(Ma = 8)Figure 6. Comparison of the temperature near the stagnation point (Ma = 8)首先, 为了消除计算网格对计算结果的影响, 采用3套不同分辨率的网格进行网格收敛性研究. 相关网格信息由表3给出. 图7给出的表面热流系数分布情况可以看出, 细网格2和网格3计算结果较为吻合, 粗网格结果表现出一定差异. 为最大化提升计算效率并降低收敛因素, 本算例采用网格2作为模拟计算模型.
表 3 网格无关性对比Table 3. Mesh independent contrastMesh Grid points in normal, flow, and circumferential directions Grid spacing nearest to the solid wall/m mesh1 $ 101 \times 121 \times 121 $ $ 1 \times 10^{-6} $ mesh2 $ 151 \times 136 \times 121 $ $ 1 \times 10^{-7} $ mesh3 $ 201 \times 151 \times 141 $ $ 5 \times 10^{-8} $ ![]()

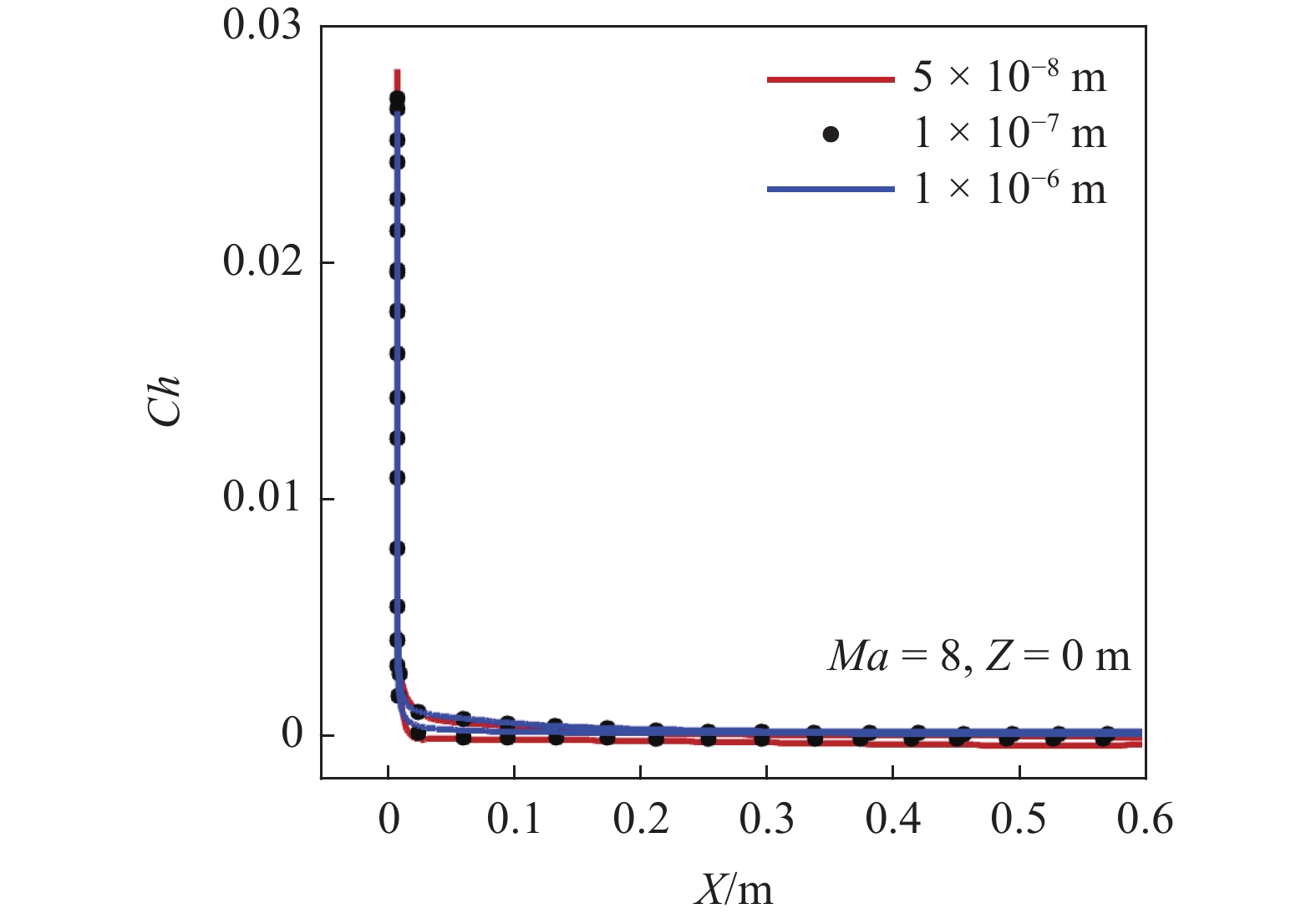

图 7 不同网格分辨率下Z = 0 m处壁面热流系数分布Figure 7. Distribution of heat flux coefficient at Z = 0 m under different grid resolutions壁面热流系数由下式计算所得, 其中$ q $为表面热流密度
$$ Ch = \frac{q}{{\dfrac{1}{2}\rho {V^3}}} $$ (16) 图8对比了前缘半径R = 0.5 mm模型对称面中心线上NCCR模型和实验结果的壁面热流系数, 在连续流区域, 根据公式计算驻点热流系数实验值为0.02698, NS模型计算的驻点热流系数为0.026 4, 偏差为$ 2.15 \% $, NCCR模型计算的驻点热流系数为0.02649, 偏差为1.81%, Fay-Riddell公式计算的驻点热流系数值约为$ 0.028\;14 $, 偏差为$ 4.3 \% $. 3种计算方法同实验值偏差均保持在5%以内, 证明在33 km高度, Ma = 8.0 来流条件下飞行器尖化前缘区域并未出现局部稀薄气体效应, 且在连续流域NCCR模型计算结果同实验值基本一致.
![]()

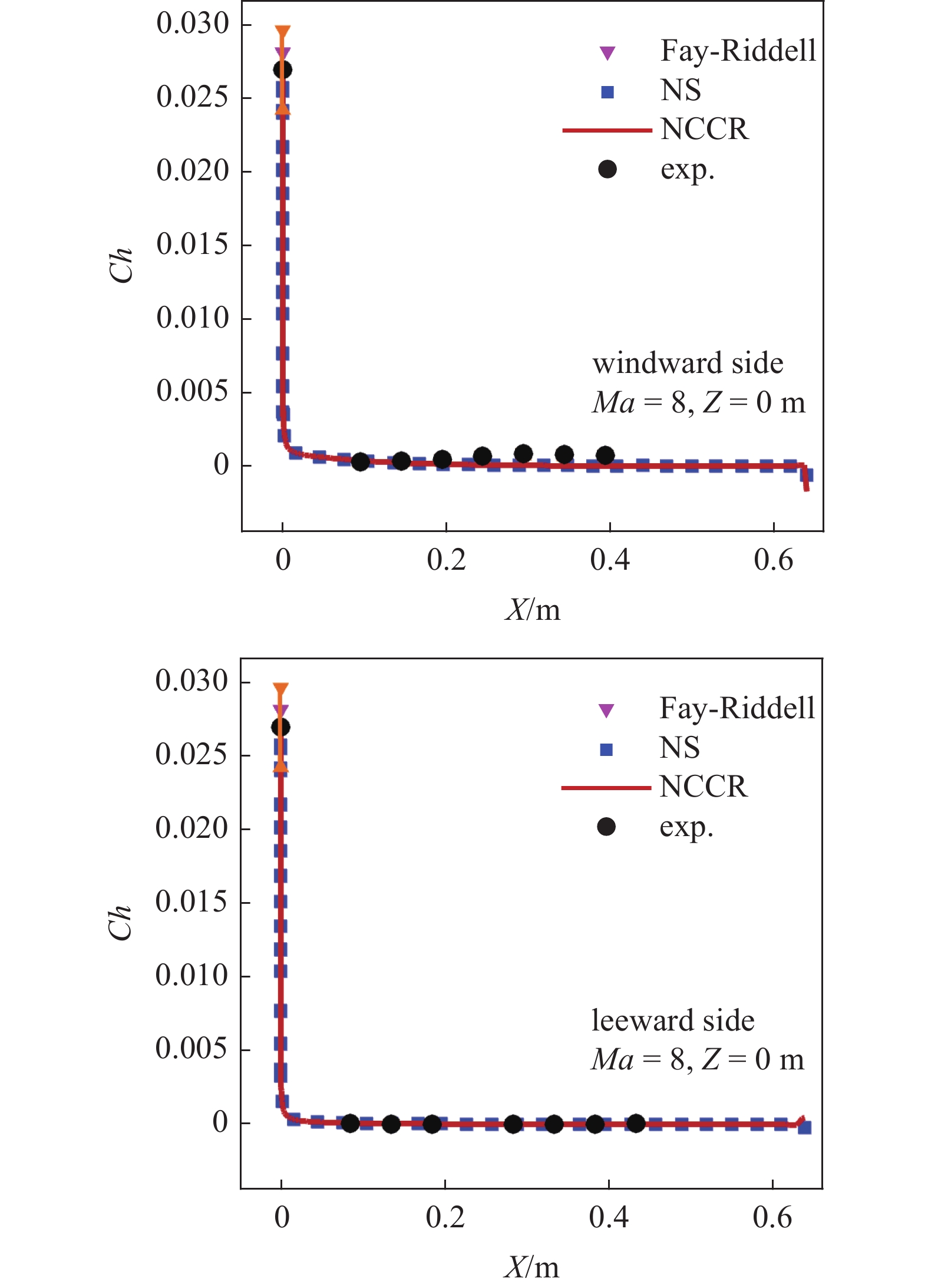

图 8 Z = 0处模型的迎风面与背风面物面热流系数分布(Ma = 8)Figure 8. The distribution of surface heat flux coefficient at Z = 0 m (Ma = 8) in windward side and leeward side因模型下表面为迎风面, 上表面为背风面, 故尖化前缘构型的下表面壁面热流系数大于上表面的壁面热流系数. 从图8中可以看出背风面的壁面热流实验值与数值模拟值保持一致. 迎风面的前半段部分, 实验值与NCCR模型计算值吻合, 但在迎风面尾部存在偏差, 偏差产生原因可能是迎风面尾部壁面发生转捩出现湍流, 引起壁面与气体分子间的额外能量输运, 导致壁面热流系数偏高, 而本文NCCR模型在计算时均使用层流模型, 因此可能在湍流区NCCR模型与实验值之间存在偏差.

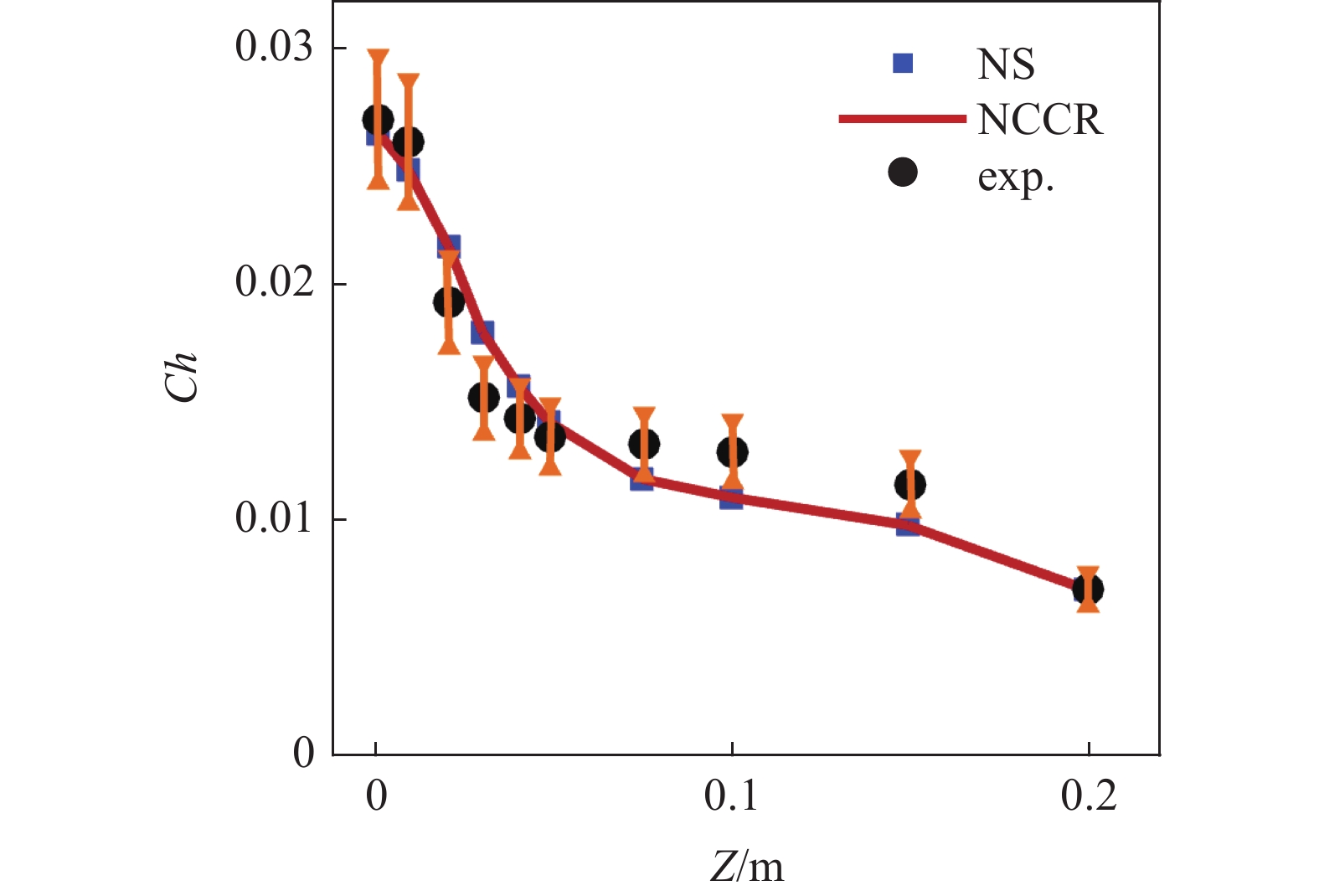

图9是前缘半径R = 0.5 mm模型Ma = 8.0条件下, 单侧尖化前缘热流系数分布曲线, 考虑到风洞试验的误差, 对比时选择实验值的$ \pm 10 \% $作为偏差带的上下限. 在尖化前缘区域, 各点的热流系数值大致在试验值偏差带内, 同实验值的吻合性较好.
![]()
图 9 尖化前缘区域壁面热流系数分布(Ma = 8)Figure 9. Heat flux coefficient distribution on sharpened leading edge (Ma = 8)图10是模型横切对比图, 对比Ma = 8.0来流条件下X = 0.185 m处上表面的壁面热流系数. NS方程、NCCR模型计算结果同实验值均保持一致.
![]()

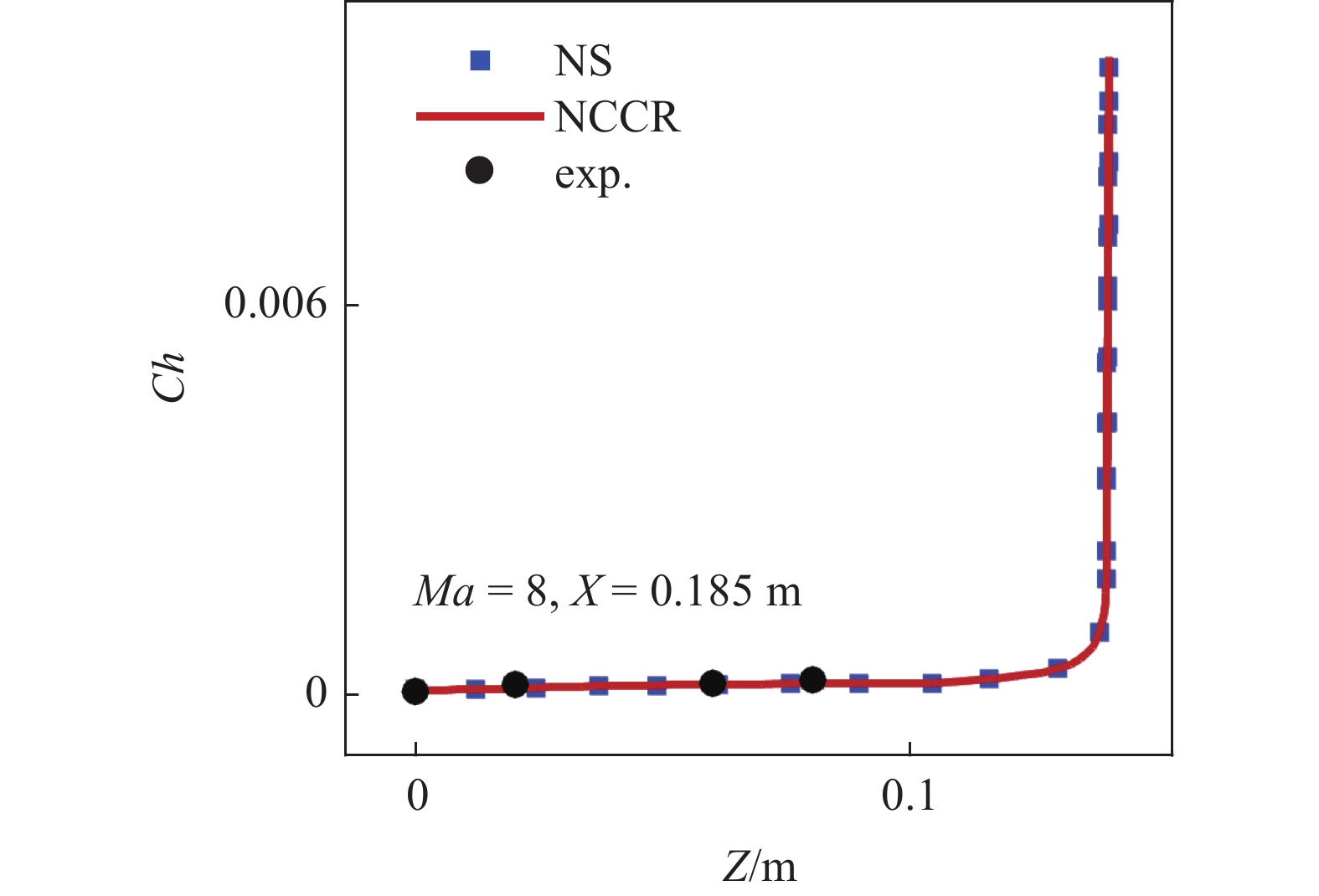

图 10 X = 0.185 m处物面热流系数分布(Ma = 8)Figure 10. The distribution of surface heat flux coefficient at X = 0.185 m (Ma = 8)图11对比距模型对称面Z = 0.04 m处纵切面的物面热流系数分布. 模拟曲线同实验值基本保持一致. 此切面上驻点热流系数为0.01426, NCCR模型计算的驻点热流系数为0.01547, 偏差为8.48%, NS模型计算的驻点热流系数为0.01548, 偏差为8.55%.
![]()
图 11 Z = 0.04 m处物面热流系数分布(Ma = 8)Figure 11. The distribution of surface heat flux coefficient at Z = 0.04 m (Ma = 8)3.2 60 km处高超声速尖化前缘局部稀薄气体流动效应分析
60 km等效高度时, 前缘半径R = 0.5 mm模型尖化前缘局部努森数为0.23, 属于过渡流域, 计算条件为U = 3162.08 m/s, Ma = 10.0, T = 248.76 K, Tw = 300 K, P = 23.56 Pa. 计算仿真模型的各项尺寸同试验模型保持一致. 为了检验非线性本构模型自身对稀薄非平衡现象的捕获能力和准确性, 本文在计算过程中壁面采用无滑移等温壁.
为了消除网格分布对计算结果的影响, 采用3套不同分辨率的网格进行网格收敛性研究. 网格信息由表4给出. 图12给出的驻点热流系数分布情况可以看出, 网格2和网格3计算结果较为吻合, 网格1结果表现出一定差异. 网格1计算驻点壁面热流系数为0.63056, 网格2计算驻点壁面热流系数为0.63306, 网格3计算值为0.63455, 为最大化提升计算效率并降低收敛因素, 本算例采用网格2作为模拟计算模型.
表 4 网格无关性对比Table 4. Mesh independent contrastMesh Grid points in normal, flow, and circumferential directions Grid spacing nearest to the solid wall/m mesh1 $ 81 \times 81 \times 101 $ $ 8 \times 10^{-7} $ mesh2 $ 81 \times 101 \times 101 $ $ 5 \times 10^{-7} $ mesh3 $ 101 \times 101 \times 121 $ $ 3 \times 10^{-7} $ ![]()

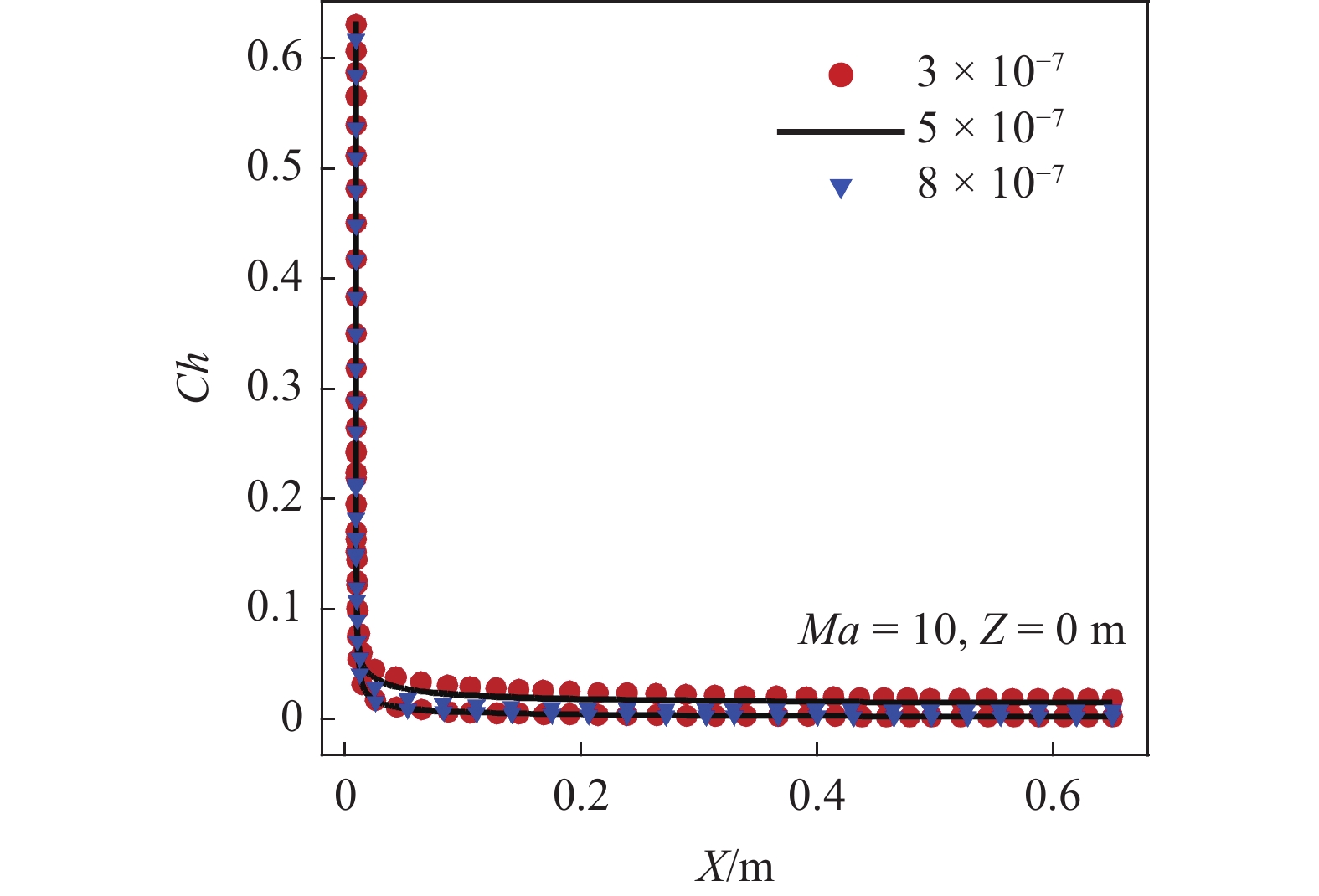

图 12 不同网格分辨率下Z = 0 m壁面热流系数分布Figure 12. Distribution of heat flux coefficient at Z = 0 m under different grid resolutions图13对比了NCCR模型和NS方程计算的沿驻点线流场温度分布曲线, NCCR模型与NS方程计算的激波位置、激波层内温度分布和温度峰值存在差异. 在60 km高度时, 尖化前缘驻点存在局部稀薄气体效应, NCCR模型不仅能修正存在局部稀薄效应的驻点热流密度, 而且计算沿驻点线温度分布结果更接近真实物理解.
![]()

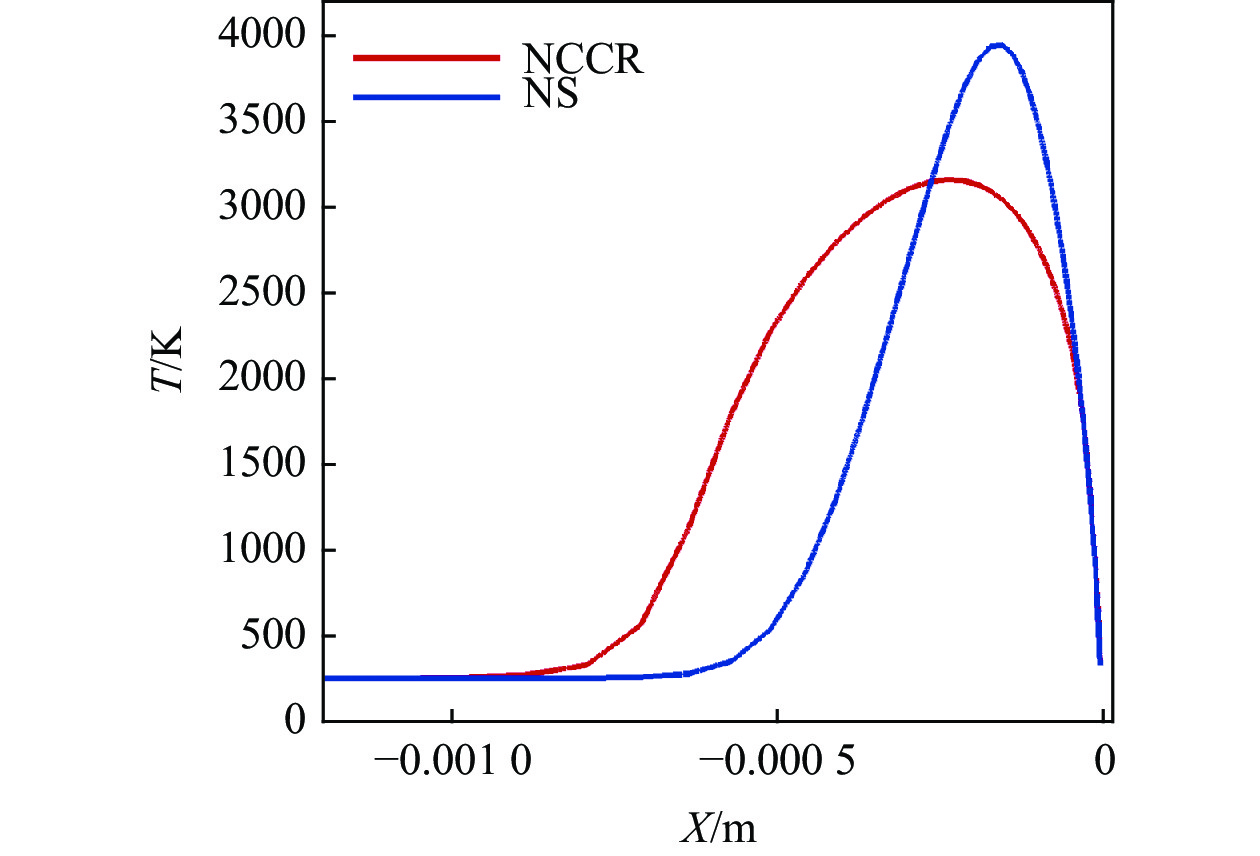

图 13 两种方法计算沿驻点线温度分布(Ma = 10)Figure 13. Temperature distributions along the stagnation line (Ma = 10)图14对比了NCCR模型与采用无滑移边界条件的NS方程分别计算前缘半径R = 0.5 mm飞行器的驻点前温度云图, 因尖化前缘处于过渡流区域, NS方程计算结果在此区域内已不再准确, 对比发现NCCR模型计算的驻点前区域, 激波、激波脱体区域、边界层三者之间的界限逐渐模糊和重合, NCCR模型计算的激波层内温度峰值要比NS方程的峰值要低, 激波层内部温度变化比NS方程更加均匀. 许多已发表的研究指出NCCR模型能够准确描述过渡流区的高超声速流动[16,33], 证明NCCR模型在连续/稀薄耦合流动求解中的潜力和工程价值.
![]()
图 14 驻点附近的温度对比(Ma = 10)Figure 14. Comparison of the temperature near the stagnation point (Ma = 10)图15对比了前缘半径R = 0.5 mm模型的NCCR模型和实验结果的壁面热流系数, 高超声速飞行器的热防护系统设计初期会将局部高热流密度作为设计重点, 而通常情况下, 驻点热流密度属于模型的热流密度峰值, 因此我们重点关注驻点热流密度的偏差情况. 在过渡流区域, 驻点实验热流系数为0.47488, NS方程计算驻点热流系数为0.63306, 与实验值偏差为33.31%; NCCR模型计算的驻点热流系数为0.53076, 偏差为11.77%; 而Fay-Riddell公式计算的驻点热流系数值约为0.61511, 偏差为29.5%. 在非驻点区域局部稀薄效应影响较小, NCCR模型计算结果同实验值基本保持一致. 在图14中激波层内温度分布及温度峰值的计算上NCCR模型的结果更准确和可靠.
![]()

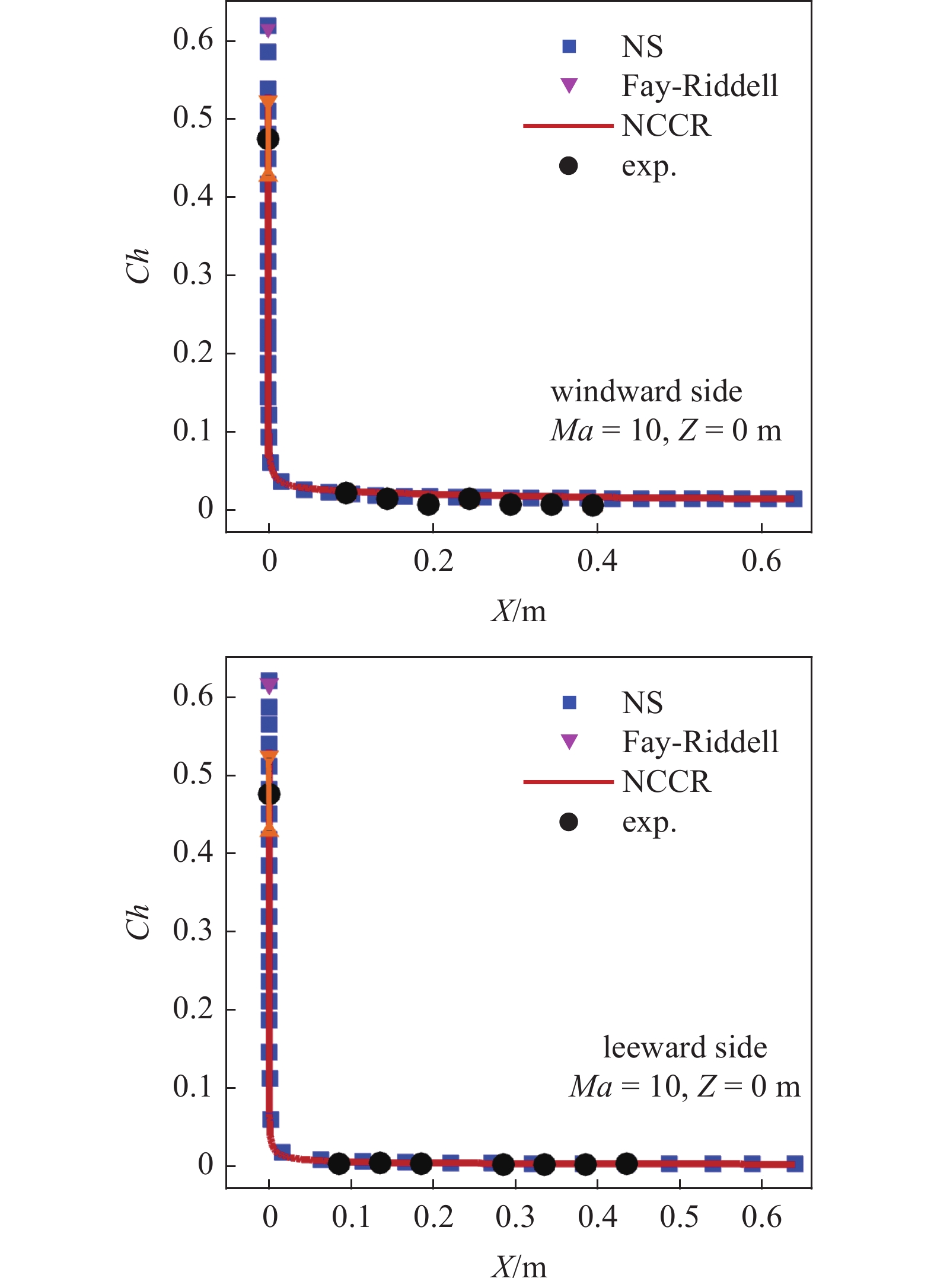

图 15 Z = 0 m处迎风面与背风面物面热流系数分布(Ma = 10)Figure 15. The distribution of surface heat flux coefficient at Z = 0 m (Ma = 10) in windward side and leeward side通过图15壁面热流系数的分布可以看出: 除驻点附近热流系数外, NCCR模型与NS方程计算迎风面与背风面热流系数与实验值基本一致. 证明壁面除前缘外的部分局部稀薄气体效应较弱, NS方程的计算结果能够满足精度要求.

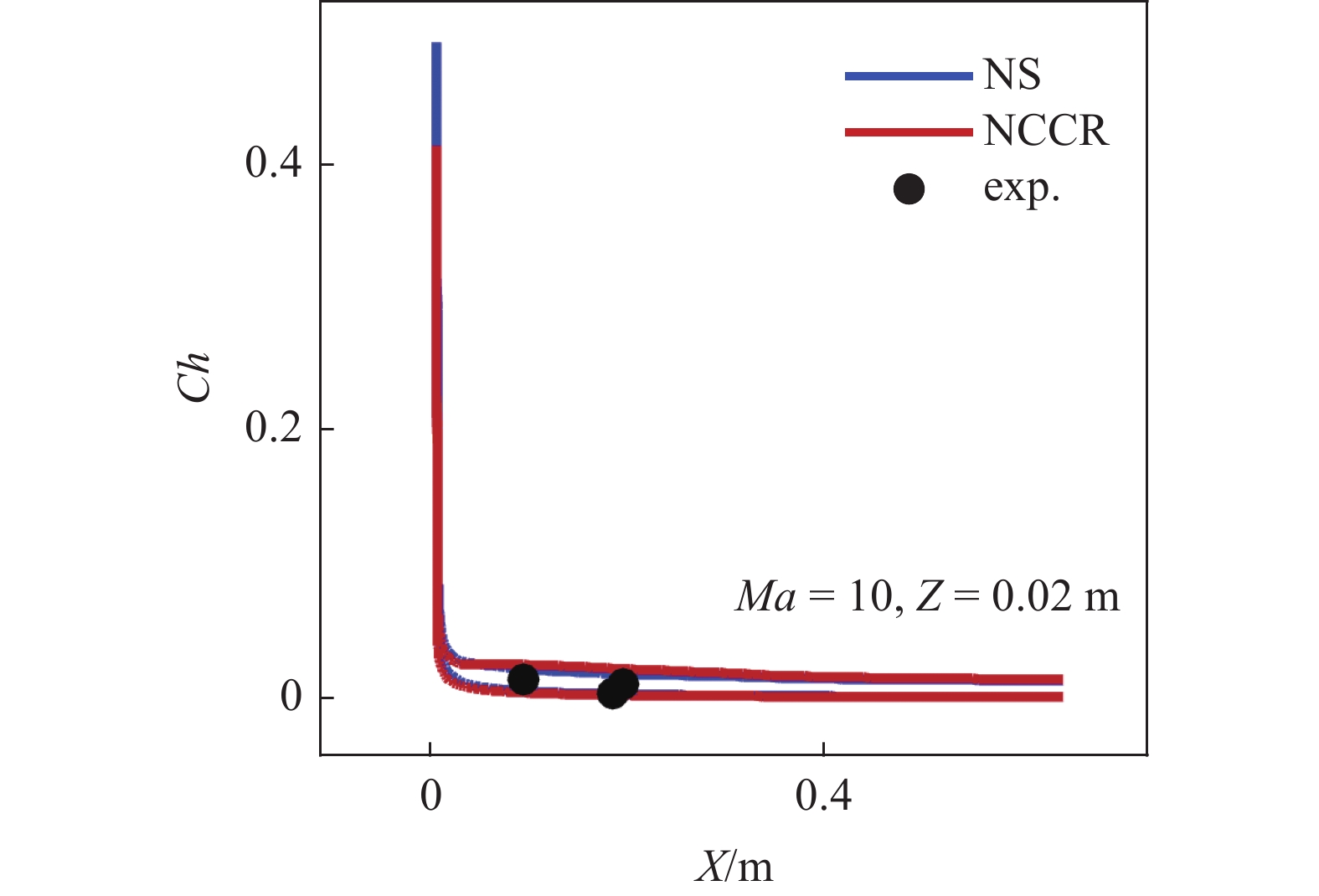

图16对比了距模型对称面Z = 0.02 m处尖化前缘模型纵切面的物面热流系数分布. 存在局部稀薄效应的尖化前缘区域中, NS方程计算驻点热流系数为0.49143, NCCR模型计算驻点热流系数为0.41454, NS方程计算结果同NCCR模型偏差为18.55%. 而非前缘区域流动处于连续流状态, NS方程同NCCR模型结果与实验值基本保持一致.
![]()
图 16 Z = 0.02 m处物面热流系数分布(Ma = 10)Figure 16. The distribution of surface heat flux coefficient at Z = 0.02 m (Ma = 10)4. 结 论
本文针对尖化前缘构型在高超声速连续/稀薄流中的气动加热问题开展数值计算研究和风洞实验验证. 根据实验来流条件, 借助NCCR模型对尖化前缘构型在Ma = 8, 10的0°攻角状态下的物面热流系数进行了数值计算, 并与风洞试验结果进行对比验证. 通过对比物面热流系数和沿驻点线温度分布, 检验了NCCR模型相比于NS方程在计算三维高速局部稀薄流动中的改善水平. 本文研究结论总结如下.
(1) 飞行器尖化前缘处于低空连续流条件下, 驻点区域局部稀薄气体效应并不明显, NCCR模型与NS方程计算结果同实验值保持一致, 偏差均保持在5%以内.
(2) 飞行器尖化前缘处于中高空来流条件时, 尖化前缘的局部稀薄气体效应随高度增加逐渐显著, NCCR模型不仅能够修正局部稀薄流动区域的壁面热流系数值, 而且近壁面流场内参数计算的结果更接近真实物理解.
(3) 在等效高度60 km, 来流马赫数Ma = 10.0的条件下, NS方程计算驻点热流系数偏差为33.31%, NCCR模型计算驻点热流系数偏差为11.77%; 在相同计算条件下, 不考虑边界条件带来的影响, NCCR模型计算驻点热流系数在误差允许范围内同试验值更为接近, 体现出非线性本构方程求解稀薄区域流动的优势.
-
![]()
图 1 不同努森数条件下圆柱沿驻点线温度分布
Figure 1. Temperature distribution of cylinders in different Kn along the stagnation line
![]()
图 6 驻点附近的温度对比(Ma = 8)
Figure 6. Comparison of the temperature near the stagnation point (Ma = 8)
![]()
图 7 不同网格分辨率下Z = 0 m处壁面热流系数分布
Figure 7. Distribution of heat flux coefficient at Z = 0 m under different grid resolutions
![]()
图 8 Z = 0处模型的迎风面与背风面物面热流系数分布(Ma = 8)
Figure 8. The distribution of surface heat flux coefficient at Z = 0 m (Ma = 8) in windward side and leeward side
![]()
图 9 尖化前缘区域壁面热流系数分布(Ma = 8)
Figure 9. Heat flux coefficient distribution on sharpened leading edge (Ma = 8)
![]()
图 10 X = 0.185 m处物面热流系数分布(Ma = 8)
Figure 10. The distribution of surface heat flux coefficient at X = 0.185 m (Ma = 8)
![]()
图 11 Z = 0.04 m处物面热流系数分布(Ma = 8)
Figure 11. The distribution of surface heat flux coefficient at Z = 0.04 m (Ma = 8)
![]()
图 12 不同网格分辨率下Z = 0 m壁面热流系数分布
Figure 12. Distribution of heat flux coefficient at Z = 0 m under different grid resolutions
![]()
图 13 两种方法计算沿驻点线温度分布(Ma = 10)
Figure 13. Temperature distributions along the stagnation line (Ma = 10)
![]()
图 14 驻点附近的温度对比(Ma = 10)
Figure 14. Comparison of the temperature near the stagnation point (Ma = 10)
![]()
图 15 Z = 0 m处迎风面与背风面物面热流系数分布(Ma = 10)
Figure 15. The distribution of surface heat flux coefficient at Z = 0 m (Ma = 10) in windward side and leeward side
![]()
图 16 Z = 0.02 m处物面热流系数分布(Ma = 10)
Figure 16. The distribution of surface heat flux coefficient at Z = 0.02 m (Ma = 10)
表 1 流动状态
Table 1 Flow state
Kn v/(m·s−1) T/K Tw/K P/Pa 0.002 2883 200 500 27.90 0.01 2883 200 500 1.17 0.05 2883 200 500 0.23
下载: 导出CSV
表 2 流场状态参数
Table 2 Flow field status parameters
Ma P0/MPa T0/K Re/m−1 8 7.8 760 1.7 × 107 10 1.0 5224 6.6 × 104
下载: 导出CSV
表 3 网格无关性对比
Table 3 Mesh independent contrast
Mesh Grid points in normal, flow, and circumferential directions Grid spacing nearest to the solid wall/m mesh1 $ 101 \times 121 \times 121 $ $ 1 \times 10^{-6} $ mesh2 $ 151 \times 136 \times 121 $ $ 1 \times 10^{-7} $ mesh3 $ 201 \times 151 \times 141 $ $ 5 \times 10^{-8} $
下载: 导出CSV
表 4 网格无关性对比
Table 4 Mesh independent contrast
Mesh Grid points in normal, flow, and circumferential directions Grid spacing nearest to the solid wall/m mesh1 $ 81 \times 81 \times 101 $ $ 8 \times 10^{-7} $ mesh2 $ 81 \times 101 \times 101 $ $ 5 \times 10^{-7} $ mesh3 $ 101 \times 101 \times 121 $ $ 3 \times 10^{-7} $
下载: 导出CSV
-
[1] Anderson JD. Hypersonic and High-temperature Gas Dynamics (Second Edition). Virginia: American Institute of Aeronautics and Astronautics, Inc., 2006: 1-20
[2] 高莹莹, 杨凯威, 孔维萱等. 高超声速飞行器尖化前缘气动热环境研究. 导弹与航天运载技术, 2019, 5(6): 112-116 Gao Yingying, Yang Kaiwei, Kong Weixuan, et al. Research on hypersonic sharp leading edge heating environment. Missiles and Space Vehicles, 2019, 5(6): 112-116 (in Chinese) )
[3] 黄飞, 张亮, 程晓丽等. 稀薄气体效应对尖前缘气动热特性的影响研究. 宇航学报, 2012, 33(2): 153-159 Huang Fei, Zhang Liang, Cheng Xiaoli, et al. Effects of continuum breakdown on aerothermodynamics. Journal of Astronautics, 2012, 33(2): 153-159 (in Chinese))
[4] 姜贵庆, 张学军, 王淑华等. 飞行器尖化前缘的热结构特性. 宇航材料工艺, 2007, 4: 8-11 Jiang Guiqing, Zhang Xuejun, Wang Shuhua, et al. Thermal structure properties of sharp leading edges for spacecraft. Aerospace Materials & Technology, 2007, 4: 8-11 (in Chinese))
[5] Fay JA, Riddell FR. Theory of stagnation point heat transfer in dissociated air. Journal of the Aerospace Sciences, 1958, 25(2): 73-85 doi: 10.2514/8.7517
[6] 王智慧. 尖化前缘气动加热受稀薄气体效应和非平衡真实气体效应的工程理论. [博士论文]. 北京: 中国科学院大学, 2011: 1-15 Wang Zhihui. An engineering theory of the sharpened leading edge aerodynamic heating subject to the rarefied gas effect and the non-equilibrium real gas effect. [PhD Thesis]. Beijing: University of Chinese Academy of Sciences, 2011: 1-15 (in Chinese))
[7] 黄飞, 程晓丽, 沈清. 高超声速平板近空间气动特性的计算分析研究. 宇航学报, 2009, 30(3): 900-907 (Huang Fei, Cheng Xiaoli, Shen Qing. Numerical investigation of hypersonic aerodynamics of flat plate flying in near space. Journal of Astronautics, 2009, 30(3): 900-907 (in Chinese) doi: 10.3873/j.issn.1000-1328.2009.03.012 Huang Fei, Cheng Xiaoli, Shen Qing. Numerical investigation of hypersonic aerodynamics of flat plate flying in near space. Journal of Astronautics, 2009, 30(03): 900-907. (in Chinese)) doi: 10.3873/j.issn.1000-1328.2009.03.012
[8] Myong RS. Thermodynamically consistent hydrodynamic computational models for high-Knudsen-number gas flows. Physics of Fluids, 1999, 11(9): 2788-2802 doi: 10.1063/1.870137
[9] Myong R. Coupled nonlinear constitutive models for rarefied and microscale gas flows: subtle interplay of kinematics and dissipation effects. Continuum Mechanics and Thermodynamics, 2009, 21(5): 389-399 doi: 10.1007/s00161-009-0112-6
[10] Al-Ghoul M, Eu BC. Generalized hydrodynamic theory of shock waves in rigid diatomic gases. Physical Review E, 2001, 64(4): 046303 doi: 10.1103/PhysRevE.64.046303
[11] Myong RS. A generalized hydrodynamic computational model for rarefied and microscale diatomic gas flows. Journal of Computational Physics, 2004, 195(2): 655-676 doi: 10.1016/j.jcp.2003.10.015
[12] Zeng SH, Qiu YL, Jiang ZZ, et al. Experimental validation of nonlinear coupled constitutive relations in continuum flows//Proceedings of the 2021 Asia-Pacific International Symposium on Aerospace Technology, South Korea, 2021-11-15-17. Singapore: Springer, 2023: 297-308
[13] Singh S, Karchani A, Chourushi T, et al. A three-dimensional modal discontinuous Galerkin method for the second-order Boltzmann-Curtiss-based constitutive model of rarefied and microscale gas flows. Journal of Computational Physics, 2022, 457: 111052 doi: 10.1016/j.jcp.2022.111052
[14] Jiang ZZ, Zhao WW, Chen WF, et al. Eu's generalized hydrodynamics with its derived constitutive model: Comparison to Grad's method and linear stability analysis. Physics of Fluids, 2021, 33(12): 127116 doi: 10.1063/5.0071715
[15] Le NTP, Xiao H, Myong RS. A triangular discontinuous Galerkin method for non-Newtonian implicit constitutive models of rarefied and microscale gases. Journal of Computational Physics, 2014, 273: 160-184 doi: 10.1016/j.jcp.2014.05.013
[16] He ZQ, Jiang ZZ, Zhang HW, et al. Analytical method of nonlinear coupled constitutive relations for rarefied non-equilibrium flows. Chinese Journal of Aeronautics, 2021, 34(2): 136-153 doi: 10.1016/j.cja.2020.06.023
[17] Jiang ZZ, Zhao WW, Chen WF, et al. An undecomposed hybrid algorithm for nonlinear coupled constitutive relations of rarefied gas dynamics. Communications in Computational Physics, 2019, 26(3): 880-912 doi: 10.4208/cicp.OA-2018-0056
[18] Yuan ZY, Zhao WW, Jiang ZZ, et al. Modified nonlinear coupled constitutive relations model for hypersonic nonequilibrium flows. Journal of Thermophysics and Heat Transfer, 2020, 34(4): 848-859 doi: 10.2514/1.T5761
[19] Jiang ZZ, Chen WF, Zhao WW. Numerical analysis of the micro-Couette flow using a non-Newton-Fourier model with enhanced wall boundary conditions. Microfluidics and Nanofluidics, 2017, 22(1): 10
[20] Zeng SH, Zhao WW, Jiang ZZ, et al. A second-order slip/jump boundary condition modified by nonlinear Rayleigh-Onsager dissipation factor. Physics of Fluids, 2023, 35(4): 042001 doi: 10.1063/5.0138433
[21] Zeng SH, Yuan ZY, Zhao WW, et al. Numerical simulation of hypersonic thermochemical nonequilibrium flows using nonlinear coupled constitutive relations. Chinese Journal of Aeronautics, 2023, 36(3): 63-79 doi: 10.1016/j.cja.2022.09.013
[22] Ahn JW, Kim C. An axisymmetric computational model of generalized hydrodynamic theory for rarefied multi-species gas flows. Journal of Computational Physics, 2009, 228(11): 4088-4117 doi: 10.1016/j.jcp.2009.02.026
[23] Yuan ZY, Zhao WW, Jiang ZZ, et al. Numerical simulation of hypersonic reaction flows with nonlinear coupled constitutive relations. Aerospace Science and Technology, 2021, 112: 106591 doi: 10.1016/j.ast.2021.106591
[24] Zeng SH, He ZQ, Zhao WW, et al. A computational strategy for nonlinear coupled constitutive relations of rarefied nonequilibrium flows on unstructured grids. Aerospace Science and Technology, 2023, 141: 108477 doi: 10.1016/j.ast.2023.108477
[25] Xiao H, Tang K. A unified framework for modeling continuum and rarefied gas flows. Scientific Reports, 2017, 7(1): 13108 doi: 10.1038/s41598-017-13274-7
[26] 曾舒华, 赵文文, 江中正等. 连续流区非线性本构模型及求解算法研究与实验验证. 航空动力学报, 2022, 出版中 Zeng Shuhua, Zhao Wenwen, Jiang Zhongzheng, et al. Numerical investigation and experimental validation of nonlinear constitutive models with solving algorithms in continuum flows. Journal of Aerospace Power, 2022, in press (in Chinese)
[27] Curtiss CF. The classical Boltzmann equation of a gas of diatomic molecules. The Journal of Chemical Physics, 1981, 75(1): 376-378 doi: 10.1063/1.441792
[28] Kubo R. Generalized cumulant expansion method. Journal of the Physical Society of Japan, 1962, 17(7): 1100-1120 doi: 10.1143/JPSJ.17.1100
[29] Lofthouse AJ. Nonequilibrium hypersonic aerothermodynamics using the direct simulation Monte Carlo and Navier-Stokes models. [PhD Thesis]. Ann Arbor University of Michigan, 2008: 1-20
[30] 王智慧, 鲍麟, 童秉纲. 尖化前缘的稀薄气体化学非平衡流动和气动加热相似律研究. 气体物理, 2016, 1(1): 5-12 (Wang Zhihui, Bao Lin, Tong Binggang. Similarity law of aero-heating to sharpened noses in rarefied chemical nonequilibrium flows. Physics of Gases, 2016, 1(1): 5-12 (in Chinese) doi: 10.19527/j.cnki.2096-1642.2016.01.004 Wang Zhihui, Bao Lin, Tong Binggang. Similarity law of aero-heating to sharpened noses in rarefied chemical nonequilibrium flows. Physics of Gases, 2016, 1(01): 5-12 (in Chinese)) doi: 10.19527/j.cnki.2096-1642.2016.01.004
[31] 栗继伟, 卢盼, 汪球等. 激波风洞7°尖锥边界层转捩实验研究. 北京航空航天大学学报, 2020, 46(11): 2087-2093 (Su Jiwei, Lu Pan, Wang Qiu, et al. Experimental study of boundary-layer transition on a 7° sharp cone in shock tunnel. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(11): 2087-2093 (in Chinese) doi: 10.13700/j.bh.1001-5965.2019.0577 Su Jiwei, Lu Pan, Wang Qiu, et al. Experimental study of boundary-layer transition on a 7° sharp cone in shock tunnel. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(11): 2087-2093. (in Chinese)) doi: 10.13700/j.bh.1001-5965.2019.0577
[32] 汪球, 赵伟, 余西龙等. 高焓激波风洞有效试验时间的诊断. 航空学报, 2015, 36(11): 3534-3539 (Wang Qiu, Zhao Wei, Yu Xilong, et al. Effective test time measurement research for high enthalpy shock tunnel. Acta Aeronautica et Astronautica Sinica, 2015, 36(11): 3534-3539 (in Chinese) Wang Qiu, Zhao Wei, Yu Xilong, et al. Effective test time measurement research for high enthalpy shock tunnel. Acta Aeronautica et Astronautica Sinica, 2015, 36(11): 3534-3539. (in Chinese))
[33] Yuan ZY, Jiang ZZ, Zhao WW, et al. Analysis of gas flow over a cylinder at all Knudsen numbers based on non-Newtonian constitutive models. International Journal of Modern Physics B, 2020, 34: 2040076
