波浪与新型双排开孔圆筒防波堤相互作用三维数值模拟

邓斌; 尹龙斌; 黄姣凤; 熊凯; 蒋昌波

doi:10.6052/0459-1879-22-545

波浪与新型双排开孔圆筒防波堤相互作用三维数值模拟

doi: 10.6052/0459-1879-22-545

邓斌^{*, †},
尹龙斌^*,
黄姣凤^*,
熊凯^*,
蒋昌波^{*, †, ,}

*.
长沙理工大学水利与环境工程学院, 长沙 410114
†.
水沙科学与水灾害防治湖南省重点实验室, 长沙 410114

基金项目: 国家重点研发项目(2021YFB2601100), 国家自然科学基金(51979015, 51839002), 湖南省自然科学基金(2021JJ30707) , 湖南省科技创新计划(2020RC3037, 20hnkj019), 湖南省教育厅资助科研项目( 20A007)和湖南省研究生科研创新项目(QL20210198)资助

详细信息

通讯作者:
蒋昌波, 教授, 主要研究方向为海岸动力学及其数值模拟技术. E-mail: jiangchb@csust.edu.cn

中图分类号: TV139.2⁺6
计量
- 文章访问数: 270
- HTML全文浏览量: 104
- PDF下载量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2022-11-19
- 录用日期: 2023-03-03
- 网络出版日期: 2023-03-04
- 刊出日期: 2023-04-18

THREE DIMENSIONAL NUMERICAL SIMULATION OF WAVE INTERACTION WITH A NEW TYPE OF DOUBLE ROW PERFORATED CYLINDER BREAKWATER

Deng Bin^{*, †},
Yin Longbin^*,
Huang Jiaofeng^*,
Xiong Kai^*,
Jiang Changbo^{*, †
, ,}

*.
School of Hydraulic and Environmental Engineering, Changsha University of Science & Technology, Changsha 410114, China
†.
Key Laboratory of Water-Sediment Sciences and Water Disaster Prevention of Hunan Province, Changsha 410114, China

摘要

摘要: 双排开孔圆筒防波堤是基于圆筒、板式结构的一种复合式新型结构型式; 基于不可压缩两相流模型建立三维数值波浪水槽, 通过RNG k-ε湍流模型进行湍流封闭, 并采用TruVOF方法捕捉自由液面, 开展波浪与双排开孔圆筒防波堤相互作用数值模拟, 探究相对排间距、开孔率对新型双排开孔圆筒防波堤消浪性能的影响, 分析了后排开孔圆筒防波堤附近的复杂水动力现象和流动特性. 结果表明, 在本文研究工况范围内, 沿程平均波高随相对排间距的增大先增大后减小, 随开孔率的增大而增大, 周期对沿程平均波高的影响没有明显规律; 当B/D = 9, e = 23.11%时, 新型双排开孔圆筒防波堤消浪效果最优, 反射系数在0.4 ~ 0.46之间, 透射系数在0.3 ~ 0.35之间, 耗散系数在0.8 ~ 0.85之间; 自由液面破碎、水气掺混、环状涡运动演化是新型双排开孔圆筒防波堤紊动耗能消波的主要原因; 相对排间距会引起后排防波堤附近涡量分布以及剪切层形态的变化, 从而导致不同的紊动特性, 影响双排开孔圆筒防波堤消浪特性. 研究结果可以为新型双排开孔圆筒防波堤工程设计与消浪机理研究提供理论支撑.
- 消浪特性 /
- 流动特性 /
- 射流 /
- 剪切层 /
- Q准则 /
- 环状涡
Abstract: The double row perforated cylinder breakwater is a new composite structure based on the cylinder and plate breakwater. The three-dimensional numerical wave flume is established based on the incompressible two-phase flow model. The turbulent closure is carried out by RNG k-ε turbulence model, and the TruVOF method is used to capture the free liquid surface. The influence of relative row spacing and opening rate on the wave dissipation performance of double row perforated cylinder breakwater is explored, and the special hydrodynamic phenomena and flow characteristics near the back row perforated cylinder breakwater are analyzed. The results show that in the range of working conditions studied in this paper, the along-range average wave height increases and then decreases with the increase of relative row spacing, and increases with the increase of opening rate, and the effect of period on the along-range average wave height has no obvious rule; when B/D = 9, e = 23.11%, the double row perforated cylinder breakwater has the best wave dissipation effect, the reflection coefficient ranges from 0.4 to 0.46,the transmission coefficient is between 0.3 ~ 0.35, the dissipation coefficient is between 0.8 ~ 0.85. Free surface fragmentation, water-air mixing and annular eddy motion evolution are the main causes of wave dissipation and energy dissipation of double-row cylinder breakwater. The jet stage occurred more violent free liquid surface fragmentation and water-gas mixing, resulting in the increase of turbulent kinetic energy after the dike, the peak turbulent kinetic energy after the increase is about 2.5 times of that before the jet, and the violent turbulent energy dissipation occurred. The relative row spacing will cause the changes of vorticity distribution and shear layer morphology near the rear breakwater, which will lead to different turbulent characteristics and affect the wave breaking characteristics of the double row perforated cylinder breakwater. The research results can provide theoretical support for the engineering design of a new type of double-arranged cylindrical breakwater and the study of wave dissipation mechanism.
- wave dissipation characteristics /
- flow characteristics /
- jet flow /
- shear layer /
- Q criterion /
- ring-vortex

HTML全文

图 1 不同测点处波高时间序列对比图

Figure 1. Comparison of wave height time series at different measuring points

下载: 全尺寸图片幻灯片

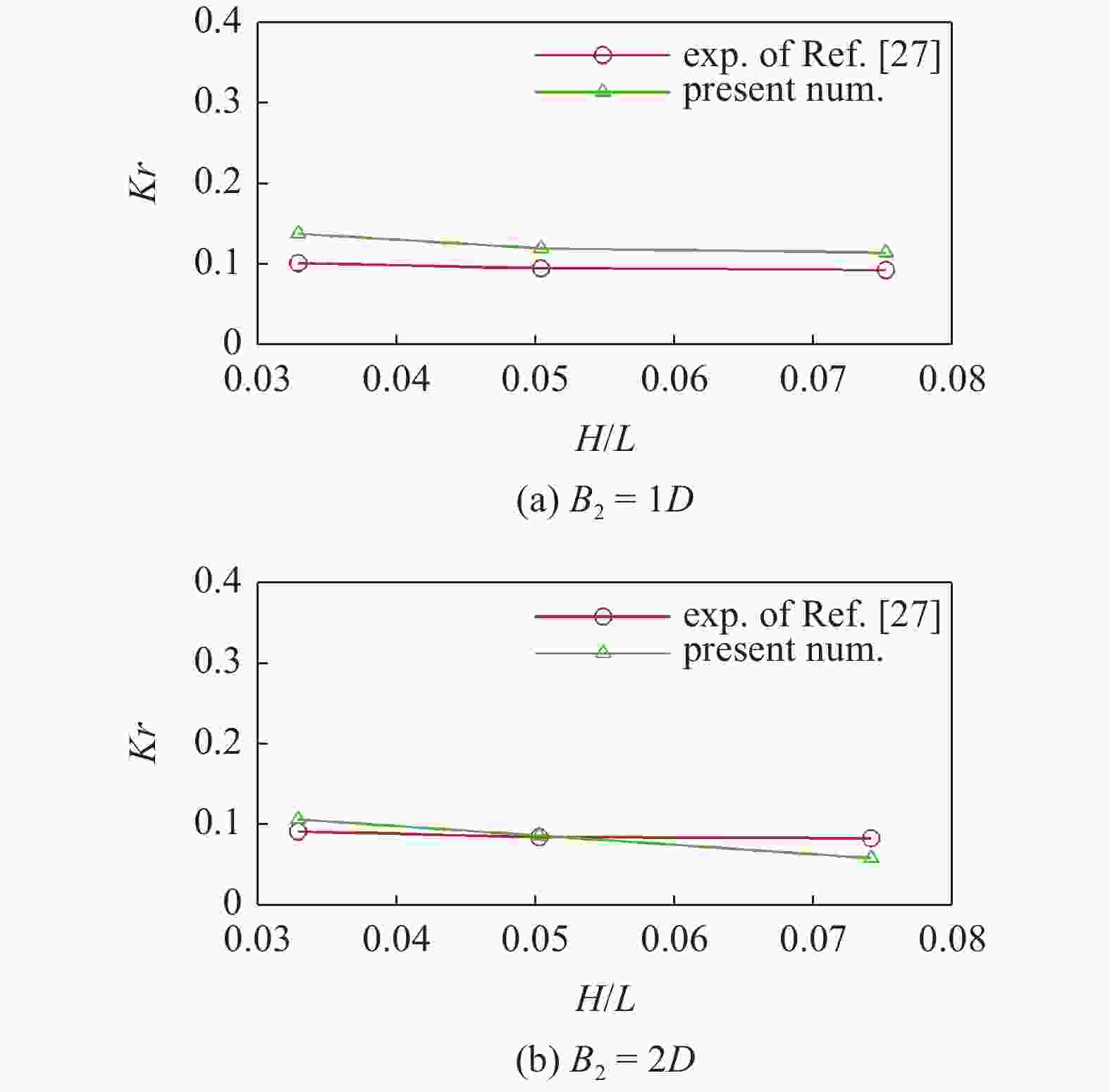

图 2 不同柱间距Kr试验值与数模值对比图

Figure 2. Comparison of Kr test value and numerical value with different column spacing

下载: 全尺寸图片幻灯片

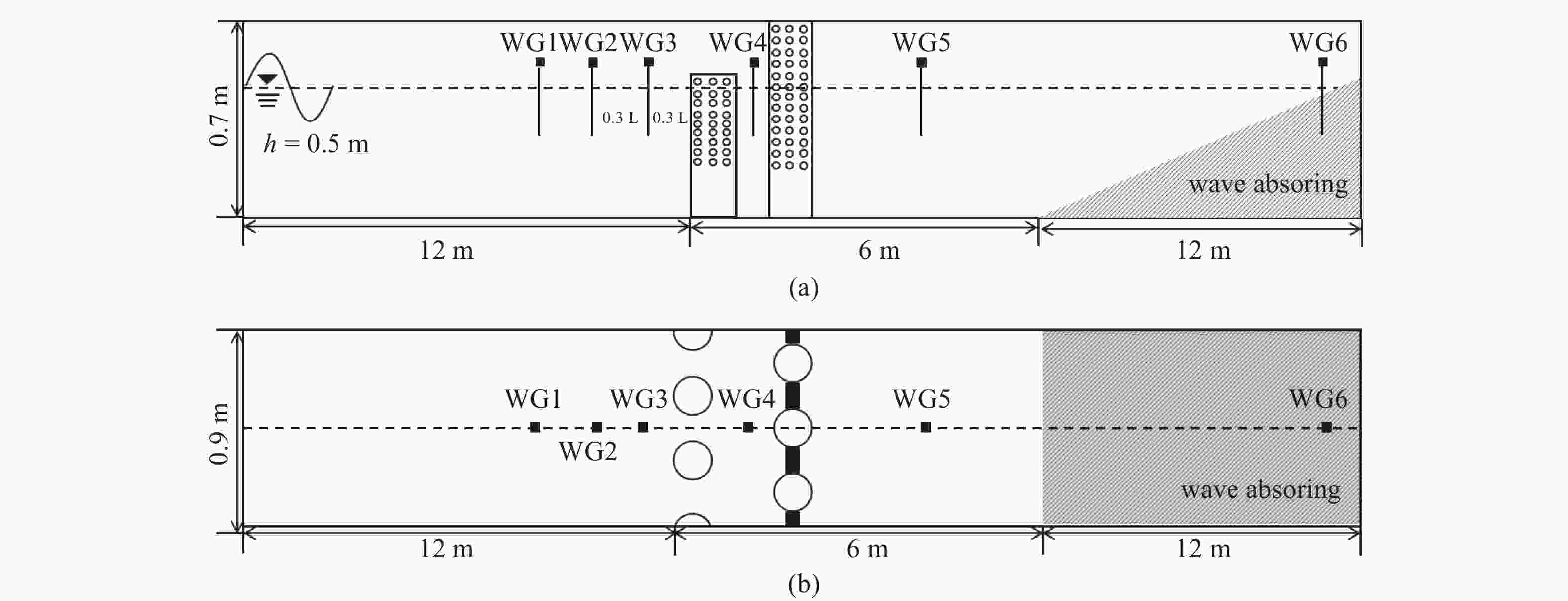

图 3 模型布置图: (a)立面视图和(b)平面视图

Figure 3. Layout of the model: (a) the elevation view and (b) the vertical view

下载: 全尺寸图片幻灯片

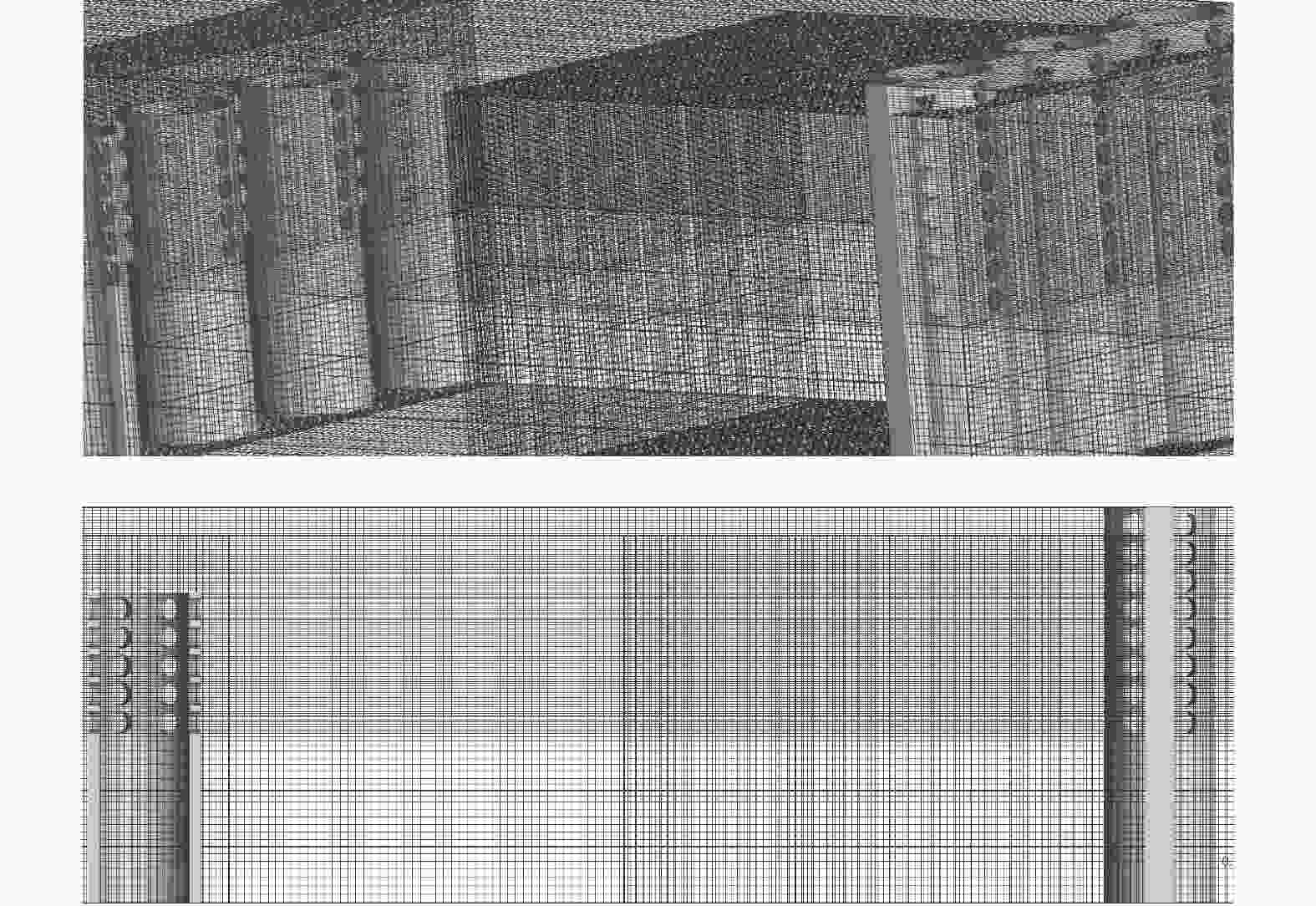

图 4 双排开孔圆筒防波堤附近网格细节图

Figure 4. Mesh details near the double row perforated cylinder breakwater

下载: 全尺寸图片幻灯片

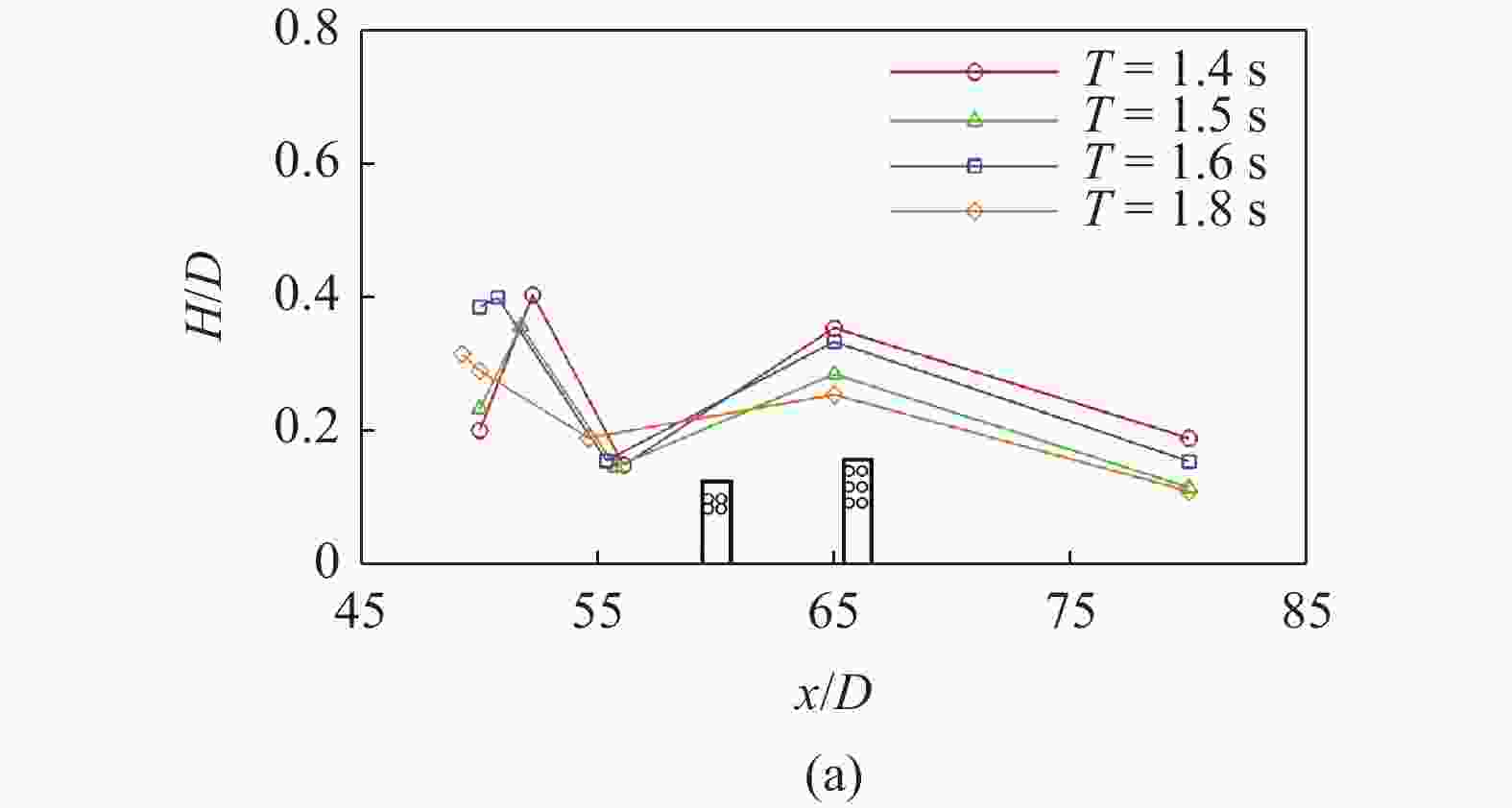

图 5 沿程平均波高变化图

Figure 5. Figure of mean wave height variation along the path

下载: 全尺寸图片幻灯片

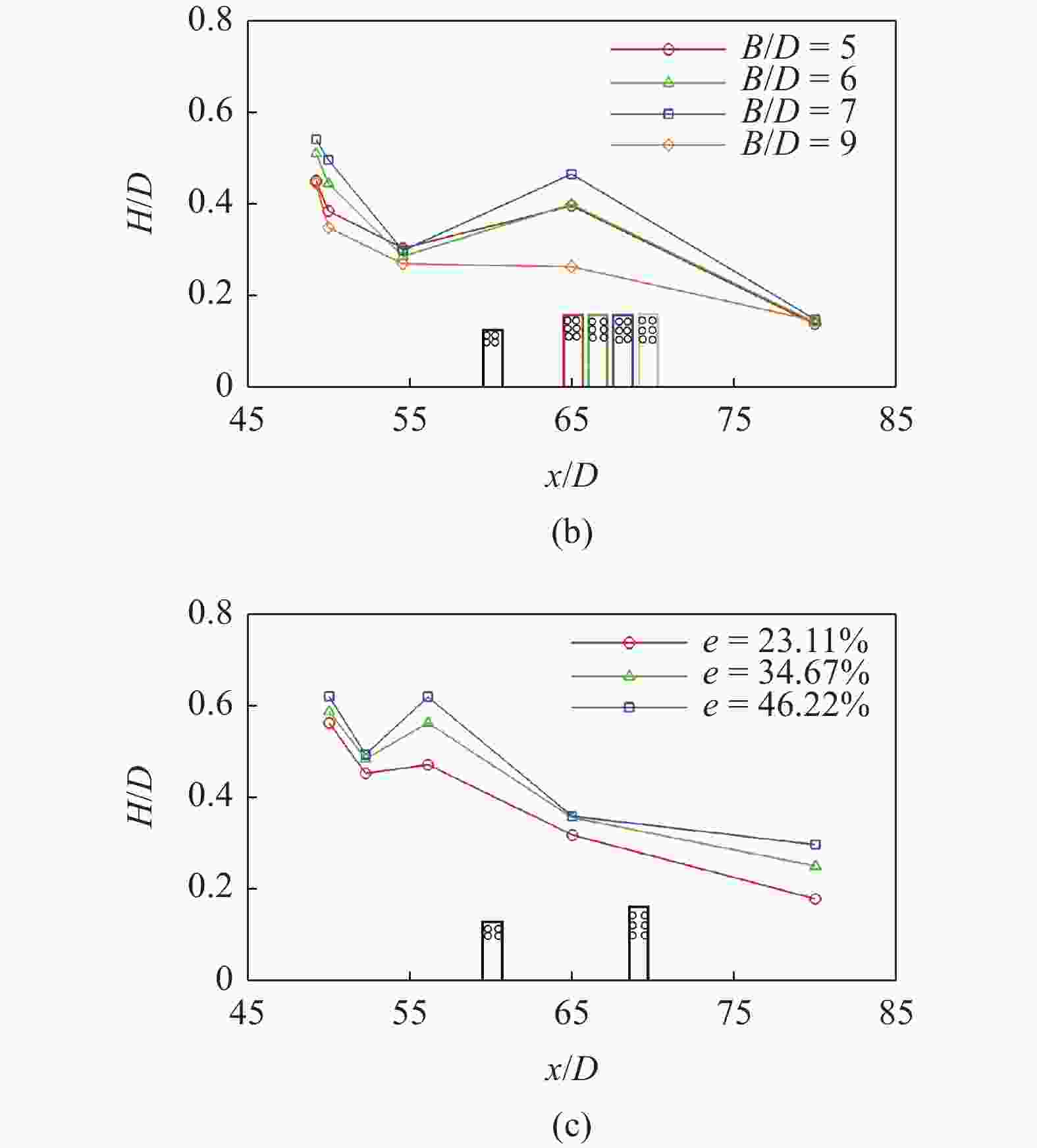

5 沿程平均波高变化图 (续)

5. Figure of mean wave height variation along the path (continued)

下载: 全尺寸图片幻灯片

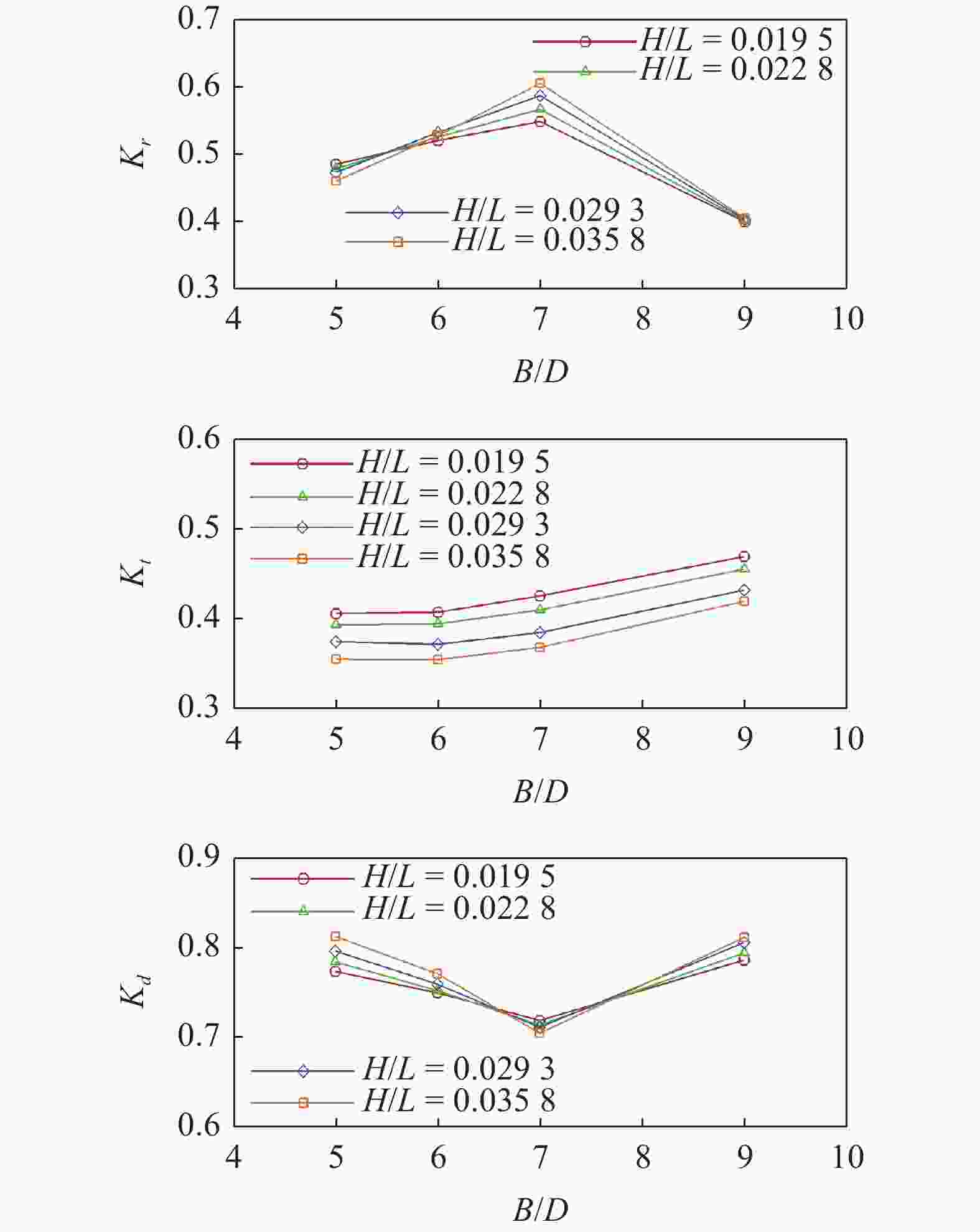

图 6 相对排间距对防波堤消浪特性的影响

Figure 6. The influence of relative row spacing on wave dissipation characteristics of breakwater

下载: 全尺寸图片幻灯片

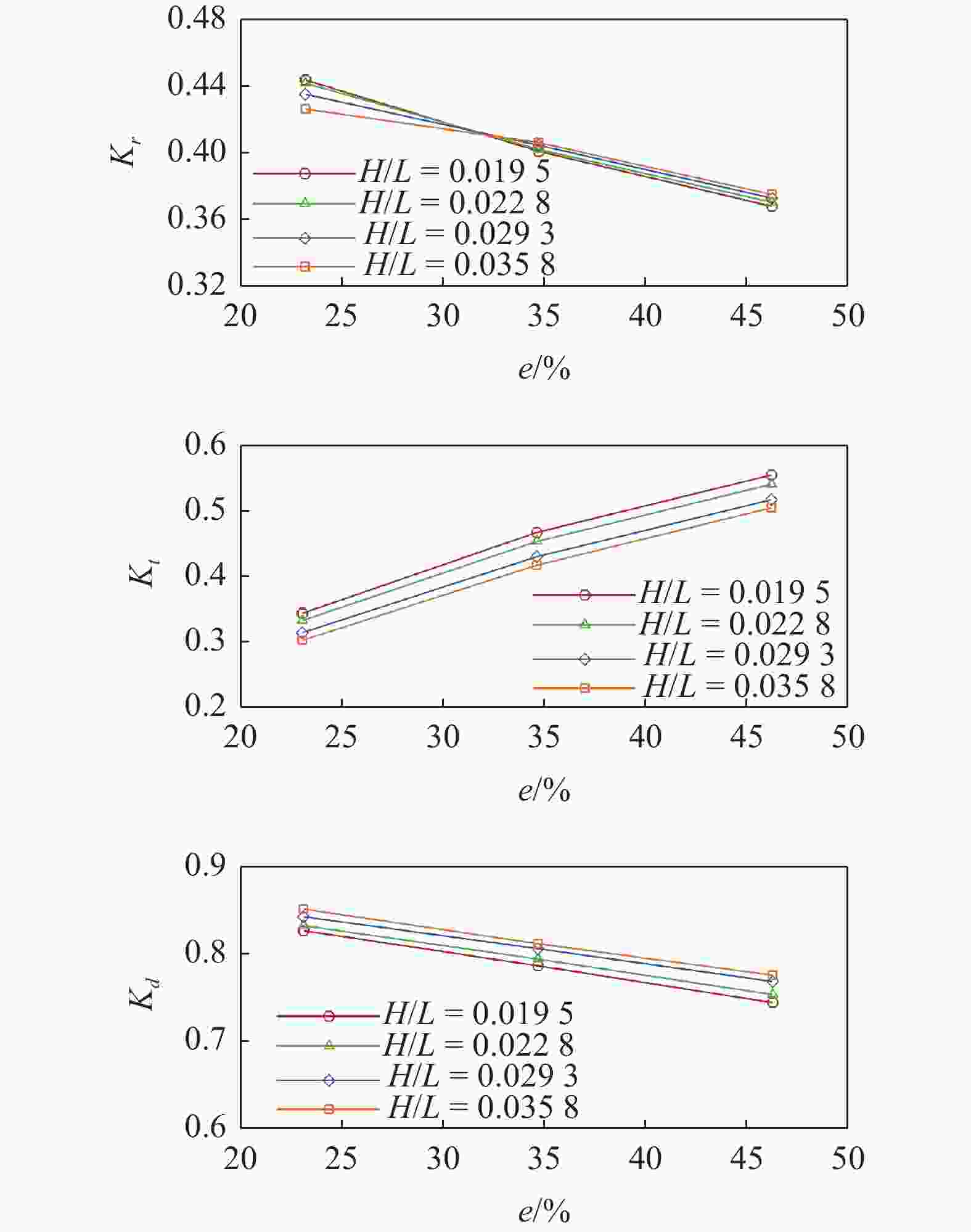

图 7 开孔率对防波堤消浪特性的影响

Figure 7. The effect of opening rate on the wave dissipation characteristics of breakwater

下载: 全尺寸图片幻灯片

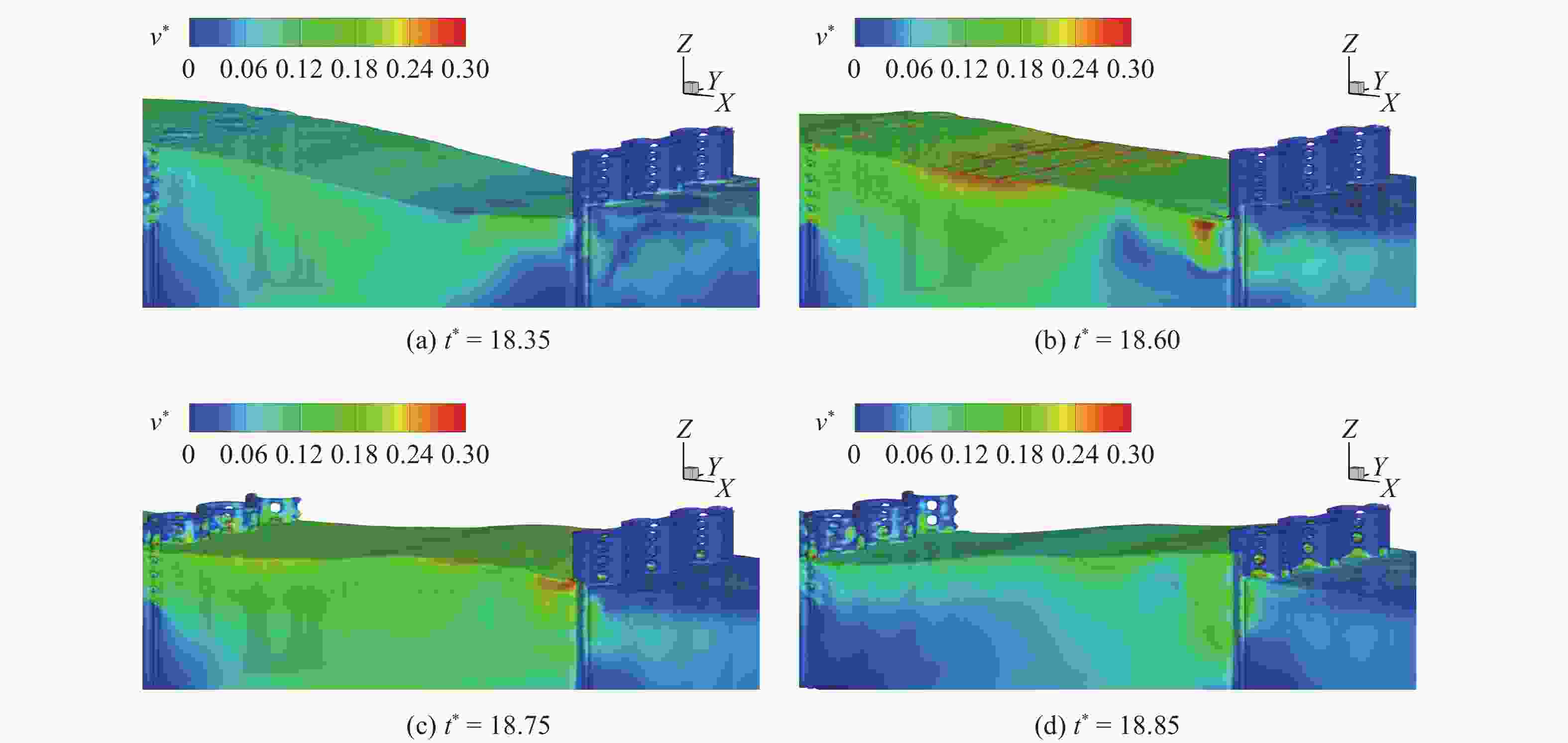

图 8 波浪与双排开孔圆筒防波堤相互作用速度云图

Figure 8. Velocity cloud image of wave interaction with a double row perforated cylinder breakwater

下载: 全尺寸图片幻灯片

8 波浪与双排开孔圆筒防波堤相互作用速度云图 (续)

8. Velocity cloud image of wave interaction with a double row perforated cylinder breakwater (continued)

下载: 全尺寸图片幻灯片

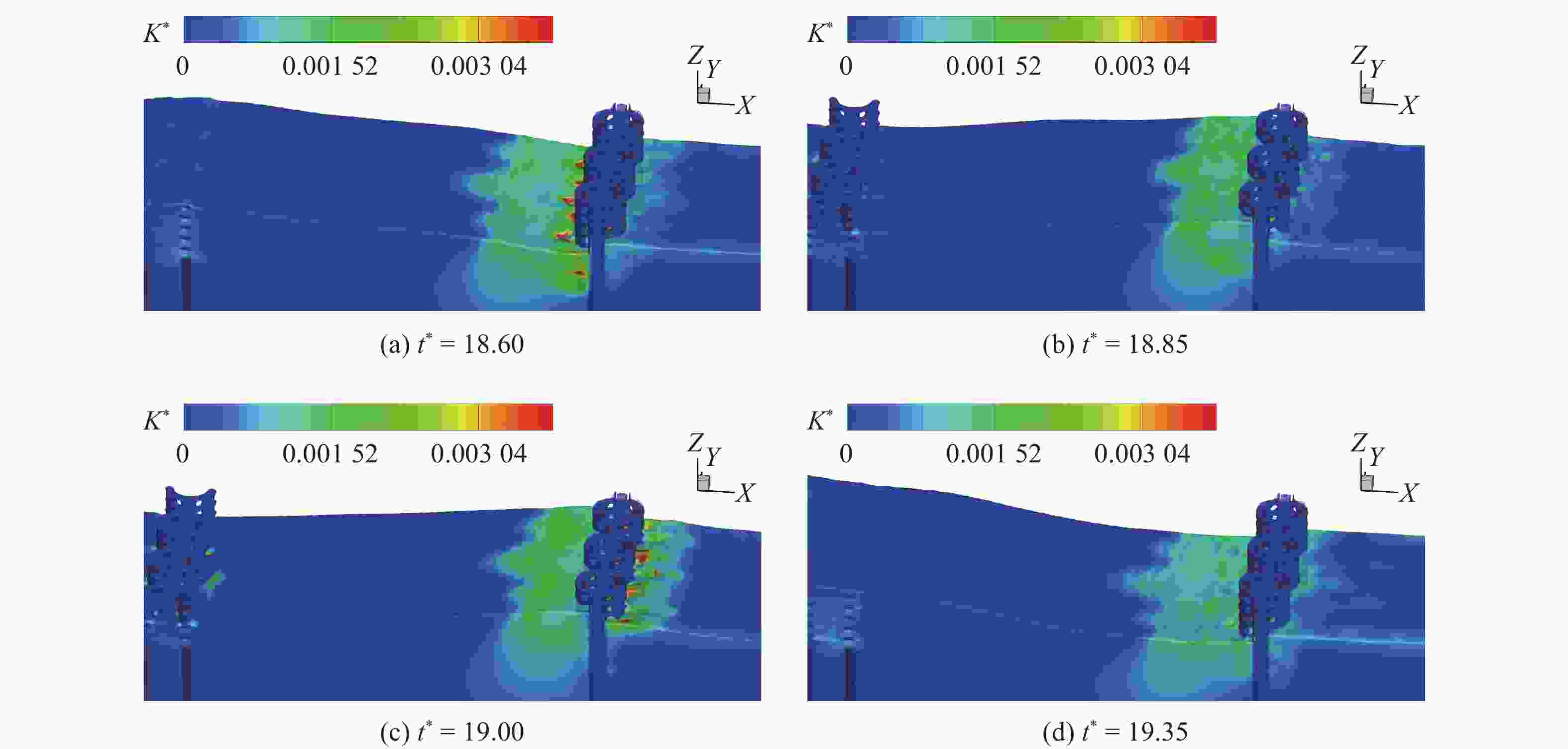

图 9 波浪与双排开孔圆筒防波堤相互作用湍动能云图

Figure 9. Turbulent kinetic energy cloud image of wave interaction with a double row perforated cylinder breakwater

下载: 全尺寸图片幻灯片

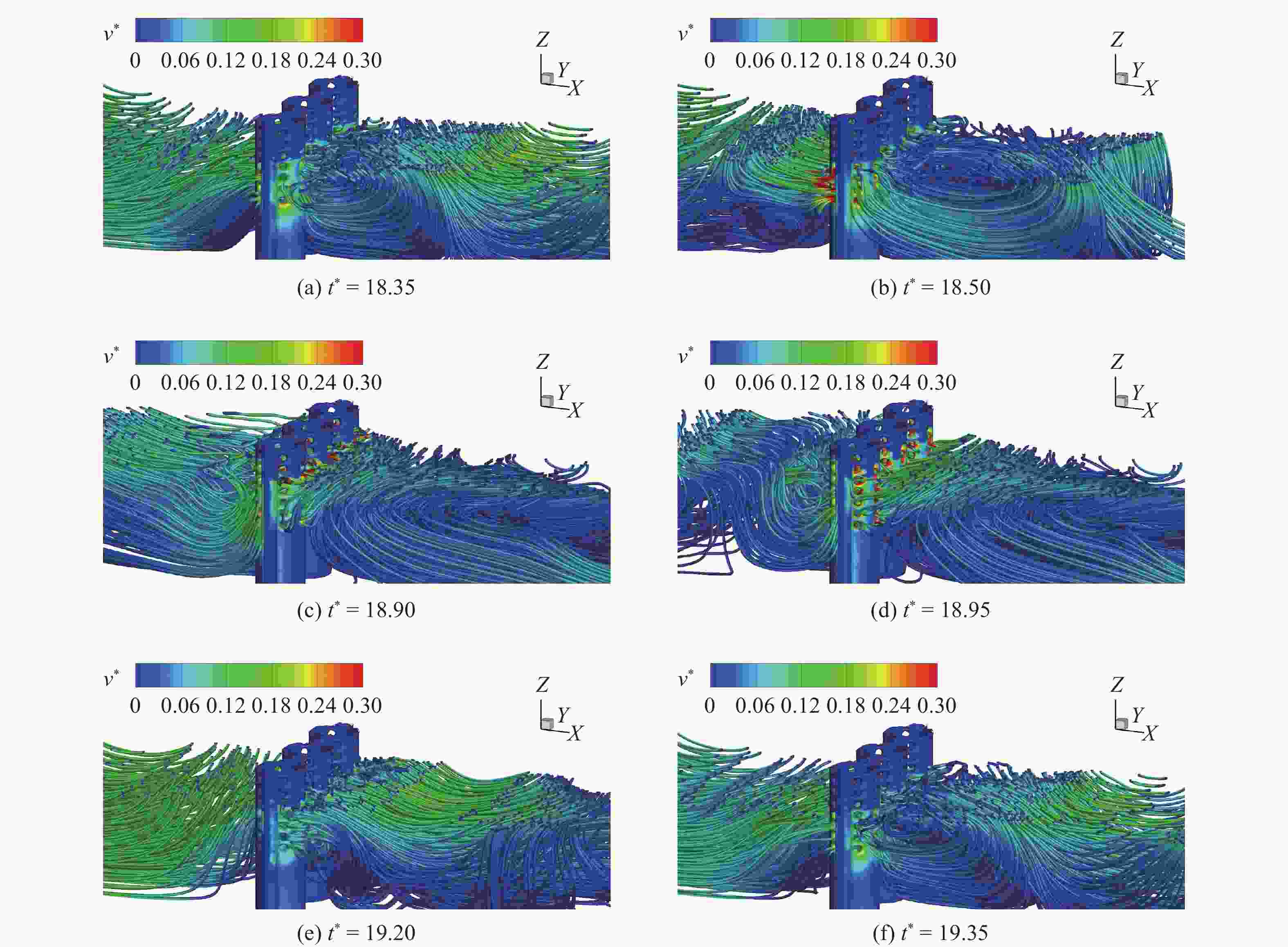

图 10 第二排开孔圆筒防波堤附近三维流管演化图

Figure 10. 3D flow pipe diagram near the second row of perforated cylinder breakwater

下载: 全尺寸图片幻灯片

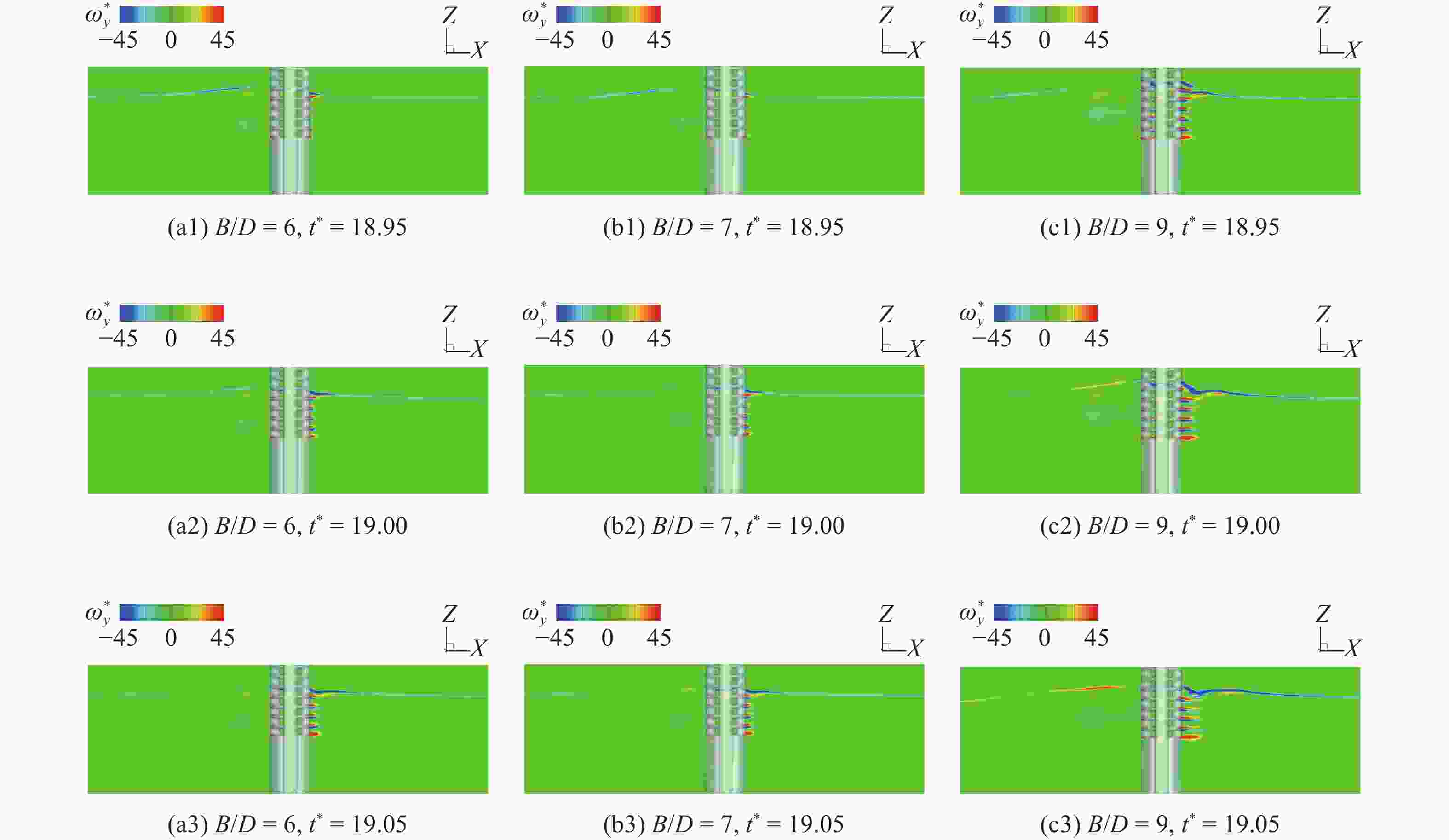

图 11 第二排开孔圆筒防波堤附近y方向涡量对比图

Figure 11. y-vorticity near the second row perforated cylinder breakwater

下载: 全尺寸图片幻灯片

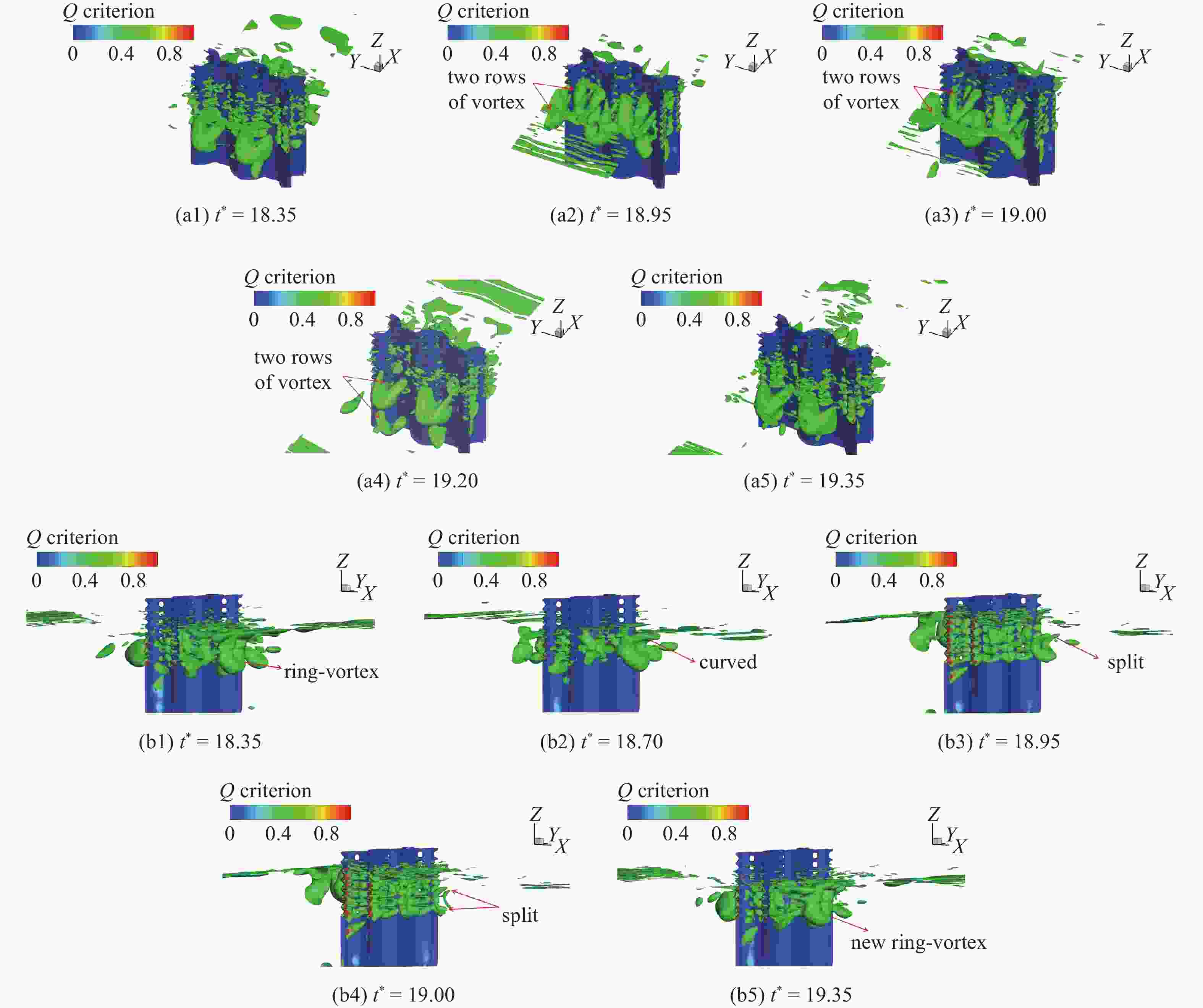

图 12 Q准则下涡结构演化过程图: (a1) ~ (a5)为堤前视角和(b1) ~ (b5)为堤后视角

Figure 12. Evolution process of vortex structure under the Q criterion: (a1) ~ (a5) is the perspective in front of the breakwater and (b1) ~ (b5) is the perspective behind the breakwater

下载: 全尺寸图片幻灯片
