SEISMIC RESPONSE ANALYSIS OF GENERALIZED MAXWELL DAMPING ISOLATED STRUCTURE WITH BRACES UNDER HU YUXIAN SPECTRUM EXCITATION
-
摘要: 工程中通过设置支撑将阻尼器和建筑结构连接, 但常为了简化分析, 将支撑的水平刚度看成无穷大, 即不考虑支撑对耗能结构随机地震响应的影响. 实际上, 考虑有限水平刚度的支撑对耗能结构响应的影响更加符合工程实际, 为考虑支撑影响的广义Maxwell耗能隔震结构在胡聿贤谱地震激励下的响应分析, 提出一种求解随机地震响应的简明解析解法. 将带支撑广义Maxwell阻尼器等效本构关系、隔震结构运动方程以及胡聿贤谱滤波方程联合组成非经典阻尼系统, 运用复模态法对该非经典阻尼系统解耦, 通过不同响应模态获得耗能隔震系统系列响应基于白噪声激励的Duhamel积分表达式; 利用Dirac函数的性质, 将系统系列响应协方差简化为无积分运算的表达式, 根据功率谱密度函数与其协方差函数的Wiener-Khinchin关系, 得到耗能隔震系统系列响应功率谱和地面加速度功率谱, 基于随机振动理论中谱矩的定义, 得到耗能隔震系统系列响应0 ~ 2阶谱矩. 算例通过与虚拟激励法对比分析, 验证所提方法在该耗能隔震系统分析的正确性和高效性, 并讨论了不同支撑刚度对阻尼器减震效果的影响.
-
关键词:
- 地震响应 /
- 谱矩 /
- 支撑 /
- 广义Maxwell阻尼器 /
- 胡聿贤谱
Abstract: The damper is connected to the building structure by setting braces in engineering, but in order to simplify the analysis, the bracing horizontal stiffness is regarded as infinite, that is, the influence of braces on the random response of energy dissipation structure is not considered. In fact, it is more in line with engineering practice to consider the effect of the braces with finite horizontal stiffness on the response of the energy dissipation isolated structure. To analyze the response of the generalized Maxwell energy dissipation isolated structure considering the influence of the braces under the Hu Yuxian spectrum seismic excitation considering the effect of the braces, a concise analytic solution for solving random seismic response is proposed. The non-classical damping system are composed of the equivalent constitutive relation of the generalized Maxwell damper with braces, the motion equation of the isolated structure and the Hu Yuxian spectral filtering equation. The complex modal method is used to decouple the non-classical damping energy dissipation isolated system, and the Duhamel integral expression of the series response of the energy dissipation isolated system based on white noise excitation are obtained through different response modes. Based on the properties of Dirac function, the energy dissipation isolated system series response covariance is simplified into non-integral expression. According to Wiener-Khinchin relationship between the power spectral density function and its covariance function, the energy dissipation isolation system series response power spectrum and ground acceleration power spectrum are obtained. Based on the definition of spectral moments in random vibration theory, the 0 ~ 2 order spectral moments of energy dissipation isolation system series response are obtained. The example verifies the correctness and efficiency of the proposed method in the bracing system by comparing with the pseudo excitation method, and discusses the influence of different bracing stiffness on damping effect of damper.-
Keywords:
- seismic response /
- spectral moments /
- braces /
- generalized Maxwell damper /
- Hu Yuxian spectrum
-
引 言
减隔震联用技术已广泛应用于桥梁、铁路、建筑结构等土木工程领域, 隔震装置可以延长结构自振周期, 阻尼器消耗地震能量, 在基础隔震层设置阻尼器能抑制隔震层和上部结构可能发生的过大位移, 有效减小建筑结构地震响应[1-3]. 黏弹性阻尼器耗能能力强, 为了精确模拟黏弹性阻尼器的本构关系, 国内外研究人员提出了各种黏弹性阻尼器力学模型, 包括Maxwell模型[4]、一般积分模型[5]、分数导数模型[6-7]、广义Maxwell模型[8]等. 其中广义Maxwell模型由多个Maxwell单元和一个弹簧单元并联组成, 各Maxwell单元有不同的弹簧模量和黏壶黏度, 因而具有不同的松弛时间, 能更完善地模拟黏弹性阻尼器的力学松弛行为[9-10]. 阻尼器常通过消能支撑连接于建筑结构, 支撑是保证结构有效耗能的重要构件, 当地震作用时, 阻尼器和支撑都能起到消能减震作用[11-13].
地震地面运动具有随机性, 时域法和频域法是目前求解随机地震响应的两种主要方法[14-16]. 当地震动功率谱根据Fourier变换转化为其相应协方差函数表示时, 用时域法分析有时更容易获得随机地震响应的解. 在工程中常用的地震动随机激励模型中, 白噪声模型由于在数学上的简单性, 更容易获得协方差函数[17], 白噪声模型假设在整个地震过程中地震动各频率成分强度是恒定的, 并不能准确反映地震动的频谱特征. Kanai-Tajimi模型过分夸大低频地震动能量, 不适用于低频结构的随机地震响应分析. 胡聿贤模型[18]通过引入低频减量参数, 将Kanai-Tajimi谱的特低频部分进行合理弱化处理, 从而使功率谱密度函数在零频处不再有奇异点, 且满足连续两次可积的条件, 保证了导出的地面速度方差和地面位移方差有界, 因此, 采用胡聿贤模型模拟随机地震作用更具有合理性. 胡聿贤模型协方差函数比较复杂, 但可通过滤波方程将胡聿贤谱激励等效转化为白噪声激励求解地震响应, 从而解决胡聿贤模型直接用于时域分析难于求解的问题, 再由Dirac函数的性质, 应用时域法分析基于白噪声激励的动力响应将得到极大简化[19-20].
复模态法是常用的时域分析方法, 复模态法可以将系统精确解耦为独立的复模态变量方程[21-23], 虚拟激励法和传递函数法是频域分析的两种代表性方法. 虚拟激励法计算结构响应需对功率谱从零到无穷大范围内进行积分[24-25], 传递函数法利用拉普拉斯变换, 获得结构特征值与特征向量, 从而在非扩阶系统中得到瞬态响应的解析解[26]. 谱矩和方差是结构抗震设计的重要参数[27-29], 利用复模态法求解结构地震响应需要扩阶, 扩阶之后会因变量个数剧增而使计算效率变低, 虚拟激励法和传递函数法计算得到的谱矩表达式含积分项, 需逐步积分计算确定谱矩值, 会因积分步长和积分区间选择不唯一导致计算结果具有不确定性, 从而会影响计算精度.
为此, 本文为了同时提高在胡聿贤谱激励下带支撑广义Maxwell阻尼隔震结构动力响应分析的精度与效率, 基于复模态法的精确性, 并且兼顾扩阶之后的计算效率, 通过重构结构运动方程, 再运用复模态法解耦该联立方程, 最后通过简化系统响应协方差表达式, 得到系统响应功率谱和谱矩表达式, 从而提出了一种扩阶之后简明的结构响应解析分析方法. 与虚拟激励法结果进行对比, 验证了系统响应功率谱和0 ~ 2阶谱矩的正确性.
1. 隔震系统的运动方程
1.1 结构运动方程
设上部
$n$ 层结构的质量、刚度、阻尼矩阵分别为${\boldsymbol{M}}$ ,${\boldsymbol{K}}$ ,${\boldsymbol{C}}$ , 每层层间质量、刚度、阻尼分别为${m_i}$ ,${k_i}$ ,${c_i}$ ($i = 1,2,\cdots, n$ ); 隔震层的质量、刚度、阻尼分别为${m_{\text{b}}}$ ,${k_{\text{b}}}$ ,${c_{\text{b}}}$ ; 隔震层设置带支撑广义Maxwell阻尼器${P_{\text{G}}}(t)$ , 隔震层相对地面位移为${x_{\text{b}}}$ , 上部结构相对隔震层的位移为${\boldsymbol{x}}$ . 在随机地震激励${\ddot x_{\text{g}}}(t)$ 作用下, 基础耗能隔震结构力学模型如图1所示, 上部结构与隔震层的运动方程分别为$$ {\boldsymbol{M\ddot x}} + {\boldsymbol{C\dot x}} + {\boldsymbol{Kx}} = - {\boldsymbol{M}}{{\boldsymbol{I}}_0}({\ddot x_{\text{g}}} + {\ddot x_{\text{b}}}) $$ (1) $$ {m_0}({\ddot x_{\text{g}}} + {\ddot x_{\text{b}}}) + {\boldsymbol{I}}_0^{\text{T}}{\boldsymbol{M\ddot x}} + {c_{\text{b}}}{\dot x_{\text{b}}} + {k_{\text{b}}}{x_{\text{b}}} + {P_{\text{G}}}(t) = 0 $$ (2) 式中,
${m_0} = {m_{\text{b}}} + \displaystyle\sum\limits_{i = 1}^n {{m_i}}$ ,${\boldsymbol{x}} = {[{x_1},{x_2}, \cdots ,{x_n}]^{\text{T}}}$ ,${{\boldsymbol{I}}_0} = [1,\;1,\; \cdots , \;1]_{n \times 1}^{}$ .![]()
图 1 基础耗能隔震结构力学模型Figure 1. Mechanical model of base energy dissipation isolated structure1.2 带支撑广义Maxwell阻尼器等效本构关系
广义Maxwell阻尼器由一个线性弹簧单元和多个Maxwell阻尼单元并联组成, 该模型参数足够多, 对黏弹性阻尼器本构关系试验拟合精度高. 广义Maxwell阻尼器与支撑串联设置在隔震层, 将整体串联系统作为等效阻尼器, 以考虑支撑刚度对结构响应的影响, 带支撑广义Maxwell阻尼器力学模型如图2所示. 由于阻尼器与支撑串联连接, 故支撑受力
${P_{\text{d}}}(t)$ 、广义Maxwell阻尼器受力${P_{\text{Q}}}(t)$ [8]与等效阻尼器受力${P_{\text{G}}}(t)$ 三者相等, 力的平衡关系为![]()
图 2 带支撑广义Maxwell阻尼器力学模型Figure 2. Mechanical model of generalized Maxwell damper with braces$$ {P_{\text{d}}}(t) = {k_{\text{d}}}{x_{\text{d}}}\qquad\quad\;\, $$ (3) $$ {P_{\text{Q}}}(t) = {k_0}{x_{\text{Q}}} + \sum\limits_{j = 1}^r {{p_j}} $$ (4) $$ {P_{\text{G}}}(t) = {P_{\text{d}}}(t) = {P_{\text{Q}}}(t) $$ (5) 式中,
${k_{\text{d}}}$ 和${k_0}$ 分别为支撑刚度和广义Maxwell阻尼器平衡刚度;${x_{\text{d}}}$ 和${x_{\text{Q}}}$ 分别为支撑位移和广义Maxwell阻尼器位移;${p_j}$ 为第$j$ 个Maxwell阻尼单元的阻尼力;$j = 1,2,\cdots, r$ ,$r$ 为广义Maxwell阻尼器中标准Maxwell阻尼单元的个数.阻尼器位移
${x_{\text{Q}}}$ 与隔震层位移${x_{\text{b}}}$ 和支撑位移${x_{\text{d}}}$ 之间满足如下关系$$ {x_{\text{Q}}} = {x_{\text{b}}} - {x_{\text{d}}} $$ (6) 由式(3)、式(5)和式(6), 得阻尼器位移为
$$ {x_{\text{Q}}} = {x_{\text{b}}} - {{{P_{\text{G}}}(t)} \mathord{\left/ {\vphantom {{{P_{\text{G}}}(t)} {{k_{\text{d}}}}}} \right. } {{k_{\text{d}}}}} $$ (7) 将式(7)代入式(4), 得等效阻尼器受力
${P_{\text{G}}}(t)$ 为$$ {P_{\text{G}}}(t) = \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}\left({k_0}{x_{\text{b}}} + \sum\limits_{j = 1}^r {{p_j}} \right) $$ (8) 将式(8)代入式(7), 阻尼器位移
${x_{\text{Q}}}$ 可改写为$$ {x_{\text{Q}}} = \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{x_{\text{b}}} - \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 1}^r {{p_j}} $$ (9) 对式(9)求导得
$$ {\dot x_{\text{Q}}} = \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{\dot x_{\text{b}}} - \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 1}^r {{{\dot p}_j}} $$ (10) 广义Maxwell阻尼器中, 各Maxwell阻尼单元微分本构关系为[8]
$$ {\dot p_j} + \frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}{p_j} = {k_{{{\text{p}}_j}}}{\dot x_{\text{Q}}},\;\;j = 1,2, \cdots ,r $$ (11) 式中,
${k_{{{\text{p}}_j}}}$ 和${c_{{{\text{p}}_j}}}$ 分别为各Maxwell阻尼单元的刚度和阻尼;$ {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}} $ 为阻尼器松弛时间的倒数.将式(10)代入式(11), 将式(11)改写为
$$ {\dot p_j} + \frac{{{k_{{{\text{p}}_j}}}}}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{i = 1}^r {{{\dot p}_j}} + \frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}{p_j} = \frac{{{k_{\text{d}}}{k_{{{\text{p}}_j}}}}}{{{k_0} + {k_{\text{d}}}}}{\dot x_{\text{b}}},\;\;j = 1,2, \cdots ,r $$ (12) 为了便于后续复模态扩阶, 将式(12)写成矩阵形式
$$ \left[ {\begin{array}{*{20}{c}} {\dfrac{{{k_{{{\rm{p}}_{\rm{1}}}}}}}{{{k_0} + {k_{\rm{d}}}}} + 1}&{\dfrac{{{k_{{{\rm{p}}_1}}}}}{{{k_0} + {k_{\rm{d}}}}}}& \cdots &{\dfrac{{{k_{{{\rm{p}}_{\rm{1}}}}}}}{{{k_0} + {k_{\rm{d}}}}}}\\ {\dfrac{{{k_{{{\rm{p}}_2}}}}}{{{k_0} + {k_{\rm{d}}}}}}&{\dfrac{{{k_{{{\rm{p}}_2}}}}}{{{k_0} + {k_{\rm{d}}}}} + 1}& \cdots &{\dfrac{{{k_{{{\rm{p}}_2}}}}}{{{k_0} + {k_{\rm{d}}}}}}\\ {}&{}& \ddots &{}\\ {\dfrac{{{k_{{{\rm{p}}_r}}}}}{{{k_0} + {k_{\rm{d}}}}}}&{\dfrac{{{k_{{{\rm{p}}_r}}}}}{{{k_0} + {k_{\rm{d}}}}}}& \cdots &{\dfrac{{{k_{{{\rm{p}}_r}}}}}{{{k_0} + {k_{\rm{d}}}}} + 1} \end{array}} \right]\left[ {\begin{array}{*{20}{c}} {{{\dot p}_1}}\\ {{{\dot p}_2}}\\ \vdots \\ {{{\dot p}_r}} \end{array}} \right] + \left[ {\begin{array}{*{20}{c}} {{k_{{{\rm{p}}_1}}}/{c_{{{\rm{p}}_1}}}}&{}&{}&{}\\ {}&{{k_{{\rm{p}}2}}/{c_{{{\rm{p}}_2}}}}&{}&{}\\ {}&{}& \ddots &{}\\ {}&{}&{}&{{k_{{\rm{p}}r}}/{c_{{{\rm{p}}_r}}}} \end{array}} \right]\left[ {\begin{array}{*{20}{c}} {{p_1}}\\ {{p_2}}\\ \vdots \\ {{p_r}} \end{array}} \right] = \left[ {\begin{array}{*{20}{c}} {\dfrac{{{k_{\rm{d}}}{k_{{{\rm{p}}_1}}}}}{{{k_0} + {k_{\rm{d}}}}}}\\ {\dfrac{{{k_{\rm{d}}}{k_{{{\rm{p}}_2}}}}}{{{k_0} + {k_{\rm{d}}}}}}\\ \vdots \\ {\dfrac{{{k_{\rm{d}}}{k_{{{\rm{p}}_r}}}}}{{{k_0} + {k_{\rm{d}}}}}} \end{array}} \right]{\dot x_{\rm{b}}} $$ (13) 将式(13)进一步简写为
$$ {\boldsymbol{A\dot P}} + {\boldsymbol{BP}} = {\boldsymbol{\alpha }}{\dot x_{\text{b}}} $$ (14) 其中
$$\begin{split} &{\boldsymbol{P}} = {[{p_1},{p_2}, \cdots ,{p_r}]^{\text{T}}}\\\\ &{\boldsymbol{B}} = {\text{diag(}}{k_{{{\text{p}}_{\text{1}}}}}/{c_{{{\text{p}}_{\text{1}}}}},\;{k_{{{\text{p}}_{\text{2}}}}}/{c_{{{\text{p}}_2}}},\; \cdots ,\;{k_{{{\text{p}}_r}}}/{c_{{{\text{p}}_r}}}{\text{)}} \\\\ &{\boldsymbol{\alpha }} = {\left[ {\frac{{{k_{\text{d}}}{k_{{{\text{p}}_1}}}}}{{{k_0} + {k_{\text{d}}}}},\frac{{{k_{\text{d}}}{k_{{{\text{p}}_2}}}}}{{{k_0} + {k_{\text{d}}}}}, \cdots ,\frac{{{k_{\text{d}}}{k_{{{\text{p}}_r}}}}}{{{k_0} + {k_{\text{d}}}}}} \right]^{\text{T}}} \end{split}$$ 1.3 重构运动方程
胡聿贤谱在零频处不存在奇异点, 因此, 导出的地面均方速度和均方位移有界, 胡聿贤谱滤波方程描述如下[18]
$$ {\ddot x_{\text{g}}} = {\ddot u_{\text{g}}} + {\ddot u_{\text{R}}}\qquad\qquad\qquad \tag{15a} $$ $$ {\ddot u_{\text{g}}} + 2{\xi _{\text{g}}}{\omega _{\text{g}}}{\dot u_{\text{g}}} + \omega _{\text{g}}^2{u_{\text{g}}} = - {\ddot u_{\text{R}}} \tag{15b}$$ $$ {\ddot u_{\text{R}}} = \dddot \mu\qquad\qquad\qquad\qquad \tag{15c} $$ $$ \dddot \mu + \omega _{\text{c}}^3\mu = w(t)\qquad\qquad\quad \tag{15d} $$ 式中,
${\ddot u_{\text{R}}}$ 为基岩运动的绝对加速度;${\ddot u_{\text{g}}}$ ,${\dot u_{\text{g}}}$ ,${u_{\text{g}}}$ 分别为地面相对基岩运动的加速度、速度和位移;${\xi _{\text{g}}}$ 和${\omega _{\text{g}}}$ 分别为基岩以上场地土的阻尼比和卓越频率;$\mu $ 为中间变量,$\dddot \mu $ 为对$\mu $ 求三次导数;${\omega _{\text{c}}}$ 为低频截止频率;$w(t)$ 为白噪声随机过程.根据式(15), 将原上部结构运动方程式(1)改写为式(16); 根据式(8)和式(15), 将原隔震层运动方程式(2)改写为式(17)
$$ {\boldsymbol{M\ddot x}} + {\boldsymbol{C\dot x}} + {\boldsymbol{Kx}} = - {\boldsymbol{M}}{{\boldsymbol{I}}_0}({\ddot u_{\text{g}}} + \dddot \mu + {\ddot x_{\text{b}}}) $$ (16) $$ \begin{split} &{m_0}({\ddot u_{\text{g}}} + \dddot \mu + {\ddot x_{\text{b}}}) + {\boldsymbol{I}}_0^{\text{T}}{\boldsymbol{M\ddot x}} + {c_{\text{b}}}{\dot x_{\text{b}}} +\\\\ &\qquad\left({k_{\text{b}}} + \frac{{{k_0}{k_{\text{d}}}}}{{{k_0} +{k_{\text{d}}}}}\right){x_{\text{b}}} + \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{{\boldsymbol{I}}_1}{\boldsymbol{P}} = 0 \end{split}$$ (17) 式中,
${{\boldsymbol{I}}_1} = {[1,1, \cdots ,1]_{1 \times r}}$ .引入状态变量
$$ {\boldsymbol{y}} = {[\begin{array}{*{20}{l}} {{{\dot u}_{\text{g}}}}&{{\boldsymbol{\dot x}}}&{{{\dot x}_{\text{b}}}}&{{u_{\text{g}}}}&{\boldsymbol{x}}&{{x_{\text{b}}}}&{\boldsymbol{P}}&\mu &{\dot \mu }&{\ddot \mu } \end{array}]^{\text{T}}} $$ (18) 联立阻尼器微分本构方程式(14), 胡聿贤谱滤波方程式(15)、结构运动方程式(16)和式(17), 得到非经典阻尼系统

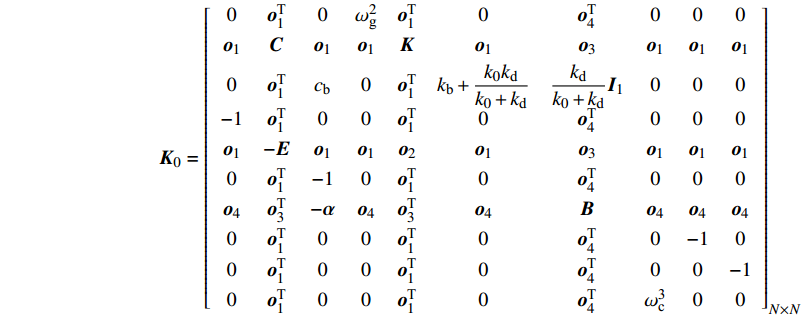

$$ {{\boldsymbol{M}}_0}{\boldsymbol{\dot y}} + {{\boldsymbol{K}}_0}{\boldsymbol{y}} = {\boldsymbol{\gamma }}w(t) $$ (19) 其中
$$ {\boldsymbol{\gamma }} = [\begin{array}{*{20}{c}} 0&{{{\boldsymbol{o}}_1}}&0&0&{{{\boldsymbol{o}}_1}}&0&{{{\boldsymbol{o}}_4}}&0&0&1 \end{array}]_{N \times 1}^{\text{T}} $$ $$ {{\boldsymbol{M}}_0} = {\left[ {\begin{array}{*{20}{c}} 1&{{\boldsymbol{o}}_1^{\text{T}}}&0&{2{\xi _{\text{g}}}{\omega _{\text{g}}}}&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_{\text{4}}^{\text{T}}}&0&0&1 \\ {{\boldsymbol{M}}{{\boldsymbol{I}}_0}}&{\boldsymbol{M}}&{{\boldsymbol{M}}{{\boldsymbol{I}}_0}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_2}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_3}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{{\boldsymbol{M}}{{\boldsymbol{I}}_0}} \\ {{m_0}}&{{\boldsymbol{I}}_0^{\text{T}}{\boldsymbol{M}}}&{{m_0}}&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&{{m_0}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&1&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&0 \\ {{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_2}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{\boldsymbol{E}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_3}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&1&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&0 \\ {{{\boldsymbol{o}}_4}}&{{\boldsymbol{o}}_3^{\text{T}}}&{{{\boldsymbol{o}}_4}}&{{{\boldsymbol{o}}_4}}&{{\boldsymbol{o}}_3^{\text{T}}}&{{{\boldsymbol{o}}_4}}&{\boldsymbol{A}}&{{{\boldsymbol{o}}_4}}&{{{\boldsymbol{o}}_4}}&{{{\boldsymbol{o}}_4}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&1&0&0 \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&1&0 \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&1 \end{array}} \right]_{N \times N}}\qquad\quad $$ $$ {{\boldsymbol{K}}_0} = {\left[ {\begin{array}{*{20}{c}} 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{\omega _{\text{g}}^2}&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&0 \\ {{{\boldsymbol{o}}_1}}&{\boldsymbol{C}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{\boldsymbol{K}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_3}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&{{c_{\text{b}}}}&0&{{\boldsymbol{o}}_1^{\text{T}}}&{{k_{\text{b}}} + \dfrac{{{k_0}{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}}&{\dfrac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{{\boldsymbol{I}}_1}}&0&0&0 \\ { - 1}&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&0 \\ {{{\boldsymbol{o}}_1}}&{ - {\boldsymbol{E}}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_2}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_3}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}}&{{{\boldsymbol{o}}_1}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&{ - 1}&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&0 \\ {{{\boldsymbol{o}}_4}}&{{\boldsymbol{o}}_3^{\text{T}}}&{ - {\boldsymbol{\alpha }}}&{{{\boldsymbol{o}}_4}}&{{\boldsymbol{o}}_3^{\text{T}}}&{{{\boldsymbol{o}}_4}}&{\boldsymbol{B}}&{{{\boldsymbol{o}}_4}}&{{{\boldsymbol{o}}_4}}&{{{\boldsymbol{o}}_4}} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&{ - 1}&0 \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&0&0&{ - 1} \\ 0&{{\boldsymbol{o}}_1^{\text{T}}}&0&0&{{\boldsymbol{o}}_1^{\text{T}}}&0&{{\boldsymbol{o}}_4^{\text{T}}}&{\omega _{\text{c}}^{\text{3}}}&0&0 \end{array}} \right]_{N \times N}} $$ 式中,
${{\boldsymbol{o}}_1}$ 为元素均为$0$ 的$n \times 1$ 阶向量;${{\boldsymbol{o}}_2}$ 为元素均为$0$ 的$n \times n$ 阶矩阵;${{\boldsymbol{o}}_3}$ 为元素均为$0$ 的$n \times r$ 阶矩阵;$ {{\boldsymbol{o}}_4} $ 为元素均为$0$ 的$r \times 1$ 阶向量;${\boldsymbol{E}}$ 为$n$ 阶单位矩阵;$N = 2 n + r + 7$ ,$N$ 为矩阵${{\boldsymbol{M}}_0}$ 和${{\boldsymbol{K}}_0}$ 的阶数,$n$ 为楼层总数,$r$ 为标准Maxwell阻尼单元的个数.2. 系统响应的Duhamel积分表达式
采用复模态法求解式(19), 矩阵
${{\boldsymbol{M}}_0}$ 和${{\boldsymbol{K}}_0}$ 可由右特征向量矩阵${\boldsymbol{U}}$ 和左特征向量矩阵${\boldsymbol{V}}$ 对角化, 系统的特征值构成一个对角矩阵${\boldsymbol{q}}$ ,${\boldsymbol{q}}$ 满足关系$$ {\boldsymbol{q}} = - \frac{{{{\boldsymbol{V}}^{\text{T}}}{{\boldsymbol{K}}_0}{\boldsymbol{U}}}}{{{{\boldsymbol{V}}^{\text{T}}}{{\boldsymbol{M}}_0}{\boldsymbol{U}}}} $$ (20) 引入复模态变换
$$ {\boldsymbol{y = Uz}} $$ (21) 式中,
${\boldsymbol{z}}$ 为广义复模态变量.将方程(19)化为如下形式
$$ {\boldsymbol{\dot z}} - {\boldsymbol{qz}} = {\boldsymbol{\eta }}w(t) $$ (22) 式中,
${\boldsymbol{\eta }} = {({{\boldsymbol{V}}^{\text{T}}}{{\boldsymbol{M}}_0}{\boldsymbol{U}})^{ - 1}}{{\boldsymbol{V}}^{\text{T}}}{\boldsymbol{\gamma }}$ .由于
${\boldsymbol{q}}$ 为对角矩阵, 且${\boldsymbol{z}}$ 中的元素相互独立, 式(22)可以写为具有独立复模态变量的一阶方程分量形式$$ {\dot z_k} - {q_k}{z_k} = {\eta _k}w(t),\;\;k = 1,2, \cdots ,N $$ (23) 式中,
${z_k}$ ,${q_k}$ 和${\eta _k}$ 分别为${\boldsymbol{z}}$ ,${\boldsymbol{q}}$ 和${\boldsymbol{\eta }}$ 的第$k$ 个分量.已经通过滤波方程式(15)将胡聿贤谱激励等效转化为基于白噪声激励来表示, 由于白噪声激励功率谱表达式简单, 更容易获得协方差函数, 当地震动激励相关函数可以用解析函数表示时, 用Duhamel积分法求解更易于得到系统动力响应的解析解. 因此, 用Duhamel积分法求解式(23), 式(23)的Duhamel积分表达式为
$$ {z_k} = {\eta _k}\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;k = 1,2, \cdots ,N $$ (24) 根据式(18)、式(21)和式(24), 通过状态变量
${\boldsymbol{y}}$ 中不同行对应的响应模态${{\boldsymbol{u}}_j}$ , 可求得上部结构、隔震层、阻尼器以及支撑系列响应的Duhamel积分表达式, 如式(25) ~ 式(35)和式(37) ~ 式(39)所示.上部结构第
$i$ 层相对于隔震层的位移${x_i}$ 和速度${\dot x_i}$ 的Duhamel积分表达式为$$ {x_i} = {{\boldsymbol{u}}_{n + 3 + i}}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{n + 3 + i,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau $$ (25) $$ {\dot x_i} = {{\boldsymbol{u}}_{1 + i}}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{1 + i,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau $$ (26) 式中,
${{\boldsymbol{u}}_l}$ ($l = n + 3 + i,1 + i$ )为右特征向量矩阵${\boldsymbol{U}}$ 的第$l$ 行向量;${\lambda _{l.k}}$ 为系统响应的模态强度系数,${\lambda _{l,k}} = {u_{l,k}}{\eta _k}$ ;$i = 1,2,\cdots, n$ ,$n$ 为上部结构的楼层总数.隔震层相对于地面的位移
${x_{\text{b}}}$ 和速度${\dot x_{\text{b}}}$ 的Duhamel积分表达式为$$ {x_{\text{b}}} = {{\boldsymbol{u}}_{2n + 4}}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{2n + 4,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau $$ (27) $$ {\dot x_{\text{b}}} = {{\boldsymbol{u}}_{n + 2}}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{n + 2,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau $$ (28) 上部结构第
$i$ 层的层间位移$\Delta {x_i}$ 和层间速度$\Delta {\dot x_i}$ 的Duhamel积分表达式为$$ \begin{split} &\Delta {x_i} = ({{\boldsymbol{u}}_{n + 3 + i}} - {{\boldsymbol{u}}_{n + 2 + i}}){\boldsymbol{z}} = \sum\limits_{k = 1}^N {({\lambda _{n + 3 + i,k}} - {\lambda _{n + 2 + i,k}})} \cdot \\ &\qquad\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;\;i = 2,3,\cdots, n \end{split}\tag{29a}$$ $$ \Delta {x_1} = {x_1} = {{\boldsymbol{u}}_{n + 4}}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{n + 4,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;i = 1 \tag{29b}$$ $$ \begin{split} &\Delta {\dot x_i} = ({{\boldsymbol{u}}_{1 + i}} - {{\boldsymbol{u}}_i}){\boldsymbol{z}} = \sum\limits_{k = 1}^N {({\lambda _{1 + i,k}} - {\lambda _{i,k}})} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\\ &\qquad \;i = 2,3,\cdots, n\end{split}\tag{30a} $$ $$ \Delta {\dot x_1} = {\dot x_1} = {{\boldsymbol{u}}_2}{\boldsymbol{z}} = \sum\limits_{k = 1}^N {{\lambda _{2,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;i = 1 \tag{30b}$$ 上部结构第
$i$ 层的层间位移角${\theta _i}$ 和层间位移角变化率${\dot \theta _i}$ 的Duhamel积分表达式为$$ \begin{split} & {\theta _i} = \frac{{\Delta {x_i}}}{{{h_i}}} = \frac{1}{{{h_i}}}\sum\limits_{k = 1}^N {({\lambda _{n + 3 + i,k}} - {\lambda _{n + 2 + i,k}})\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}}\tau ,\\ & \qquad{i = 2,3,\cdots, n} \end{split} \tag{31a}$$ $$ {\theta _1} = \frac{{\Delta {x_1}}}{{{h_1}}} = \frac{1}{{{h_1}}}\sum\limits_{k = 1}^N {{\lambda _{n + 4,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;i = 1\tag{31b} $$ $$ \begin{split} &{\dot \theta _i} = \frac{{\Delta {{\dot x}_i}}}{{{h_i}}} = \frac{1}{{{h_i}}}\sum\limits_{k = 1}^N {({\lambda _{1 + i,k}} - {\lambda _{i,k}})} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\\ &\qquad i = 2,3,\cdots, n \end{split}\tag{32a}$$ $$ {\dot \theta _1} = \frac{{\Delta {{\dot x}_1}}}{{{h_1}}} = \frac{1}{{{h_1}}}\sum\limits_{k = 1}^N {{\lambda _{2,k}}} \int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;i = 1\tag{32b} $$ 式中,
${h_i}$ 为结构第$i$ 层的楼层高度.由式(8), 等效阻尼器阻尼力
${P_{\text{G}}}$ 的Duhamel积分表达式为$$ \begin{split} &{P_{\text{G}}} = \sum\limits_{k = 1}^N {\left( {\frac{{{k_0}{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} + \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}} } \right) \cdot }\\ &\qquad\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau \end{split}$$ (33) 由式(3)、式(5)和式(33), 支撑位移
${x_{\text{d}}}$ 的Duhamel积分表达式为$$ \begin{split} &{x_{\text{d}}} = \sum\limits_{k = 1}^N {\left( {\frac{{{k_0}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} + \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}} } \right) \cdot }\\ &\qquad\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau\end{split} $$ (34) 将式(27)和式(34)代入式(6), 得阻尼器位移

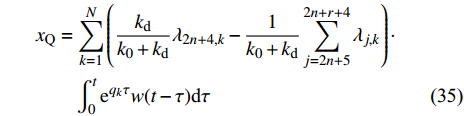

${x_{\text{Q}}}$ 的Duhamel积分表达式为$$ \begin{split} &{x_{\text{Q}}} = \sum\limits_{k = 1}^N {\left( {\frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} - \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}} } \right) \cdot }\\ &\qquad\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau \end{split}$$ (35) 将式(11)代入式(10), 阻尼器位移变化率

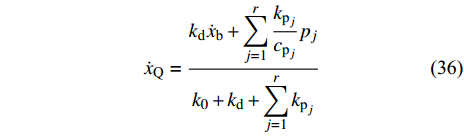

${\dot x_{\text{Q}}}$ 可表示为$$ {\dot x_{\text{Q}}} = \frac{{{k_{\text{d}}}{{\dot x}_{\text{b}}} + \displaystyle\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}{p_j}} }}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} $$ (36) 将式(36)写成Duhamel积分形式
$$\begin{split} &{\dot x_{\text{Q}}} = \sum\limits_{k = 1}^N {\Biggr(\frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }}{\lambda _{n + 2,k}} + \frac{1}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} \cdot }\\ &\qquad\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}}\Biggr)\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau\end{split} $$ (37) 由式(6)、式(28)和式(37), 支撑位移变化率

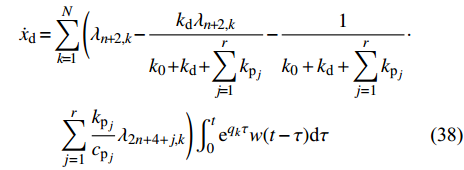

${\dot x_{\text{d}}}$ 的Duhamel积分表达式为$$\begin{split} &{\dot x_{\text{d}}} = \sum\limits_{k = 1}^N {\Biggr({\lambda _{n + 2,k}} - \frac{{{k_{\text{d}}}{\lambda _{n + 2,k}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} - \frac{1}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} \cdot } \\ &\qquad\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}}\Biggr)\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau\end{split}$$ (38) 由式(3)、式(5)和式(38), 阻尼力变化率
${\dot P_{\text{G}}}$ 的Duhamel积分表达式为$$ \begin{split} & {\dot P_{\text{G}}} = \sum\limits_{k = 1}^N {\Biggr({k_{\text{d}}}{\lambda _{n + 2,k}} - \frac{{k_{\text{d}}^2{\lambda _{n + 2,k}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} - \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} \cdot }\\ &\qquad\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}}\Biggr)\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau \end{split}$$ (39) 上述系列响应式(25) ~ 式(35)及式(37) ~ 式(39)均为Duhamel积分形式, 仅各个响应模态强度系数不同, 故将它们写成统一表达式
$$ X(t) = \sum\limits_{k = 1}^N {{\beta _k}\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau } = \sum\limits_{k = 1}^N {{X_k}(t)} $$ (40) 式中,
${X_k}(t)$ 为$X(t)$ 的响应分量, 其表达式为$$ {X_k}(t) = {\beta _k}\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau ,\;k = 1,2, \cdots ,N $$ (41) 式中,
${\beta _k}$ 为系统响应$X(t)$ 对应的模态强度系数, 系统系列响应模态强度系数${\beta _k}$ 的具体解析表达式如式(42a) ~ 式(48b)所示. 统一变量符号${\beta _k}$ 可分别指下文的${\beta _{k,{x_i}}},$ ${\beta _{k,{{\dot x}_i}}},$ ${\beta _{k,{x_{\rm{b}}}}},$ ${\beta _{k,{{\dot x}_{\rm{b}}}}},$ ${\beta _{k,\Delta {x_i}}},$ ${\beta _{k,\Delta {{\dot x}_i}}},$ ${\beta _{k,{\theta _i}}},$ ${\beta _{k,{{\dot \theta }_i}}},$ ${\beta _{k,{P_{\rm{G}}}}},$ ${\beta _{k,{{\dot P}_{\rm{G}}}}},$ ${\beta _{k,{x_{\rm{d}}}}},$ ${\beta _{k,{{\dot x}_{\rm{d}}}}},$ ${\beta _{k,{x_{\rm{Q}}}}},$ ${\beta _{k,{{\dot x}_{\rm{Q}}}}}.$ 上部结构第
$i$ 层相对隔震层位移${x_i}$ 和速度${\dot x_i}$ 的模态强度系数分别为$$ {\beta _{k,{x_i}}} = {\lambda _{n + 3 + i,k}},\;\;i = 1,2,\cdots, n\tag{42a} $$ $$ {\beta _k}_{,{{\dot x}_i}} = {\lambda _{1 + i,k}},\;\;i = 1,2,\cdots, n\tag{42b} $$ 隔震层相对地面位移
${x_{\text{b}}}$ 和速度${\dot x_{\text{b}}}$ 的模态强度系数分别为$$ {\beta _k}_{,{x_{\text{b}}}} = {\lambda _{2n + 4,k}} \tag{43a}$$ $$ {\beta _k}_{,{{\dot x}_{\text{b}}}} = {\lambda _{n + 2,k}}\tag{43b} $$ 上部结构第
$i$ 层层间位移$\Delta {x_i}$ 和层间速度$\Delta {\dot x_i}$ 的模态强度系数分别为$$ {\beta _k}_{,\Delta {x_i}} = {\lambda _{n + 3 + i,k}} - {\lambda _{n + 2 + i,k}},\;i = 2,3,\cdots, n \tag{44a}$$ $$ {\beta _k}_{,\Delta {x_1}} = {\lambda _{n + 4,k}}\tag{44b} $$ $$ {\beta _k}_{,\Delta {{\dot x}_i}} = {\lambda _{1 + i,k}} - {\lambda _{i,k}},\;i = 2,3,\cdots, n\tag{44c} $$ $$ {\beta _k}_{,\Delta {{\dot x}_1}} = {\lambda _{2,k}}\tag{44d} $$ 上部结构第
$i$ 层层间位移角${\theta _i}$ 和层间位移角变化率${\dot \theta _i}$ 的模态强度系数分别为$$ {\beta _k}_{,{\theta _i}} = \frac{{{\lambda _{n + 3 + i,k}} - {\lambda _{n + 2 + i,k}}}}{{{h_i}}},\;i = 2,3,\cdots, n \tag{45a}$$ $$ {\beta _k}_{,{\theta _1}} = \frac{{{\lambda _{n + 4,k}}}}{{{h_1}}}\tag{45b} $$ $$ {\beta _k}_{,{{\dot \theta }_i}} = \frac{{{\lambda _{1 + i,k}} - {\lambda _{i,k}}}}{{{h_i}}},\;i = 2,3,\cdots, n \tag{45c}$$ $$ {\beta _k}_{,{{\dot \theta }_1}} = \frac{{{\lambda _{2,k}}}}{{{h_1}}} \tag{45d}$$ 阻尼器阻尼力
${P_{\text{G}}}$ 和阻尼力变化率${\dot P_{\text{G}}}$ 的模态强度系数分别为$$ {\beta _k}_{,{P_{\text{G}}}} = \frac{{{k_0}{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} + \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}}\tag{46a} $$ (46a) $$ \begin{split} &{\beta _k}_{,{{\dot P}_{\text{G}}}} = {k_{\text{d}}}{\lambda _{n + 2,k}} - \frac{{k_{\text{d}}^2{\lambda _{n + 2,k}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} -\\ &\qquad\frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }}\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}} \end{split}\tag{46b}$$ (46b) 支撑位移
${x_{\text{d}}}$ 和支撑位移变化率${\dot x_{\text{d}}}$ 的模态强度系数分别为$$ {\beta _k}_{,{x_{\text{d}}}} = \frac{{{k_0}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} + \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}}\tag{47a} $$ $$ \begin{split} &{\beta _k}_{,{{\dot x}_{\text{d}}}} = {\lambda _{n + 2,k}} - \frac{{{k_{\text{d}}}{\lambda _{n + 2,k}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }} -\\ &\qquad\frac{1}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }}\displaystyle\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}} \end{split}\tag{47b}$$ 阻尼器位移
${x_{\text{Q}}}$ 和阻尼器位移变化率${\dot x_{\text{Q}}}$ 的模态强度系数分别为$$ {\beta _k}_{,{x_{\text{Q}}}} = \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{\lambda _{2n + 4,k}} - \frac{1}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 2n + 5}^{2n + r + 4} {{\lambda _{j,k}}}\tag{48a} $$ $$ \begin{split} &{\beta _k}_{,{{\dot x}_{\text{Q}}}} = \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }}{\lambda _{n + 2,k}} + \\ &\qquad\frac{1}{{{k_0} + {k_{\text{d}}} + \displaystyle\sum\limits_{j = 1}^r {{k_{{{\text{p}}_j}}}} }}\displaystyle\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}} {\lambda _{2n + 4 + j,k}} \end{split}\tag{48b}$$ 3. 响应方差
根据随机振动理论[17], 响应
$X(t)$ 的协方差可表示为$$ {C_X}(\tau ) = {{E}}[X(t)X(t + \tau )] = \sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {{{E}}[{X_k}(t){X_j}(t + \tau )]} } $$ (49) 式中,
${{E}}[ \cdot ]$ 为数学期望.将式(41)代入式(49), 得系统响应分量的协方差为
$$\begin{split} &{{E}}[{X_k}(t){X_j}(t + \tau )] = {\beta _k}{\beta _j}\int_0^\infty {\int_0^\infty {{{\rm{e}}^{{q_k}u}}} } {{\rm{e}}^{{q_j}v}} \cdot\\ &\qquad {{E}}[{w_k}(t - u){w_j}(t + \tau - v)]{\text{d}}u{\text{d}}v= \\ &\qquad {\beta _k}{\beta _j}\int_0^\infty {\int_0^\infty {{{\rm{e}}^{{q_k}u}}} } {{\rm{e}}^{{q_j}v}}{C_w}(\tau + u - v){\text{d}}u{\text{d}}v\end{split} $$ (50) 要进一步对式(50)求积分, 必须先得到激励
$w(t)$ 的协方差表达式, 由于$w(t)$ 是白噪声随机过程, 故其协方差函数可表示为$$ {C_w}(\tau + u - v) = 2{\text{π }}{{{S}}_{\text{0}}}\delta (\tau + u - v) $$ (51) 式中,
$ \delta ( \cdot ) $ 为Dirac函数.将式(51)代入式(50), 可将式(50)重写为
$$\begin{split} &{{E}}[{X_k}(t){X_j}(t + \tau )] = 2{\text{π }}{S_0}{\beta _k}{\beta _j}\int_0^\infty {\int_0^\infty {{{\rm{e}}^{{q_k}u}}} } {{\rm{e}}^{{q_j}v}} \cdot\\ &\qquad\delta (\tau + u - v){\text{d}}u{\text{d}}v\end{split} $$ (52) 利用Dirac函数的性质, 对式(52)的积分部分进行运算可得
$$ \begin{split} &{{E}}[{X_k}(t){X_j}(t + \tau )] = - 2{\text{π }}{S_0}{\beta _k}{\beta _j}{{\rm{e}}^{{q_k}\tau }}\int_0^\infty {{{\rm{e}}^{({q_k} + {q_j})u}}} {\text{d}}u =\\ &\qquad - 2{\text{π }}{S_0}{\beta _k}{\beta _j}\frac{{{{\rm{e}}^{{q_k}\tau }}}}{{{q_k} + {q_j}}} \end{split}$$ (53) 将式(53)代入式(49), 系统响应
$X(t)$ 的协方差最终可简化为$$ {C_X}(\tau ) = - 2{\text{π }}{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}{\beta _j}}}{{{q_k} + {q_j}}}} } {{\rm{e}}^{{q_k}\tau }} $$ (54) 令式(54)中
$\tau = 0$ , 即得系统响应方差$$ \sigma _X^2 = {C_X}(0) = - 2{\text{π }}{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}{\beta _j}}}{{{q_k} + {q_j}}}} } $$ (55) 式中,
${\beta _k}$ 与${\beta _j}$ 的具体表达式详见式(42a) ~ 式(48b). 将式(42a) ~ 式(48b)分别代入式(55), 可得系统系列响应方差.4. 响应功率谱与谱矩
根据Wiener-Khinchin关系[17], 平稳随机过程功率谱密度是其相应协方差函数的Fourier变换, 即
$$ {S_X}(\omega ) = \frac{1}{{\text{π }}}\int_0^\infty {{C_X}(\tau )} \cos (\omega \tau ){\text{d}}\tau $$ (56) 将式(54)代入式(56)并对积分部分进行运算, 得系统系列响应功率谱
${S_X}(\omega )$ 为$$ {S_X}(\omega ) = 2{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}{\beta _j}}}{{{q_k} + {q_j}}}} } \frac{{{q_k}}}{{{\omega ^2} + q_k^2}} $$ (57) 式中,
${\beta _k}$ 与${\beta _j}$ 的具体表达式详见式(42a) ~ 式(48b). 将式(42a) ~ 式(48b)分别代入式(57), 可得系统系列响应功率谱函数, 例如, 将式(42a)代入式(57), 可得上部结构第$i$ 层楼的位移功率谱表达式为:${S_{{x_i}}} = 2{S_0}\displaystyle\sum\limits_{k = 1}^N {\displaystyle\sum\limits_{j = 1}^N {\dfrac{{{\lambda _{n + 3 + i,k}}{\lambda _{n + 3 + i,j}}}}{{{q_k} + {q_j}}}} } \dfrac{{{q_k}}}{{{\omega ^2} + q_k^2}}$ .系统响应的
$i$ 阶谱矩${\kappa _{X,i}}$ 定义为[17]$$ {\kappa _{X,i}} = 2\int_0^\infty {{S_X}(\omega ){\omega ^i}} {\text{d}}\omega ,\;\;i = 0,1,2 $$ (58) 令式(58)中
$i = 0$ , 并对积分部分进行运算, 得系统响应的0阶谱矩为$$ {\kappa _{X,0}} = - 2{\text{π }}{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}{\beta _j}}}{{{q_k} + {q_j}}}} } = \sigma _X^2 $$ (59) 根据随机振动理论[17], 系统响应的方差等于0阶谱矩, 式(59)验证了本文方法的正确性. 系统响应的2阶谱矩等于相应变化率的0阶谱矩, 因此, 系统响应的2阶谱矩可表示为
$$ {\kappa _{X,2}} = {\kappa _{\dot X,0}} $$ (60) 式中,
$\dot X = {{{\text{d}}X} \mathord{\left/ {\vphantom {{{\text{d}}X} {{\text{d}}t}}} \right. } {{\text{d}}t}}$ .令式(58)中
$i = 1$ , 可得系统响应的1阶谱矩为$$ {\kappa _{X,1}} = - 2{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}{\beta _j}}}{{{q_k} + {q_j}}}} } {q_k}\ln q_k^2 $$ (61) 计算0阶谱矩和1阶谱矩时,
${\beta _k}$ 与${\beta _j}$ 的具体值由式(42a)、式(43a)、式(44a)、式(44b)、式(45a)、式(45b)、式(46a)、式(47a)以及式(48a)确定. 计算2阶谱矩时,${\beta _k}$ 与${\beta _j}$ 的具体值由相应系统系列响应变化率式(42b)、式(43b)、式(44c)、式(44d)、式(45c)、式(45d)、式(46b)、(47b)以及式(48b)确定.5. 算例
为了验证本文方法求解地震响应的正确性, 将其和虚拟激励法对一栋10层钢筋混凝土基础耗能隔震结构进行对比分析. 基础耗能隔震结构力学模型如图1所示, 上部结构各层的层高
${h_1},{h_2},\cdots, {h_{10}} = 3.6\;{\text{m}}$ , 各层质量${m_1},{m_2},\cdots, {m_{10}} = 310 \;{\rm{t}}$ , 各层的层间刚度${k_1},{k_2},\cdots, {k_{10}} = 170 \;{\text{MN/m}}$ , 结构阻尼比$\xi = 0.05$ , 结构的阻尼采用Rayleigh阻尼, 两个比例系数分别为${a_0} = 0.262$ 和${a_1} = 0.007\;2$ . 隔震层质量${m_{\text{b}}} = 440 \;{\rm{t}}$ , 隔震层刚度${k_{\text{b}}} = 30\;{\text{MN/m}}$ , 隔震层阻尼比${\xi _{\text{b}}} = 0.1$ , 支撑刚度${k_{\text{d}}} = 1.5{k_{\text{b}}}$ . 隔震层设置广义Maxwell阻尼器, 广义Maxwell阻尼器中Maxwell阻尼单元的个数$r = 2$ , 阻尼器平衡刚度${k_0} = 1.2 \;{\text{MN/m}}$ , 两个Maxwell分支单元的刚度和松弛时间分别为${k_{{{\text{p}}_1}}} = 1.35 \;{\text{MN/m}}$ ,${k_{{{\text{p}}_2}}} = 1.26 \;{\text{MN/m}}$ ,${t_1} = 0.05\;{\text{s}}$ ,${t_2} = 0.08\;{\text{s}}$ . 抗震设防烈度为8度, Ⅱ类场地, 胡聿贤谱中低频截止频率${\omega _{\text{c}}} = 2\;{\text{rad/s}}$ , 根据文献[30], 胡聿贤谱激励的其他参数为: 场地频率${\omega _{\text{g}}} = 15.71\;{\text{rad/s}}$ , 场地阻尼比${\xi _{\text{g}}} = 0.72$ , 功率谱强度因子${S_0} = 61.93 \;{{\text{cm}}^2}/{{\text{s}}^3}$ .5.1 激励与响应功率谱验证
由式(15a)和式(15b), 地面运动加速度可表示为
$$ {\ddot x_{\text{g}}} = - 2{\xi _{\text{g}}}{\omega _{\text{g}}}{\dot u_{\text{g}}} - \omega _{\text{g}}^2{u_{\text{g}}} $$ (62) 根据式(18)、式(21)和式(24), 将地面加速度表示为Duhamel积分形式
$$ {\ddot x_{\text{g}}} = \sum\limits_{k = 1}^N {( - 2} {\xi _{\text{g}}}{\omega _{\text{g}}}{\lambda _{1,k}} - \omega _{\text{g}}^{\text{2}}{\lambda _{n + 3,k}})\int_0^t {{{\rm{e}}^{{q_k}\tau }}} w(t - \tau ){\text{d}}\tau $$ (63) 地面加速度
${\ddot x_{\text{g}}}$ 的模态强度系数为$$ {\beta _k}_{,{{\ddot x}_{\text{g}}}} = - 2{\xi _{\text{g}}}{\omega _{\text{g}}}{\lambda _{1,k}} - \omega _{\text{g}}^{\text{2}}{\lambda _{n + 3,k}} $$ (64) 将式(64)代入式(57), 得本文方法地面加速度功率谱为
$$ {S_{{{\ddot x}_{\text{g}}}}}(\omega ) = 2{S_0}\sum\limits_{k = 1}^N {\sum\limits_{j = 1}^N {\frac{{{\beta _k}_{,{{\ddot x}_{\text{g}}}}{\beta _{j,{{\ddot x}_{\text{g}}}}}}}{{{q_k} + {q_j}}}} } \frac{{{q_k}}}{{{\omega ^2} + q_k^2}} $$ (65) 胡聿贤地震动模型的传统功率谱表达式为[13]
$$ {\bar S_{{{\ddot x}_{\text{g}}}}}(\omega ) = \frac{{\omega _{\text{g}}^4 + 4\xi _{\text{g}}^2\omega _{\text{g}}^2{\omega ^2}}}{{{{(\omega _{\text{g}}^{\text{2}} - {\omega ^2})}^2} + 4\xi _{\text{g}}^{\text{2}}\omega _{\text{g}}^2{\omega ^2}}} \frac{{{\omega ^6}}}{{{\omega ^6} + \omega _{\text{c}}^6}}{S_0} $$ (66) 本文方法与虚拟激励法都是根据各响应功率谱求解地震响应, 因此, 有必要验证激励功率谱与各响应功率谱的正确性. 根据式(65)和式(66), 绘制本文方法和传统胡聿贤地震动模型功率谱曲线, 如图3所示; 根据式(57)和附录式(A16)、附录式(A17), 绘制本文方法和虚拟激励法得到的各响应功率谱曲线, 如图4 ~ 图11所示.
由图3可知, 本文方法与传统表达式绘制的胡聿贤地面加速度功率谱曲线完全吻合, 验证了本文方法计算地面加速度功率谱的正确性, 表明通过滤波方程将胡聿贤谱激励等效转化为白噪声激励进行求解, 只是物理上的转换, 并不会改变地震激励的相关特性. 由图4 ~ 图11可知, 本文方法与虚拟激励法绘制的系统系列响应功率谱曲线完全吻合, 验证了本文方法计算系统系列响应功率谱和模态强度系数的正确性. 由式(57)可知, 本文所得系统系列响应功率谱表达式均为模态强度系数
${\beta _k}$ 、系统特征值${q_k}$ 、功率谱频域变量$\omega $ 以及谱强度因子${S_0}$ 相同规律的组合, 其中$1/({\omega ^2} + q_k^2)$ 项为二次正交形式, 功率谱的二次正交化可使系统系列响应功率谱形式保持一致, 只是各响应模态强度系数不同, 式(57)体现了本文功率谱表达式的简洁性, 并且从功率谱表达式可直观看出功率谱强度大小和峰值随$\omega $ 的变化情况.5.2 谱矩计算精度和效率
为了验证本文方法计算系统系列响应0 ~ 2阶谱矩的正确性, 与虚拟激励法计算的系统系列响应0 ~ 2阶谱矩进行对比分析. 因为虚拟激励法计算谱矩是对其功率谱进行数值积分, 谱矩计算精度与选择的积分步长和积分区间密切相关, 积分区间越大同时积分步长越小, 所得谱矩值就越精确. 由系统系列响应功率谱图4 ~ 图11可知, 功率谱的卓越频率均在
$50\;{\text{rad/s}}$ 以内, 因此, 将频域积分上限取为$300\;{\text{rad/s}}$ , 已足够高过响应功率谱的卓越频率. 在积分区间$[0,500]$ 内, 通过逐步缩小积分步长确定谱矩值, 为提高计算结果的精度, 虚拟激励法积分步长分3种情况取值, 分别为: ①$\Delta \omega {\text{ = 0}}{\text{.01 rad/s}}$ ; ②$\Delta \omega {\text{ = 0}}{\text{.15 rad/s}}$ ; ③$\Delta \omega {\text{ = 0}}{\text{.25 rad/s}}$ . 图12 ~ 图14为上部结构和隔震层绝对位移的0 ~ 2阶谱矩值, 其中, 隔震层谱矩值为隔震层相对于地面的谱矩值, 上部结构谱矩值为上部结构相对于隔震层的谱矩值; 图15 ~ 图17为上部结构层间位移角的0 ~ 2阶谱矩值.为了与虚拟激励法取不同积分区间的0 ~ 2阶谱矩值进行对比, 以计算阻尼器位移谱矩值为例, 将频域积分步长统一取为
$\Delta \omega {\text{ = 0}}{\text{.001 rad/s}}$ , 通过逐步增大积分区间确定谱矩值, 虚拟激励法积分区间分3种情况取值, 分别为: ④$[0,100];$ ⑤$[0,200];$ ⑥$[0,300]$ . 表1为阻尼器位移0 ~ 2阶谱矩值, 表中的误差为虚拟激励法与本文方法谱矩值的绝对误差, 反映的是虚拟激励法随着积分区间的增大, 所得谱矩值与本文方法谱矩值的变化情况.表 1 阻尼器位移0 ~ 2阶谱矩计算效率及误差Table 1. Calculation efficiency and accuracy of 0 ~ 2 spectral moments of damping displacementCalculation method ${\kappa _{ {x_{\text{Q} } },0} }$/dm2 ${\kappa _{{x_{\text{Q}}},1}}$/(dm2·s−1) ${\kappa _{{x_{\text{Q}}},2}}$/(dm2·s−2) Calculation efficiency/s Spectral moments accuracy of the two different methods ${\kappa _{{x_{\text{Q}}},0}}$/10−4 ${\kappa _{{x_{\text{Q}}},1}}$/10−10 ${\kappa _{{x_{\text{Q}}},2}}$/10−4 proposed method 0.6084 468 843 1.297 982 139 3.327 165 301 0.066 — — — ④ 0.5390 152 152 1.297 980 768 3.314 674 633 3.640 6.943 166 908 137.063 824 561 1.249 066 775 ⑤ 0.5390 152 259 1.297 982 054 3.314 834 531 7.105 6.943 165 844 8.455 587 151 1.233 076 952 ⑥ 0.5390 152 262 1.297 982 122 3.314 850 406 10.408 6.943 165 814 1.666 144 896 1.231 489 450 Note: ④, ⑤, ⑥ represent the integral range of the pseudo excitation method taken as [0, 100], [0, 200], [0, 300], respectively 由图12 ~ 图17可知, 随着频域积分步长
$\Delta \omega $ 的减小, 虚拟激励法计算得到的结构位移和层间位移角的0 ~ 2阶谱矩值更逼近本文方法得到的谱矩值; 由表1可知, 随着积分区间的增大, 虚拟激励法计算得到的阻尼器位移0 ~ 2阶谱矩值同样更逼近本文方法得到的谱矩值, 这逼近的变化趋势表明了本文所得谱矩值的精确性. 基于同一CPU计算结构位移和层间位移角的0 ~ 2阶谱矩值, 本文方法一共耗时$0.188\;{\text{s}}$ , 虚拟激励法3种情况分别耗时: ①$0.499\;{\text{s}}$ , ②$0.839\;{\text{s}}$ , ③$4.305\;{\text{s}}$ , 虚拟激励法随着频域积分步长的减小耗时逐渐增加; 由表1可知, 虚拟激励法随着频域积分区间的增大, 谱矩计算精度越高, 但耗时也基本成相同数量级增加, 积分区间每增大$100\;{\text{rad/s}}$ , 耗时就增大$3\;{\text{s}}$ 左右. 本文方法耗时均低于虚拟激励法6种情况耗时, 由此可见, 尽管本文通过复模态扩阶求解, 但由于所得响应为不带积分的解析解, 计算效率得到极大提高.5.3 阻尼器减震效果
为研究随支撑刚度变化耗能系统的系列响应方差, 令支撑刚度
${k_{\text{d}}} = {r_{\text{b}}}{k_{\text{b}}}$ ,${r_{\text{b}}}$ 为支撑刚度与隔震层刚度的比值,${r_{\text{b}}}$ 按照以下6种工况取值, 分别为0.1, 0.5, 1.5, 5, 10, 50. 表2为6种工况下得到的阻尼力方差$\sigma _{P_{\text{G}}^{}}^2$ 、阻尼器位移方差$\sigma _{x_{\text{Q}}^{}}^2$ 、支撑位移方差$\sigma _{x_{\text{d}}^{}}^2$ 、隔震层相对地面位移方差$\sigma _{x_{\text{b}}^{}}^2$ 、最大层间位移角方差$\sigma _{\theta _{i,\max }^{}}^2$ 以及结构相对隔震层总位移方差$\sigma _x^2$ .表 2 系统系列响应方差Table 2. System series response variances${r_{\rm{b}}}$ $\sigma _{P_{\text{G}}^{}}^2/$1010 N2 $\sigma _{x_{\text{Q}}^{}}^2/$dm2 $\sigma _{x_{\text{d}}^{}}^2/$ m2 $\sigma _{x_{\text{b}}^{}}^2/$dm2 $\sigma _{\theta _{i,\max }^{}}^2$/10−5 $\sigma _x^2/$dm2 0.1 0.58 0.34 6.43 × 10−4 0.68 1.47 0.68 0.5 0.96 0.55 4.25 × 10−5 0.65 1.42 0.66 1.5 1.05 0.61 5.19 × 10−6 0.64 1.41 0.65 5 1.09 0.63 4.84 × 10−7 0.64 1.41 0.65 10 1.10 0.63 1.22 × 10−7 0.64 1.41 0.65 50 1.10 0.64 4.90 × 10−9 0.64 1.41 0.65 由表2计算结果可知, 随着
${r_b}$ 的增大, 阻尼器所提供的阻尼力和阻尼器位移增大, 支撑位移、隔震层位移、最大层间位移角以及结构总位移减小, 也即: 通过适当增加支撑刚度, 能有效减小结构的地震响应. 对于本算例, 当比值${r_{\text{b}}}$ 超过1.5时, 隔震层位移、最大层间位移角和结构相对隔震层的总位移不再改变, 也即: 当支撑刚度增加到一定限度时, 结构的耗能减震效果基本趋于稳定. 进行消能支撑结构设计时, 在结构变形满足抗震规范要求的情况下, 支撑刚度可以最小化以提高经济性.6. 结 论
本文对带支撑耗能隔震系统进行研究, 以胡聿贤谱为激励做了一个完整的求解过程, 为同时提高响应分析的精度与效率, 提出求解带支撑耗能隔震系统随机地震响应的简明解析解法, 得出以下结论.
(1)通过对比地面加速度功率谱密度函数, 验证了地面激励等效转化(通过滤波方程将胡聿贤谱激励转化为白噪声激励)的正确性.
(2)本文所得谱矩解和方差解为无积分运算的解析解, 对于给定相应参数, 计算的0 ~ 2阶谱矩值是精确解, 虚拟激励法最精确的谱矩值和本文方法最为接近, 验证了谱矩表达式的精确性, 同时有显著的计算效率优势, 所得谱矩解可应用于结构动力可靠度分析.
(3)支撑刚度对阻尼器减震效果有重要影响, 支撑刚度越大, 阻尼器减震效果越好, 当支撑刚度大到一定程度时, 阻尼器减震效果基本趋于稳定.
附录A
$ \;$ 耗能隔震系统的虚拟激励法根据虚拟激励法[31], 式(1)和式(2)可分别表示为
$$\begin{split} &( - {\boldsymbol{M}}{\omega ^2} + {\boldsymbol{C}}{\text{i}}\omega + {\boldsymbol{K}}){\boldsymbol{x}}(\omega ) = \\ &\qquad- {\boldsymbol{M}}{{\boldsymbol{I}}_0}\sqrt {{{\bar S}_{{{\ddot x}_{\text{g}}}}}(\omega )} {{\rm{e}}^{{\text{i}}\omega t}} + {\boldsymbol{M}}{{\boldsymbol{I}}_0}{\omega ^2}{x_{\text{b}}}(\omega ) \end{split}\tag{A1}$$ $$ \begin{split} &{m_0}\sqrt {{{\bar S}_{{{\ddot x}_{\text{g}}}}}(\omega )} {{\rm{e}}^{{\text{i}}\omega t}} - {m_0}{\omega ^2}{x_{\text{b}}}{\text{(}}\omega {\text{)}} - {\boldsymbol{I}}_0^{\text{T}}{\boldsymbol{M}}{\omega ^2}{\boldsymbol{x}}(\omega ) + \\ &\qquad{c_{\text{b}}}{\text{i}}\omega {x_{\text{b}}}(\omega ) + {k_{\text{b}}}{x_{\text{b}}}(\omega ) + {P_{\text{G}}}(\omega ) = 0 \end{split}\tag{A2}$$ 式中,
${\text{i}}$ 为虚数单位,${\text{i}} = \sqrt { - 1} $ ;${\boldsymbol{x}}(\omega ) = [{x_1}(\omega ),{x_2}(\omega ), \cdots ,$ ${x_n}(\omega )]^{\text{T}} $ .式(A1)和式(A2)中, 需要求解的未知数有3个, 分别是
${x_{\text{b}}}(\omega )$ ,${\boldsymbol{x}}(\omega )$ 和${P_{\text{G}}}(\omega )$ . 将通过等效阻尼器力的平衡关系和Maxwell阻尼器微分本构关系, 将${P_{\text{G}}}(\omega )$ 转化为用${x_{\text{b}}}(\omega )$ 表示, 变换过程如式(A3) ~ 式(A10)所示.由式(4)和式(8)阻尼力的平衡关系, 可得
$$ \begin{split} &{k_0}{x_{\text{Q}}}(\omega ) + \sum\limits_{j = 1}^r {{p_j}} (\omega ) =\\ &\qquad\frac{{{k_0}{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{x_{\text{b}}}(\omega ) + \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 1}^r {{p_j}} (\omega )\end{split}\tag{A3} $$ 由式(11)Maxwell阻尼微分本构关系, 可得
$$ {\text{i}}\omega {p_j}(\omega ) + \frac{{{k_{{{\text{p}}_j}}}}}{{{c_{{{\text{p}}_j}}}}}{p_j}(\omega ) = {\text{i}}\omega {k_{{{\text{p}}_j}}}{x_{\text{Q}}}(\omega )\tag{A4} $$ 由式(A4), 得
${p_j}(\omega )$ 与${x_{\text{Q}}}(\omega )$ 的关系为$$ {p_j}(\omega ) = \frac{{{\text{i}}\omega {k_{{{\text{p}}_j}}}}}{{{\text{i}}\omega + {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}}}}{x_{\text{Q}}}(\omega )\tag{A5} $$ 将式(A5)代入式(A3), 得
${x_{\text{b}}}(\omega )$ 与${x_{\text{Q}}}(\omega )$ 的关系为$$ {x_{\text{b}}}(\omega ) = \Biggr(\frac{{{k_0} + {k_{\text{d}}}}}{{{k_{\text{d}}}}} + \frac{{{\text{i}}\omega }}{{{k_{\text{d}}}}}\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{\text{i}}\omega + {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}}}}} \Biggr){x_{\text{Q}}}(\omega )\tag{A6} $$ 令
$$ \alpha (\omega ) = \frac{{{k_0} + {k_{\text{d}}}}}{{{k_{\text{d}}}}} + \frac{{{\text{i}}\omega }}{{{k_{\text{d}}}}}\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}}}{{{\text{i}}\omega + {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}}}}} \tag{A7}$$ 将式(A6)改写为
$$ {x_{\text{Q}}}(\omega ) = \frac{1}{{\alpha (\omega )}}{x_{\text{b}}}(\omega )\tag{A8} $$ 将式(A8)代入式(A5), 得
${p_j}(\omega )$ 与${x_{\text{b}}}(\omega )$ 的关系为$$ {p_j}(\omega ) = \frac{{{\text{i}}\omega {k_{{{\text{p}}_j}}}/\alpha (\omega )}}{{{\text{i}}\omega + {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}}}}{x_{\text{b}}}(\omega )\tag{A9} $$ 将式(A9)代入式(A3), 得等效阻尼器受力
${P_{\text{G}}}(\omega )$ 为$$ {P_{\text{G}}}(\omega ) = \frac{{{k_0}{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}{x_{\text{b}}}(\omega ) + {\text{i}}\omega \frac{{{k_{\text{d}}}}}{{{k_0} + {k_{\text{d}}}}}\sum\limits_{j = 1}^r {\frac{{{k_{{{\text{p}}_j}}}/\alpha (\omega )}}{{{\text{i}}\omega + {k_{{{\text{p}}_j}}}/{c_{{{\text{p}}_j}}}}}} {x_{\text{b}}}(\omega )\tag{A10} $$ 联立式(A1)、式(A2)和式(A10), 即可求出
${x_{\text{b}}}(\omega )$ ,${\boldsymbol{x}}(\omega )$ 和${P_{\text{G}}}(\omega )$ 的频域解.隔震层位移频域解
${x_{\text{b}}}(\omega )$ 为$$ \begin{split} & {x_{\rm{b}}}(\omega ) = {{ - {m_0}\sqrt {{{\bar S}_{{{\ddot x}_{\rm{g}}}}}(\omega )} {{\rm{e}}^{{\rm{i}}\omega t}} - {\boldsymbol{I}}_0^{\rm{T}}{\boldsymbol{M}}{\omega ^2} \times {{( - {\boldsymbol{M}}{\omega ^2} + {\boldsymbol{C}}{\rm{i}}\omega + {\boldsymbol{K}})}^{ - 1}} \times {\boldsymbol{M}}{{\boldsymbol{I}}_0}\sqrt {{{\bar S}_{{{\ddot x}_{\rm{g}}}}}(\omega )} {{\rm{e}}^{{\rm{i}}\omega t}}}}\Big/ \Big[ - {m_0}{\omega ^2} - {\boldsymbol{I}}_0^{\rm{T}} m{\omega ^2} \times {( - {\boldsymbol{M}}{\omega ^2} + {\boldsymbol{C}}{\rm{i}}\omega + {\boldsymbol{K}})^{ - 1}} \times\\ & \qquad {\boldsymbol{M}}{{\boldsymbol{I}}_0}{\omega ^2} + {\rm{i}}\omega {c_{\rm{b}}} + {k_{\rm{b}}} + {k_0}{k_{\rm{d}}}/({k_0} + {k_{\rm{d}}}) + {\rm{i}}\omega {k_{\rm{d}}}/({k_0} + {k_{\rm{d}}}) \times \displaystyle\sum\limits_{j = 1}^r {\frac{{{k_{{{\rm{p}}_j}}}/\alpha (\omega )}}{{{\rm{i}}\omega + {k_{{{\rm{p}}_j}}}/{c_{{{\rm{p}}_j}}}}}\Big]} \end{split}\tag{A11} $$ 将式(A11)代入式(A8), 即得阻尼器位移频域解
${x_{\text{Q}}}(\omega )$ 的表达式; 将式(A11)代入式(A10), 即得等效阻尼器受力频域解${P_{\text{G}}}(\omega )$ 的表达式.上部结构位移频域解
${\boldsymbol{x}}(\omega )$ 为$$ {\boldsymbol{x}}(\omega ) = \frac{{ - {\boldsymbol{M}}{{\boldsymbol{I}}_0}\sqrt {{{\bar S}_{{{\ddot x}_{\text{g}}}}}(\omega )} {{\rm{e}}^{{\text{i}}\omega t}} + {\boldsymbol{M}}{{\boldsymbol{I}}_0}{\omega ^2}{x_{\text{b}}}(\omega )}}{{ - {\boldsymbol{M}}{\omega ^2} + {\boldsymbol{C}}{\text{i}}\omega + {\boldsymbol{K}}}}\tag{A12} $$ 式中,
${x_{\text{b}}}(\omega )$ 是已知项, 其具体表达式详见式(A11).由式(3)、式(5)和式(A10), 支撑位移频域解
${x_{\text{d}}}(\omega )$ 为$$ {x_{\text{d}}}(\omega ) = \frac{{{P_{\text{G}}}(\omega )}}{{{k_{\text{d}}}}}\tag{A13} $$ 第
$i$ 层的层间位移频域解$\Delta {x_i}$ 为$$ \Delta {x_1}(\omega ) = {x_1}(\omega ),\;\;i = 1\qquad\qquad\qquad\;\;\;\; \tag{A14a} $$ $$ \Delta {x_i}(\omega ) = {x_i}(\omega ) - {x_{i - 1}}(\omega ),\;\;i = 2,3,\cdots, n\tag{A14b} $$ (A14b) 式中,
${x_i}(\omega )$ 可由式(A12)计算得到.第
$i$ 层的层间位移角频域解${\theta _i}(\omega )$ 为$$ {\theta _1}(\omega ) = \frac{{{x_1}(\omega )}}{{{h_1}}},\;\;i = 1\tag{A15a} $$ $$ {\theta _i}(\omega ) = \frac{{{x_i}(\omega ) - {x_{i - 1}}(\omega )}}{{{h_i}}},\;i = 2,3,\cdots, n \tag{A15b} $$ 至此, 系统系列响应频域解可由式(A8)、式(A10) ~ 式(A15)计算得到, 将频域解
${x_{\text{Q}}}(\omega )$ ,${P_{\text{G}}}(\omega )$ ,${x_{\text{b}}}(\omega )$ ,${x_i}(\omega )$ ,${x_{\text{d}}}(\omega )$ ,$\Delta {x_i}(\omega )$ ,${\theta _i}(\omega )$ 用统一符号$X(\omega )$ 表示.系统系列响应功率谱可表示为
$$ {S_{X,PEM}}(\omega ) = X(\omega ) {X^*}(\omega )\tag{A16} $$ 式中,
${X^*}(\omega )$ 是$X(\omega )$ 的共轭项.系统系列响应速度功率谱可表示为
$$ {S_{\dot X,PEM}}(\omega ) = {\omega ^2}{S_{X,PEM}}(\omega )\tag{A17}$$ 谱矩的定义如式(60)所示, 对于虚拟激励法, 将功率谱密度乘以
${\omega ^i}$ 并积分即可求得谱矩. 将式(A16)代入式(60), 系统系列响应的0 ~ 2阶谱矩可表示为$$ {\kappa _{X,i}} = 2{\int_0^{\infty} {{\omega ^i}S} _{X,PEM}}{\text{(}}\omega {\text{)d}}\omega ,\;\;i = 0,1,2 \tag{A18}$$ (A18) 式中,
$i = 0$ , 1, 2分别表示系统响应的零阶、一阶和二阶谱矩. -
![]()
图 1 基础耗能隔震结构力学模型
Figure 1. Mechanical model of base energy dissipation isolated structure
![]()
图 2 带支撑广义Maxwell阻尼器力学模型
Figure 2. Mechanical model of generalized Maxwell damper with braces
表 1 阻尼器位移0 ~ 2阶谱矩计算效率及误差
Table 1 Calculation efficiency and accuracy of 0 ~ 2 spectral moments of damping displacement
Calculation method ${\kappa _{ {x_{\text{Q} } },0} }$/dm2 ${\kappa _{{x_{\text{Q}}},1}}$/(dm2·s−1) ${\kappa _{{x_{\text{Q}}},2}}$/(dm2·s−2) Calculation efficiency/s Spectral moments accuracy of the two different methods ${\kappa _{{x_{\text{Q}}},0}}$/10−4 ${\kappa _{{x_{\text{Q}}},1}}$/10−10 ${\kappa _{{x_{\text{Q}}},2}}$/10−4 proposed method 0.6084 468 843 1.297 982 139 3.327 165 301 0.066 — — — ④ 0.5390 152 152 1.297 980 768 3.314 674 633 3.640 6.943 166 908 137.063 824 561 1.249 066 775 ⑤ 0.5390 152 259 1.297 982 054 3.314 834 531 7.105 6.943 165 844 8.455 587 151 1.233 076 952 ⑥ 0.5390 152 262 1.297 982 122 3.314 850 406 10.408 6.943 165 814 1.666 144 896 1.231 489 450 Note: ④, ⑤, ⑥ represent the integral range of the pseudo excitation method taken as [0, 100], [0, 200], [0, 300], respectively
下载: 导出CSV
表 2 系统系列响应方差
Table 2 System series response variances
${r_{\rm{b}}}$ $\sigma _{P_{\text{G}}^{}}^2/$1010 N2 $\sigma _{x_{\text{Q}}^{}}^2/$dm2 $\sigma _{x_{\text{d}}^{}}^2/$ m2 $\sigma _{x_{\text{b}}^{}}^2/$dm2 $\sigma _{\theta _{i,\max }^{}}^2$/10−5 $\sigma _x^2/$dm2 0.1 0.58 0.34 6.43 × 10−4 0.68 1.47 0.68 0.5 0.96 0.55 4.25 × 10−5 0.65 1.42 0.66 1.5 1.05 0.61 5.19 × 10−6 0.64 1.41 0.65 5 1.09 0.63 4.84 × 10−7 0.64 1.41 0.65 10 1.10 0.63 1.22 × 10−7 0.64 1.41 0.65 50 1.10 0.64 4.90 × 10−9 0.64 1.41 0.65
下载: 导出CSV
-
[1] Amjadian M, Agrawal AK. Seismic response control of multi-story base-isolated buildings using a smart electromagnetic friction damper with smooth hysteretic behavior. Mechanical Systems and Signal Processing, 2019, 130: 409-432 doi: 10.1016/j.ymssp.2019.05.018
[2] 丁洁民, 涂雨, 吴宏磊等. 减隔震组合技术在高烈度抗震设防区的应用研究. 建筑结构学报, 2019, 40(2): 77-87 doi: 10.14006/j.jzjgxb.2019.02.006 Ding Jiemin, Tu Yu, Wu Honglei, et al. Application research of seismic isolation system combined with energy-dissipation technology in high seismic intensity region. Journal of Building Structures, 2019, 40(2): 77-87. (in Chinese)) doi: 10.14006/j.jzjgxb.2019.02.006
[3] Guler E, Alhan C. Performance limits of base-isolated liquid storage tanks with/without supplemental dampers under near-fault earthquakes. Structures, 2021, 33(4): 355-367
[4] Li CD, Li T, Ban DW, et al. Equivalent damping of SDOF structure with Maxwell damper. Earthquake Engineering and Engineering Vibration, 2018, 17(3): 178-190
[5] 李创第, 邹万杰, 葛新广等. 多自由度一般积分型粘弹性阻尼减震结构的随机响应与等效阻尼. 工程力学, 2013, 30(4): 136-145 doi: 10.6052/j.issn.1000-4750.2011.11.0743 Li Chuangdi, Zou Wanjie, Ge Xinguang, et al. Random response and equivalent damping of MDOF dissipation structures with general integral model viscoelastic dampers. Engineering Mechanics, 2013, 30(4): 136-145 (in Chinese)) doi: 10.6052/j.issn.1000-4750.2011.11.0743
[6] Lewandowski R, Chorazyczewski B. Identification of the parameters of the Kelvin-Voigt and the Maxwell fractional models, used to modeling of viscoelastic dampers. Computers and Structures, 2010, 88(1): 1-17
[7] 张婉洁, 牛江川, 申永军等. 含分数阶Bingham模型的阻尼减振系统时滞半主动控制. 力学学报, 2022, 54(1): 173-183 Zhang Wanjie, Niu Jiangchuan, Shen Yongjun, et al. Time-delayed semi-active control of damping system with fractional-order bingham model. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(1): 173-183 (in Chinese)
[8] Singh MP, Chang TS. Seismic analysis of structures with viscoelastic dampers. Journal of Engineering Mechanics, 2009, 135(6): 571-580 doi: 10.1061/(ASCE)0733-9399(2009)135:6(571)
[9] Greco R, Marano GC. Identification of parameters of Maxwell and Kelvin-Voigt generalized models for fluid viscous dampers. Journal of Vibration and Control, 2015, 21(2): 260-274 doi: 10.1177/1077546313487937
[10] Lu LY, Ging LL, Shih MH. An experimental study on a generalized Maxwell model for nonlinear viscoelastic dampers used in seismic isolation. Engineering Structures, 2012, 34: 111-123 doi: 10.1016/j.engstruct.2011.09.012
[11] Mazza F, Vulcano A. Control of the earthquake and wind dynamic response of steel-framed buildings by using additional braces and/or viscoelastic dampers. Earthquake Engineering and Structural Dynamics, 2011, 40(2): 155-174 doi: 10.1002/eqe.1012
[12] Mohsenian V, Mortezaei A. A new energy-absorbing system for seismic retrofitting of frame structures with slender braces. Bulletin of Earthquake Engineering, 2019, 17(5): 2715-2739 doi: 10.1007/s10518-018-00543-7
[13] Robert T, Lacerte M, Christopoulos C. Seismic response of multistory buildings with self-centering energy dissipative steel braces. Journal of Structural Engineering, 2008, 134(1): 108-120 doi: 10.1061/(ASCE)0733-9445(2008)134:1(108)
[14] Nimtaj A, Bagheripour MH. Non-linear seismic response analysis of the layered soil deposit using hybrid frequency-time domain (HFTD) approach. European Journal of Environmental and Civil Engineering, 2013, 17(10): 1039-1056 doi: 10.1080/19648189.2013.844205
[15] Karami K, Manie S, Ghafouri K, et al. Nonlinear structural control using integrated DDA/ISMP and semi-active tuned mass damper. Engineering Structures, 2019, 181: 589-604 doi: 10.1016/j.engstruct.2018.12.059
[16] 范文亮, 盛向前. 平稳高斯激励下线性结构随机振动分析的辅助简谐激励广义法[J]. 力学学报, 2022, 54(1): 196-208 Fan Wenliang, Sheng Xiangqian. Auxiliary harmonic excitation generalized method for random vibration analysis of linear structures under stationary gaussian wxcitation. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(1): 196-208 (in Chinese)
[17] 方同. 工程随机振动. 北京: 国防工业出版社, 1995 Fang Tong. Engineering Random Vibration. Beijing: National Defense Industry Press, 1995 (in Chinese))
[18] 李鸿晶, 孙广俊, 任永亮. 平稳地震地面运动改进金井清谱的相关函数模型. 防灾减灾工程学报, 2007, 27(3): 251-257 doi: 10.13409/j.cnki.jdpme.2007.03.003 Li Hongjing, Sun Guangjun, Ren Yongliang. A correlation function model of earthquake-induuced ground process with modified Kanai-Tajimi Spectrum. Journal of Disaster Prevention and Mitigation Engineering, 2007, 27(3): 251-257 (in Chinese) doi: 10.13409/j.cnki.jdpme.2007.03.003
[19] Jangid RS. Stochastic seismic response of structures isolated by rolling rods. Engineering Structures, 2000, 22(8): 937-946
[20] Xu J, De CF. Seismic response analysis of nonlinear structures with uncertain parameters under stochastic ground motions. Soil Dynamics and Earthquake Engineering, 2018, 111: 149-159 doi: 10.1016/j.soildyn.2018.04.023
[21] Ge XG, Li CD, Azim I, et al. Structural dynamic responses of linear structures subjected to Kanai-Tajimi excitation. Structures, 2021, 34: 3958-3967 doi: 10.1016/j.istruc.2021.08.092
[22] 孙攀旭, 杨红, 刘庆林. 基于动力特性的混合结构地震响应复模态叠加法. 工程力学, 2020, 37(11): 69-82 doi: 10.6052/j.issn.1000-4750.2019.12.0723 Sun XuPan, Yang Hong, Liu Qinglin. Complex mode superposition method of hybrid structure seismic responses based on dynamic characteristics. Engineering Mechanics, 2020, 37(11): 69-82 (in Chinese)) doi: 10.6052/j.issn.1000-4750.2019.12.0723
[23] Yu H, Wang B, Li Y, et al. Semi-analytical solutions for stochastic response of non-classically damped linear structures to arbitrary time-frequency modulated seismic excitations. Earthquake Engineering and Structural Dynamics, 2021, 50(4): 1167-1186 doi: 10.1002/eqe.3394
[24] Zhao Y, Li YY, Zhang YH, et al. Nonstationary seismic response analysis of long-span structures by frequency domain method considering wave passage effect. Soil Dynamics and Earthquake Engineering, 2018, 109: 1-9 doi: 10.1016/j.soildyn.2018.02.029
[25] 霍慧, 陈国海, 王文培等. 平稳/非平稳激励下中厚圆柱壳随机振动响应的基准解. 力学学报, 2022, 54(3): 762-776 doi: 10.6052/0459-1879-21-538 Huo Hui, Chen Guohai, Wang Wenpei, et al. Bencharmark solutions of random vibration responses for moderately thick cylindrical shells under stationary/nonstationary excitations. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(3): 762-776 (in Chinese) doi: 10.6052/0459-1879-21-538
[26] 李创第, 昌明静, 柏大炼等. 黏弹性隔震系统非均匀与完全非平稳地震响应解析分析. 振动与冲击, 2021, 40(7): 193-201 doi: 10.13465/j.cnki.jvs.2021.07.026 Li Chuangdi, Chang Mingjing, Bai Dalian, et al. Analytical solution to non-uniform and completely non-stationary seismic response of viscoelastic isolation system. Journal of Vibration and Shock, 2021, 40(7): 193-201 (in Chinese) doi: 10.13465/j.cnki.jvs.2021.07.026
[27] 宋帅, 钱永久, 钱聪. 桥梁地震需求中随机参数的重要性分析方法研究. 工程力学, 2018, 35(3): 106-114 doi: 10.6052/j.issn.1000-4750.2016.11.0856 Song Shuai, Qian Yongjie, Qian Cong. Research on methods for importance analysis of random parameter in bridge seismic demand. Engineering Mechanics, 2018, 35(3): 106-114 (in Chinese) doi: 10.6052/j.issn.1000-4750.2016.11.0856
[28] Liu GH, Lian JJ, Liang C. An efficient approach for seismic analysis of multi-support structures equipped with coupled dampers using spectral moments instead of cross-correlation coefficients. Journal of Earthquake Engineering, 2016, 21(5): 701-725
[29] Alderucci T, Muscolino G. Time-frequency varying response functions of non-classically damped linear structures under fully non-stationary stochastic excitations. Probabilistic Engineering Mechanics, 2017, 54: 95-109
[30] 欧进萍, 牛荻涛, 杜修力. 设计用随机地震动的模型及其参数确定. 地震工程与工程振动, 1991, 11(3): 45-54 doi: 10.13197/j.eeev.1991.03.004 Ou Jinping, Niu Ditao, Du Xiuli. Random earthquake ground motion model and its parameter determination used in aseismic design. Earthquake Engineering and Engineering Dynamics, 1991, 11(3): 45-54 (in Chinese) doi: 10.13197/j.eeev.1991.03.004
[31] 林家浩, 张亚辉, 赵岩. 虚拟激励法在国内外工程界的应用回顾与展望. 应用数学和力学, 2017, 38 (1): 1-32 doi: 10.1007/s10483-016-2152-6 Lin Jiahao, Zhang Yahui, Zhao Yan. The pseudo-excitation method and its industrial applications in China and abroad. Applied Mathematics and Mechanics, 2017, 38 (1): 1-32 (in Chinese doi: 10.1007/s10483-016-2152-6
计量
- 文章访问数: 634
- HTML全文浏览量: 250
- PDF下载量: 89
